TABLE OF CONTENTS

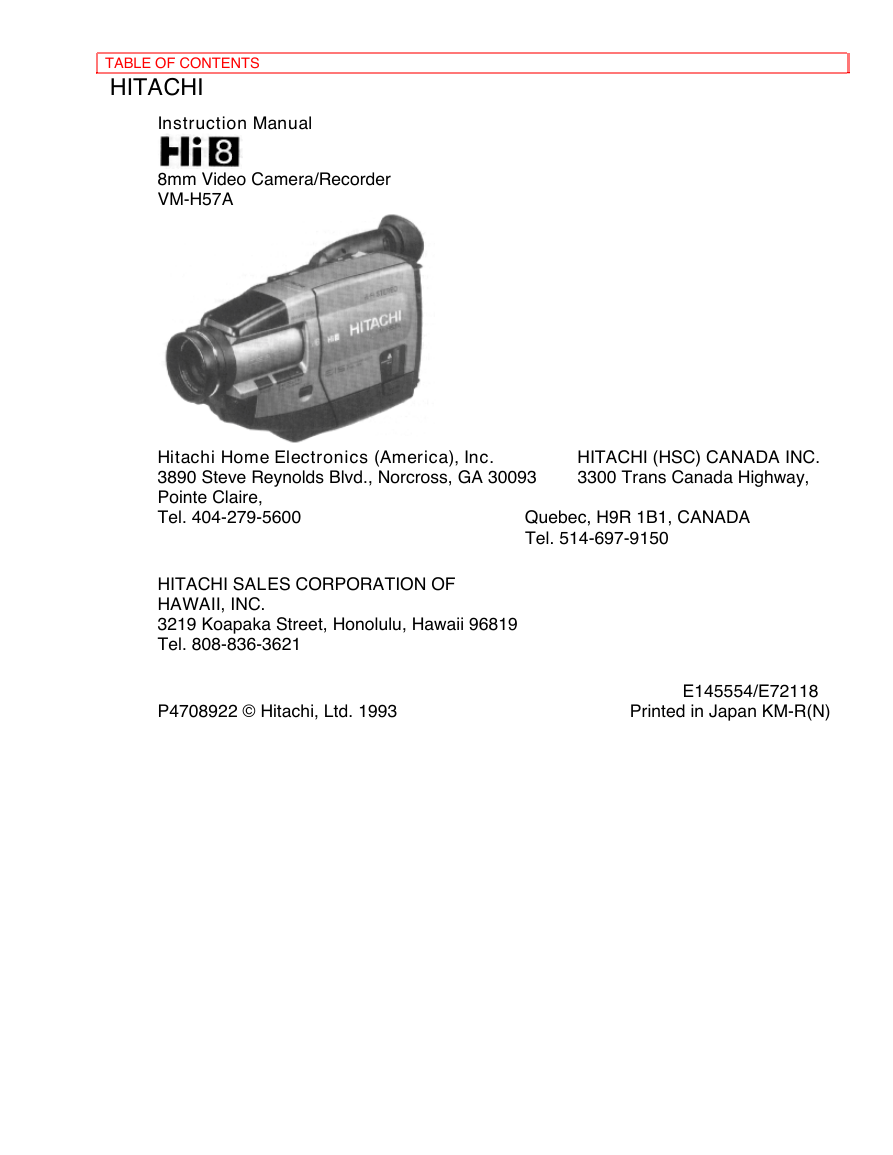

HITACHI
Instruction Manual
8mm Video Camera/Recorder
VM-H57A
Hitachi Home Electronics (America), Inc.
3890 Steve Reynolds Blvd., Norcross, GA 30093
Pointe Claire,
Tel. 404-279-5600
HITACHI (HSC) CANADA INC.
3300 Trans Canada Highway,
Quebec, H9R 1B1, CANADA
Tel. 514-697-9150
HITACHI SALES CORPORATION OF
HAWAII, INC.
3219 Koapaka Street, Honolulu, Hawaii 96819
Tel. 808-836-3621
P4708922 © Hitachi, Ltd. 1993
E145554/E72118
Printed in Japan KM-R(N)
TABLE OF CONTENTS
TABLE OF CONTENTS

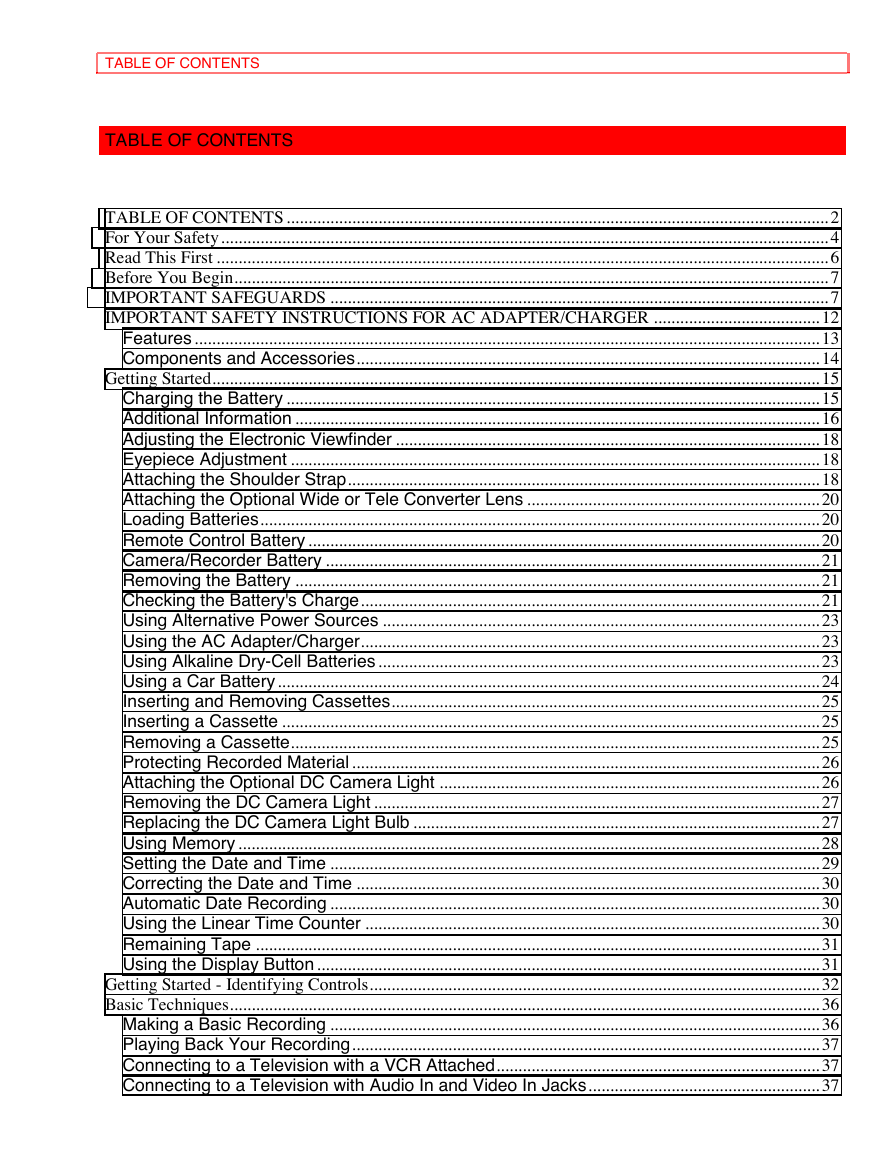

TABLE OF CONTENTS............................................................................................................................2
For Your Safety...........................................................................................................................................4
Read This First ............................................................................................................................................6
Before You Begin........................................................................................................................................7
IMPORTANT SAFEGUARDS ..................................................................................................................7
IMPORTANT SAFETY INSTRUCTIONS FOR AC ADAPTER/CHARGER ......................................12
Features...............................................................................................................................................13
Components and Accessories..........................................................................................................14
Getting Started...........................................................................................................................................15
Charging the Battery ..........................................................................................................................15
Additional Information ........................................................................................................................16
Adjusting the Electronic Viewfinder .................................................................................................18
Eyepiece Adjustment .........................................................................................................................18
Attaching the Shoulder Strap............................................................................................................18
Attaching the Optional Wide or Tele Converter Lens ...................................................................20
Loading Batteries................................................................................................................................20
Remote Control Battery.....................................................................................................................20
Camera/Recorder Battery .................................................................................................................21
Removing the Battery ........................................................................................................................21
Checking the Battery's Charge.........................................................................................................21
Using Alternative Power Sources ....................................................................................................23
Using the AC Adapter/Charger.........................................................................................................23
Using Alkaline Dry-Cell Batteries.....................................................................................................23
Using a Car Battery............................................................................................................................24
Inserting and Removing Cassettes..................................................................................................25
Inserting a Cassette ...........................................................................................................................25
Removing a Cassette.........................................................................................................................25
Protecting Recorded Material...........................................................................................................26
Attaching the Optional DC Camera Light .......................................................................................26
Removing the DC Camera Light ......................................................................................................27
Replacing the DC Camera Light Bulb .............................................................................................27
Using Memory .....................................................................................................................................28
Setting the Date and Time ................................................................................................................29
Correcting the Date and Time ..........................................................................................................30
Automatic Date Recording ................................................................................................................30
Using the Linear Time Counter ........................................................................................................30
Remaining Tape .................................................................................................................................31
Using the Display Button...................................................................................................................31
Getting Started - Identifying Controls.......................................................................................................32
Basic Techniques.......................................................................................................................................36
Making a Basic Recording ................................................................................................................36
Playing Back Your Recording...........................................................................................................37
Connecting to a Television with a VCR Attached..........................................................................37
Connecting to a Television with Audio In and Video In Jacks.....................................................37
TABLE OF CONTENTS
Connecting to a Television without Audio In and Video In Jacks ...............................................38
Simple Playback (Using the Electronic Viewfinder) ......................................................................38
Using Still .............................................................................................................................................38
Using Forward and Reverse Search ...............................................................................................39
Advanced Techniques ...............................................................................................................................39
Using the Power Zoom ......................................................................................................................40
Using the Digital Zoom ......................................................................................................................40
Using the INST. ZOOM (Instant Zoom) Button..............................................................................41
Using Auto Focus ...............................................................................................................................42
Using Manual Focus ..........................................................................................................................43
Using the Electronic Image Stabilizer .............................................................................................44
Using Fade ..........................................................................................................................................45
Fading In ..............................................................................................................................................45
Fading Out...........................................................................................................................................45
Using Instant Review .........................................................................................................................46
Using Quick Edit .................................................................................................................................46
Using Macro ........................................................................................................................................46
Creating and Recording Titles..........................................................................................................47
Creating a Title....................................................................................................................................47
Correcting Errors ................................................................................................................................48
Recording Title on a Tape in the Camera/Recorder.....................................................................48
Recording a Title while Transferring a Tape ..................................................................................49
Using the Wireless Remote Control ................................................................................................50
Dubbing from the Camera/Recorder to a VCR..............................................................................50
Using Synchro Edit.............................................................................................................................51
Controlling Your TV with the Camera/Recorder's Remote ..........................................................52
Programming the Remote Control...................................................................................................52
Controlling the TV...............................................................................................................................53
Using Audio/Video Dubbing..............................................................................................................54
Recording Television Programs.......................................................................................................55
General Maintenance.................................................................................................................................55
Cleaning the Camera/Recorder Heads...........................................................................................55
Cleaning the Lens and Picture Tube of the Electronic Viewfinder .............................................57
Periodic Maintenance ........................................................................................................................57
Troubleshooting ..................................................................................................................................58
Specifications ............................................................................................................................................61
Accessories Add Excitement.....................................................................................................................63
To Order in the United States...........................................................................................................63
For Your Safety
For Your Safety

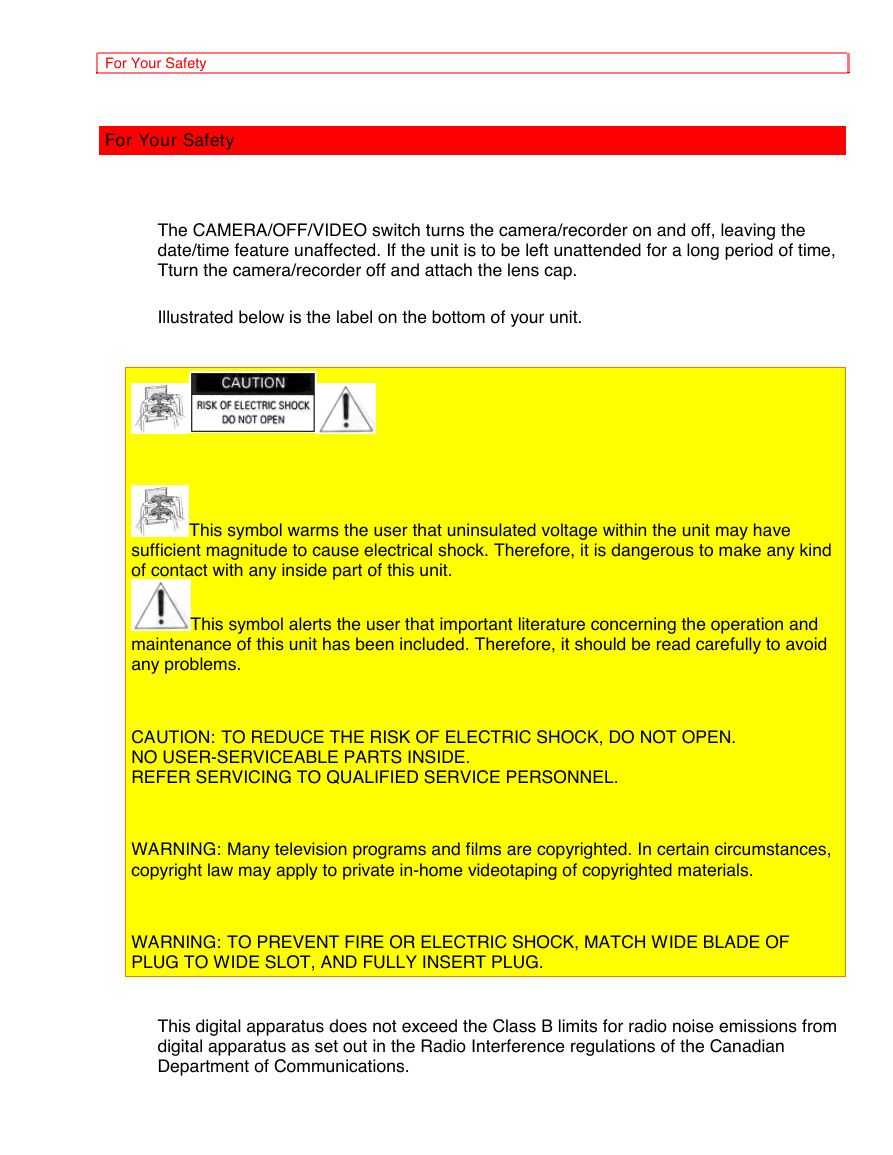

The CAMERA/OFF/VIDEO switch turns the camera/recorder on and off, leaving the
date/time feature unaffected. If the unit is to be left unattended for a long period of time,
Tturn the camera/recorder off and attach the lens cap.
Illustrated below is the label on the bottom of your unit.
This symbol warms the user that uninsulated voltage within the unit may have
sufficient magnitude to cause electrical shock. Therefore, it is dangerous to make any kind
of contact with any inside part of this unit.
This symbol alerts the user that important literature concerning the operation and
maintenance of this unit has been included. Therefore, it should be read carefully to avoid
any problems.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: Many television programs and films are copyrighted. In certain circumstances,
copyright law may apply to private in-home videotaping of copyrighted materials.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, AND FULLY INSERT PLUG.
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus as set out in the Radio Interference regulations of the Canadian
Department of Communications.
For Your Safety
Caution to the user: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.

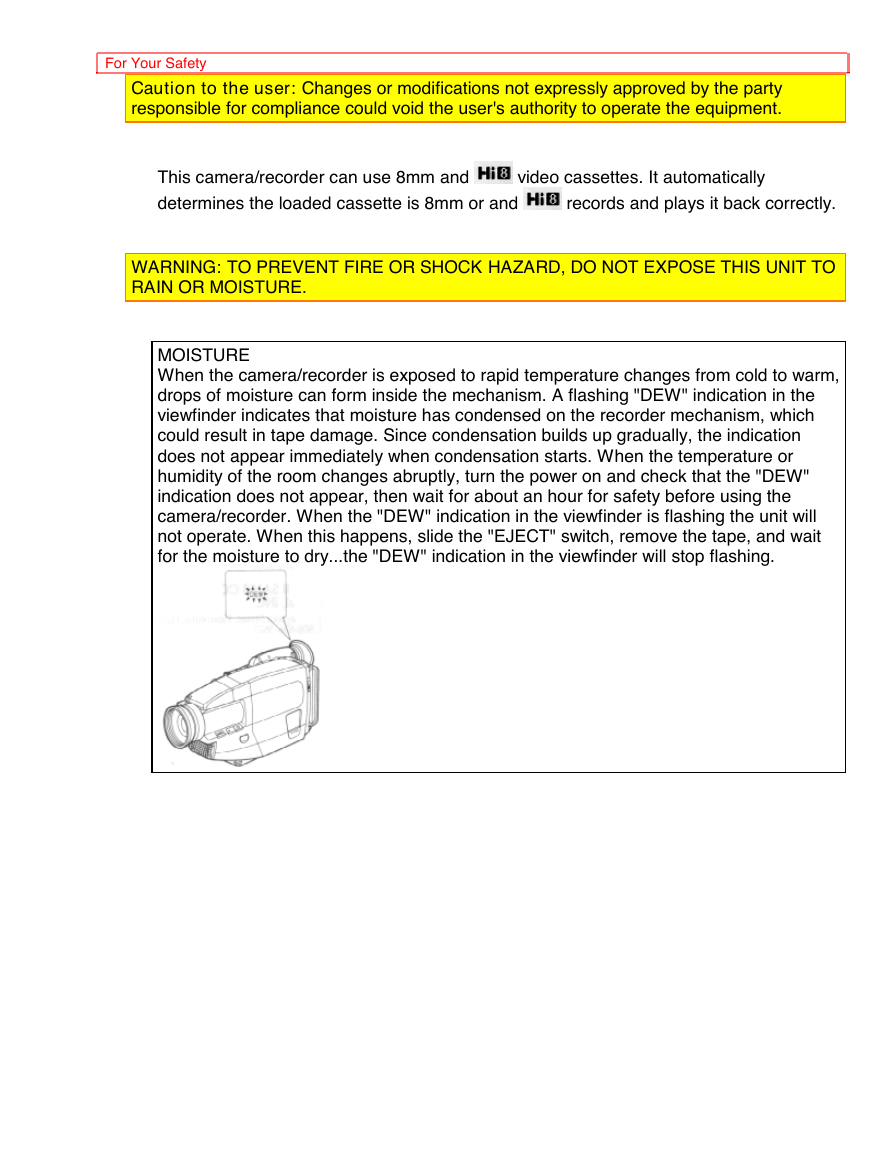

This camera/recorder can use 8mm and
determines the loaded cassette is 8mm or and
video cassettes. It automatically
records and plays it back correctly.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE.
MOISTURE
When the camera/recorder is exposed to rapid temperature changes from cold to warm,
drops of moisture can form inside the mechanism. A flashing "DEW" indication in the
viewfinder indicates that moisture has condensed on the recorder mechanism, which
could result in tape damage. Since condensation builds up gradually, the indication
does not appear immediately when condensation starts. When the temperature or
humidity of the room changes abruptly, turn the power on and check that the "DEW"
indication does not appear, then wait for about an hour for safety before using the
camera/recorder. When the "DEW" indication in the viewfinder is flashing the unit will
not operate. When this happens, slide the "EJECT" switch, remove the tape, and wait
for the moisture to dry...the "DEW" indication in the viewfinder will stop flashing.
Read This First
Read This First

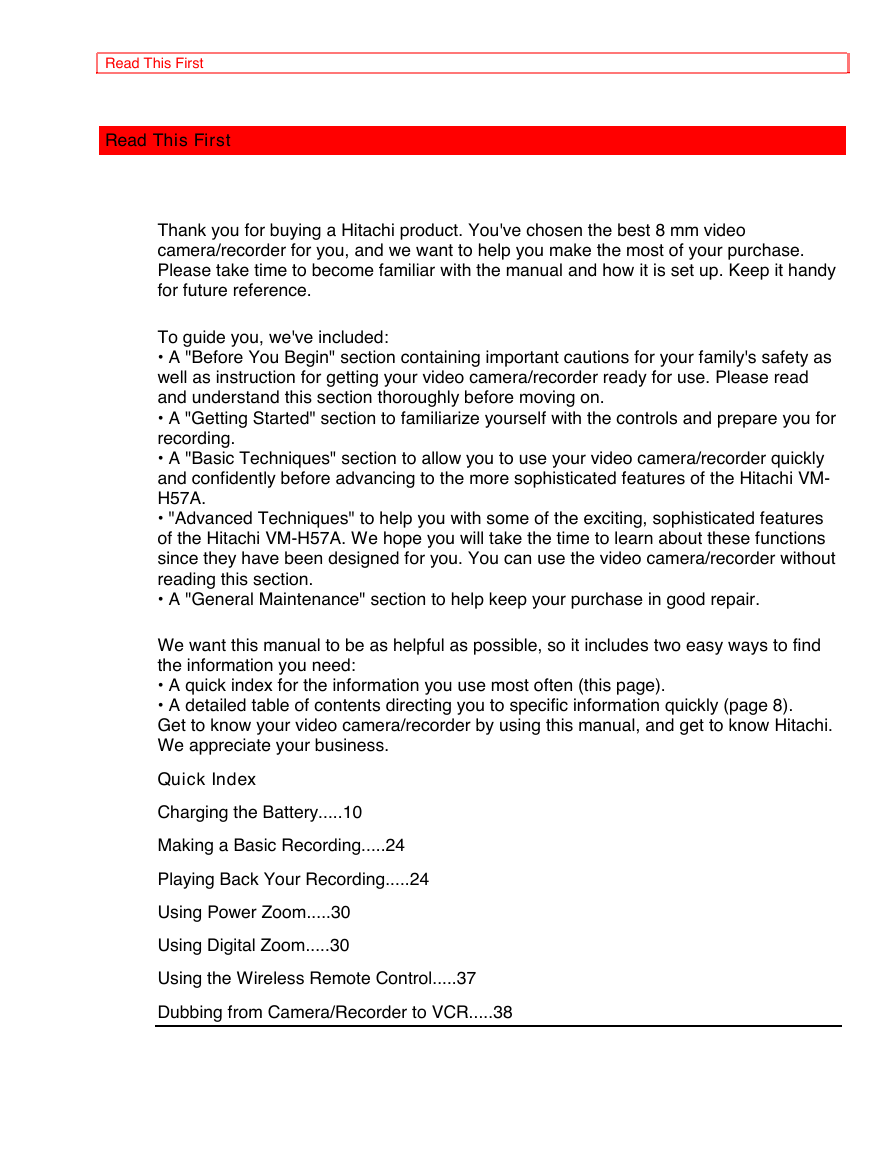

Thank you for buying a Hitachi product. You've chosen the best 8 mm video
camera/recorder for you, and we want to help you make the most of your purchase.
Please take time to become familiar with the manual and how it is set up. Keep it handy
for future reference.
To guide you, we've included:
• A "Before You Begin" section containing important cautions for your family's safety as
well as instruction for getting your video camera/recorder ready for use. Please read
and understand this section thoroughly before moving on.
• A "Getting Started" section to familiarize yourself with the controls and prepare you for
recording.
• A "Basic Techniques" section to allow you to use your video camera/recorder quickly
and confidently before advancing to the more sophisticated features of the Hitachi VM-
H57A.
• "Advanced Techniques" to help you with some of the exciting, sophisticated features
of the Hitachi VM-H57A. We hope you will take the time to learn about these functions
since they have been designed for you. You can use the video camera/recorder without
reading this section.
• A "General Maintenance" section to help keep your purchase in good repair.
We want this manual to be as helpful as possible, so it includes two easy ways to find
the information you need:
• A quick index for the information you use most often (this page).
• A detailed table of contents directing you to specific information quickly (page 8).
Get to know your video camera/recorder by using this manual, and get to know Hitachi.
We appreciate your business.
Quick Index
Charging the Battery.....10
Making a Basic Recording.....24
Playing Back Your Recording.....24
Using Power Zoom.....30
Using Digital Zoom.....30
Using the Wireless Remote Control.....37
Dubbing from Camera/Recorder to VCR.....38
Before You Begin
Before You Begin

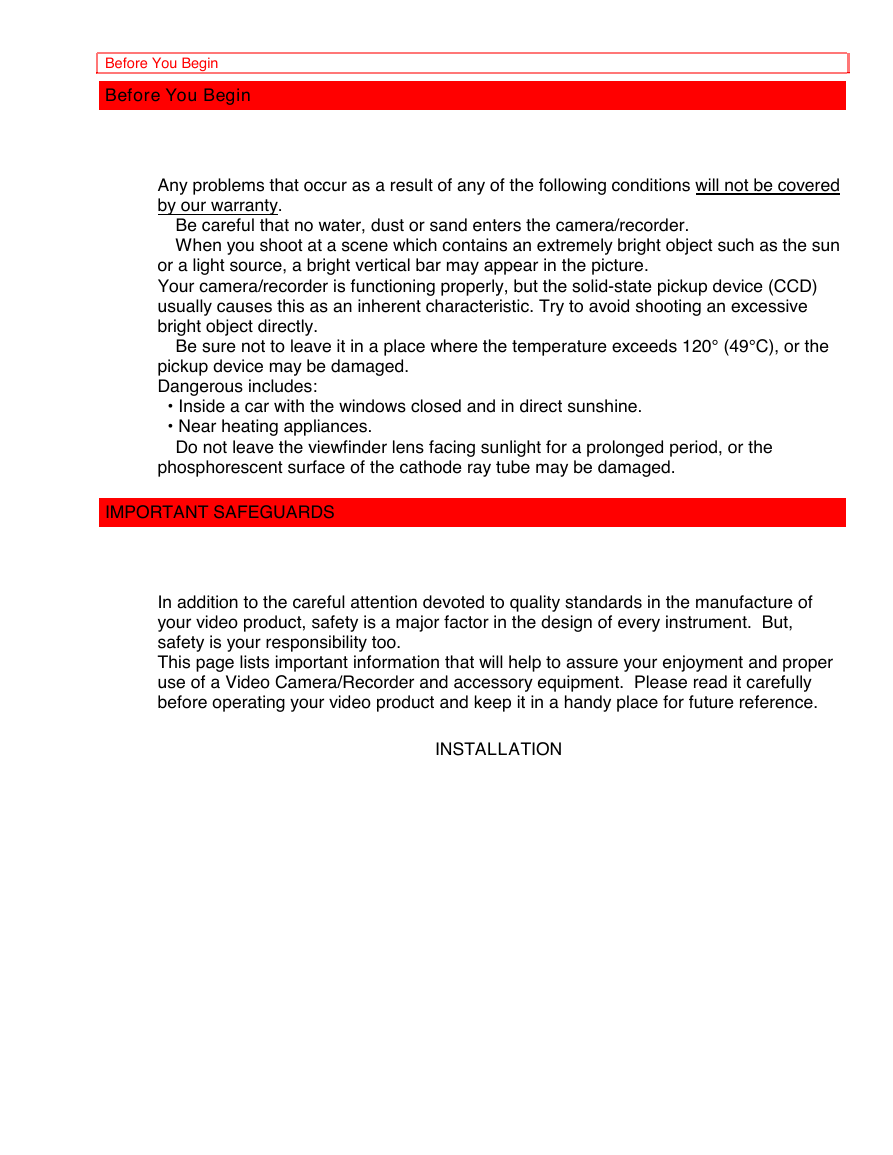

Any problems that occur as a result of any of the following conditions will not be covered
by our warranty.
Be careful that no water, dust or sand enters the camera/recorder.
When you shoot at a scene which contains an extremely bright object such as the sun
or a light source, a bright vertical bar may appear in the picture.
Your camera/recorder is functioning properly, but the solid-state pickup device (CCD)
usually causes this as an inherent characteristic. Try to avoid shooting an excessive
bright object directly.
Be sure not to leave it in a place where the temperature exceeds 120° (49°C), or the
pickup device may be damaged.
Dangerous includes:
• Inside a car with the windows closed and in direct sunshine.
• Near heating appliances.
Do not leave the viewfinder lens facing sunlight for a prolonged period, or the
phosphorescent surface of the cathode ray tube may be damaged.
IMPORTANT SAFEGUARDS
In addition to the careful attention devoted to quality standards in the manufacture of
your video product, safety is a major factor in the design of every instrument. But,
safety is your responsibility too.
This page lists important information that will help to assure your enjoyment and proper
use of a Video Camera/Recorder and accessory equipment. Please read it carefully
before operating your video product and keep it in a handy place for future reference.
INSTALLATION

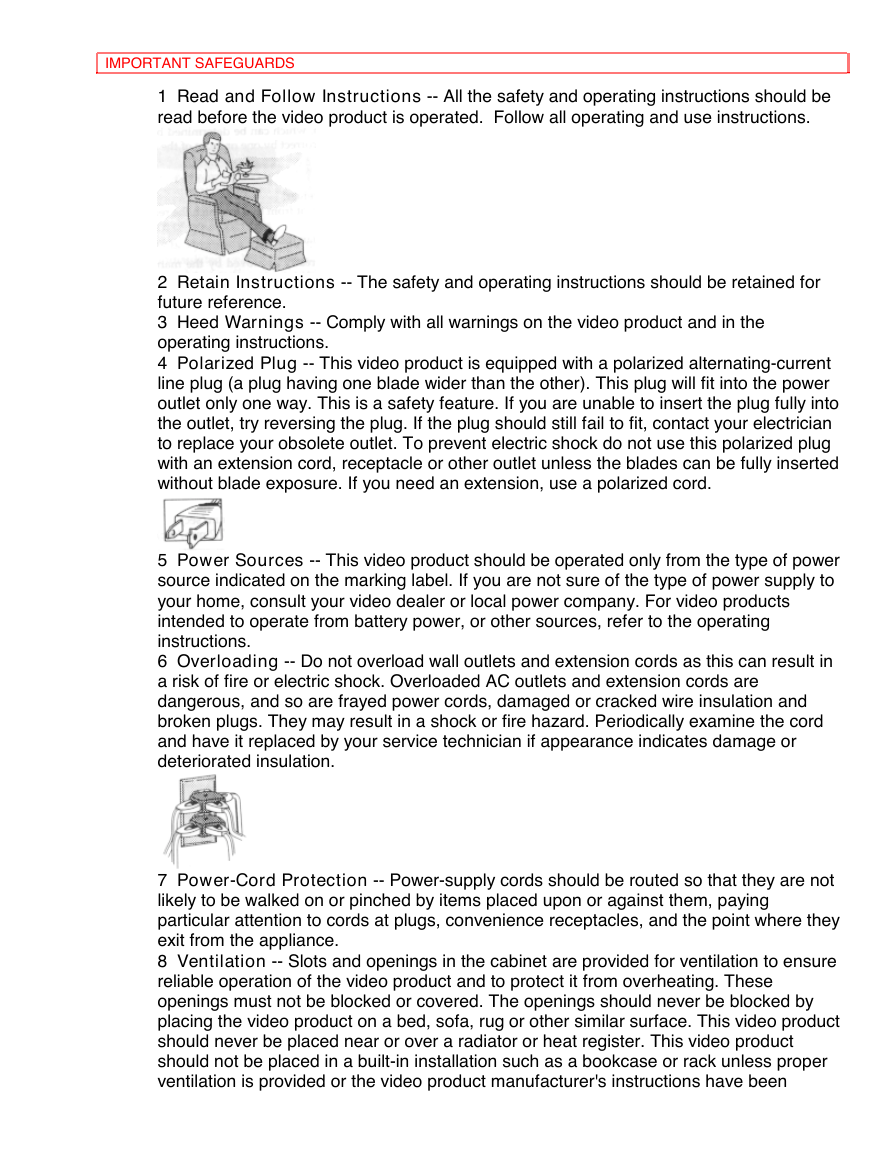

IMPORTANT SAFEGUARDS
1 Read and Follow Instructions -- All the safety and operating instructions should be
read before the video product is operated. Follow all operating and use instructions.
2 Retain Instructions -- The safety and operating instructions should be retained for
future reference.
3 Heed Warnings -- Comply with all warnings on the video product and in the
operating instructions.
4 Polarized Plug -- This video product is equipped with a polarized alternating-current
line plug (a plug having one blade wider than the other). This plug will fit into the power
outlet only one way. This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician
to replace your obsolete outlet. To prevent electric shock do not use this polarized plug
with an extension cord, receptacle or other outlet unless the blades can be fully inserted
without blade exposure. If you need an extension, use a polarized cord.
5 Power Sources -- This video product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the type of power supply to
your home, consult your video dealer or local power company. For video products
intended to operate from battery power, or other sources, refer to the operating
instructions.
6 Overloading -- Do not overload wall outlets and extension cords as this can result in
a risk of fire or electric shock. Overloaded AC outlets and extension cords are
dangerous, and so are frayed power cords, damaged or cracked wire insulation and
broken plugs. They may result in a shock or fire hazard. Periodically examine the cord
and have it replaced by your service technician if appearance indicates damage or
deteriorated insulation.
7 Power-Cord Protection -- Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience receptacles, and the point where they
exit from the appliance.
8 Ventilation -- Slots and openings in the cabinet are provided for ventilation to ensure
reliable operation of the video product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be blocked by
placing the video product on a bed, sofa, rug or other similar surface. This video product
should never be placed near or over a radiator or heat register. This video product
should not be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the video product manufacturer's instructions have been
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
