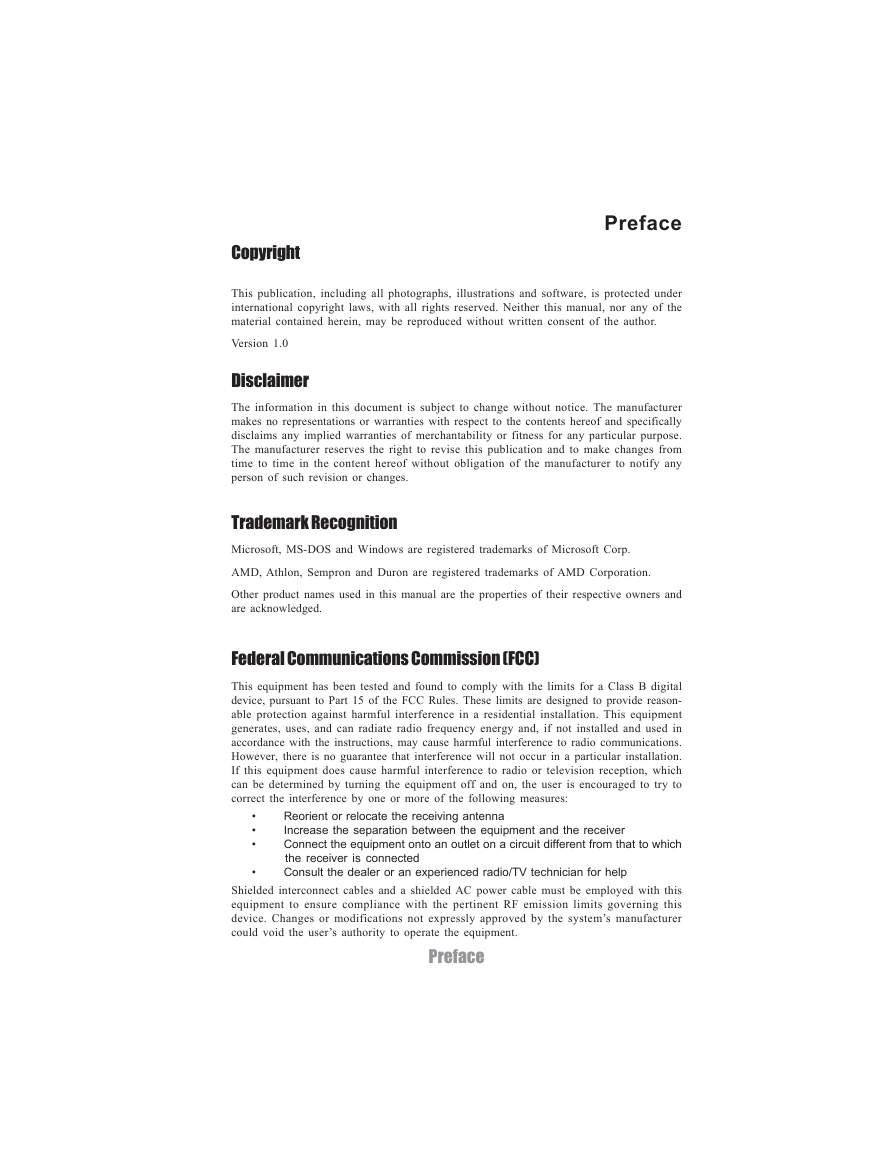

Preface Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.0 Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark Recognition Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. AMD, Athlon, Sempron and Duron are registered trademarks of AMD Corporation. Other product names used in this manual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • • Reorient or relocate the receiving antenna Increase the separation between the equipment and the receiver Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment. Preface

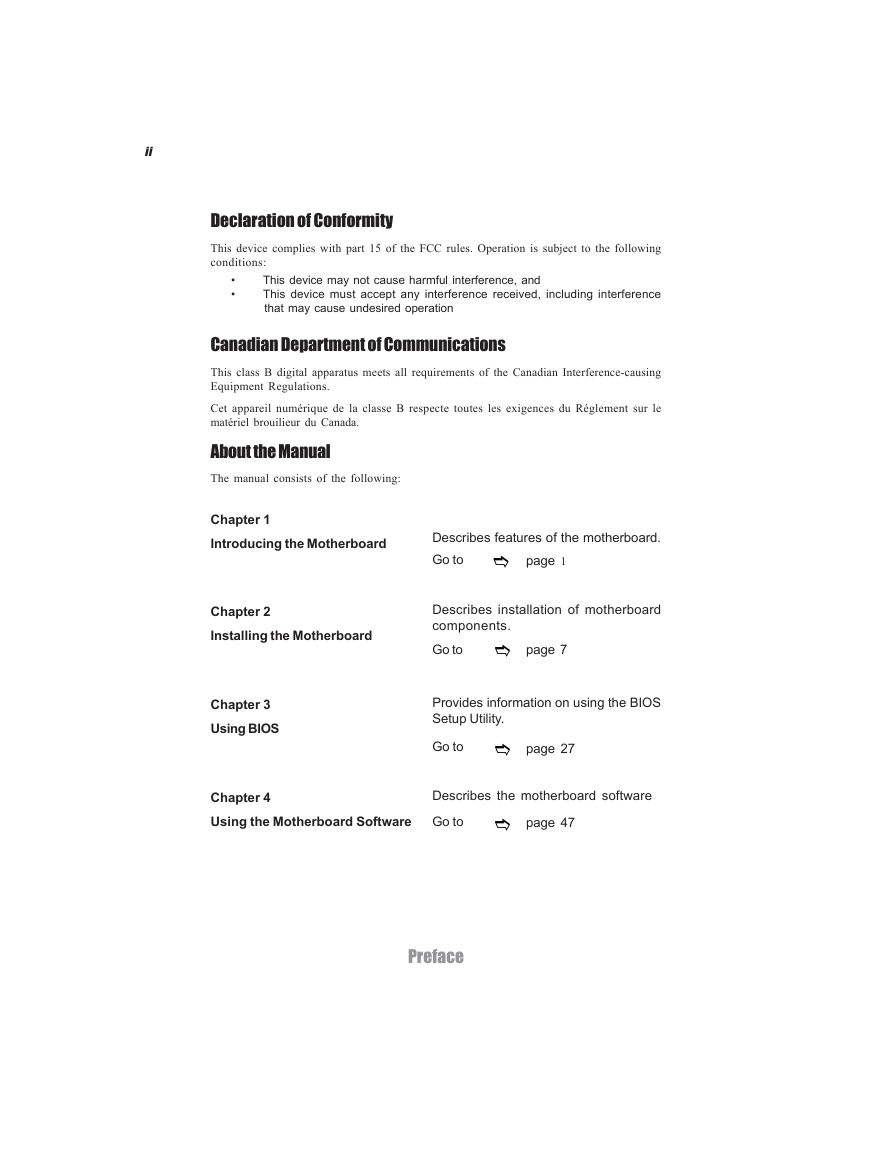

ii Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: • • This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada. About the Manual The manual consists of the following: Chapter 1 Introducing the Motherboard Chapter 2 Installing the Motherboard Chapter 3 Using BIOS Describes features of the motherboard. Go to page 1 Describes installation of motherboard components. Go to page 7 Provides information on using the BIOS Setup Utility. Go to page 27 Chapter 4 Using the Motherboard Software Describes the motherboard software Go to page 47 Preface

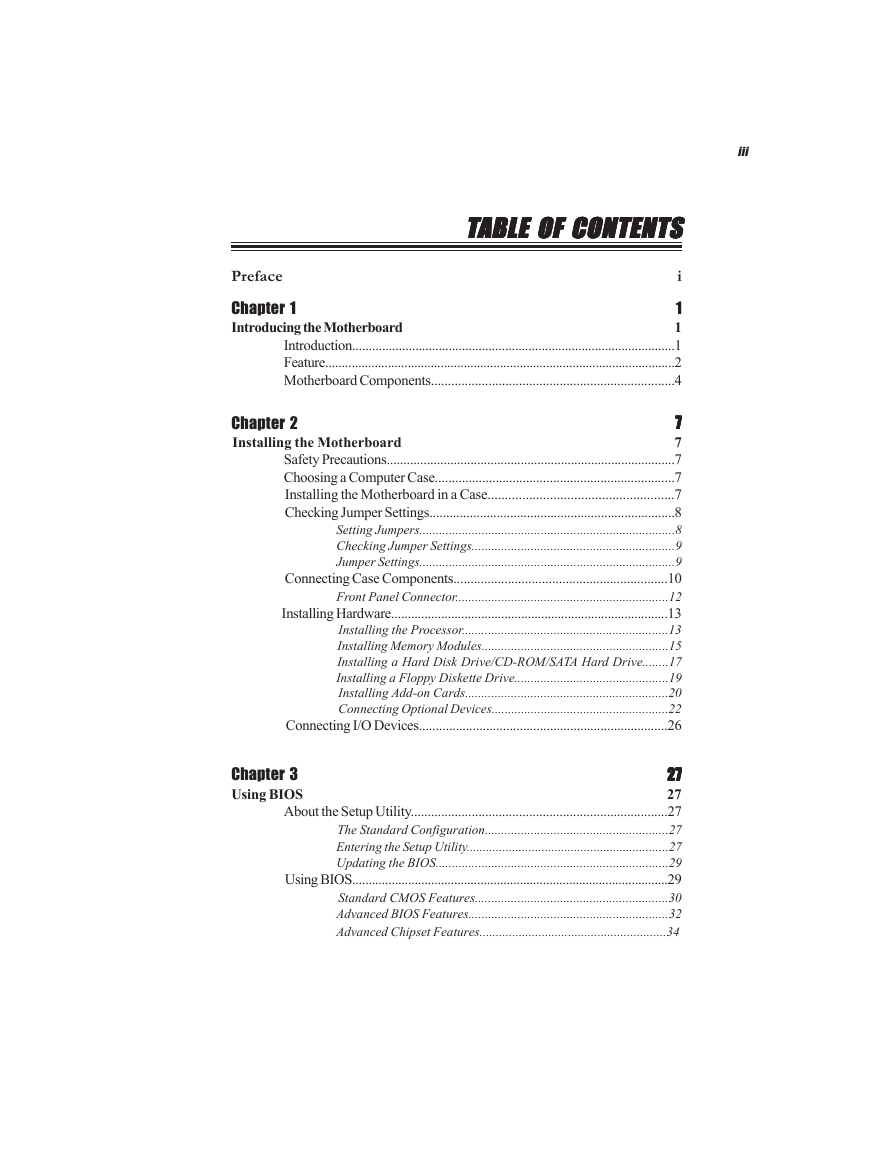

iii TTTTTABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS Preface i Chapter 1 Introducing the Motherboard 1 1 Introduction.................................................................................................1 Feature..........................................................................................................2 Motherboard Components........................................................................4 7 7 7 7 7 Chapter 2 Installing the Motherboard 7 Safety Precautions......................................................................................7 Choosing a Computer Case.......................................................................7 Installing the Motherboard in a Case......................................................7 Checking Jumper Settings.........................................................................8 Setting Jumpers..............................................................................8 Checking Jumper Settings..............................................................9 Jumper Settings..............................................................................9 Connecting Case Components...............................................................10 Front Panel Connector.................................................................12 Installing Hardware...................................................................................13 Installing the Processor...............................................................13 Installing Memory Modules.........................................................15 Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive........17 Installing a Floppy Diskette Drive...............................................19 Installing Add-on Cards..............................................................20 Connecting Optional Devices......................................................22 Connecting I/O Devices..........................................................................26 Chapter 3 Using BIOS 27 27 27 27 27 27 About the Setup Utility............................................................................27 The Standard Configuration........................................................27 Entering the Setup Utility..............................................................27 Updating the BIOS.......................................................................29 Using BIOS................................................................................................29 Standard CMOS Features...........................................................30 Advanced BIOS Features.............................................................32 Advanced Chipset Features.........................................................34

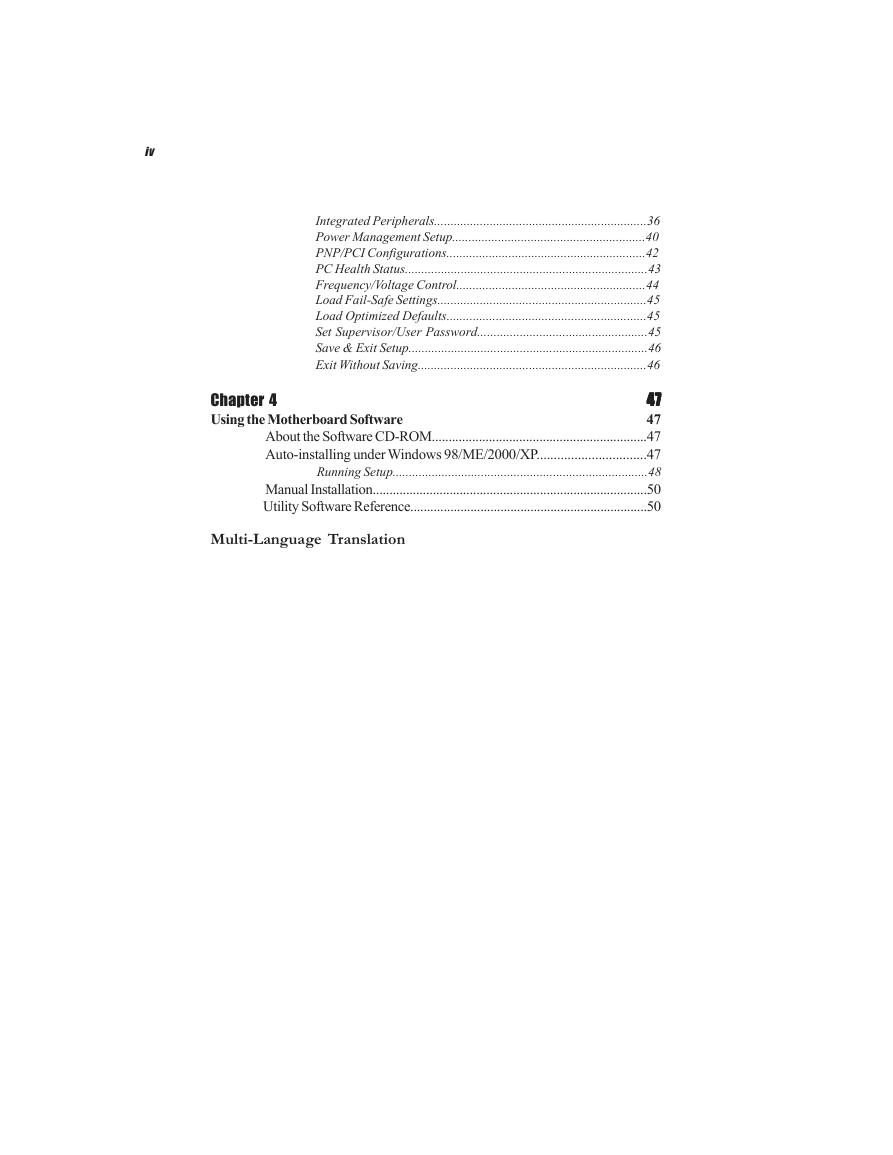

iv Integrated Peripherals.................................................................36 Power Management Setup...........................................................40 PNP/PCI Configurations.............................................................42 PC Health Status..........................................................................43 Frequency/Voltage Control..........................................................44 Load Fail-Safe Settings................................................................45 Load Optimized Defaults.............................................................45 Set Supervisor/User Password....................................................45 Save & Exit Setup.........................................................................46 Exit Without Saving......................................................................46 Chapter 4 Using the Motherboard Software 47 47 47 47 47 47 About the Software CD-ROM................................................................47 Auto-installing under Windows 98/ME/2000/XP................................47 Running Setup..............................................................................48 Manual Installation..................................................................................50 Utility Software Reference.......................................................................50 Multi-Language Translation

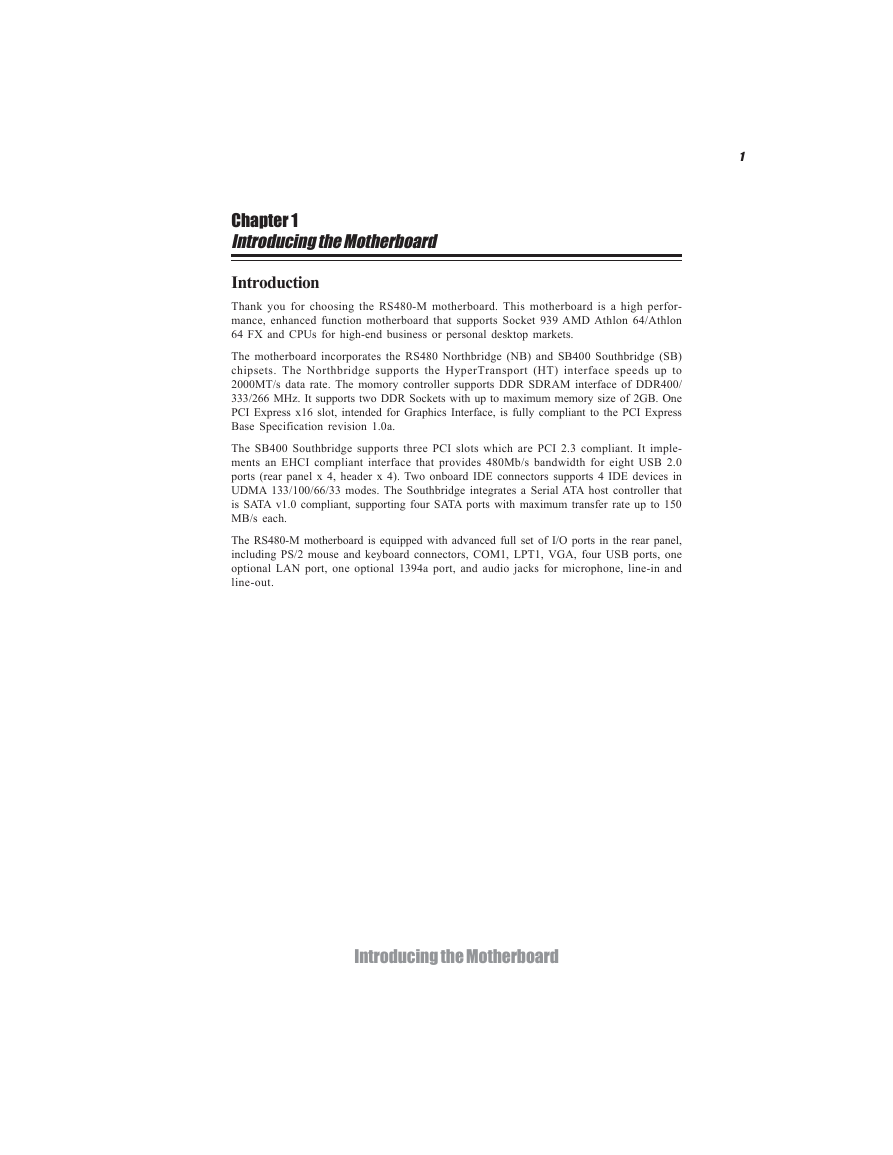

1 Chapter 1 Introducing the Motherboard Introduction Thank you for choosing the RS480-M motherboard. This motherboard is a high perfor- mance, enhanced function motherboard that supports Socket 939 AMD Athlon 64/Athlon 64 FX and CPUs for high-end business or personal desktop markets. The motherboard incorporates the RS480 Northbridge (NB) and SB400 Southbridge (SB) chipsets. The Northbridge supports the HyperTransport (HT) interface speeds up to 2000MT/s data rate. The momory controller supports DDR SDRAM interface of DDR400/ 333/266 MHz. It supports two DDR Sockets with up to maximum memory size of 2GB. One PCI Express x16 slot, intended for Graphics Interface, is fully compliant to the PCI Express Base Specification revision 1.0a. The SB400 Southbridge supports three PCI slots which are PCI 2.3 compliant. It imple- ments an EHCI compliant interface that provides 480Mb/s bandwidth for eight USB 2.0 ports (rear panel x 4, header x 4). Two onboard IDE connectors supports 4 IDE devices in UDMA 133/100/66/33 modes. The Southbridge integrates a Serial ATA host controller that is SATA v1.0 compliant, supporting four SATA ports with maximum transfer rate up to 150 MB/s each. The RS480-M motherboard is equipped with advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, COM1, LPT1, VGA, four USB ports, one optional LAN port, one optional 1394a port, and audio jacks for microphone, line-in and line-out. Introducing the Motherboard

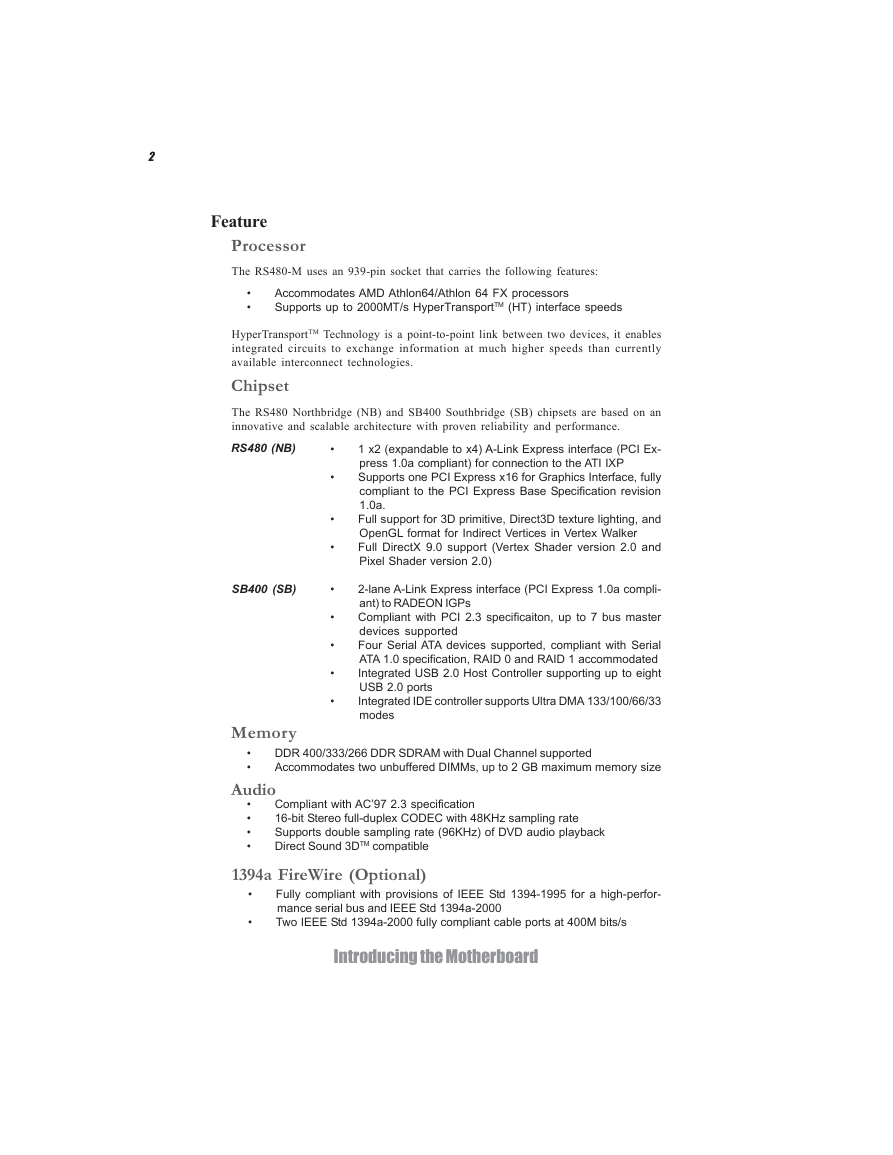

2 Feature Processor The RS480-M uses an 939-pin socket that carries the following features: • • Accommodates AMD Athlon64/Athlon 64 FX processors Supports up to 2000MT/s HyperTransportTM (HT) interface speeds HyperTransportTM Technology is a point-to-point link between two devices, it enables integrated circuits to exchange information at much higher speeds than currently available interconnect technologies. Chipset The RS480 Northbridge (NB) and SB400 Southbridge (SB) chipsets are based on an innovative and scalable architecture with proven reliability and performance. RS480 (NB) • SB400 (SB) • • • • • • • • 1 x2 (expandable to x4) A-Link Express interface (PCI Ex- press 1.0a compliant) for connection to the ATI IXP Supports one PCI Express x16 for Graphics Interface, fully compliant to the PCI Express Base Specification revision 1.0a. Full support for 3D primitive, Direct3D texture lighting, and OpenGL format for Indirect Vertices in Vertex Walker Full DirectX 9.0 support (Vertex Shader version 2.0 and Pixel Shader version 2.0) 2-lane A-Link Express interface (PCI Express 1.0a compli- ant) to RADEON IGPs Compliant with PCI 2.3 specificaiton, up to 7 bus master devices supported Four Serial ATA devices supported, compliant with Serial ATA 1.0 specification, RAID 0 and RAID 1 accommodated Integrated USB 2.0 Host Controller supporting up to eight USB 2.0 ports Integrated IDE controller supports Ultra DMA 133/100/66/33 modes Memory • • DDR 400/333/266 DDR SDRAM with Dual Channel supported Accommodates two unbuffered DIMMs, up to 2 GB maximum memory size Audio • • • • Compliant with AC’97 2.3 specification 16-bit Stereo full-duplex CODEC with 48KHz sampling rate Supports double sampling rate (96KHz) of DVD audio playback Direct Sound 3DTM compatible 1394a FireWire (Optional) • • Fully compliant with provisions of IEEE Std 1394-1995 for a high-perfor- mance serial bus and IEEE Std 1394a-2000 Two IEEE Std 1394a-2000 fully compliant cable ports at 400M bits/s Introducing the Motherboard
