三洋投影机-PLC-SU50S说明书.pdf
Multimedia Projector
MODEL PLC-SU50S
Owner’s Manual

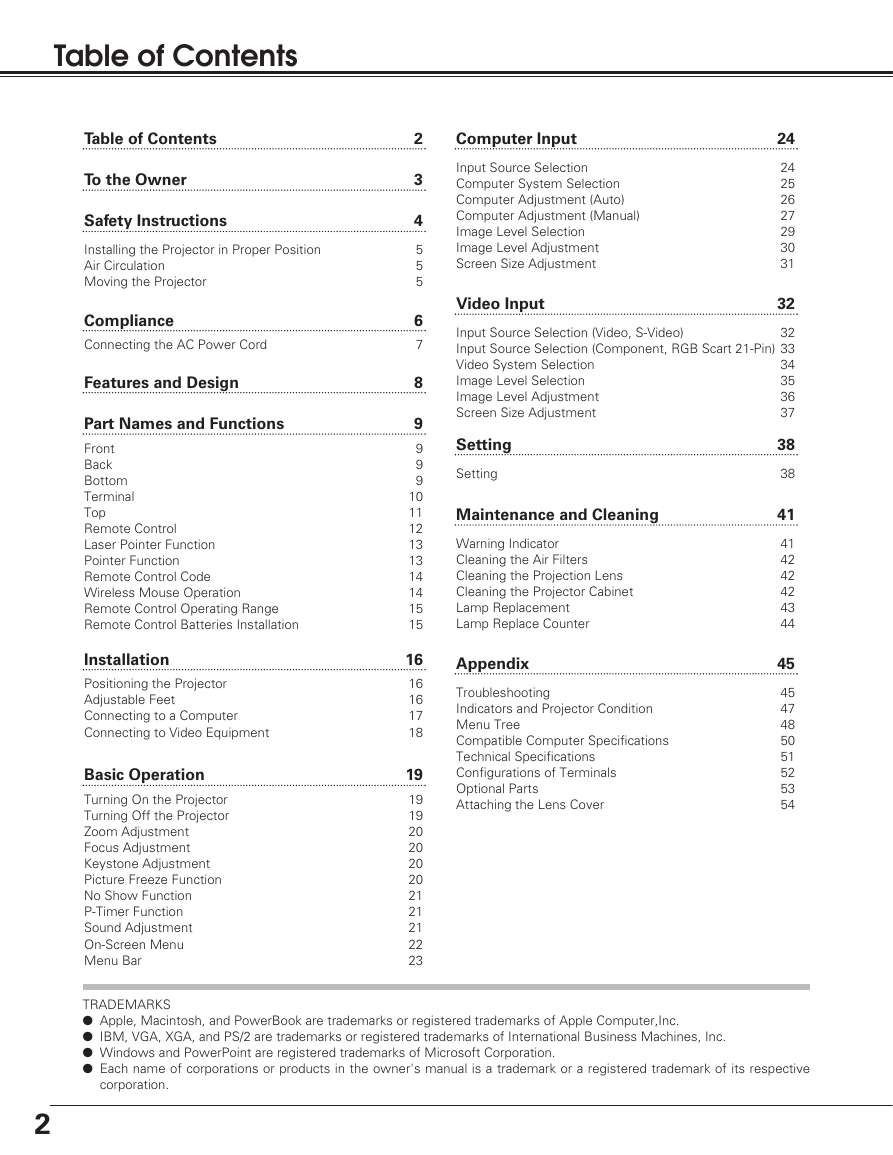

Table of Contents
Table of Contents
To the Owner
Safety Instructions
Installing the Projector in Proper Position
Air Circulation
Moving the Projector

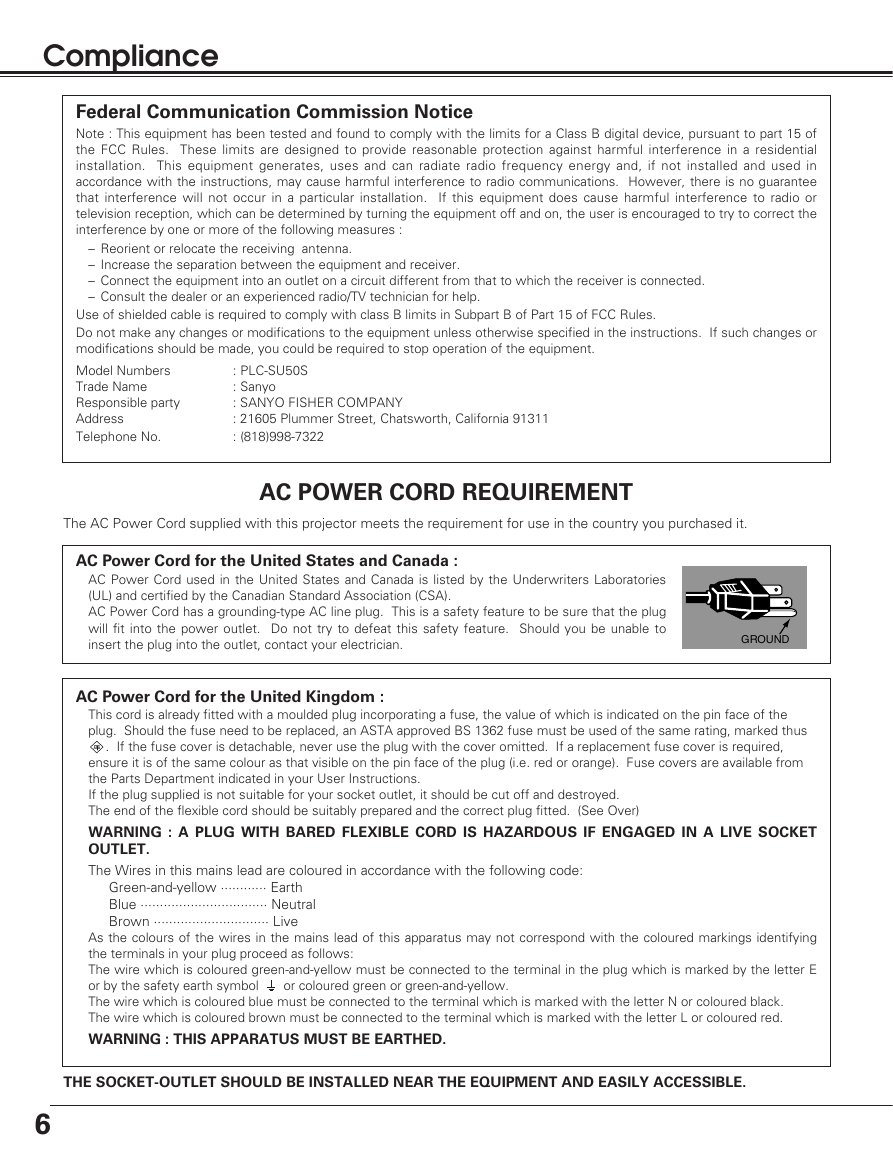

Compliance

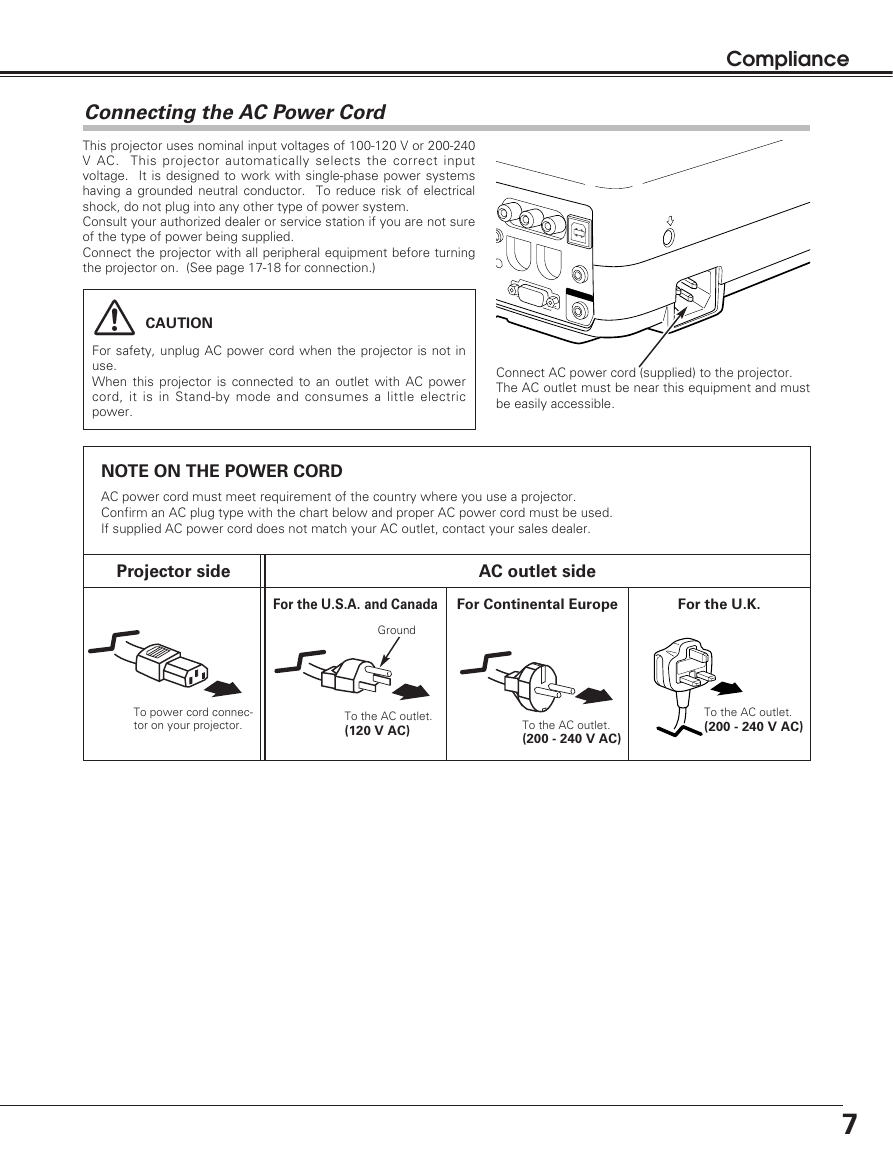

Connecting the AC Power Cord

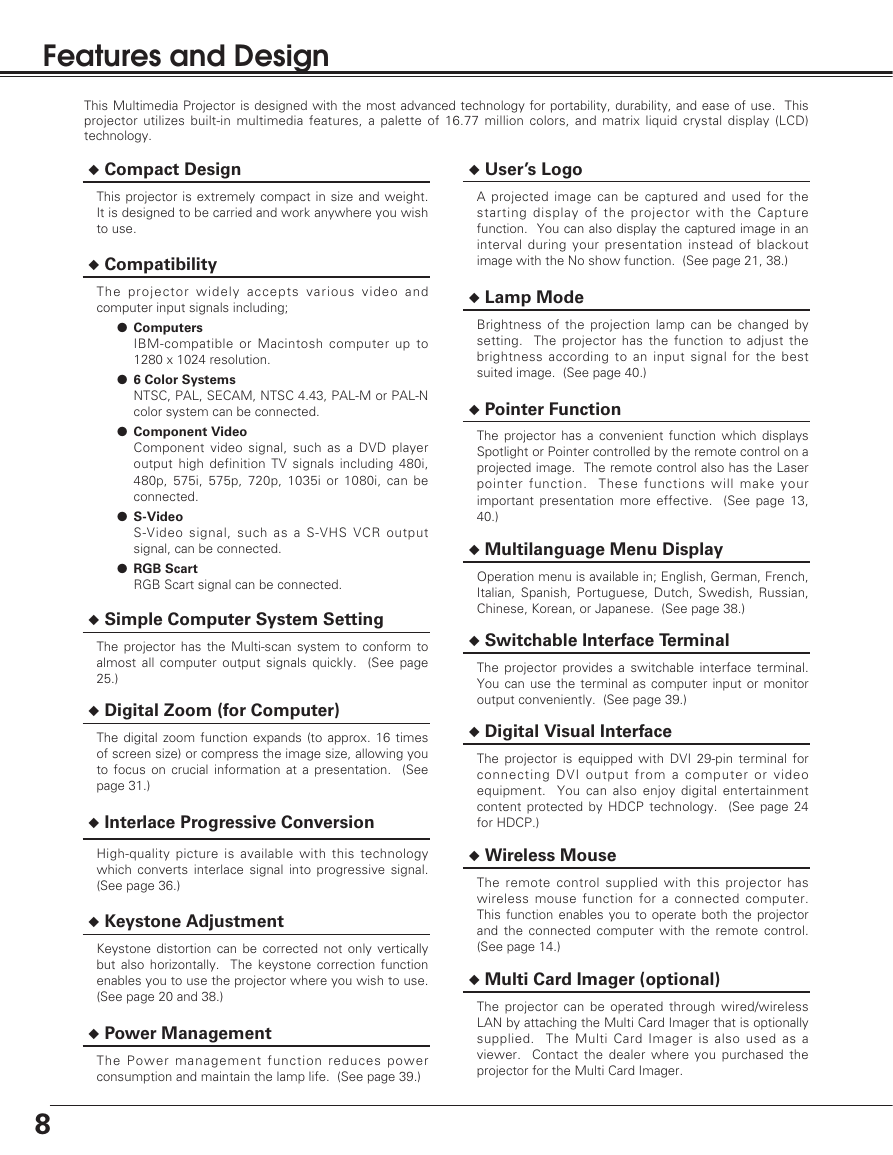

Features and Design
Part Names and Functions
Front
Back
Bottom
Terminal
Top
Remote Control
Laser Pointer Function
Pointer Function
Remote Control Code
Wireless Mouse Operation
Remote Control Operating Range
Remote Control Batteries Installation
Installation
Positioning the Projector
Adjustable Feet
Connecting to a Computer
Connecting to Video Equipment
Basic Operation
Turning On the Projector
Turning Off the Projector
Zoom Adjustment
Focus Adjustment
Keystone Adjustment
Picture Freeze Function
No Show Function
P-Timer Function
Sound Adjustment
On-Screen Menu
Menu Bar
2
3
4
5
5
5
6
7
8
9
9
9
9
10
11
12
13
13
14
14
15
15
16
16
16
17
18
19
19
19
20
20
20
20
21
21
21
22
23
Computer Input
Input Source Selection
Computer System Selection
Computer Adjustment (Auto)
Computer Adjustment (Manual)
Image Level Selection
Image Level Adjustment
Screen Size Adjustment
Video Input
24
24
25
26
27
29
30
31
32
32
Input Source Selection (Video, S-Video)
Input Source Selection (Component, RGB Scart 21-Pin) 33
34
Video System Selection
35
Image Level Selection
36
Image Level Adjustment
Screen Size Adjustment
37
Setting
Setting
Maintenance and Cleaning
Warning Indicator
Cleaning the Air Filters
Cleaning the Projection Lens
Cleaning the Projector Cabinet
Lamp Replacement
Lamp Replace Counter
Appendix
Troubleshooting
Indicators and Projector Condition
Menu Tree
Compatible Computer Specifications
Technical Specifications
Configurations of Terminals
Optional Parts
Attaching the Lens Cover
38
38
41
41
42
42
42
43
44
45
45
47
48
50
51
52
53
54
TRADEMARKS
G Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.
G IBM, VGA, XGA, and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.
G Windows and PowerPoint are registered trademarks of Microsoft Corporation.
G Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its respective
corporation.
2

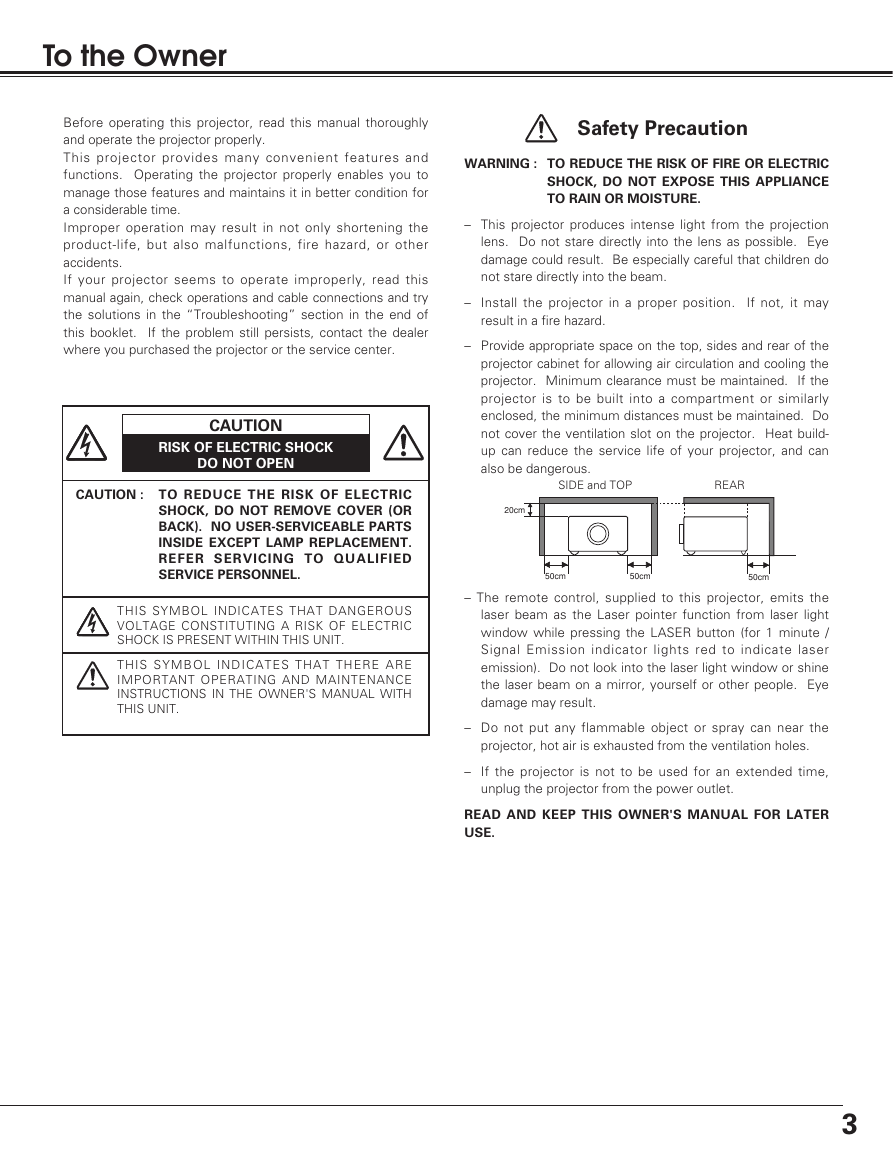

To the Owner
Before operating this projector, read this manual thoroughly
and operate the projector properly.
This projector provides many convenient features and
functions. Operating the projector properly enables you to
manage those features and maintains it in better condition for
a considerable time.
Improper operation may result in not only shortening the
product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections and try
the solutions in the “Troubleshooting” section in the end of
this booklet. If the problem still persists, contact the dealer
where you purchased the projector or the service center.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL WITH
THIS UNIT.
Safety Precaution
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
– This projector produces intense light from the projection
lens. Do not stare directly into the lens as possible. Eye
damage could result. Be especially careful that children do
not stare directly into the beam.
– Install the projector in a proper position. If not, it may
result in a fire hazard.
– Provide appropriate space on the top, sides and rear of the
projector cabinet for allowing air circulation and cooling the
projector. Minimum clearance must be maintained. If the
projector is to be built into a compartment or similarly
enclosed, the minimum distances must be maintained. Do
not cover the ventilation slot on the projector. Heat build-
up can reduce the service life of your projector, and can
also be dangerous.
SIDE and TOP
REAR
20cm
50cm
50cm
50cm
– The remote control, supplied to this projector, emits the
laser beam as the Laser pointer function from laser light
window while pressing the LASER button (for 1 minute /
Signal Emission indicator lights red to indicate laser
emission). Do not look into the laser light window or shine
the laser beam on a mirror, yourself or other people. Eye
damage may result.
– Do not put any flammable object or spray can near the
projector, hot air is exhausted from the ventilation holes.
– If the projector is not to be used for an extended time,
unplug the projector from the power outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER
USE.
3

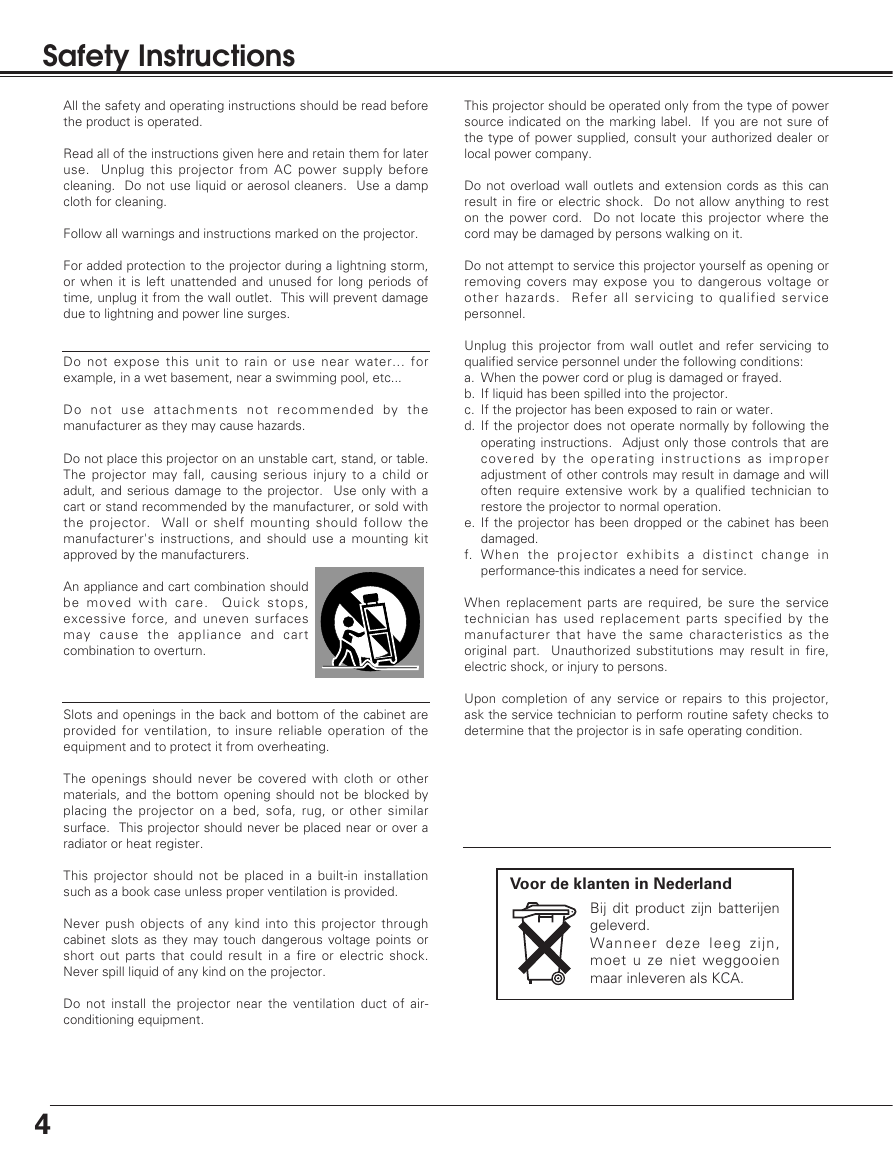

Safety Instructions
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest
on the power cord. Do not locate this projector where the
cord may be damaged by persons walking on it.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of air-
conditioning equipment.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
Voor de klanten in Nederland
Bij dit product zijn batterijen
geleverd.
Wanneer deze leeg zijn,
moet u ze niet weggooien
maar inleveren als KCA.
4

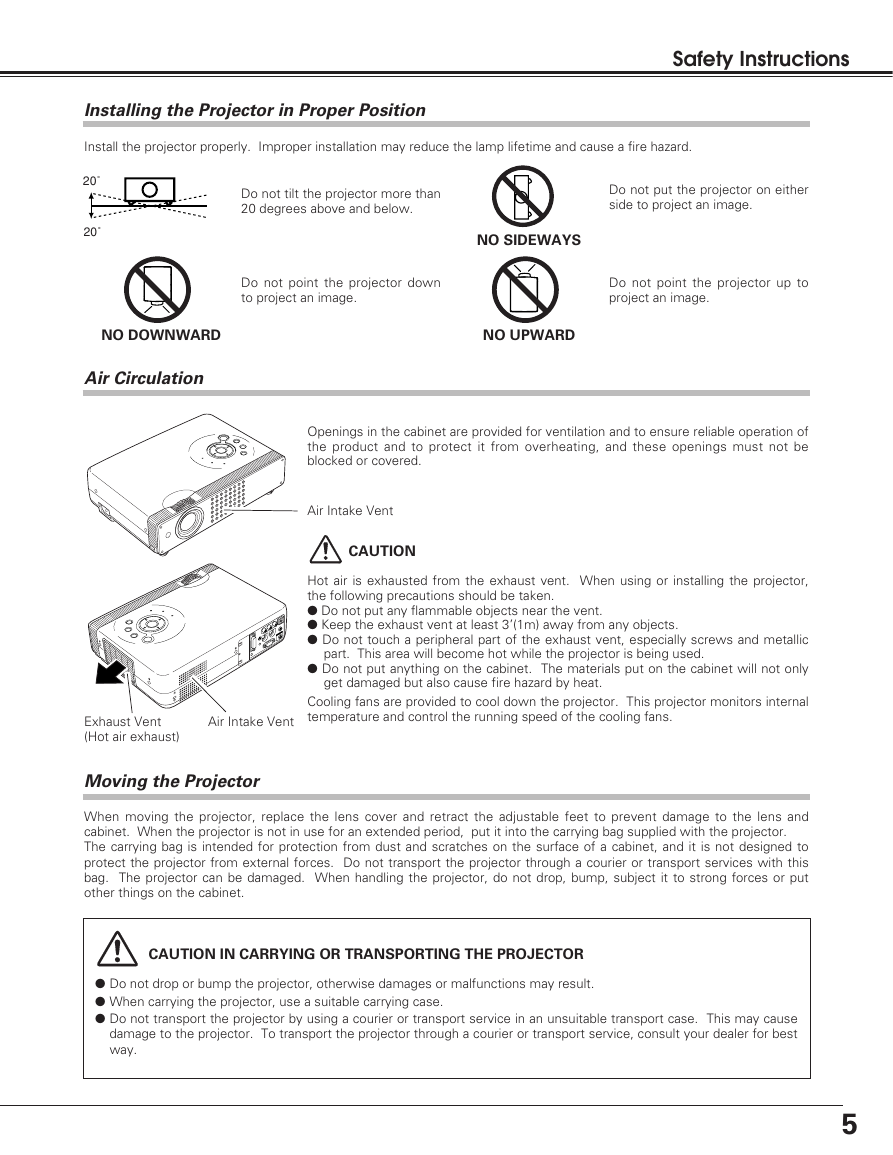

Safety Instructions
Installing the Projector in Proper Position
Install the projector properly. Improper installation may reduce the lamp lifetime and cause a fire hazard.
20˚
20˚
NO DOWNWARD
Air Circulation
Do not tilt the projector more than
20 degrees above and below.
Do not put the projector on either
side to project an image.
NO SIDEWAYS
Do not point the projector down
to project an image.
Do not point the projector up to
project an image.
NO UPWARD
Openings in the cabinet are provided for ventilation and to ensure reliable operation of
the product and to protect it from overheating, and these openings must not be
blocked or covered.
Air Intake Vent
CAUTION
Hot air is exhausted from the exhaust vent. When using or installing the projector,
the following precautions should be taken.
G Do not put any flammable objects near the vent.
G Keep the exhaust vent at least 3’(1m) away from any objects.
G Do not touch a peripheral part of the exhaust vent, especially screws and metallic
part. This area will become hot while the projector is being used.
G Do not put anything on the cabinet. The materials put on the cabinet will not only
get damaged but also cause fire hazard by heat.
Cooling fans are provided to cool down the projector. This projector monitors internal
temperature and control the running speed of the cooling fans.
Exhaust Vent
(Hot air exhaust)
Air Intake Vent
Moving the Projector
When moving the projector, replace the lens cover and retract the adjustable feet to prevent damage to the lens and
cabinet. When the projector is not in use for an extended period, put it into the carrying bag supplied with the projector.
The carrying bag is intended for protection from dust and scratches on the surface of a cabinet, and it is not designed to
protect the projector from external forces. Do not transport the projector through a courier or transport services with this
bag. The projector can be damaged. When handling the projector, do not drop, bump, subject it to strong forces or put
other things on the cabinet.
CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR
G Do not drop or bump the projector, otherwise damages or malfunctions may result.
G When carrying the projector, use a suitable carrying case.
G Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause
damage to the projector. To transport the projector through a courier or transport service, consult your dealer for best
way.
5
Compliance
Federal Communication Commission Notice
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures :
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or
modifications should be made, you could be required to stop operation of the equipment.
Model Numbers
Trade Name
Responsible party
Address
Telephone No.
: PLC-SU50S
: Sanyo
: SANYO FISHER COMPANY
: 21605 Plummer Street, Chatsworth, California 91311
: (818)998-7322
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC POWER CORD REQUIREMENT
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories
(UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug
will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to
insert the plug into the outlet, contact your electrician.
GROUND
AC Power Cord for the United Kingdom :
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the
plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus
ASA
. If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required,
ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from
the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)
WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET.
The Wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow ············ Earth
Blue ································· Neutral
Brown ······························ Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying
the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E
or by the safety earth symbol
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING : THIS APPARATUS MUST BE EARTHED.
or coloured green or green-and-yellow.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
6
Compliance
Connecting the AC Power Cord
This projector uses nominal input voltages of 100-120 V or 200-240
V AC. This projector automatically selects the correct input
voltage. It is designed to work with single-phase power systems
having a grounded neutral conductor. To reduce risk of electrical
shock, do not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure
of the type of power being supplied.
Connect the projector with all peripheral equipment before turning
the projector on. (See page 17-18 for connection.)
CAUTION
For safety, unplug AC power cord when the projector is not in
use.
When this projector is connected to an outlet with AC power
cord, it is in Stand-by mode and consumes a little electric
power.
Connect AC power cord (supplied) to the projector.
The AC outlet must be near this equipment and must
be easily accessible.
NOTE ON THE POWER CORD
AC power cord must meet requirement of the country where you use a projector.
Confirm an AC plug type with the chart below and proper AC power cord must be used.
If supplied AC power cord does not match your AC outlet, contact your sales dealer.
Projector side
AC outlet side
For the U.S.A. and Canada
For Continental Europe
For the U.K.
Ground
To power cord connec-
tor on your projector.
To the AC outlet.
(120 V AC)
To the AC outlet.
(200 - 240 V AC)
To the AC outlet.
(200 - 240 V AC)
7
Features and Design
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This
projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD)
technology.
N Compact Design
This projector is extremely compact in size and weight.
It is designed to be carried and work anywhere you wish
to use.
N Compatibility
The projector widely accepts various video and
computer input signals including;
G Computers
IBM-compatible or Macintosh computer up to
1280 x 1024 resolution.
G 6 Color Systems
NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL-N
color system can be connected.
G Component Video
Component video signal, such as a DVD player
output high definition TV signals including 480i,
480p, 575i, 575p, 720p, 1035i or 1080i, can be
connected.
G S-Video
S-Video signal, such as a S-VHS VCR output
signal, can be connected.
G RGB Scart
RGB Scart signal can be connected.
N Simple Computer System Setting
The projector has the Multi-scan system to conform to
almost all computer output signals quickly. (See page
25.)
N Digital Zoom (for Computer)
The digital zoom function expands (to approx. 16 times
of screen size) or compress the image size, allowing you
to focus on crucial information at a presentation. (See
page 31.)
N Interlace Progressive Conversion
High-quality picture is available with this technology
which converts interlace signal into progressive signal.
(See page 36.)
N Keystone Adjustment
Keystone distortion can be corrected not only vertically
but also horizontally. The keystone correction function
enables you to use the projector where you wish to use.
(See page 20 and 38.)
N Power Management
The Power management function reduces power
consumption and maintain the lamp life. (See page 39.)
N User’s Logo
A projected image can be captured and used for the
starting display of the projector with the Capture
function. You can also display the captured image in an
interval during your presentation instead of blackout
image with the No show function. (See page 21, 38.)
N Lamp Mode
Brightness of the projection lamp can be changed by
setting. The projector has the function to adjust the
brightness according to an input signal for the best
suited image. (See page 40.)
N Pointer Function
The projector has a convenient function which displays
Spotlight or Pointer controlled by the remote control on a
projected image. The remote control also has the Laser
pointer function. These functions will make your
important presentation more effective. (See page 13,
40.)
N Multilanguage Menu Display
Operation menu is available in; English, German, French,
Italian, Spanish, Portuguese, Dutch, Swedish, Russian,
Chinese, Korean, or Japanese. (See page 38.)
N Switchable Interface Terminal
The projector provides a switchable interface terminal.
You can use the terminal as computer input or monitor
output conveniently. (See page 39.)
N Digital Visual Interface
The projector is equipped with DVI 29-pin terminal for
connecting DVI output from a computer or video
equipment. You can also enjoy digital entertainment
content protected by HDCP technology. (See page 24
for HDCP.)
N Wireless Mouse
The remote control supplied with this projector has
wireless mouse function for a connected computer.
This function enables you to operate both the projector
and the connected computer with the remote control.
(See page 14.)
N Multi Card Imager (optional)
The projector can be operated through wired/wireless
LAN by attaching the Multi Card Imager that is optionally
supplied. The Multi Card Imager is also used as a
viewer. Contact the dealer where you purchased the
projector for the Multi Card Imager.
8
