三洋投影机-PLC-SU07N说明书.pdf
PLC-SU07N
Safety Precautions
Table of Contents
Feature sa and Design
Preparation
Setting Up the Projector
Positioning the Ptojector
Adjustable Feet
Ventilation
Moving the Projector
Connecting the Projector
Terminals of the Projector
Connecting to the Video Equipment
Connecting to the IBM-Compatible Computer
Connection to the Macintosh Computer
Before Operation
Operation of the Remote Control
Top Controls and indicators
Operating On-Screen Menu
Basic operations
Turn On/Off the Projector
Adjusting the Picture
No Show Function
Sound Adjustment
Computer Mode
Selecting Computer Mode
Selecting Computer System
PC Adjustment
Compatible Computer Specifications
Picture Image Adjustment
Picture Position Adjustment
Picture Screen Adjustment
Video Mode
Selecting Video Mode
Select Color System
picture Image Adjustment
Picture Screen Adjustment
Setting
Setting Menu
Selecting Language
Appendix
Operating wireless Mouse
Maintenance
Temperature Warning Indicator
Air Filter Care and Cleaning
Cleaning the Projectyor Lens
Lamp Replacement Indicator
Lamp Replacement
Lamp Replacement Monitor Timer
Troubleshooting
Technical Specifications
Limited Warranty
Multimedia Projector
MODEL
PLC-SU07N
Owner's Manual

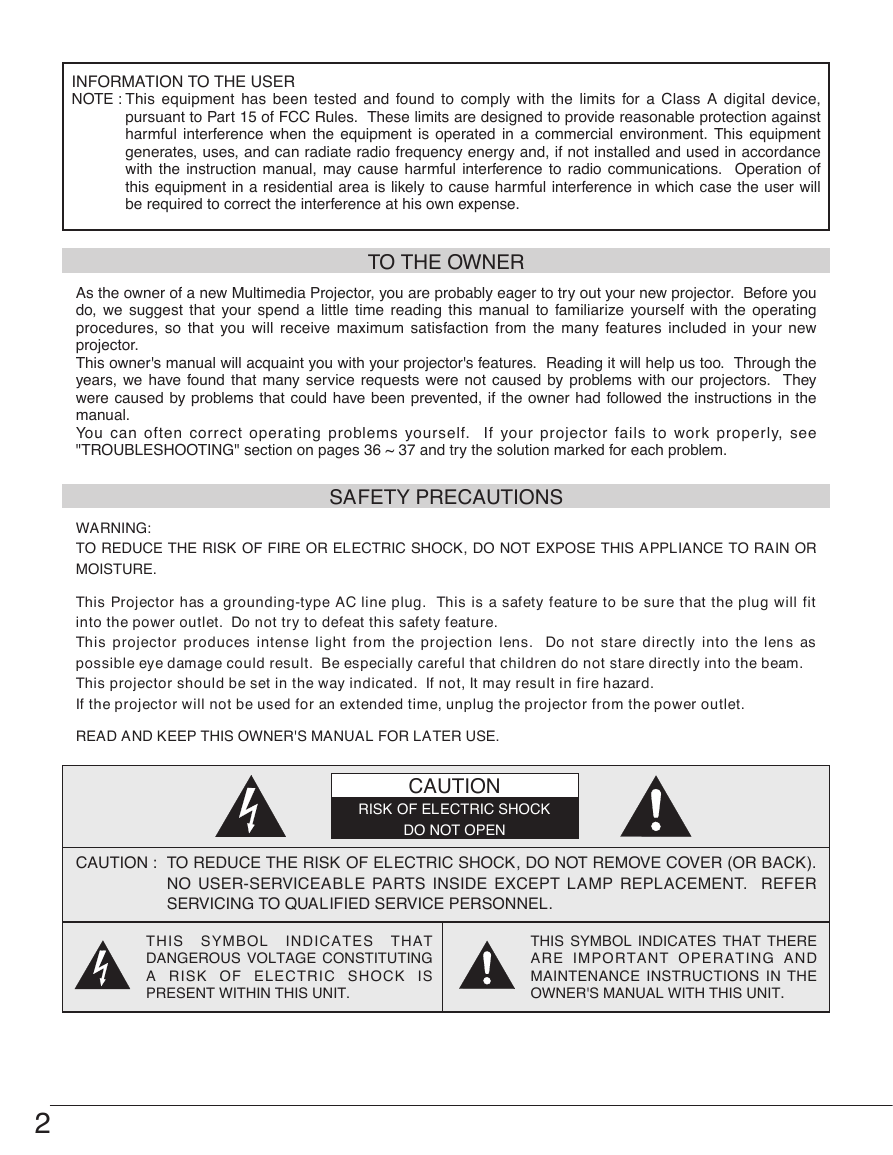

INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
TO THE OWNER
As the owner of a new Multimedia Projector, you are probably eager to try out your new projector. Before you
do, we suggest that your spend a little time reading this manual to familiarize yourself with the operating
procedures, so that you will receive maximum satisfaction from the many features included in your new
projector.
This owner's manual will acquaint you with your projector's features. Reading it will help us too. Through the
years, we have found that many service requests were not caused by problems with our projectors. They
were caused by problems that could have been prevented, if the owner had followed the instructions in the
manual.
You can often correct operating problems yourself. If your projector fails to work properly, see
"TROUBLESHOOTING" section on pages 36 ~ 37 and try the solution marked for each problem.
SAFETY PRECAUTIONS
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
This Projector has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit
into the power outlet. Do not try to defeat this safety feature.
This projector produces intense light from the projection lens. Do not stare directly into the lens as
possible eye damage could result. Be especially careful that children do not stare directly into the beam.
This projector should be set in the way indicated. If not, It may result in fire hazard.
If the projector will not be used for an extended time, unplug the projector from the power outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL
INDICATES THAT
DANGEROUS VOLTAGE CONSTITUTING
A RISK OF ELECTRIC SHOCK IS
PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE
ARE IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS IN THE
OWNER'S MANUAL WITH THIS UNIT.
2

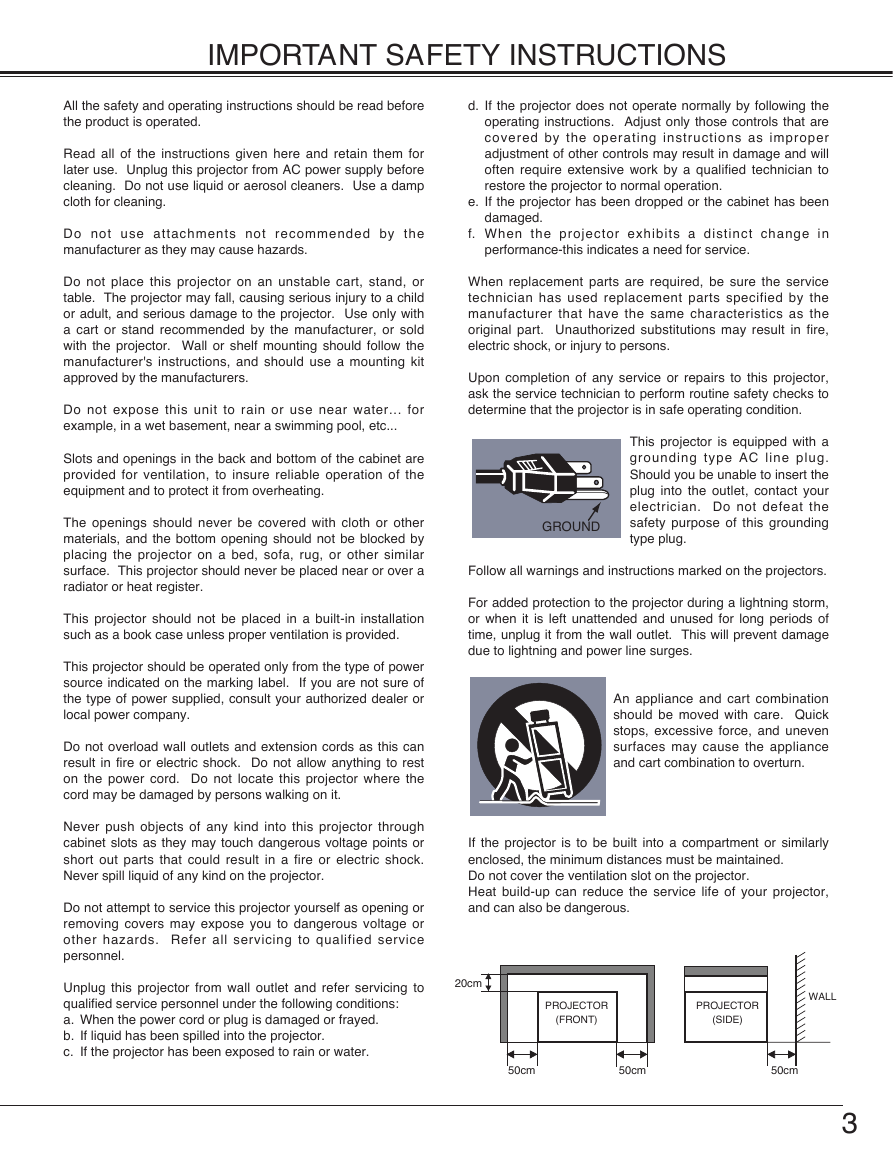

IMPORTANT SAFETY INSTRUCTIONS
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for
later use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
Do not place this projector on an unstable cart, stand, or
table. The projector may fall, causing serious injury to a child
or adult, and serious damage to the projector. Use only with
a cart or stand recommended by the manufacturer, or sold
with the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest
on the power cord. Do not locate this projector where the
cord may be damaged by persons walking on it.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
This projector is equipped with a
grounding type AC line plug.
Should you be unable to insert the
plug into the outlet, contact your
electrician. Do not defeat the
safety purpose of this grounding
type plug.
GROUND
Follow all warnings and instructions marked on the projectors.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
If the projector is to be built into a compartment or similarly
enclosed, the minimum distances must be maintained.
Do not cover the ventilation slot on the projector.
Heat build-up can reduce the service life of your projector,
and can also be dangerous.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
20cm
PROJECTOR
(FRONT)
PROJECTOR
(SIDE)
WALL
50cm
50cm
50cm
3

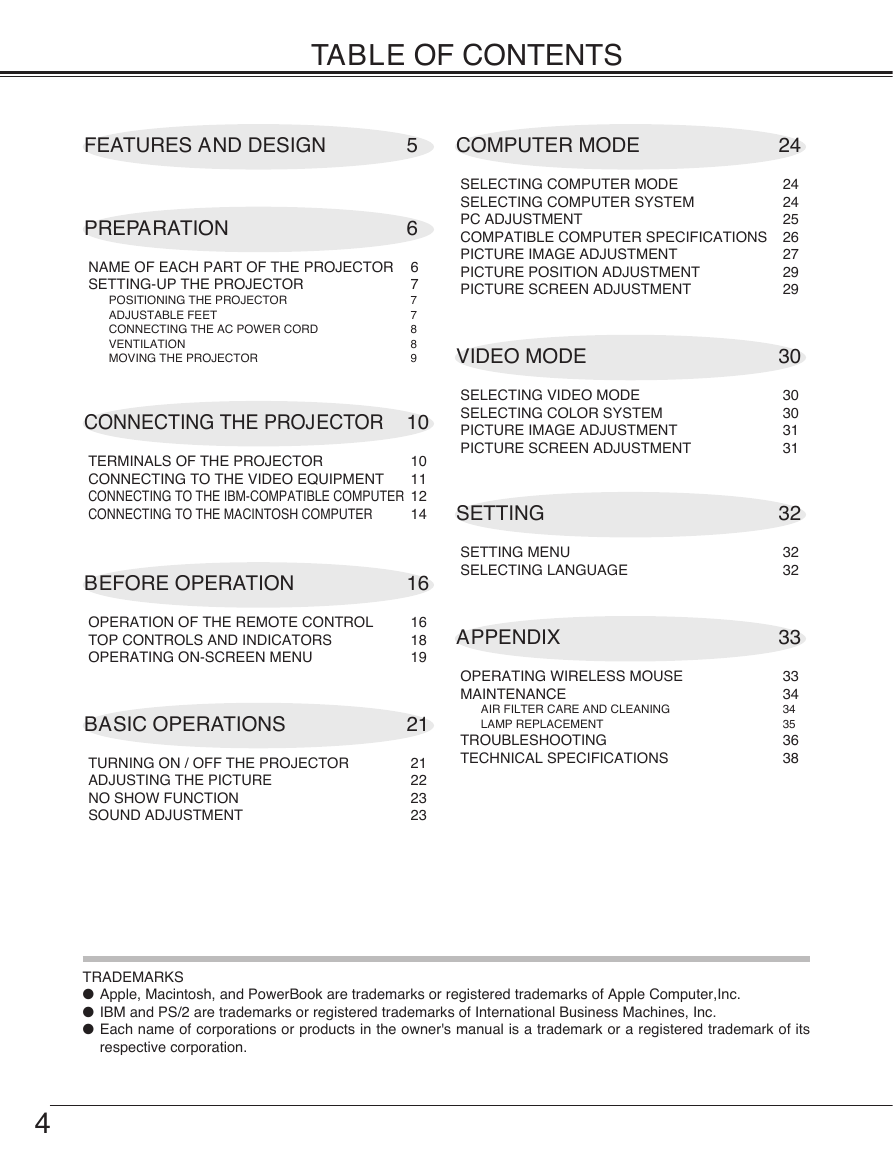

TABLE OF CONTENTS
FEATURES AND DESIGN
PREPARATION
5
6

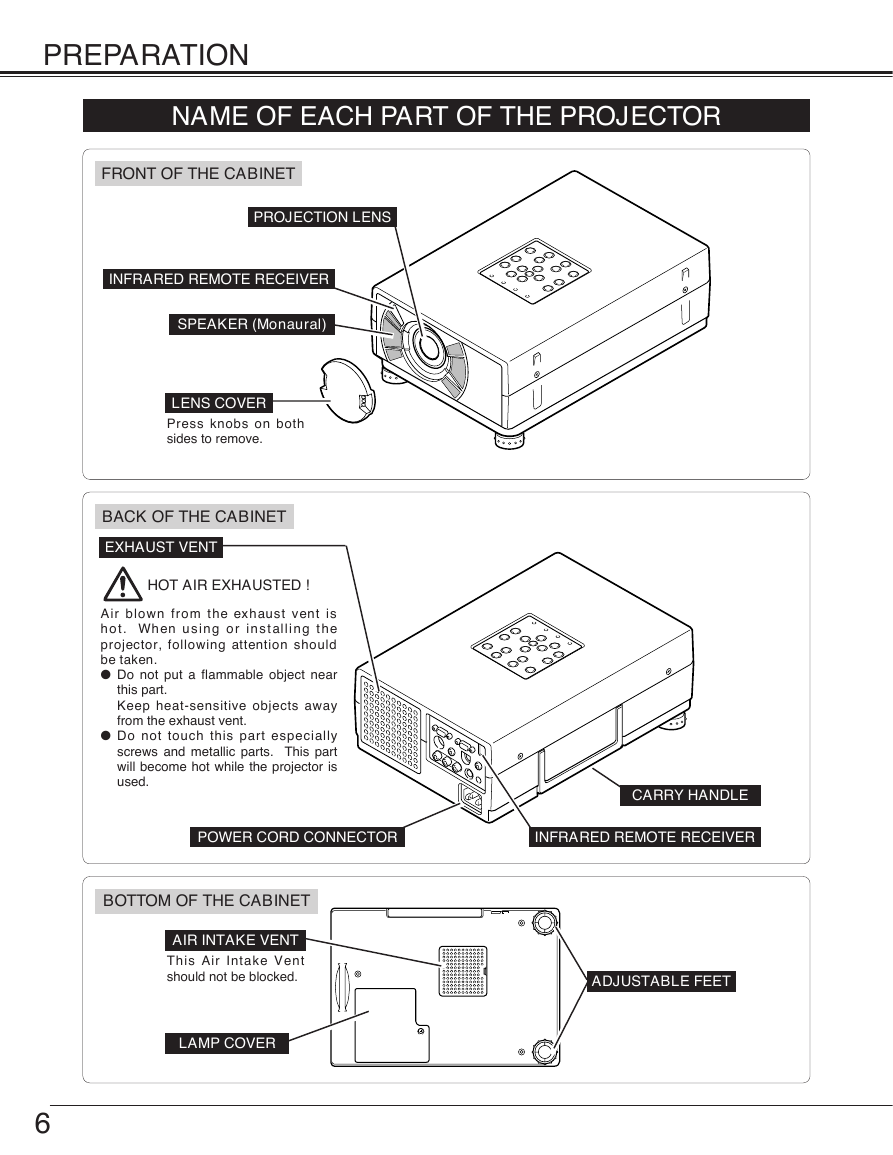

NAME OF EACH PART OF THE PROJECTOR 6
7
SETTING-UP THE PROJECTOR
7
7
8
8
9

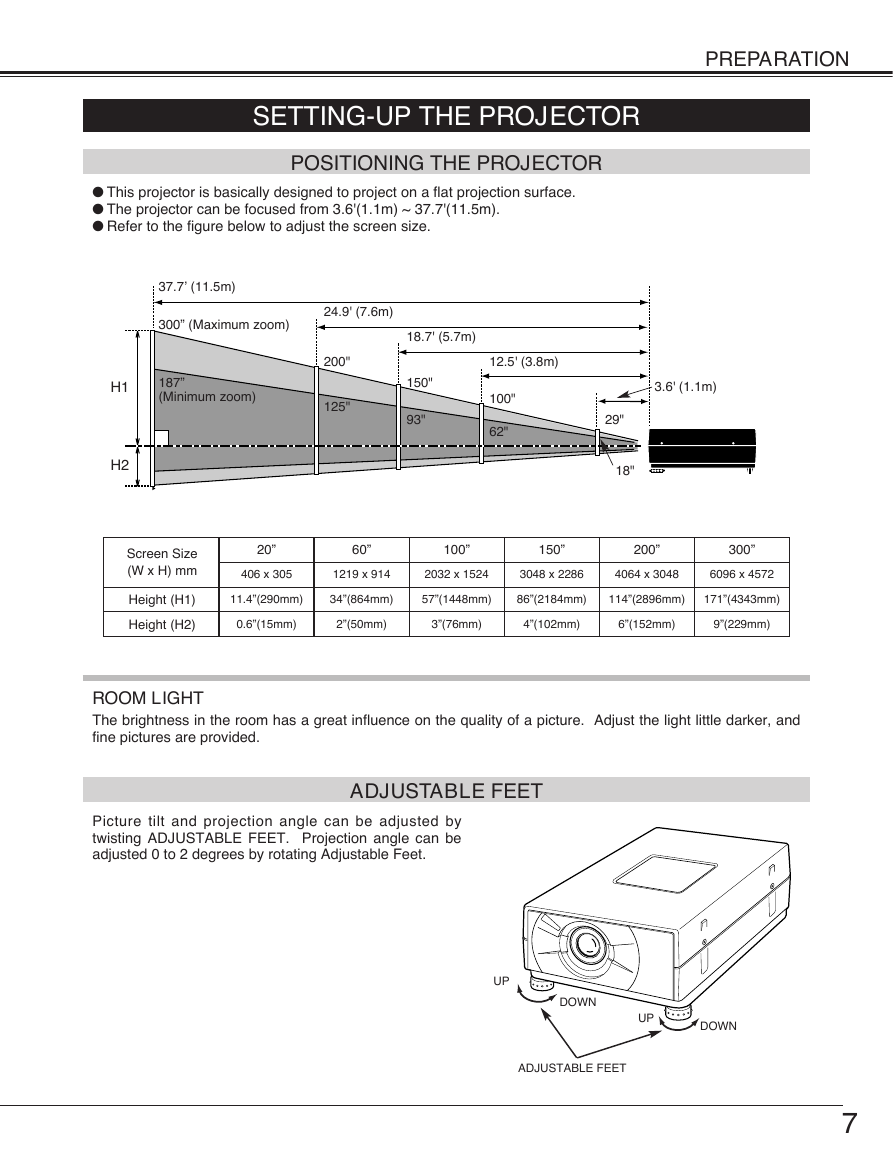

POSITIONING THE PROJECTOR
ADJUSTABLE FEET

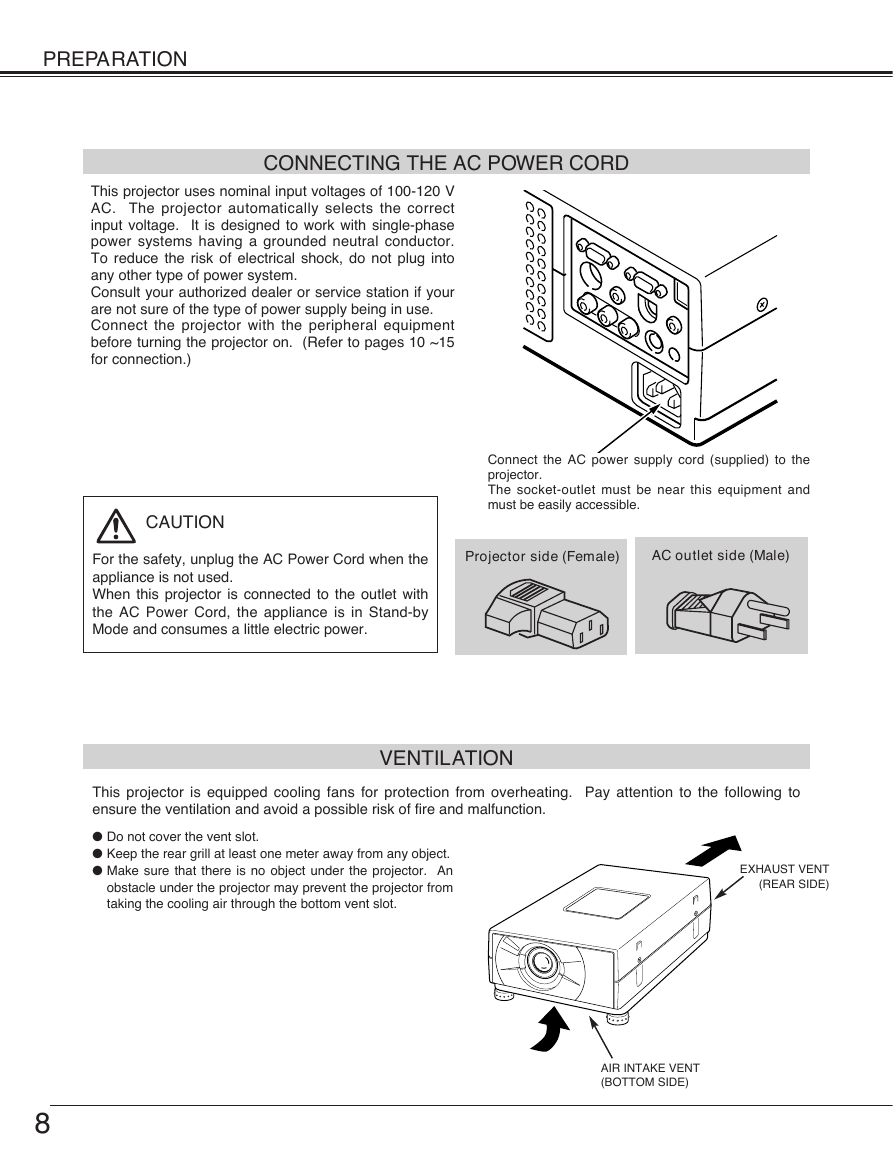

CONNECTING THE AC POWER CORD
VENTILATION
MOVING THE PROJECTOR
CONNECTING THE PROJECTOR 10
10
TERMINALS OF THE PROJECTOR
11
CONNECTING TO THE VIDEO EQUIPMENT
CONNECTING TO THE IBM-COMPATIBLE COMPUTER 12
CONNECTING TO THE MACINTOSH COMPUTER
14
BEFORE OPERATION
OPERATION OF THE REMOTE CONTROL
TOP CONTROLS AND INDICATORS
OPERATING ON-SCREEN MENU
BASIC OPERATIONS
TURNING ON / OFF THE PROJECTOR
ADJUSTING THE PICTURE
NO SHOW FUNCTION
SOUND ADJUSTMENT
16
16
18
19
21
21
22
23
23
COMPUTER MODE
24
24
SELECTING COMPUTER MODE
24
SELECTING COMPUTER SYSTEM
PC ADJUSTMENT
25
COMPATIBLE COMPUTER SPECIFICATIONS 26
PICTURE IMAGE ADJUSTMENT
27
29
PICTURE POSITION ADJUSTMENT
PICTURE SCREEN ADJUSTMENT
29
VIDEO MODE
SELECTING VIDEO MODE
SELECTING COLOR SYSTEM
PICTURE IMAGE ADJUSTMENT
PICTURE SCREEN ADJUSTMENT
SETTING
SETTING MENU
SELECTING LANGUAGE
APPENDIX
OPERATING WIRELESS MOUSE
MAINTENANCE
AIR FILTER CARE AND CLEANING
LAMP REPLACEMENT
TROUBLESHOOTING
TECHNICAL SPECIFICATIONS
30
30
30
31
31
32
32
32
33
33
34
34
35
36
38
TRADEMARKS
l Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.
l IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.
l Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its
respective corporation.
4

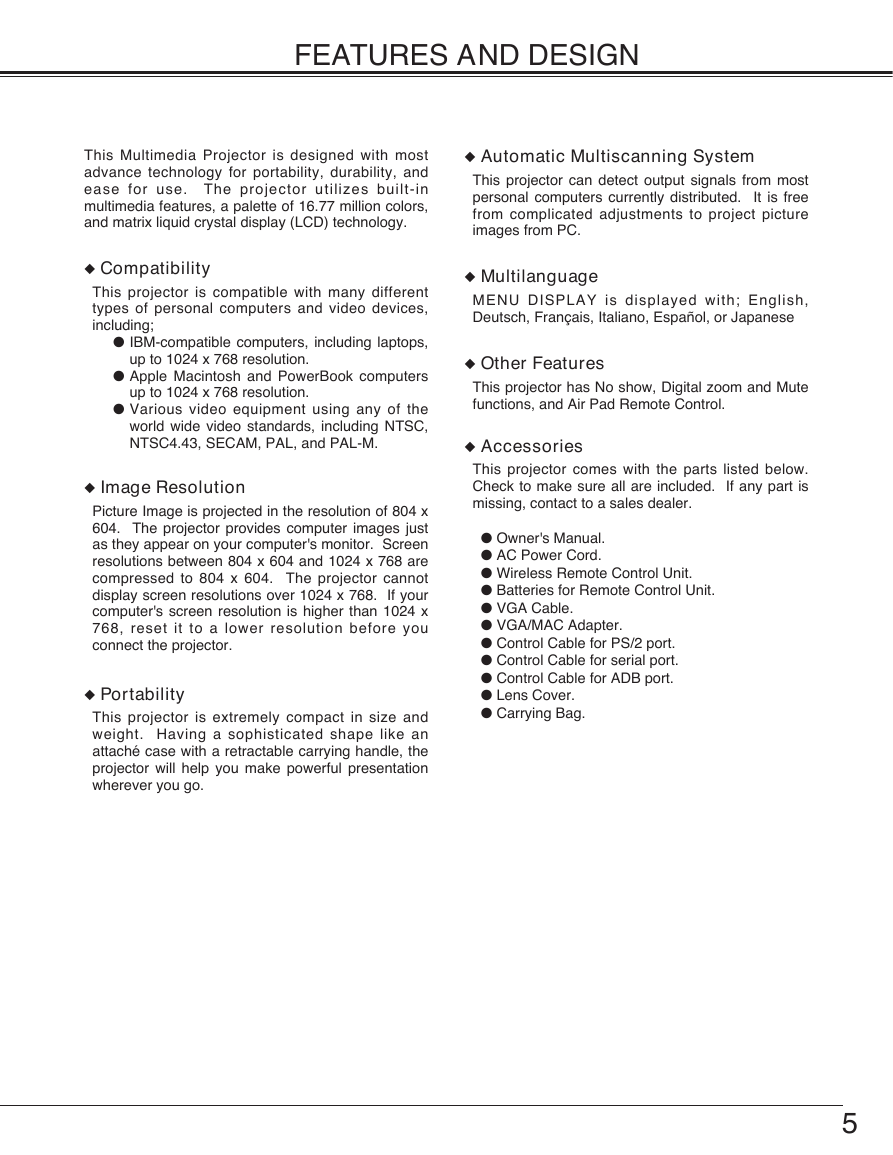

FEATURES AND DESIGN
This Multimedia Projector is designed with most
advance technology for portability, durability, and
ease for use. The projector utilizes built-in
multimedia features, a palette of 16.77 million colors,
and matrix liquid crystal display (LCD) technology.
u Automatic Multiscanning System
This projector can detect output signals from most
personal computers currently distributed. It is free
from complicated adjustments to project picture
images from PC.
u Compatibility
This projector is compatible with many different
types of personal computers and video devices,
including;
l IBM-compatible computers, including laptops,
up to 1024 x 768 resolution.
l Apple Macintosh and PowerBook computers
up to 1024 x 768 resolution.
l Various video equipment using any of the
world wide video standards, including NTSC,
NTSC4.43, SECAM, PAL, and PAL-M.
u Image Resolution
Picture Image is projected in the resolution of 804 x
604. The projector provides computer images just
as they appear on your computer's monitor. Screen
resolutions between 804 x 604 and 1024 x 768 are
compressed to 804 x 604. The projector cannot
display screen resolutions over 1024 x 768. If your
computer's screen resolution is higher than 1024 x
768, reset it to a lower resolution before you
connect the projector.
u Portability
This projector is extremely compact in size and
weight. Having a sophisticated shape like an
attaché case with a retractable carrying handle, the
projector will help you make powerful presentation
wherever you go.
u Multilanguage
MENU DISPLAY is displayed with; English,
Deutsch, Français, Italiano, Español, or Japanese
u Other Features
This projector has No show, Digital zoom and Mute
functions, and Air Pad Remote Control.
u Accessories
This projector comes with the parts listed below.
Check to make sure all are included. If any part is
missing, contact to a sales dealer.
l Owner's Manual.
l AC Power Cord.
l Wireless Remote Control Unit.
l Batteries for Remote Control Unit.
l VGA Cable.
l VGA/MAC Adapter.
l Control Cable for PS/2 port.
l Control Cable for serial port.
l Control Cable for ADB port.
l Lens Cover.
l Carrying Bag.
5
PREPARATION
NAME OF EACH PART OF THE PROJECTOR
FRONT OF THE CABINET
PROJECTION LENS
INFRARED REMOTE RECEIVER
SPEAKER (Monaural)
LENS COVER
Press knobs on both
sides to remove.
BACK OF THE CABINET
EXHAUST VENT
HOT AIR EXHAUSTED !
Air blown from the exhaust vent is
hot. When using or installing the
projector, following attention should
be taken.
l Do not put a flammable object near
this part.
Keep heat-sensitive objects away
from the exhaust vent.
l Do not touch this part especially
screws and metallic parts. This part
will become hot while the projector is
used.
CARRY HANDLE
POWER CORD CONNECTOR
INFRARED REMOTE RECEIVER
BOTTOM OF THE CABINET
AIR INTAKE VENT
This Air Intake Vent
should not be blocked.
LAMP COVER
6
ADJUSTABLE FEET
PREPARATION
SETTING-UP THE PROJECTOR
POSITIONING THE PROJECTOR
l This projector is basically designed to project on a flat projection surface.
l The projector can be focused from 3.6'(1.1m) ~ 37.7'(11.5m).
l Refer to the figure below to adjust the screen size.
37.7’ (11.5m)
300” (Maximum zoom)
24.9' (7.6m)
H1
187”
(Minimum zoom)
200"
125"
H2
18.7' (5.7m)
150"
93"
12.5' (3.8m)
100"
62"
3.6' (1.1m)
29"
18"
Screen Size
(W x H) mm
Height (H1)
Height (H2)
20”
60”
100”
150”
200”
300”
406 x 305
1219 x 914
2032 x 1524
3048 x 2286
4064 x 3048
6096 x 4572
11.4”(290mm)
34”(864mm)
57”(1448mm)
86”(2184mm)
114”(2896mm)
171”(4343mm)
0.6”(15mm)
2”(50mm)
3”(76mm)
4”(102mm)
6”(152mm)
9”(229mm)
ROOM LIGHT
The brightness in the room has a great influence on the quality of a picture. Adjust the light little darker, and
fine pictures are provided.
ADJUSTABLE FEET
Picture tilt and projection angle can be adjusted by
twisting ADJUSTABLE FEET. Projection angle can be
adjusted 0 to 2 degrees by rotating Adjustable Feet.
UP
DOWN
ADJUSTABLE FEET
UP
DOWN
7
PREPARATION
CONNECTING THE AC POWER CORD
This projector uses nominal input voltages of 100-120 V
AC. The projector automatically selects the correct
input voltage. It is designed to work with single-phase
power systems having a grounded neutral conductor.
To reduce the risk of electrical shock, do not plug into
any other type of power system.
Consult your authorized dealer or service station if your
are not sure of the type of power supply being in use.
Connect the projector with the peripheral equipment
before turning the projector on. (Refer to pages 10 ~15
for connection.)
Connect the AC power supply cord (supplied) to the
projector.
The socket-outlet must be near this equipment and
must be easily accessible.
Projector side (Female)
AC outlet side (Male)
CAUTION
For the safety, unplug the AC Power Cord when the
appliance is not used.
When this projector is connected to the outlet with
the AC Power Cord, the appliance is in Stand-by
Mode and consumes a little electric power.
This projector is equipped cooling fans for protection from overheating. Pay attention to the following to
ensure the ventilation and avoid a possible risk of fire and malfunction.
VENTILATION
l Do not cover the vent slot.
l Keep the rear grill at least one meter away from any object.
l Make sure that there is no object under the projector. An
obstacle under the projector may prevent the projector from
taking the cooling air through the bottom vent slot.
EXHAUST VENT
(REAR SIDE)
8
AIR INTAKE VENT
(BOTTOM SIDE)
