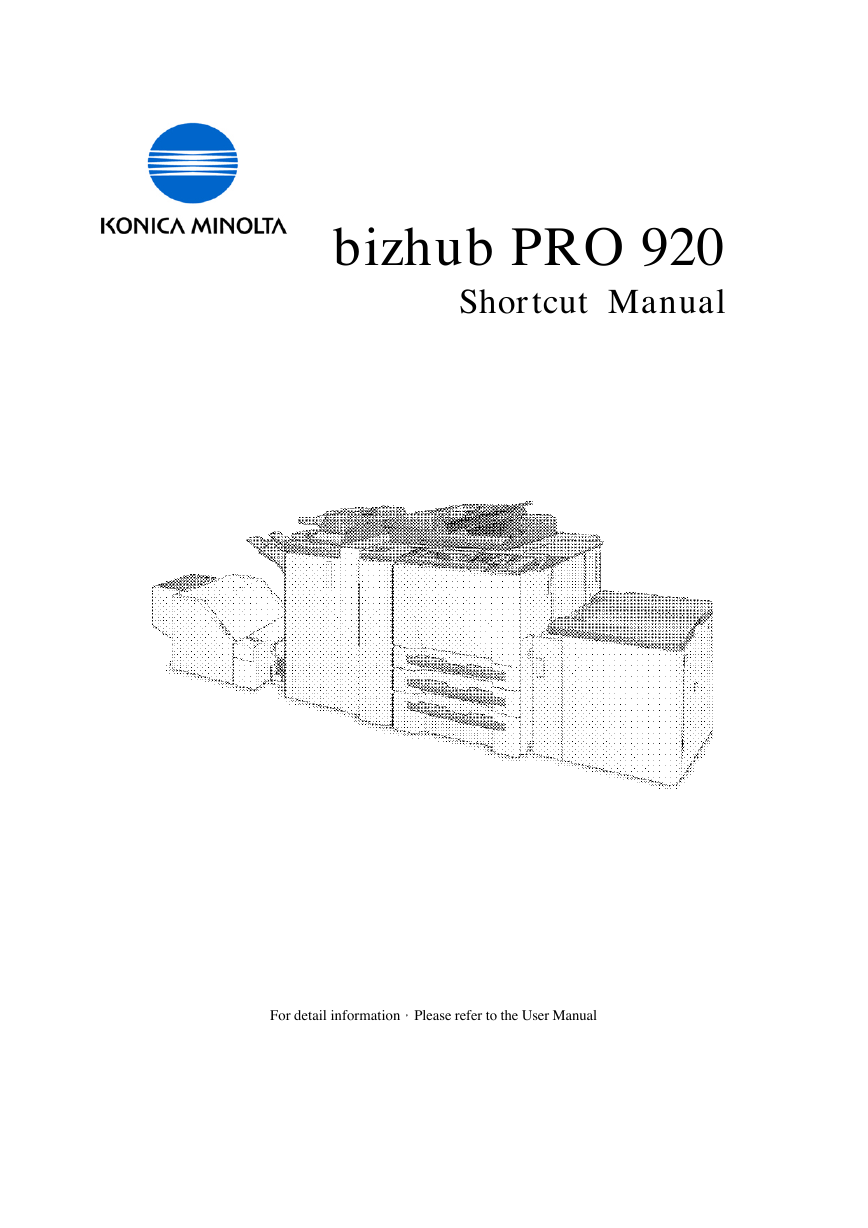

bizhub PRO 920 Shortcut Manual For detail informationA Please refer to the User Manual

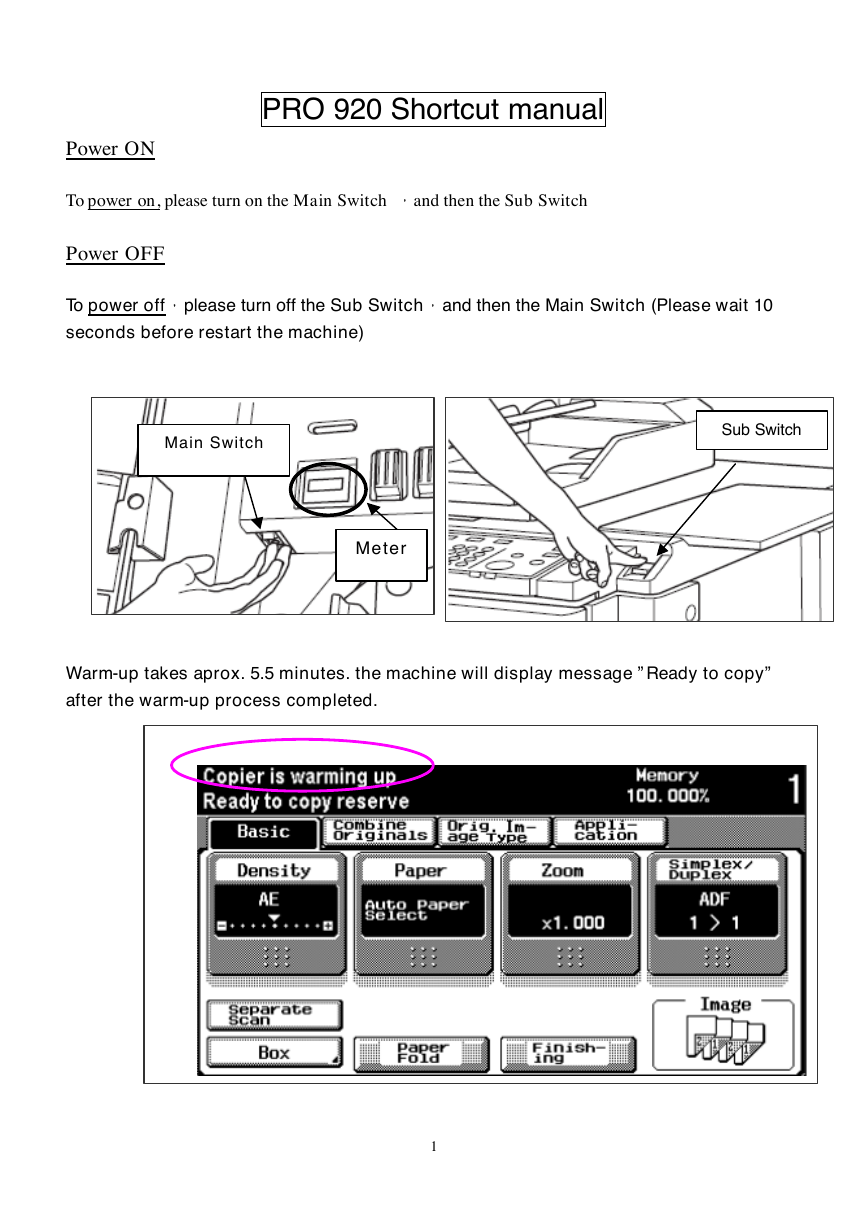

PRO 920 Shortcut manual Sub Switch Main Switch Power ON To power on, please turn on the Main Switch A and then the Sub Switch Power OFF To power offA please turn off the Sub SwitchA and then the Main Switch (Please wait 10 seconds before restart the machine) Warm-up takes aprox. 5.5 minutes. the machine will display message ”Ready to copy” after the warm-up process completed. Meter 1

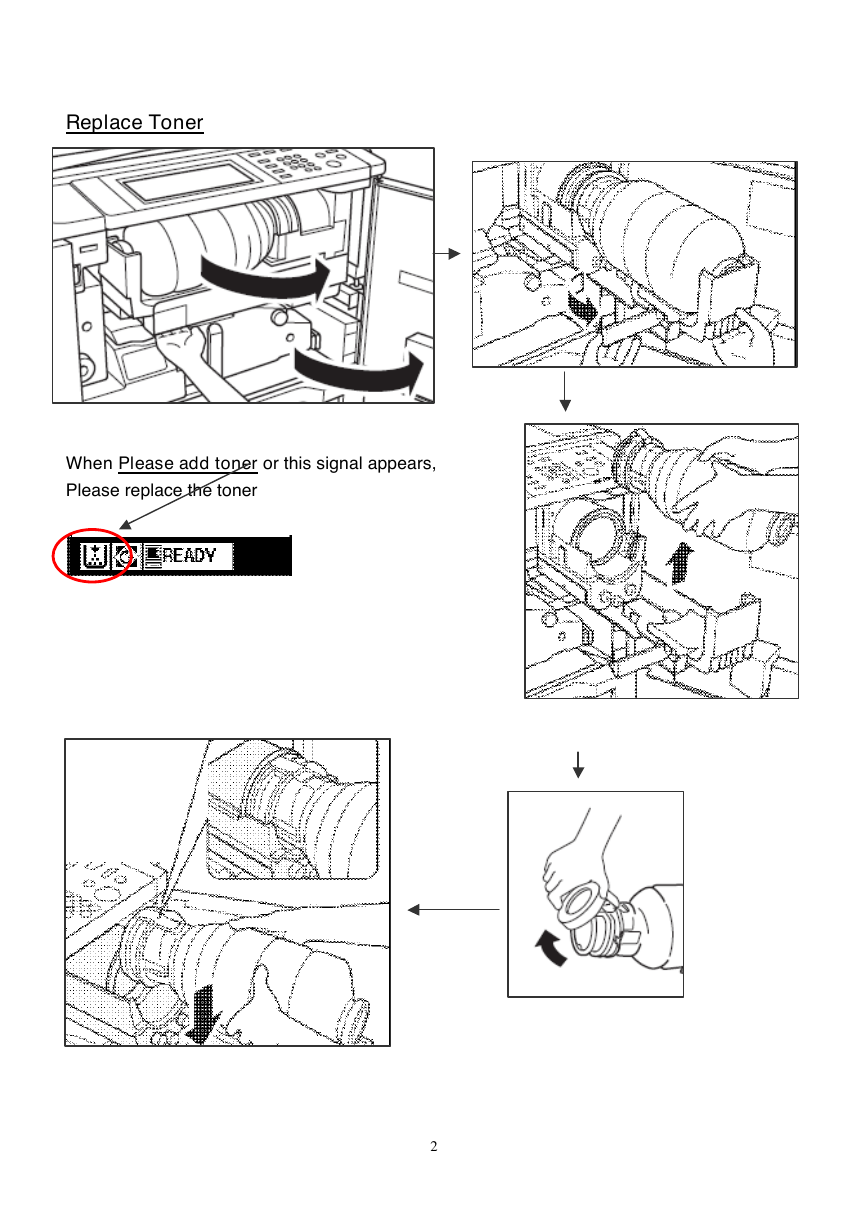

Replace Toner When Please add toner or this signal appears, Please replace the toner 2

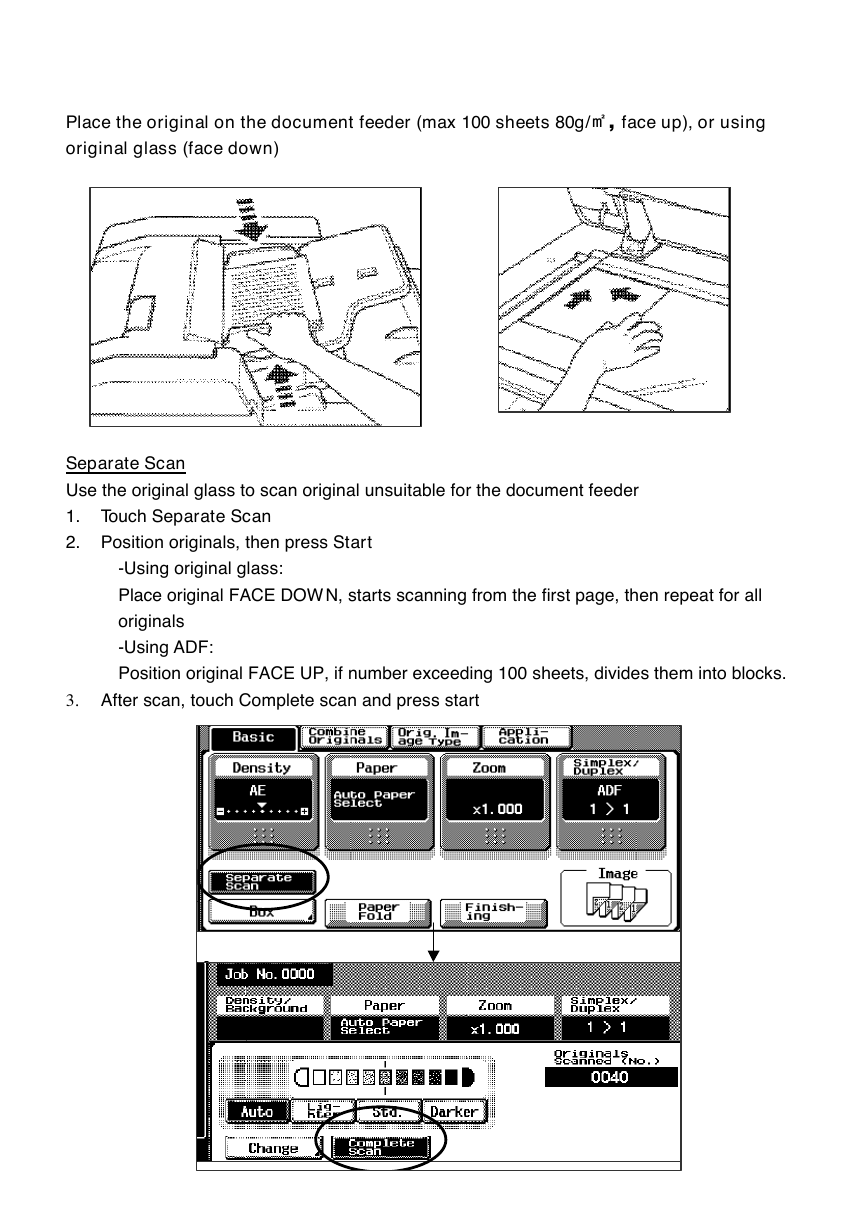

Place the original on the document feeder (max 100 sheets 80g/T , face up), or using original glass (face down) Separate Scan Use the original glass to scan original unsuitable for the document feeder 1. Touch Separate Scan 2. Position originals, then press Start -Using original glass: Place original FACE DOW N, starts scanning from the first page, then repeat for all originals -Using ADF: Position original FACE UP, if number exceeding 100 sheets, divides them into blocks. 3. After scan, touch Complete scan and press start 3

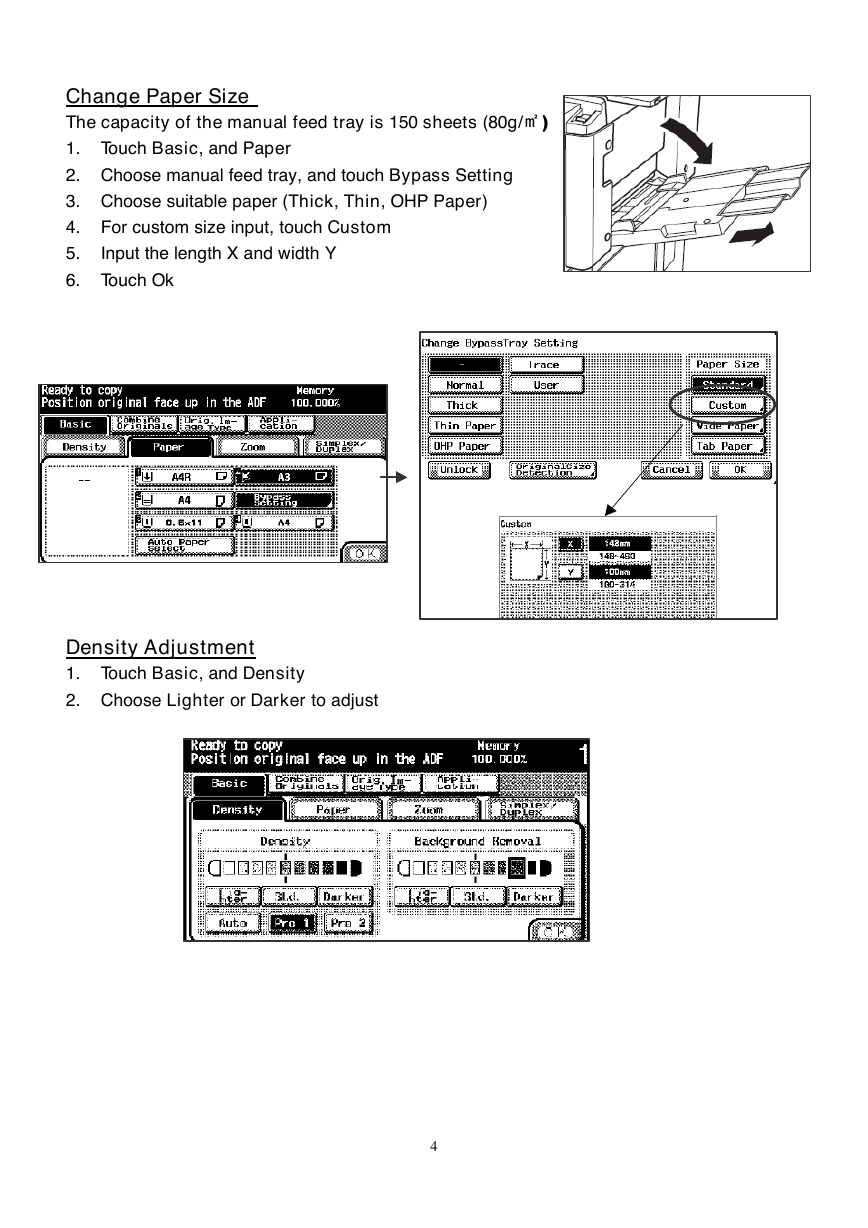

Input the length X and width Y Change Paper Size The capacity of the manual feed tray is 150 sheets (80g/T ) 1. Touch Basic, and Paper 2. Choose manual feed tray, and touch Bypass Setting 3. Choose suitable paper (Thick, Thin, OHP Paper) 4. For custom size input, touch Custom 5. 6. Touch Ok Density Adjustment 1. Touch Basic, and Density 2. Choose Lighter or Darker to adjust 4

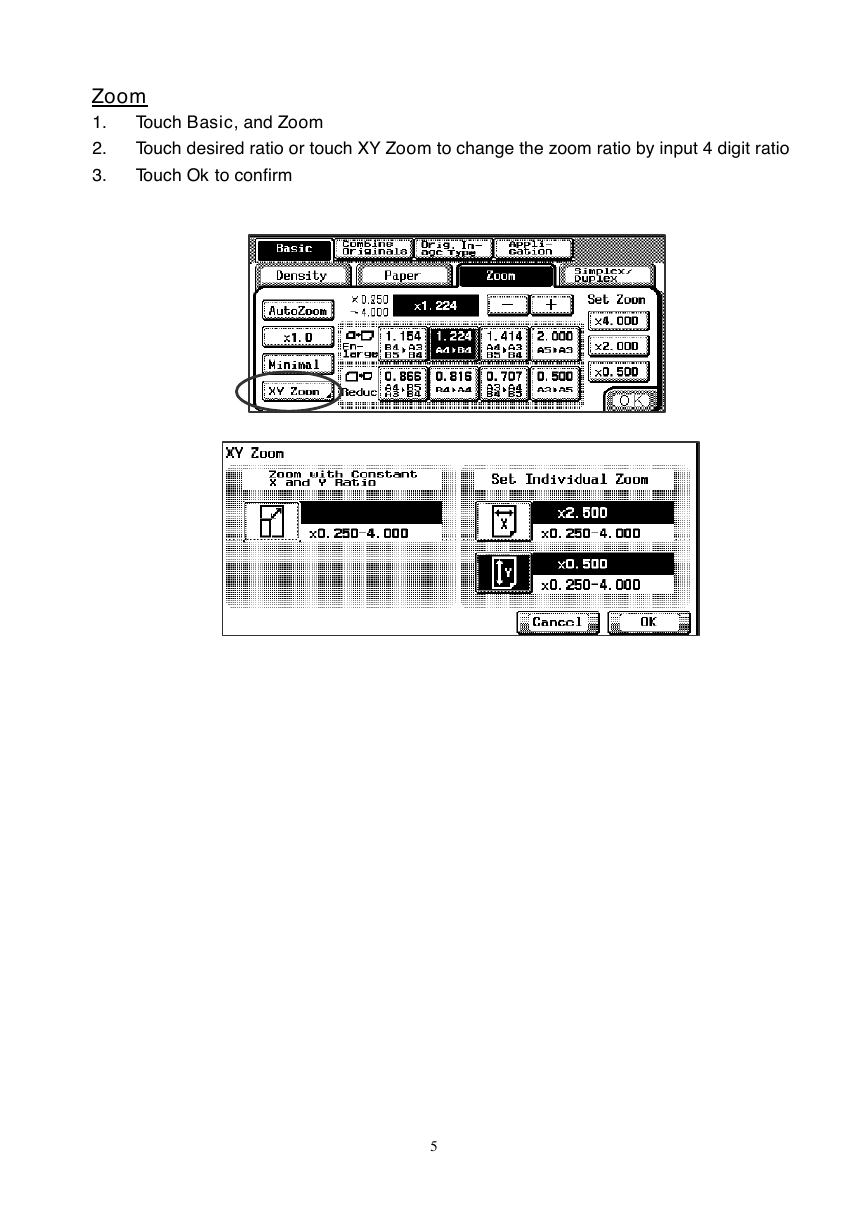

Zoom 1. 2. 3. Touch Basic, and Zoom Touch desired ratio or touch XY Zoom to change the zoom ratio by input 4 digit ratio Touch Ok to confirm 5

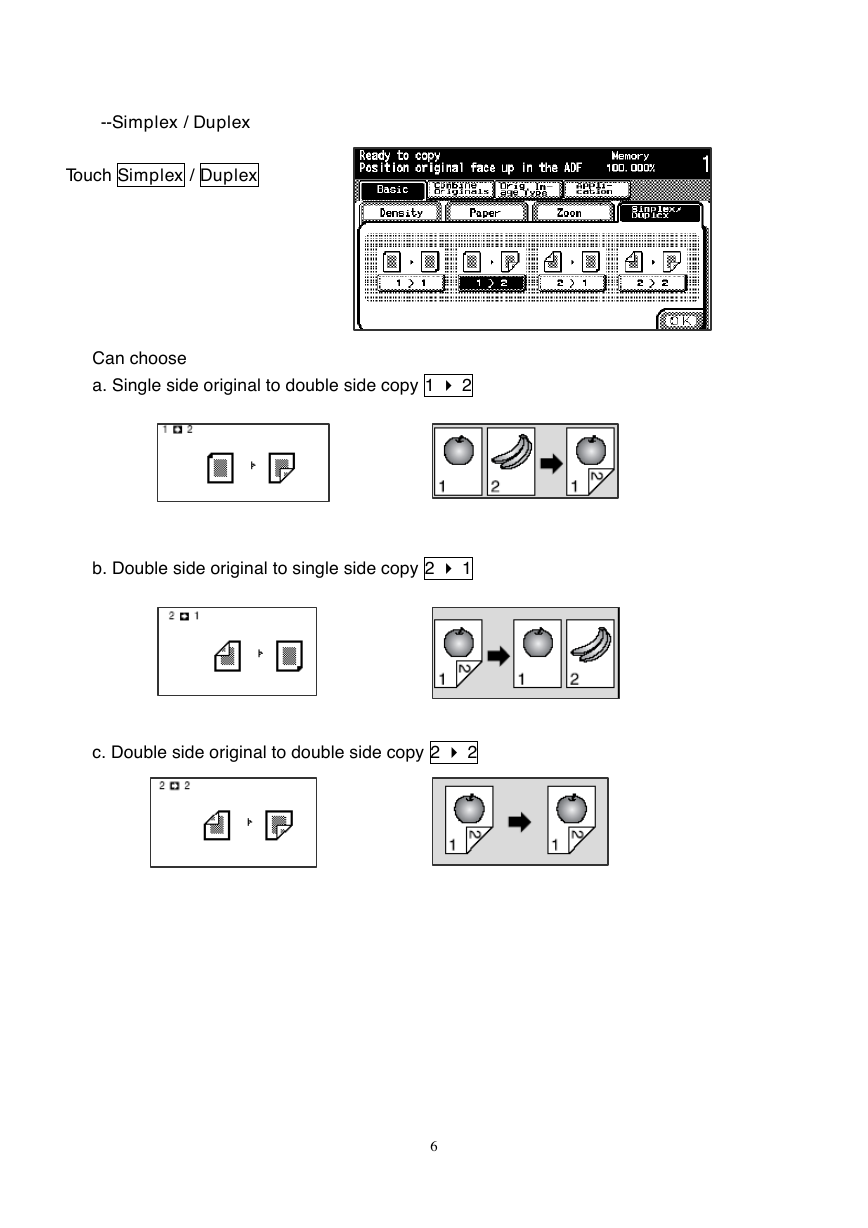

--Simplex / Duplex Touch Simplex / Duplex Can choose a. Single side original to double side copy 1 4 2 b. Double side original to single side copy 2 4 1 c. Double side original to double side copy 2 4 2 6

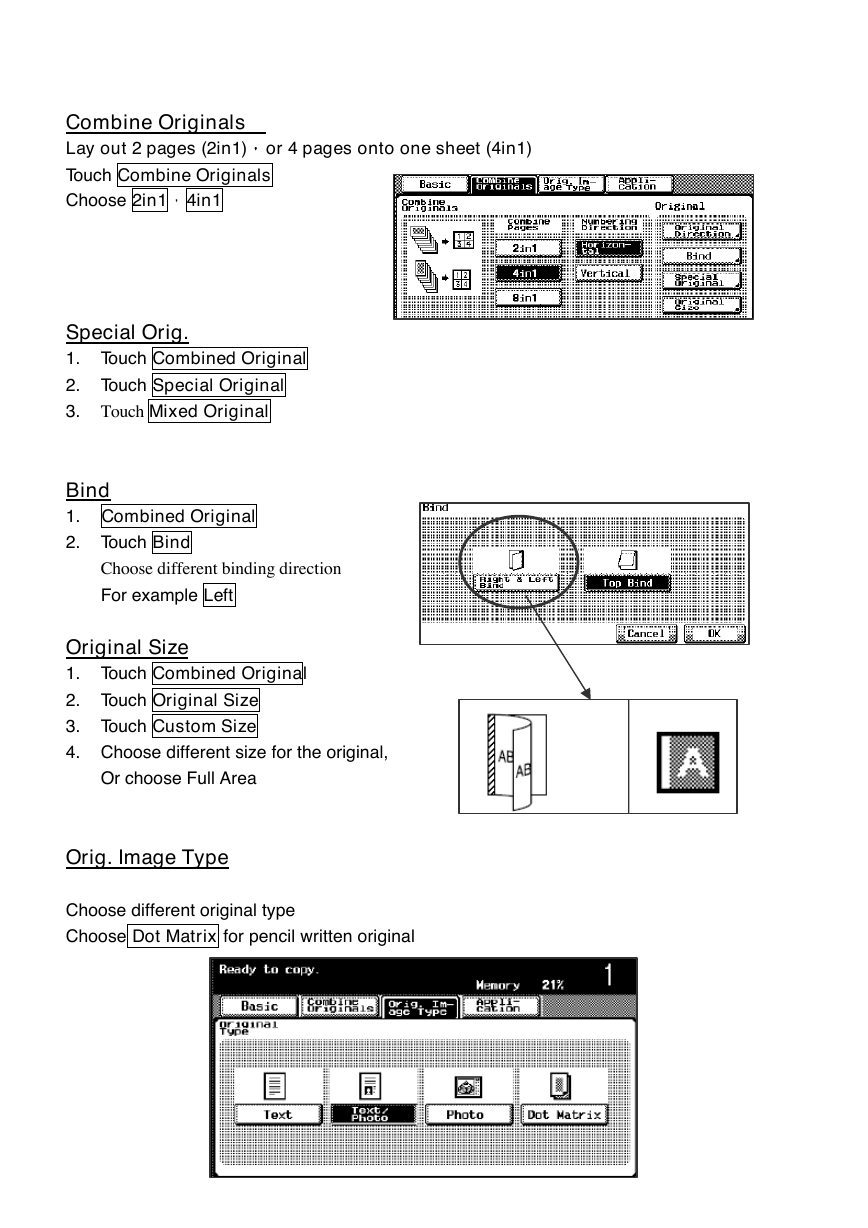

Combine Originals Lay out 2 pages (2in1)A or 4 pages onto one sheet (4in1) Touch Combine Originals Choose 2in1A 4in1 Special Orig. 1. Touch Combined Original 2. Touch Special Original 3. Touch Mixed Original Bind 1. Combined Original 2. Touch Bind Choose different binding direction For example Left Original Size 1. Touch Combined Original 2. Touch Original Size 3. Touch Custom Size 4. Choose different size for the original, Or choose Full Area Orig. Image Type Choose different original type Choose Dot Matrix for pencil written original 7
