Introduction

Tips and Shortcuts

Manual Conventions

Quick Links

Getting Started

Front and Rear Panels

Turning the Chartplotter On or Off

Adjusting the Backlight

Adjusting the Color Mode

Acquiring GPS Satellite Signals

Inserting and Removing SD Cards

Restoring Factory Settings

Viewing System Information

Using the Simulator Mode

Understanding the Home Screen

Using Charts

Using the Navigation Chart

Using Mariner’s Eye

Using BlueChart g2 Vision

Using Mariner’s Eye 3D

Using Fish Eye 3D

Changing the Chart Settings

Using Tracks

Using Fishing Charts

Enabling High Resolution Satellite Imagery

Viewing Aerial Photos

Viewing Current Station Information

Detailed Road and POI Data

Using Automatic Guidance

Using Combinations

Where To?

Navigating to a Destination

Creating and Using Waypoints

Creating and Using Routes

Viewing Information

Viewing Tide Station Information

Viewing Current Information

Viewing Celestial Information

Viewing User Data

Viewing Information on Other Boats

Viewing Gauges

Viewing Fuel Gauges

Viewing Video

Configuring the Unit

Configuring System Settings

Changing Units of Measure

Configuring Communications Settings

Setting Alarms

Configuring My Boat

Configuring Other Boats

Configuring XM Audio

Using the Marine Network

Viewing Connected Garmin Marine Network Devices

Using Radar

Understanding the Cruising Screen

Changing Radar Settings

Using Sonar

Understanding the Full Screen

Understanding the Split Zoom Screen

Understanding the Split Frequency Screen

Understanding the Temp Log

Setting Up Sonar

Advanced Sonar Settings

Using XM WX Weather™ and Audio

Using XM WX Weather

Setting the XM WX Weather Options

Viewing Precipitation Information

Viewing Forecast Information

Viewing Sea Conditions

Viewing Fishing Information

Viewing Visibility Information

Viewing Buoy Reports

Using XM Audio

Appendix

Specifications

Calibrating the Touchscreen

NMEA 0183 and NMEA 2000

Messages and Alarms

Product Registration

Contact Garmin

Declaration of Conformity (DoC)

Weather Data Warranty

Software License Agreement

XM Satellite Radio Service Agreement

Index

GPSMAP® 5000 Series owner’s manual

© 2008 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA Tel. (913) 397.8200 or (800) 800.1020 Fax (913) 397.8282 Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 Garmin (Europe) Ltd. Liberty House Hounsdown Business Park, Southampton, Hampshire, SO40 9RB UK Tel. +44 (0) 870.8501241 Fax +44 (0) 870.8501251 (outside the UK) 0808 2380000 (within the UK) All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin® is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Garmin Mobile™, myGarmin™ GPSMAP®, AutoLocate®, TracBack®, BlueChart®, and MapSource® are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. XM Radio is a trademark of XM Satellite Radio Inc. WARNING: See the Important Safety and Product Information guide in the product box for product warnings and other important information. January 2008 Part Number 190-00803-10 Rev. B Printed in Taiwan

Introduction GPSMAP® 5208 GPSMAP® 5212 GPSMAP® 5215 Introduction This manual includes information for the following products: • • • Tips and Shortcuts • • • • Manual Conventions In this manual, when you are instructed to touch something, use your finger to touch that item on the screen. Small arrows (>) used in the text indicate that you should touch a series of items in order. For example, if you see, “Touch Charts > Navigation Chart,” you should touch the Charts button on the screen, and then touch Navigation Chart. Touch Home from any screen to return to the Home screen. Touch Menu from any main screen to access additional settings. Press and release the Press and hold the Power key to adjust the display settings (Backlight and Color Mode). Power key to turn the unit on or off. Quick Links Turning the Chartplotter On or Off: page 2. Acquiring GPS Satellite Signals: page 2. Inserting and Removing SD Cards: page 3. Restoring Factory Settings: page 3. Using the Navigation Chart: page 5. Using Combinations: page 19. Navigating to a Destination: page 6 and page 21. Creating a Waypoint: page 23. Viewing Information: page 29. Configuring System Settings: page 35. Using the Network: page 42. Using Radar: page 44. Using Sonar: page 49. Using XM WX Weather and Audio: page 53. Messages and alarms: page 64. • • • • • • • • • • • • • • • GPSMAP® 5000 Series Owner’s Manual i

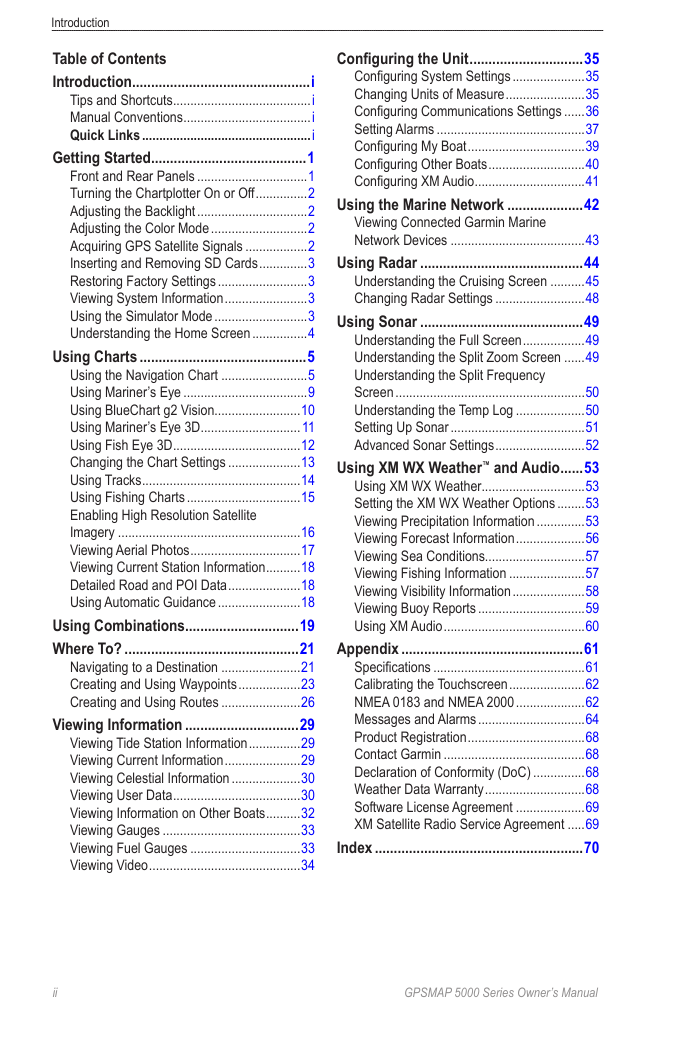

Introduction Table of Contents Introduction ...............................................i Tips and Shortcuts ........................................i Manual Conventions .....................................i Quick Links .................................................i Getting Started .........................................1 Front and Rear Panels ................................1 Turning the Chartplotter On or Off ...............2 Adjusting the Backlight ................................2 Adjusting the Color Mode ............................2 Acquiring GPS Satellite Signals ..................2 Inserting and Removing SD Cards ..............3 Restoring Factory Settings ..........................3 Viewing System Information ........................3 Using the Simulator Mode ...........................3 Understanding the Home Screen ................4 Using Charts ............................................5 Using the Navigation Chart .........................5 Using Mariner’s Eye ....................................9 Using BlueChart g2 Vision.........................10 Using Mariner’s Eye 3D .............................11 Using Fish Eye 3D .....................................12 Changing the Chart Settings .....................13 Using Tracks ..............................................14 Using Fishing Charts .................................15 Enabling High Resolution Satellite Imagery .....................................................16 Viewing Aerial Photos ................................17 Viewing Current Station Information ..........18 Detailed Road and POI Data .....................18 Using Automatic Guidance ........................18 Using Combinations ..............................19 Where To? ..............................................21 Navigating to a Destination .......................21 Creating and Using Waypoints ..................23 Creating and Using Routes .......................26 Viewing Information ..............................29 Viewing Tide Station Information ...............29 Viewing Current Information ......................29 Viewing Celestial Information ....................30 Viewing User Data .....................................30 Viewing Information on Other Boats ..........32 Viewing Gauges ........................................33 Viewing Fuel Gauges ................................33 Viewing Video ............................................34 Configuring the Unit ..............................35 Configuring System Settings .....................35 Changing Units of Measure .......................35 Configuring Communications Settings ......36 Setting Alarms ...........................................37 Configuring My Boat ..................................39 Configuring Other Boats ............................40 Configuring XM Audio ................................41 Using the Marine Network ....................42 Viewing Connected Garmin Marine Network Devices .......................................43 Using Radar ...........................................44 Understanding the Cruising Screen ..........45 Changing Radar Settings ..........................48 Using Sonar ...........................................49 Understanding the Full Screen ..................49 Understanding the Split Zoom Screen ......49 Understanding the Split Frequency Screen .......................................................50 Understanding the Temp Log ....................50 Setting Up Sonar .......................................51 Advanced Sonar Settings ..........................52 Using XM WX Weather™ and Audio ......53 Using XM WX Weather..............................53 Setting the XM WX Weather Options ........53 Viewing Precipitation Information ..............53 Viewing Forecast Information ....................56 Viewing Sea Conditions.............................57 Viewing Fishing Information ......................57 Viewing Visibility Information .....................58 Viewing Buoy Reports ...............................59 Using XM Audio .........................................60 Appendix ................................................61 Specifications ............................................61 Calibrating the Touchscreen ......................62 NMEA 0183 and NMEA 2000 ....................62 Messages and Alarms ...............................64 Product Registration ..................................68 Contact Garmin .........................................68 Declaration of Conformity (DoC) ...............68 Weather Data Warranty .............................68 Software License Agreement ....................69 XM Satellite Radio Service Agreement .....69 Index .......................................................70 ii GPSMAP 5000 Series Owner’s Manual

S t a r t e d G e t t n G i To turn on your unit for the first time, refer to the Initializing Unit Settings paragraph, page 62. Getting Started Getting Started Front and Rear Panels Power key Automatic backlight sensor SD card slot Power NMEA Video NMEA 2000 Network GPSMAP 5208 - Front GPSMAP 5212 - Back GPSMAP® 5000 Series Owner’s Manual

Getting Started d Turning the Chartplotter On or Off To turn the chartplotter on, press and release the touch I Agree to open the Home screen. i G n t t e G e t r a t S Power key. When the Warning screen appears, Note: The first time you power on your unit, you must go through a setup sequence. See page 62 for details. Warning Screen Home Screen To turn the unit off, press and hold the Power key. Adjusting the Backlight 1. While the unit is on, press and release the 2. Touch Backlight. Power key. To manually adjust the backlight, either touch and drag the brightness bar or touch and hold Up or Down. To return to the previous screen, touch Back. To allow the unit to automatically adjust the backlight based on ambient light, touch Auto. Adjusting the Color Mode Power key. 1. Press and release the 2. Touch Color Mode. 3. Touch Day Colors, Night Colors, or Auto. Acquiring GPS Satellite Signals When you turn the unit on, the GPS receiver must collect satellite data and establish its current location. When the unit acquires satellite signals, the signal strength bars at the top of the Home screen are green and a . When the unit loses satellite signals, the green bars disappear 2 GPSMAP 5000 Series Owner’s Manual

S t a r t e d G e t t n G i Getting Started flashing question mark is indicated on the boat icon (on the chart screen). For more information about GPS, visit the Garmin Web site at www.garmin.com/aboutGPS. Inserting and Removing SD Cards Your unit supports SD (Secure Digital) cards. Insert optional BlueChart® g2 Vision™ SD cards to view high-resolution satellite imagery, and aerial reference photos of ports, harbors, marinas and other points of interest. Insert blank SD cards to transfer data such as waypoints, routes, and tracks to another compatible Garmin unit or a computer. The SD card slot is located on the lower-right corner of the unit. To insert the SD card, open the access door and press it in until it clicks. Press the card in again and release it to eject it from the chartplotter. Card label Restoring Factory Settings You can restore your unit to the original factory settings. CAutIoN: This procedure deletes any information you have entered. To restore factory settings: 1. From the Home screen, touch Configure > System > System Information > Factory Settings > Reset. 2. Touch OK to restore all factory settings or touch Cancel. Viewing System Information You can view the software version, basemap version, unit ID number, and your XM WX weather radio ID (if available). You may need this information to update the system software or purchase additional map data information. From the Home screen, touch Configure > System > System Information. Using the Simulator Mode Simulator mode turns the GPS receiver off for use indoors or for practice. The unit does not track satellites in simulator mode. GPSMAP® 5000 Series Owner’s Manual

i G n t t e G d e t r a t S Getting Started CAutIoN: Do not try to navigate using simulator mode because the GPS receiver is turned off. Any satellite signal strength bars shown are only simulations and do not represent the strength of actual satellite signals. To turn the Simulator Mode on: From the Home screen, touch Configure > System > Simulator > On. Touch Setup to set speed, track control (simulated heading), position, simulator time, and simulator date. Understanding the Home Screen Use the Home screen to access all other screens. Note: Options on this screen vary based on the unit type and optional connected network devices. Charts—provides Navigation chart, Mariner’s Eye, Mariner’s Eye 3D, Fish Eye 3D, Fishing Chart, and Radar Overlay (page 6). Note: Mariner’s Eye 3D, Fish Eye 3D, and Fishing Charts are available only if you use a BlueChart g2 Vision SD card. Sonar—sets up and provides sonar information (only available if the unit is connected to a Garmin sonar module) (page 49). Combinations—sets up the screen to view a chart, sonar, radar, and video in a 2, 3, or 4-field split screen (page 19). Information—shows information including tides, currents, celestial data, user data, information about other boats, gauges, and video (page 29). Mark—marks, edits, or deletes your current location as a waypoint or Man Overboard (page 24). Where to?—provides navigation features (page 21). Radar—sets up and displays radar (only available if the unit is connected to a radar module) (page 44). Weather—sets up and displays various weather parameters, including precipitation, forecast, fishing, sea conditions, and visibility (only available if the unit is connected to a weather module and you have an XM subscription) (page 53). Configure—allows you to view and edit your unit and system settings (page 35). Man overboard—navigate to a Man Overboard location (page 24). GPSMAP 5000 Series Owner’s Manual • • • • • • • • • •
