第1页 / 共97页

第2页 / 共97页

第3页 / 共97页

第4页 / 共97页

第5页 / 共97页

第6页 / 共97页

第7页 / 共97页

第8页 / 共97页

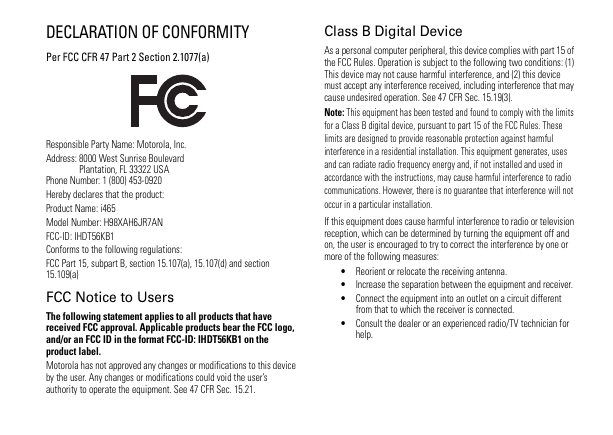

DECLARATION OF CONFORMITY Per FCC CFR 47 Part 2 Section 2.1077(a) Responsible Party Name: Motorola, Inc. Address: 8000 West Sunrise Boulevard Plantation, FL 33322 USA Phone Number: 1 (800) 453-0920 Hereby declares that the product: Product Name: i465 Model Number: H98XAH6JR7AN FCC-ID: IHDT56KB1 Conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) FCC Notice to Users The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC ID in the format FCC-ID: IHDT56KB1 on the product label. Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21. Class B Digital Device As a personal computer peripheral, this device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3). Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

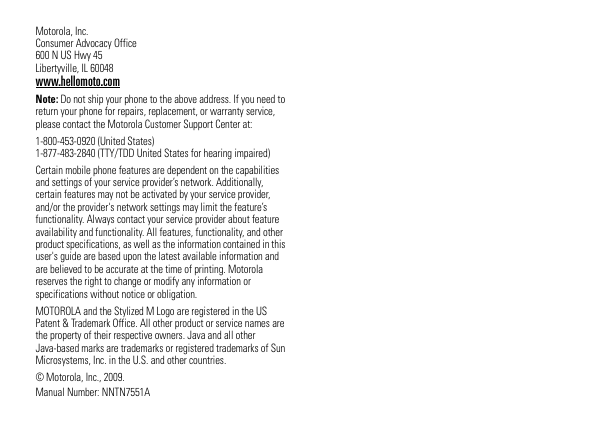

Motorola, Inc. Consumer Advocacy Office 600 N US Hwy 45 Libertyville, IL 60048 www.hellomoto.com Note: Do not ship your phone to the above address. If you need to return your phone for repairs, replacement, or warranty service, please contact the Motorola Customer Support Center at: 1-800-453-0920 (United States) 1-877-483-2840 (TTY/TDD United States for hearing impaired) Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. © Motorola, Inc., 2009. Manual Number: NNTN7551A

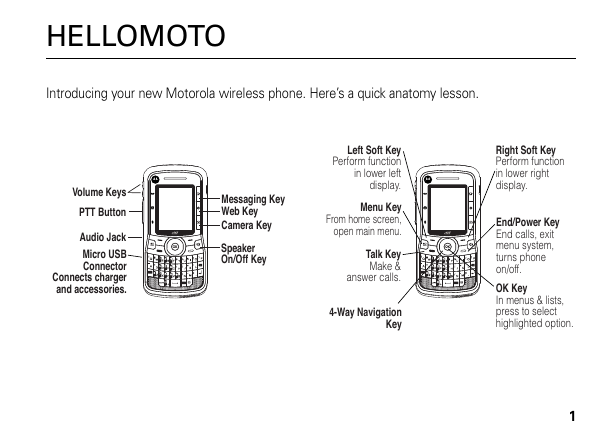

HELLOMOTO Introducing your new Motorola wireless phone. Here’s a quick anatomy lesson. Volume Keys PTT Button Audio Jack Micro USB Connector Connects charger and accessories. Messaging Key Web Key Camera Key Speaker On/Off Key Left Soft Key Perform function in lower left display. Menu Key From home screen, open main menu. Talk Key Make & answer calls. 4-Way Navigation Key Right Soft Key Perform function in lower right display. End/Power Key End calls, exit menu system, turns phone on/off. OK Key In menus & lists, press to select highlighted option. 1

check it out Voicemail LED Text Message LED Bluetooth LED 1 Press and hold the Power Key for a few seconds, or until the screen lights up, to turn on your phone. 2 Customizable r key that can be used to open the Settings screen. 2 turn it on & off To turn on your phone, press and hold . for a few seconds or until the display turns on. If prompted, enter your four-digit unlock code. 3 Press the Navigation key up, down, left or right to highlight a menu feature. Note: If you press the . for more than four seconds, the handset will power “On” in Transmitters Off mode. See “transmitters” on page 33. 4 Press the r key to select. To turn off your phone, press and hold . for two seconds.

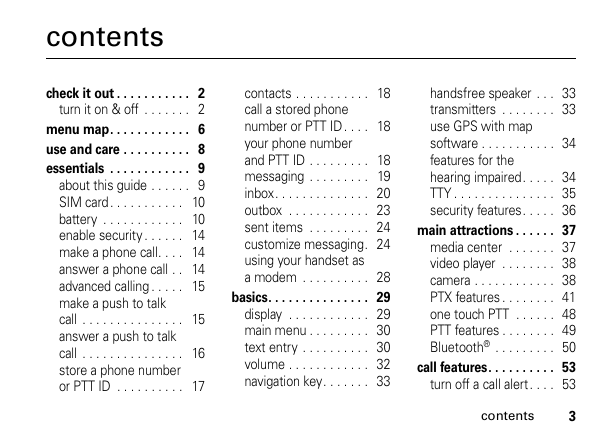

contents check it out . . . . . . . . . . . 2 turn it on & off . . . . . . . 2 menu map. . . . . . . . . . . . 6 use and care . . . . . . . . . . 8 essentials . . . . . . . . . . . . 9 about this guide . . . . . . 9 SIM card. . . . . . . . . . . 10 battery . . . . . . . . . . . . 10 enable security. . . . . . 14 make a phone call. . . . 14 answer a phone call . . 14 advanced calling . . . . . 15 make a push to talk call . . . . . . . . . . . . . . . 15 answer a push to talk call . . . . . . . . . . . . . . . 16 store a phone number or PTT ID . . . . . . . . . . 17 contacts . . . . . . . . . . . 18 call a stored phone number or PTT ID. . . . 18 your phone number and PTT ID . . . . . . . . . 18 messaging . . . . . . . . . 19 inbox. . . . . . . . . . . . . . 20 outbox . . . . . . . . . . . . 23 sent items . . . . . . . . . 24 customize messaging. 24 using your handset as a modem . . . . . . . . . . 28 basics. . . . . . . . . . . . . . . 29 display . . . . . . . . . . . . 29 main menu . . . . . . . . . 30 text entry . . . . . . . . . . 30 volume . . . . . . . . . . . . 32 navigation key. . . . . . . 33 handsfree speaker . . . 33 transmitters . . . . . . . . 33 use GPS with map software . . . . . . . . . . . 34 features for the hearing impaired. . . . . 34 TTY . . . . . . . . . . . . . . . 35 security features. . . . . 36 main attractions . . . . . . 37 media center . . . . . . . 37 video player . . . . . . . . 38 camera . . . . . . . . . . . . 38 PTX features . . . . . . . . 41 one touch PTT . . . . . . 48 PTT features . . . . . . . . 49 Bluetooth® . . . . . . . . . 50 call features. . . . . . . . . . 53 turn off a call alert. . . . 53 contents 3

recent calls . . . . . . . . . 53 redial . . . . . . . . . . . . . . 54 caller ID . . . . . . . . . . . . 54 call forward . . . . . . . . . 54 voice names . . . . . . . . 55 emergency calls . . . . . 56 international calls. . . . . 56 speed dial . . . . . . . . . . 57 voicemail . . . . . . . . . . . 57 talkgroup calls . . . . . . . 58 LINCaround . . . . . . . . . . 60 switching to LINCaround . . . . . . . . . 61 exiting LINCaround . . . 61 channels and codes. . . 61 private LINCaround calls . . . . . . . . . . . . . . . 64 making emergency calls while in LINCaround mode . . . . 65 setup options. . . . . . . . 66 4 contents customize. . . . . . . . . . . . 68 ring tones . . . . . . . . . . 68 backlight . . . . . . . . . . . 69 LED indicators . . . . . . . 69 wallpaper . . . . . . . . . . . 70 datebook . . . . . . . . . . . 70 hide or show location information . . . . . . . . . 72 Legal and Safety . . . . . . 74 Safety and General Information . . . . . . . . . 74 Operational Precautions . . . . . . . . . 75 RF Energy Interference/ Compatibility . . . . . . . . 75 Caring for the Environment by Recycling . . . . . . . . . . . 77 Driving Precautions . . . 77 Operational Warnings . 77 Service and Repairs. . . 79 Export Law Assurances . . . . . . . . . 80 Battery Use and Safety . . . . . . . . . . . . . 80 Battery Charging . . . . . 81 Specific Absorption Rate . . . . . . . . . . . . . . . 81 AGPS and Emergency Calls. . . . . . . . . . . . . . . 82 Motorola Limited Warranty for the United States and Canada. . . . . . . . . . . . . 83 Hearing Aid Compatibility With Mobile Phones . . . . . . 87 Information From the World Health Organization . . . . . . . . 88 Product Registration . . 88 Wireless: The New Recyclable . . . . . . . . . . 88

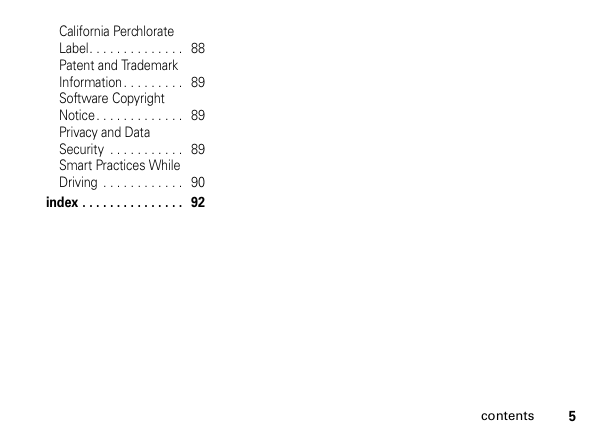

California Perchlorate Label. . . . . . . . . . . . . . 88 Patent and Trademark Information. . . . . . . . . 89 Software Copyright Notice. . . . . . . . . . . . . 89 Privacy and Data Security . . . . . . . . . . . 89 Smart Practices While Driving . . . . . . . . . . . . 90 index . . . . . . . . . . . . . . . 92 contents 5

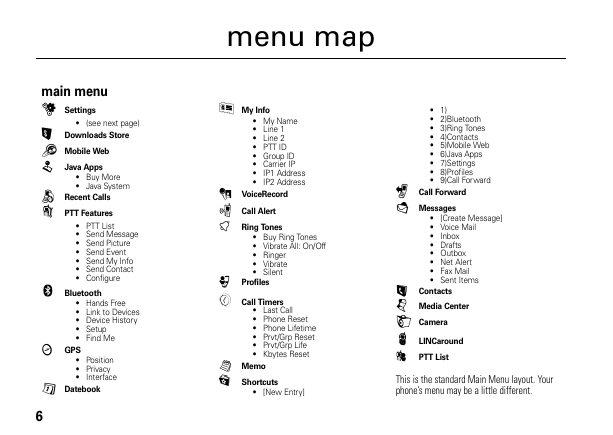

menu map J My Info My Name Line 1 Line 2 PTT ID Group ID Carrier IP IP1 Address IP2 Address 0 VoiceRecord p Call Alert t Ring Tones Buy Ring Tones Vibrate All: On/Off Ringer Vibrate Silent o Profiles M Call Timers Last Call Phone Reset Phone Lifetime Prvt/Grp Reset Prvt/Grp Life Kbytes Reset l Memo K Shortcuts [New Entry] main menu u Settings Q Downloads Store 1 Mobile Web L Java Apps (see next page) Buy More Java System B Recent Calls N PTT Features PTT List Send Message Send Picture Send Event Send My Info Send Contact Configure c Bluetooth Hands Free Link to Devices Device History Setup Find Me c GPS Position Privacy Interface D Datebook 6 1) 2)Bluetooth 3)Ring Tones 4)Contacts 5)Mobile Web 6)Java Apps 7)Settings 8)Profiles 9)Call Forward P Call Forward E Messages [Create Message] Voice Mail Inbox Drafts Outbox Net Alert Fax Mail Sent Items L Contacts j Media Center H Camera P LINCaround L PTT List This is the standard Main Menu layout. Your phone’s menu may be a little different.
