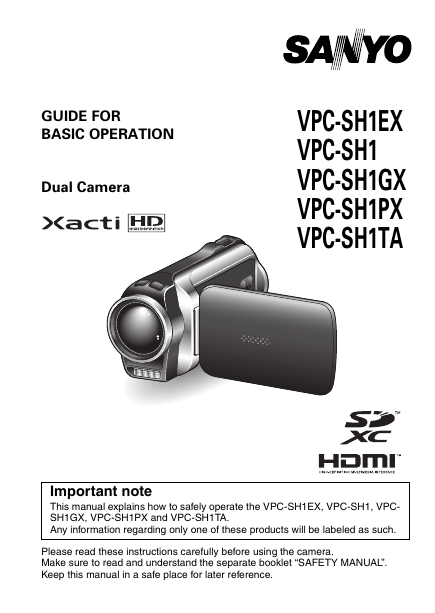

GUIDE FOR BASIC OPERATION Dual Camera VPC-SH1EX VPC-SH1 VPC-SH1GX VPC-SH1PX VPC-SH1TA Important note This manual explains how to safely operate the VPC-SH1EX, VPC-SH1, VPC- SH1GX, VPC-SH1PX and VPC-SH1TA. Any information regarding only one of these products will be labeled as such. Please read these instructions carefully before using the camera. Make sure to read and understand the separate booklet “SAFETY MANUAL”. Keep this manual in a safe place for later reference.

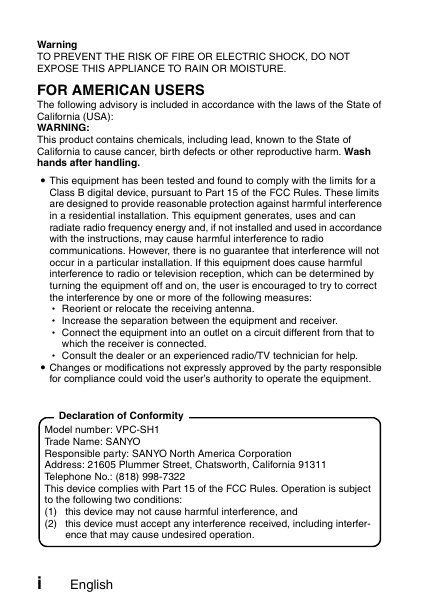

Warning TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. FOR AMERICAN USERS The following advisory is included in accordance with the laws of the State of California (USA): WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. i This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: h Reorient or relocate the receiving antenna. h Increase the separation between the equipment and receiver. h Connect the equipment into an outlet on a circuit different from that to i Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. which the receiver is connected. h Consult the dealer or an experienced radio/TV technician for help. Declaration of Conformity Model number: VPC-SH1 Trade Name: SANYO Responsible party: SANYO North America Corporation Address: 21605 Plummer Street, Chatsworth, California 91311 Telephone No.: (818) 998-7322 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation. i English

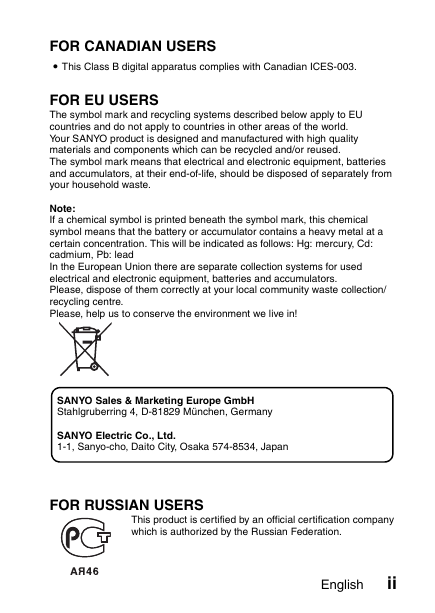

FOR CANADIAN USERS i This Class B digital apparatus complies with Canadian ICES-003. FOR EU USERS The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world. Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and/or reused. The symbol mark means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste. Note: If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators. Please, dispose of them correctly at your local community waste collection/ recycling centre. Please, help us to conserve the environment we live in! SANYO Sales & Marketing Europe GmbH Stahlgruberring 4, D-81829 München, Germany SANYO Electric Co., Ltd. 1-1, Sanyo-cho, Daito City, Osaka 574-8534, Japan FOR RUSSIAN USERS This product is certified by an official certification company which is authorized by the Russian Federation. English ii

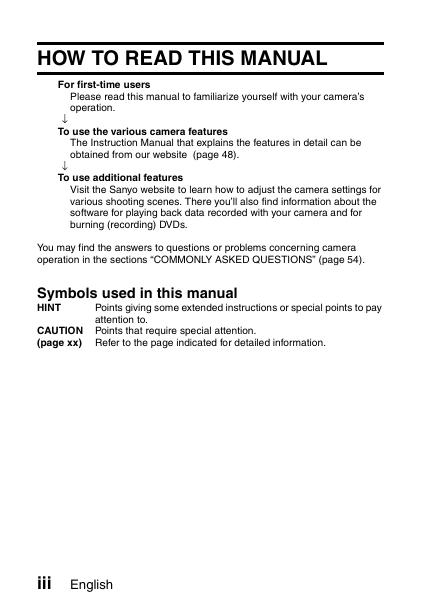

HOW TO READ THIS MANUAL For first-time users Please read this manual to familiarize yourself with your camera’s operation. ↓ To use the various camera features The Instruction Manual that explains the features in detail can be obtained from our website (page 48). ↓ To use additional features Visit the Sanyo website to learn how to adjust the camera settings for various shooting scenes. There you’ll also find information about the software for playing back data recorded with your camera and for burning (recording) DVDs. You may find the answers to questions or problems concerning camera operation in the sections “COMMONLY ASKED QUESTIONS” (page 54). Symbols used in this manual HINT Points giving some extended instructions or special points to pay attention to. CAUTION Points that require special attention. (page xx) Refer to the page indicated for detailed information. iii English

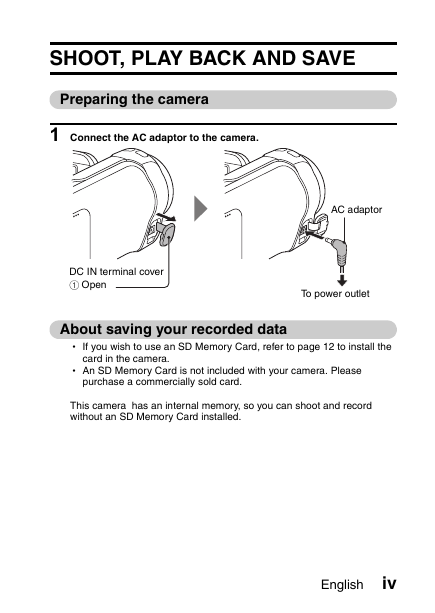

SHOOT, PLAY BACK AND SAVE Preparing the camera 1 Connect the AC adaptor to the camera. AC adaptor To power outlet DC IN terminal cover 1 Open About saving your recorded data h If you wish to use an SD Memory Card, refer to page 12 to install the card in the camera. h An SD Memory Card is not included with your camera. Please purchase a commercially sold card. This camera has an internal memory, so you can shoot and record without an SD Memory Card installed. English iv

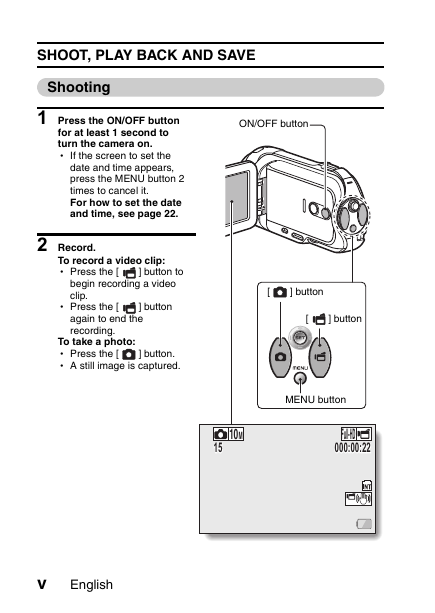

SHOOT, PLAY BACK AND SAVE Shooting 1 Press the ON/OFF button for at least 1 second to turn the camera on. h If the screen to set the date and time appears, press the MENU button 2 times to cancel it. For how to set the date and time, see page 22. ON/OFF button 2 Record. To record a video clip: h Press the [ ] button to begin recording a video clip. h Press the [ ] button again to end the recording. To take a photo: h Press the [ ] button. h A still image is captured. [ ] button [ ] button MENU button 10M Full-HD 15 000:00:22 15 000:00:22 15 000:00:22 v English

Before capturing those important shots, be sure to first take a test shot to confirm that your camera is set up and ready to go i Sanyo declines any claim for compensation for recorded contents etc. in case of photographing or recording failure due to a chance camera or card flaw. Playback 1 Press the REC/PLAY button. h The display changes to the Playback Screen. 2 Select the image to play back. h Toggle the SET button left, right, up or down to move the orange frame to the image you wish to play back. h The image information for the framed image is shown in the bottom part of the monitor. 3 Press the SET button. h Playback begins. h Press the REC/PLAY button. REC/PLAY button SET button Full-HD 6.5MB OK 100-0006 00:00:05 Orange frame Remaining battery power Indication English vi

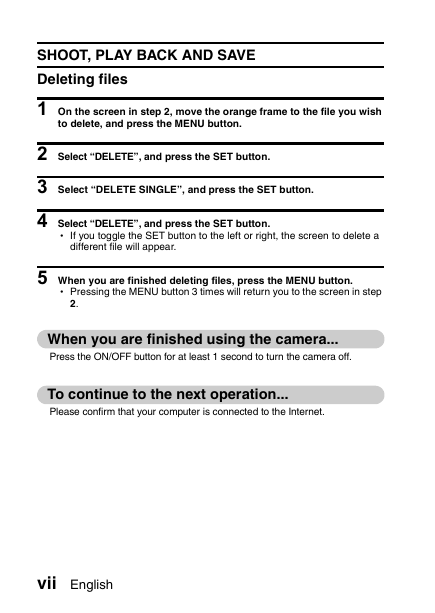

SHOOT, PLAY BACK AND SAVE Deleting files 1 On the screen in step 2, move the orange frame to the file you wish to delete, and press the MENU button. 2 Select “DELETE”, and press the SET button. 3 Select “DELETE SINGLE”, and press the SET button. 4 Select “DELETE”, and press the SET button. h If you toggle the SET button to the left or right, the screen to delete a different file will appear. 5 When you are finished deleting files, press the MENU button. h Pressing the MENU button 3 times will return you to the screen in step 2. When you are finished using the camera... Press the ON/OFF button for at least 1 second to turn the camera off. To continue to the next operation... Please confirm that your computer is connected to the Internet. vii English
