Using Your Camera Safely

Care to be Taken During Handling

Contents

Composition of the Operating Manual

Camera Features

Checking the Contents of the Package

Names of Parts

Names of Operating Parts

Monitor Indications

1 Getting Started

Attaching the Strap

Powering the Camera

Charging the Battery

Installing the Battery

Using the AC Adapter

Installing the SD Memory Card

Number of Images Recordable on an SD Memory Card

Turning the Camera On and Off

Starting-up in the Playback Mode

Initial Settings

Setting the Display Language

Setting the Date and Time

2 Common Operations

Understanding the Button Functions

Capture Mode

Playback Mode

Switching Between Capture Mode and Playback Mode

Setting the Camera Functions

Operating the Menus

Menu List

3 Taking Pictures

Taking Still Pictures

Taking Pictures

Setting the Shooting Mode

Using the Face Recognition Function

Taking Pictures Automatically (Auto Picture Mode)

Setting the Functions (Program Mode)

Taking Pictures in the Basic Mode (Green Mode)

Using the Zoom

Taking Pictures of Dark Scenes (Night Scene, Night Scene Portrait, Digital SR, Fireworks, and Candlelight Modes)

Taking Pictures of People (Half-length Portrait/ Portrait Mode)

Taking Pictures of Children (Kids Mode)

Taking Pictures of Your Pet (Pet Mode)

Taking Pictures of Sports and Leisure Activities (Surf & Snow/Sport Mode)

Taking Pictures of Text (Text Mode)

Framing Your Pictures (Frame Composite Mode)

Using the Self-timer

Taking a Series of Pictures (Continuous Shooting/Burst Shooting)

Taking Pictures at a Set Interval (Interval Shoot)

Taking Pictures with Automatic Exposure Adjustment (Auto Bracket)

Using the Digital Wide Function (Digital Wide Mode)

Taking Panoramic Pictures (Digital Panorama Mode)

Setting the Shooting Functions

Selecting the Flash Mode

Selecting the Focus Mode

Selecting the Autofocus Settings

Setting the Image Tone

Setting Pixel Track SR

Selecting the Number of Recorded Pixels

Selecting the Quality Level of Still Pictures

Adjusting the White Balance

Setting the AE Metering

Setting the Sensitivity

Setting ISO Correction in AUTO

Setting the Exposure (EV Compensation)

D-Range Setting

Setting the Interval Shooting

Setting Blink Detection

Setting the Instant Review

Setting the Image Sharpness (Sharpness)

Setting the Saturation/Tone Adjustment

Setting the Image Contrast (Contrast)

Setting the Date Imprint Function

Setting the Green Button

Taking Pictures Underwater

Taking Underwater Pictures (Underwater Mode/ Underwater Movie Mode)

Recording Movies

Selecting the Number of Recorded Pixels and Frame Rate for Movies

Setting the Movie SR (Movie Shake Reduction) Function

Recording a Movie from Pictures Taken at a Set Interval (Interval Movie)

Saving the Settings (Memory)

4 Playing Back and Deleting Images

Playing Back Images

Playing Back Still Pictures

Playing Back a Movie

Multi-Image Display

Using the Playback Function

Slideshow

Rotating the Image

Zoom Playback

Zoom In on the Subject’s Face Automatically (Face Close-up Playback)

Deleting Images and Sound Files

Deleting a Single Image/Sound File

Deleting Selected Images and Sound Files

Deleting All Images and Sound Files

Recovering Deleted Images

Protecting Images and Sound Files from Deletion (Protect)

Connecting the Camera to AV Equipment

5 Editing and Printing Images

Editing Images

Changing the Image Size (Resize)

Cropping Images

Using the Digital Filters

Red-eye Compensation

Adding a Frame (Frame Composite)

Editing Movies

Copying Images and Sound Files

Setting the Printing Service (DPOF)

Printing a Single Image

Printing All Images

6 Recording and Playing Back Sound

Recording Sound (Voice Recording Mode)

Setting Voice Recording

Recording Sounds

Playing Back Sound

Adding a Voice Memo to Images

Recording a Voice Memo

Playing Back a Voice Memo

7 Settings

Camera Settings

Formatting an SD Memory Card

Changing the Sound Settings

Changing the Date and Time

Setting the Alarm

Setting the World Time

Changing the Display Language

Changing the Rule for Naming Folders

Changing the Video Output Format

Adjusting the Brightness of the Display

Using the Power Saving Function

Setting Auto Power Off

Setting the Quick Zoom Function

Setting the Guide Display

Perform Pixel Mapping

Changing the Start-up Screen

Resetting to Default Settings (Reset)

Displaying the Clock Mode

8 Connecting to a Computer

Setting Up Your Computer

Provided Software

System Requirements

Installing the Software

Setting the Camera USB Connection Mode

Connecting to a Windows PC

Connecting the Camera and a Windows PC

Transferring Images

Disconnecting the Camera from Your Windows PC

Starting “ACDSee for PENTAX 3.0”

Viewing Images

Details on How to Use “ACDSee for PENTAX 3.0”

Connecting to a Macintosh

Connecting the Camera and a Macintosh

Transferring Images

Disconnecting the Camera from Your Macintosh

Starting “ACDSee 2 for Mac”

Viewing Images

Details on How to Use “ACDSee 2 for Mac”

9 Appendix

Functions Available for Each Shooting Mode

Messages

Troubleshooting

Default Settings

List of World Time Cities

Optional Accessories

Main Specifications

Warranty Policy

Index

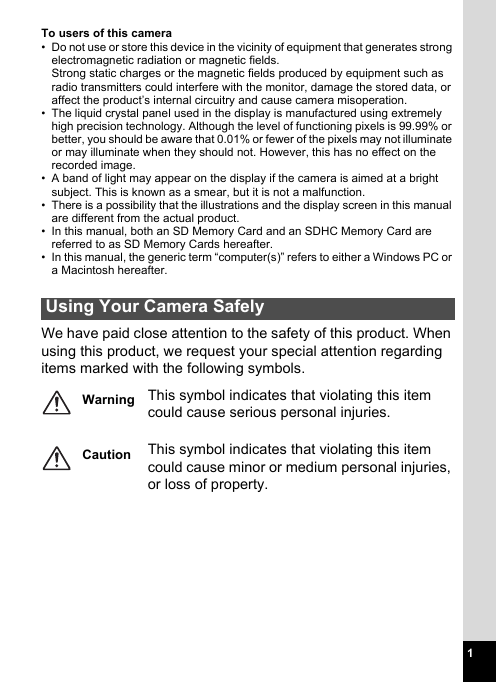

To users of this camera • Do not use or store this device in the vicinity of equipment that generates strong electromagnetic radiation or magnetic fields. Strong static charges or the magnetic fields produced by equipment such as radio transmitters could interfere with the monitor, damage the stored data, or affect the product’s internal circuitry and cause camera misoperation. • The liquid crystal panel used in the display is manufactured using extremely high precision technology. Although the level of functioning pixels is 99.99% or better, you should be aware that 0.01% or fewer of the pixels may not illuminate or may illuminate when they should not. However, this has no effect on the recorded image. • A band of light may appear on the display if the camera is aimed at a bright subject. This is known as a smear, but it is not a malfunction. • There is a possibility that the illustrations and the display screen in this manual are different from the actual product. • In this manual, both an SD Memory Card and an SDHC Memory Card are referred to as SD Memory Cards hereafter. • In this manual, the generic term “computer(s)” refers to either a Windows PC or a Macintosh hereafter. Using Your Camera Safely We have paid close attention to the safety of this product. When using this product, we request your special attention regarding items marked with the following symbols. Warning This symbol indicates that violating this item could cause serious personal injuries. Caution This symbol indicates that violating this item could cause minor or medium personal injuries, or loss of property. 1

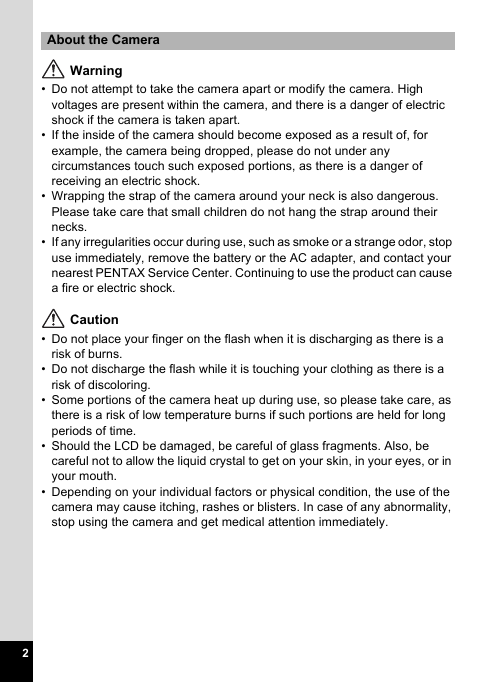

About the Camera Warning • Do not attempt to take the camera apart or modify the camera. High voltages are present within the camera, and there is a danger of electric shock if the camera is taken apart. • If the inside of the camera should become exposed as a result of, for example, the camera being dropped, please do not under any circumstances touch such exposed portions, as there is a danger of receiving an electric shock. • Wrapping the strap of the camera around your neck is also dangerous. Please take care that small children do not hang the strap around their necks. • If any irregularities occur during use, such as smoke or a strange odor, stop use immediately, remove the battery or the AC adapter, and contact your nearest PENTAX Service Center. Continuing to use the product can cause a fire or electric shock. Caution • Do not place your finger on the flash when it is discharging as there is a risk of burns. risk of discoloring. • Do not discharge the flash while it is touching your clothing as there is a • Some portions of the camera heat up during use, so please take care, as there is a risk of low temperature burns if such portions are held for long periods of time. • Should the LCD be damaged, be careful of glass fragments. Also, be careful not to allow the liquid crystal to get on your skin, in your eyes, or in your mouth. • Depending on your individual factors or physical condition, the use of the camera may cause itching, rashes or blisters. In case of any abnormality, stop using the camera and get medical attention immediately. 2

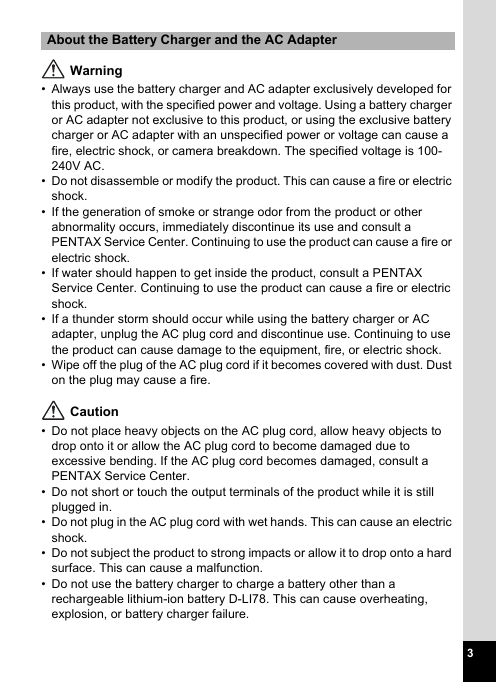

About the Battery Charger and the AC Adapter Warning • Always use the battery charger and AC adapter exclusively developed for this product, with the specified power and voltage. Using a battery charger or AC adapter not exclusive to this product, or using the exclusive battery charger or AC adapter with an unspecified power or voltage can cause a fire, electric shock, or camera breakdown. The specified voltage is 100- 240V AC. • Do not disassemble or modify the product. This can cause a fire or electric shock. • If the generation of smoke or strange odor from the product or other abnormality occurs, immediately discontinue its use and consult a PENTAX Service Center. Continuing to use the product can cause a fire or electric shock. • If water should happen to get inside the product, consult a PENTAX Service Center. Continuing to use the product can cause a fire or electric shock. • If a thunder storm should occur while using the battery charger or AC adapter, unplug the AC plug cord and discontinue use. Continuing to use the product can cause damage to the equipment, fire, or electric shock. • Wipe off the plug of the AC plug cord if it becomes covered with dust. Dust on the plug may cause a fire. Caution • Do not place heavy objects on the AC plug cord, allow heavy objects to drop onto it or allow the AC plug cord to become damaged due to excessive bending. If the AC plug cord becomes damaged, consult a PENTAX Service Center. • Do not short or touch the output terminals of the product while it is still plugged in. shock. • Do not plug in the AC plug cord with wet hands. This can cause an electric • Do not subject the product to strong impacts or allow it to drop onto a hard surface. This can cause a malfunction. • Do not use the battery charger to charge a battery other than a rechargeable lithium-ion battery D-LI78. This can cause overheating, explosion, or battery charger failure. 3

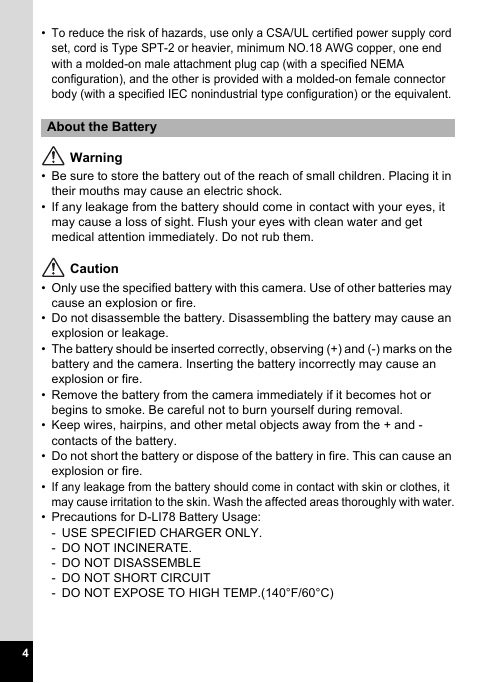

• To reduce the risk of hazards, use only a CSA/UL certified power supply cord set, cord is Type SPT-2 or heavier, minimum NO.18 AWG copper, one end with a molded-on male attachment plug cap (with a specified NEMA configuration), and the other is provided with a molded-on female connector body (with a specified IEC nonindustrial type configuration) or the equivalent. About the Battery Warning • Be sure to store the battery out of the reach of small children. Placing it in their mouths may cause an electric shock. • If any leakage from the battery should come in contact with your eyes, it may cause a loss of sight. Flush your eyes with clean water and get medical attention immediately. Do not rub them. Caution • Only use the specified battery with this camera. Use of other batteries may • Do not disassemble the battery. Disassembling the battery may cause an cause an explosion or fire. explosion or leakage. • The battery should be inserted correctly, observing (+) and (-) marks on the battery and the camera. Inserting the battery incorrectly may cause an explosion or fire. • Remove the battery from the camera immediately if it becomes hot or begins to smoke. Be careful not to burn yourself during removal. • Keep wires, hairpins, and other metal objects away from the + and - • Do not short the battery or dispose of the battery in fire. This can cause an contacts of the battery. explosion or fire. • If any leakage from the battery should come in contact with skin or clothes, it may cause irritation to the skin. Wash the affected areas thoroughly with water. • Precautions for D-LI78 Battery Usage: - USE SPECIFIED CHARGER ONLY. - DO NOT INCINERATE. - DO NOT DISASSEMBLE - DO NOT SHORT CIRCUIT - DO NOT EXPOSE TO HIGH TEMP.(140°F/60°C) 4

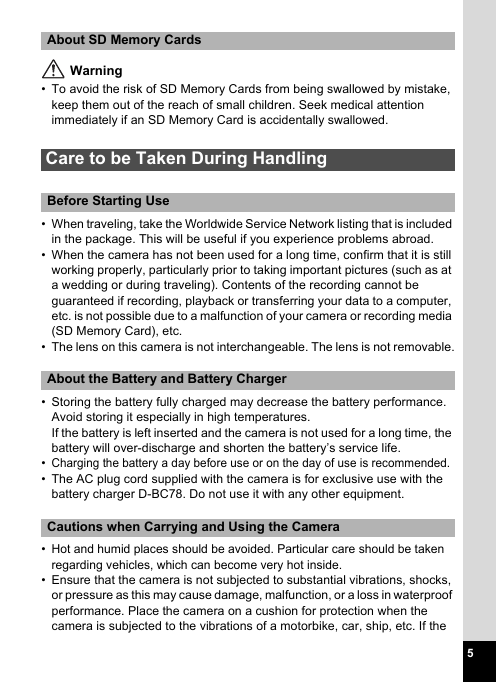

About SD Memory Cards Warning • To avoid the risk of SD Memory Cards from being swallowed by mistake, keep them out of the reach of small children. Seek medical attention immediately if an SD Memory Card is accidentally swallowed. Care to be Taken During Handling Before Starting Use • When traveling, take the Worldwide Service Network listing that is included in the package. This will be useful if you experience problems abroad. • When the camera has not been used for a long time, confirm that it is still working properly, particularly prior to taking important pictures (such as at a wedding or during traveling). Contents of the recording cannot be guaranteed if recording, playback or transferring your data to a computer, etc. is not possible due to a malfunction of your camera or recording media (SD Memory Card), etc. • The lens on this camera is not interchangeable. The lens is not removable. About the Battery and Battery Charger • Storing the battery fully charged may decrease the battery performance. Avoid storing it especially in high temperatures. If the battery is left inserted and the camera is not used for a long time, the battery will over-discharge and shorten the battery’s service life. • Charging the battery a day before use or on the day of use is recommended. • The AC plug cord supplied with the camera is for exclusive use with the battery charger D-BC78. Do not use it with any other equipment. Cautions when Carrying and Using the Camera • Hot and humid places should be avoided. Particular care should be taken regarding vehicles, which can become very hot inside. • Ensure that the camera is not subjected to substantial vibrations, shocks, or pressure as this may cause damage, malfunction, or a loss in waterproof performance. Place the camera on a cushion for protection when the camera is subjected to the vibrations of a motorbike, car, ship, etc. If the 5

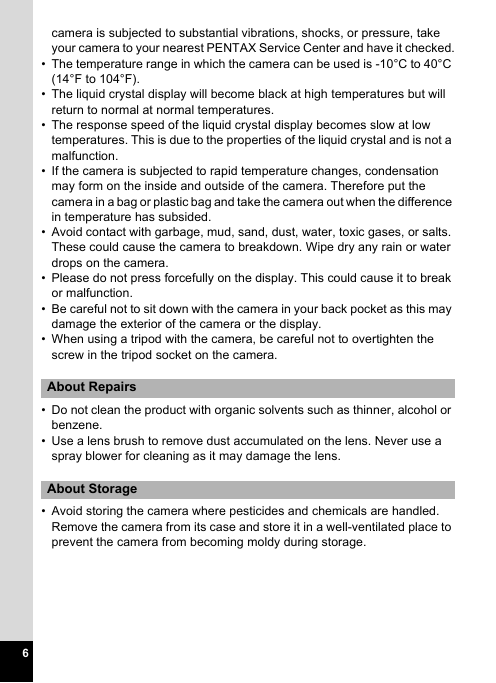

camera is subjected to substantial vibrations, shocks, or pressure, take your camera to your nearest PENTAX Service Center and have it checked. • The temperature range in which the camera can be used is -10°C to 40°C (14°F to 104°F). • The liquid crystal display will become black at high temperatures but will return to normal at normal temperatures. • The response speed of the liquid crystal display becomes slow at low temperatures. This is due to the properties of the liquid crystal and is not a malfunction. • If the camera is subjected to rapid temperature changes, condensation may form on the inside and outside of the camera. Therefore put the camera in a bag or plastic bag and take the camera out when the difference in temperature has subsided. • Avoid contact with garbage, mud, sand, dust, water, toxic gases, or salts. These could cause the camera to breakdown. Wipe dry any rain or water drops on the camera. • Please do not press forcefully on the display. This could cause it to break or malfunction. • Be careful not to sit down with the camera in your back pocket as this may damage the exterior of the camera or the display. • When using a tripod with the camera, be careful not to overtighten the screw in the tripod socket on the camera. About Repairs • Do not clean the product with organic solvents such as thinner, alcohol or benzene. • Use a lens brush to remove dust accumulated on the lens. Never use a spray blower for cleaning as it may damage the lens. About Storage • Avoid storing the camera where pesticides and chemicals are handled. Remove the camera from its case and store it in a well-ventilated place to prevent the camera from becoming moldy during storage. 6
