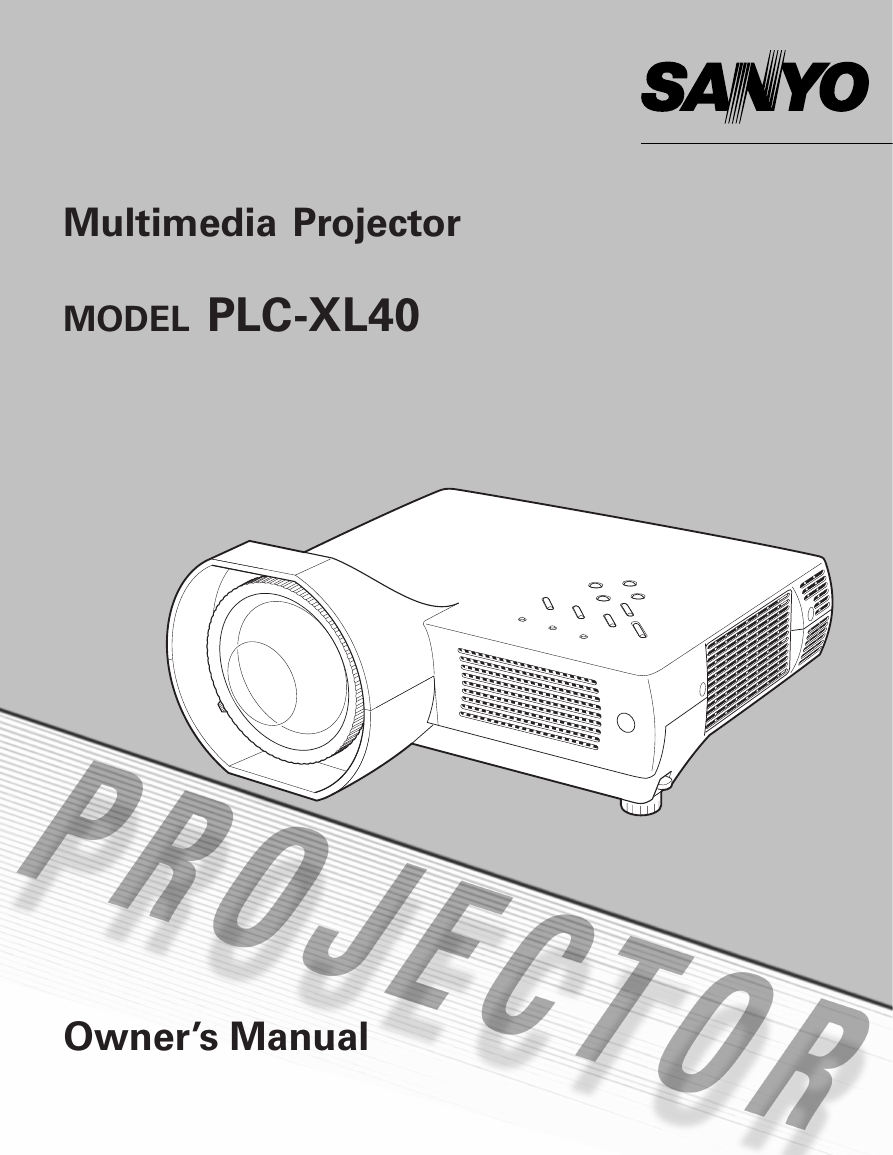

Multimedia Projector
MODEL PLC-XL40
Owner’s Manual

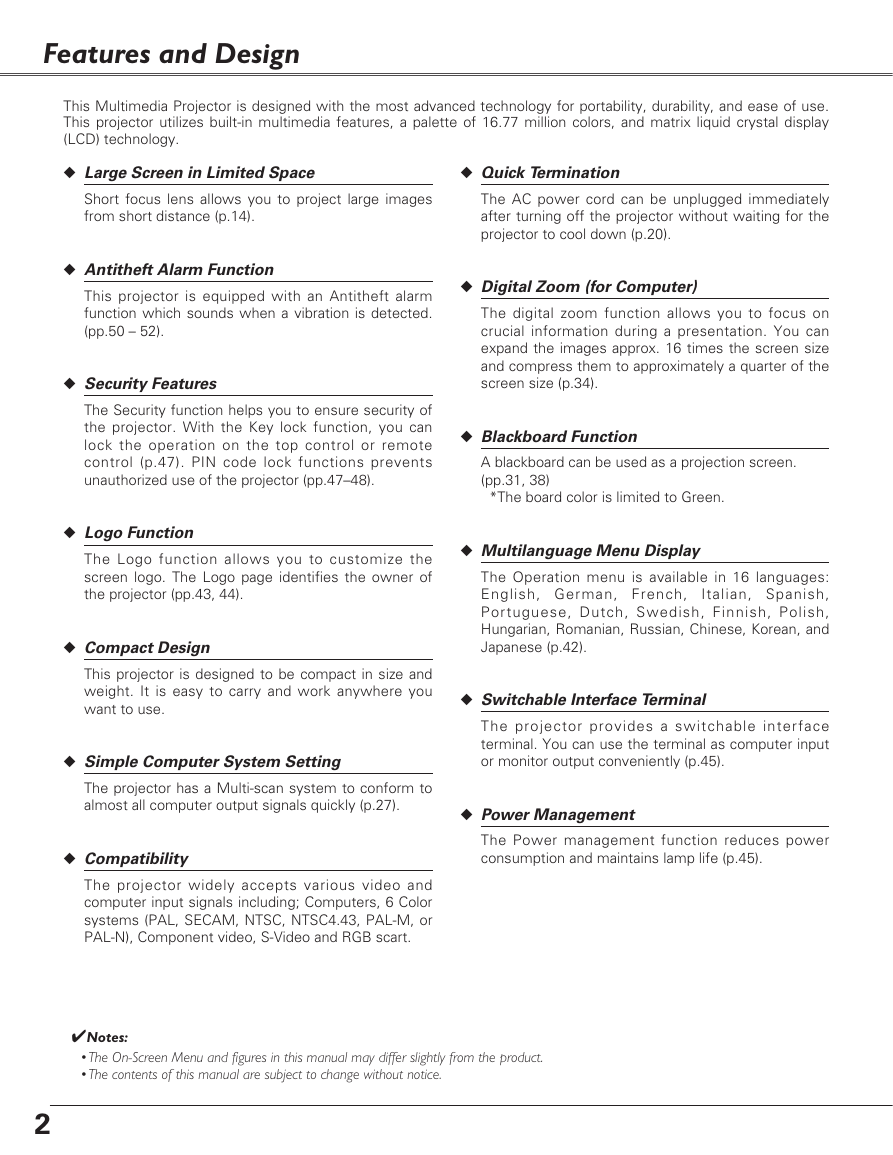

Features and Design
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use.
This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display
(LCD) technology.
◆ Large Screen in Limited Space
◆ Quick Termination
Short focus lens allows you to project large images
from short distance (p.14).
The AC power cord can be unplugged immediately
after turning off the projector without waiting for the
projector to cool down (p.20).
◆ Antitheft Alarm Function
This projector is equipped with an Antitheft alarm
function which sounds when a vibration is detected.
(pp.50 – 52).
◆ Security Features
The Security function helps you to ensure security of
the projector. With the Key lock function, you can
lock the operation on the top control or remote
control (p.47). PIN code lock functions prevents
unauthorized use of the projector (pp.47–48).
◆ Logo Function
The Logo function allows you to customize the
screen logo. The Logo page identifies the owner of
the projector (pp.43, 44).
◆ Compact Design
This projector is designed to be compact in size and
weight. It is easy to carry and work anywhere you
want to use.
◆ Simple Computer System Setting
The projector has a Multi-scan system to conform to
almost all computer output signals quickly (p.27).
◆ Compatibility
The projector widely accepts various video and
computer input signals including; Computers, 6 Color
systems (PAL, SECAM, NTSC, NTSC4.43, PAL-M, or
PAL-N), Component video, S-Video and RGB scart.
◆ Digital Zoom (for Computer)
The digital zoom function allows you to focus on
crucial information during a presentation. You can
expand the images approx. 16 times the screen size
and compress them to approximately a quarter of the
screen size (p.34).
◆ Blackboard Function
A blackboard can be used as a projection screen.
(pp.31, 38)
*The board color is limited to Green.
◆ Multilanguage Menu Display
The Operation menu is available in 16 languages:
English, German, French,
Italian, Spanish,
Portuguese, Dutch, Swedish, Finnish, Polish,
Hungarian, Romanian, Russian, Chinese, Korean, and
Japanese (p.42).
◆ Switchable Interface Terminal
The projector provides a switchable interface
terminal. You can use the terminal as computer input
or monitor output conveniently (p.45).
◆ Power Management
The Power management function reduces power
consumption and maintains lamp life (p.45).
✔Notes:
•The On-Screen Menu and figures in this manual may differ slightly from the product.
•The contents of this manual are subject to change without notice.
2

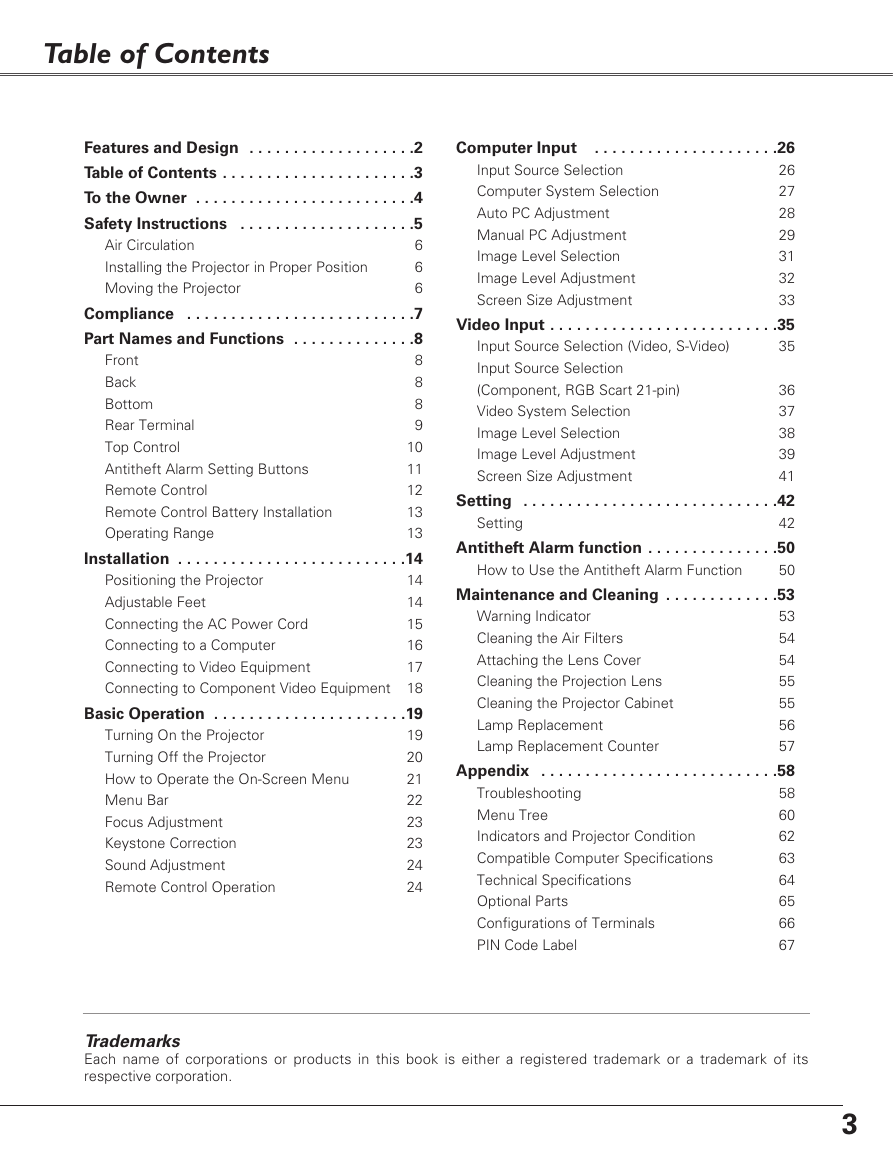

Table of Contents

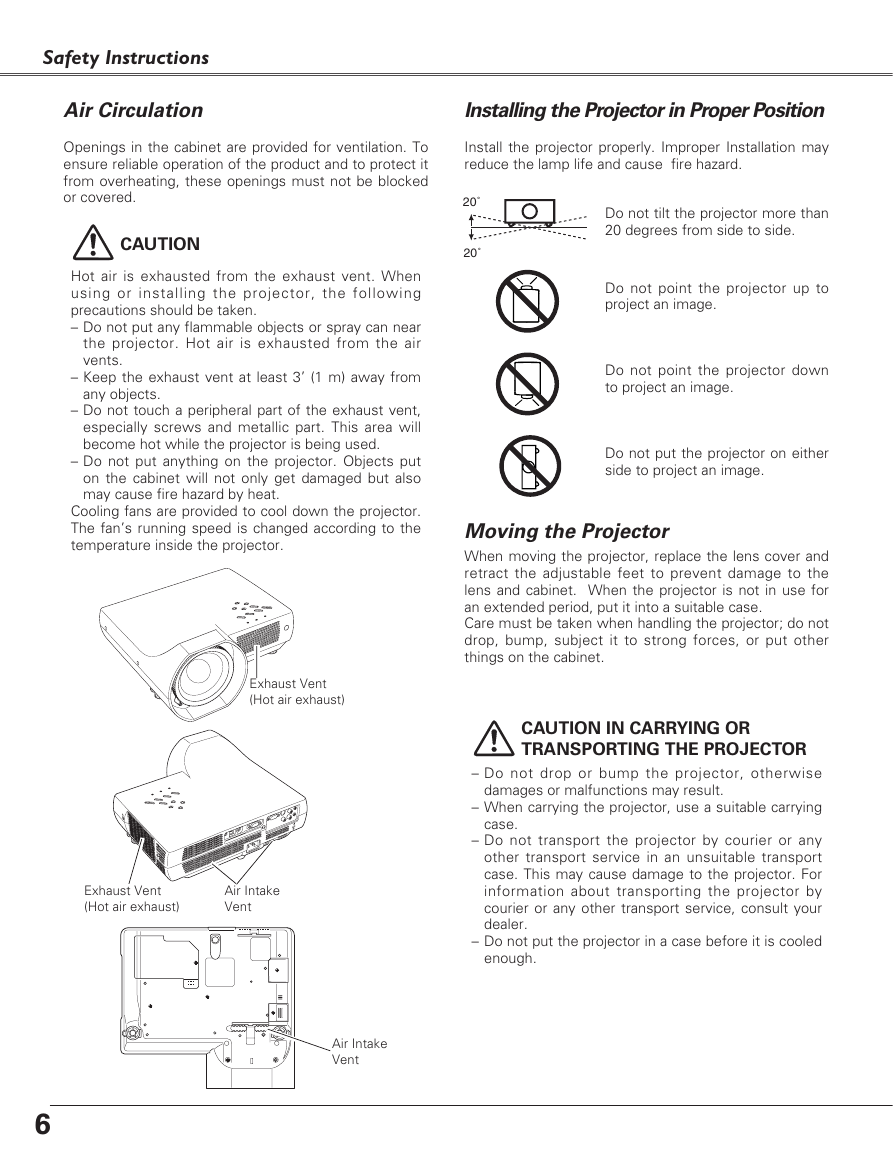

Air Circulation
Installing the Projector in Proper Position
Moving the Projector
Front
Back
Bottom
Rear Terminal
Top Control
Antitheft Alarm Setting Buttons
Remote Control
Remote Control Battery Installation
Operating Range
Features and Design . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . .3
To the Owner . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Instructions . . . . . . . . . . . . . . . . . . . .5
6
6
6
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . .7
Part Names and Functions . . . . . . . . . . . . . .8
8
8
8
9
10
11
12
13
13
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .14
14
Positioning the Projector
14
Adjustable Feet
15
Connecting the AC Power Cord
16
Connecting to a Computer
Connecting to Video Equipment
17
Connecting to Component Video Equipment 18
Basic Operation . . . . . . . . . . . . . . . . . . . . . .19
19
20
21
22
23
23
24
24
Turning On the Projector
Turning Off the Projector
How to Operate the On-Screen Menu
Menu Bar
Focus Adjustment
Keystone Correction
Sound Adjustment
Remote Control Operation
Input Source Selection
Computer System Selection
Auto PC Adjustment
Manual PC Adjustment
Image Level Selection
Image Level Adjustment
Screen Size Adjustment
Computer Input . . . . . . . . . . . . . . . . . . . . .26
26
27
28
29
31
32
33
Video Input . . . . . . . . . . . . . . . . . . . . . . . . . .35
35
Input Source Selection (Video, S-Video)
Input Source Selection
(Component, RGB Scart 21-pin)
Video System Selection
Image Level Selection
Image Level Adjustment
Screen Size Adjustment
36
37
38
39
41
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
42
Antitheft Alarm function . . . . . . . . . . . . . . .50
50
Maintenance and Cleaning . . . . . . . . . . . . .53
53
54
54
55
55
56
57
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .58
58
60
62
63
64
65
66
67
Troubleshooting
Menu Tree
Indicators and Projector Condition
Compatible Computer Specifications
Technical Specifications
Optional Parts
Configurations of Terminals
PIN Code Label
Warning Indicator
Cleaning the Air Filters
Attaching the Lens Cover
Cleaning the Projection Lens
Cleaning the Projector Cabinet
Lamp Replacement
Lamp Replacement Counter
Setting
How to Use the Antitheft Alarm Function
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its
respective corporation.
3
To the Owner
Before operating this projector, read this manual thoroughly
and operate the projector properly.
This projector provides many convenient features and
functions. Operating the projector properly enables you to
manage those features and maintain it in good condition for
many years to come.
Improper operation may result in not only shortening the
product life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections, and try
the solutions in the “Troubleshooting” section in the back of
this manual. If the problem still persists, contact the dealer
where you purchased the projector or the service center.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL WITH
THIS UNIT.
NOTE: This symbol and recycle system are applied only to EU
countries and not applied to the countries in the other
area of the world.
Your SANYO product is designed and
manufactured with high quality
materials and components which can be
recycled and reused.
This symbol means that electrical and
electronic equipment, at their end-of-
life, should be disposed of separately
from your household waste.
Please dispose of this equipment at your local community
waste collection/recycling centre.
In the European Union there are separate collection
systems for used electrical and electronic products.
Please help us to conserve the environment we live in!
4
Safety Precaution
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
– This projector produces intense light from the projection
lens. Avoid staring directly into the lens as much as
possible, otherwise eye damage could result. Be especially
careful that children do not stare directly into the beam.
– Install the projector in a proper position. Otherwise it may
result in fire hazard.
– Allowing the proper amount of space on the top, sides, and
rear of the projector cabinet is critical for proper air
circulation and cooling of the unit. The dimensions shown
here indicate the minimum space required. If the projector
is to be built into a compartment or similarly enclosed, these
minimum distances must be maintained.
– Do not cover the ventilation slot on the projector. Heat build-
up can reduce the service life of your projector, and can also
be dangerous.
SIDE and TOP
REAR
0.7' (20 cm)
1.5' (50 cm)
3' (1 m)
1.5' (50 cm)
– If the projector is unused for an extended time, unplug the
projector from the power outlet.
CAUTION ON HANGING FROM THE CEILING
When hanging the projector from the
ceiling, clean the air intake vents, air filters,
and the top of the projector periodically
with a vacuum cleaner. If you leave the
projector unclean for a long time, the
cooling fans can be clogged with dust, and
it may cause a breakdown or a disaster.
DO NOT SET THE PROJECTOR IN GREASY, WET, OR
SMOKY CONDITIONS SUCH AS IN A KITCHEN TO
PREVENT A BREAKDOWN OR DISASTER. IF THE
PROJECTOR COMES IN CONTACT WITH OIL OR
CHEMICALS, IT MAY BECOME DETERIORATED.
CAUTION
Not for use in a computer room as defined in the Standard for
the Protection of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle que
définie dans la norme ANSI/NFPA 75 Standard for Protection
of Electronic Computer/Data Processing Equipment.
READ AND KEEP THIS OWNER’S MANUAL FOR LATER
USE.

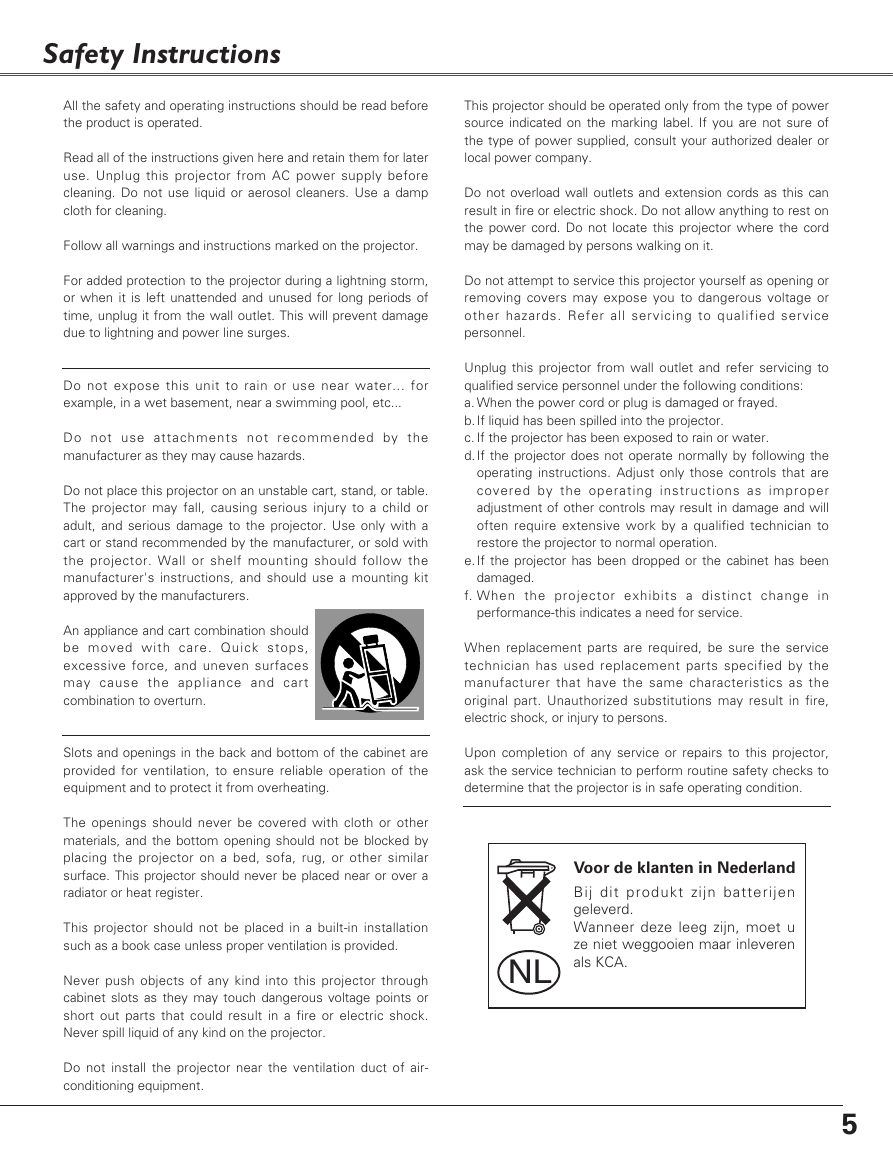

Safety Instructions
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b.If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d.If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e.If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to ensure reliable operation of the
equipment and to protect it from overheating.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of air-
conditioning equipment.
Voor de klanten in Nederland
Bij dit produkt zijn batterijen
geleverd.
Wanneer deze leeg zijn, moet u
ze niet weggooien maar inleveren
als KCA.
NL
5
Safety Instructions
Air Circulation
Openings in the cabinet are provided for ventilation. To
ensure reliable operation of the product and to protect it
from overheating, these openings must not be blocked
or covered.
CAUTION
Hot air is exhausted from the exhaust vent. When
using or installing the projector, the following
precautions should be taken.
– Do not put any flammable objects or spray can near
the projector. Hot air is exhausted from the air
vents.
– Keep the exhaust vent at least 3’ (1 m) away from
any objects.
– Do not touch a peripheral part of the exhaust vent,
especially screws and metallic part. This area will
become hot while the projector is being used.
– Do not put anything on the projector. Objects put
on the cabinet will not only get damaged but also
may cause fire hazard by heat.
Cooling fans are provided to cool down the projector.
The fan’s running speed is changed according to the
temperature inside the projector.
Exhaust Vent
(Hot air exhaust)
Exhaust Vent
(Hot air exhaust)
Air Intake
Vent
Air Intake
Vent
6
Installing the Projector in Proper Position
Install the projector properly. Improper Installation may
reduce the lamp life and cause fire hazard.
20˚
20˚
Do not tilt the projector more than
20 degrees from side to side.
Do not point the projector up to
project an image.
Do not point the projector down
to project an image.
Do not put the projector on either
side to project an image.
Moving the Projector
When moving the projector, replace the lens cover and
retract the adjustable feet to prevent damage to the
lens and cabinet. When the projector is not in use for
an extended period, put it into a suitable case.
Care must be taken when handling the projector; do not
drop, bump, subject it to strong forces, or put other
things on the cabinet.
CAUTION IN CARRYING OR
TRANSPORTING THE PROJECTOR
– Do not drop or bump the projector, otherwise
damages or malfunctions may result.
– When carrying the projector, use a suitable carrying
case.
– Do not transport the projector by courier or any
other transport service in an unsuitable transport
case. This may cause damage to the projector. For
information about transporting the projector by
courier or any other transport service, consult your
dealer.
– Do not put the projector in a case before it is cooled
enough.

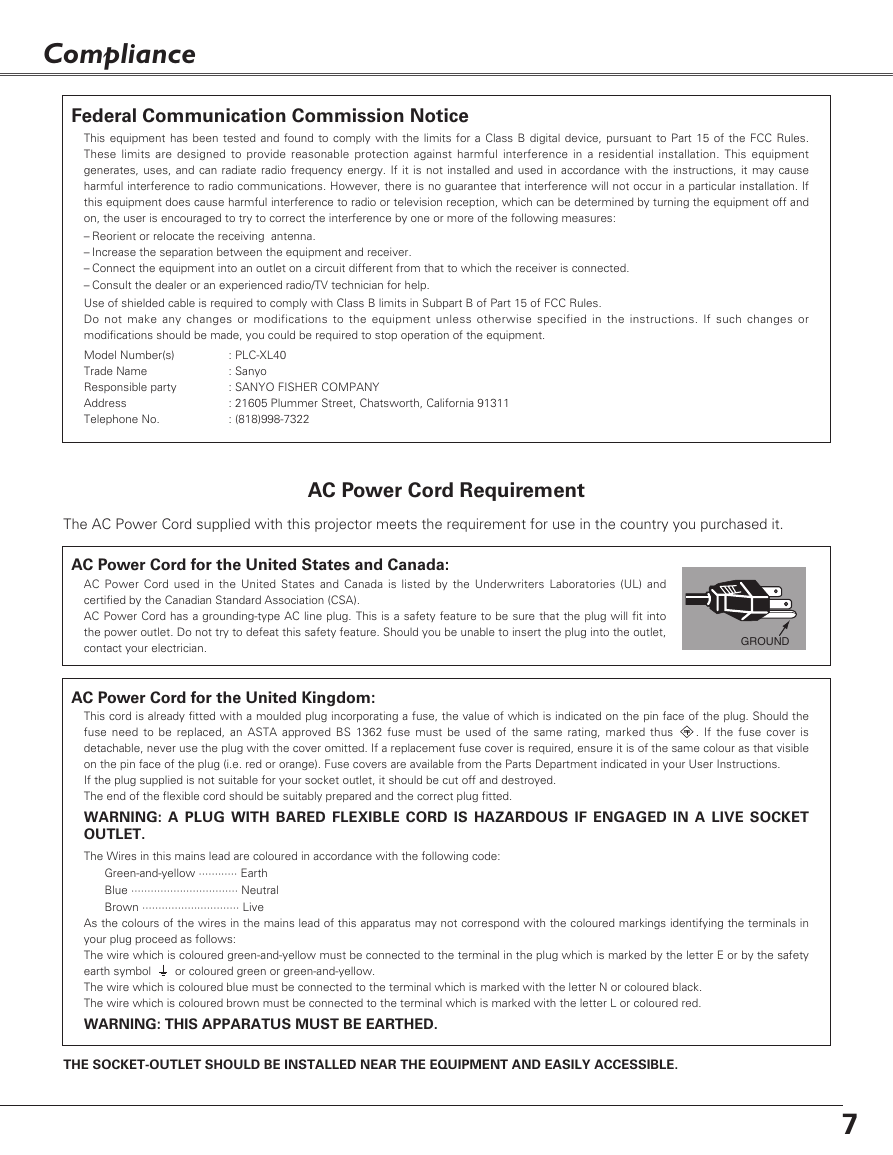

Compliance
Federal Communication Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy. If it is not installed and used in accordance with the instructions, it may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or
modifications should be made, you could be required to stop operation of the equipment.
Model Number(s)
Trade Name
Responsible party
Address
Telephone No.
: PLC-XL40
: Sanyo
: SANYO FISHER COMPANY
: 21605 Plummer Street, Chatsworth, California 91311
: (818)998-7322
AC Power Cord Requirement
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada:
AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and
certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into
the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet,
contact your electrician.
GROUND
AC Power Cord for the United Kingdom:
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the
fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus
. If the fuse cover is
detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible
on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted.
WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET.
The Wires in this mains lead are coloured in accordance with the following code:
ASA
Green-and-yellow ············ Earth
Blue ································· Neutral
Brown ······························ Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in
your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety
earth symbol
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING: THIS APPARATUS MUST BE EARTHED.
or coloured green or green-and-yellow.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
7

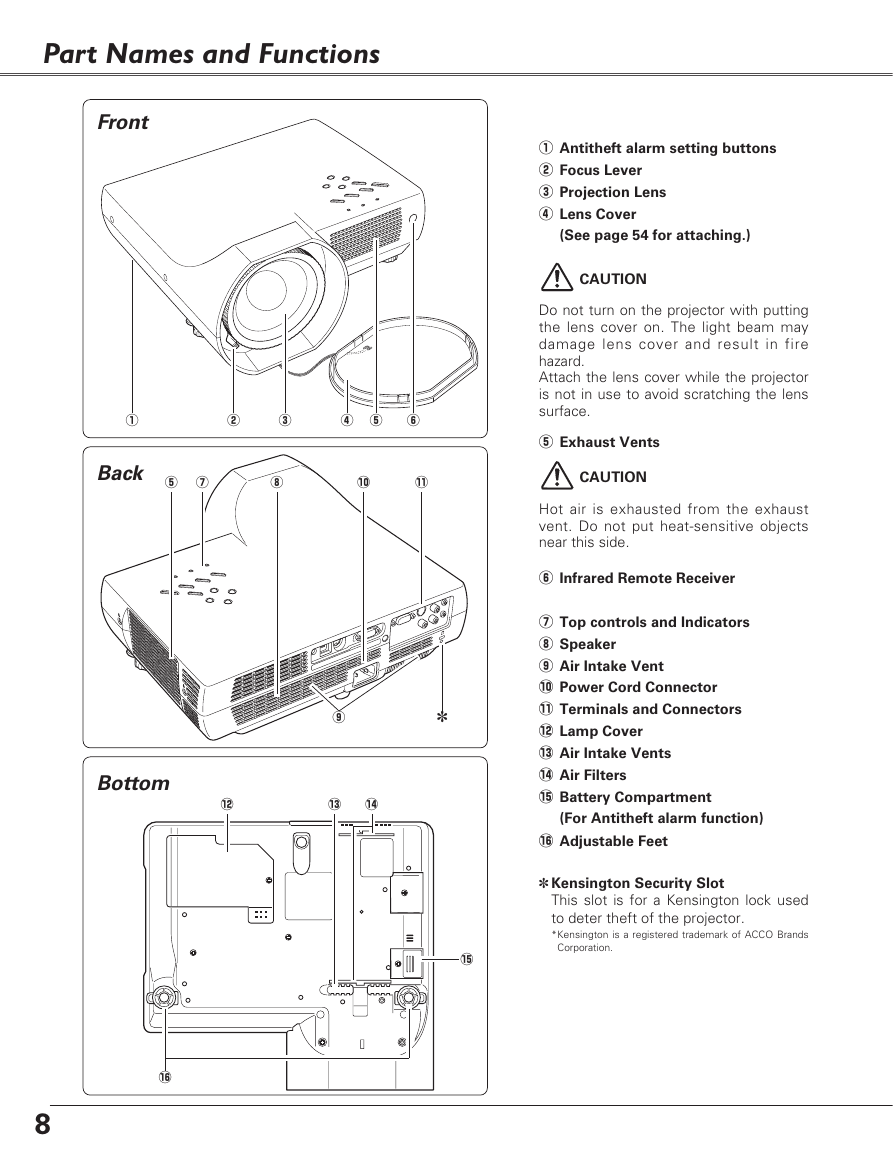

Part Names and Functions
Front
q
w
e
r t
y
Back
t u
i
!0
!1
o
✽
Bottom
!2
!3
!4
q Antitheft alarm setting buttons
w Focus Lever
e Projection Lens
r Lens Cover
(See page 54 for attaching.)
CAUTION
Do not turn on the projector with putting
the lens cover on. The light beam may
damage lens cover and result in fire
hazard.
Attach the lens cover while the projector
is not in use to avoid scratching the lens
surface.
t Exhaust Vents
CAUTION
Hot air is exhausted from the exhaust
vent. Do not put heat-sensitive objects
near this side.
y Infrared Remote Receiver
u Top controls and Indicators
i Speaker
o Air Intake Vent
!0 Power Cord Connector
!1 Terminals and Connectors
!2 Lamp Cover
!3 Air Intake Vents
!4 Air Filters
!5 Battery Compartment
(For Antitheft alarm function)
!6 Adjustable Feet
✽ Kensington Security Slot
This slot is for a Kensington lock used
to deter theft of the projector.
*Kensington is a registered trademark of ACCO Brands
Corporation.
!5
!6
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
