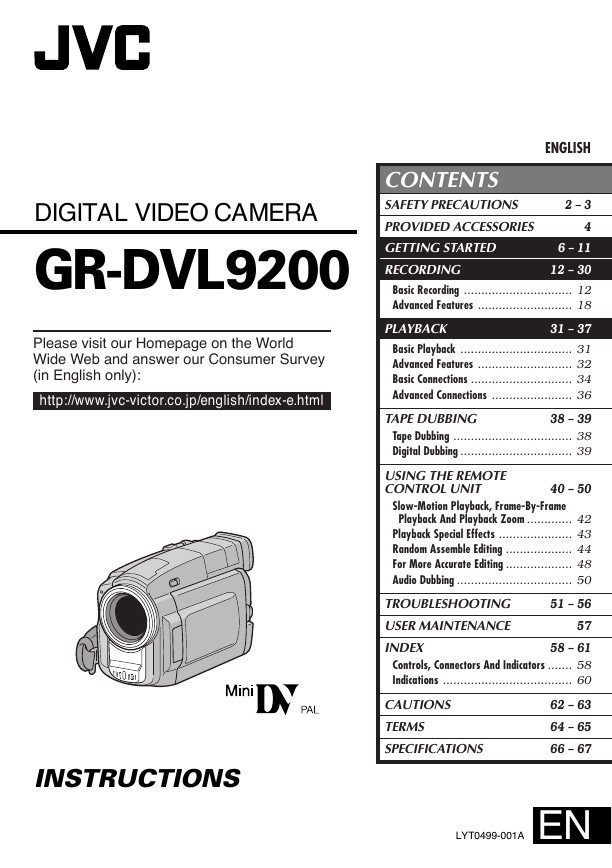

JVC数码摄像机-GR-DVL9200说明书.pdf
DIGITAL VIDEO CAMERA
GR-DVL9200
Please visit our Homepage on the World
Wide Web and answer our Consumer Survey
(in English only):
http://www.jvc-victor.co.jp/english/index-e.html
INSTRUCTIONS
ENGLISH
CONTENTS
SAFETY PRECAUTIONS
PROVIDED ACCESSORIES
GETTING STARTED
RECORDING
2 – 3
4
6 – 11
12 – 30
Basic Recording ............................... 12
Advanced Features ........................... 18
31 – 37
Basic Playback ................................ 31
Advanced Features ........................... 32
Basic Connections ............................. 34
Advanced Connections ....................... 36
PLAYBACK
TAPE DUBBING
38 – 39
Tape Dubbing .................................. 38
Digital Dubbing ................................ 39
USING THE REMOTE
CONTROL UNIT
40 – 50
Slow-Motion Playback, Frame-By-Frame
Playback And Playback Zoom ............. 42
Playback Special Effects ..................... 43
Random Assemble Editing ................... 44
For More Accurate Editing ................... 48
Audio Dubbing ................................. 50
TROUBLESHOOTING
USER MAINTENANCE
INDEX
51 – 56
57
58 – 61
Controls, Connectors And Indicators ....... 58
Indications ..................................... 60
CAUTIONS
TERMS
SPECIFICATIONS
62 – 63
64 – 65
66 – 67
LYT0499-001A EN

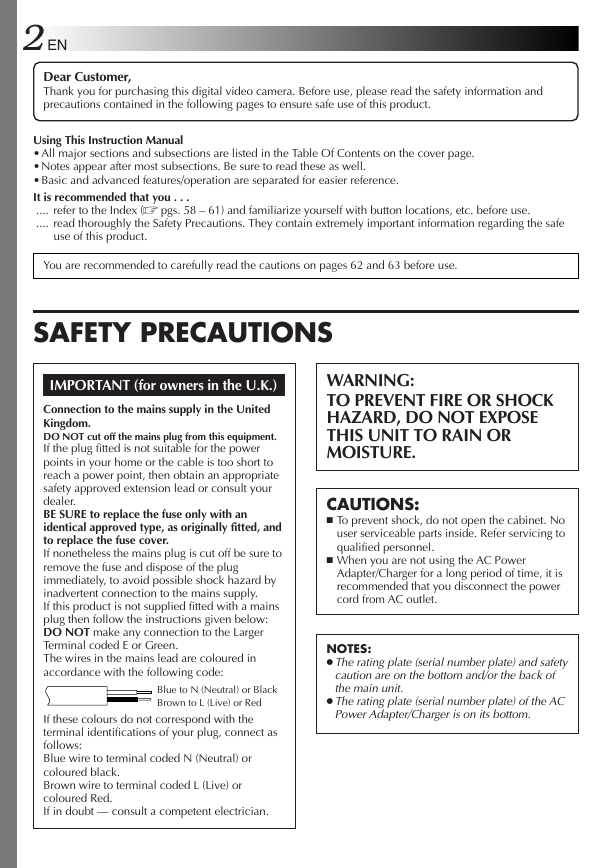

2 EN
Dear Customer,
Thank you for purchasing this digital video camera. Before use, please read the safety information and
precautions contained in the following pages to ensure safe use of this product.
Using This Instruction Manual
•All major sections and subsections are listed in the Table Of Contents on the cover page.
•Notes appear after most subsections. Be sure to read these as well.
•Basic and advanced features/operation are separated for easier reference.
It is recommended that you . . .
.... refer to the Index (Z pgs. 58 – 61) and familiarize yourself with button locations, etc. before use.
.... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe
use of this product.
You are recommended to carefully read the cautions on pages 62 and 63 before use.
SAFETY PRECAUTIONS
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR
MOISTURE.
CAUTIONS:
n To prevent shock, do not open the cabinet. No
user serviceable parts inside. Refer servicing to
qualified personnel.
n When you are not using the AC Power
Adapter/Charger for a long period of time, it is
recommended that you disconnect the power
cord from AC outlet.
NOTES:
cThe rating plate (serial number plate) and safety
caution are on the bottom and/or the back of
the main unit.
cThe rating plate (serial number plate) of the AC
Power Adapter/Charger is on its bottom.
IMPORTANT (for owners in the U.K.)
Connection to the mains supply in the United
Kingdom.
DO NOT cut off the mains plug from this equipment.
If the plug fitted is not suitable for the power
points in your home or the cable is too short to
reach a power point, then obtain an appropriate
safety approved extension lead or consult your
dealer.
BE SURE to replace the fuse only with an
identical approved type, as originally fitted, and
to replace the fuse cover.
If nonetheless the mains plug is cut off be sure to
remove the fuse and dispose of the plug
immediately, to avoid possible shock hazard by
inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains
plug then follow the instructions given below:
DO NOT make any connection to the Larger
Terminal coded E or Green.
The wires in the mains lead are coloured in
accordance with the following code:
Blue to N (Neutral) or Black
Brown to L (Live) or Red
If these colours do not correspond with the
terminal identifications of your plug, connect as
follows:
Blue wire to terminal coded N (Neutral) or
coloured black.
Brown wire to terminal coded L (Live) or
coloured Red.
If in doubt — consult a competent electrician.

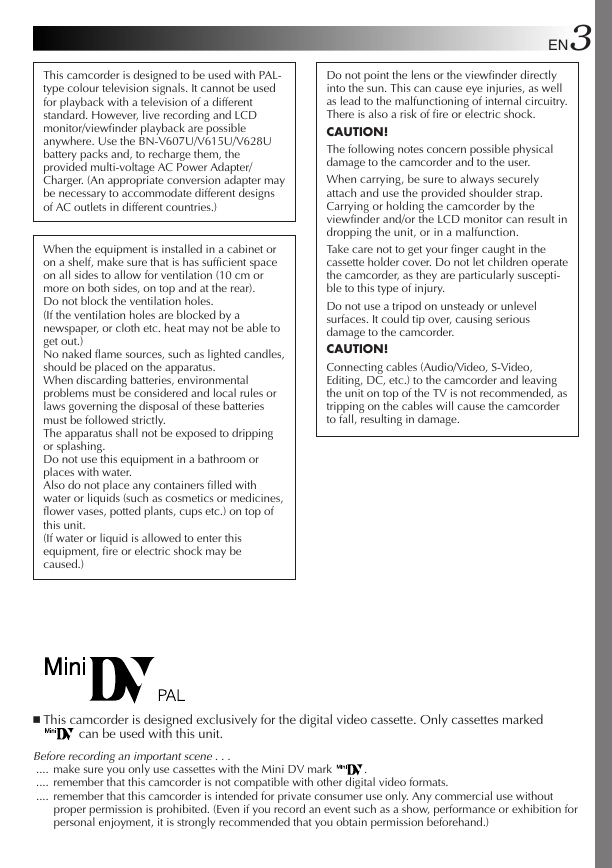

EN3
Do not point the lens or the viewfinder directly
into the sun. This can cause eye injuries, as well
as lead to the malfunctioning of internal circuitry.
There is also a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical
damage to the camcorder and to the user.
When carrying, be sure to always securely
attach and use the provided shoulder strap.
Carrying or holding the camcorder by the
viewfinder and/or the LCD monitor can result in
dropping the unit, or in a malfunction.
Take care not to get your finger caught in the
cassette holder cover. Do not let children operate
the camcorder, as they are particularly suscepti-
ble to this type of injury.
Do not use a tripod on unsteady or unlevel
surfaces. It could tip over, causing serious
damage to the camcorder.
CAUTION!
Connecting cables (Audio/Video, S-Video,
Editing, DC, etc.) to the camcorder and leaving
the unit on top of the TV is not recommended, as
tripping on the cables will cause the camcorder
to fall, resulting in damage.
This camcorder is designed to be used with PAL-
type colour television signals. It cannot be used
for playback with a television of a different
standard. However, live recording and LCD
monitor/viewfinder playback are possible
anywhere. Use the BN-V607U/V615U/V628U
battery packs and, to recharge them, the
provided multi-voltage AC Power Adapter/
Charger. (An appropriate conversion adapter may
be necessary to accommodate different designs
of AC outlets in different countries.)
When the equipment is installed in a cabinet or
on a shelf, make sure that is has sufficient space
on all sides to allow for ventilation (10 cm or
more on both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a
newspaper, or cloth etc. heat may not be able to
get out.)
No naked flame sources, such as lighted candles,
should be placed on the apparatus.
When discarding batteries, environmental
problems must be considered and local rules or
laws governing the disposal of these batteries
must be followed strictly.
The apparatus shall not be exposed to dripping
or splashing.
Do not use this equipment in a bathroom or
places with water.
Also do not place any containers filled with
water or liquids (such as cosmetics or medicines,
flower vases, potted plants, cups etc.) on top of
this unit.
(If water or liquid is allowed to enter this
equipment, fire or electric shock may be
caused.)
n This camcorder is designed exclusively for the digital video cassette. Only cassettes marked
can be used with this unit.
Before recording an important scene . . .
.... make sure you only use cassettes with the Mini DV mark
.... remember that this camcorder is not compatible with other digital video formats.
.... remember that this camcorder is intended for private consumer use only. Any commercial use without
.
proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for
personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

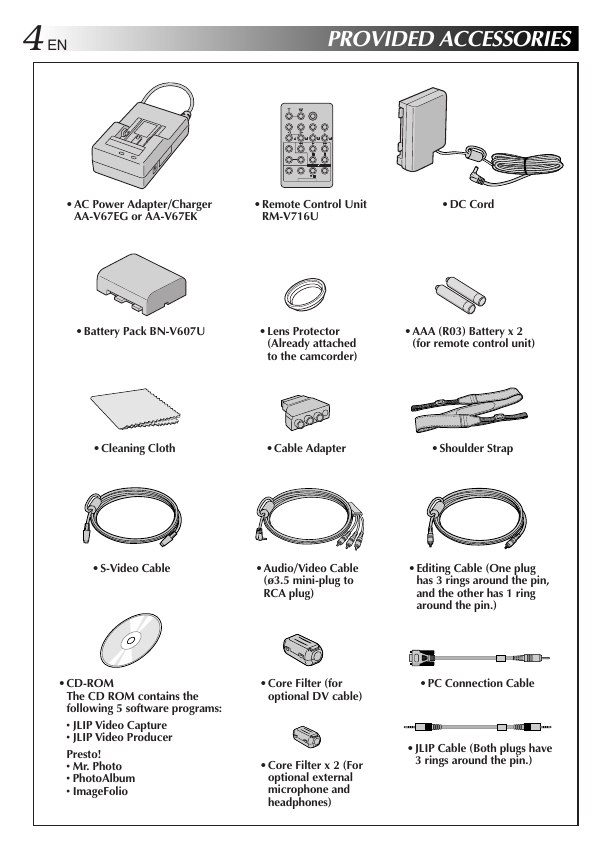

4 EN
PROVIDED ACCESSORIES
•AC Power Adapter/Charger
AA-V67EG or AA-V67EK
•Remote Control Unit
RM-V716U
•DC Cord
•Battery Pack BN-V607U
•Lens Protector
(Already attached
to the camcorder)
•AAA (R03) Battery x 2
(for remote control unit)
•Cleaning Cloth
•Cable Adapter
•Shoulder Strap
•S-Video Cable
•Audio/Video Cable
(ø3.5 mini-plug to
RCA plug)
•Editing Cable (One plug
has 3 rings around the pin,
and the other has 1 ring
around the pin.)
•CD-ROM
The CD ROM contains the
following 5 software programs:
x JLIP Video Capture
x JLIP Video Producer
Presto!
x Mr. Photo
x PhotoAlbum
x ImageFolio
•Core Filter (for
optional DV cable)
•PC Connection Cable
•JLIP Cable (Both plugs have
3 rings around the pin.)
•Core Filter x 2 (For
optional external
microphone and
headphones)

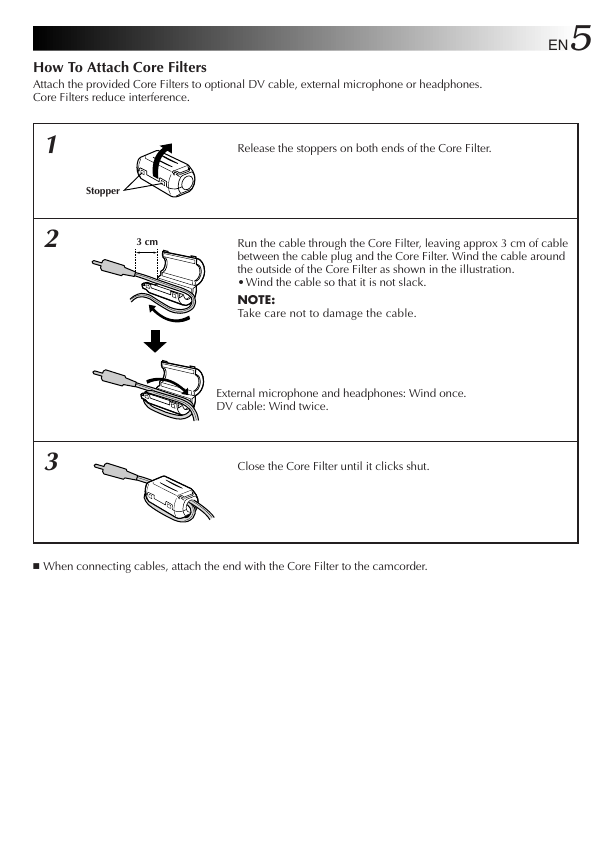

How To Attach Core Filters
Attach the provided Core Filters to optional DV cable, external microphone or headphones.
Core Filters reduce interference.
EN5
1
2
3
Stopper
3 cm
Release the stoppers on both ends of the Core Filter.
Run the cable through the Core Filter, leaving approx 3 cm of cable
between the cable plug and the Core Filter. Wind the cable around
the outside of the Core Filter as shown in the illustration.
•Wind the cable so that it is not slack.
NOTE:
Take care not to damage the cable.
External microphone and headphones: Wind once.
DV cable: Wind twice.
Close the Core Filter until it clicks shut.
n When connecting cables, attach the end with the Core Filter to the camcorder.

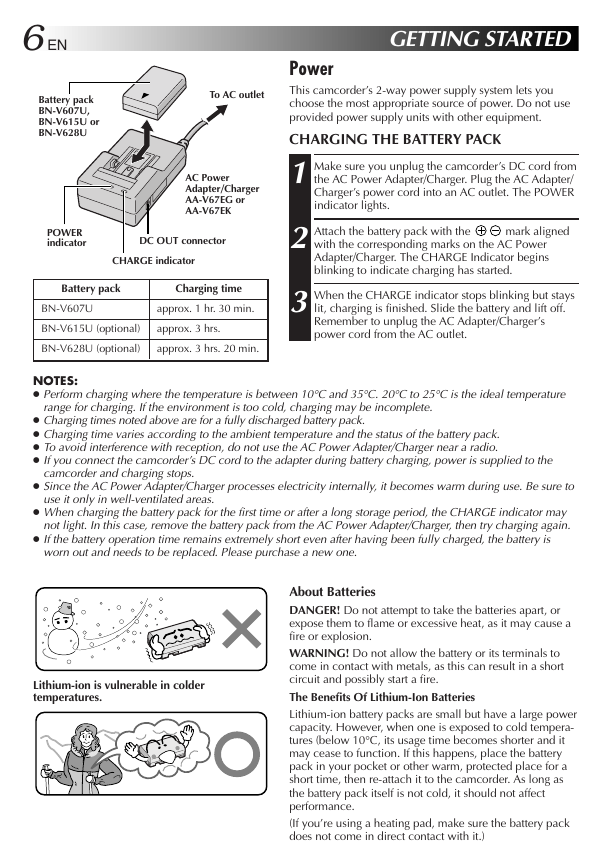

6 EN
Battery pack
BN-V607U,
BN-V615U or
BN-V628U
GETTING STARTED
Power
This camcorder’s 2-way power supply system lets you
choose the most appropriate source of power. Do not use
provided power supply units with other equipment.
CHARGING THE BATTERY PACK
1 Make sure you unplug the camcorder’s DC cord from
the AC Power Adapter/Charger. Plug the AC Adapter/
Charger’s power cord into an AC outlet. The POWER
indicator lights.
To AC outlet
AC Power
Adapter/Charger
AA-V67EG or
AA-V67EK
POWER
indicator
DC OUT connector
CHARGE indicator
Battery pack
Charging time
BN-V607U
approx. 1 hr. 30 min.
BN-V615U (optional)
approx. 3 hrs.
BN-V628U (optional)
approx. 3 hrs. 20 min.
2 Attach the battery pack with the
with the corresponding marks on the AC Power
Adapter/Charger. The CHARGE Indicator begins
blinking to indicate charging has started.
mark aligned
3 When the CHARGE indicator stops blinking but stays
lit, charging is finished. Slide the battery and lift off.
Remember to unplug the AC Adapter/Charger’s
power cord from the AC outlet.
NOTES:
c Perform charging where the temperature is between 10°C and 35°C. 20°C to 25°C is the ideal temperature
range for charging. If the environment is too cold, charging may be incomplete.
c Charging times noted above are for a fully discharged battery pack.
c Charging time varies according to the ambient temperature and the status of the battery pack.
c To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.
c If you connect the camcorder’s DC cord to the adapter during battery charging, power is supplied to the
c Since the AC Power Adapter/Charger processes electricity internally, it becomes warm during use. Be sure to
camcorder and charging stops.
use it only in well-ventilated areas.
c When charging the battery pack for the first time or after a long storage period, the CHARGE indicator may
not light. In this case, remove the battery pack from the AC Power Adapter/Charger, then try charging again.
c If the battery operation time remains extremely short even after having been fully charged, the battery is
worn out and needs to be replaced. Please purchase a new one.
Lithium-ion is vulnerable in colder
temperatures.
About Batteries
DANGER! Do not attempt to take the batteries apart, or
expose them to flame or excessive heat, as it may cause a
fire or explosion.
WARNING! Do not allow the battery or its terminals to
come in contact with metals, as this can result in a short
circuit and possibly start a fire.
The Benefits Of Lithium-Ion Batteries
Lithium-ion battery packs are small but have a large power
capacity. However, when one is exposed to cold tempera-
tures (below 10°C, its usage time becomes shorter and it
may cease to function. If this happens, place the battery
pack in your pocket or other warm, protected place for a
short time, then re-attach it to the camcorder. As long as
the battery pack itself is not cold, it should not affect
performance.
(If you’re using a heating pad, make sure the battery pack
does not come in direct contact with it.)
BATT. RELEASE
Button
1
3
2
ATTENTION:
Before detaching the power source,
make sure that the camcorder’s power
is turned off. Failure to do so can result
in a camcorder malfunction.
INFORMATION:
VU-V856KIT is a set composed of the
BN-V856U battery pack and AA-V80EG or
AA-V80EK AC Power Adapter/Charger.
Read the VU-V856KIT’s instruction manuals
before using.
It is impossible to charge the BN-V856U battery
pack using the provided AC Power Adapter/
Charger. Use the optional AA-V80EG or
AA-V80EK AC Power Adapter/Charger.

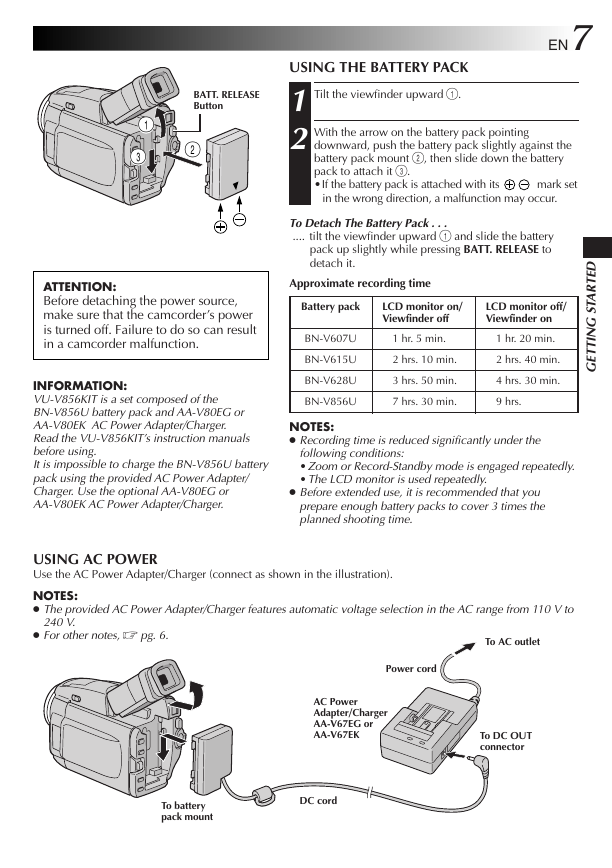

USING THE BATTERY PACK
EN7
1 Tilt the viewfinder upward 1.
2 With the arrow on the battery pack pointing
downward, push the battery pack slightly against the
battery pack mount 2, then slide down the battery
pack to attach it 3.
•If the battery pack is attached with its
mark set
in the wrong direction, a malfunction may occur.
To Detach The Battery Pack . . .
.... tilt the viewfinder upward 1 and slide the battery
pack up slightly while pressing BATT. RELEASE to
detach it.
Approximate recording time
Battery pack
LCD monitor on/
Viewfinder off
LCD monitor off/
Viewfinder on
BN-V607U
BN-V615U
BN-V628U
BN-V856U
1 hr. 5 min.
2 hrs. 10 min.
3 hrs. 50 min.
7 hrs. 30 min.
1 hr. 20 min.
2 hrs. 40 min.
4 hrs. 30 min.
9 hrs.
D
E
T
R
A
T
S
G
N
I
T
T
E
G
NOTES:
c Recording time is reduced significantly under the
following conditions:
•Zoom or Record-Standby mode is engaged repeatedly.
•The LCD monitor is used repeatedly.
c Before extended use, it is recommended that you
prepare enough battery packs to cover 3 times the
planned shooting time.
USING AC POWER
Use the AC Power Adapter/Charger (connect as shown in the illustration).
NOTES:
c The provided AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to
c For other notes, Z pg. 6.
240 V.
To AC outlet
Power cord
AC Power
Adapter/Charger
AA-V67EG or
AA-V67EK
To DC OUT
connector
To battery
pack mount
DC cord
8 EN

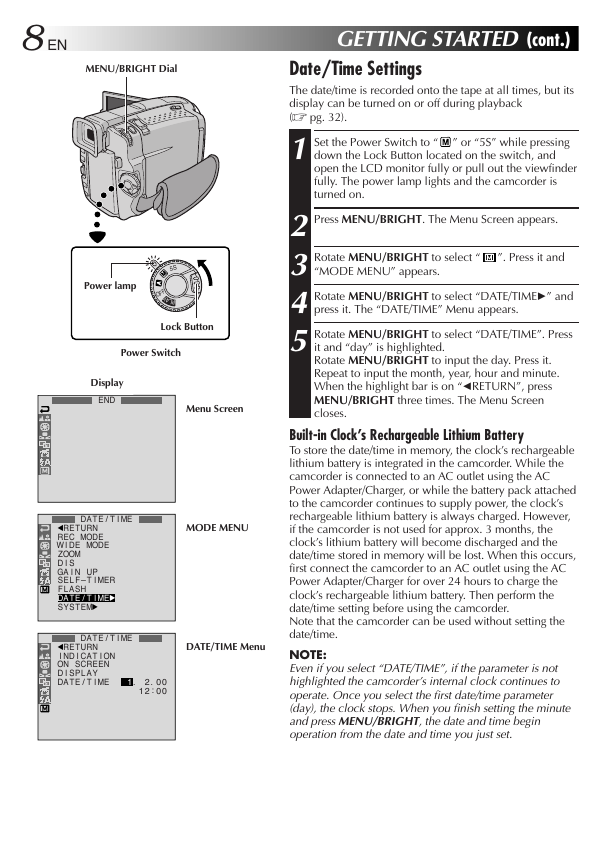

MENU/BRIGHT Dial
GETTING STARTED (cont.)
Date/Time Settings
The date/time is recorded onto the tape at all times, but its
display can be turned on or off during playback
(Z pg. 32).
1 Set the Power Switch to “
down the Lock Button located on the switch, and
open the LCD monitor fully or pull out the viewfinder
fully. The power lamp lights and the camcorder is
turned on.
” or “5S” while pressing
Power lamp
5 S
O
F
F
PLAY
Lock Button
Power Switch
Display
END
Menu Screen
”. Press it and
“MODE MENU” appears.
2 Press MENU/BRIGHT. The Menu Screen appears.
3 Rotate MENU/BRIGHT to select “
4 Rotate MENU/BRIGHT to select “DATE/TIME4” and
5 Rotate MENU/BRIGHT to select “DATE/TIME”. Press
press it. The “DATE/TIME” Menu appears.
it and “day” is highlighted.
Rotate MENU/BRIGHT to input the day. Press it.
Repeat to input the month, year, hour and minute.
When the highlight bar is on “1RETURN”, press
MENU/BRIGHT three times. The Menu Screen
closes.
E
/
T
I ME
D
U
M
A
R
O
M
T
N
D
O
T
E
M
E
D
E
N
F
S
E
T
–
H
/
E
U
T
P
M
I
E
R
4
M
E
I
T
4
M
1
R
E
R
I
W
O
Z
I
D
A
G
E
S
L
F
A
D
Y
S
E
C
D
O
S
I
L
A
T
S
T
I ME
D
U
C
C
L
/
A
R
A
R
A
T
1
I
O
D
D
R
N
N
I
A
E
D
S
T
T
I
S
P
E
/
E
T
N
T
E
Y
I
M
E
I
E
O
N
N
1.
2
2
.
:
0
0
0
0
1
MODE MENU
DATE/TIME Menu
Built-in Clock’s Rechargeable Lithium Battery
To store the date/time in memory, the clock’s rechargeable
lithium battery is integrated in the camcorder. While the
camcorder is connected to an AC outlet using the AC
Power Adapter/Charger, or while the battery pack attached
to the camcorder continues to supply power, the clock’s
rechargeable lithium battery is always charged. However,
if the camcorder is not used for approx. 3 months, the
clock’s lithium battery will become discharged and the
date/time stored in memory will be lost. When this occurs,
first connect the camcorder to an AC outlet using the AC
Power Adapter/Charger for over 24 hours to charge the
clock’s rechargeable lithium battery. Then perform the
date/time setting before using the camcorder.
Note that the camcorder can be used without setting the
date/time.
NOTE:
Even if you select “DATE/TIME”, if the parameter is not
highlighted the camcorder’s internal clock continues to
operate. Once you select the first date/time parameter
(day), the clock stops. When you finish setting the minute
and press MENU/BRIGHT, the date and time begin
operation from the date and time you just set.
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
