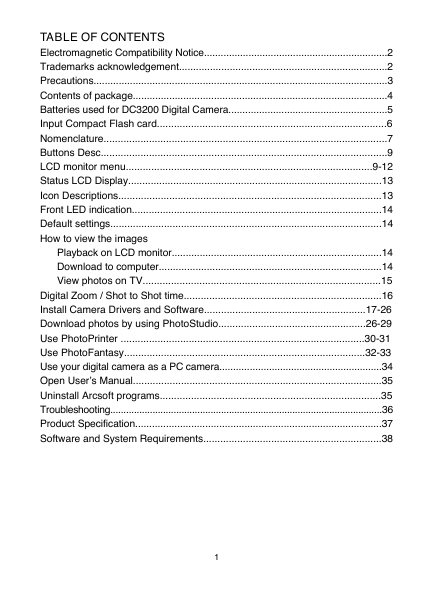

TABLE OF CONTENTSElectromagnetic Compatibility Notice..................................................................2Trademarks acknowledgement..........................................................................2Precautions.........................................................................................................3Contents of package...........................................................................................4Batteries used for DC3200 Digital Camera.........................................................5Input Compact Flash card.................................................................................6
Nomenclature....................................................................................................7
Buttons Desc.....................................................................................................9
LCD monitor menu.......................................................................................9-12Status LCD Display..........................................................................................13Icon Descriptions.............................................................................................13Front LED indication.........................................................................................14Default settings................................................................................................14How to view the images
Playback on LCD monitor...........................................................................14Download to computer...............................................................................14View photos on TV....................................................................................15
Digital Zoom / Shot to Shot time......................................................................16Install Camera Drivers and Software.........................................................17-26
Download photos by using PhotoStudio....................................................26-29
Use PhotoPrinter ......................................................................................30-31
Use PhotoFantasy.....................................................................................32-33Use your digital camera as a PC camera...........................................................34Open User’s Manual........................................................................................35Uninstall Arcsoft programs..............................................................................35Troubleshooting.......................................................................................................36Product Specification........................................................................................37Software and System Requirements...............................................................38
1

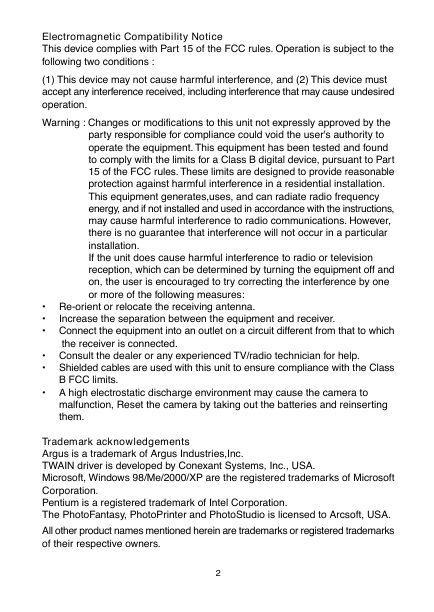

Electromagnetic Compatibility Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions :
(1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired
operation.
Warning : Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to
operate the equipment. This equipment has been tested and found
to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates,uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation.
If the unit does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try correcting the interference by one
or more of the following measures:
• Re-orient or relocate the receiving antenna.
•
• Connect the equipment into an outlet on a circuit different from that to which
Increase the separation between the equipment and receiver.
the receiver is connected.
• Consult the dealer or any experienced TV/radio technician for help.
• Shielded cables are used with this unit to ensure compliance with the Class
B FCC limits.
• A high electrostatic discharge environment may cause the camera to
malfunction, Reset the camera by taking out the batteries and reinserting
them.
Trademark acknowledgements
Argus is a trademark of Argus Industries,Inc.
TWAIN driver is developed by Conexant Systems, Inc., USA.
Microsoft, Windows 98/Me/2000/XP are the registered trademarks of Microsoft
Corporation.
Pentium is a registered trademark of Intel Corporation.
The PhotoFantasy, PhotoPrinter and PhotoStudio is licensed to Arcsoft, USA.
All other product names mentioned herein are trademarks or registered trademarks
of their respective owners.
2
Precautions :
Thank you for purchasing a DC3200 digital camera. Please read the instructions
carefully for a thorough understanding of the product before taking pictures.
• This camera is not resistant to water and should not be used outdoors in
snow or rain. If accidentally dropped in water, please quickly pour out the
water. Dry it with sunlight or an air-blower.
• Protect it from excessive humidity. It will wet the lens and the pictures taken
will be blurred.
• Do not expose the camera to sand.
• Do not attempt to disassemble the camera yourself. Always take it to an
authorized service facility for repair.
• Remove the batteries if you do not expect to use the camera for 1 month
or longer.
• To store the camera, wrap it in a piece of clean, soft cloth and place it in a
cool, dry, dust-free place. Also it should not be placed in very hot temperature
conditions or under direct sun-light.
• The batteries may explode or cause burns if disassembled, recharged,
shorted, exposed to high temperature, or disposed of in fire.
• AA-size alkaline or Ni-MH batteries can be used with this camera. The
camera will be damaged if you use poor quality batteries.
• Make sure all four batteries are fresh, unused or fully charged.
• Ensure that battery polarities are correct when placing the batteries in the
camera.
• Batteries may feel warm after being used for some time.
• Take care of the lens. Use special cloth to clean it.
• Do not scratch hard objects against the lens, LCD monitor screen or
viewfinder.
• Condensation is a problem when bringing cold equipment into a warm room.
Try to put the camera in a plastic bag so condensation forms on the outside
of the bag.
If the status LCD display or the LCD monitor screen is damaged, do not
touch it.
•
• Battery low detection:
When you see the battery icon blinking, replace the batteries with new
alkaline batteries or fully charged NiMH batteries.
If you do not replace batteries, you cannot use the flash and you have to
turn off the LCD monitor in order to take additional pictures.
• Battery life is shorter for poor quality alkaline batteries. If you always turn
on the LCD monitor and the flash , you should use good quality batteries(eg.
Energizer alkaline batteries). High power NiMH rechargeable batteries
(1300mAH or higher) are also recommended.
3
Contents of Package:
DC3200 digital camera
Installation CD-ROM containing: User's Manual and Digital Camera software
Quick Start Guide
USB cable
Video cable
Hand Strap for camera
Warranty Card

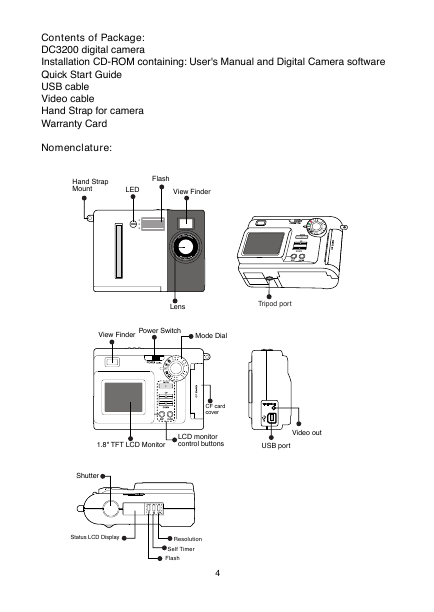

Nomenclature:
Hand Strap
Mount
Flash
LED
View Finder
Lens
Tripod port
View Finder
Power Switch
Mode Dial
CF card
cover
1.8'' TFT LCD Monitor
LCD monitor
control buttons
Video out
USB port
Shutter
Status LCD Display
Resolution
Self Timer
Flash
4
Batteries Installation

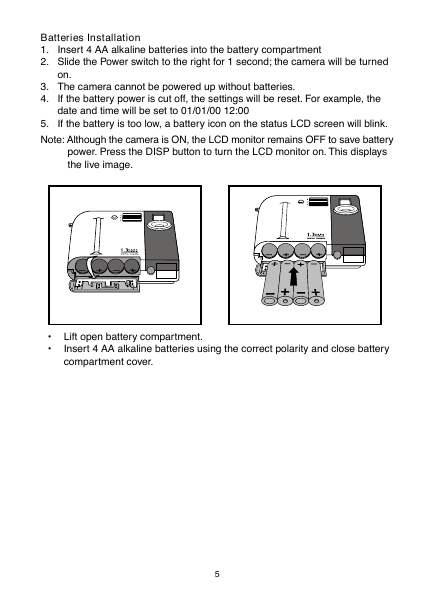

1.
2. Slide the Power switch to the right for 1 second; the camera will be turned
Insert 4 AA alkaline batteries into the battery compartment
on.
3. The camera cannot be powered up without batteries.
4.
If the battery power is cut off, the settings will be reset. For example, the
date and time will be set to 01/01/00 12:00
5.
If the battery is too low, a battery icon on the status LCD screen will blink.
Note: Although the camera is ON, the LCD monitor remains OFF to save battery
power. Press the DISP button to turn the LCD monitor on. This displays
the live image.
•
•
Lift open battery compartment.
Insert 4 AA alkaline batteries using the correct polarity and close battery
compartment cover.
5
Input the CF (Compact Flash) Card :
1. Open the CF card cover,located
on the left hand side of the camera.
Insert the CF card as shown.
2.
3. Lock the ejector.
4. Close the CF card cover.
5. Turn the Mode Dial to Record mode.
Power on the camera.
6. The remaining number of photos
that can be taken appears on the
status LCD.
F
C
e
c
6
Take out the CF (Compact Flash) card :
1. Power off the unit.
2. Open the CF Card cover
3. Unlock the ejector.
4. Push down on the ejector to
release the CF card.
5. Pull up on the CF card to remove
6. Close the CF card cover.
F
C
e
c
