Libmetal and
OpenAMP User Guide
UG1186 (v2019.1) May 22, 2019
Revision History
The following table shows the revision history for this document.
Section
Revision Summary
General Updates.
05/22/2019 Version 2019.1
General Updates.
Libmetal and OpenAMP
UG1186 (v2019.1) May 22, 2019
www.xilinx.com
2
Send Feedback
Table of Contents
Chapter 1: Overview
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 2: Libmetal
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Access Devices with Libmetal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Xilinx Libmetal AMP Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Chapter 3: OpenAMP
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Components in OpenAMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connection between OpenAMP and Libmetal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
How to Write a Simple OpenAMP Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
OpenAMP Demos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Chapter 4: System Design Consideration
Supported Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Other Consideration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Known Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Appendix A: Libmetal APIs
Libmetal API Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Appendix B: OpenAMP APIs
Remoteproc APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Remoteproc API Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
RPMsg Development . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
RPMsg API Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Appendix C: Additional Resources and Legal Notices
Xilinx Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Solution Centers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Documentation Navigator and Design Hubs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Libmetal and OpenAMP
UG1186 (v2019.1) May 22, 2019
www.xilinx.com
3
Send Feedback
Xilinx Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Please Read: Important Legal Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Libmetal and OpenAMP
UG1186 (v2019.1) May 22, 2019
www.xilinx.com
4
Send Feedback
Chapter 1
Overview
Introduction
This user guide describes how to develop a methodology to enable communication
between multiple processors on Xilinx® Zynq® and Zynq UltraScale+™ MPSoC platforms.
The basic development concept is based on the principles of Interrupts and Shared
Memory, two foundational principles, that of interrupts and shared memory between the
communicating elements:

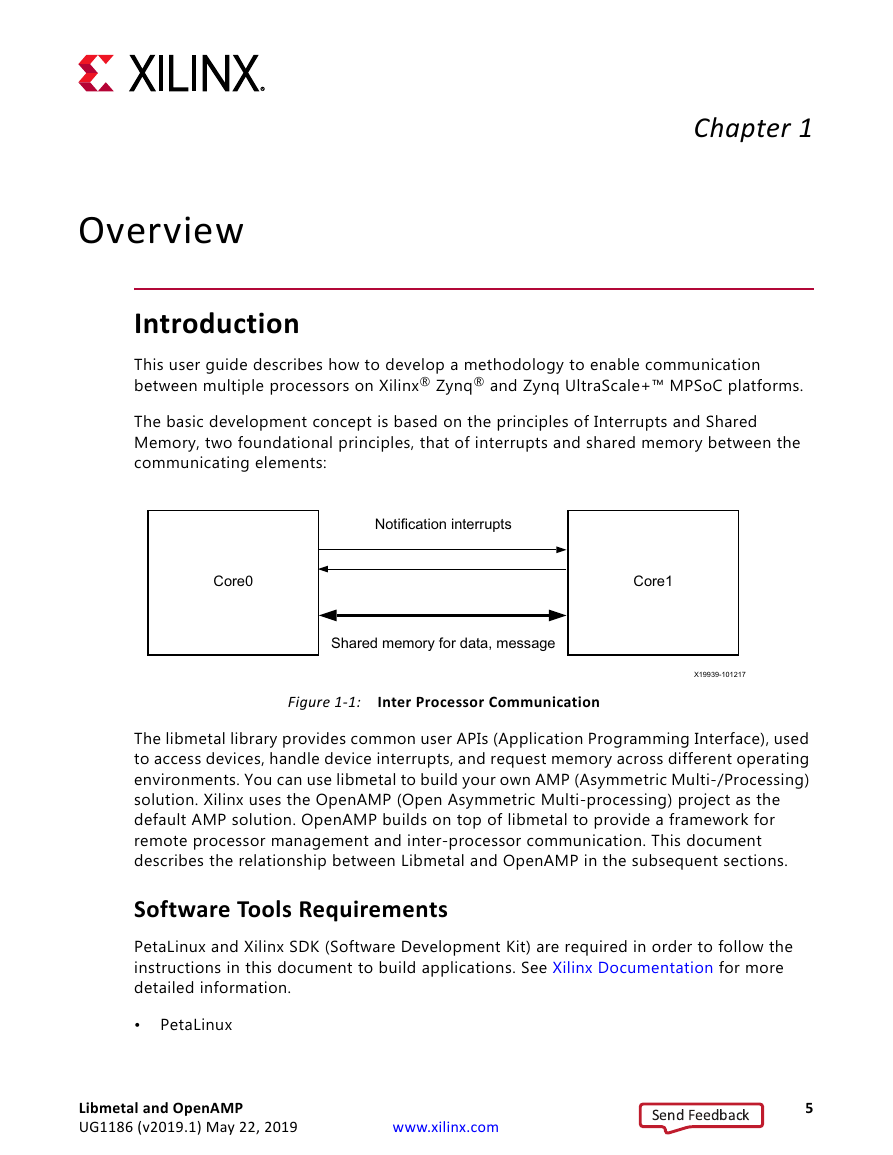

X-Ref Target - Figure 1-1
X19939-101217
Figure 1-1:
Inter Processor Communication
The libmetal library provides common user APIs (Application Programming Interface), used
to access devices, handle device interrupts, and request memory across different operating
environments. You can use libmetal to build your own AMP (Asymmetric Multi-/Processing)
solution. Xilinx uses the OpenAMP (Open Asymmetric Multi-processing) project as the
default AMP solution. OpenAMP builds on top of libmetal to provide a framework for
remote processor management and inter-processor communication. This document
describes the relationship between Libmetal and OpenAMP in the subsequent sections.
Software Tools Requirements
PetaLinux and Xilinx SDK (Software Development Kit) are required in order to follow the
instructions in this document to build applications. See Xilinx Documentation for more
detailed information.
•
PetaLinux
Libmetal and OpenAMP
UG1186 (v2019.1) May 22, 2019
www.xilinx.com
5
Send Feedback
Chapter 1: Overview
•
Xilinx SDK
Prerequisites

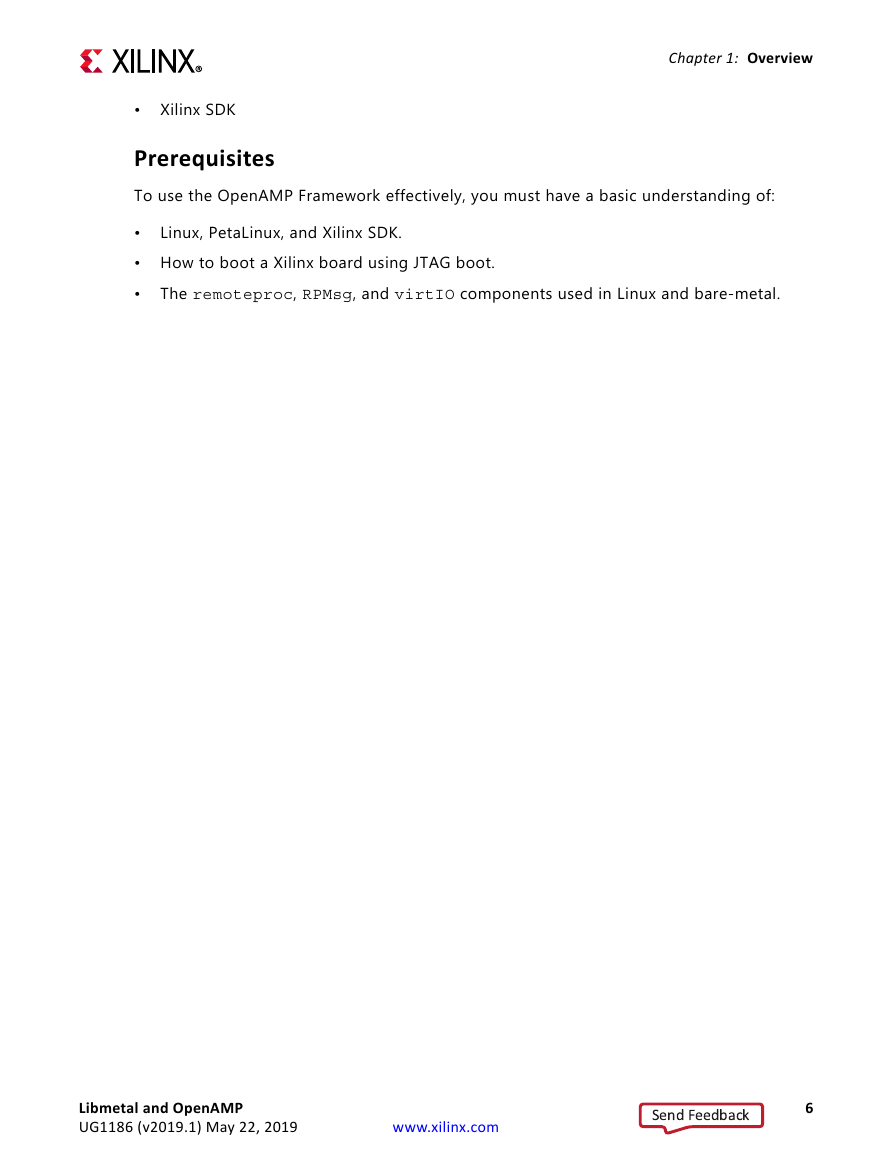

To use the OpenAMP Framework effectively, you must have a basic understanding of:
Linux, PetaLinux, and Xilinx SDK.
•
• How to boot a Xilinx board using JTAG boot.
•
The remoteproc, RPMsg, and virtIO components used in Linux and bare-metal.
Libmetal and OpenAMP
UG1186 (v2019.1) May 22, 2019
www.xilinx.com
6
Send Feedback
Chapter 2
Libmetal
Overview

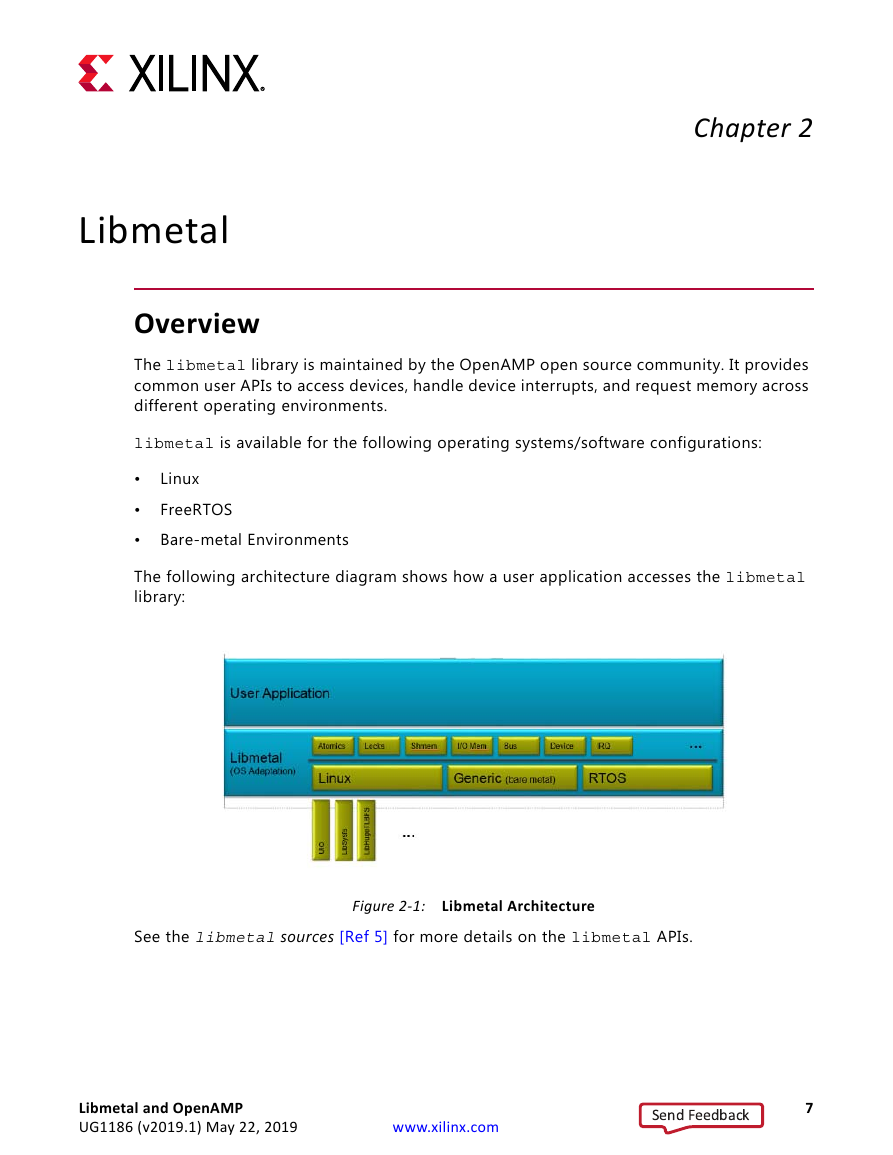

The libmetal library is maintained by the OpenAMP open source community. It provides
common user APIs to access devices, handle device interrupts, and request memory across
different operating environments.
libmetal is available for the following operating systems/software configurations:
•
•
•
Linux
FreeRTOS
Bare-metal Environments
The following architecture diagram shows how a user application accesses the libmetal
library:
X-Ref Target - Figure 2-1
See the libmetal sources [Ref 5] for more details on the libmetal APIs.
Figure 2-1:
Libmetal Architecture
Libmetal and OpenAMP
UG1186 (v2019.1) May 22, 2019
www.xilinx.com
7
Send Feedback
Chapter 2: Libmetal

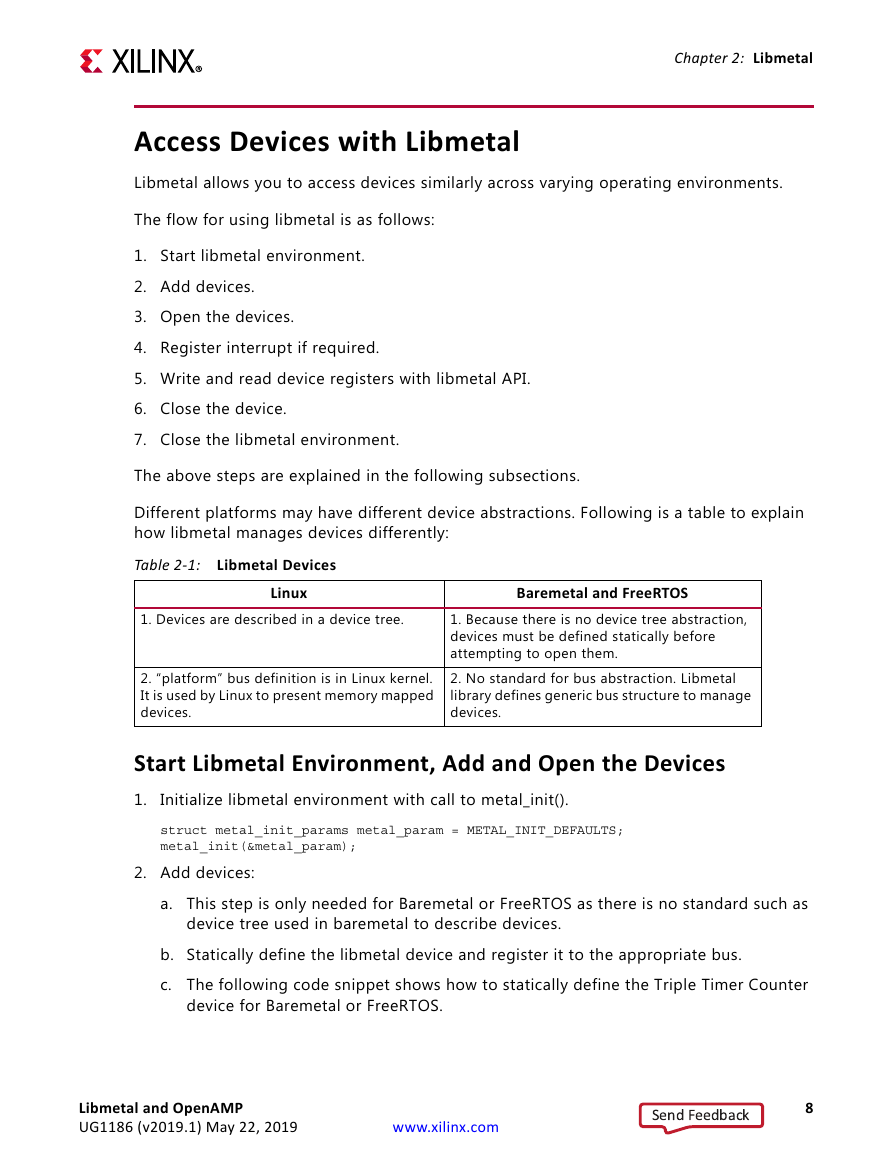

Access Devices with Libmetal
Libmetal allows you to access devices similarly across varying operating environments.
The flow for using libmetal is as follows:
1. Start libmetal environment.
2. Add devices.
3. Open the devices.
4. Register interrupt if required.
5. Write and read device registers with libmetal API.
6. Close the device.
7. Close the libmetal environment.
The above steps are explained in the following subsections.
Different platforms may have different device abstractions. Following is a table to explain
how libmetal manages devices differently:
Table 2-1:
Libmetal Devices
Linux
Baremetal and FreeRTOS
1. Devices are described in a device tree.
2. “platform” bus definition is in Linux kernel.
It is used by Linux to present memory mapped
devices.
1. Because there is no device tree abstraction,
devices must be defined statically before
attempting to open them.
2. No standard for bus abstraction. Libmetal
library defines generic bus structure to manage
devices.
Start Libmetal Environment, Add and Open the Devices
1.
Initialize libmetal environment with call to metal_init().
struct metal_init_params metal_param = METAL_INIT_DEFAULTS;
metal_init(&metal_param);
2. Add devices:
a. This step is only needed for Baremetal or FreeRTOS as there is no standard such as
device tree used in baremetal to describe devices.
b. Statically define the libmetal device and register it to the appropriate bus.
c. The following code snippet shows how to statically define the Triple Timer Counter
device for Baremetal or FreeRTOS.
Libmetal and OpenAMP
UG1186 (v2019.1) May 22, 2019
www.xilinx.com
8
Send Feedback
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
