JVC数码摄像机-GR-D20说明书.pdf
COVER
CONTENTS
SAFETY PRECAUTIONS
PROVIDED ACCESSORIES
GETTING STARTED
TAPE RECORDING
TAPE PLAYBACK
FOR RECORDING
USING MENUS FOR DETAILED ADJUSTMENT
DUBBING
USING THE REMOTE CONTROL UNIT
SYSTEM CONNECTIONS
TROUBLESHOOTING
CAUTIONS
SPECIFICATIONS
INDEX
TERMS

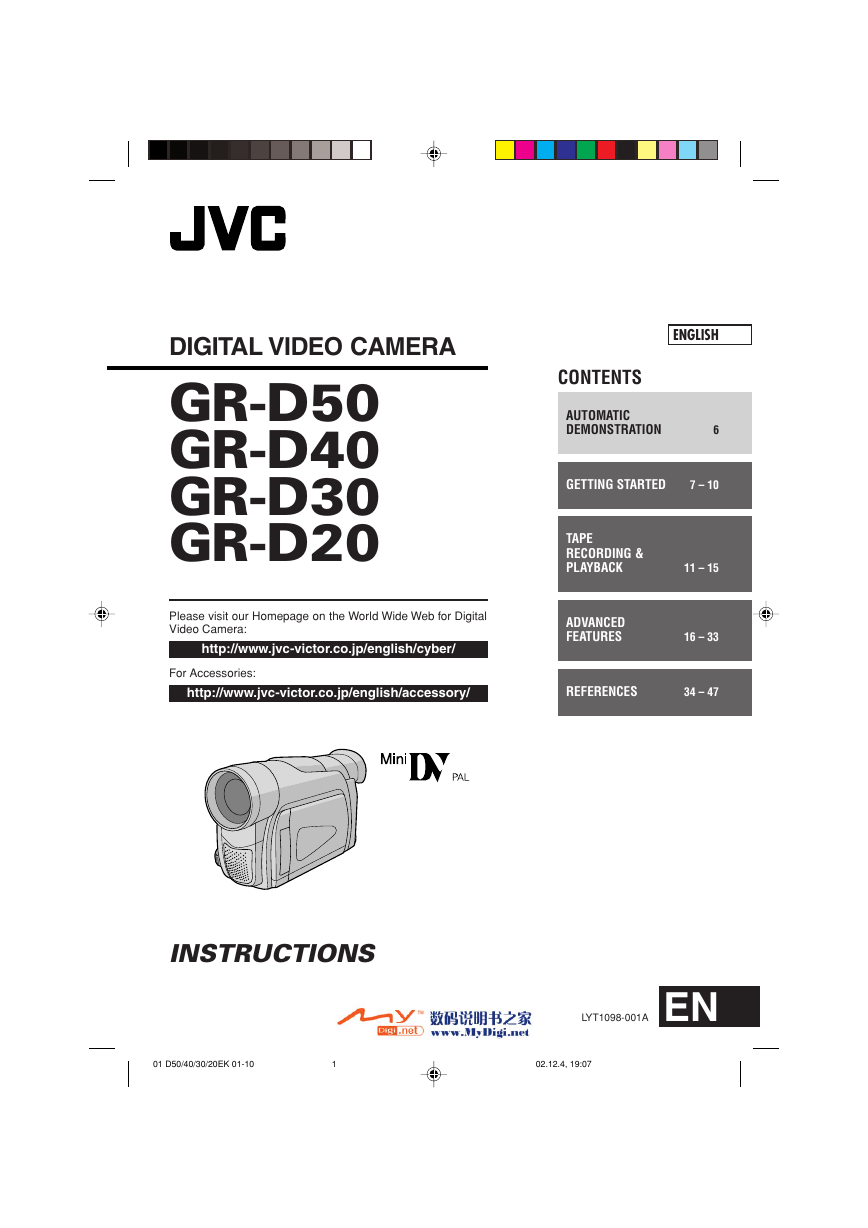

DIGITAL VIDEO CAMERA
GR-D50
GR-D40
GR-D30
GR-D20
Please visit our Homepage on the World Wide Web for Digital
Video Camera:
http://www.jvc-victor.co.jp/english/cyber/
For Accessories:
ENGLISH
CONTENTS
AUTOMATIC
DEMONSTRATION
6
GETTING STARTED
7 – 10
TAPE
RECORDING &
PLAYBACK
ADVANCED
FEATURES
11 – 15
16 – 33
http://www.jvc-victor.co.jp/english/accessory/
REFERENCES
34 – 47
INSTRUCTIONS
LYT1098-001A
EN
01 D50/40/30/20EK 01-10
1
02.12.4, 19:07
CONTENTS
SAFETY PRECAUTIONS
SOME DO’S AND DON’TS ON THE
SAFE USE OF EQUIPMENT
PROVIDED ACCESSORIES
HOW TO ATTACH THE LENS CAP
HOW TO ATTACH THE CORE FILTER
AUTOMATIC DEMONSTRATION
3
4
5
5
6
6
GETTING STARTED

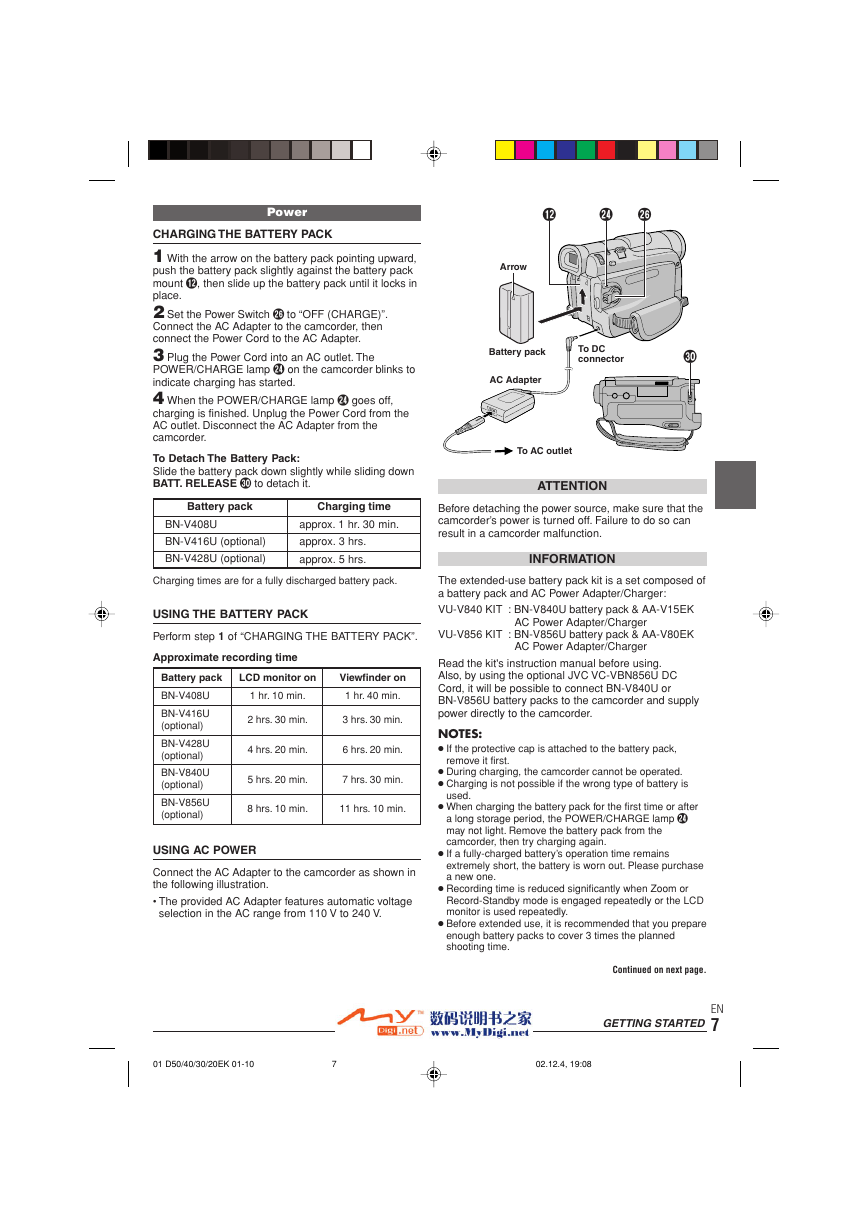

Power ............................................................ 7 – 8

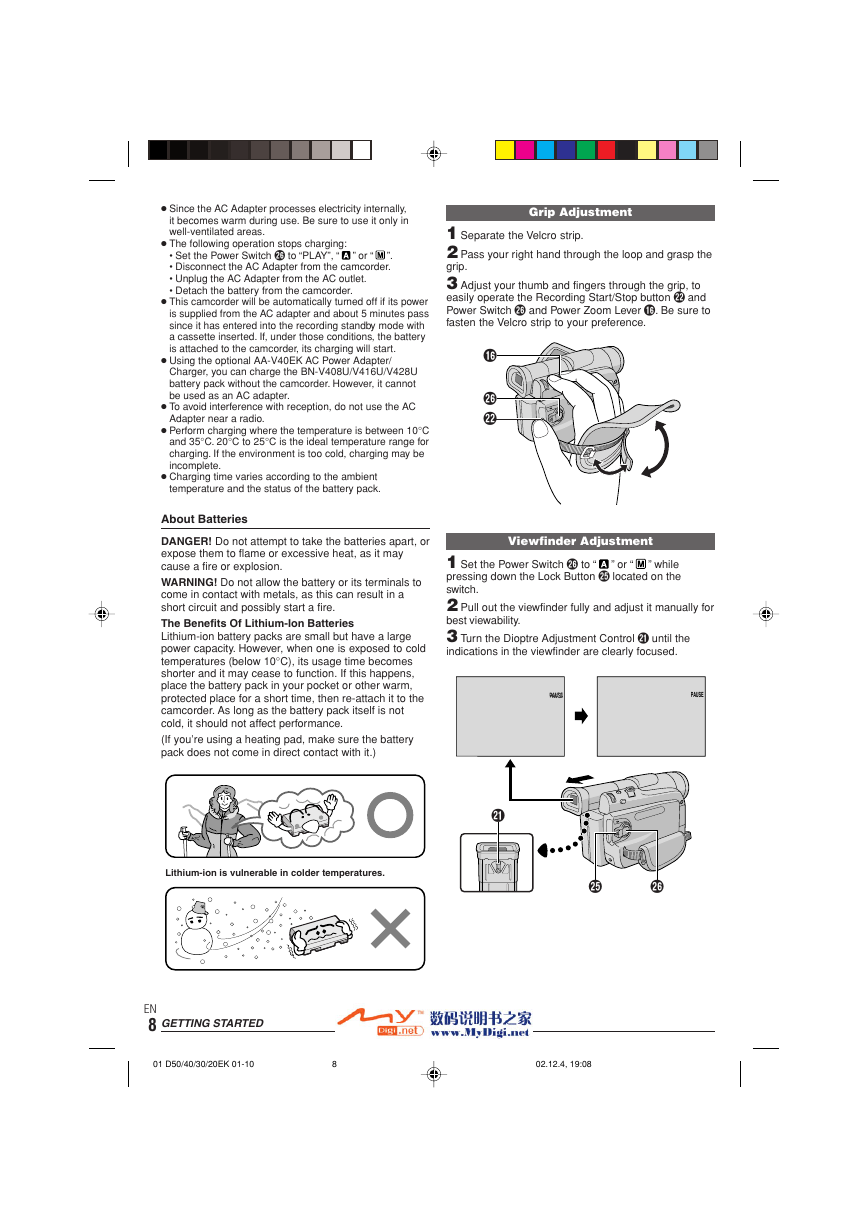

Grip Adjustment ...................................................... 8
Viewfinder Adjustment ............................................. 8
Shoulder Strap Attachment ......................................... 9
Tripod Mounting ...................................................... 9
Loading/Unloading A Cassette ............................... 9 – 10
Date/Time Settings ................................................. 10
Recording Mode Setting ............................................ 10
TAPE RECORDING & PLAYBACK
TAPE RECORDING ..................................11 – 13
Basic Recording ........................................... 11 – 12
Zooming .......................................................... 12
Time Code ........................................................ 13
TAPE PLAYBACK ....................................13 – 15
Normal Playback ......................................... 13 – 14
Blank Search ..................................................... 14
Connections ...................................................... 15
ADVANCED FEATURES
FOR RECORDING ..................................... 16 – 20
Night-Scope ...................................................... 16
Programme AE With Special Effects ........................... 16
Fade/Wipe Effects .............................................. 17
Snapshot (For Tape Recording) ................................ 18
Auto Focus ........................................................ 18
Manual Focus .................................................... 19
Exposure Control ................................................ 19
Iris Lock ........................................................... 20
White Balance Adjustment ..................................... 20
Manual White Balance Operation ............................. 20
USING MENUS FOR DETAILED ADJUSTMENT .... 21 – 25
For Recording Menu ...................................... 21 – 24
For Playback Menu ....................................... 24 – 25
DUBBING ..............................................26 – 27
Dubbing To Or From A VCR .................................... 26
Dubbing To Or From A Video Unit Equipped
With A DV Connector (Digital Dubbing) .................... 27
USING THE REMOTE CONTROL UNIT .............. 28 – 32
Slow-Motion Playback .......................................... 28
Frame-By-Frame Playback ..................................... 28
Playback Special Effects ........................................ 28
Playback Zoom .................................................. 28
Audio Dubbing ................................................... 29
Insert Editing ..................................................... 29
Random Assemble Editing [R.A.Edit] .................. 30 – 32
For More Accurate Editing ...................................... 32
SYSTEM CONNECTIONS ................................... 33
Connection To A Personal Computer .......................... 33
REFERENCES
TROUBLESHOOTING ................................. 34 – 36
CAUTIONS ............................................37 – 38
SPECIFICATIONS ............................................ 39
INDEX ................................................. 40 – 45
Controls, Connectors And Indicators ................... 40 – 41
Indications ................................................. 42 – 44
Using The Optional RM-V717U Remote Control Unit ...... 45
TERMS ................................................. 46 – 47
Refer to the diagrams on page 40 and 42 while reading the instruction manual as all the controls,
connectors, indicators and indications are numbered on the diagrams and those corresponding
numbers are used throughout this manual unless specified.
EN
2
None
01 D50/40/30/20EK 01-10
2
02.12.4, 19:07

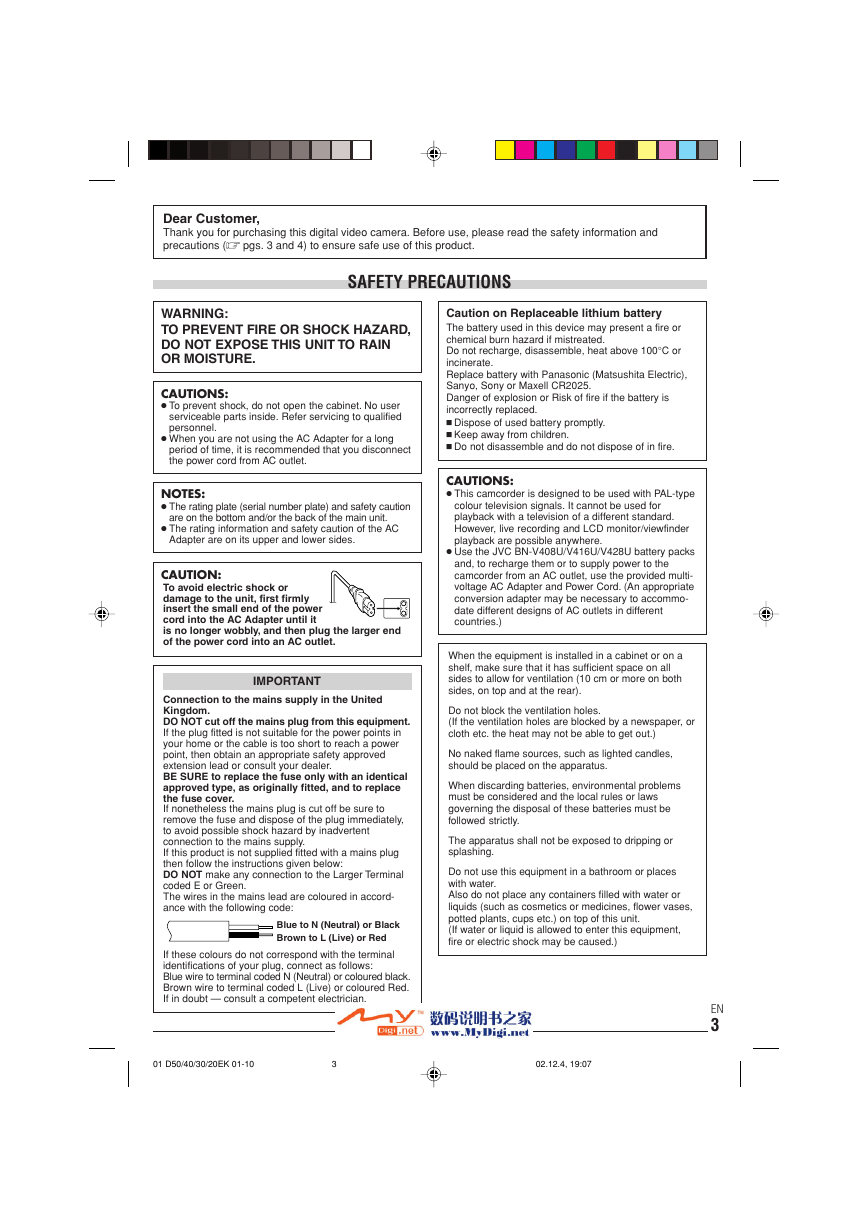

Dear Customer,
Thank you for purchasing this digital video camera. Before use, please read the safety information and
precautions (墌 pgs. 3 and 4) to ensure safe use of this product.
SAFETY PRECAUTIONS
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE.
CAUTIONS:
● To prevent shock, do not open the cabinet. No user
serviceable parts inside. Refer servicing to qualified
personnel.
● When you are not using the AC Adapter for a long
period of time, it is recommended that you disconnect
the power cord from AC outlet.
Caution on Replaceable lithium battery
The battery used in this device may present a fire or
chemical burn hazard if mistreated.
Do not recharge, disassemble, heat above 100°C or
incinerate.
Replace battery with Panasonic (Matsushita Electric),
Sanyo, Sony or Maxell CR2025.
Danger of explosion or Risk of fire if the battery is
incorrectly replaced.
䡲 Dispose of used battery promptly.
䡲 Keep away from children.
䡲 Do not disassemble and do not dispose of in fire.
NOTES:
● The rating plate (serial number plate) and safety caution
are on the bottom and/or the back of the main unit.
● The rating information and safety caution of the AC
Adapter are on its upper and lower sides.
CAUTION:
To avoid electric shock or
damage to the unit, first firmly
insert the small end of the power
cord into the AC Adapter until it
is no longer wobbly, and then plug the larger end
of the power cord into an AC outlet.
IMPORTANT
Connection to the mains supply in the United
Kingdom.
DO NOT cut off the mains plug from this equipment.
If the plug fitted is not suitable for the power points in
your home or the cable is too short to reach a power
point, then obtain an appropriate safety approved
extension lead or consult your dealer.
BE SURE to replace the fuse only with an identical
approved type, as originally fitted, and to replace
the fuse cover.
If nonetheless the mains plug is cut off be sure to
remove the fuse and dispose of the plug immediately,
to avoid possible shock hazard by inadvertent
connection to the mains supply.
If this product is not supplied fitted with a mains plug
then follow the instructions given below:
DO NOT make any connection to the Larger Terminal
coded E or Green.
The wires in the mains lead are coloured in accord-
ance with the following code:
Blue to N (Neutral) or Black
Brown to L (Live) or Red
If these colours do not correspond with the terminal
identifications of your plug, connect as follows:
Blue wire to terminal coded N (Neutral) or coloured black.
Brown wire to terminal coded L (Live) or coloured Red.
If in doubt — consult a competent electrician.
NoneNone
CAUTIONS:
● This camcorder is designed to be used with PAL-type
colour television signals. It cannot be used for
playback with a television of a different standard.
However, live recording and LCD monitor/viewfinder
playback are possible anywhere.
● Use the JVC BN-V408U/V416U/V428U battery packs
and, to recharge them or to supply power to the
camcorder from an AC outlet, use the provided multi-
voltage AC Adapter and Power Cord. (An appropriate
conversion adapter may be necessary to accommo-
date different designs of AC outlets in different
countries.)
When the equipment is installed in a cabinet or on a
shelf, make sure that it has sufficient space on all
sides to allow for ventilation (10 cm or more on both
sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a newspaper, or
cloth etc. the heat may not be able to get out.)
No naked flame sources, such as lighted candles,
should be placed on the apparatus.
When discarding batteries, environmental problems
must be considered and the local rules or laws
governing the disposal of these batteries must be
followed strictly.
The apparatus shall not be exposed to dripping or
splashing.
Do not use this equipment in a bathroom or places
with water.
Also do not place any containers filled with water or
liquids (such as cosmetics or medicines, flower vases,
potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this equipment,
fire or electric shock may be caused.)
EN
3
01 D50/40/30/20EK 01-10
3
02.12.4, 19:07
Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the
malfunctioning of internal circuitry. There is also a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical damage to the camcorder and to the user.
When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the
camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction.
Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder,
as they are particularly susceptible to this type of injury.
Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.
CAUTION!
Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving the unit on top of the TV is not
recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.
SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT
This equipment has been designed and manufactured to meet international safety standards but, like any
electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.
DO
DO
read the operating instructions before you attempt to use the equipment.
ensure that all electrical connections (including the mains plug, extension leads and interconnections
between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions.
Switch off and withdraw the mains plug when making or changing connections.
consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.
be careful with glass panels or doors on equipment.
DO
DO
DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in
any way — switch off, withdraw the mains plug and consult your dealer.
DON’T remove any fixed cover as this may expose dangerous voltages.
DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for
unattended operation or has a standby mode. Switch off using the switch on the equipment and make
sure that your family knows how to do this. Special arrangements may need to be made for infirm or
handicapped people.
DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of
road safety. It is illegal to watch television whilst driving.
DON’T listen to headphones at high volume, as such use can permanently damage your hearing.
DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will
cause damage and shorten the life of the equipment.
DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the
manufacturer’s approved stand or legs with the fixings provided according to the instructions.
DON’T allow electrical equipment to be exposed to rain or moisture.
ABOVE ALL
— NEVER let anyone especially children push anything into holes, slots or any other opening in the case — this
could result in a fatal electrical shock;
— NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!
䡲 This camcorder is designed exclusively for the digital video cassette. Only cassettes marked “
can be used with this unit.
Before recording an important scene . . .
..... make sure you only use cassettes with the Mini DV mark
..... remember that this camcorder is not compatible with other digital video formats.
..... remember that this camcorder is intended for private consumer use only. Any commercial use
.
without proper permission is prohibited. (Even if you record an event such as a show, performance or
exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)
EN
4
01 D50/40/30/20EK 01-10
4
02.12.4, 19:08
”
None
PROVIDED ACCESSORIES
or
AC Adapter AP-V11E or AP-V13E
Battery Pack BN-V408U
Audio/Video Cable
(ø3.5 mini-plug to
RCA plug)
Power Cord
Shoulder Strap
USB Cable
(GR-D50/D40 only)
Lithium Battery*
CR2025
(for remote
control unit)
9
2
6
0
4
3
w
5
e
T
W
Remote
Control Unit*
RM-V718U
3
11
Slot
4
2
Pull out by inserting
a pointed instrument
into the slot.
Lens Cap
(See below for
attachment)
Core Filter x 2 (for
optional S-Video Cable
and Editing Cable
provided with Remote
Control kit RM-V717KITU
墌 pg. 6 for attachment)
* A battery is pre-installed in the Remote Control Unit
a time of shipment (with insulation sheet). To use the
Remote Control Unit, remove the insulation sheet.
CD-ROM
(GR-D50/D40 only)
Cable Adapter
NOTE:
In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core
filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder.
HOW TO ATTACH THE LENS CAP
To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.
NOTE:
To confirm the lens cap is on correctly make sure the cap is flush to the camera.
1 Make sure the arrow (L) is
pointing upward.
2
Arrow
3
None
EN
5
01 D50/40/30/20EK 01-10
5
02.12.13, 9:21
HOW TO ATTACH THE CORE FILTER
Attach the Core Filter(s) (if provided with your model 墌 pg. 5) to an optional cable(s). The Core Filter reduces
interference.
1
2
3 cm
3
Stopper
Release the
stoppers on both
ends of the Core
Filter.
Wind once
Run the cable through the Core Filter, leaving approx. 3 cm
of cable between the cable plug and the Core Filter. Wind
the cable once around the outside of the Core Filter as
shown in the illustration.
• Wind the cable so that it is not slack.
NOTE:
Take care not to damage the cable.
Close the Core Filter until it
clicks shut.
䡲 When connecting cables, attach the end with the Core Filter to the camcorder.
䡲 Be sure to use a cable with a thickness that will allow it to be wound around the core filter.
AUTOMATIC DEMONSTRATION
Automatic Demonstration takes place when
“DEMO MODE” is set to “ON” (factory-preset).
䡲 Automatic Demonstration starts when there is no operation for
”
about 3 minutes after the Power Switch y is set to “
and no cassette is in the camcorder.
” or “
䡲 Performing any operation during the demonstration stops the
demonstration temporarily. If no operation is performed for more
than 3 minutes after that, the demonstration will resume.
䡲 “DEMO MODE” remains “ON” even if the camcorder power is
turned off.
䡲 To cancel Automatic Demonstration:
1. Set the Power Switch y to “
” while pressing down the Lock
Button t located on the switch and press the MENU/VOLUME
wheel $ in. The Menu Screen appears.
2. Rotate the MENU/VOLUME wheel $ to select “
and press it.
(SYSTEM)”
3. Rotate the MENU/VOLUME wheel $ to select “DEMO MODE”
and press it. The Sub Menu appears.
4. Rotate the MENU/VOLUME wheel $ to select “OFF” and press
it.
$
t
y
SYS
TEM
Sub Menu
D
EMO MODE
–
OFF
ON
5. Rotate the MENU/VOLUME wheel $ to select “ RETURN”,
and press it twice. The normal screen appears.
RETURN
NOTE:
If you do not detach the Lens Cap, you cannot see the actual changes of the Automatic Demonstration activated on
the LCD monitor or viewfinder.
EN
6
None
01 D50/40/30/20EK 01-10
6
02.12.13, 9:21
Power
@
yr
CHARGING THE BATTERY PACK
1 With the arrow on the battery pack pointing upward,
push the battery pack slightly against the battery pack
mount @, then slide up the battery pack until it locks in
place.
2 Set the Power Switch y to “OFF (CHARGE)”.
Connect the AC Adapter to the camcorder, then
connect the Power Cord to the AC Adapter.
3 Plug the Power Cord into an AC outlet. The
POWER/CHARGE lamp r on the camcorder blinks to
indicate charging has started.
4 When the POWER/CHARGE lamp r goes off,
charging is finished. Unplug the Power Cord from the
AC outlet. Disconnect the AC Adapter from the
camcorder.
To Detach The Battery Pack:
Slide the battery pack down slightly while sliding down
BATT. RELEASE p to detach it.
Battery pack
BN-V408U
BN-V416U (optional)
BN-V428U (optional)
Charging time
approx. 1 hr. 30 min.
approx. 3 hrs.
approx. 5 hrs.
Charging times are for a fully discharged battery pack.
USING THE BATTERY PACK
Perform step 1 of “CHARGING THE BATTERY PACK”.
Approximate recording time
Battery pack
BN-V408U
LCD monitor on
1 hr. 10 min.
Viewfinder on
1 hr. 40 min.
BN-V416U
(optional)
BN-V428U
(optional)
BN-V840U
(optional)
BN-V856U
(optional)
2 hrs. 30 min.
3 hrs. 30 min.
4 hrs. 20 min.
6 hrs. 20 min.
5 hrs. 20 min.
7 hrs. 30 min.
8 hrs. 10 min.
11 hrs. 10 min.
USING AC POWER
Connect the AC Adapter to the camcorder as shown in
the following illustration.
• The provided AC Adapter features automatic voltage
selection in the AC range from 110 V to 240 V.
Arrow
Battery pack
AC Adapter
To DC
connector
p
To AC outlet
ATTENTION
Before detaching the power source, make sure that the
camcorder’s power is turned off. Failure to do so can
result in a camcorder malfunction.
INFORMATION
The extended-use battery pack kit is a set composed of
a battery pack and AC Power Adapter/Charger:
VU-V840 KIT : BN-V840U battery pack & AA-V15EK
VU-V856 KIT : BN-V856U battery pack & AA-V80EK
AC Power Adapter/Charger
AC Power Adapter/Charger
Read the kit's instruction manual before using.
Also, by using the optional JVC VC-VBN856U DC
Cord, it will be possible to connect BN-V840U or
BN-V856U battery packs to the camcorder and supply
power directly to the camcorder.
NOTES:
● If the protective cap is attached to the battery pack,
● When charging the battery pack for the first time or after
a long storage period, the POWER/CHARGE lamp r
may not light. Remove the battery pack from the
camcorder, then try charging again.
● If a fully-charged battery’s operation time remains
extremely short, the battery is worn out. Please purchase
a new one.
● Recording time is reduced significantly when Zoom or
Record-Standby mode is engaged repeatedly or the LCD
monitor is used repeatedly.
● Before extended use, it is recommended that you prepare
enough battery packs to cover 3 times the planned
shooting time.
● During charging, the camcorder cannot be operated.
● Charging is not possible if the wrong type of battery is
remove it first.
used.
01 D50/40/30/20EK 01-10
7
02.12.4, 19:08
Continued on next page.
GETTING STARTED
EN
7
● Since the AC Adapter processes electricity internally,
it becomes warm during use. Be sure to use it only in
well-ventilated areas.
● The following operation stops charging:
• Set the Power Switch y to “PLAY”, “
”.
• Disconnect the AC Adapter from the camcorder.
• Unplug the AC Adapter from the AC outlet.
• Detach the battery from the camcorder.
” or “
● This camcorder will be automatically turned off if its power
is supplied from the AC adapter and about 5 minutes pass
since it has entered into the recording standby mode with
a cassette inserted. If, under those conditions, the battery
is attached to the camcorder, its charging will start.
● Using the optional AA-V40EK AC Power Adapter/
Charger, you can charge the BN-V408U/V416U/V428U
battery pack without the camcorder. However, it cannot
be used as an AC adapter.
● To avoid interference with reception, do not use the AC
Adapter near a radio.
● Perform charging where the temperature is between 10°C
and 35°C. 20°C to 25°C is the ideal temperature range for
charging. If the environment is too cold, charging may be
incomplete.
● Charging time varies according to the ambient
temperature and the status of the battery pack.
Grip Adjustment
1 Separate the Velcro strip.
2 Pass your right hand through the loop and grasp the
grip.
3 Adjust your thumb and fingers through the grip, to
easily operate the Recording Start/Stop button w and
Power Switch y and Power Zoom Lever ^. Be sure to
fasten the Velcro strip to your preference.
^
y
w
About Batteries
DANGER! Do not attempt to take the batteries apart, or
expose them to flame or excessive heat, as it may
cause a fire or explosion.
WARNING! Do not allow the battery or its terminals to
come in contact with metals, as this can result in a
short circuit and possibly start a fire.
The Benefits Of Lithium-Ion Batteries
Lithium-ion battery packs are small but have a large
power capacity. However, when one is exposed to cold
temperatures (below 10°C), its usage time becomes
shorter and it may cease to function. If this happens,
place the battery pack in your pocket or other warm,
protected place for a short time, then re-attach it to the
camcorder. As long as the battery pack itself is not
cold, it should not affect performance.
(If you’re using a heating pad, make sure the battery
pack does not come in direct contact with it.)
Viewfinder Adjustment
” or “
1 Set the Power Switch y to “
” while
pressing down the Lock Button t located on the
switch.
2 Pull out the viewfinder fully and adjust it manually for
best viewability.
3 Turn the Dioptre Adjustment Control q until the
indications in the viewfinder are clearly focused.
PAUSE
q
Lithium-ion is vulnerable in colder temperatures.
t
y
EN
8
GETTING STARTED
01 D50/40/30/20EK 01-10
8
02.12.4, 19:08
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
