华硕主板-TUWE-M说明书.pdf

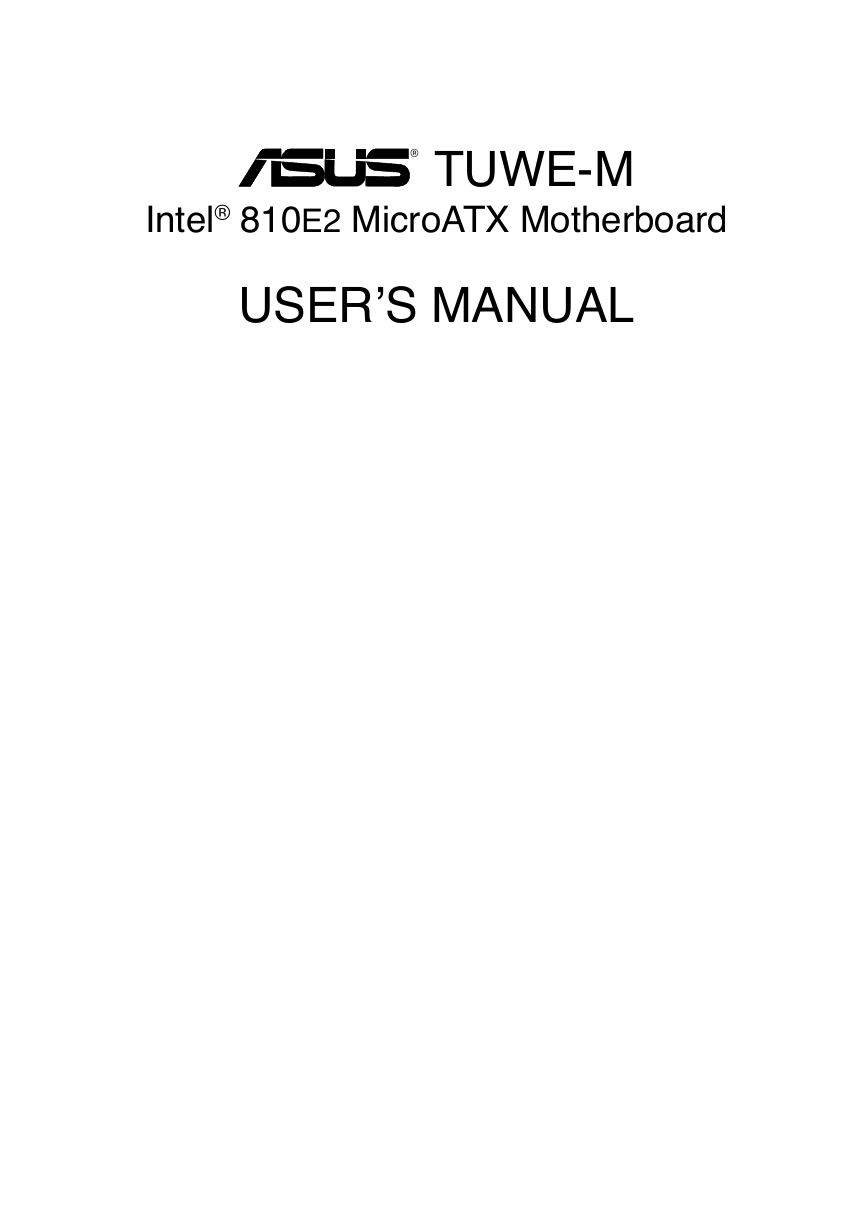

® TUWE-M
Intel® 810E2 MicroATX Motherboard
USER’S MANUAL

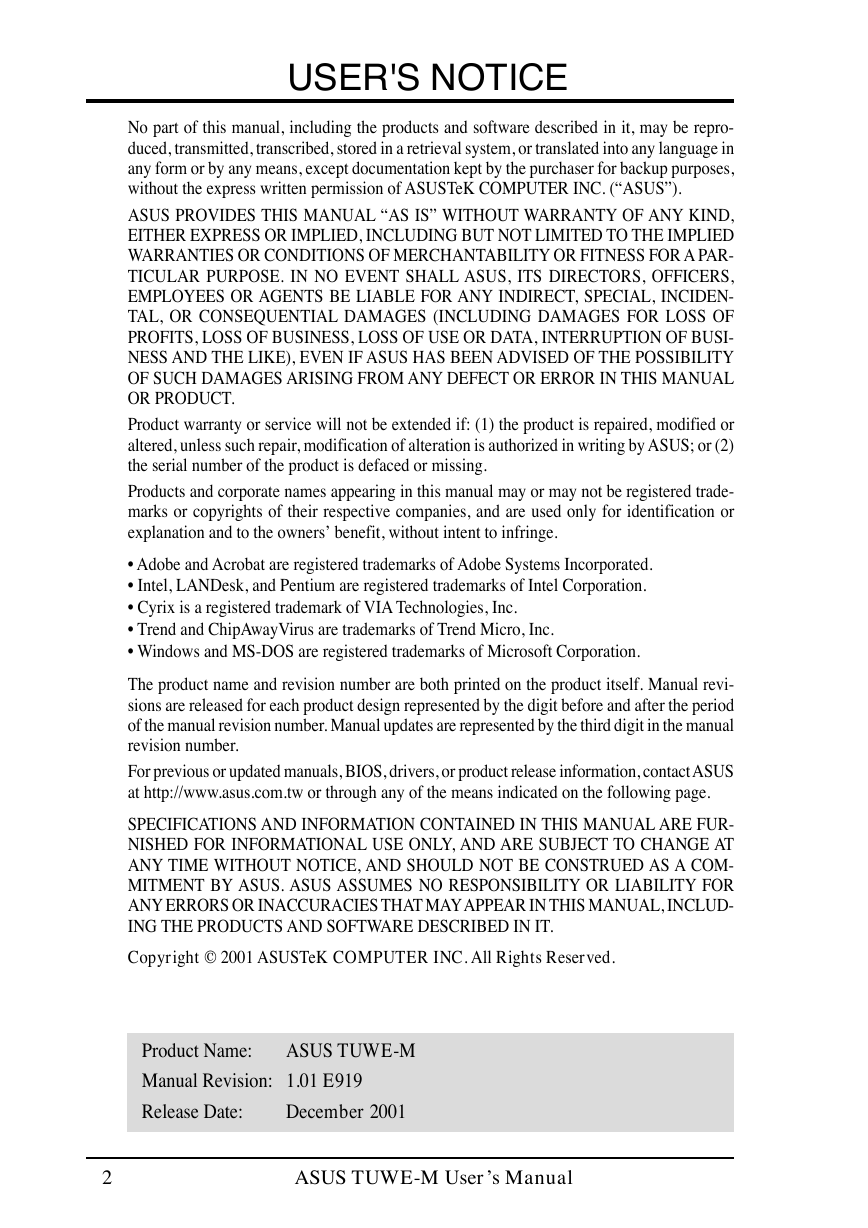

USER'S NOTICE
No part of this manual, including the products and software described in it, may be repro-
duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR-
TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN-
TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF
PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI-
NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trade-
marks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.
• Cyrix is a registered trademark of VIA Technologies, Inc.
• Trend and ChipAwayVirus are trademarks of Trend Micro, Inc.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation.
The product name and revision number are both printed on the product itself. Manual revi-
sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.
For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR-
NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM-
MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD-
ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2001 ASUSTeK COMPUTER INC. All Rights Reserved.
ASUS TUWE-M
Product Name:
Manual Revision: 1.01 E919
Release Date:
December 2001
2
ASUS TUWE-M User’s Manual

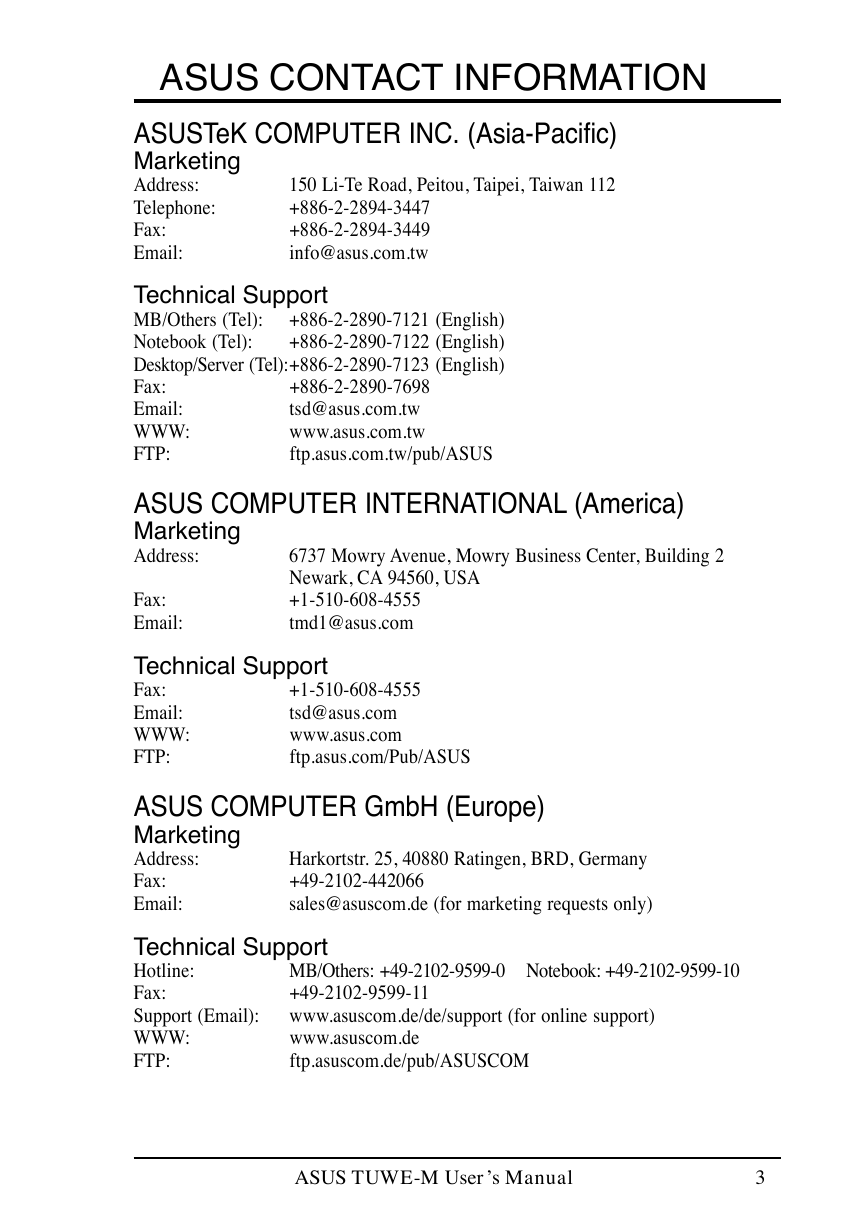

ASUS CONTACT INFORMATION
ASUSTeK COMPUTER INC. (Asia-Pacific)
Marketing
Address:
Telephone:
Fax:
Email:
150 Li-Te Road, Peitou, Taipei, Taiwan 112
+886-2-2894-3447
+886-2-2894-3449
info@asus.com.tw
Technical Support
+886-2-2890-7121 (English)
MB/Others (Tel):
Notebook (Tel):
+886-2-2890-7122 (English)
Desktop/Server (Tel):+886-2-2890-7123 (English)
Fax:
Email:
WWW:
FTP:
+886-2-2890-7698
tsd@asus.com.tw
www.asus.com.tw
ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER INTERNATIONAL (America)
Marketing
Address:
6737 Mowry Avenue, Mowry Business Center, Building 2
Newark, CA 94560, USA
+1-510-608-4555
tmd1@asus.com
Fax:
Email:
Technical Support
Fax:
Email:
WWW:
FTP:
+1-510-608-4555
tsd@asus.com
www.asus.com
ftp.asus.com/Pub/ASUS
ASUS COMPUTER GmbH (Europe)
Marketing
Address:
Fax:
Email:
Harkortstr. 25, 40880 Ratingen, BRD, Germany
+49-2102-442066
sales@asuscom.de (for marketing requests only)
Technical Support
Hotline:
Fax:
Support (Email):
WWW:
FTP:
MB/Others: +49-2102-9599-0 Notebook: +49-2102-9599-10
+49-2102-9599-11
www.asuscom.de/de/support (for online support)
www.asuscom.de
ftp.asuscom.de/pub/ASUSCOM
ASUS TUWE-M User’s Manual
3

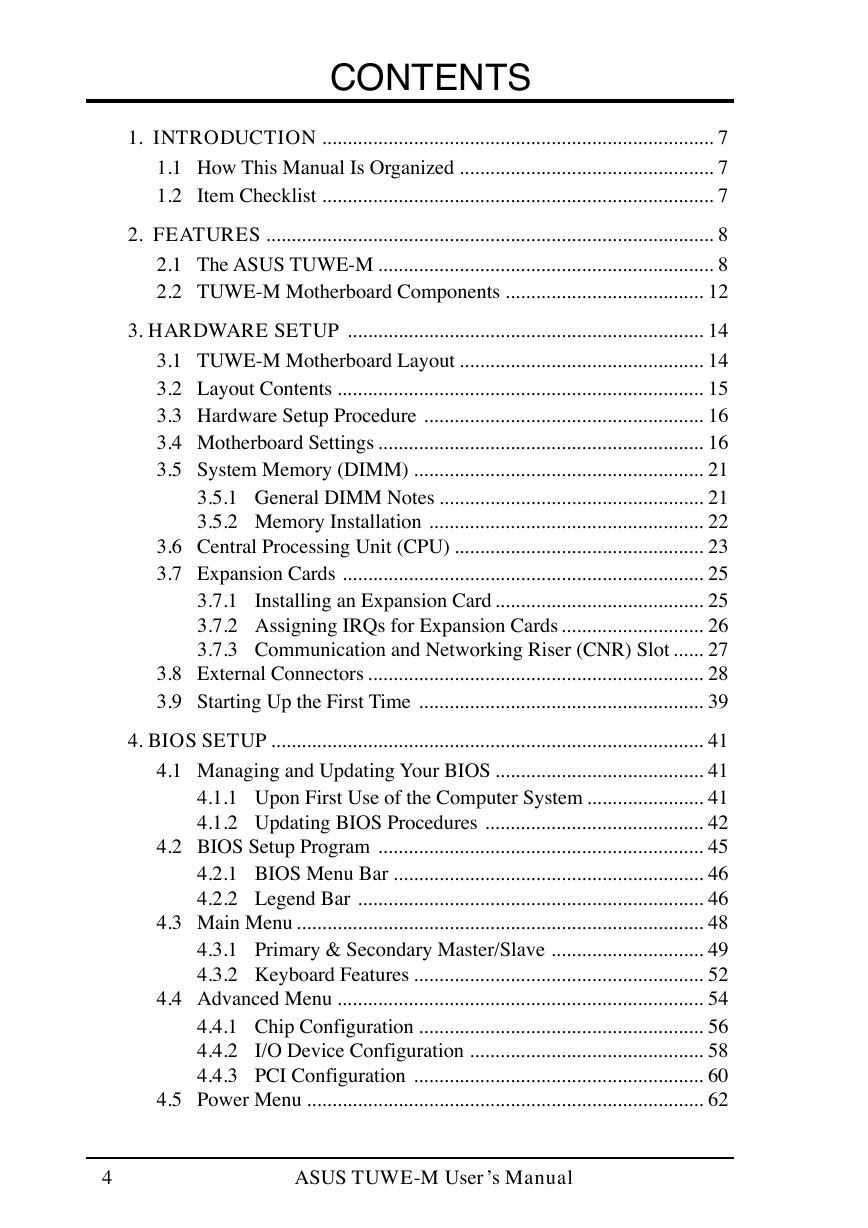

CONTENTS
1. INTRODUCTION ............................................................................. 7
1.1 How This Manual Is Organized .................................................. 7
1.2 Item Checklist ............................................................................. 7
2. FEATURES ........................................................................................ 8
2.1 The ASUS TUWE-M .................................................................. 8
2.2 TUWE-M Motherboard Components ....................................... 12
3. HARDWARE SETUP ...................................................................... 14
3.1 TUWE-M Motherboard Layout ................................................ 14
3.2 Layout Contents ........................................................................ 15
3.3 Hardware Setup Procedure ....................................................... 16
3.4 Motherboard Settings ................................................................ 16
3.5 System Memory (DIMM) ......................................................... 21
3.5.1 General DIMM Notes .................................................... 21
3.5.2 Memory Installation ...................................................... 22
3.6 Central Processing Unit (CPU) ................................................. 23
3.7 Expansion Cards ....................................................................... 25
3.7.1 Installing an Expansion Card ......................................... 25
3.7.2 Assigning IRQs for Expansion Cards ............................ 26
3.7.3 Communication and Networking Riser (CNR) Slot ...... 27
3.8 External Connectors .................................................................. 28
3.9 Starting Up the First Time ........................................................ 39
4. BIOS SETUP ..................................................................................... 41
4.1 Managing and Updating Your BIOS ......................................... 41
4.1.1 Upon First Use of the Computer System ....................... 41
4.1.2 Updating BIOS Procedures ........................................... 42
4.2 BIOS Setup Program ................................................................ 45
4.2.1 BIOS Menu Bar ............................................................. 46
4.2.2 Legend Bar .................................................................... 46
4.3 Main Menu ................................................................................ 48
4.3.1 Primary & Secondary Master/Slave .............................. 49
4.3.2 Keyboard Features ......................................................... 52
4.4 Advanced Menu ........................................................................ 54
4.4.1 Chip Configuration ........................................................ 56
4.4.2 I/O Device Configuration .............................................. 58
4.4.3 PCI Configuration ......................................................... 60
4.5 Power Menu .............................................................................. 62

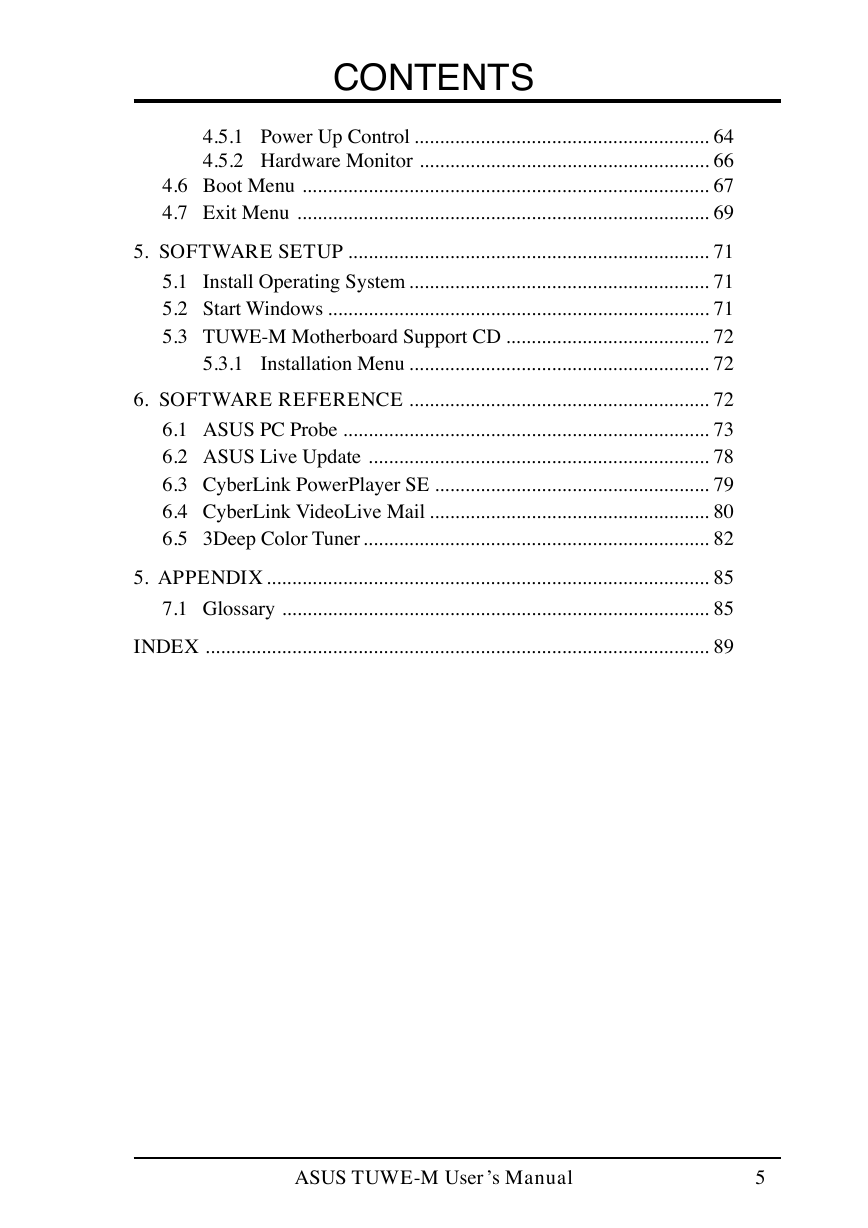

4
ASUS TUWE-M User’s Manual
CONTENTS
4.5.1 Power Up Control .......................................................... 64
4.5.2 Hardware Monitor ......................................................... 66
4.6 Boot Menu ................................................................................ 67
4.7 Exit Menu ................................................................................. 69
5. SOFTWARE SETUP ....................................................................... 71
5.1 Install Operating System ........................................................... 71
5.2 Start Windows ........................................................................... 71
5.3 TUWE-M Motherboard Support CD ........................................ 72
5.3.1 Installation Menu ........................................................... 72
6. SOFTWARE REFERENCE ........................................................... 72
6.1 ASUS PC Probe ........................................................................ 73
6.2 ASUS Live Update ................................................................... 78
6.3 CyberLink PowerPlayer SE ...................................................... 79
6.4 CyberLink VideoLive Mail ....................................................... 80
6.5 3Deep Color Tuner .................................................................... 82
5. APPENDIX ....................................................................................... 85
7.1 Glossary .................................................................................... 85
INDEX ................................................................................................... 89
ASUS TUWE-M User’s Manual
5

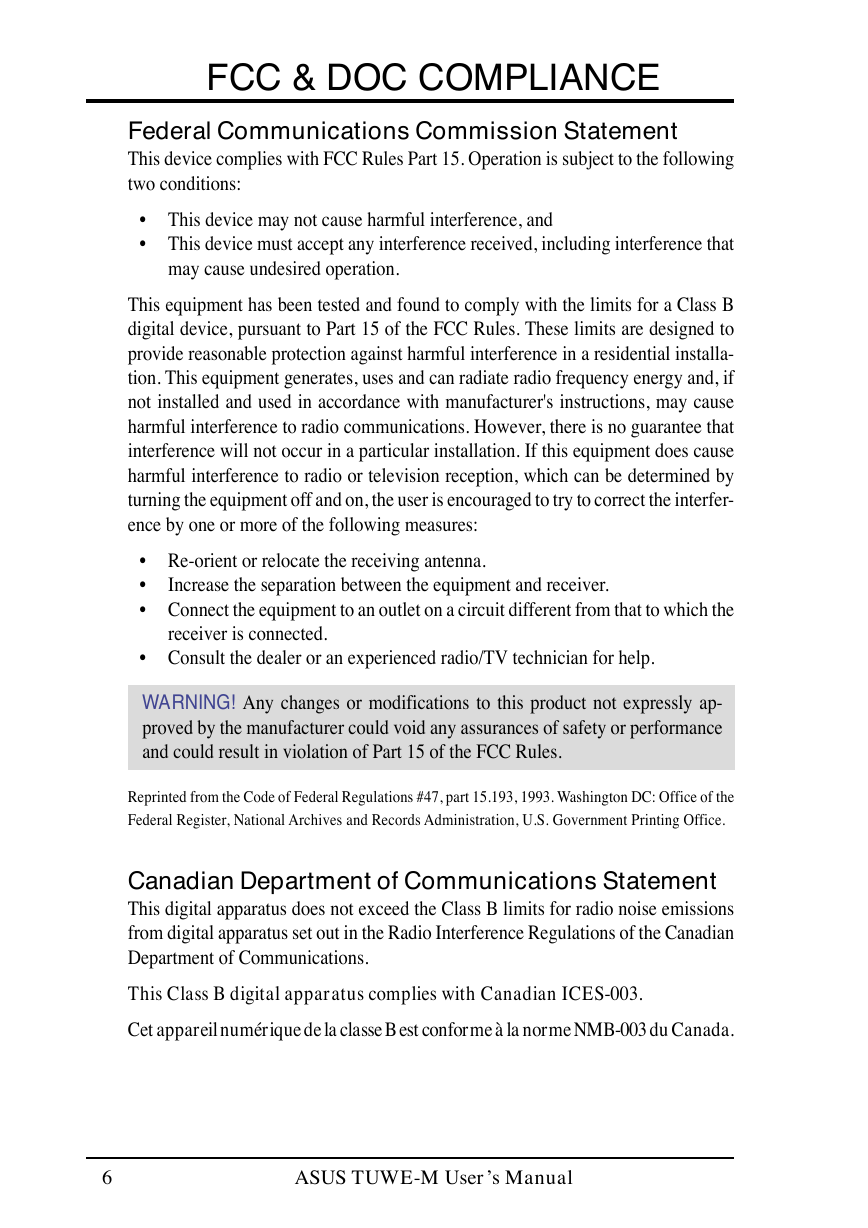

FCC & DOC COMPLIANCE
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
•
• Connect the equipment to an outlet on a circuit different from that to which the
Increase the separation between the equipment and receiver.
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly ap-
proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.
Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the
Federal Register, National Archives and Records Administration, U.S. Government Printing Office.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
6
ASUS TUWE-M User’s Manual
I
N
O
T
C
U
D
O
R
T
N
I
.
1
t
s
i
l
k
c
e
h
C
/
l
a
u
n
a
M
1. INTRODUCTION
1.1 How This Manual Is Organized
This manual is divided into the following sections:
1. INTRODUCTION
2. FEATURES
3. HARDWARE SETUP
4. BIOS SETUP
5. SOFTWARE SETUP
6. SOFTWARE REFERENCE
7. APPENDIX
Manual information and checklist
Production information and specifications
Intructions on setting up the motherboard.
Intructions on setting up the BIOS
Intructions on setting up the included software
Reference material for the included software
Optional items and general reference
1.2 Item Checklist
Check that your package is complete. If you discover damaged or missing items,
contact your retailer.
Package Contents
Optional Items
ASUS IrDA-compliant infrared module
(1) ASUS Motherboard
(2) 40-pin 80-conductor ribbon cable
for internal UltraDMA100/66/33
IDE drives
(1) Ribbon cable for (1) 5.25” and (2)
3.5” floppy disk drives
(1) COM 2 Bracket
(1) Bag of spare jumpers
(1) Support drivers and utilities
(1) This Motherboard User’s Manual
(1) ASUS 2-port USB connector set
with bracket
ASUS TUWE-M User’s Manual
7
2
.
S
p
e
c
i
f
i
c
a
t
i
o
n
s
F
E
A
T
U
R
E
S
2. FEATURES
2.1 The ASUS TUWE-M
The ASUS TUWE-M motherboard is carefully designed for the demanding PC user
who wants advanced features processed by the fastest processors.
2.1.1 Core Specifications
• Latest Intel Processor Support
P III® Tualatin™
100/133MHz FSB FC-PGA2
P III® Coppermine™ 100/133MHz FSB FC-PGA
Celeron™
100/66MHz FSB FC-PGA
• North Bridge System Chipset: The Intel® 810E2 chipset supports the
latest Intel® Tualatin™ processor and offers full backward compatibility
to PIII® Coppermine™ and Celeron™ CPUs. The chipset supports
industry standard 66/100/133 Front Side Busses (FSBs), and up to 512MB
of PC100 SDRAM, and a 3D/2D hardware accelerator.
• South Bridge System Chipset: The Intel I/O Controller Hub 2 (ICH2)
features support for UltraDMA/100, which allows burst mode data ASUS
IrDA-compliant infrared module transfer rates of up to 100MB/sec; two
USB controllers for a total of 4 USB ports.
Intel® Accelerated Hub Architecture: Features a dedicated high speed
hub link between the ICH2 and GMCH with a bandwidth of 266MB/sec
– twice the maximum bandwidth of the PCI bus.
•
• PC100 Memory Support: Equipped with two Dual Inline Memory Mod-
ule (DIMM) sockets to support PC100-compliant non-ECC SDRAMs
(available in 64, 128, 256 densities) up to 512MB.
• High-Speed Data Transfer Interface: UltraDMA/100 increases the data
transfer rate to 100MB/s. UltraATA/100 is backward compatible with
both DMA/66 and DMA/33 with existing DMA devices and systems.
(UltraDMA100/66 requires a 40-pin 80-conductor cable to be enabled.)
• Super Multi-I/O: Provides two high-speed UART compatible serial ports
and one parallel port with EPP and ECP capabilities. UART2 can
also be directed from COM2 to the Infrared Module for wireless
connections.
• Onboard LAN: Provides Intel’s 82562ET chipset, an integrated
Platform LAN Connect (PLC) device with 10BASE-T/100BASE-TX
capabilities. Network connectivity is integrated through the Intel I/O
Controller Hub 2 (ICH2), which offers enhanced bus mastering for
high-speed data transfers. The bus mastering facility permits high-level
command processing.
• Smart BIOS: 2Mb firmware provides Vcore and CPU/SDRAM
frequency adjustments, boot block write protection, and HD/SCSI/MO/
ZIP/CD/Floppy boot.
8
ASUS TUWE-M User’s Manual
