SAFETY PRECAUTIONS

IMPORTANT SAFTY INSTRUCTIONS

CONTENTS

GETTING STARTED

Provided Accessories

How To Attach The Lens Cap

How To Attach The Shoulder Strap

How To Attach The Core Filter (for USB Cable (provided with GR-D93/73 only) and optional S- Video Cable)

Power

Charging The Battery Pack

Using The Battery Pack

Using AC Power

About Batteries

Grip Adjustment

Operation Mode

Power-Linked Operation

Date/Time Settings

Viewfinder Adjustment

Brightness Adjustment Of The Display

Tripod Mounting

Loading/Unloading A Cassette

Loading/Unloading A Memory Card (GR-D93/73 only)

VIDEO RECORDING & PLAYBACK

VIDEO RECORDING

Basic Recording

LCD Monitor And Viewfinder

Tape Remaining Time

Zooming

Journalistic Shooting

Self Recording

Time Code

Recording From The Middle Of A Tape

VIDEO PLAYBACK

Normal Playback

Still Playback

Shuttle Search

Blank Search

Playback Using The Remote Control (GR-D93/73 only)

Installing The Battery

Beam Effective Area (indoor use)

Buttons And Functions

Slow-Motion Playback

Frame-By-Frame Playback

Playback Zoom

Playback Special Effects

Connections To A TV Or VCR

DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK (GR-D93/D73 only)

D.S.C. RECORDING (GR-D93/D73 only)

Basic Shooting (D.S.C. Snapshot)

Dubbing Still Images Recorded On A Tape To A Memory Card

D.S.C. PLAYBACK (GR-D93/D73 only)

Normal Playback Of Images

Playback Zoom

Auto Playback Of Images

Index Playback Of Files

Viewing File Information

Removing On-Screen Display

ADDITIONAL FEATURES FOR D.S.C. (GR-D93/D73 only)

Protecting Files

To Remove Protection

Deleting Files

Setting Print Information (DPOF Setting)

To Print All Still Images (One Print For Each)

To Print By Selecting Still Images And Number Of Prints

To Reset The Number Of Prints

Resetting The File Name

Initializing A Memory Card

ADVANCED FEATURES

MENUS FOR DETAILED ADJUSTMENT

Changing The Menu Settings

Menus without Sub Menus

Menus with Sub Menus

Recording Menus

Playback Menus

FEATURES FOR RECORDING

White LED Light

Night Alive

Wipe Or Fader Effects

WIPE/FADER

Program AE With Special Effects

PROGRAM AE

Snapshot (For Video Recording)

Motor Drive Mode

Auto Focus

Manual Focus

Exposure Control

Iris Lock

Backlight Compensation

White Balance Adjustment

Manual White Balance Adjustment

EDITING

Dubbing To Or From A VCR

Dubbing To Or From A Video Unit Equipped With A DV Connector (Digital Dubbing)

Connection To A Personal Computer

Audio Dubbing (GR-D93/73 only)

Insert Editing (GR-D93/73 only)

REFERENCES

ADDITIONAL INFORMATION

TROUBLESHOOTING

Power

Video and D.S.C. Recording

Video and D.S.C. Playback

Advanced features

Other problems

Warning Indications

CAUTIONS

Battery Packs

Cassettes

Memory Cards (GR-D93/73 only)

LCD Monitor

Main Unit

How To Handle A CD-ROM

USER MAINTENANCE

After Use

Cleaning The Camcorder

SPECIFICATIONS

Camcorder

AC Adapter

INDEX

Controls

Connectors

Indicators

Other Parts

LCD Monitor/Viewfinder Indications

During Video Recording Only

During D.S.C. Recording Only (GR-D93/73 only)

During Both Video And D.S.C. Recording

During Video Playback

During D.S.C. Playback (GR-D93/73 only)

TERMS

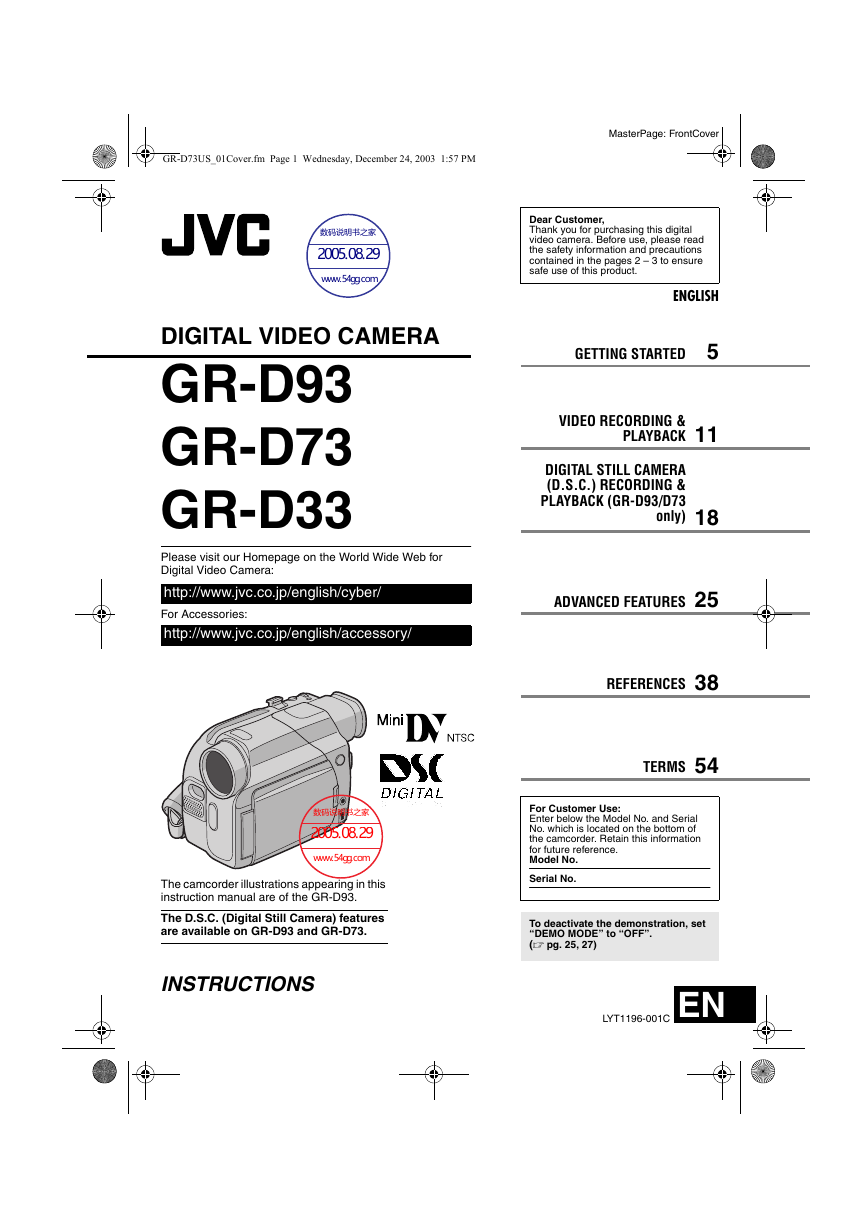

GR-D73US_01Cover.fm Page 1 Wednesday, December 24, 2003 1:57 PM MasterPage: FrontCover DIGITAL VIDEO CAMERA GR-D93 GR-D73 GR-D33 Please visit our Homepage on the World Wide Web for Digital Video Camera: http://www.jvc.co.jp/english/cyber/ For Accessories: http://www.jvc.co.jp/english/accessory/ The camcorder illustrations appearing in this instruction manual are of the GR-D93. The D.S.C. (Digital Still Camera) features are available on GR-D93 and GR-D73. INSTRUCTIONS Dear Customer, Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the pages 2 – 3 to ensure safe use of this product. ENGLISH GETTING STARTED 5 VIDEO RECORDING & PLAYBACK 11 DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK (GR-D93/D73 only) 18 ADVANCED FEATURES 25 REFERENCES 38 TERMS 54 For Customer Use: Enter below the Model No. and Serial No. which is located on the bottom of the camcorder. Retain this information for future reference. Model No. Serial No. To deactivate the demonstration, set “DEMO MODE” to “OFF”. (墌 pg. 25, 27) EN LYT1196-001C

GR-D73US.book Page 2 Thursday, November 20, 2003 10:50 AM MasterPage: Safety_Left 2 EN SAFETY PRECAUTIONS CAUTION DO NOT OPEN RISK OF ELECTRIC SHOCK CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. NOTES: ● The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit. ● The rating information and safty caution of the AC Adapter are on its upper and lower sides. CAUTIONS: ● This camcorder is designed to be used with NTSC-type color television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/viewfinder playback are possible anywhere. ● Use the JVC BN-V408U/V416U/V428U battery packs and, to recharge them or supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Adapter. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.) Caution on Replaceable lithium battery The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C (212°F) or incinerate. Replace battery with Panasonic (Matsushita Electric), Sanyo, Sony or Maxell CR2025. Danger of explosion or Risk of fire if the battery is incorrectly replaced. ● Dispose of used battery promptly. ● Keep away from children. ● Do not disassemble and do not dispose of in fire. This product has a fluorescent lamp that contains a small amount of mercury. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm (3-15/16") or more on both sides, on top and at the rear). Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.) No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.) Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock. CAUTION! The following notes concern possible physical damage to the camcorder and to the user. When carrying, be sure to always securely attach and use the provided strap. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction. Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder. CAUTION! Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving it on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.

GR-D73US.book Page 3 Thursday, November 20, 2003 10:50 AM MasterPage: Safety_Right EN 3 IMPORTANT SAFTY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Only use attachments/accessories specified by the manufacturer. 10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 11. Unplug this apparatus during lightning storms or when unused for long periods of time. 12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. This camcorder is designed exclusively for the digital video cassette, SD Memory Card and MultiMediaCard. Only cassettes marked “ ” and memory cards* marked “ Before recording an important scene… …make sure you only use cassettes with the Mini DV mark ” can be used with this unit. ” or “ …make sure you only use memory cards* with the mark . or . …remember that this camcorder is not compatible with other digital video formats. …remember that this camcorder is intended for private consumer use only. Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.) * Memory cards can be used with GR-D93 and GR-D73 only.

MasterPage: Heading0_Left ADVANCED FEATURES 25 MENUS FOR DETAILED ADJUSTMENT .............................. 25 Changing The Menu Settings ...................................... 25 Recording Menus ........................................................ 26 Playback Menus .......................................................... 28 FEATURES FOR RECORDING ........................................... 29 White LED Light .......................................................... 29 Night Alive ................................................................... 29 Wipe Or Fader Effects ................................................. 30 Program AE With Special Effects ................................ 30 Snapshot (For Video Recording) ................................. 31 Auto Focus .................................................................. 31 Manual Focus .............................................................. 32 Exposure Control ......................................................... 32 Iris Lock ....................................................................... 32 Backlight Compensation .............................................. 33 White Balance Adjustment .......................................... 33 Manual White Balance Adjustment ............................. 33 EDITING ........................................................................ 34 Dubbing To Or From A VCR ....................................... 34 Dubbing To A Video Unit Equipped With A DV Connector (Digital Dubbing) ...................................................... 35 Connection To A Personal Computer .......................... 36 Audio Dubbing (GR-D93/73 only) ................................ 37 Insert Editing (GR-D93/73 only) .................................. 37 REFERENCES 38 ADDITIONAL INFORMATION ........................................... 38 TROUBLESHOOTING ....................................................... 40 CAUTIONS ..................................................................... 45 USER MAINTENANCE ...................................................... 48 SPECIFICATIONS ............................................................ 49 INDEX ........................................................................... 50 TERMS 54 GR-D73US.book Page 4 Thursday, November 20, 2003 10:50 AM CONTENTS 4 EN GETTING STARTED 5 Provided Accessories ....................................................5 Power .............................................................................6 Grip Adjustment .............................................................7 Operation Mode .............................................................8 Date/Time Settings ........................................................8 Viewfinder Adjustment ...................................................9 Brightness Adjustment Of The Display ..........................9 Tripod Mounting .............................................................9 Loading/Unloading A Cassette ....................................10 Loading/Unloading A Memory Card (GR-D93/73 only) ...... 10 VIDEO RECORDING & PLAYBACK 11 VIDEO RECORDING ........................................................11 Basic Recording ...........................................................11 LCD Monitor And Viewfinder ........................................12 Tape Remaining Time ..................................................12 Zooming .......................................................................12 Journalistic Shooting ....................................................13 Self Recording .............................................................13 Time Code ...................................................................13 Recording From The Middle Of A Tape .......................13 VIDEO PLAYBACK ...........................................................14 Normal Playback ..........................................................14 Still Playback ................................................................14 Shuttle Search .............................................................14 Blank Search ................................................................14 Playback Using The Remote Control (GR-D93/73 only) ..15 Connections To A TV Or VCR .....................................17 DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK (GR-D93/D73 only) 18 D.S.C. RECORDING (GR-D93/D73 only) ..........................18 Basic Shooting (D.S.C. Snapshot) ...............................18 Dubbing Still Images Recorded On A Tape To A Memory Card .........................................................................19 D.S.C. PLAYBACK (GR-D93/D73 only) ............................20 Normal Playback Of Images ........................................20 Auto Playback Of Images ............................................20 Index Playback Of Files ...............................................20 Viewing File Information ...............................................21 Removing On-Screen Display ......................................21 ADDITIONAL FEATURES FOR D.S.C. (GR-D93/D73 only) ...22 Protecting Files ............................................................22 Deleting Files ...............................................................22 Setting Print Information (DPOF Setting) .....................23 Resetting The File Name .............................................24 Initializing A Memory Card ...........................................24

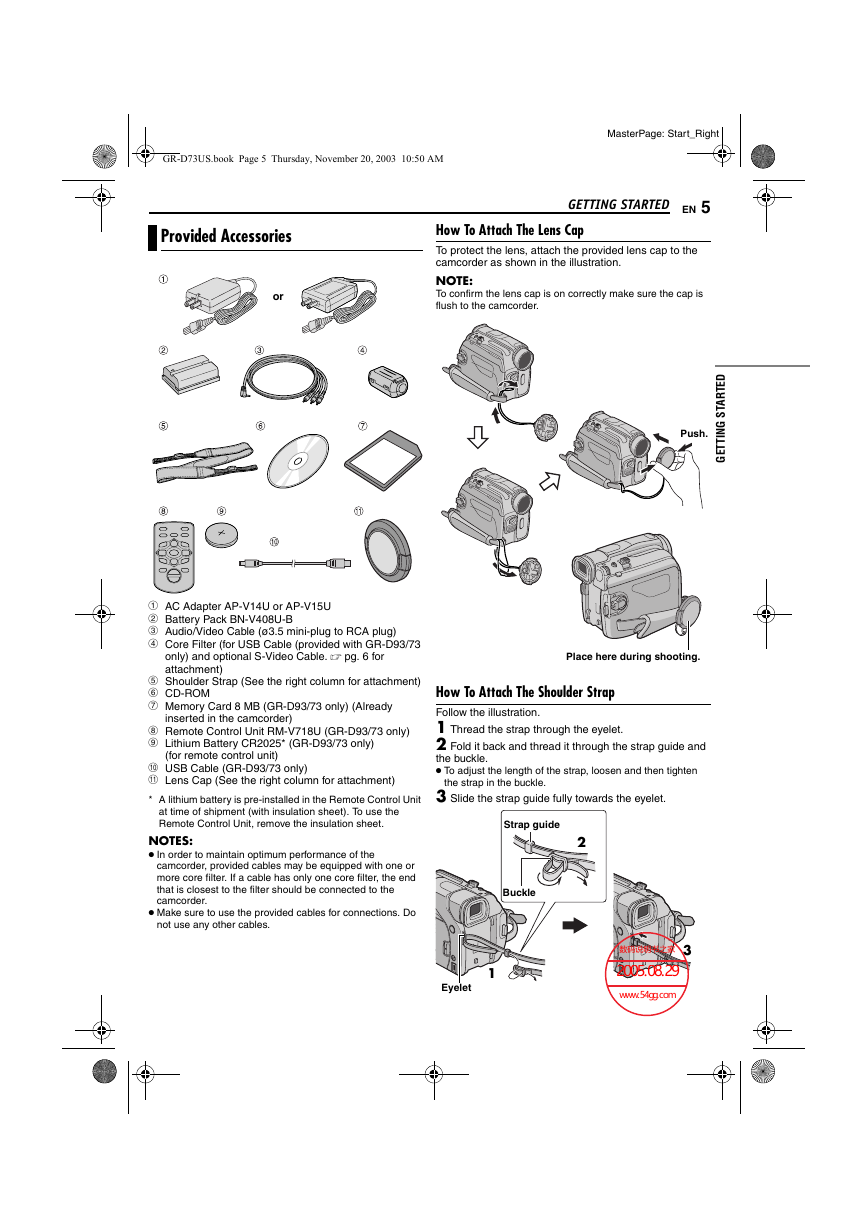

GR-D73US.book Page 5 Thursday, November 20, 2003 10:50 AM MasterPage: Start_Right Provided Accessories or GETTING STARTED EN 5 How To Attach The Lens Cap To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration. NOTE: To confirm the lens cap is on correctly make sure the cap is flush to the camcorder. D E T R A T S G N I T T E G Push. Place here during shooting. How To Attach The Shoulder Strap Follow the illustration. 1 Thread the strap through the eyelet. 2 Fold it back and thread it through the strap guide and the buckle. ● To adjust the length of the strap, loosen and then tighten the strap in the buckle. 3 Slide the strap guide fully towards the eyelet. Strap guide 2 Buckle 1 Eyelet 3 9 2 w 0 3 e 6 4 5 T W a AC Adapter AP-V14U or AP-V15U b Battery Pack BN-V408U-B c Audio/Video Cable (ø3.5 mini-plug to RCA plug) d Core Filter (for USB Cable (provided with GR-D93/73 only) and optional S-Video Cable. 墌 pg. 6 for attachment) e Shoulder Strap (See the right column for attachment) f CD-ROM g Memory Card 8 MB (GR-D93/73 only) (Already inserted in the camcorder) h Remote Control Unit RM-V718U (GR-D93/73 only) i Lithium Battery CR2025* (GR-D93/73 only) (for remote control unit) j USB Cable (GR-D93/73 only) k Lens Cap (See the right column for attachment) * A lithium battery is pre-installed in the Remote Control Unit at time of shipment (with insulation sheet). To use the Remote Control Unit, remove the insulation sheet. NOTES: ● In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder. ● Make sure to use the provided cables for connections. Do not use any other cables.

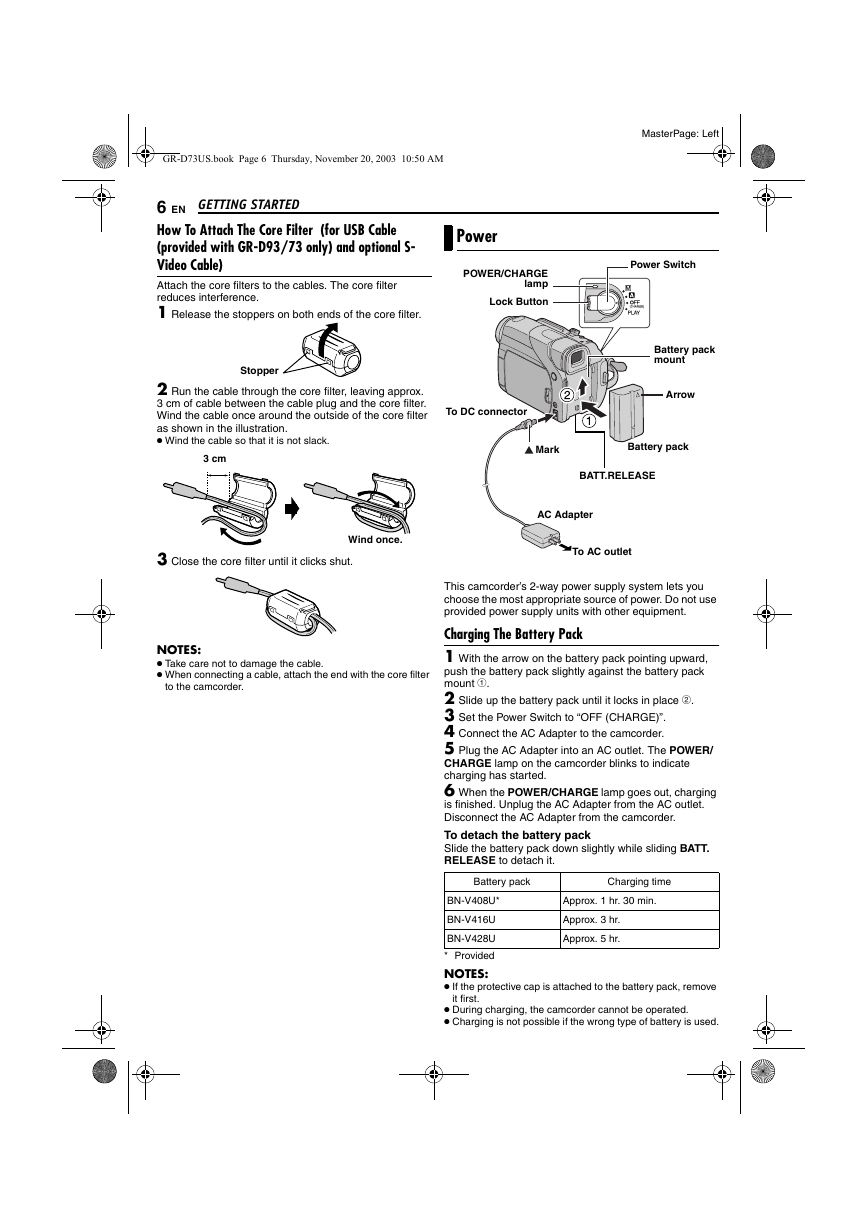

GR-D73US.book Page 6 Thursday, November 20, 2003 10:50 AM GETTING STARTED 6 EN How To Attach The Core Filter (for USB Cable (provided with GR-D93/73 only) and optional S- Video Cable) Attach the core filters to the cables. The core filter reduces interference. 1 Release the stoppers on both ends of the core filter. Power POWER/CHARGE lamp Lock Button Stopper 2 Run the cable through the core filter, leaving approx. 3 cm of cable between the cable plug and the core filter. Wind the cable once around the outside of the core filter as shown in the illustration. ● Wind the cable so that it is not slack. 3 cm To DC connector MasterPage: Left Power Switch Battery pack mount Arrow 3 Close the core filter until it clicks shut. Wind once. NOTES: ● Take care not to damage the cable. ● When connecting a cable, attach the end with the core filter to the camcorder. Mark Battery pack BATT.RELEASE AC Adapter To AC outlet This camcorder’s 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment. Charging The Battery Pack 1 With the arrow on the battery pack pointing upward, push the battery pack slightly against the battery pack mount a. 2 Slide up the battery pack until it locks in place b. 3 Set the Power Switch to “OFF (CHARGE)”. 4 Connect the AC Adapter to the camcorder. 5 Plug the AC Adapter into an AC outlet. The POWER/ CHARGE lamp on the camcorder blinks to indicate charging has started. 6 When the POWER/CHARGE lamp goes out, charging is finished. Unplug the AC Adapter from the AC outlet. Disconnect the AC Adapter from the camcorder. To detach the battery pack Slide the battery pack down slightly while sliding BATT. RELEASE to detach it. Battery pack Charging time BN-V408U* BN-V416U Approx. 1 hr. 30 min. Approx. 3 hr. Approx. 5 hr. BN-V428U * Provided NOTES: ● If the protective cap is attached to the battery pack, remove it first. ● During charging, the camcorder cannot be operated. ● Charging is not possible if the wrong type of battery is used.

GR-D73US.book Page 7 Thursday, November 20, 2003 10:50 AM MasterPage: Start_Right GETTING STARTED EN 7 The Benefits Of Lithium-Ion Batteries Lithium-ion battery packs are small but have a large power capacity. However, when one is exposed to cold temperatures (below 10°C/50°F), its usage time becomes shorter and it may cease to function. If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then re-attach it to the camcorder. As long as the battery pack itself is not cold, it should not affect performance. (If you’re using a heating pad, make sure the battery pack does not come in direct contact with it.) For other notes, 墌 pg. 38. Lithium-ion is vulnerable in colder temperatures. D E T R A T S G N I T T E G Grip Adjustment 1 Adjust the velcro strip. 2 Pass your right hand through the loop and grasp the grip. 3 Adjust your thumb and fingers through the grip to easily operate the Recording Start/Stop Button, Power Switch and Power Zoom Lever. Be sure to fasten the velcro strip to your preference. ● When charging the battery pack for the first time or after a long storage period, the POWER/CHARGE lamp may not light. In this case, remove the battery pack from the camcorder, then try charging again. ● If the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one. ● For other notes, 墌 pg. 38. Using The Battery Pack Perform steps 1 – 2 in “Charging The Battery Pack”. Maximum continuous recording time ● GR-D73/33 Battery pack LCD monitor on Viewfinder on BN-V408U* 1 hr. 10 min. BN-V416U BN-V428U ● GR-D93 2 hr. 20 min. 4 hr. 10 min. 1 hr. 40 min. 3 hr. 15 min. 5 hr. 50 min. Battery pack LCD monitor on Viewfinder on BN-V408U* 1 hr. 5 min. BN-V416U 2 hr. 15 min. 1 hr. 35 min. 3 hr. 5 min. 4 hr. BN-V428U * Provided NOTES: ● Recording time is reduced significantly under the following 5 hr. 30 min. conditions: Zoom or Record-Standby mode is engaged repeatedly. The LCD monitor is used repeatedly. The playback mode is engaged repeatedly. The White LED Light is used. ● Before extended use, it is recommended that you prepare enough battery packs to cover 3 times the planned shooting time. ATTENTION: Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction. Using AC Power Connect the AC Adapter to the camcorder as shown in the illustration on page 6. NOTES: ● The provided AC Adapter features automatic voltage selection in the AC range from 110 V to 240 V. ● Do not allow the DC terminals of the AC Adapter to come in contact with metals, as this can result in a short circuit and cause malfunction. ● For other notes, 墌 pg. 38. About Batteries DANGER! Do not attempt to take the batteries apart, or expose them to flame or excessive heat, as it may cause a fire or explosion. WARNING! Do not allow the battery or its terminals to come in contact with metals, as this can result in a short circuit and possibly start a fire.

GR-D73US.book Page 8 Thursday, November 20, 2003 10:50 AM 8 EN GETTING STARTED Operation Mode To turn on the camcorder, set the Power Switch to any operation mode except “OFF (CHARGE)” while pressing down the Lock Button located on the switch. POWER/CHARGE lamp Power Switch Lock Button MMENU/VOL. VIDEO/MEMORY (GR-D93/73 only) Choose the appropriate operation mode according to your preference using the Power Switch and VIDEO/ MEMORY Switch (GR-D93/73 only). Power Switch Position A (Full Auto Recording): Allows you to record using NO special effects or manual adjustments. Suitable for standard recording. The “A” indicator appears on the display. M (Manual Recording): Allows you to set various recording functions using the Menus. (墌 pg. 25) If you want more creative capabilities than Full Auto Recording, try this mode. There is no indication on the display. OFF: Allows you to switch off the camcorder. PLAY: ● Allows you to play back a recording on the tape. ● Allows you to display a still image stored in the memory card or to transfer a still image stored in the memory card to a PC. (GR-D93/73 only) ● Allows you to set various playback functions using the Menus. (墌 pg. 25) MasterPage: Left VIDEO/MEMORY Switch Position (GR-D93/73 only) VIDEO: Allows you to record on a tape or play back a tape. If ” (墌 pg. 28), still “REC SELECT” is set to “ images are recorded both on the tape and the memory card. / MEMORY: ● Allows you to record in a memory card or access data stored in a memory card. ● When the Power Switch is set to “A” or “M”, the currently selected image size appears. Power-Linked Operation When the Power Switch is set to “A” or “M”, you can also turn on/off the camcorder by opening/closing the LCD monitor or pulling out/pushing in the viewfinder. INFORMATION: The following explanations in this manual supposes the use of LCD monitor in your operation. If you want to use the viewfinder, close the LCD monitor and pull out the viewfinder fully. Date/Time Settings – – – ERA D I S P LA Y CRE / T I CO E N ME DE V 5'0 4 0 PM T/D LC OT AU F OF 2 C DE 3:5 C M A I HT BR G ON S DA E T M T I E CL C O K AD . J RETUR N The date/time is recorded onto the tape at all times, but its display can be turned on or off during playback. (墌 pg. 25, 28) 1 Set the Power Switch to “M” while pressing down the Lock Button located on the switch. 2 Open the LCD monitor fully. (墌 pg. 12) 3 Press the MMENU/VOL. Wheel in. The Menu Screen appears. 4 Rotate the MMENU/VOL. Wheel to select “n”, and press it. The CAMERA DISPLAY Menu appears. 5 Rotate the MMENU/VOL. Wheel to select “CLOCK ADJ.”, and press it. The parameter for “Month” is highlighted. 6 Rotate the MMENU/VOL. Wheel to input the month, and press it. Repeat to input the day, year, hour and minute. 7 Rotate the MMENU/VOL. Wheel to select “BRETURN”, and press it twice. The Menu Screen closes. NOTE: Even if you select “CLOCK ADJ.”, if the parameter is not highlighted, the camcorder’s internal clock continues to operate. Once you move the highlight bar to the first date/ time parameter (month), the clock stops. When you finish setting the minute and press the MMENU/VOL. Wheel in, the date and time begin operation from the date and time you have just set. A C M O K CL C J AD . RETUR N I P S D Y LA DEC 2 3:5 5'0 4 0 PM ERA
