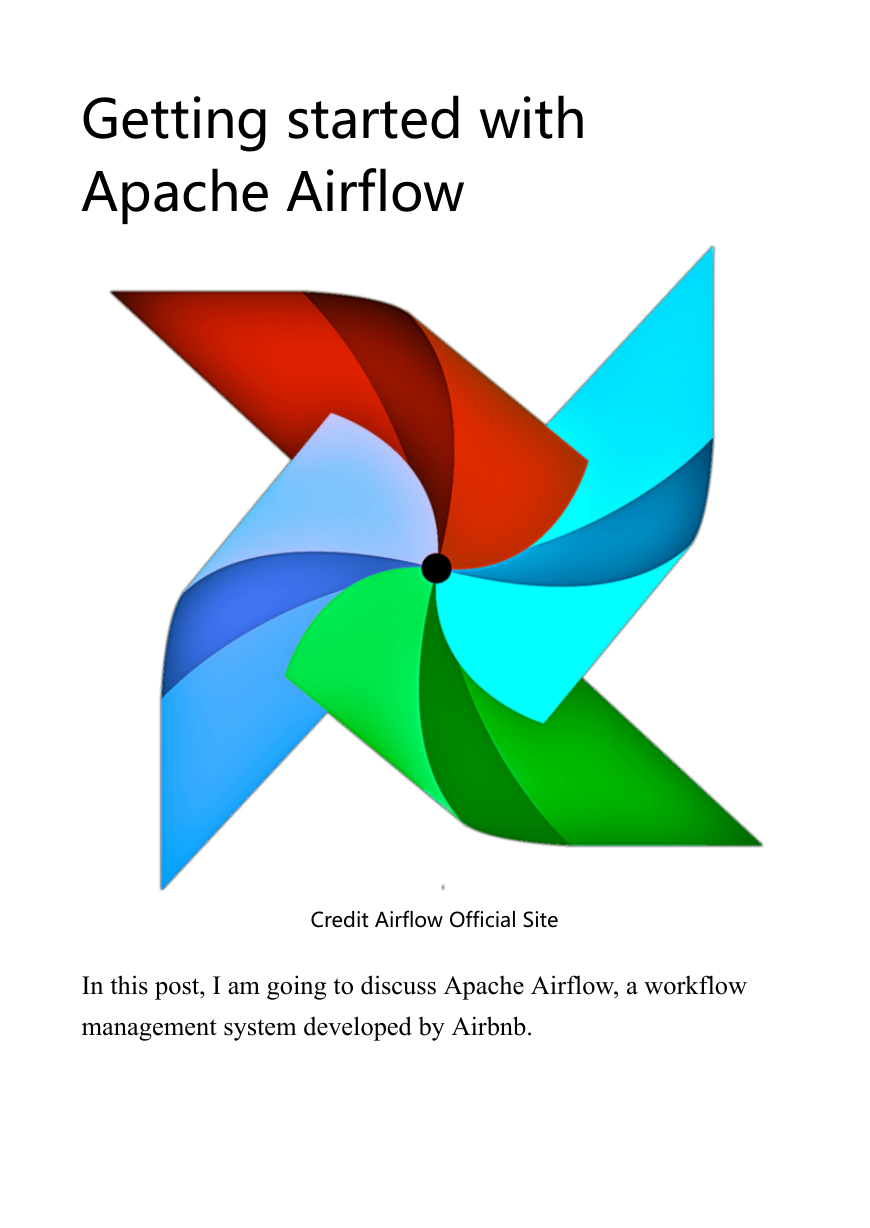

Getting started with Apache Airflow Credit Airflow Official Site In this post, I am going to discuss Apache Airflow, a workflow management system developed by Airbnb.

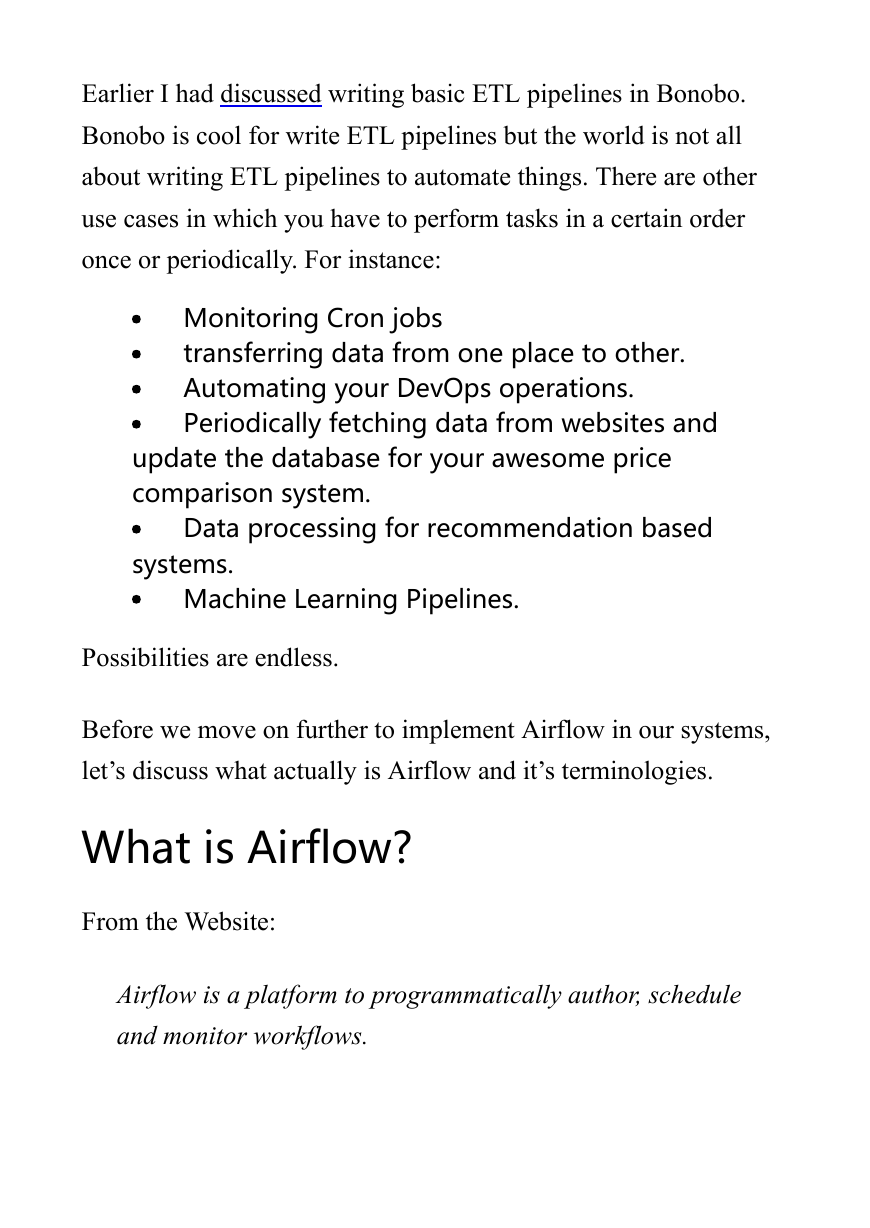

Earlier I had discussed writing basic ETL pipelines in Bonobo. Bonobo is cool for write ETL pipelines but the world is not all about writing ETL pipelines to automate things. There are other use cases in which you have to perform tasks in a certain order once or periodically. For instance: Monitoring Cron jobs transferring data from one place to other. Automating your DevOps operations. Periodically fetching data from websites and update the database for your awesome price comparison system. Data processing for recommendation based systems. Machine Learning Pipelines. Possibilities are endless. Before we move on further to implement Airflow in our systems, let’s discuss what actually is Airflow and it’s terminologies. What is Airflow? From the Website: Airflow is a platform to programmatically author, schedule and monitor workflows.

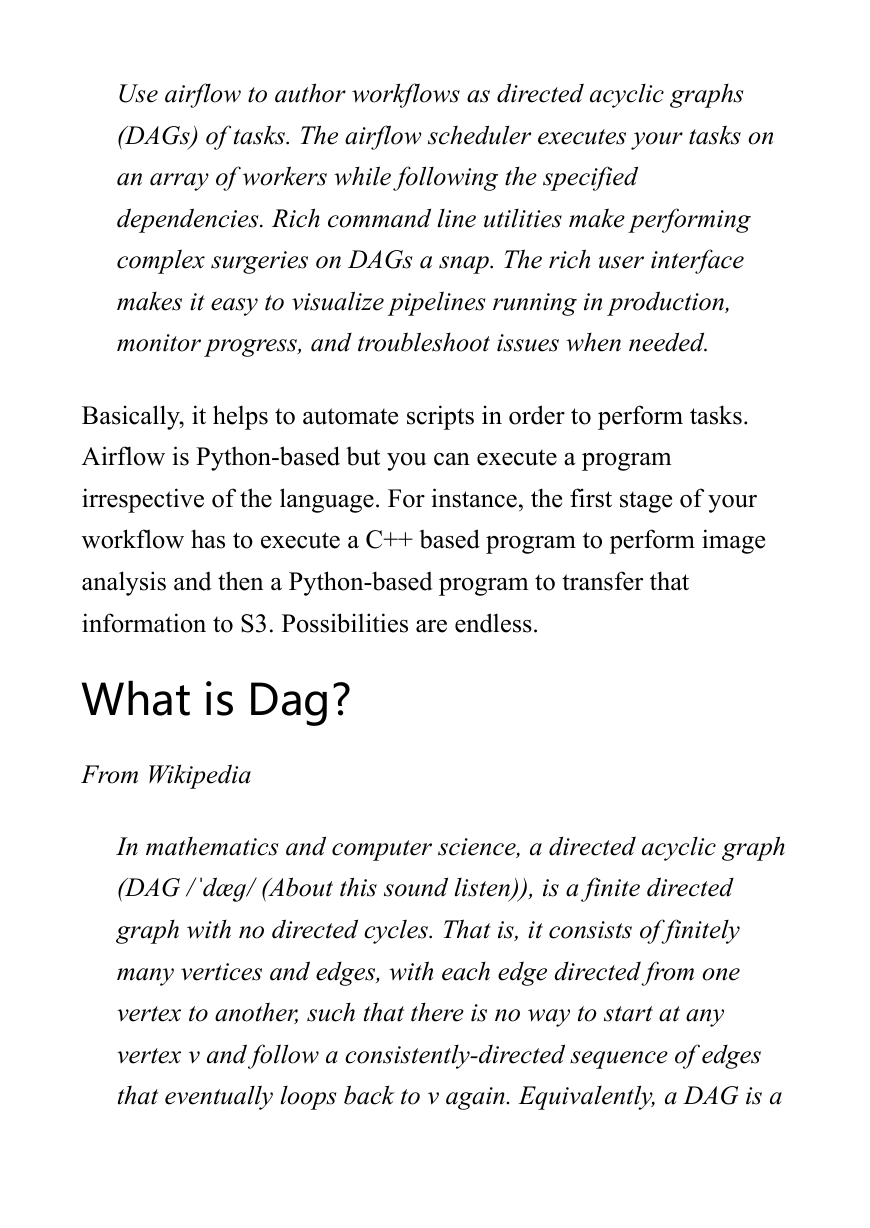

Use airflow to author workflows as directed acyclic graphs (DAGs) of tasks. The airflow scheduler executes your tasks on an array of workers while following the specified dependencies. Rich command line utilities make performing complex surgeries on DAGs a snap. The rich user interface makes it easy to visualize pipelines running in production, monitor progress, and troubleshoot issues when needed. Basically, it helps to automate scripts in order to perform tasks. Airflow is Pythonbased but you can execute a program irrespective of the language. For instance, the first stage of your workflow has to execute a C++ based program to perform image analysis and then a Pythonbased program to transfer that information to S3. Possibilities are endless. What is Dag? From Wikipedia In mathematics and computer science, a directed acyclic graph (DAG /ˈdæɡ/ (About this sound listen)), is a finite directed graph with no directed cycles. That is, it consists of finitely many vertices and edges, with each edge directed from one vertex to another, such that there is no way to start at any vertex v and follow a consistentlydirected sequence of edges that eventually loops back to v again. Equivalently, a DAG is a

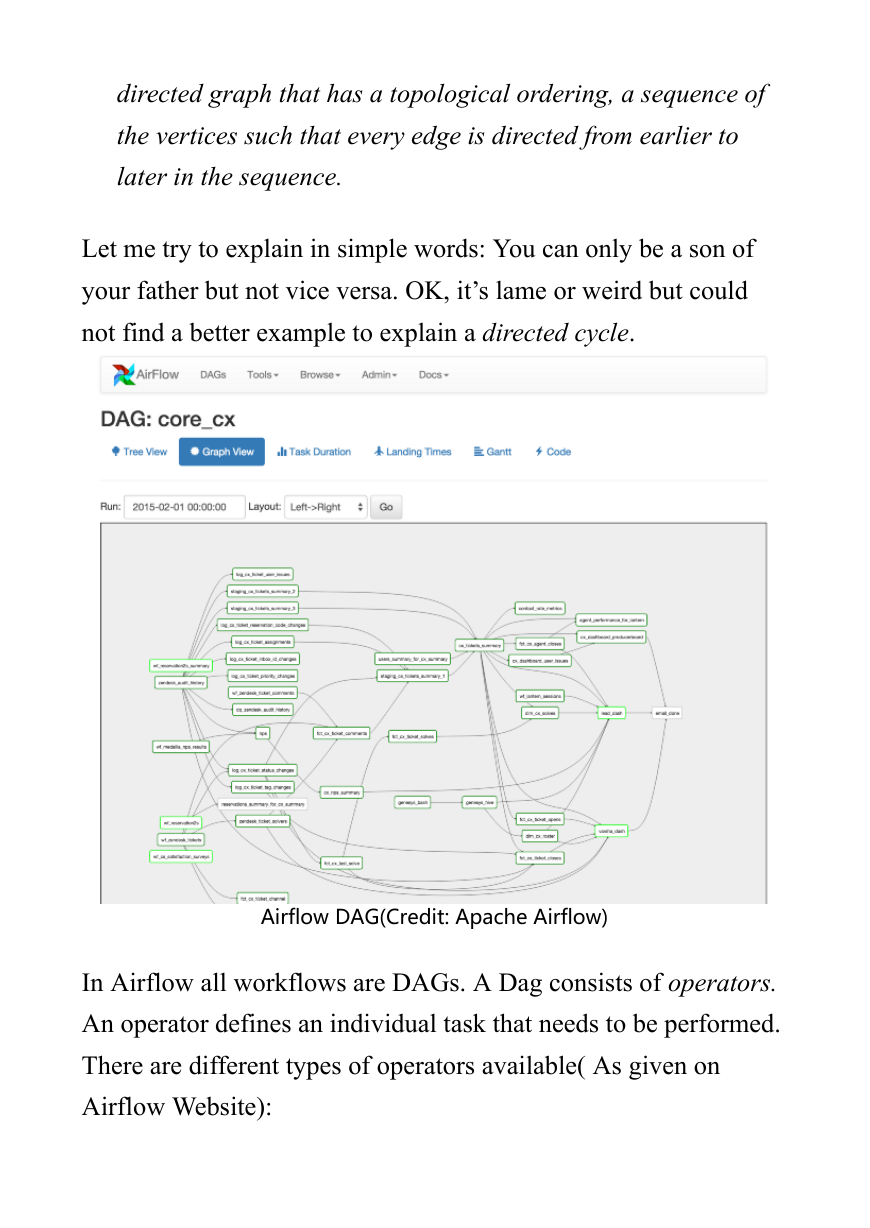

directed graph that has a topological ordering, a sequence of the vertices such that every edge is directed from earlier to later in the sequence. Let me try to explain in simple words: You can only be a son of your father but not vice versa. OK, it’s lame or weird but could not find a better example to explain a directed cycle. Airflow DAG(Credit: Apache Airflow) In Airflow all workflows are DAGs. A Dag consists of operators. An operator defines an individual task that needs to be performed. There are different types of operators available( As given on Airflow Website):

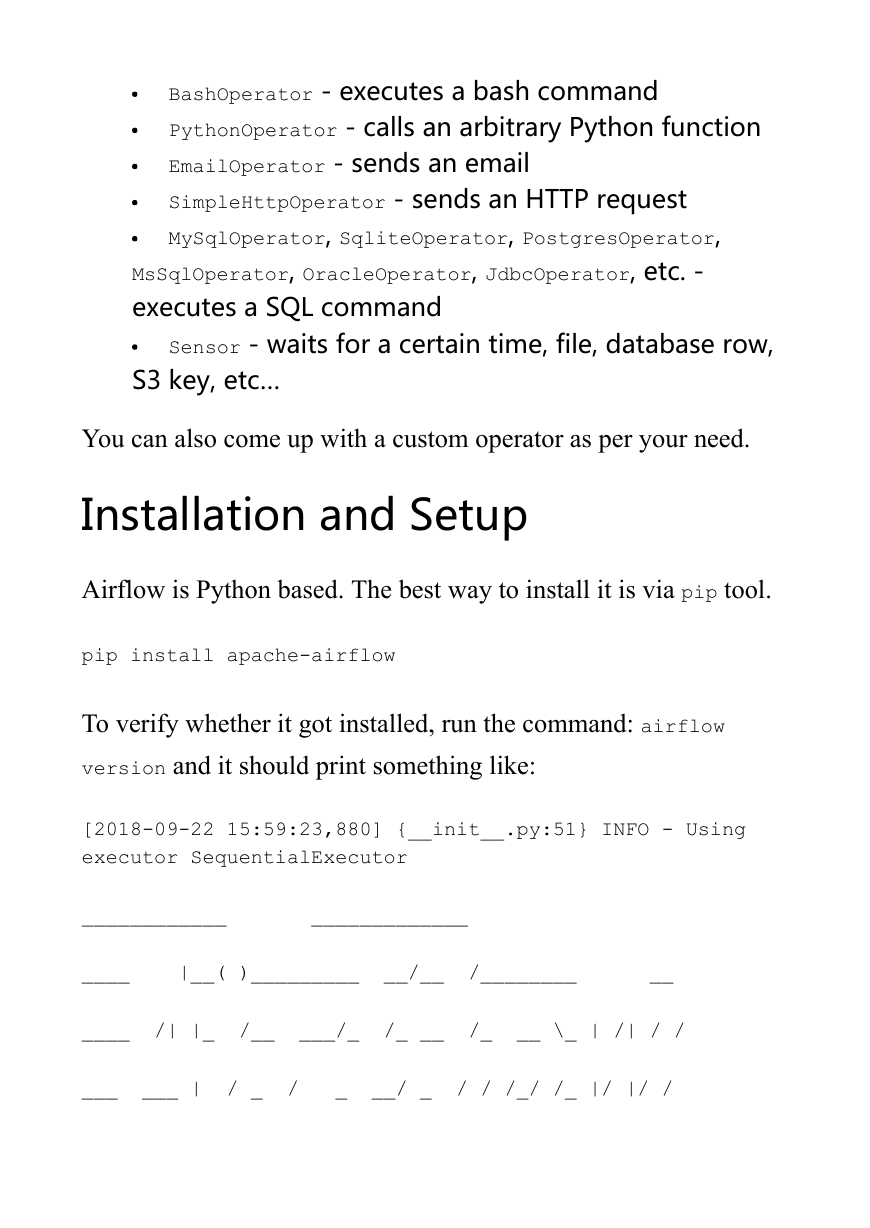

BashOperator - executes a bash command PythonOperator - calls an arbitrary Python function EmailOperator - sends an email SimpleHttpOperator - sends an HTTP request MySqlOperator, SqliteOperator, PostgresOperator, MsSqlOperator, OracleOperator, JdbcOperator, etc. - executes a SQL command Sensor - waits for a certain time, file, database row, S3 key, etc… You can also come up with a custom operator as per your need. Installation and Setup Airflow is Python based. The best way to install it is via pip tool. pip install apacheairflow To verify whether it got installed, run the command: airflow version and it should print something like: [20180922 15:59:23,880] {__init__.py:51} INFO Using executor SequentialExecutor ____________ _____________ ____ |__( )_________ __/__ /________ __ ____ /| |_ /__ ___/_ /_ __ /_ __ \_ | /| / / ___ ___ | / _ / _ __/ _ / / /_/ /_ |/ |/ /

_/_/ |_/_/ /_/ /_/ /_/ \____/____/|__/ v1.10.0 You will need to install mysqlclient as well to incorporate MySQL in your workflows. It is optional though. pip install mysqlclient Before you start anything, create a folder and set it as AIRFLOW_HOME. In my case it is airflow_home. Once created you will call export command to set it in the path. export AIRFLOW_HOME='pwd' airflow_home Make sure you are a folder above of airflow_home before running the export command. Within airflow_home you will create another folder to keep DAGs. Call it dags If you set load_examples=False it will not load default examples on the Web interface. Now you have to call airflow initdb within airflow_home folder. Once it’s done it creates airflow.cfgand unitests.cfg airflow.db is an SQLite file to store all configuration related to run workflows. airflow.cfg is to keep all initial settings to keep things running.

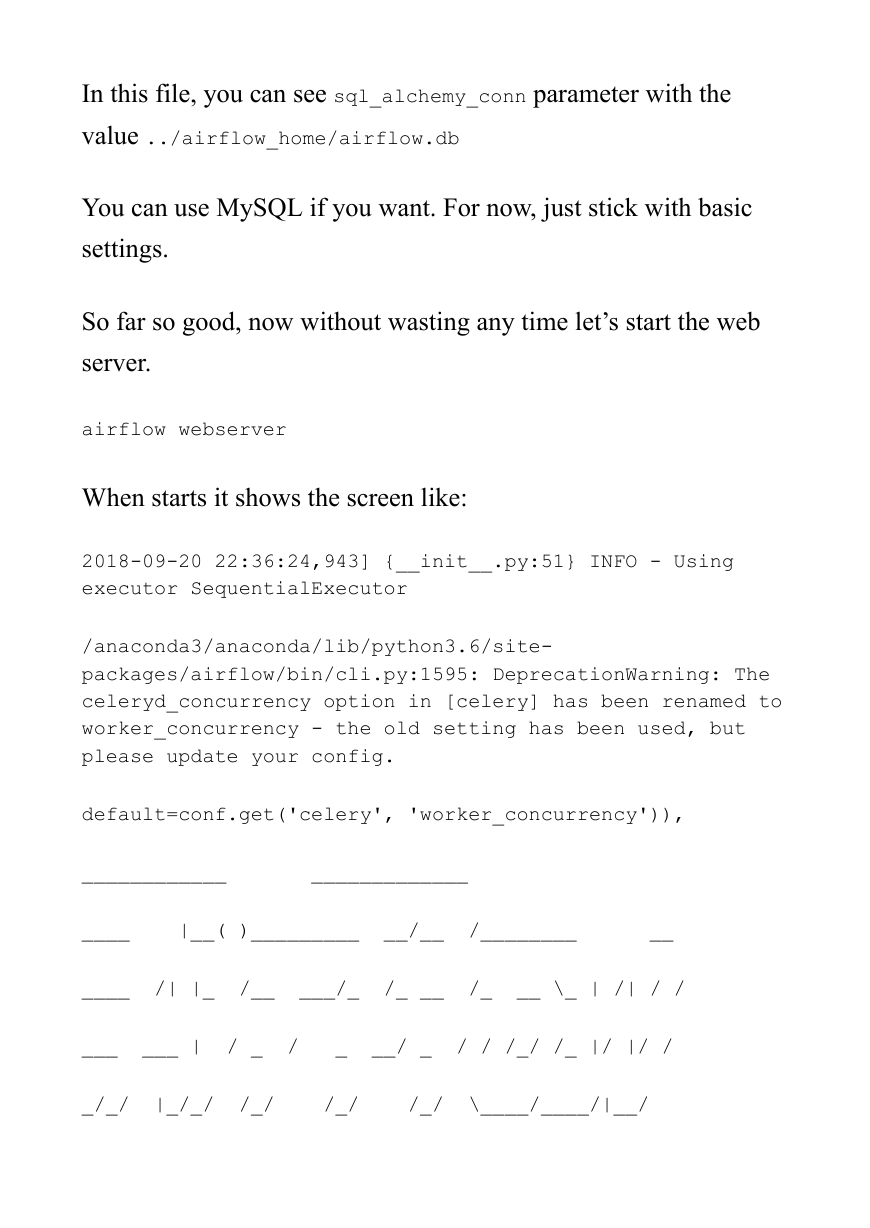

In this file, you can see sql_alchemy_conn parameter with the value ../airflow_home/airflow.db You can use MySQL if you want. For now, just stick with basic settings. So far so good, now without wasting any time let’s start the web server. airflow webserver When starts it shows the screen like: 20180920 22:36:24,943] {__init__.py:51} INFO Using executor SequentialExecutor /anaconda3/anaconda/lib/python3.6/site packages/airflow/bin/cli.py:1595: DeprecationWarning: The celeryd_concurrency option in [celery] has been renamed to worker_concurrency the old setting has been used, but please update your config. default=conf.get('celery', 'worker_concurrency')), ____________ _____________ ____ |__( )_________ __/__ /________ __ ____ /| |_ /__ ___/_ /_ __ /_ __ \_ | /| / / ___ ___ | / _ / _ __/ _ / / /_/ /_ |/ |/ / _/_/ |_/_/ /_/ /_/ /_/ \____/____/|__/

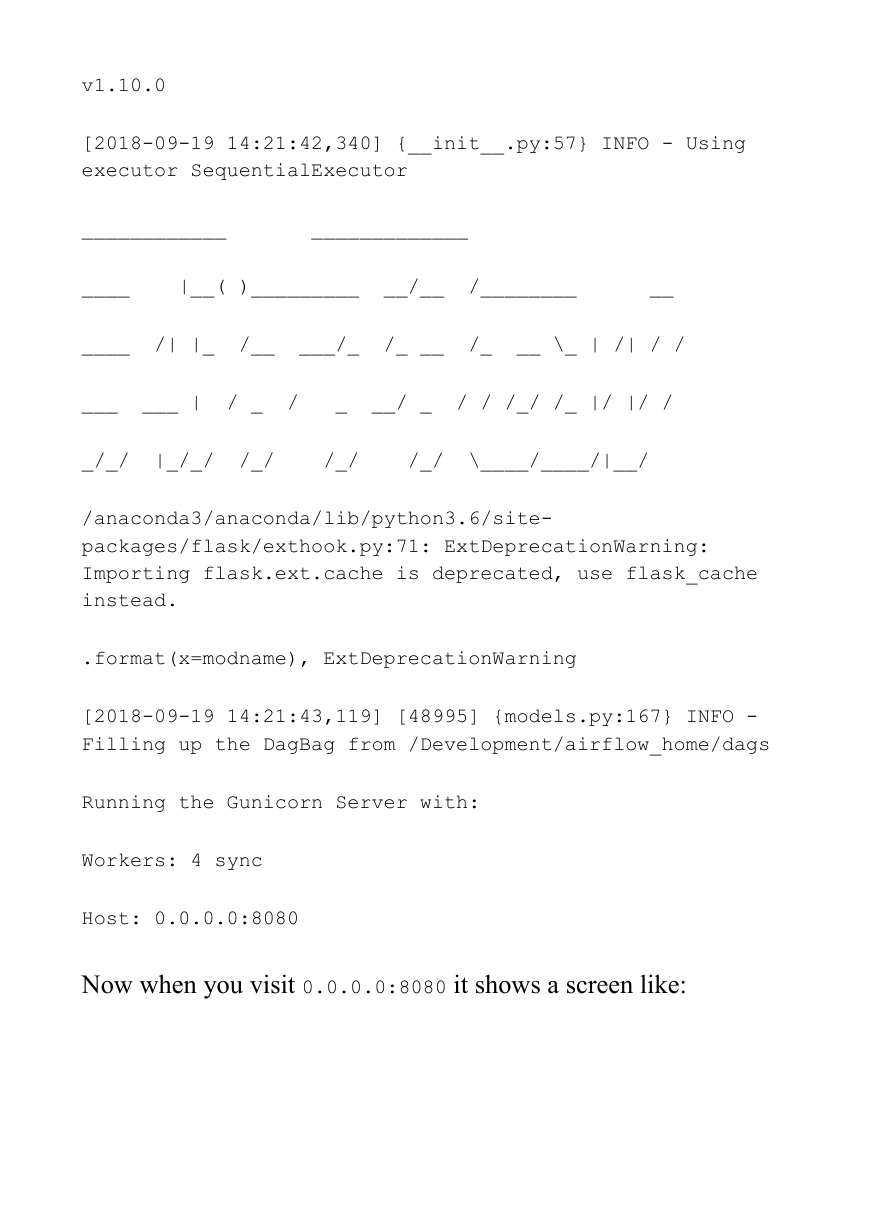

v1.10.0 [20180919 14:21:42,340] {__init__.py:57} INFO Using executor SequentialExecutor ____________ _____________ ____ |__( )_________ __/__ /________ __ ____ /| |_ /__ ___/_ /_ __ /_ __ \_ | /| / / ___ ___ | / _ / _ __/ _ / / /_/ /_ |/ |/ / _/_/ |_/_/ /_/ /_/ /_/ \____/____/|__/ /anaconda3/anaconda/lib/python3.6/site packages/flask/exthook.py:71: ExtDeprecationWarning: Importing flask.ext.cache is deprecated, use flask_cache instead. .format(x=modname), ExtDeprecationWarning [20180919 14:21:43,119] [48995] {models.py:167} INFO Filling up the DagBag from /Development/airflow_home/dags Running the Gunicorn Server with: Workers: 4 sync Host: 0.0.0.0:8080 Now when you visit 0.0.0.0:8080 it shows a screen like:
