JVC数码摄像机-GR-DVX90说明书.pdf
ENGLISH
CONTENTS
AUTOMATIC DEMONSTRATION 5
6 – 15
GETTING STARTED
16 – 39
RECORDING
Basic Recording For Video ........................ 16
Basic Recording For Digital Still Camera (D.S.C.) ... 19
Basic Recording For Video And D.S.C. .......... 20
Advanced Features For Video And D.S.C. ...... 22
40 – 55
PLAYBACK
Basic Playback For Video ......................... 40
Advanced Features For Video ................... 41
Basic Playback For D.S.C. ........................ 45
Advanced Features For D.S.C. ................... 48
56 – 59
CONNECTIONS
Basic Connections .................................. 56
Advanced Connections ............................ 58
60 – 65
DUBBING
Dubbing To A VCR ................................. 60
Dubbing From A VCR .............................. 61
Dubbing To A Video Unit
Equipped With A DV Connector ................ 62
Dubbing From A Video Unit
Equipped With A DV Connector ................ 63
Dubbing Images Stored In A
MultiMediaCard To A Tape ..................... 64
Dubbing Images Recorded
On A Tape To A MultiMediaCard .............. 65
66 – 77
USING THE REMOTE
CONTROL UNIT
Slow-Motion Playback, Frame-By-Frame
Playback and Playback Zoom .................. 68
Playback Special Effects .......................... 69
Random Assemble Editing ........................ 70
For More Accurate Editing ........................ 74
Audio Dubbing ...................................... 76
Audio Dubbing Using Digital Sound Effects .... 77
78
USER MAINTENANCE
79 – 84
TROUBLESHOOTING
85 – 92
INDEX
Docking Station .................................... 85
Controls, Connectors And Indicators ............ 86
Indications .......................................... 88
CAUTIONS
TERMS
SPECIFICATIONS
93 – 95
96 – 97
98 – 99
LYT0636-001A EN
DIGITAL VIDEO CAMERA
GR-DVX90
GR-DVX9
Please visit our Homepage on the World Wide
Web and answer our Consumer Survey
(in English only):
http://www.jvc-victor.co.jp/english/index-e.html
INSTRUCTIONS
数码说明书之家—WWW.54GG.COM
2 EN
Dear Customer,
Thank you for purchasing this digital video camera. Before use, please read the safety information and
precautions contained in the following pages to ensure safe use of this product.
Using This Instruction Manual
•All major sections and subsections are listed in the Table Of Contents on the cover page.
•Notes appear after most subsections. Be sure to read these as well.
•Basic and advanced features/operation are separated for easier reference.
It is recommended that you . . .
.... refer to the Index (墌 pgs. 85 – 92) and familiarize yourself with button locations, etc. before use.
.... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe
use of this product.
You are recommended to carefully read the cautions on pages 93 through 95 before use.
SAFETY PRECAUTIONS
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
CAUTIONS:
䡲 If you notice smoke or a peculiar smell coming from the camcorder or AC adapter/charger, shut it down
and unplug it immediately. Continue using the camcorder or AC adapter/charger under these conditions
could lead to fire or electric shock. Contact your JVC dealer. Do not attempt to repair the malfunction
yourself.
䡲 To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified
personnel.
䡲 When you are not using the AC Power Adapter/Charger for a long period of time, it is recommended that
you disconnect the power cord from AC outlet.
NOTES:
●The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main
unit.
●The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom.
●The rating plate (serial number plate) of the Docking Station is on its bottom.
This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for
playback with a television of a different standard. However, live recording and LCD monitor/ viewfinder
playback are possible anywhere. Use the BN-V507U/V514U battery packs and, to recharge them, the
provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary
to accommodate different designs of AC outlets in different countries.)
数码说明书之家—WWW.54GG.COM
EN3
When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all
sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)
No naked flame sources, such as lighted candles, should be placed on the apparatus.
When discarding batteries, environmental problems must be considered and the local rules or laws
governing the disposal of these batteries must be followed strictly.
The apparatus shall not be exposed to dripping or splashing.
Do not use this equipment in a bathroom or places with water.
Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases,
potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to
the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical damage to the camcorder and to the user.
When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or
holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a
malfunction.
Take care not to get your finger caught in the cassette holder cover. Do not let children operate the
camcorder, as they are particularly susceptible to this type of injury.
Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the
camcorder.
CAUTION!
Attaching the camcorder to the Docking Station with cables (Audio/Video, S-Video, Editing, DC, etc.)
connected, then leaving it on top of the TV is not recommended, as tripping on the cables will cause the
camcorder to fall, resulting in damage.
䡲 This camcorder is designed exclusively for the digital video cassette and MultiMediaCard. Only
” can be used with this unit.
” and memory cards marked “
cassettes marked “
Before recording an important scene . . .
.... make sure you only use cassettes with the Mini DV mark
.... make sure you only use memory cards with the mark
.... remember that this camcorder is not compatible with other digital video formats.
.... remember that this camcorder is intended for private consumer use only. Any commercial use
without proper permission is prohibited. (Even if you record an event such as a show, perform-
ance or exhibition for personal enjoyment, it is strongly recommended that you obtain permis-
sion beforehand.)
.
.
数码说明书之家—WWW.54GG.COM
4 EN

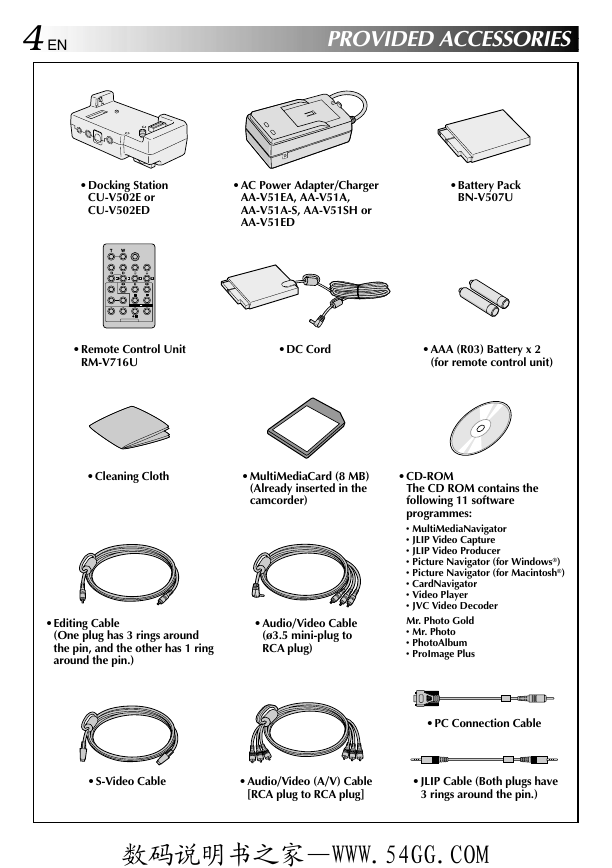

PROVIDED ACCESSORIES
•Docking Station
CU-V502E or
CU-V502ED
•AC Power Adapter/Charger
AA-V51EA, AA-V51A,
AA-V51A-S, AA-V51SH or
AA-V51ED
•Battery Pack
BN-V507U
•Remote Control Unit
RM-V716U
•DC Cord
•AAA (R03) Battery x 2
(for remote control unit)
•Cleaning Cloth
•MultiMediaCard (8 MB)
(Already inserted in the
camcorder)
•Editing Cable
(One plug has 3 rings around
the pin, and the other has 1 ring
around the pin.)
•Audio/Video Cable
(ø3.5 mini-plug to
RCA plug)
•CD-ROM
The CD ROM contains the
following 11 software
programmes:
• MultiMediaNavigator
• JLIP Video Capture
• JLIP Video Producer
• Picture Navigator (for Windows®)
• Picture Navigator (for Macintosh®)
• CardNavigator
• Video Player
• JVC Video Decoder
Mr. Photo Gold
• Mr. Photo
• PhotoAlbum
• ProImage Plus
•PC Connection Cable
•S-Video Cable
•Audio/Video (A/V) Cable
[RCA plug to RCA plug]
•JLIP Cable (Both plugs have
3 rings around the pin.)
数码说明书之家—WWW.54GG.COM

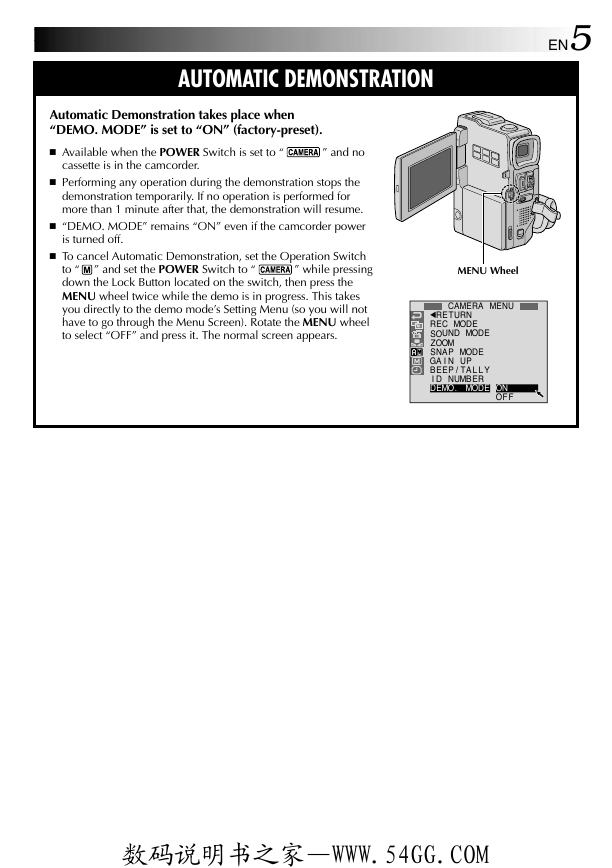

AUTOMATIC DEMONSTRATION
EN5
Automatic Demonstration takes place when
“DEMO. MODE” is set to “ON” (factory-preset).
䡲 Available when the POWER Switch is set to “
” and no
cassette is in the camcorder.
䡲 Performing any operation during the demonstration stops the
demonstration temporarily. If no operation is performed for
more than 1 minute after that, the demonstration will resume.
䡲 “DEMO. MODE” remains “ON” even if the camcorder power
is turned off.
” and set the POWER Switch to “
䡲 To cancel Automatic Demonstration, set the Operation Switch
” while pressing
to “
down the Lock Button located on the switch, then press the
MENU wheel twice while the demo is in progress. This takes
you directly to the demo mode’s Setting Menu (so you will not
have to go through the Menu Screen). Rotate the MENU wheel
to select “OFF” and press it. The normal screen appears.
MENU Wheel
C
T
A
U
M
D
R
E
M
N
R
E
D
O
O
M
D
O
M
P
U
A
L
T
B
E
M
M
O
/
U
.
E
C
U
O
A
I
E
R
1
E
R
O
S
O
Z
N
S
A
G
E
B
D
I
M
E
D
N
M
P
N
P
N
O
A
D
E
L
R
D
ME
N
U
E
Y
E
O
O
N
F
F
数码说明书之家—WWW.54GG.COM
6 EN

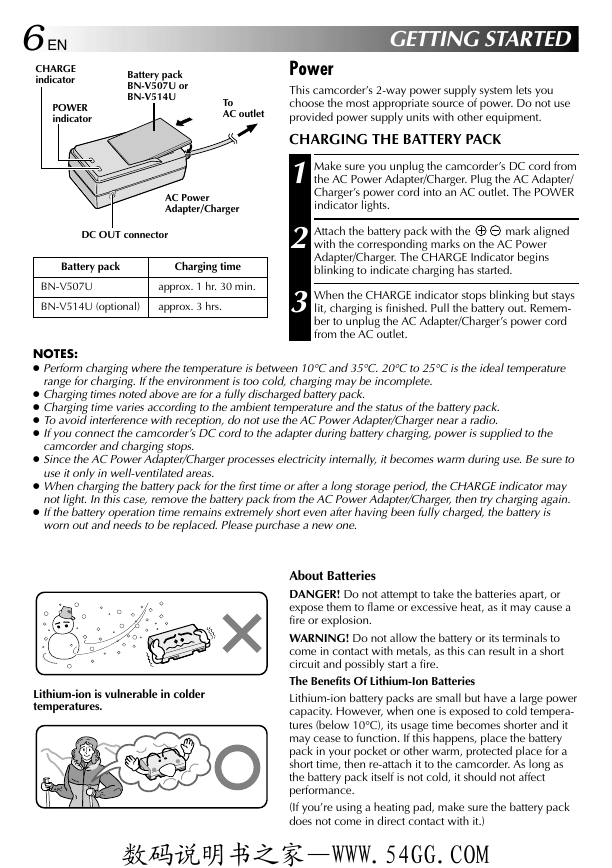

CHARGE
indicator
POWER
indicator
Battery pack
BN-V507U or
BN-V514U
To
AC outlet
AC Power
Adapter/Charger
DC OUT connector
Battery pack
Charging time
BN-V507U
approx. 1 hr. 30 min.
BN-V514U (optional)
approx. 3 hrs.
GETTING STARTED
Power
This camcorder’s 2-way power supply system lets you
choose the most appropriate source of power. Do not use
provided power supply units with other equipment.
CHARGING THE BATTERY PACK
1 Make sure you unplug the camcorder’s DC cord from
the AC Power Adapter/Charger. Plug the AC Adapter/
Charger’s power cord into an AC outlet. The POWER
indicator lights.
2 Attach the battery pack with the
with the corresponding marks on the AC Power
Adapter/Charger. The CHARGE Indicator begins
blinking to indicate charging has started.
mark aligned
3 When the CHARGE indicator stops blinking but stays
lit, charging is finished. Pull the battery out. Remem-
ber to unplug the AC Adapter/Charger’s power cord
from the AC outlet.
NOTES:
● Perform charging where the temperature is between 10°C and 35°C. 20°C to 25°C is the ideal temperature
range for charging. If the environment is too cold, charging may be incomplete.
● Charging times noted above are for a fully discharged battery pack.
● Charging time varies according to the ambient temperature and the status of the battery pack.
● To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.
● If you connect the camcorder’s DC cord to the adapter during battery charging, power is supplied to the
camcorder and charging stops.
use it only in well-ventilated areas.
● Since the AC Power Adapter/Charger processes electricity internally, it becomes warm during use. Be sure to
● When charging the battery pack for the first time or after a long storage period, the CHARGE indicator may
not light. In this case, remove the battery pack from the AC Power Adapter/Charger, then try charging again.
● If the battery operation time remains extremely short even after having been fully charged, the battery is
worn out and needs to be replaced. Please purchase a new one.
Lithium-ion is vulnerable in colder
temperatures.
About Batteries
DANGER! Do not attempt to take the batteries apart, or
expose them to flame or excessive heat, as it may cause a
fire or explosion.
WARNING! Do not allow the battery or its terminals to
come in contact with metals, as this can result in a short
circuit and possibly start a fire.
The Benefits Of Lithium-Ion Batteries
Lithium-ion battery packs are small but have a large power
capacity. However, when one is exposed to cold tempera-
tures (below 10°C), its usage time becomes shorter and it
may cease to function. If this happens, place the battery
pack in your pocket or other warm, protected place for a
short time, then re-attach it to the camcorder. As long as
the battery pack itself is not cold, it should not affect
performance.
(If you’re using a heating pad, make sure the battery pack
does not come in direct contact with it.)
数码说明书之家—WWW.54GG.COM

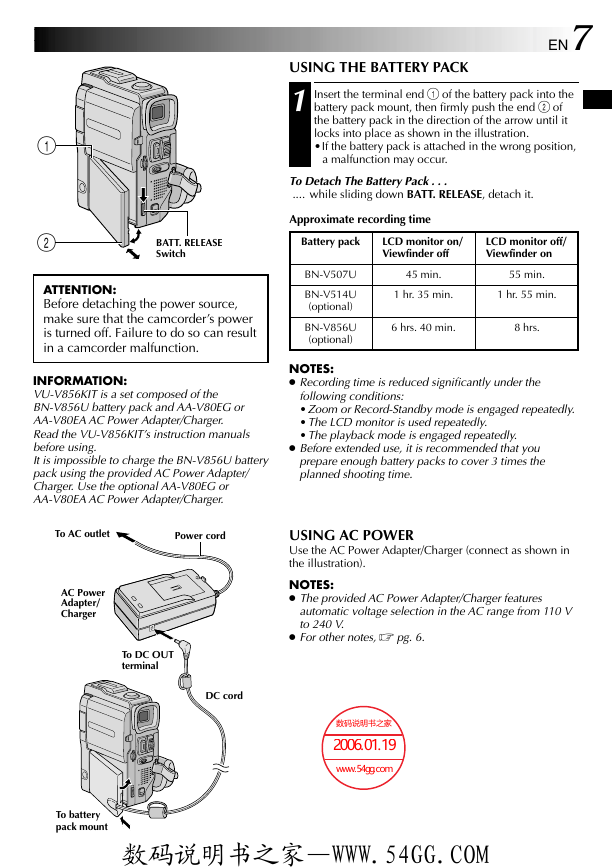

USING THE BATTERY PACK
EN7
1 Insert the terminal end 1 of the battery pack into the
battery pack mount, then firmly push the end 2 of
the battery pack in the direction of the arrow until it
locks into place as shown in the illustration.
•If the battery pack is attached in the wrong position,
a malfunction may occur.
To Detach The Battery Pack . . .
.... while sliding down BATT. RELEASE, detach it.
Approximate recording time
BATT. RELEASE
Switch
Battery pack
LCD monitor on/
Viewfinder off
LCD monitor off/
Viewfinder on
1
2
BN-V507U
BN-V514U
(optional)
BN-V856U
(optional)
45 min.
55 min.
1 hr. 35 min.
1 hr. 55 min.
6 hrs. 40 min.
8 hrs.
NOTES:
● Recording time is reduced significantly under the
following conditions:
•Zoom or Record-Standby mode is engaged repeatedly.
•The LCD monitor is used repeatedly.
•The playback mode is engaged repeatedly.
● Before extended use, it is recommended that you
prepare enough battery packs to cover 3 times the
planned shooting time.
USING AC POWER
Use the AC Power Adapter/Charger (connect as shown in
the illustration).
NOTES:
● The provided AC Power Adapter/Charger features
automatic voltage selection in the AC range from 110 V
to 240 V.
● For other notes, 墌 pg. 6.
ATTENTION:
Before detaching the power source,
make sure that the camcorder’s power
is turned off. Failure to do so can result
in a camcorder malfunction.
INFORMATION:
VU-V856KIT is a set composed of the
BN-V856U battery pack and AA-V80EG or
AA-V80EA AC Power Adapter/Charger.
Read the VU-V856KIT’s instruction manuals
before using.
It is impossible to charge the BN-V856U battery
pack using the provided AC Power Adapter/
Charger. Use the optional AA-V80EG or
AA-V80EA AC Power Adapter/Charger.
To AC outlet
Power cord
To DC OUT
terminal
DC cord
AC Power
Adapter/
Charger
To battery
pack mount
数码说明书之家—WWW.54GG.COM
8 EN
Power Zoom Lever
START/STOP Button
Lock Button
POWER Switch
MODE Dial
PAUSE
Dioptre Adjustment Control
GETTING STARTED (cont.)
Grip Adjustment
1 Separate the Velcro strip.
2 Pass your right hand through the loop and grasp
3 Adjust so that your thumb and fingers can easily
operate the START/STOP Button and Power
Zoom Lever. Refasten the Velcro strip.
the grip.
” while
pressing down the Lock Button located on the
switch and set the MODE Dial to any position.
Viewfinder Adjustment
1 Set the POWER Switch to “
2 Pull out the viewfinder fully.
3 Turn the Dioptre Adjustment Control until the
indications in the viewfinder are clearly focused.
Tripod Mounting
1 Align the screw on the tripod with the camera’s
mounting socket. Then tighten the screw.
CAUTION:
When using a tripod, be sure to open and
extend its legs fully to stabilise the
camcorder. To prevent damage to the unit
caused by falling over, do not use a small-
sized tripod.
数码说明书之家—WWW.54GG.COM
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
