GC-WB300D GC-WB150 Installation Guide/安裝指南/安装指南/ インストールガイド 12WE6-WIFIBT-10AR WIFI/Bluetooth Card WIFI/藍牙卡 WIFI/Bluetooth カード USB Port USB連接埠 USB连接端口 USB ポート (Only for GC-WB300D) Antenna Connector 天線連接埠天线连接端口アンテナコネクタ Antenna Connector 天線連接埠天线连接端口アンテナコネクタ * The photos are for reference only. USB Connector USB連接埠插座 USB连接端口插座 USB コネクタ Antenna 天線/天线アンテナ USB Cable USB排線/排线 USB ケーブル

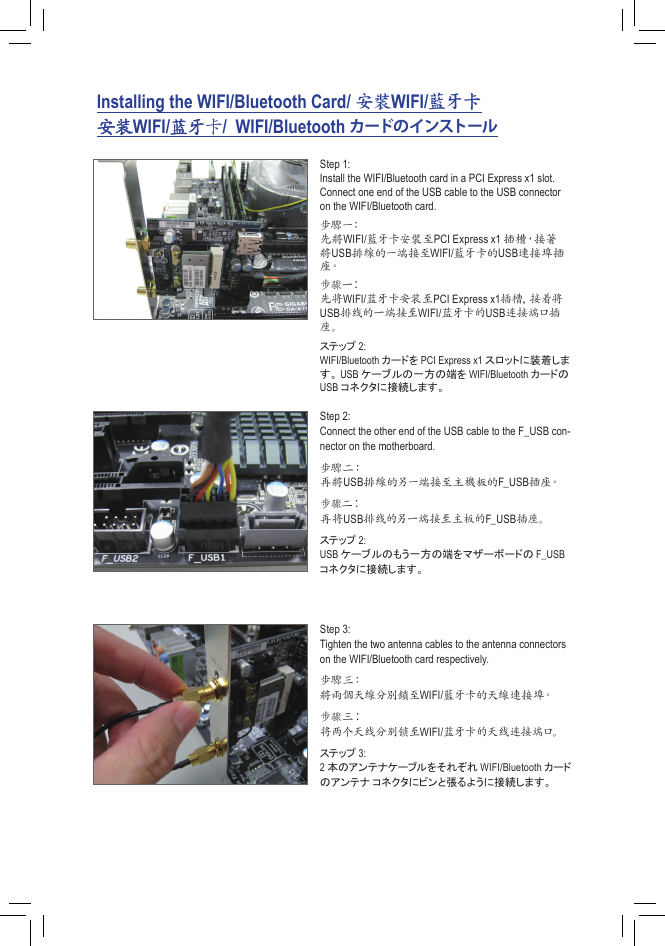

Installing the WIFI/Bluetooth Card/ 安裝WIFI/藍牙卡安装WIFI/蓝牙卡/ WIFI/Bluetooth カードのインストール Step 1: Install the WIFI/Bluetooth card in a PCI Express x1 slot. Connect one end of the USB cable to the USB connector on the WIFI/Bluetooth card. 步驟一：先將WIFI/藍牙卡安裝至PCI Express x1 插槽，接著將USB排線的一端接至WIFI/藍牙卡的USB連接埠插座。步骤一：先将WIFI/蓝牙卡安装至PCI Express x1插槽，接着将 USB排线的一端接至WIFI/蓝牙卡的USB连接端口插座。ステップ 2: WIFI/Bluetooth カードを PCI Express x1 スロットに装着します。 USB ケーブルの一方の端を WIFI/Bluetooth カードの USB コネクタに接続します。 Step 2: Connect the other end of the USB cable to the F_USB con- nector on the motherboard. 步驟二：再將USB排線的另一端接至主機板的F_USB插座。步骤二：再将USB排线的另一端接至主板的F_USB插座。ステップ 2: USB ケーブルのもう一方の端をマザーボードの F_USB コネクタに接続します。 Step 3: Tighten the two antenna cables to the antenna connectors on the WIFI/Bluetooth card respectively. 步驟三：將兩個天線分別鎖至WIFI/藍牙卡的天線連接埠。步骤三：将两个天线分别锁至WIFI/蓝牙卡的天线连接端口。ステップ 3: 2 本のアンテナケーブルをそれぞれ WIFI/Bluetooth カードのアンテナコネクタにピンと張るように接続します。

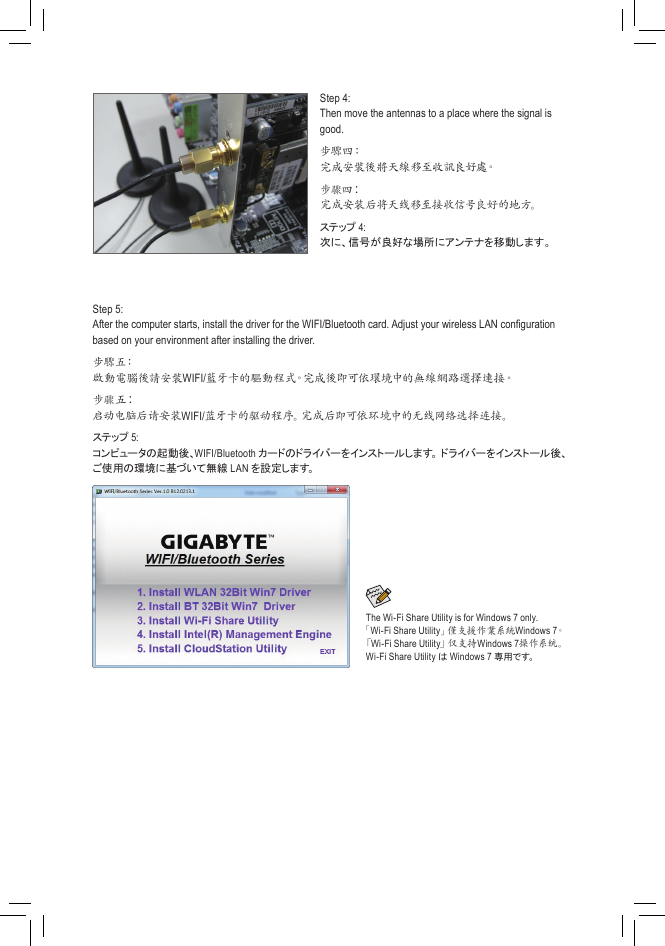

Step 4: Then move the antennas to a place where the signal is good. 步驟四：完成安裝後將天線移至收訊良好處。步骤四：完成安装后将天线移至接收信号良好的地方。ステップ 4: 次に、信号が良好な場所にアンテナを移動します。 Step 5: After the computer starts, install the driver for the WIFI/Bluetooth card. Adjust your wireless LAN conﬁguration based on your environment after installing the driver. 步驟五：啟動電腦後請安裝WIFI/藍牙卡的驅動程式。完成後即可依環境中的無線網路選擇連接。步骤五：启动电脑后请安装WIFI/蓝牙卡的驱动程序。完成后即可依环境中的无线网络选择连接。ステップ 5: コンピュータの起動後、WIFI/Bluetooth カードのドライバーをインストールします。ドライバーをインストール後、ご使用の環境に基づいて無線 LAN を設定します。 The Wi-Fi Share Utility is for Windows 7 only. 「Wi-Fi Share Utility」僅支援作業系統Windows 7。「Wi-Fi Share Utility」仅支持Windows 7操作系统。 Wi-Fi Share Utility は Windows 7 専用です。

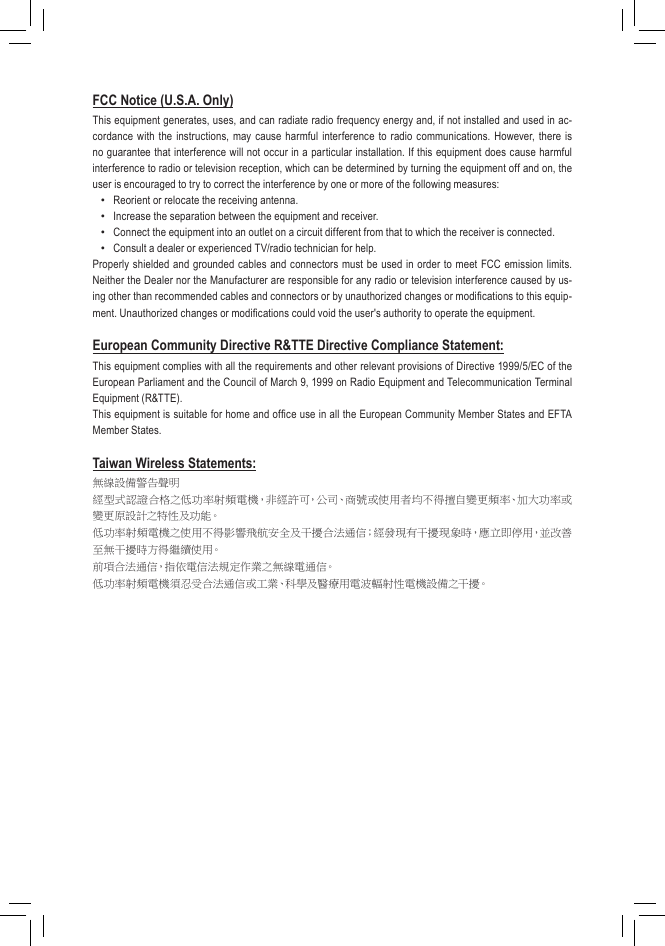

FCC Notice (U.S.A. Only) This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in ac- cordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • • Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult a dealer or experienced TV/radio technician for help. Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Neither the Dealer nor the Manufacturer are responsible for any radio or television interference caused by us- ing other than recommended cables and connectors or by unauthorized changes or modiﬁcations to this equip- ment. Unauthorized changes or modiﬁcations could void the user's authority to operate the equipment. European Community Directive R&TTE Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Directive 1999/5/EC of the European Parliament and the Council of March 9, 1999 on Radio Equipment and Telecommunication Terminal Equipment (R&TTE). This equipment is suitable for home and ofﬁce use in all the European Community Member States and EFTA Member States. Taiwan Wireless Statements: 無線設備警告聲明經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

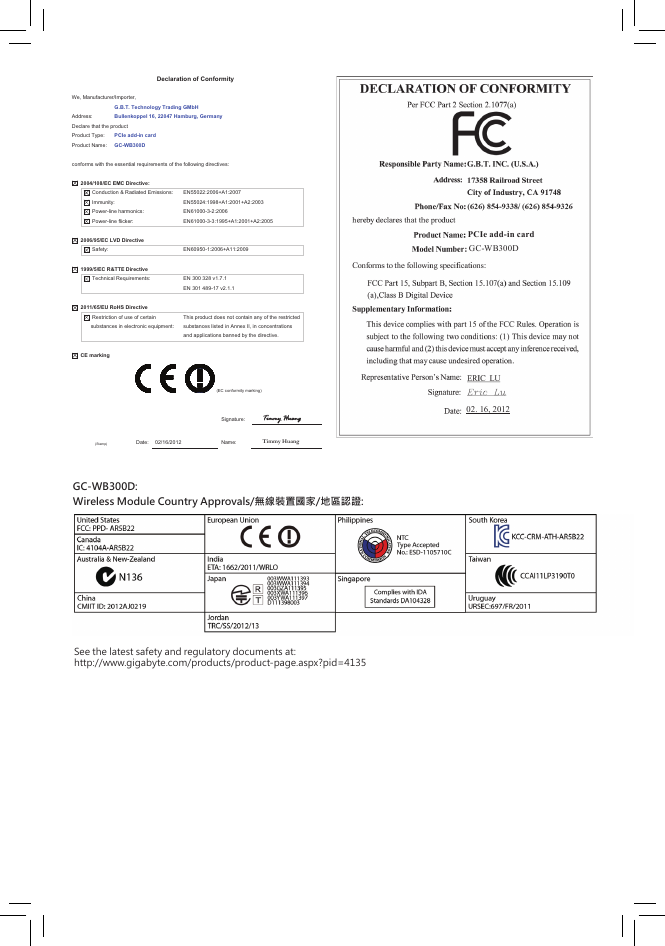

Declaration of Conformity We, Manufacturer/Importer, G.B.T. Technology Trading GMbH Bullenkoppel 16, 22047 Hamburg, Germany Address: Declare that the product Product Type: PCIe add-in card Product Name: GC-WB300D conforms with the essential requirements of the following directives: 2004/108/EC EMC Directive: Conduction & Radiated Emissions: Immunity: Power-line harmonics: Power-line flicker: EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 EN61000-3-2:2006 EN61000-3-3:1995+A1:2001+A2:2005 2006/95/EC LVD Directive Safety: 1999/5/EC R&TTE Directive Technical Requirements: EN60950-1:2006+A11:2009 EN 300 328 v1.7.1 EN 301 489-17 v2.1.1 2011/65/EU RoHS Directive Restriction of use of certain substances in electronic equipment: This product does not contain any of the restricted substances listed in Annex II, in concentrations and applications banned by the directive. CE marking PCIe add-in card GC-WB300D (EC conformity marking) Signature: Timmy Huang 02. 16, 2012 (Stamp) Date: 02/16/2012 Name: Timmy Huang GC-WB300D: Wireless Module Country Approvals/無線裝置國家/地區認證: See the latest safety and regulatory documents at: http://www.gigabyte.com/products/product-page.aspx?pid=4135

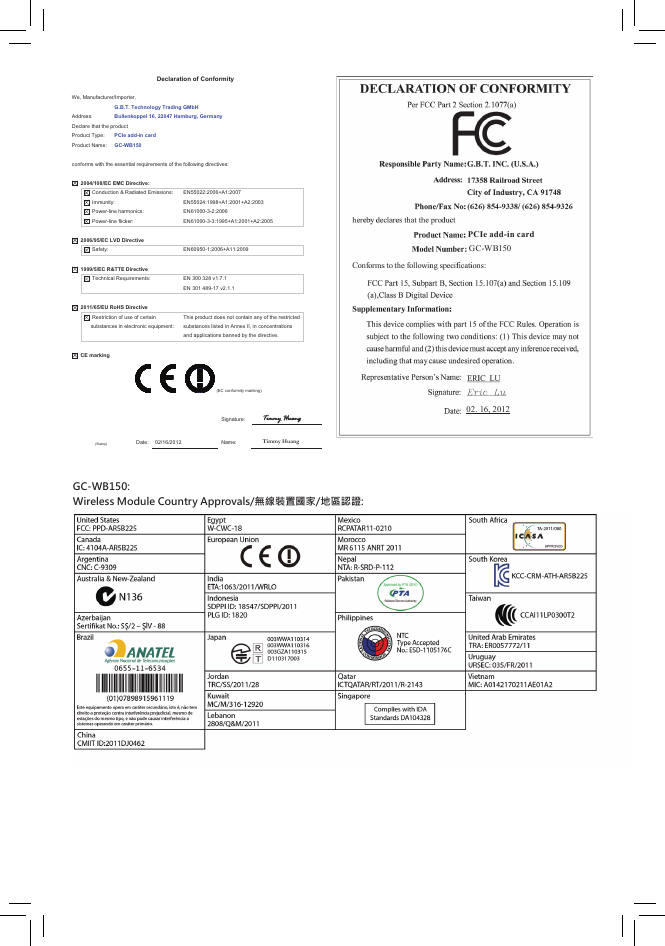

Declaration of Conformity We, Manufacturer/Importer, G.B.T. Technology Trading GMbH Bullenkoppel 16, 22047 Hamburg, Germany Address: Declare that the product Product Type: PCIe add-in card Product Name: GC-WB150 conforms with the essential requirements of the following directives: 2004/108/EC EMC Directive: Conduction & Radiated Emissions: Immunity: Power-line harmonics: Power-line flicker: EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 EN61000-3-2:2006 EN61000-3-3:1995+A1:2001+A2:2005 2006/95/EC LVD Directive Safety: 1999/5/EC R&TTE Directive Technical Requirements: EN60950-1:2006+A11:2009 EN 300 328 v1.7.1 EN 301 489-17 v2.1.1 2011/65/EU RoHS Directive Restriction of use of certain substances in electronic equipment: This product does not contain any of the restricted substances listed in Annex II, in concentrations and applications banned by the directive. CE marking PCIe add-in card GC-WB150 (EC conformity marking) Signature: Timmy Huang 02. 16, 2012 (Stamp) Date: 02/16/2012 Name: Timmy Huang GC-WB150: Wireless Module Country Approvals/無線裝置國家/地區認證:
