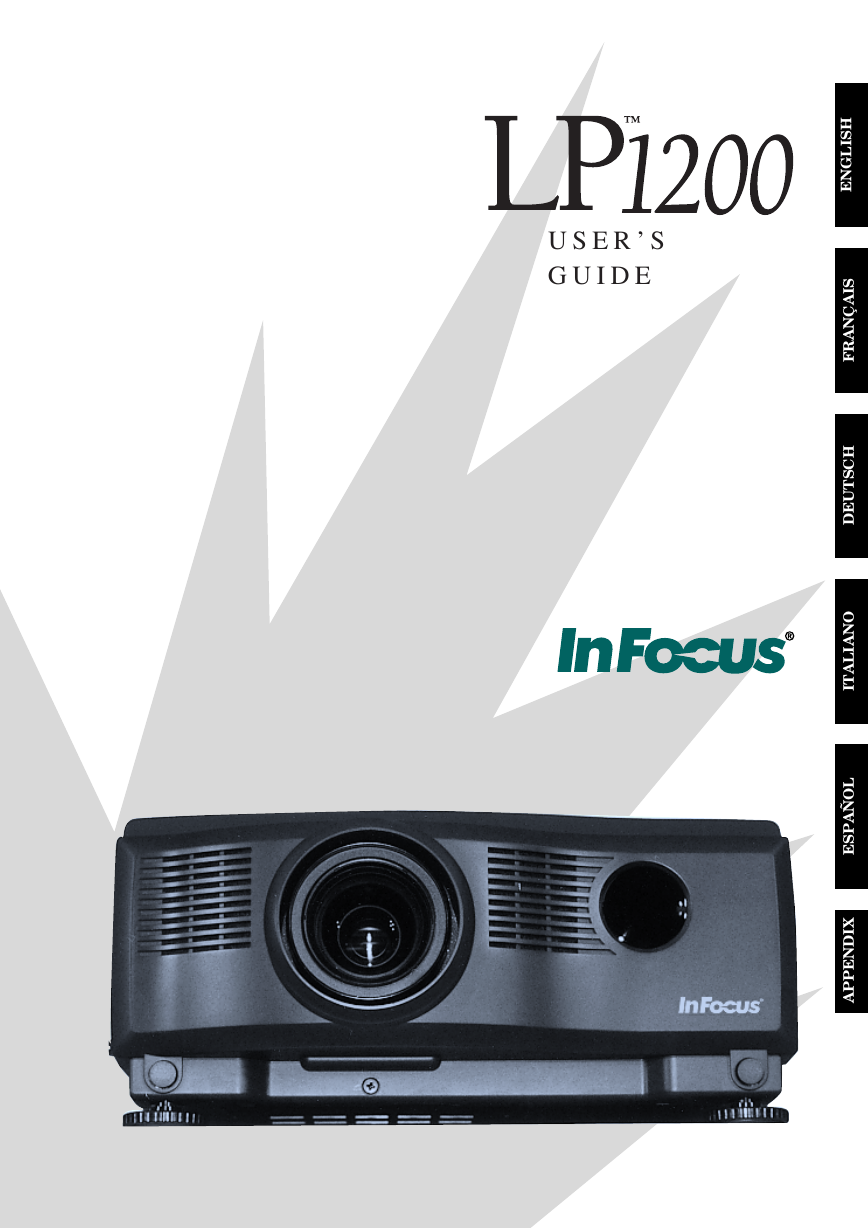

富可视投影机-LP1200说明书.pdf
U S E R ’ S
G U I D E
H
S
I
L
G
N
E
S
I
A
Ç
N
A
R
F
H
C
S
T
U
E
D
O
N
A
I
L
A
T
I
L
O
Ñ
A
P
S
E
X
I
D
N
E
P
P
A
1
H
S
I
L
G
N
E

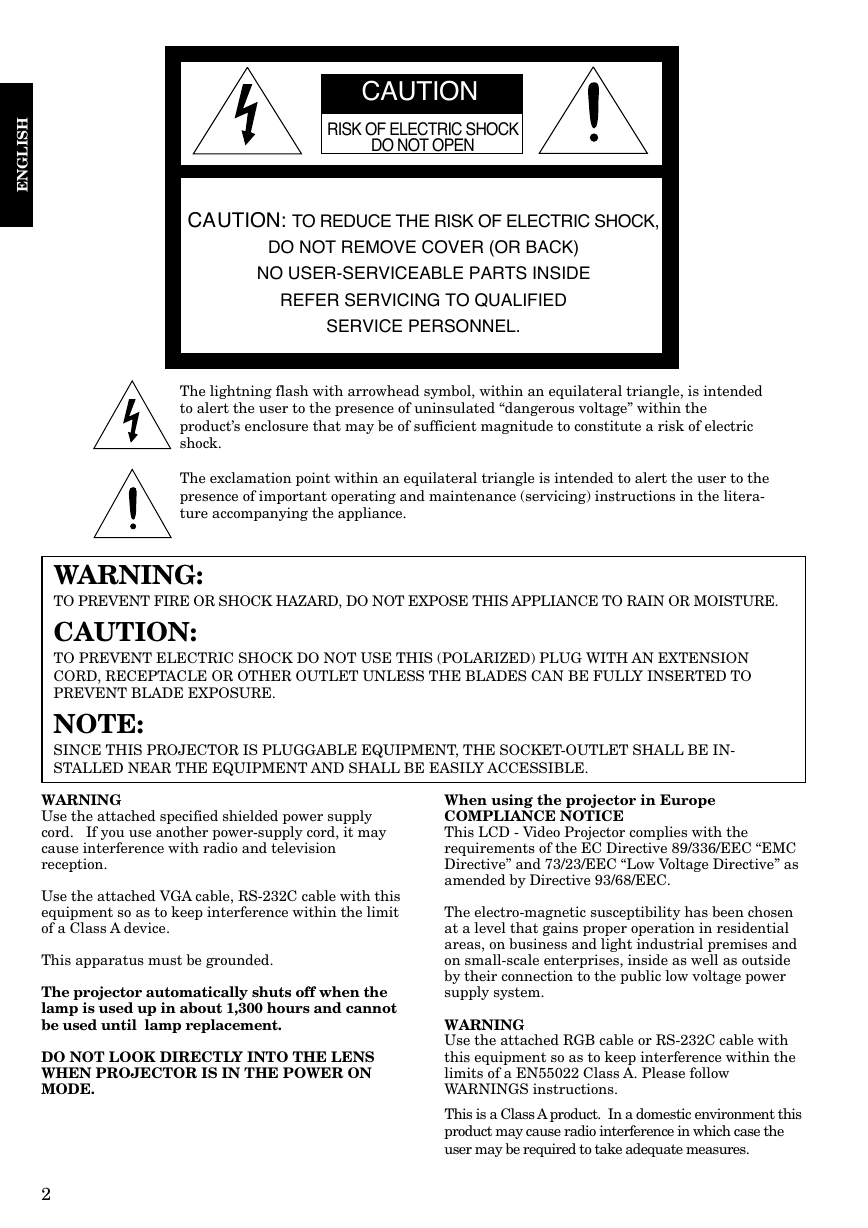

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the litera-
ture accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.
NOTE:
SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE IN-
STALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
WARNING
Use the attached specified shielded power supply
cord. If you use another power-supply cord, it may
cause interference with radio and television
reception.
Use the attached VGA cable, RS-232C cable with this
equipment so as to keep interference within the limit
of a Class A device.
This apparatus must be grounded.
The projector automatically shuts off when the
lamp is used up in about 1,300 hours and cannot
be used until lamp replacement.
DO NOT LOOK DIRECTLY INTO THE LENS
WHEN PROJECTOR IS IN THE POWER ON
MODE.
When using the projector in Europe
COMPLIANCE NOTICE
This LCD - Video Projector complies with the
requirements of the EC Directive 89/336/EEC “EMC
Directive” and 73/23/EEC “Low Voltage Directive” as
amended by Directive 93/68/EEC.
The electro-magnetic susceptibility has been chosen
at a level that gains proper operation in residential
areas, on business and light industrial premises and
on small-scale enterprises, inside as well as outside
by their connection to the public low voltage power
supply system.
WARNING
Use the attached RGB cable or RS-232C cable with
this equipment so as to keep interference within the
limits of a EN55022 Class A. Please follow
WARNINGS instructions.
This is a Class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.
2

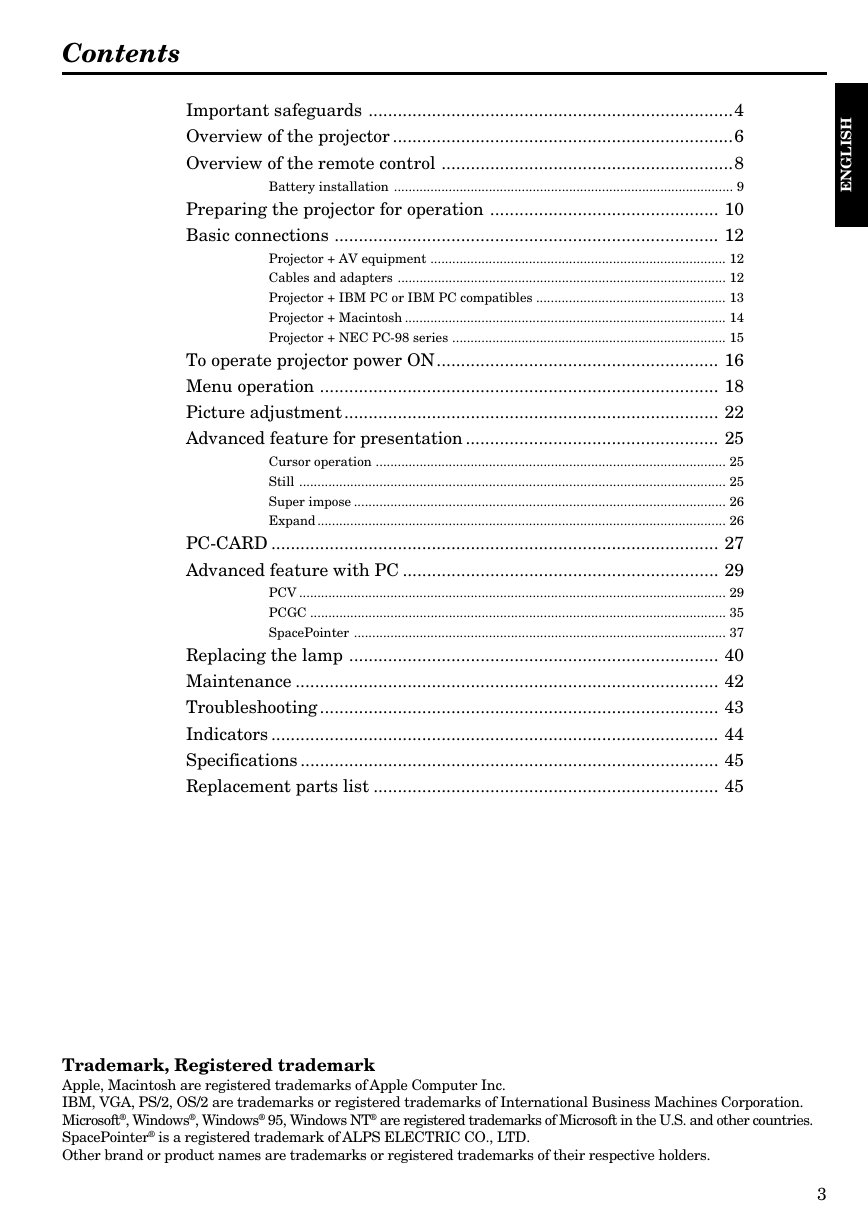

Contents
H
S
I
L
G
N
E
Important safeguards ...........................................................................4
Overview of the projector ......................................................................6
Overview of the remote control ............................................................8
Battery installation ............................................................................................. 9
Preparing the projector for operation ............................................... 10
Basic connections ............................................................................... 12
Projector + AV equipment ................................................................................. 12
Cables and adapters .......................................................................................... 12
Projector + IBM PC or IBM PC compatibles .................................................... 13
Projector + Macintosh ........................................................................................ 14
Projector + NEC PC-98 series ........................................................................... 15
To operate projector power ON.......................................................... 16
Menu operation .................................................................................. 18
Picture adjustment............................................................................. 22
Advanced feature for presentation .................................................... 25
Cursor operation ................................................................................................ 25
Still ..................................................................................................................... 25
Super impose ...................................................................................................... 26
Expand................................................................................................................ 26
PC-CARD ............................................................................................ 27
Advanced feature with PC ................................................................. 29
PCV ..................................................................................................................... 29
PCGC .................................................................................................................. 35
SpacePointer ...................................................................................................... 37
Replacing the lamp ............................................................................ 40
Maintenance ....................................................................................... 42
Troubleshooting .................................................................................. 43
Indicators ............................................................................................ 44
Specifications ...................................................................................... 45
Replacement parts list ....................................................................... 45
Trademark, Registered trademark
Apple, Macintosh are registered trademarks of Apple Computer Inc.
IBM, VGA, PS/2, OS/2 are trademarks or registered trademarks of International Business Machines Corporation.
Microsoft®, Windows®, Windows® 95, Windows NT® are registered trademarks of Microsoft in the U.S. and other countries.
SpacePointer® is a registered trademark of ALPS ELECTRIC CO., LTD.
Other brand or product names are trademarks or registered trademarks of their respective holders.
3

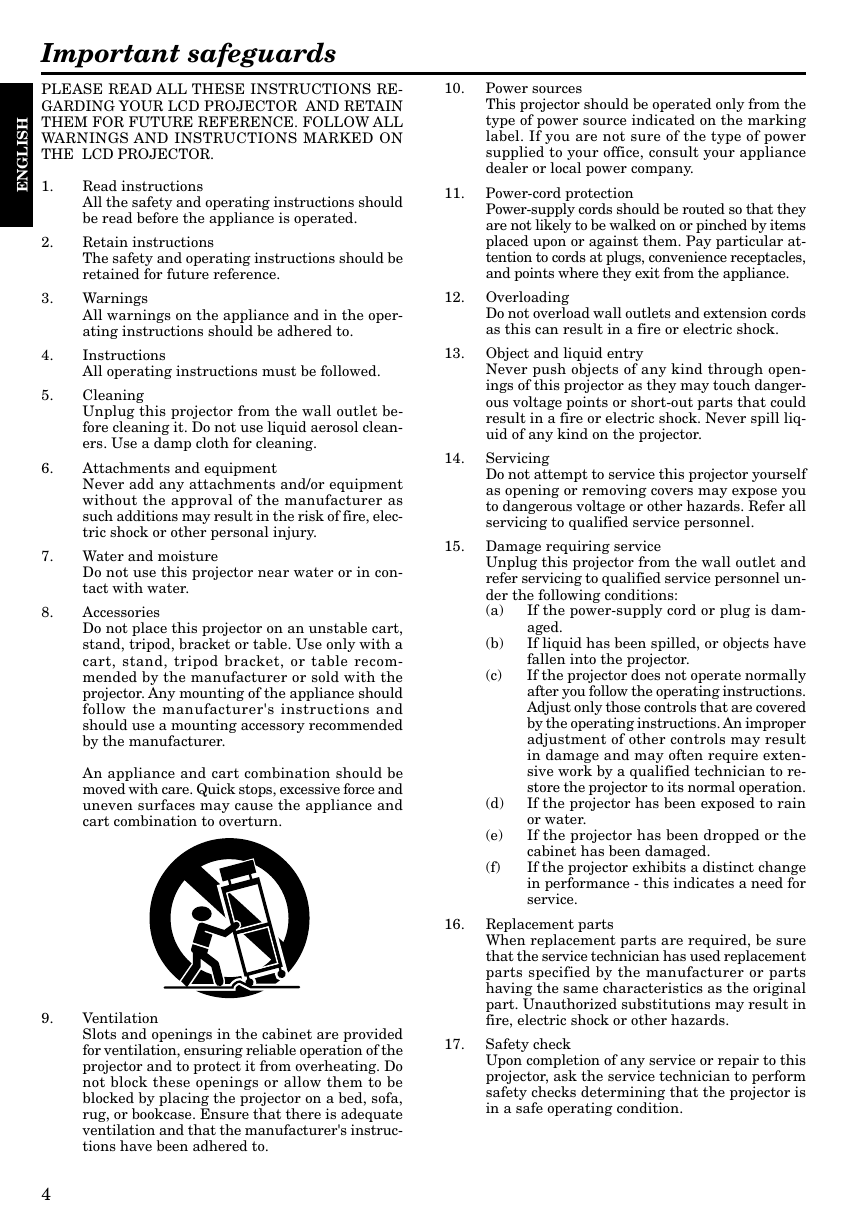

Important safeguards
PLEASE READ ALL THESE INSTRUCTIONS RE-
GARDING YOUR LCD PROJECTOR AND RETAIN
THEM FOR FUTURE REFERENCE. FOLLOW ALL
WARNINGS AND INSTRUCTIONS MARKED ON
THE LCD PROJECTOR.
H
S
I
L
G
N
E
1.
2.
3.
4.
5.
6.
7.
8.
9.
4
Read instructions
All the safety and operating instructions should
be read before the appliance is operated.
Retain instructions
The safety and operating instructions should be
retained for future reference.
Warnings
All warnings on the appliance and in the oper-
ating instructions should be adhered to.
Instructions
All operating instructions must be followed.
Cleaning
Unplug this projector from the wall outlet be-
fore cleaning it. Do not use liquid aerosol clean-
ers. Use a damp cloth for cleaning.
Attachments and equipment
Never add any attachments and/or equipment
without the approval of the manufacturer as
such additions may result in the risk of fire, elec-
tric shock or other personal injury.
Water and moisture
Do not use this projector near water or in con-
tact with water.
Accessories
Do not place this projector on an unstable cart,
stand, tripod, bracket or table. Use only with a
cart, stand, tripod bracket, or table recom-
mended by the manufacturer or sold with the
projector. Any mounting of the appliance should
follow the manufacturer's instructions and
should use a mounting accessory recommended
by the manufacturer.
An appliance and cart combination should be
moved with care. Quick stops, excessive force and
uneven surfaces may cause the appliance and
cart combination to overturn.
10.
11.
Power sources
This projector should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of power
supplied to your office, consult your appliance
dealer or local power company.
Power-cord protection
Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them. Pay particular at-
tention to cords at plugs, convenience receptacles,
and points where they exit from the appliance.
12. Overloading
Do not overload wall outlets and extension cords
as this can result in a fire or electric shock.
13. Object and liquid entry
Never push objects of any kind through open-
ings of this projector as they may touch danger-
ous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liq-
uid of any kind on the projector.
Servicing
Do not attempt to service this projector yourself
as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
14.
15. Damage requiring service
Unplug this projector from the wall outlet and
refer servicing to qualified service personnel un-
der the following conditions:
(a)
(b)
(c)
(d)
(e)
(f)
If the power-supply cord or plug is dam-
aged.
If liquid has been spilled, or objects have
fallen into the projector.
If the projector does not operate normally
after you follow the operating instructions.
Adjust only those controls that are covered
by the operating instructions. An improper
adjustment of other controls may result
in damage and may often require exten-
sive work by a qualified technician to re-
store the projector to its normal operation.
If the projector has been exposed to rain
or water.
If the projector has been dropped or the
cabinet has been damaged.
If the projector exhibits a distinct change
in performance - this indicates a need for
service.
16. Replacement parts
When replacement parts are required, be sure
that the service technician has used replacement
parts specified by the manufacturer or parts
having the same characteristics as the original
part. Unauthorized substitutions may result in
fire, electric shock or other hazards.
Safety check
Upon completion of any service or repair to this
projector, ask the service technician to perform
safety checks determining that the projector is
in a safe operating condition.
Ventilation
Slots and openings in the cabinet are provided
for ventilation, ensuring reliable operation of the
projector and to protect it from overheating. Do
not block these openings or allow them to be
blocked by placing the projector on a bed, sofa,
rug, or bookcase. Ensure that there is adequate
ventilation and that the manufacturer's instruc-
tions have been adhered to.
17.

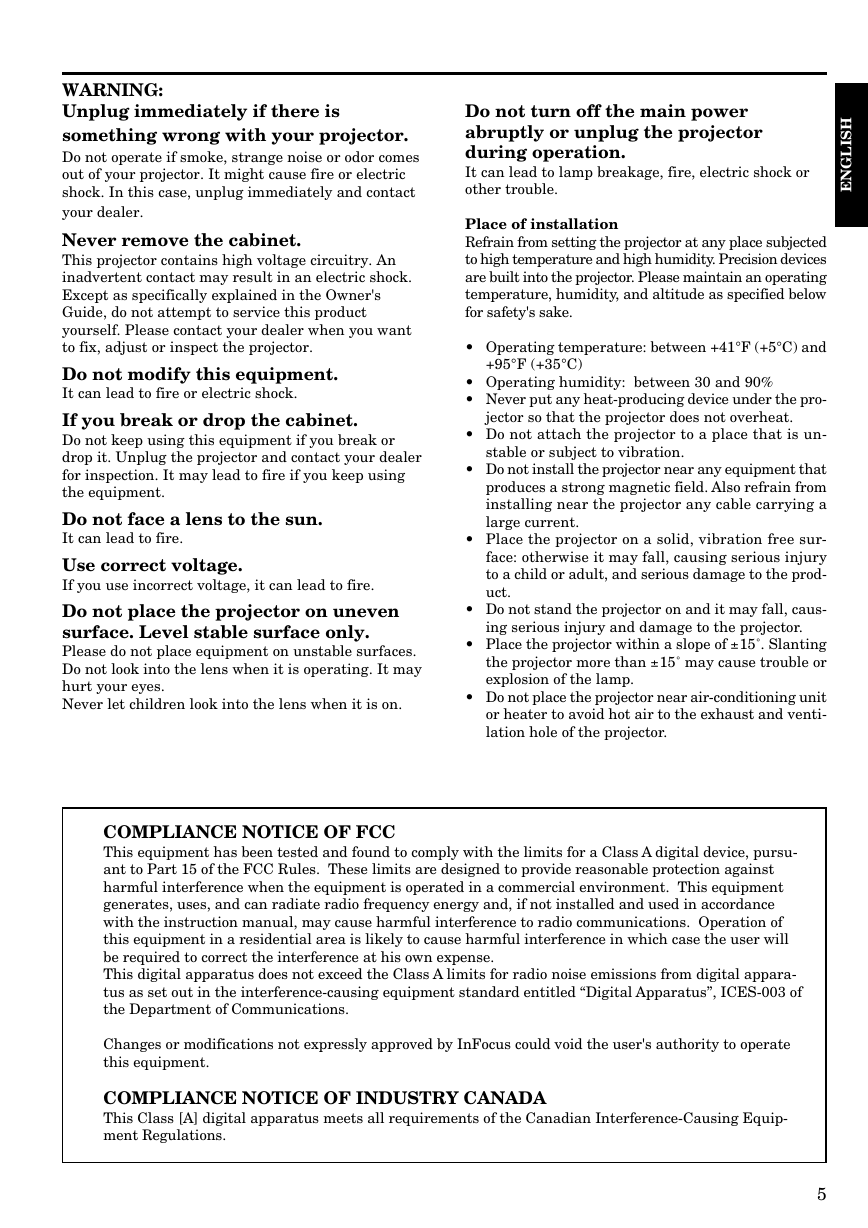

WARNING:
Unplug immediately if there is
something wrong with your projector.
Do not operate if smoke, strange noise or odor comes
out of your projector. It might cause fire or electric
shock. In this case, unplug immediately and contact
your dealer.
Never remove the cabinet.
This projector contains high voltage circuitry. An
inadvertent contact may result in an electric shock.
Except as specifically explained in the Owner's
Guide, do not attempt to service this product
yourself. Please contact your dealer when you want
to fix, adjust or inspect the projector.
Do not modify this equipment.
It can lead to fire or electric shock.
If you break or drop the cabinet.
Do not keep using this equipment if you break or
drop it. Unplug the projector and contact your dealer
for inspection. It may lead to fire if you keep using
the equipment.
Do not face a lens to the sun.
It can lead to fire.
Use correct voltage.
If you use incorrect voltage, it can lead to fire.
Do not place the projector on uneven
surface. Level stable surface only.
Please do not place equipment on unstable surfaces.
Do not look into the lens when it is operating. It may
hurt your eyes.
Never let children look into the lens when it is on.
Do not turn off the main power
abruptly or unplug the projector
during operation.
It can lead to lamp breakage, fire, electric shock or
other trouble.
H
S
I
L
G
N
E
Place of installation
Refrain from setting the projector at any place subjected
to high temperature and high humidity. Precision devices
are built into the projector. Please maintain an operating
temperature, humidity, and altitude as specified below
for safety's sake.
• Operating temperature: between +41 F (+5 C) and
+95 F (+35 C)
• Operating humidity: between 30 and 90%
• Never put any heat-producing device under the pro-
jector so that the projector does not overheat.
• Do not attach the projector to a place that is un-
stable or subject to vibration.
• Do not install the projector near any equipment that
produces a strong magnetic field. Also refrain from
installing near the projector any cable carrying a
large current.
• Place the projector on a solid, vibration free sur-
face: otherwise it may fall, causing serious injury
to a child or adult, and serious damage to the prod-
uct.
• Do not stand the projector on and it may fall, caus-
ing serious injury and damage to the projector.
• Place the projector within a slope of – 15˚. Slanting
the projector more than – 15˚ may cause trouble or
explosion of the lamp.
• Do not place the projector near air-conditioning unit
or heater to avoid hot air to the exhaust and venti-
lation hole of the projector.
COMPLIANCE NOTICE OF FCC
This equipment has been tested and found to comply with the limits for a Class A digital device, pursu-
ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital appara-
tus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of
the Department of Communications.
Changes or modifications not expressly approved by InFocus could void the user's authority to operate
this equipment.
COMPLIANCE NOTICE OF INDUSTRY CANADA
This Class [A] digital apparatus meets all requirements of the Canadian Interference-Causing Equip-
ment Regulations.
5
Overview of the projector
lamp lid
Caution:
Do not replace the lamp right after using the projector. The lamp is
very hot. Switch the projector to stand-by mode, wait at least 120
seconds for the lamp and LCD panel to cool. Then turn off the main
power switch, unplug from the outlet and wait for another one hour or
until the lamp is cool to the touch. See page 40.
H
S
I
L
G
N
E
exhaust slits
handle
Hold here to carry this projector.
remote control sensor (Front / Rear)
release button
Press to adjust the angle of projection. See page 11.
power indicator
When the main power switch is on in stand-by mode, this indicator lights up red. When the projector
is fully "ON", the indicator lights up green. See page 44.
lamp indicator
This informs you of the status of the light source lamp and its service life. When the projector
lamp is lit, the indicator lights up in green. When operation time of the light source lamp has
exceeded 1,000 hours, the indicator will flash alternately between red and green (while the lamp
is in use). When the lamp is exhausted, the indicator will show red only. When the lamp is used
up to 1,300 hours, the projector automatically shuts off. See pages 40 and 44.
temperature indicator
This informs you of the thermal condition inside the projector. When the inside
temperature is extremely high, the power automatically shuts off while the indicator
blinks red. See page 44.
PC card indicator
When the PC card is inserted, these indicators light up. See page 27.
LAMP
TEMP
CARD 1
CARD 2
RGB
VIDEO CARD
MENU
FINE
FOCUS
/ZOOM
AUTO
POSITION
ENTER
auto position
Use to adjust the position
of Personal computer
image. See page 16.
input source
(RGB, VIDEO, CARD)
Use to select the input
source you wish to watch.
menu
Use to project menu display.
fine ( , )
Use to make FINE adjustment etc. See the table as shown below.
» »
focus / zoom
Use to change the mode of the adjust
buttons, focus or zoom etc. See the table
as shown below.
» , …
Use to make FOCUS or ZOOM adjustments etc.
See the table as shown below.
power
Use to turn the projector on or off when MAIN POWER is on. To turn the projector off, press this button twice.
Important:
When the lamp indicator lights up in green, the power switch cannot be used to switch “ON” and “OFF.”
Begin operation only after the indicator has stopped blinking.
FINE, ……………, »»»»», FOCUS/ZOOM and AUTO POSITION buttons
The operations of these buttons vary as follows depending on the modes selected:
FINE (
)
FINE (
)
……………
»»»»»
FOCUS / ZOOM
AUTO POSITION
Normal
Adjust FINE (-)
Adjust FINE(+)
Adjust FOCUS or
Adjust FOCUS or
FOCUS or ZOOM
ZOOM (-)
ZOOM (+)
setting
Adjust position
when incorrect
On Menu
On PC
card Menu
Select the setting
Select the setting
Set the setting
Set the setting
Enter the layer
item (Left)
item (Right)
Select previous
image (Left)
Select next
image (Right)
item
Select
item
Select
INDEX or FILE
INDEX or FILE
setting
Select the
group (-)
–
Select the
group (+)
6

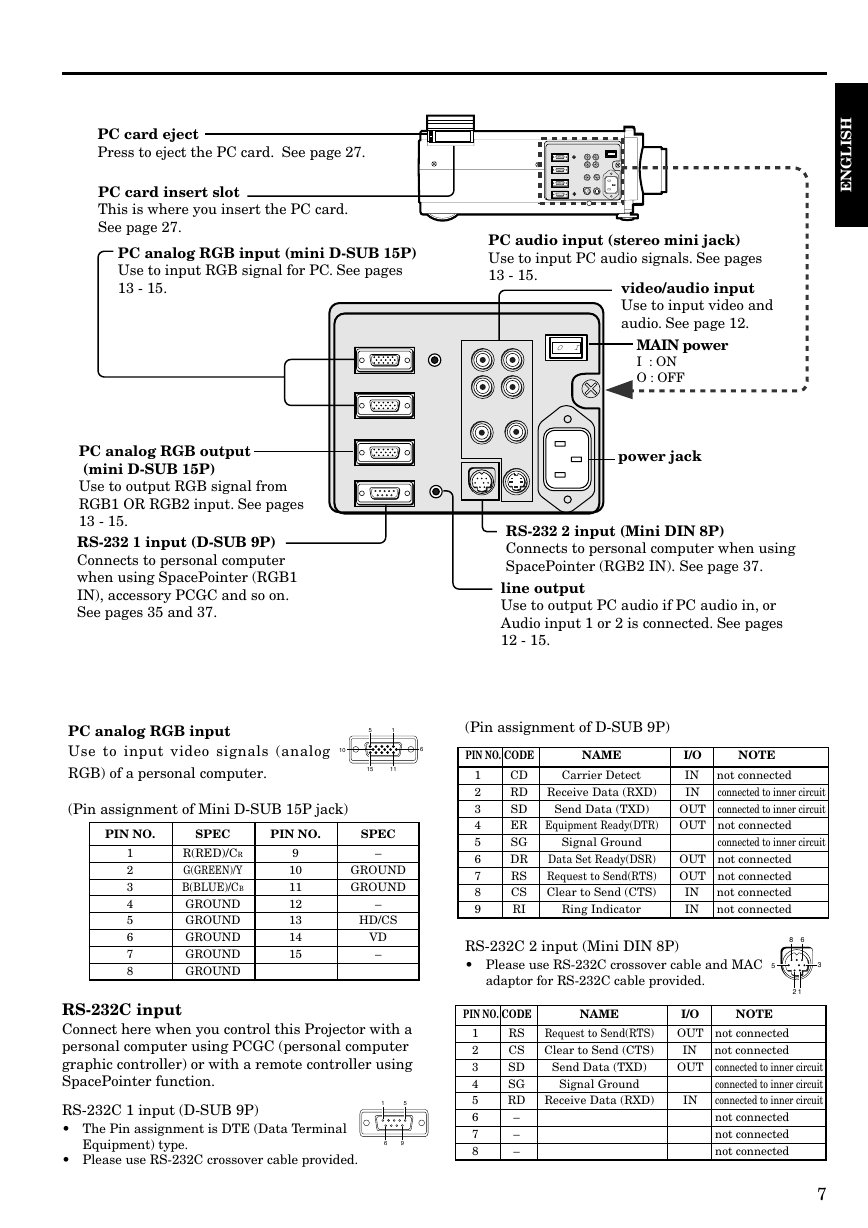

PC card eject
Press to eject the PC card. See page 27.
PC card insert slot
This is where you insert the PC card.
See page 27.
PC analog RGB input (mini D-SUB 15P)
Use to input RGB signal for PC. See pages
13 - 15.
PC analog RGB output
(mini D-SUB 15P)
Use to output RGB signal from
RGB1 OR RGB2 input. See pages
13 - 15.
RS-232 1 input (D-SUB 9P)
Connects to personal computer
when using SpacePointer (RGB1
IN), accessory PCGC and so on.
See pages 35 and 37.
PC analog RGB input
Use to input video signals (analog
RGB) of a personal computer.
5
1
10
6
15
11
(Pin assignment of Mini D-SUB 15P jack)
PIN NO.
SPEC
PIN NO.
SPEC
1
2
3
4
5
6
7
8
R(RED)/CR
G(GREEN)/Y
B(BLUE)/CB
GROUND
GROUND
GROUND
GROUND
GROUND
9
10
11
12
13
14
15
–
GROUND
GROUND
–
HD/CS
VD
–
RS-232C input
Connect here when you control this Projector with a
personal computer using PCGC (personal computer
graphic controller) or with a remote controller using
SpacePointer function.
RS-232C 1 input (D-SUB 9P)
• The Pin assignment is DTE (Data Terminal
Equipment) type.
• Please use RS-232C crossover cable provided.
1
5
6
9
O I
H
S
I
L
G
N
E
PC audio input (stereo mini jack)
Use to input PC audio signals. See pages
13 - 15.
video/audio input
Use to input video and
audio. See page 12.
O I
MAIN power
I : ON
O : OFF
power jack
RS-232 2 input (Mini DIN 8P)
Connects to personal computer when using
SpacePointer (RGB2 IN). See page 37.
line output
Use to output PC audio if PC audio in, or
Audio input 1 or 2 is connected. See pages
12 - 15.
(Pin assignment of D-SUB 9P)
PIN NO. CODE
CD
RD
SD
ER
SG
DR
RS
CS
RI
1
2
3
4
5
6
7
8
9
NAME
Carrier Detect
Receive Data (RXD)
Send Data (TXD)
Equipment Ready(DTR)
Signal Ground
Data Set Ready(DSR)
Request to Send(RTS)
Clear to Send (CTS)
Ring Indicator
I/O NOTE
IN not connected
IN connected to inner circuit
OUT connected to inner circuit
OUT not connected
connected to inner circuit
OUT not connected
OUT not connected
IN not connected
IN not connected
RS-232C 2 input (Mini DIN 8P)
• Please use RS-232C crossover cable and MAC
adaptor for RS-232C cable provided.
8
6
5
3
2
1
PIN NO. CODE
RS
CS
SD
SG
RD
–
–
–
1
2
3
4
5
6
7
8
NAME
Request to Send(RTS)
Clear to Send (CTS)
Send Data (TXD)
Signal Ground
Receive Data (RXD)
I/O NOTE
OUT not connected
IN not connected
OUT connected to inner circuit
connected to inner circuit
IN connected to inner circuit
not connected
not connected
not connected
7

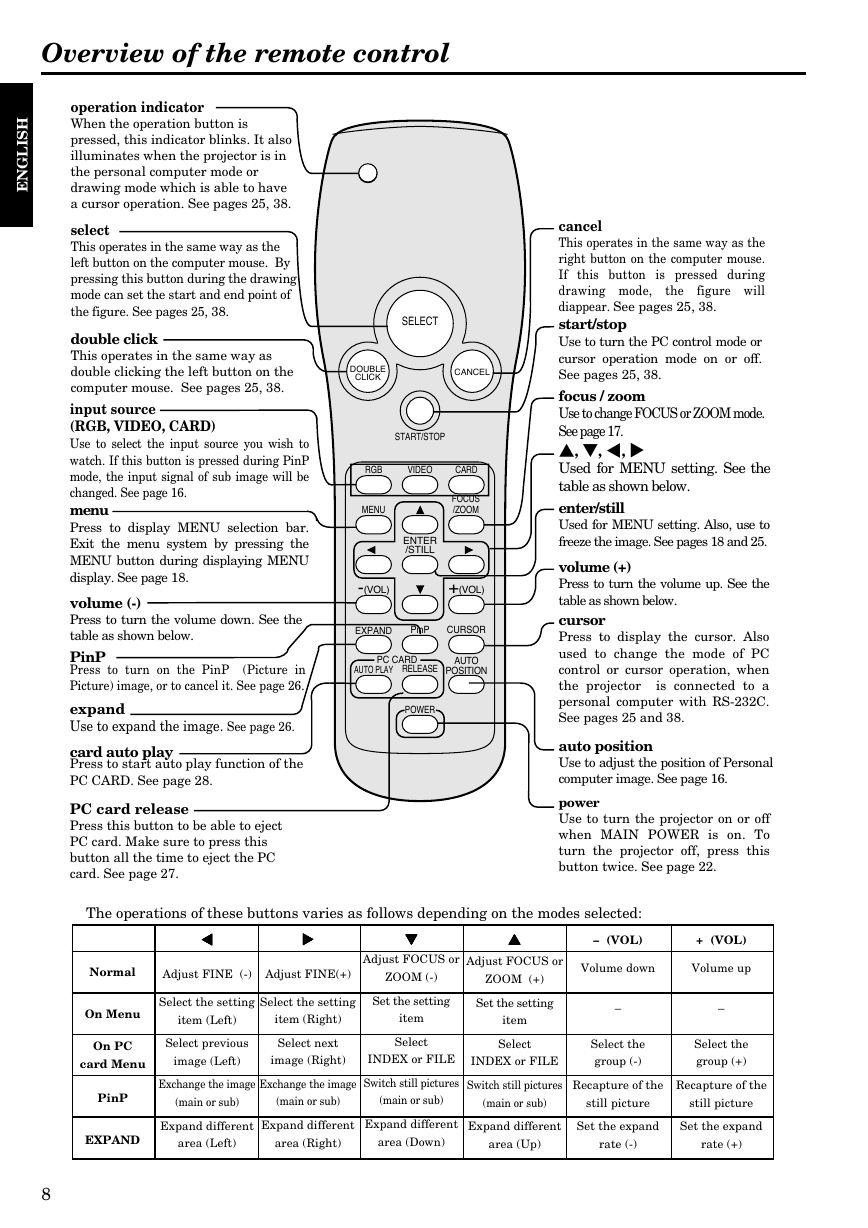

Overview of the remote control
operation indicator
When the operation button is
pressed, this indicator blinks. It also
illuminates when the projector is in
the personal computer mode or
drawing mode which is able to have
a cursor operation. See pages 25, 38.
select
This operates in the same way as the
left button on the computer mouse. By
pressing this button during the drawing
mode can set the start and end point of
the figure. See pages 25, 38.
double click
This operates in the same way as
double clicking the left button on the
computer mouse. See pages 25, 38.
input source
(RGB, VIDEO, CARD)
Use to select the input source you wish to
watch. If this button is pressed during PinP
mode, the input signal of sub image will be
changed. See page 16.
menu
Press to display MENU selection bar.
Exit the menu system by pressing the
MENU button during displaying MENU
display. See page 18.
volume (-)
Press to turn the volume down. See the
table as shown below.
PinP
Press to turn on the PinP (Picture in
Picture) image, or to cancel it. See page 26.
expand
Use to expand the image. See page 26.
card auto play
Press to start auto play function of the
PC CARD. See page 28.
PC card release
Press this button to be able to eject
PC card. Make sure to press this
button all the time to eject the PC
card. See page 27.
SELECT
DOUBLE
CLICK
CANCEL
START/STOP
RGB
VIDEO
CARD
MENU
FOCUS
/ZOOM
ENTER
/STILL
-(VOL)
+(VOL)
EXPAND
PinP
CURSOR
PC CARD
AUTO PLAY
RELEASE
AUTO
POSITION
POWER
the
cancel
This operates in the same way as the
right button on the computer mouse.
If this button is pressed during
drawing mode,
figure will
diappear. See pages 25, 38.
start/stop
Use to turn the PC control mode or
cursor operation mode on or off.
See pages 25, 38.
focus / zoom
Use to change FOCUS or ZOOM mode.
See page 17.
{, }, $, %
Used for MENU setting. See the
table as shown below.
enter/still
Used for MENU setting. Also, use to
freeze the image. See pages 18 and 25.
volume (+)
Press to turn the volume up. See the
table as shown below.
cursor
Press to display the cursor. Also
used to change the mode of PC
control or cursor operation, when
the projector is connected to a
personal computer with RS-232C.
See pages 25 and 38.
auto position
Use to adjust the position of Personal
computer image. See page 16.
power
Use to turn the projector on or off
when MAIN POWER is on. To
turn the projector off, press this
button twice. See page 22.
The operations of these buttons varies as follows depending on the modes selected:
$$$$$
%%%%%
}}}}}
{{{{{
– (VOL)
+ (VOL)
Normal
Adjust FINE (-)
Adjust FINE(+)
Adjust FOCUS or
Adjust FOCUS or
ZOOM (-)
ZOOM (+)
Volume down
Volume up
On Menu
On PC
card Menu
Select the setting
Select the setting
Set the setting
Set the setting
item (Left)
item (Right)
Select previous
image (Left)
Select next
image (Right)
item
Select
item
Select
INDEX or FILE
INDEX or FILE
–
–
Select the
group (-)
Select the
group (+)
PinP
Exchange the image
Exchange the image
Switch still pictures
Switch still pictures
Recapture of the
Recapture of the
(main or sub)
(main or sub)
(main or sub)
(main or sub)
still picture
still picture
EXPAND
Expand different
Expand different
Expand different
Expand different
Set the expand
Set the expand
area (Left)
area (Right)
area (Down)
area (Up)
rate (-)
rate (+)
H
S
I
L
G
N
E
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
