Multimedia Projector MODEL PDG-DSU30 Owner's Manual

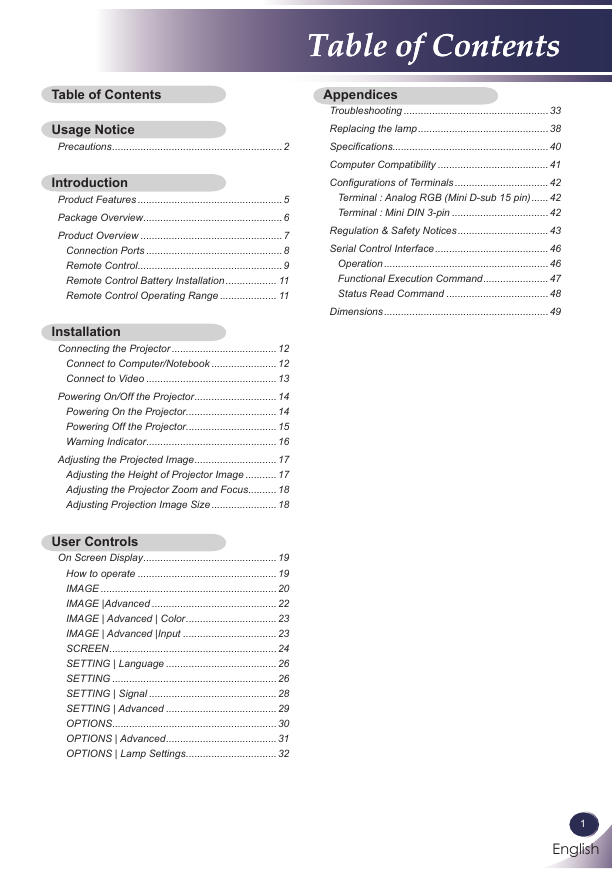

Table of Contents Table of Contents Appendices Troubleshooting ...................................................33 Replacing the lamp ..............................................38 Specifications.......................................................40 Computer Compatibility .......................................41 Configurations of Terminals .................................42 Terminal : Analog RGB (Mini D-sub 15 pin) ......42 Terminal : Mini DIN 3-pin ..................................42 Regulation & Safety Notices ................................43 Serial Control Interface ........................................46 Operation ..........................................................46 Functional Execution Command .......................47 Status Read Command ....................................48 Dimensions ..........................................................49 Table of Contents Usage Notice Precautions ............................................................2 Introduction Product Features ...................................................5 Package Overview .................................................6 Product Overview ..................................................7 Connection Ports ................................................8 Remote Control ...................................................9 Remote Control Battery Installation .................. 11 Remote Control Operating Range .................... 11 Installation Connecting the Projector .....................................12 Connect to Computer/Notebook .......................12 Connect to Video ..............................................13 Powering On/Off the Projector .............................14 Powering On the Projector ................................14 Powering Off the Projector ................................15 Warning Indicator ..............................................16 Adjusting the Projected Image .............................17 Adjusting the Height of Projector Image ...........17 Adjusting the Projector Zoom and Focus ..........18 Adjusting Projection Image Size .......................18 User Controls On Screen Display ...............................................19 How to operate .................................................19 IMAGE ..............................................................20 IMAGE |Advanced ............................................22 IMAGE | Advanced | Color ................................23 IMAGE | Advanced |Input .................................23 SCREEN ...........................................................24 SETTING | Language .......................................26 SETTING ..........................................................26 SETTING | Signal .............................................28 SETTING | Advanced .......................................29 OPTIONS ..........................................................30 OPTIONS | Advanced .......................................31 OPTIONS | Lamp Settings ................................32 1 English English

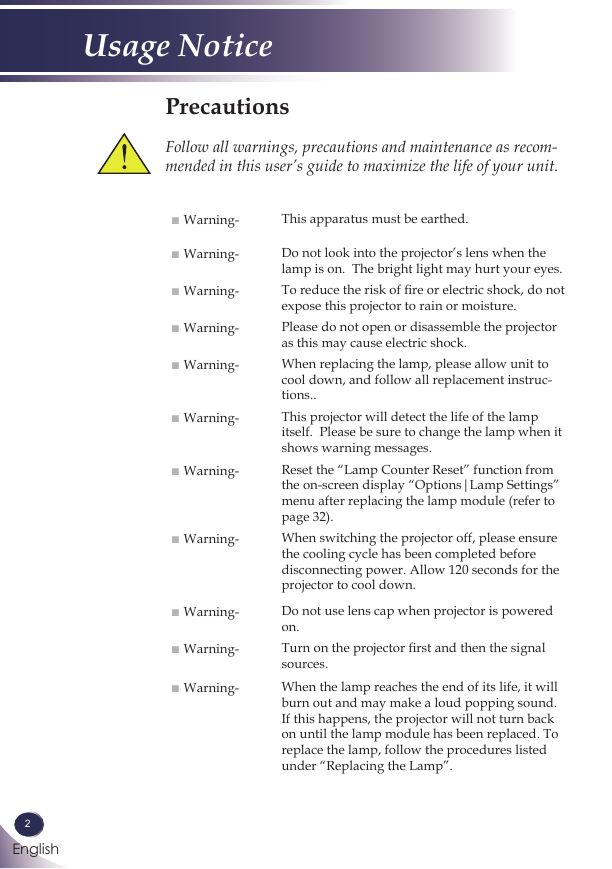

Usage Notice Precautions Follow all warnings, precautions and maintenance as recom- mended in this user’s guide to maximize the life of your unit. ■ Warning- ■ Warning- ■ Warning- ■ Warning- ■ Warning- ■ Warning- ■ Warning- ■ Warning- ■ Warning- ■ Warning- ■ Warning- This apparatus must be earthed. Do not look into the projector’s lens when the lamp is on. The bright light may hurt your eyes. To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture. Please do not open or disassemble the projector as this may cause electric shock. When replacing the lamp, please allow unit to cool down, and follow all replacement instruc- tions.. This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages. Reset the “Lamp Counter Reset” function from the on-screen display “Options|Lamp Settings” menu after replacing the lamp module (refer to page 32). When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 120 seconds for the projector to cool down. Do not use lens cap when projector is powered on. Turn on the projector first and then the signal sources. When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp”. 2 English

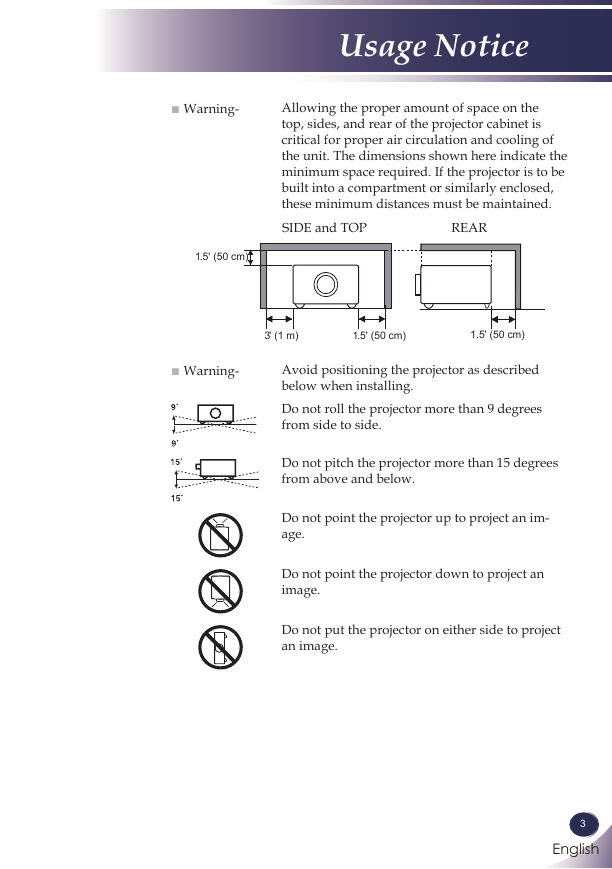

■ Warning- 1.5' (50 cm) ■ Warning- Usage Notice Allowing the proper amount of space on the top, sides, and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The dimensions shown here indicate the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained. SIDE and TOP REAR 3' (1 m) 1.5' (50 cm) 1.5' (50 cm) Avoid positioning the projector as described below when installing. Do not roll the projector more than 9 degrees from side to side. Do not pitch the projector more than 15 degrees from above and below. Do not point the projector up to project an im- age. Do not point the projector down to project an image. Do not put the projector on either side to project an image. 3 English English

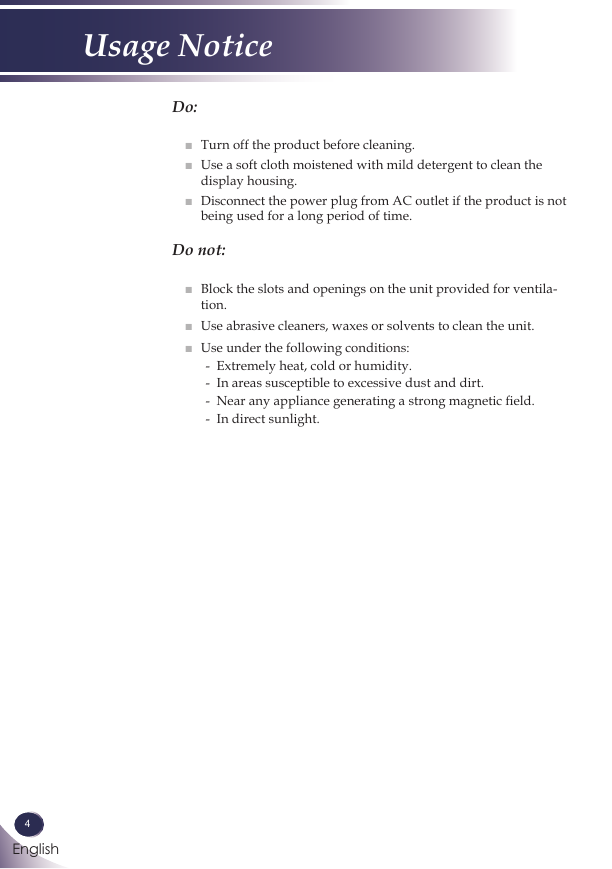

Usage Notice Do: ■ Turn off the product before cleaning. ■ Use a soft cloth moistened with mild detergent to clean the display housing. ■ Disconnect the power plug from AC outlet if the product is not being used for a long period of time. Do not: ■ Block the slots and openings on the unit provided for ventila- tion. ■ Use abrasive cleaners, waxes or solvents to clean the unit. ■ Use under the following conditions: - Extremely heat, cold or humidity. - In areas susceptible to excessive dust and dirt. - Near any appliance generating a strong magnetic field. - In direct sunlight. 4 English

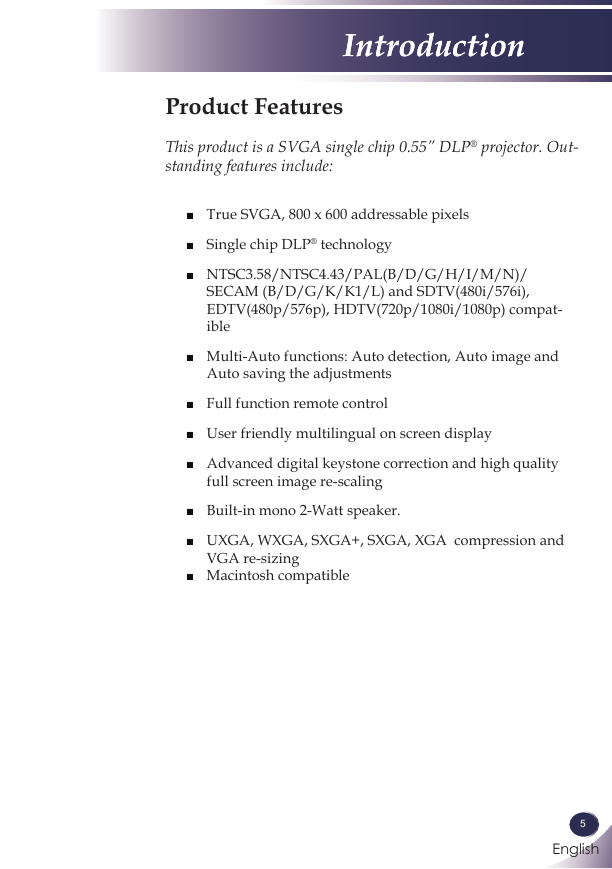

Introduction Introduction Product Features This product is a SVGA single chip 0.55” DLP® projector. Out- standing features include: ■ True SVGA, 800 x 600 addressable pixels ■ Single chip DLP® technology ■ NTSC3.58/NTSC4.43/PAL(B/D/G/H/I/M/N)/ SECAM (B/D/G/K/K1/L) and SDTV(480i/576i), EDTV(480p/576p), HDTV(720p/1080i/1080p) compat- ible ■ Multi-Auto functions: Auto detection, Auto image and Auto saving the adjustments ■ Full function remote control ■ User friendly multilingual on screen display ■ ■ ■ Advanced digital keystone correction and high quality full screen image re-scaling Built-in mono 2-Watt speaker. UXGA, WXGA, SXGA+, SXGA, XGA compression and VGA re-sizing ■ Macintosh compatible 5 English English

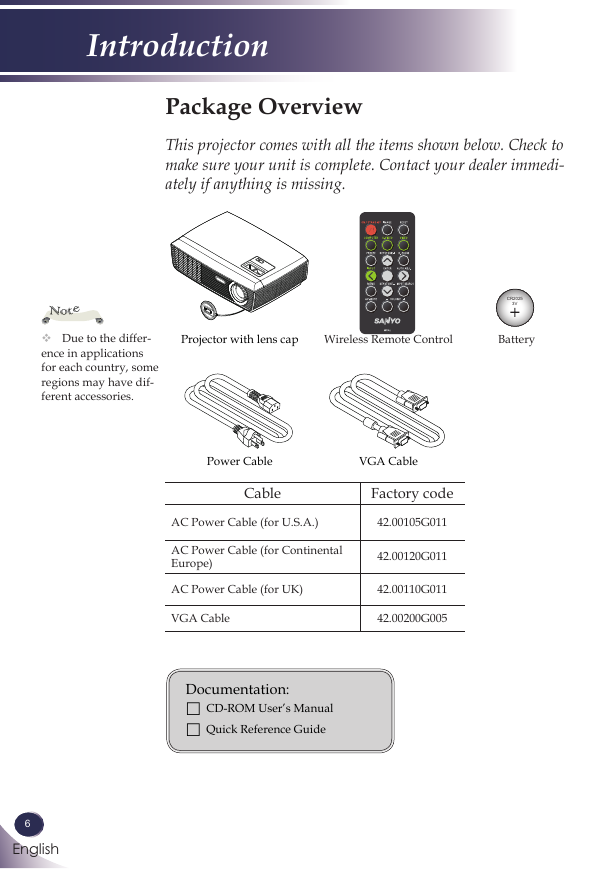

Introduction Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immedi- ately if anything is missing. Projector with lens cap Wireless Remote Control Battery CR2025 3V e No t  Due to the differ- ence in applications for each country, some regions may have dif- ferent accessories. Power Cable VGA Cable Cable Factory code AC Power Cable (for U.S.A.) 42.00105G011 AC Power Cable (for Continental Europe) AC Power Cable (for UK) VGA Cable 42.00120G011 42.00110G011 42.00200G005 Documentation:  CD-ROM User’s Manual  Quick Reference Guide 6 English

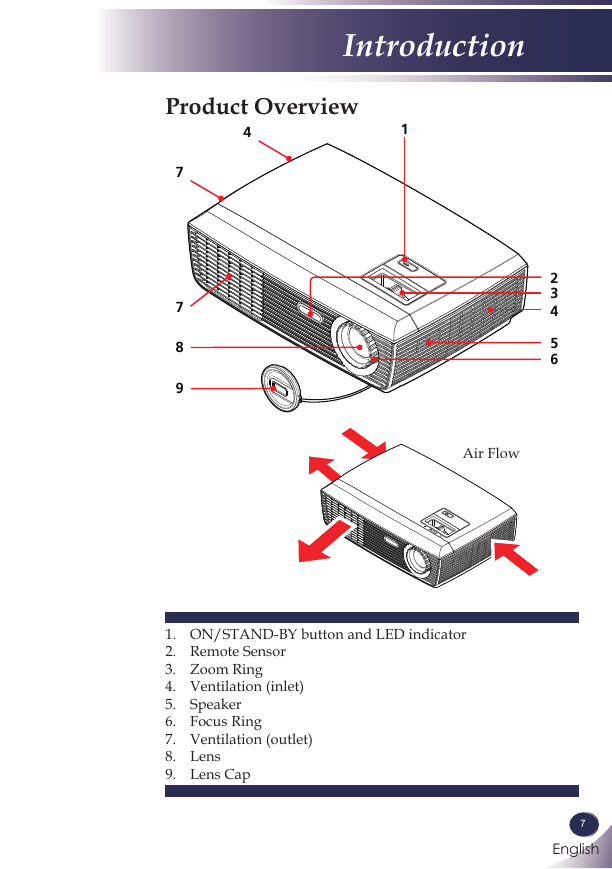

Introduction Product Overview 4 1 7 7 8 9 2 3 4 5 6 Air Flow 1. ON/STAND-BY button and LED indicator 2. Remote Sensor 3. Zoom Ring 4. Ventilation (inlet) 5. Speaker 6. Focus Ring 7. Ventilation (outlet) 8. Lens 9. Lens Cap 7 English English
