Introduction

Tips and Shortcuts

Manual Conventions

Quick Links

Getting Started

Unit Overview

Turning the Unit On or Off

Adjusting the Backlight

Acquiring GPS Satellite Signals

Inserting and Removing SD Cards

Restoring Factory Settings

Viewing System Information

Using the Simulator Mode

Understanding the Home Screen

Using Charts

Using the Navigation Chart

Zooming In and Out on the Map

Navigation Chart Settings

Understanding Chart Data

Navigating to a Point on the Chart

Panning the Navigation Chart

Accessing Additional Object Information

Viewing Tide-Station Information

Using Mariner’s Eye

Mariner’s Eye Settings

Changing the Chart Settings

Changing the Chart Appearance

Using Tracks

Using BlueChart g2 Vision

Using Mariner’s Eye 3D

Mariner’s Eye 3D Settings

Using Fish Eye 3D

Fish Eye 3D Settings

Using Fishing Charts

Enabling High-Resolution Satellite Imagery

Viewing Aerial Photos

Viewing Current Station Information

Detailed Road and POI Data

Using Automatic Guidance

Using Combinations

Where To?

Navigating to a Destination

Creating and Using Waypoints

Creating and Using Routes

Viewing Information

Viewing Tide Station Information

Viewing Current Information

Viewing Celestial Information

Viewing User Data

Viewing Other Boats

Viewing Engine Gauges

Viewing Fuel Gauges

Viewing Video

Configuring the Chartplotter

Configuring System Settings

Changing Units of Measure

Configuring Communications Settings

Setting Alarms

Setting Navigation Alarms

Setting System Alarms

Setting Sonar Alarms

Configuring My Boat

Configuring Other Boats

Using the Garmin Marine Network

Viewing Connected Garmin Marine Network Devices

Using Radar

Understanding the Cruising Screen

Cruising Screen Settings

Targeting on the Cruising Screen

Understanding the Radar Overlay Screen

Using Sonar

Understanding the Full Screen

Understanding the Split Zoom Screen

Understanding the Split Frequency Screen

Understanding the Temp Log

Setting Up Sonar

Advanced Sonar Settings

Appendix

Specifications

Physical Specifications

GPS Performance (with GPS 17 antenna)

Power

NMEA 2000 Specifications:

Initializing Unit Settings

Calibrating the Touchscreen

Alarms and Messages

Product Registration

Contact Garmin

Declaration of Conformity (DoC)

Software License Agreement

NMEA 0183 and NMEA 2000

NMEA 0183

Approved NMEA 0183 sentences:

NMEA 2000

Index

GPSMAP® 4000/5000 Series owner’s manual

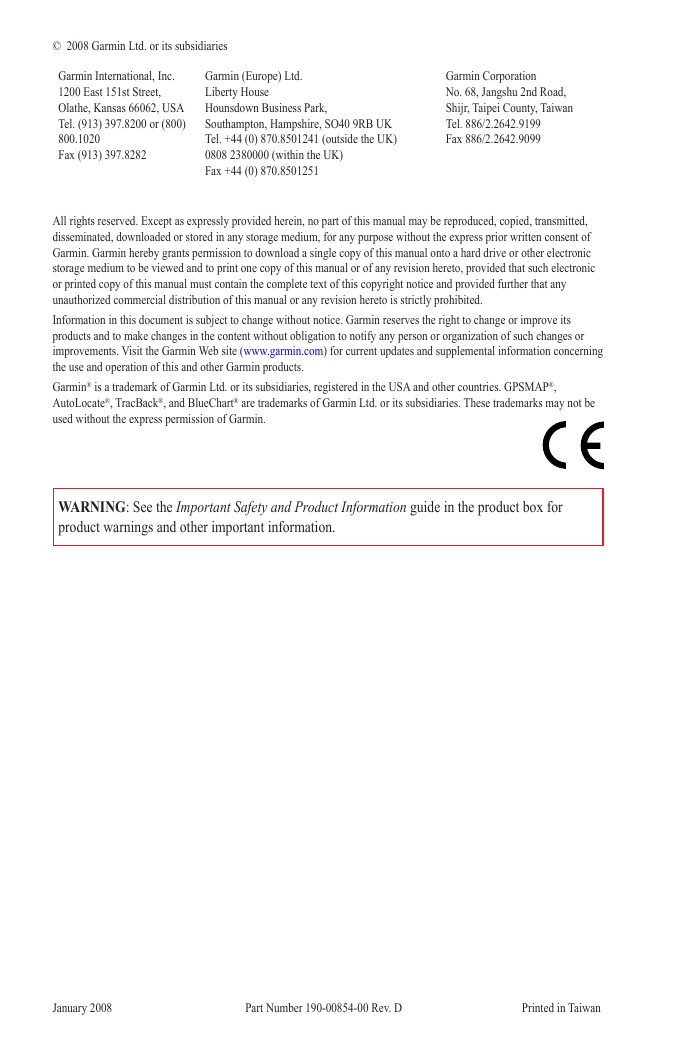

© 2008 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA Tel. (913) 397.8200 or (800) 800.1020 Fax (913) 397.8282 Garmin (Europe) Ltd. Liberty House Hounsdown Business Park, Southampton, Hampshire, SO40 9RB UK Tel. +44 (0) 870.8501241 (outside the UK) 0808 2380000 (within the UK) Fax +44 (0) 870.8501251 Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin® is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. GPSMAP®, AutoLocate®, TracBack®, and BlueChart® are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. WARNING: See the Important Safety and Product Information guide in the product box for product warnings and other important information. January 2008 Part Number 190-00854-00 Rev. D Printed in Taiwan

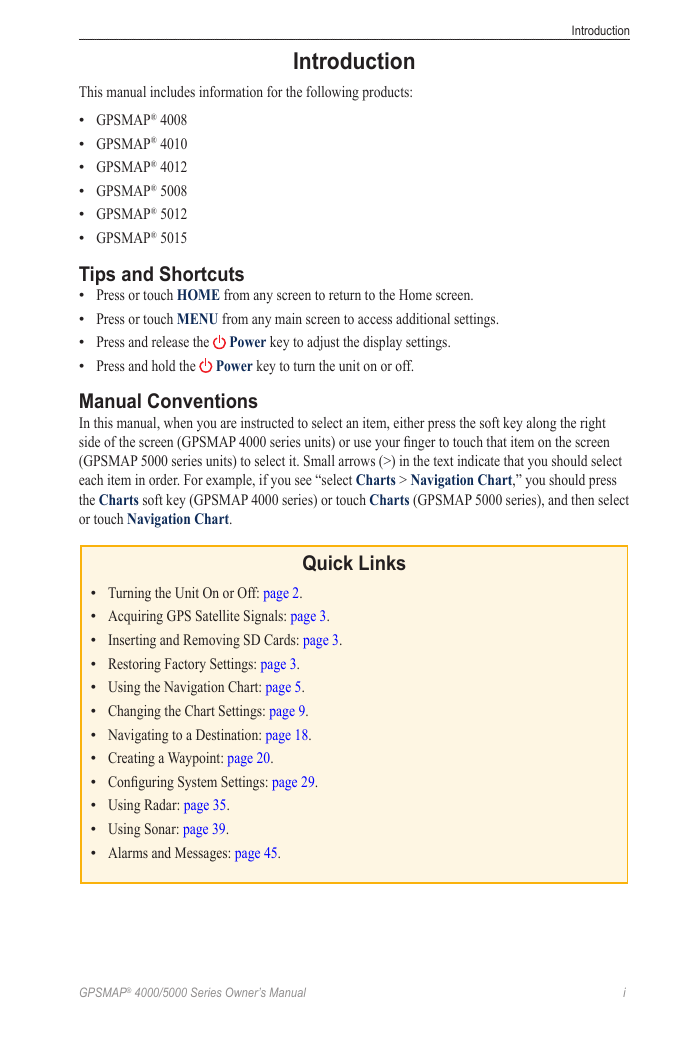

Introduction GPSMAP® 4008 GPSMAP® 4010 GPSMAP® 4012 GPSMAP® 5008 GPSMAP® 5012 GPSMAP® 5015 Introduction This manual includes information for the following products: • • • • • • Tips and Shortcuts • • • • Manual Conventions In this manual, when you are instructed to select an item, either press the soft key along the right side of the screen (GPSMAP 4000 series units) or use your finger to touch that item on the screen (GPSMAP 5000 series units) to select it. Small arrows (>) in the text indicate that you should select each item in order. For example, if you see “select Charts > Navigation Chart,” you should press the Charts soft key (GPSMAP 4000 series) or touch Charts (GPSMAP 5000 series), and then select or touch Navigation Chart. Press or touch HOME from any screen to return to the Home screen. Press or touch MENU from any main screen to access additional settings. Press and release the Press and hold the Power key to adjust the display settings. Power key to turn the unit on or off. Quick Links • • • • • • • • • • • • Turning the Unit On or Off: page 2. Acquiring GPS Satellite Signals: page 3. Inserting and Removing SD Cards: page 3. Restoring Factory Settings: page 3. Using the Navigation Chart: page 5. Changing the Chart Settings: page 9. Navigating to a Destination: page 18. Creating a Waypoint: page 20. Configuring System Settings: page 29. Using Radar: page 35. Using Sonar: page 39. Alarms and Messages: page 45. GPSMAP® 4000/5000 Series Owner’s Manual i

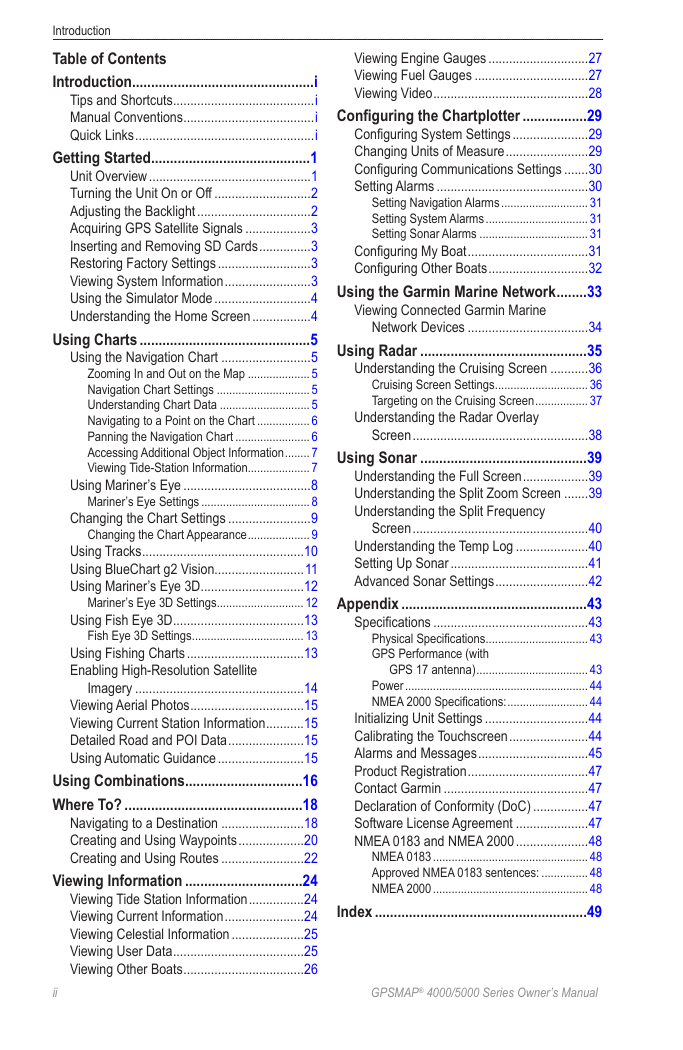

Introduction Table of Contents Introduction ................................................i Tips and Shortcuts .........................................i Manual Conventions ......................................i Quick Links ....................................................i Getting Started ..........................................1 Unit Overview ...............................................1 Turning the Unit On or Off ............................2 Adjusting the Backlight .................................2 Acquiring GPS Satellite Signals ...................3 Inserting and Removing SD Cards ...............3 Restoring Factory Settings ...........................3 Viewing System Information .........................3 Using the Simulator Mode ............................4 Understanding the Home Screen .................4 Using Charts .............................................5 Using the Navigation Chart ..........................5 Zooming In and Out on the Map .................... 5 Navigation Chart Settings .............................. 5 Understanding Chart Data ............................. 5 Navigating to a Point on the Chart ................. 6 Panning the Navigation Chart ........................ 6 Accessing Additional Object Information ........ 7 Viewing Tide-Station Information.................... 7 Using Mariner’s Eye .....................................8 Mariner’s Eye Settings ................................... 8 Changing the Chart Settings ........................9 Changing the Chart Appearance .................... 9 Using Tracks ...............................................10 Using BlueChart g2 Vision..........................11 Using Mariner’s Eye 3D ..............................12 Mariner’s Eye 3D Settings ............................ 12 Using Fish Eye 3D ......................................13 Fish Eye 3D Settings .................................... 13 Using Fishing Charts ..................................13 Enabling High-Resolution Satellite Imagery .................................................14 Viewing Aerial Photos .................................15 Viewing Current Station Information ...........15 Detailed Road and POI Data ......................15 Using Automatic Guidance .........................15 Using Combinations ...............................16 Where To? ...............................................18 Navigating to a Destination ........................18 Creating and Using Waypoints ...................20 Creating and Using Routes ........................22 Viewing Information ...............................24 Viewing Tide Station Information ................24 Viewing Current Information .......................24 Viewing Celestial Information .....................25 Viewing User Data ......................................25 Viewing Other Boats ...................................26 Viewing Engine Gauges .............................27 Viewing Fuel Gauges .................................27 Viewing Video .............................................28 Configuring the Chartplotter .................29 Configuring System Settings ......................29 Changing Units of Measure ........................29 Configuring Communications Settings .......30 Setting Alarms ............................................30 Setting Navigation Alarms ............................ 31 Setting System Alarms ................................. 31 Setting Sonar Alarms ................................... 31 Configuring My Boat ...................................31 Configuring Other Boats .............................32 Using the Garmin Marine Network ........33 Viewing Connected Garmin Marine Network Devices ...................................34 Using Radar ............................................35 Understanding the Cruising Screen ...........36 Cruising Screen Settings .............................. 36 Targeting on the Cruising Screen ................. 37 Understanding the Radar Overlay Screen ...................................................38 Using Sonar ............................................39 Understanding the Full Screen ...................39 Understanding the Split Zoom Screen .......39 Understanding the Split Frequency Screen ...................................................40 Understanding the Temp Log .....................40 Setting Up Sonar ........................................41 Advanced Sonar Settings ...........................42 Appendix .................................................43 Specifications .............................................43 Physical Specifications ................................. 43 GPS Performance (with GPS 17 antenna) .................................... 43 Power ........................................................... 44 NMEA 2000 Specifications: .......................... 44 Initializing Unit Settings ..............................44 Calibrating the Touchscreen .......................44 Alarms and Messages ................................45 Product Registration ...................................47 Contact Garmin ..........................................47 Declaration of Conformity (DoC) ................47 Software License Agreement .....................47 NMEA 0183 and NMEA 2000 .....................48 NMEA 0183 .................................................. 48 Approved NMEA 0183 sentences: ............... 48 NMEA 2000 .................................................. 48 Index ........................................................49 ii GPSMAP® 4000/5000 Series Owner’s Manual

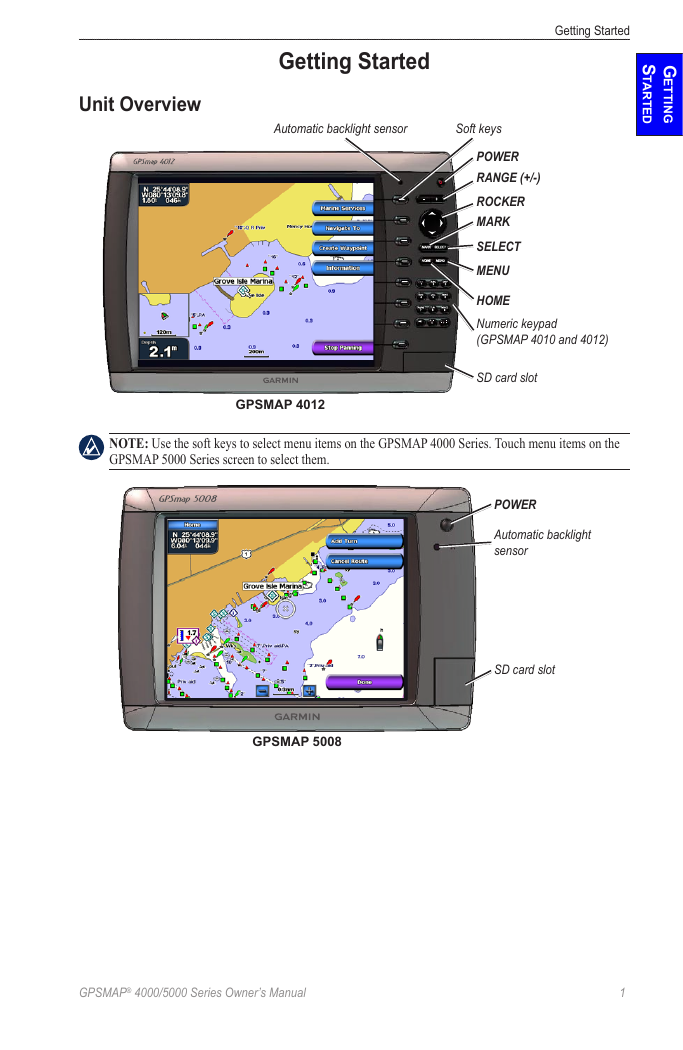

S t a r t e d G e t t n G i Unit Overview Getting Started Automatic backlight sensor Soft keys Getting Started POWER RANGE (+/-) ROCKER MARK SELECT MENU HOME Numeric keypad (GPSMAP 400 and 402) SD card slot GPSMAP 4012 NOtE: Use the soft keys to select menu items on the GPSMAP 4000 Series. Touch menu items on the GPSMAP 5000 Series screen to select them. POWER Automatic backlight sensor SD card slot GPSMAP 5008 GPSMAP® 4000/5000 Series Owner’s Manual

i G n t t e G d e t r a t S Getting Started NMEA 2000 connector Garmin Marine Network connectors Power connector Marine video connector NMEA 083 connector Turning the Unit On or Off To turn the unit on, press and release the I Agree to open the Home screen. Power key. When the Warning screen appears, select NOtE: The first time you turn on your unit, you must go through a setup sequence. See page 44. To turn the unit off, press and hold the Power key. Warning Screen Home Screen Adjusting the Backlight 1. Press and release the 2. Select Backlight. To allow the unit to automatically adjust the backlight based on ambient light, select Auto. Power key. To manually adjust the backlight, either select Up or Down, use the ROCKER (GPSMAP 4000 series), or touch and drag the brightness bar (GPSMAP 5000 series). 2 GPSMAP® 4000/5000 Series Owner’s Manual

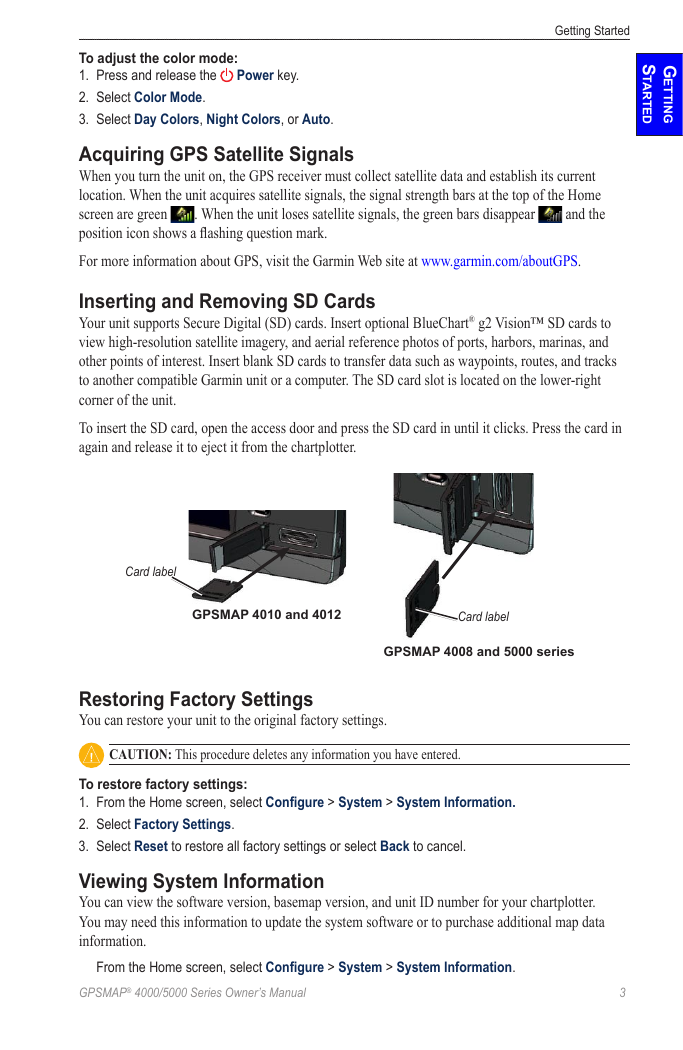

S t a r t e d G e t t n G i Getting Started Power key. To adjust the color mode: 1. Press and release the 2. Select Color Mode. 3. Select Day Colors, Night Colors, or Auto. Acquiring GPS Satellite Signals When you turn the unit on, the GPS receiver must collect satellite data and establish its current location. When the unit acquires satellite signals, the signal strength bars at the top of the Home screen are green and the position icon shows a flashing question mark. For more information about GPS, visit the Garmin Web site at www.garmin.com/aboutGPS. . When the unit loses satellite signals, the green bars disappear Inserting and Removing SD Cards Your unit supports Secure Digital (SD) cards. Insert optional BlueChart® g2 Vision™ SD cards to view high-resolution satellite imagery, and aerial reference photos of ports, harbors, marinas, and other points of interest. Insert blank SD cards to transfer data such as waypoints, routes, and tracks to another compatible Garmin unit or a computer. The SD card slot is located on the lower-right corner of the unit. To insert the SD card, open the access door and press the SD card in until it clicks. Press the card in again and release it to eject it from the chartplotter. Card label GPSMAP 4010 and 4012 Card label GPSMAP 4008 and 5000 series Restoring Factory Settings You can restore your unit to the original factory settings. CAUtION: This procedure deletes any information you have entered. To restore factory settings: 1. From the Home screen, select Configure > System > System Information. 2. Select Factory Settings. 3. Select Reset to restore all factory settings or select Back to cancel. Viewing System Information You can view the software version, basemap version, and unit ID number for your chartplotter. You may need this information to update the system software or to purchase additional map data information. From the Home screen, select Configure > System > System Information. GPSMAP® 4000/5000 Series Owner’s Manual 3

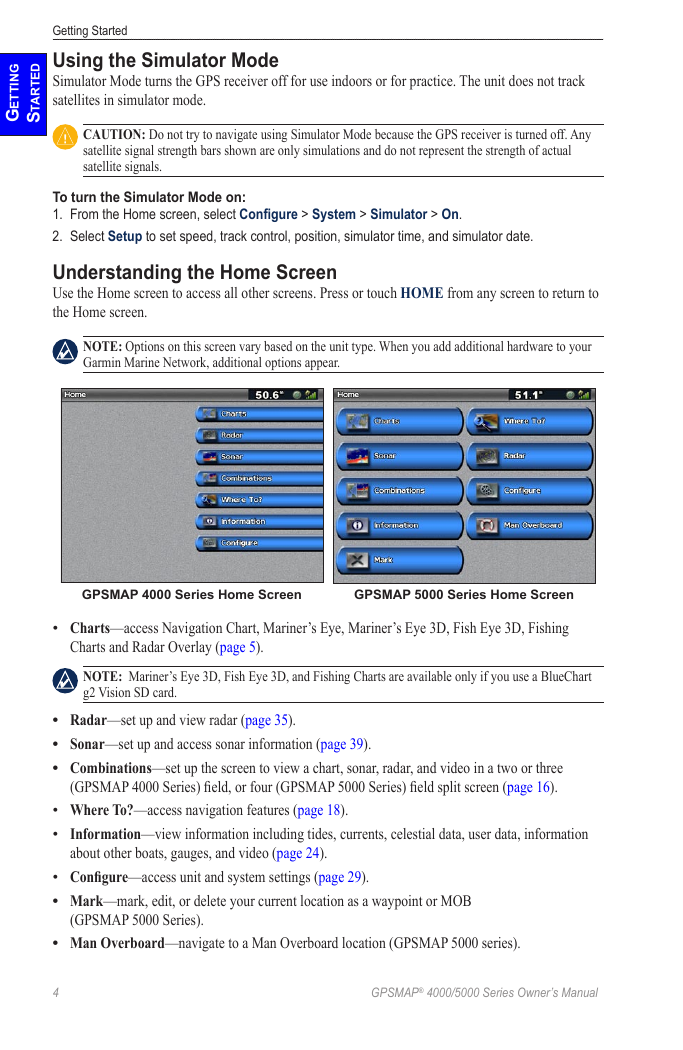

Getting Started d Using the Simulator Mode i G n t t e G e t r a t S Simulator Mode turns the GPS receiver off for use indoors or for practice. The unit does not track satellites in simulator mode. CAUtION: Do not try to navigate using Simulator Mode because the GPS receiver is turned off. Any satellite signal strength bars shown are only simulations and do not represent the strength of actual satellite signals. To turn the Simulator Mode on: 1. From the Home screen, select Configure > System > Simulator > On. 2. Select Setup to set speed, track control, position, simulator time, and simulator date. Understanding the Home Screen Use the Home screen to access all other screens. Press or touch HOME from any screen to return to the Home screen. NOtE: Options on this screen vary based on the unit type. When you add additional hardware to your Garmin Marine Network, additional options appear. GPSMAP 4000 Series Home Screen GPSMAP 5000 Series Home Screen Charts—access Navigation Chart, Mariner’s Eye, Mariner’s Eye 3D, Fish Eye 3D, Fishing Charts and Radar Overlay (page 5). NOtE: Mariner’s Eye 3D, Fish Eye 3D, and Fishing Charts are available only if you use a BlueChart g2 Vision SD card. Radar—set up and view radar (page 35). Sonar—set up and access sonar information (page 39). Combinations—set up the screen to view a chart, sonar, radar, and video in a two or three (GPSMAP 4000 Series) field, or four (GPSMAP 5000 Series) field split screen (page 16). Where to?—access navigation features (page 18). Information—view information including tides, currents, celestial data, user data, information about other boats, gauges, and video (page 24). Configure—access unit and system settings (page 29). Mark—mark, edit, or delete your current location as a waypoint or MOB (GPSMAP 5000 Series). Man Overboard—navigate to a Man Overboard location (GPSMAP 5000 series). GPSMAP® 4000/5000 Series Owner’s Manual • • • • • • • • • 4
