宾得数码相机-K-30说明书.pdf

发布时间：2022-05-24 发布人：admin 分类：说明书资料大小：5.87M 资料格式：pdf 举报版权申诉

第1页 / 共296页

第2页 / 共296页

第3页 / 共296页

第4页 / 共296页

第5页 / 共296页

第6页 / 共296页

第7页 / 共296页

第8页 / 共296页

For Using Your Camera Safely

Care to be Taken During Handling

Contents

Composition of the Operating Manual

1 Before Using Your Camera

Checking the Contents of the Package

Names and Functions of the Working Parts

Capture Mode

Playback Mode

Monitor Display

Viewfinder

How to Change Function Settings

Using the Direct Keys

Using the Control Panel

Using the Menus

2 Getting Started

Attaching the Strap

Inserting the Battery

Using the Lithium-ion Battery

Using the AA Batteries

Using the AC Adapter (Optional)

Inserting/Removing an SD Memory Card

Attaching a Lens

Adjusting the Viewfinder Diopter

Turning the Camera On and Off

Initial Settings

Setting the Display Language

Setting the Date and Time

3 Basic Operations

Basic Shooting Operation

Letting the Camera Choose the Optimal Settings

Using the Built-in Flash

Setting the Flash Mode

Using the Built-in Flash

Reviewing Images

Playing Back Images

Deleting a Single Image

4 Shooting Functions

How to Operate the Shooting Functions

Direct Keys Setting Items

Rec. Mode Menu Items

Movie Menu Items

Custom Setting Menu Items

Selecting the Appropriate Capture Mode

Auto Picture Modes

Scene Modes

Exposure Modes

Setting the Exposure

Setting the Sensitivity

Changing the Exposure Mode

Adjusting the Exposure

Locking the Exposure Before Shooting (AE Lock)

Selecting the Metering Method

Reducing the Image Noise (Noise Reduction)

Focusing

Setting the Focus Mode

Selecting the Focusing Point (AF Point)

Setting the Contrast AF during Live View

Checking the Focus

Adjusting the Focus Manually (Manual Focus)

AF Fine Adjustment

Checking the Depth of Field (Preview)

Displaying the Optical Preview

Displaying the Digital Preview

Using the Shake Reduction Function to Prevent Camera Shake

Taking Pictures Using the Shake Reduction Function

Shooting with the Self-timer

Shooting with a Remote Control Unit (Optional)

Taking Pictures Continuously

Continuous Shooting

Interval Shooting

Multi-exposure

Recording Movies

Changing the Settings for Movie Recording

Recording Movies

Interval Movie

Playing Back Movies

Editing Movies

5 Shooting Settings

Setting a File Format

File Format

JPEG Recorded Pixels

JPEG Quality

Color Space

Setting the White Balance

Adjusting the White Balance Manually

Adjusting the White Balance with Color Temperature

Correcting Images

Brightness Adjustment

High Dynamic Range Image Capture

Lens Correction

Composition Adjustment

Setting the Image Finishing Tone

Custom Image

Digital Filter

Customizing the Button/E-dial Functions

Setting the E-dials Operation

Setting the RAW/Fx Button Operation

Setting the AF/AE-L Button Operation

Saving Frequently Used Settings

Saving the Settings

Checking the Saved USER Settings

Using Saved USER Settings

Resetting to Default Settings

6 Playback Functions and Image Editing

How to Operate the Playback/Editing Functions

Playback Mode Palette Items

Playback Menu Items

Setting the Playback Display Method

Selecting the Playback Functions

Magnifying Images

Displaying Multiple Images

Playing Back Images Continuously

Rotating Images

Deleting Multiple Images

Deleting Selected Images

Deleting a Folder

Deleting All Images

Processing Images

Changing the Number of Recorded Pixels (Resize)

Cutting Out Part of the Image (Cropping)

Processing Images with Digital Filters

Joining Multiple Images (Index)

Developing RAW Images

Developing One RAW Image

Developing Multiple RAW Images

Connecting the Camera to an AV Device

Connecting the Camera to a Video Input Terminal

Setting the Video Output Format

7 Changing Additional Settings

How to Operate the Set-up Menu

Set-up Menu Items

Camera Settings

Setting the Sound Effects, Date and Time, and Display Language

Setting the Monitor and the Menu Displays

Battery Settings

Selecting Settings to Save in the Camera (Memory)

Resetting the Camera Settings

Checking the Camera Version Information

File Management Settings

Formatting an SD Memory Card

Protecting Images from Deletion (Protect)

Changing the Naming System of the Folder

Creating New Folders

Setting the Photographer Information

Setting the DPOF Settings

8 Connecting to a Computer

Manipulating Captured Images on a Computer

Saving Images on a Computer

Setting the USB Connection Mode

Connecting the Camera and a Computer

Using the Provided Software

Installing the Software

9 Using the Flash

Using the Built-in Flash

Flash Characteristics in Each Exposure Mode

Using the Slow-speed Sync Flash

Distance and Aperture when Using the Built-in Flash

Using an External Flash (Optional)

Using the P-TTL Auto Flash

Using the High-speed Sync Flash

Using Flash in Wireless Mode

Connecting an External Flash with an Extension Cord

Using the Contrast Control Sync Flash

10 Appendix

Default Settings

Functions Available with Various Lens Combinations

Setting the Focal Length

Using the Aperture Ring

Cleaning the CMOS Sensor

Removing Dust by Shaking the CMOS Sensor (Dust Removal)

Removing Dust with a Blower

Using the GPS Unit

Shooting Celestial Bodies (ASTROTRACER)

Error Messages

Troubleshooting

Main Specifications

Index

WARRANTY POLICY

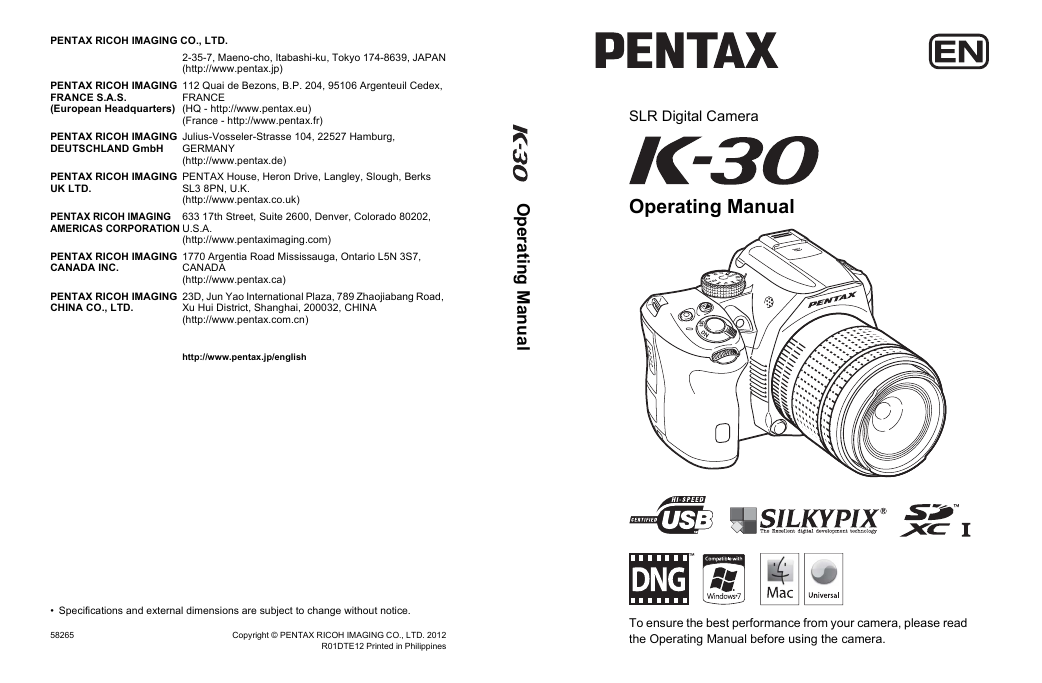

PENTAX RICOH IMAGING CO., LTD. PENTAX RICOH IMAGING FRANCE S.A.S. (European Headquarters) PENTAX RICOH IMAGING DEUTSCHLAND GmbH PENTAX RICOH IMAGING UK LTD. PENTAX RICOH IMAGING AMERICAS CORPORATION PENTAX RICOH IMAGING CANADA INC. PENTAX RICOH IMAGING CHINA CO., LTD. 2-35-7, Maeno-cho, Itabashi-ku, Tokyo 174-8639, JAPAN (http://www.pentax.jp) 112 Quai de Bezons, B.P. 204, 95106 Argenteuil Cedex, FRANCE (HQ - http://www.pentax.eu) (France - http://www.pentax.fr) Julius-Vosseler-Strasse 104, 22527 Hamburg, GERMANY (http://www.pentax.de) PENTAX House, Heron Drive, Langley, Slough, Berks SL3 8PN, U.K. (http://www.pentax.co.uk) 633 17th Street, Suite 2600, Denver, Colorado 80202, U.S.A. (http://www.pentaximaging.com) 1770 Argentia Road Mississauga, Ontario L5N 3S7, CANADA (http://www.pentax.ca) 23D, Jun Yao International Plaza, 789 Zhaojiabang Road, Xu Hui District, Shanghai, 200032, CHINA (http://www.pentax.com.cn) http://www.pentax.jp/english O p e r a t i n g M a n u a l SLR Digital Camera Operating Manual • Specifications and external dimensions are subject to change without notice. 58265 Copyright © PENTAX RICOH IMAGING CO., LTD. 2012 R01DTE12 Printed in Philippines To ensure the best performance from your camera, please read the Operating Manual before using the camera.

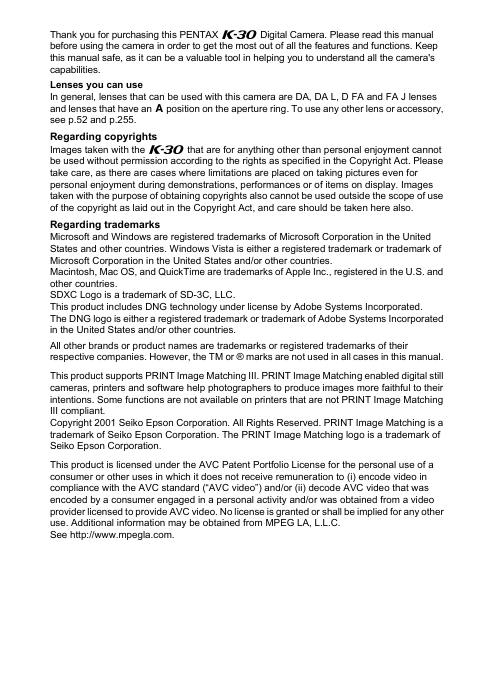

Thank you for purchasing this PENTAX A Digital Camera. Please read this manual before using the camera in order to get the most out of all the features and functions. Keep this manual safe, as it can be a valuable tool in helping you to understand all the camera's capabilities. Lenses you can use In general, lenses that can be used with this camera are DA, DA L, D FA and FA J lenses and lenses that have an s position on the aperture ring. To use any other lens or accessory, see p.52 and p.255. Regarding copyrights Images taken with the A that are for anything other than personal enjoyment cannot be used without permission according to the rights as specified in the Copyright Act. Please take care, as there are cases where limitations are placed on taking pictures even for personal enjoyment during demonstrations, performances or of items on display. Images taken with the purpose of obtaining copyrights also cannot be used outside the scope of use of the copyright as laid out in the Copyright Act, and care should be taken here also. Regarding trademarks Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Macintosh, Mac OS, and QuickTime are trademarks of Apple Inc., registered in the U.S. and other countries. SDXC Logo is a trademark of SD-3C, LLC. This product includes DNG technology under license by Adobe Systems Incorporated. The DNG logo is either a registered trademark or trademark of Adobe Systems Incorporated in the United States and/or other countries. All other brands or product names are trademarks or registered trademarks of their respective companies. However, the TM or ® marks are not used in all cases in this manual. This product supports PRINT Image Matching III. PRINT Image Matching enabled digital still cameras, printers and software help photographers to produce images more faithful to their intentions. Some functions are not available on printers that are not PRINT Image Matching III compliant. Copyright 2001 Seiko Epson Corporation. All Rights Reserved. PRINT Image Matching is a trademark of Seiko Epson Corporation. The PRINT Image Matching logo is a trademark of Seiko Epson Corporation. This product is licensed under the AVC Patent Portfolio License for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the AVC standard (“AVC video”) and/or (ii) decode AVC video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com.

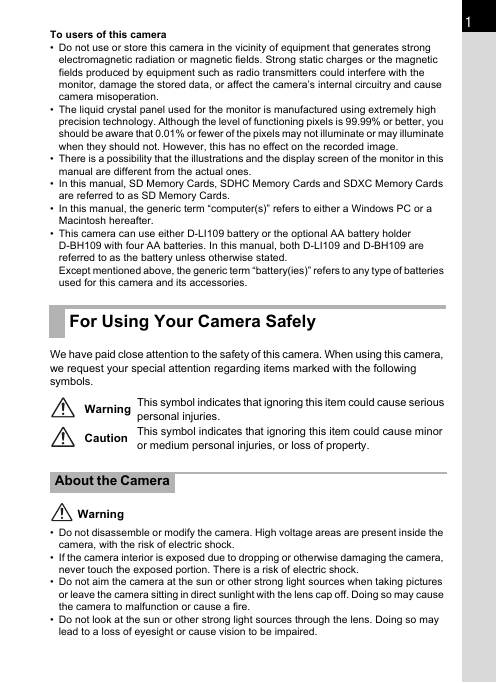

1 To users of this camera • Do not use or store this camera in the vicinity of equipment that generates strong electromagnetic radiation or magnetic fields. Strong static charges or the magnetic fields produced by equipment such as radio transmitters could interfere with the monitor, damage the stored data, or affect the camera’s internal circuitry and cause camera misoperation. • The liquid crystal panel used for the monitor is manufactured using extremely high precision technology. Although the level of functioning pixels is 99.99% or better, you should be aware that 0.01% or fewer of the pixels may not illuminate or may illuminate when they should not. However, this has no effect on the recorded image. • There is a possibility that the illustrations and the display screen of the monitor in this manual are different from the actual ones. • In this manual, SD Memory Cards, SDHC Memory Cards and SDXC Memory Cards are referred to as SD Memory Cards. • In this manual, the generic term “computer(s)” refers to either a Windows PC or a Macintosh hereafter. • This camera can use either D-LI109 battery or the optional AA battery holder D-BH109 with four AA batteries. In this manual, both D-LI109 and D-BH109 are referred to as the battery unless otherwise stated. Except mentioned above, the generic term “battery(ies)” refers to any type of batteries used for this camera and its accessories. For Using Your Camera Safely We have paid close attention to the safety of this camera. When using this camera, we request your special attention regarding items marked with the following symbols. Warning This symbol indicates that ignoring this item could cause serious Caution This symbol indicates that ignoring this item could cause minor personal injuries. or medium personal injuries, or loss of property. About the Camera Warning • Do not disassemble or modify the camera. High voltage areas are present inside the camera, with the risk of electric shock. • If the camera interior is exposed due to dropping or otherwise damaging the camera, never touch the exposed portion. There is a risk of electric shock. • Do not aim the camera at the sun or other strong light sources when taking pictures or leave the camera sitting in direct sunlight with the lens cap off. Doing so may cause the camera to malfunction or cause a fire. • Do not look at the sun or other strong light sources through the lens. Doing so may lead to a loss of eyesight or cause vision to be impaired.

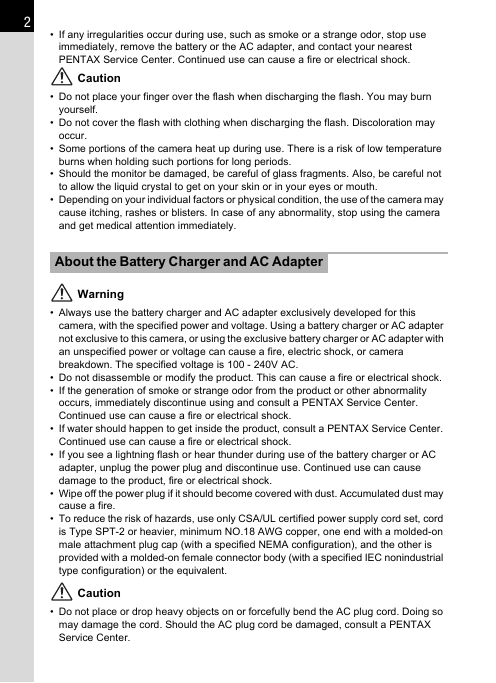

2 • If any irregularities occur during use, such as smoke or a strange odor, stop use immediately, remove the battery or the AC adapter, and contact your nearest PENTAX Service Center. Continued use can cause a fire or electrical shock. Caution • Do not place your finger over the flash when discharging the flash. You may burn yourself. occur. • Do not cover the flash with clothing when discharging the flash. Discoloration may • Some portions of the camera heat up during use. There is a risk of low temperature burns when holding such portions for long periods. • Should the monitor be damaged, be careful of glass fragments. Also, be careful not to allow the liquid crystal to get on your skin or in your eyes or mouth. • Depending on your individual factors or physical condition, the use of the camera may cause itching, rashes or blisters. In case of any abnormality, stop using the camera and get medical attention immediately. About the Battery Charger and AC Adapter Warning • Always use the battery charger and AC adapter exclusively developed for this camera, with the specified power and voltage. Using a battery charger or AC adapter not exclusive to this camera, or using the exclusive battery charger or AC adapter with an unspecified power or voltage can cause a fire, electric shock, or camera breakdown. The specified voltage is 100 - 240V AC. • Do not disassemble or modify the product. This can cause a fire or electrical shock. • If the generation of smoke or strange odor from the product or other abnormality occurs, immediately discontinue using and consult a PENTAX Service Center. Continued use can cause a fire or electrical shock. • If water should happen to get inside the product, consult a PENTAX Service Center. Continued use can cause a fire or electrical shock. • If you see a lightning flash or hear thunder during use of the battery charger or AC adapter, unplug the power plug and discontinue use. Continued use can cause damage to the product, fire or electrical shock. • Wipe off the power plug if it should become covered with dust. Accumulated dust may cause a fire. • To reduce the risk of hazards, use only CSA/UL certified power supply cord set, cord is Type SPT-2 or heavier, minimum NO.18 AWG copper, one end with a molded-on male attachment plug cap (with a specified NEMA configuration), and the other is provided with a molded-on female connector body (with a specified IEC nonindustrial type configuration) or the equivalent. Caution • Do not place or drop heavy objects on or forcefully bend the AC plug cord. Doing so may damage the cord. Should the AC plug cord be damaged, consult a PENTAX Service Center.

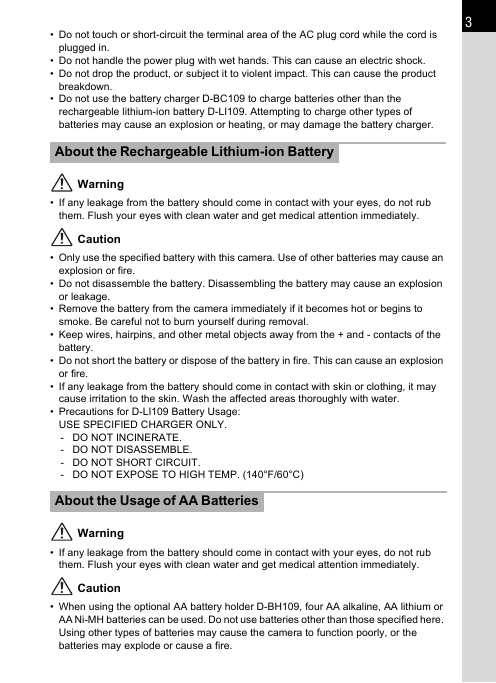

3 • Do not touch or short-circuit the terminal area of the AC plug cord while the cord is • Do not handle the power plug with wet hands. This can cause an electric shock. • Do not drop the product, or subject it to violent impact. This can cause the product plugged in. breakdown. • Do not use the battery charger D-BC109 to charge batteries other than the rechargeable lithium-ion battery D-LI109. Attempting to charge other types of batteries may cause an explosion or heating, or may damage the battery charger. About the Rechargeable Lithium-ion Battery Warning • If any leakage from the battery should come in contact with your eyes, do not rub them. Flush your eyes with clean water and get medical attention immediately. Caution • Only use the specified battery with this camera. Use of other batteries may cause an • Do not disassemble the battery. Disassembling the battery may cause an explosion • Remove the battery from the camera immediately if it becomes hot or begins to smoke. Be careful not to burn yourself during removal. • Keep wires, hairpins, and other metal objects away from the + and - contacts of the explosion or fire. or leakage. battery. or fire. • Do not short the battery or dispose of the battery in fire. This can cause an explosion • If any leakage from the battery should come in contact with skin or clothing, it may cause irritation to the skin. Wash the affected areas thoroughly with water. • Precautions for D-LI109 Battery Usage: USE SPECIFIED CHARGER ONLY. - DO NOT INCINERATE. - DO NOT DISASSEMBLE. - DO NOT SHORT CIRCUIT. - DO NOT EXPOSE TO HIGH TEMP. (140°F/60°C) About the Usage of AA Batteries Warning • If any leakage from the battery should come in contact with your eyes, do not rub them. Flush your eyes with clean water and get medical attention immediately. Caution • When using the optional AA battery holder D-BH109, four AA alkaline, AA lithium or AA Ni-MH batteries can be used. Do not use batteries other than those specified here. Using other types of batteries may cause the camera to function poorly, or the batteries may explode or cause a fire.

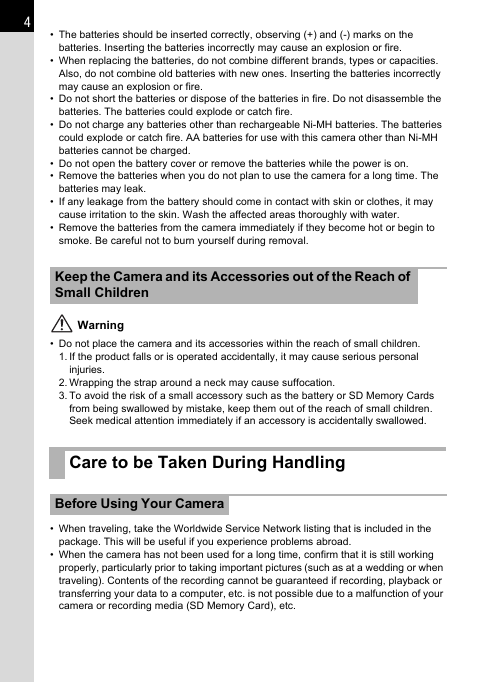

4 • The batteries should be inserted correctly, observing (+) and (-) marks on the batteries. Inserting the batteries incorrectly may cause an explosion or fire. • When replacing the batteries, do not combine different brands, types or capacities. Also, do not combine old batteries with new ones. Inserting the batteries incorrectly may cause an explosion or fire. • Do not short the batteries or dispose of the batteries in fire. Do not disassemble the batteries. The batteries could explode or catch fire. • Do not charge any batteries other than rechargeable Ni-MH batteries. The batteries could explode or catch fire. AA batteries for use with this camera other than Ni-MH batteries cannot be charged. • Do not open the battery cover or remove the batteries while the power is on. • Remove the batteries when you do not plan to use the camera for a long time. The batteries may leak. • If any leakage from the battery should come in contact with skin or clothes, it may cause irritation to the skin. Wash the affected areas thoroughly with water. • Remove the batteries from the camera immediately if they become hot or begin to smoke. Be careful not to burn yourself during removal. Keep the Camera and its Accessories out of the Reach of Small Children Warning • Do not place the camera and its accessories within the reach of small children. 1. If the product falls or is operated accidentally, it may cause serious personal injuries. 2. Wrapping the strap around a neck may cause suffocation. 3. To avoid the risk of a small accessory such as the battery or SD Memory Cards from being swallowed by mistake, keep them out of the reach of small children. Seek medical attention immediately if an accessory is accidentally swallowed. Care to be Taken During Handling Before Using Your Camera • When traveling, take the Worldwide Service Network listing that is included in the package. This will be useful if you experience problems abroad. • When the camera has not been used for a long time, confirm that it is still working properly, particularly prior to taking important pictures (such as at a wedding or when traveling). Contents of the recording cannot be guaranteed if recording, playback or transferring your data to a computer, etc. is not possible due to a malfunction of your camera or recording media (SD Memory Card), etc.

About the Battery and Charger 5 • To keep the battery in optimum condition, avoid storing it in a fully charged state or in high temperatures. • If the battery is left inserted and the camera is not used for a long time, the battery will over-discharge and shorten the battery’s life. • Charging the battery a day before use or on the day of use is recommended. • The AC plug cord provided with this camera is developed exclusively for the battery charger D-BC109. Do not use it with other devices. Precautions on Carrying and Using Your Camera • Do not subject the camera to high temperatures or high humidity. Do not leave the camera in a vehicle, as the temperature can get very high. • Do not subject the camera to strong vibrations, shocks, or pressure. Use a cushion to protect the camera from vibrations of motorcycles, automobiles, or ships. • The temperature range for camera use is -10°C to 40°C (14°F to 104°F). • The monitor may appear black at high temperatures, but will return to normal at normal temperatures. • The monitor may respond more slowly at low temperatures. This is due to liquid crystal properties, and is not a malfunction. • Sudden temperature changes will cause condensation on the inside and outside of the camera. Place the camera in your bag or a plastic bag, and remove it after temperature of the camera and surroundings are equalized. • Avoid contact with garbage, mud, sand, dust, water, toxic gases, or salt. These could cause the camera to breakdown. Wipe the camera to dry off any rain or water drops. • Do not press the monitor with excessive force. This could cause it to break or malfunction. • Be careful not to overtighten the screw in the tripod socket when using a tripod. Cleaning Your Camera • Do not clean the camera with organic solvents such as thinner, alcohol, or benzine. • Use a lens brush to remove dust accumulated on the lens or viewfinder. Never use a spray blower for cleaning as it may damage the lens. • Please contact a PENTAX Service Center for professional cleaning of the CMOS sensor. (This will involve a fee.) • Periodic inspections are recommended every one to two years to maintain high performance. Storing Your Camera • Do not store the camera with preservatives or chemicals. Storage in high temperatures and high humidity can cause mold to grow on the camera. Remove the camera from its case and store it in a dry and well-ventilated place.

6 • Avoid using or storing the camera where it may be exposed to static electricity or electrical interference. • Avoid using or storing the camera in direct sunlight or in locations where it may be exposed to rapid changes in temperature or to condensation. Other Precautions • The SD Memory Card is equipped with a write- protect switch. Setting the switch to LOCK prevents new data from being recorded on the card, the stored data from being deleted, and the card from being formatted by the camera or computer. • The SD Memory Card may be hot when removing the card immediately after using the camera. Write-protect switch • Do not remove the SD Memory Card or turn off the power while the card is being accessed. This may cause the data to be lost or the card to be damaged. • Do not bend the SD Memory Card or subject it to violent impact. Keep it away from water and store away from high temperatures. • Do not remove the SD Memory Card while formatting. The card may be damaged and become unusable. • Data on the SD Memory Card may be deleted in the following circumstances. We do not accept any liability for data that is deleted if 1. the SD Memory Card is mishandled by the user. 2. the SD Memory Card is exposed to static electricity or electrical interference. 3. the SD Memory Card has not been used for a long time. 4. the SD Memory Card or the battery is removed while the card is being accessed. • If the SD Memory Card is not used for a long time, the data on the card may become unreadable. Be sure to regularly make a backup of important data on a computer. • Format new SD Memory Cards. Also format SD Memory Cards previously used with other cameras or devices. • Please note that deleting data stored on an SD Memory Card, or formatting an SD Memory Card does not completely erase the original data. Deleted data can sometimes be recovered using commercially available software. If you are going to discard, give away or sell your SD Memory Card, you should ensure that the data on the card is completely deleted or the card itself is destroyed if it contains any personal or sensitive information. • The data on your SD Memory Card should be managed at your own risk. Regarding Product Registration In order to better serve you, we request that you complete the product registration, which can be found on the CD-ROM supplied with the camera or on the PENTAX website. Refer to p.233 for details. Thank you for your cooperation.
