R500 UG-E(514586-00) 2004:04:02 3:31 PM Page 112 n E INTRODUCTION Table of Contents Package Contents ........................................................................................................................................................1 Safety Information..........................................................................................................................................................2 Parts Identification ........................................................................................................................................................3 Front ..........................................................................................................................................................................3 Back ..........................................................................................................................................................................3 Bottom........................................................................................................................................................................4 Monitor Screen Contents ..........................................................................................................................................4 REC mode ................................................................................................................................................................4 PLAY mode ................................................................................................................................................................5 Changing the Display of Contents on the Monitor Screen ............................................................................................5 Attaching the Wrist Strap ..............................................................................................................................................6 PREPARATION Power Requirements ....................................................................................................................................................7 Installing batteries..........................................................................................................................................................8 Replacing/Removing batteries from the camera ..........................................................................................................8 Battery level Indicator ................................................................................................................................................9 Turning the Camera On & Off........................................................................................................................................9 To turn on the camera................................................................................................................................................9 To turn off the camera..............................................................................................................................................10 Operating the Multi-controller ......................................................................................................................................11 Setting the Language ..................................................................................................................................................11 Setting the Date and Time ..........................................................................................................................................12 BASIC IMAGE RECORDING Recording an Image ....................................................................................................................................................13 Using Zoom..............................................................................................................................................................13 Optical Zoom ......................................................................................................................................................13 Digital Zoom ........................................................................................................................................................14 Using the Flash........................................................................................................................................................15 About Red-eye Reduction ..................................................................................................................................15 Using the Self-timer ....................................................................................................................................................16 Specifying Image Size and Quality..........................................................................................................................16 To specify the image size ....................................................................................................................................16 To specify the image quality ................................................................................................................................17 OTHER RECORDING FUNCTIONS Selecting the Focus Mode ..........................................................................................................................................18 Specifying the Auto Focus Area ..............................................................................................................................18 Using the Macro Mode ............................................................................................................................................19 Using the Infinity Mode ............................................................................................................................................19 Using Manual Focus ................................................................................................................................................19 Exposure Compensation (EV Shift) ............................................................................................................................20 Adjusting White Balance..............................................................................................................................................20 Adjusting White Balance Manually ..............................................................................................................................21 Using the NICESHOT Mode........................................................................................................................................21 Using the Movie Mode ................................................................................................................................................23 About the Histogram....................................................................................................................................................24 Selecting the Metering Mode ..................................................................................................................................25 Multi (Multi-pattern)......................................................................................................................................................25 Center weighted (Center-weighted) ........................................................................................................................25 Spot (Spot) ..............................................................................................................................................................25 Using the Filter Function..............................................................................................................................................25 Specifying Color Saturation ........................................................................................................................................26 Specifying Contrast......................................................................................................................................................26 Specifying Outline Sharpness ....................................................................................................................................26 Turning the On-screen Grid On and Off ......................................................................................................................26 Turning Image Review On and Off ..............................................................................................................................26 Specifying Power ON Default Settings........................................................................................................................27 Resetting the Camera..................................................................................................................................................27

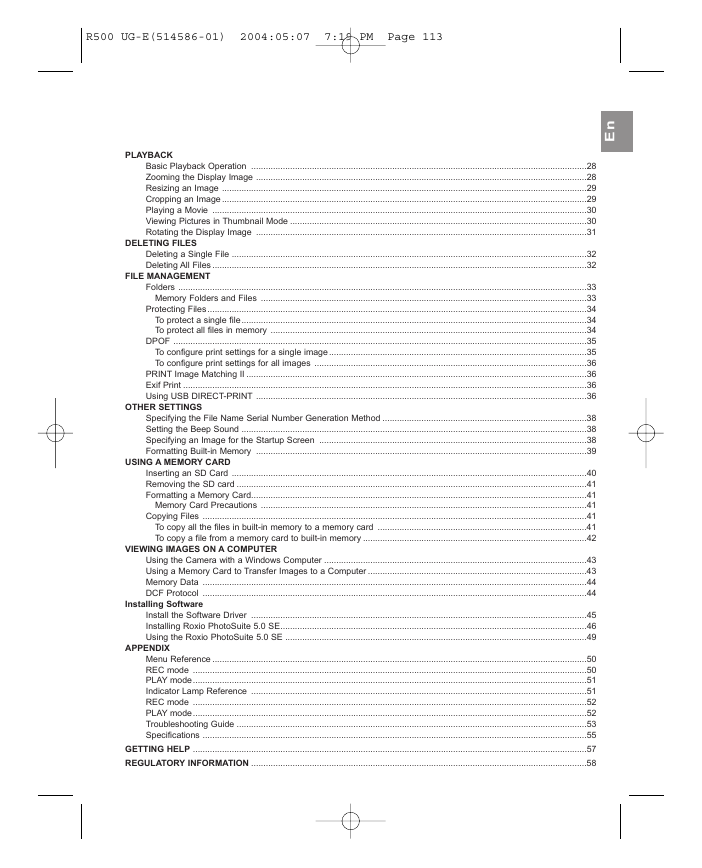

R500 UG-E(514586-01) 2004:05:07 7:19 PM Page 113 n E PLAYBACK Basic Playback Operation ..........................................................................................................................................28 Zooming the Display Image ........................................................................................................................................28 Resizing an Image ......................................................................................................................................................29 Cropping an Image ......................................................................................................................................................29 Playing a Movie ..........................................................................................................................................................30 Viewing Pictures in Thumbnail Mode ..........................................................................................................................30 Rotating the Display Image ........................................................................................................................................31 DELETING FILES Deleting a Single File ..................................................................................................................................................32 Deleting All Files ..........................................................................................................................................................32 FILE MANAGEMENT Folders ........................................................................................................................................................................33 Memory Folders and Files ......................................................................................................................................33 Protecting Files ............................................................................................................................................................34 To protect a single file..............................................................................................................................................34 To protect all files in memory ..................................................................................................................................34 DPOF ..........................................................................................................................................................................35 To configure print settings for a single image ..........................................................................................................35 To configure print settings for all images ................................................................................................................36 PRINT Image Matching II ............................................................................................................................................36 Exif Print ......................................................................................................................................................................36 Using USB DIRECT-PRINT ........................................................................................................................................36 OTHER SETTINGS Specifying the File Name Serial Number Generation Method ....................................................................................38 Setting the Beep Sound ..............................................................................................................................................38 Specifying an Image for the Startup Screen ..............................................................................................................38 Formatting Built-in Memory ........................................................................................................................................39 USING A MEMORY CARD Inserting an SD Card ..................................................................................................................................................40 Removing the SD card ................................................................................................................................................41 Formatting a Memory Card..........................................................................................................................................41 Memory Card Precautions ......................................................................................................................................41 Copying Files ..............................................................................................................................................................41 To copy all the files in built-in memory to a memory card ......................................................................................41 To copy a file from a memory card to built-in memory ............................................................................................42 VIEWING IMAGES ON A COMPUTER Using the Camera with a Windows Computer ............................................................................................................43 Using a Memory Card to Transfer Images to a Computer ..........................................................................................43 Memory Data ..............................................................................................................................................................44 DCF Protocol ..............................................................................................................................................................44 Installing Software Install the Software Driver ..........................................................................................................................................45 Installing Roxio PhotoSuite 5.0 SE..............................................................................................................................46 Using the Roxio PhotoSuite 5.0 SE ............................................................................................................................49 APPENDIX Menu Reference ..........................................................................................................................................................50 REC mode ..................................................................................................................................................................50 PLAY mode..................................................................................................................................................................51 Indicator Lamp Reference ..........................................................................................................................................51 REC mode ..................................................................................................................................................................52 PLAY mode..................................................................................................................................................................52 Troubleshooting Guide ................................................................................................................................................53 Specifications ..............................................................................................................................................................55 GETTING HELP ..................................................................................................................................................................57 REGULATORY INFORMATION ..........................................................................................................................................58

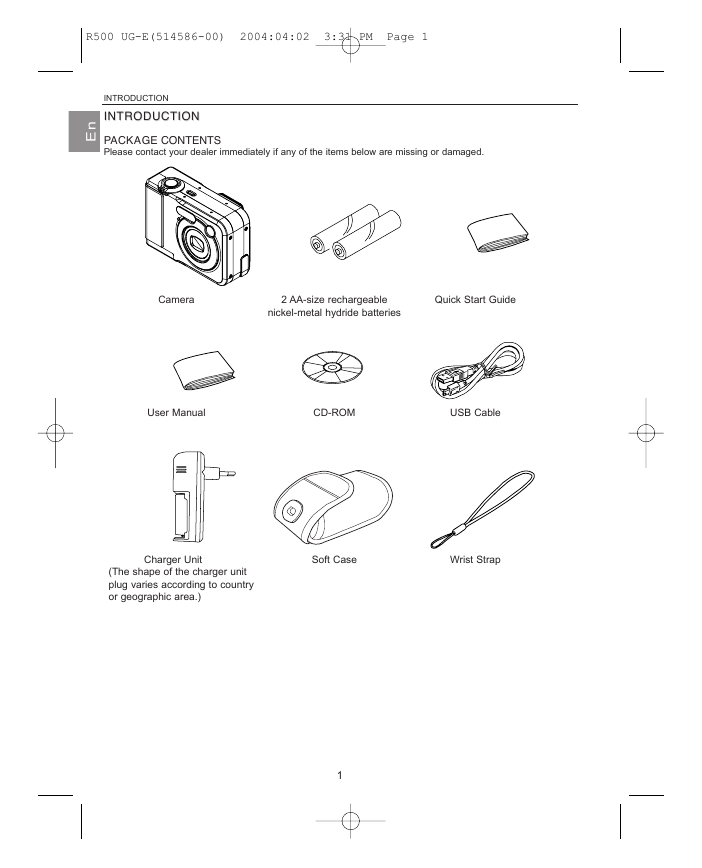

R500 UG-E(514586-00) 2004:04:02 3:31 PM Page 1 INTRODUCTION INTRODUCTION INTRODUCTION PACKAGE CONTENTS Please contact your dealer immediately if any of the items below are missing or damaged. n E Camera 2 AA-size rechargeable nickel-metal hydride batteries Quick Start Guide User Manual CD-ROM USB Cable Charger Unit (The shape of the charger unit plug varies according to country or geographic area.) Soft Case Wrist Strap 1

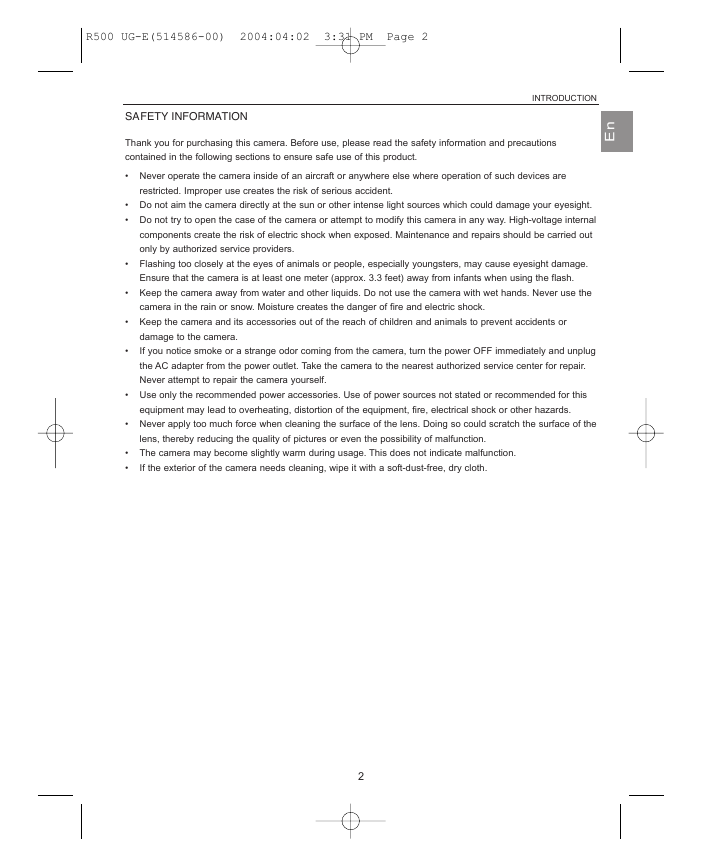

R500 UG-E(514586-00) 2004:04:02 3:31 PM Page 2 n E SAFETY INFORMATION INTRODUCTION Thank you for purchasing this camera. Before use, please read the safety information and precautions contained in the following sections to ensure safe use of this product. • Never operate the camera inside of an aircraft or anywhere else where operation of such devices are restricted. Improper use creates the risk of serious accident. • Do not aim the camera directly at the sun or other intense light sources which could damage your eyesight. • Do not try to open the case of the camera or attempt to modify this camera in any way. High-voltage internal components create the risk of electric shock when exposed. Maintenance and repairs should be carried out only by authorized service providers. • Flashing too closely at the eyes of animals or people, especially youngsters, may cause eyesight damage. Ensure that the camera is at least one meter (approx. 3.3 feet) away from infants when using the flash. • Keep the camera away from water and other liquids. Do not use the camera with wet hands. Never use the camera in the rain or snow. Moisture creates the danger of fire and electric shock. • Keep the camera and its accessories out of the reach of children and animals to prevent accidents or • damage to the camera. If you notice smoke or a strange odor coming from the camera, turn the power OFF immediately and unplug the AC adapter from the power outlet. Take the camera to the nearest authorized service center for repair. Never attempt to repair the camera yourself. • Use only the recommended power accessories. Use of power sources not stated or recommended for this equipment may lead to overheating, distortion of the equipment, fire, electrical shock or other hazards. • Never apply too much force when cleaning the surface of the lens. Doing so could scratch the surface of the lens, thereby reducing the quality of pictures or even the possibility of malfunction. • The camera may become slightly warm during usage. This does not indicate malfunction. • If the exterior of the camera needs cleaning, wipe it with a soft-dust-free, dry cloth. 2

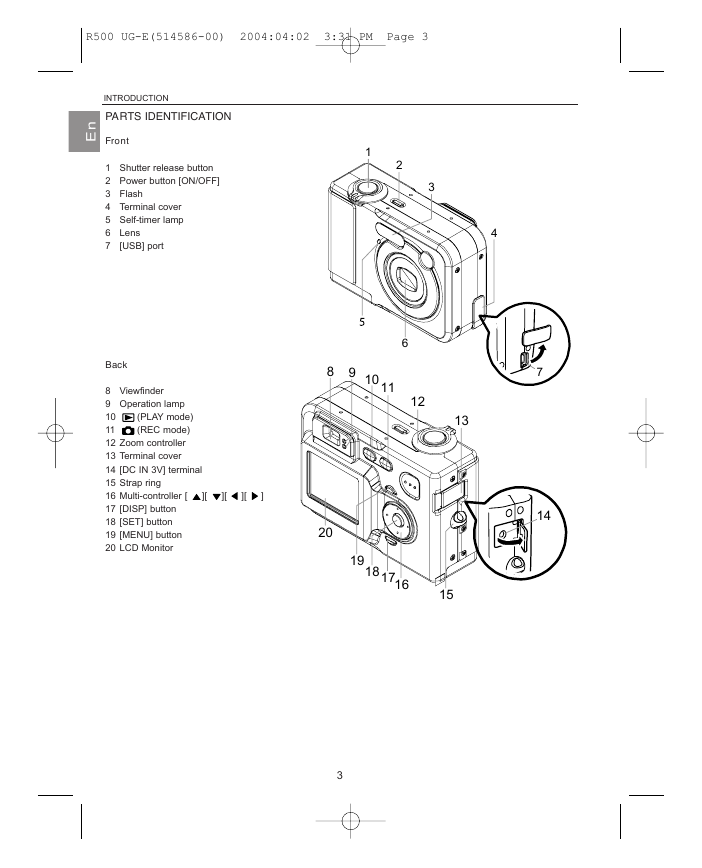

R500 UG-E(514586-00) 2004:04:02 3:31 PM Page 3 n E INTRODUCTION PARTS IDENTIFICATION Front 1 Shutter release button 2 Power button [ON/OFF] 3 Flash 4 Terminal cover 5 Self-timer lamp 6 Lens 7 [USB] port 1 2 3 4 Back 8 Viewfinder 9 Operation lamp (PLAY mode) 10 11 (REC mode) 12 Zoom controller 13 Terminal cover 14 [DC IN 3V] terminal 15 Strap ring 16 Multi-controller [ ][ ][ ][ ] 17 [DISP] button 18 [SET] button 19 [MENU] button 20 LCD Monitor 8 9 10 11 6 12 13 20 19 18 1716 15 7 14 3

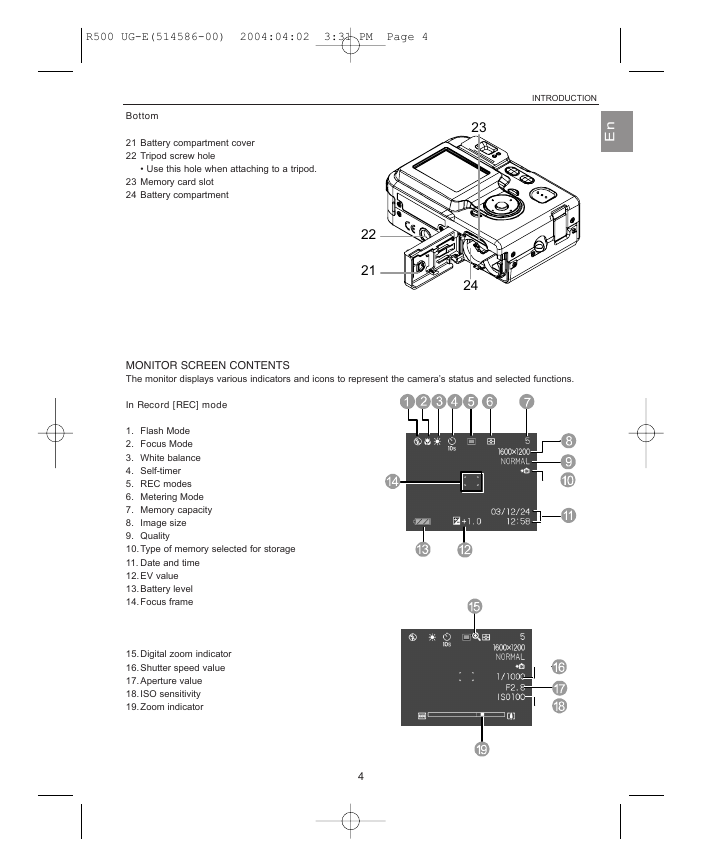

R500 UG-E(514586-00) 2004:04:02 3:31 PM Page 4 Bottom 21 Battery compartment cover 22 Tripod screw hole • Use this hole when attaching to a tripod. 23 Memory card slot 24 Battery compartment INTRODUCTION 23 n E 22 21 24 MONITOR SCREEN CONTENTS The monitor displays various indicators and icons to represent the camera’s status and selected functions. In Record [REC] mode 1. Flash Mode 2. Focus Mode 3. White balance 4. Self-timer 5. REC modes 6. Metering Mode 7. Memory capacity 8. 9. Quality 10. Type of memory selected for storage 11. Date and time 12. EV value 13. Battery level 14. Focus frame Image size 15. Digital zoom indicator 16. Shutter speed value 17. Aperture value 18. ISO sensitivity 19. Zoom indicator 4

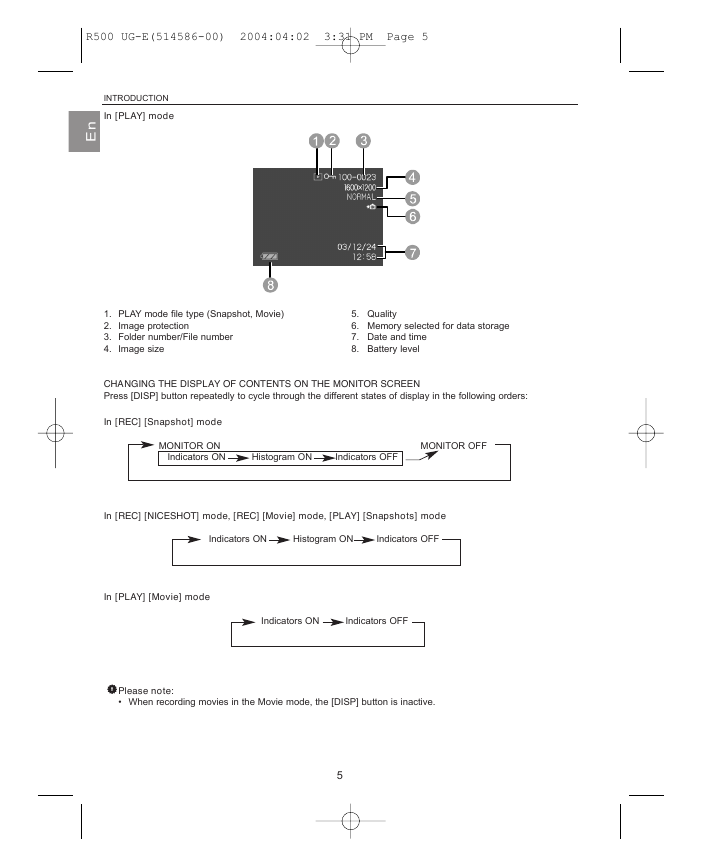

R500 UG-E(514586-00) 2004:04:02 3:31 PM Page 5 INTRODUCTION In [PLAY] mode n E Image protection 1. PLAY mode file type (Snapshot, Movie) 2. 3. Folder number/File number 4. Image size 5. Quality 6. Memory selected for data storage 7. Date and time 8. Battery level CHANGING THE DISPLAY OF CONTENTS ON THE MONITOR SCREEN Press [DISP] button repeatedly to cycle through the different states of display in the following orders: In [REC] [Snapshot] mode MONITOR ON Indicators ON Histogram ON Indicators OFF MONITOR OFF In [REC] [NICESHOT] mode, [REC] [Movie] mode, [PLAY] [Snapshots] mode Indicators ON Histogram ON Indicators OFF In [PLAY] [Movie] mode Indicators ON Indicators OFF Please note: • When recording movies in the Movie mode, the [DISP] button is inactive. 5
