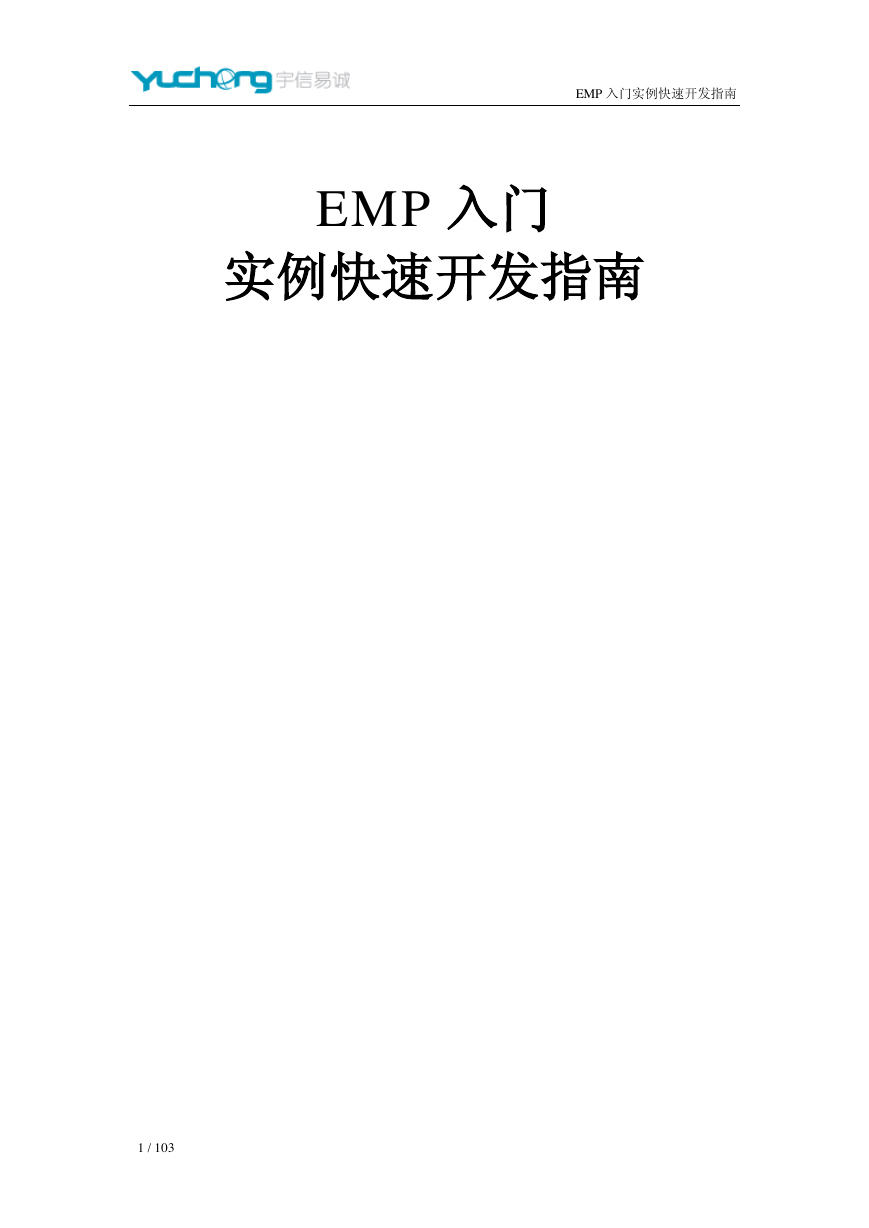

EMP 入门实例快速开发指南 EMP 入门实例快速开发指南 1 / 103

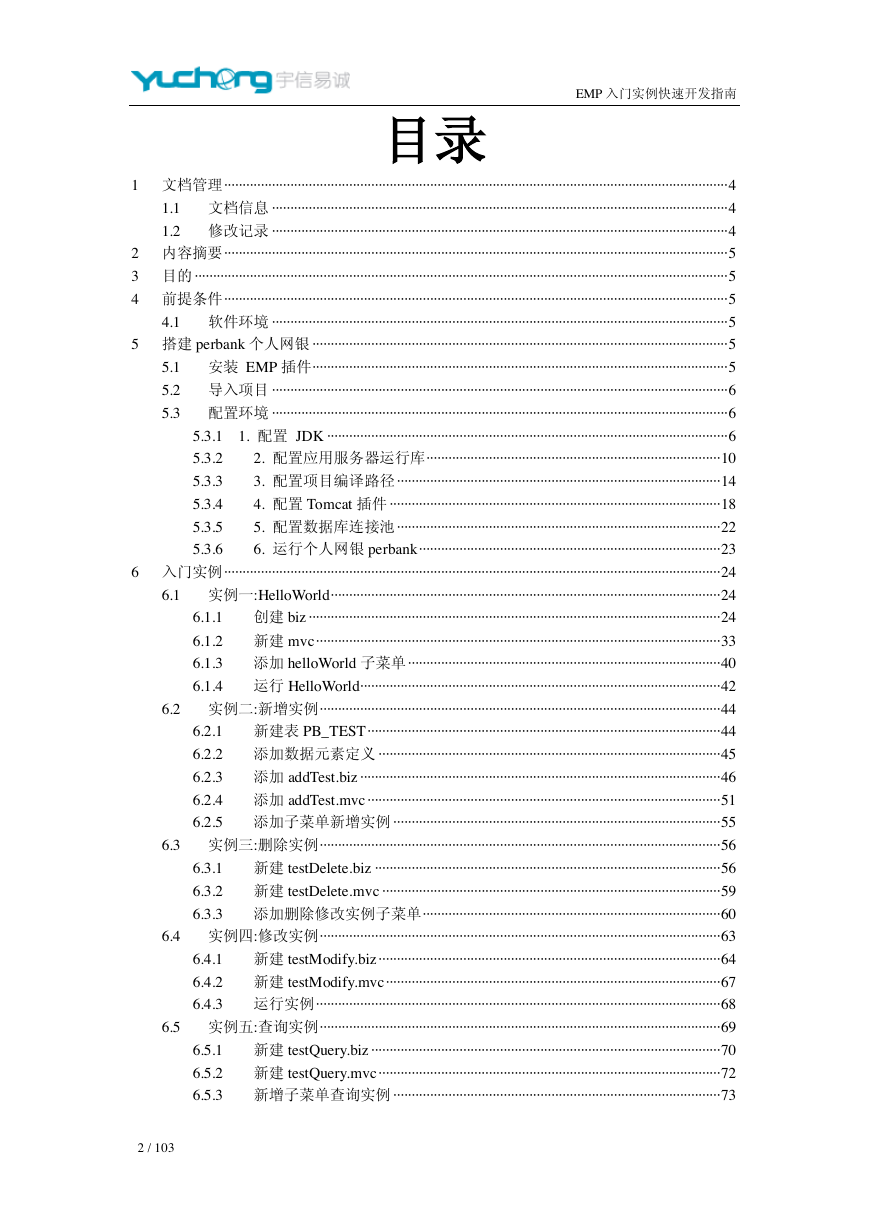

EMP 入门实例快速开发指南目录 5.3.4 5.3.5 5.3.6 1 文档管理 ········································································································································· 4 1.1 文档信息 ···························································································································· 4 1.2 修改记录 ···························································································································· 4 2 内容摘要 ········································································································································· 5 3 目的 ················································································································································· 5 4 前提条件 ········································································································································· 5 4.1 软件环境 ···························································································································· 5 5 搭建 perbank 个人网银 ················································································································· 5 5.1 安装 EMP 插件 ················································································································· 5 5.2 导入项目 ···························································································································· 6 5.3 配置环境 ···························································································································· 6 5.3.1 1. 配置 JDK ············································································································· 6 2. 配置应用服务器运行库 ················································································ 10 5.3.2 3. 配置项目编译路径 ························································································ 14 5.3.3 4. 配置 Tomcat 插件 ·························································································· 18 5. 配置数据库连接池 ························································································ 22 6. 运行个人网银 perbank ·················································································· 23 6 入门实例 ······································································································································· 24 6.1 实例一:HelloWorld ·········································································································· 24 6.1.1 创建 biz ················································································································ 24 6.1.2 新建 mvc ·············································································································· 33 6.1.3 添加 helloWorld 子菜单 ····················································································· 40 6.1.4 运行 HelloWorld·································································································· 42 6.2 实例二:新增实例 ············································································································· 44 6.2.1 新建表 PB_TEST ································································································ 44 6.2.2 添加数据元素定义 ····························································································· 45 6.2.3 添加 addTest.biz ·································································································· 46 6.2.4 添加 addTest.mvc ································································································ 51 6.2.5 添加子菜单新增实例 ························································································· 55 6.3 实例三:删除实例 ············································································································· 56 6.3.1 新建 testDelete.biz ······························································································ 56 6.3.2 新建 testDelete.mvc ···························································································· 59 6.3.3 添加删除修改实例子菜单 ················································································· 60 6.4 实例四:修改实例 ············································································································· 63 6.4.1 新建 testModify.biz ····························································································· 64 6.4.2 新建 testModify.mvc ··························································································· 67 6.4.3 运行实例 ·············································································································· 68 6.5 实例五:查询实例 ············································································································· 69 6.5.1 新建 testQuery.biz ······························································································· 70 6.5.2 新建 testQuery.mvc ····························································································· 72 6.5.3 新增子菜单查询实例 ························································································· 73 2 / 103

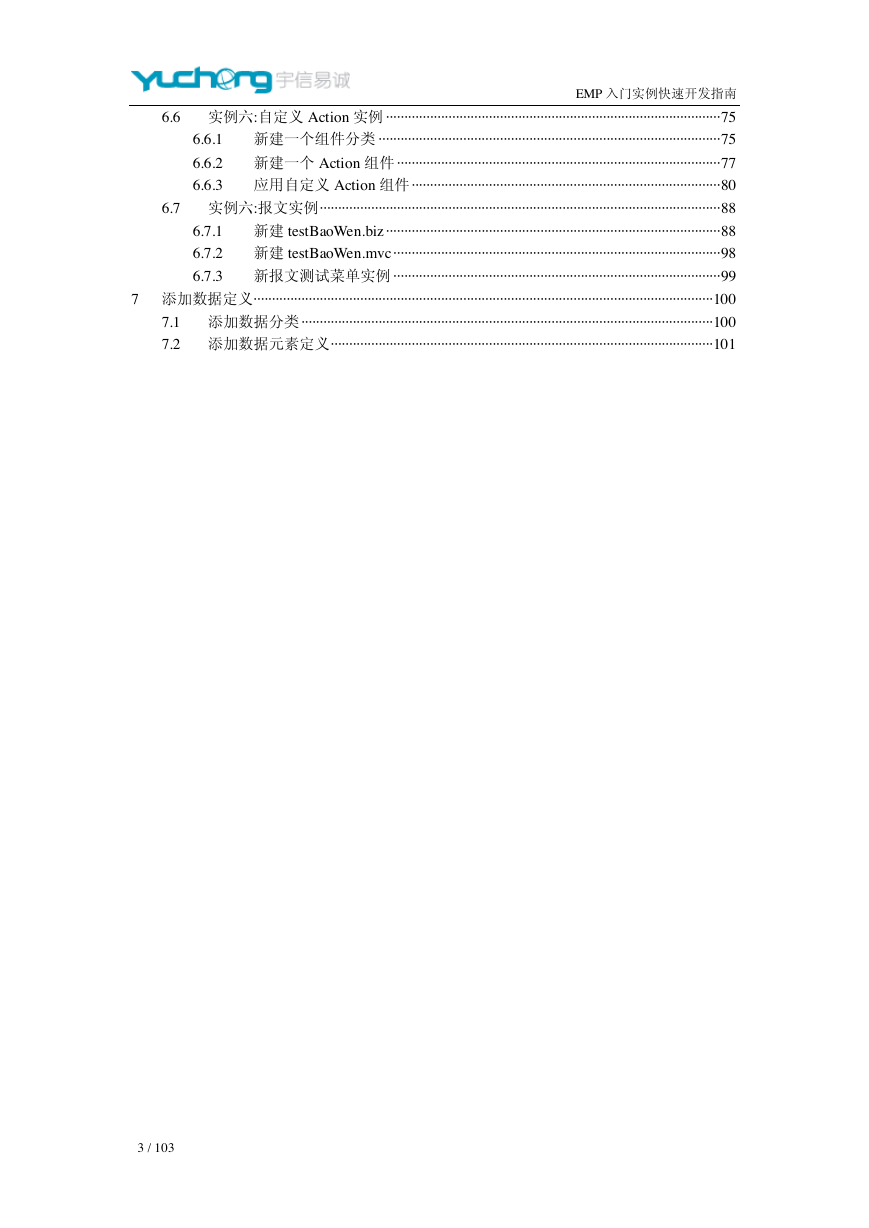

EMP 入门实例快速开发指南 6.6 实例六:自定义 Action 实例 ··························································································· 75 6.6.1 新建一个组件分类 ····························································································· 75 6.6.2 新建一个 Action 组件 ························································································ 77 6.6.3 应用自定义 Action 组件 ···················································································· 80 6.7 实例六:报文实例 ············································································································· 88 6.7.1 新建 testBaoWen.biz ··························································································· 88 6.7.2 新建 testBaoWen.mvc ························································································· 98 6.7.3 新报文测试菜单实例 ························································································· 99 7 添加数据定义·····························································································································100 7.1 添加数据分类 ················································································································100 7.2 添加数据元素定义 ········································································································101 3 / 103

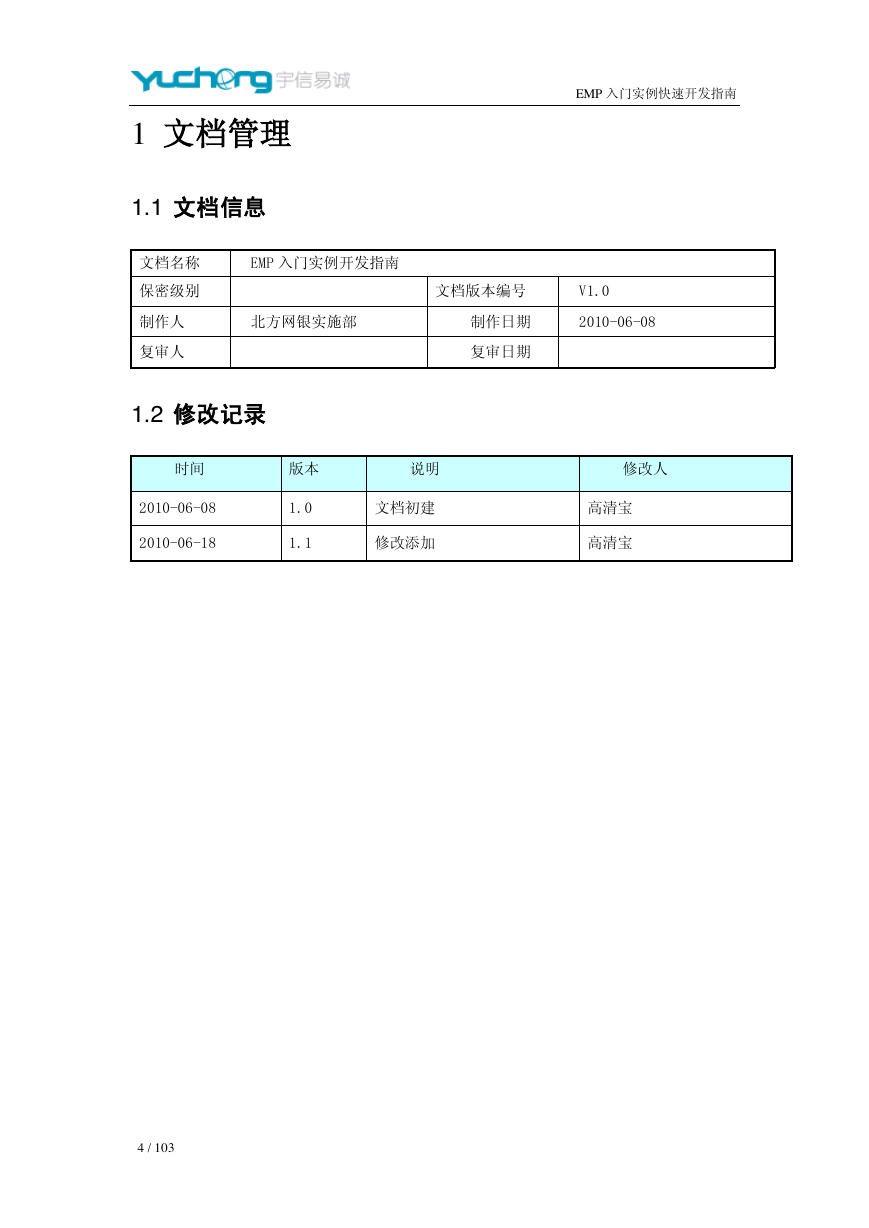

EMP 入门实例快速开发指南 1 文档管理 1.1 文档信息文档名称 EMP 入门实例开发指南保密级别文档版本编号 V1.0 制作人复审人北方网银实施部制作日期 2010-06-08 复审日期 1.2 修改记录时间 2010-06-08 2010-06-18 版本 1.0 1.1 说明文档初建修改添加修改人高清宝高清宝 4 / 103

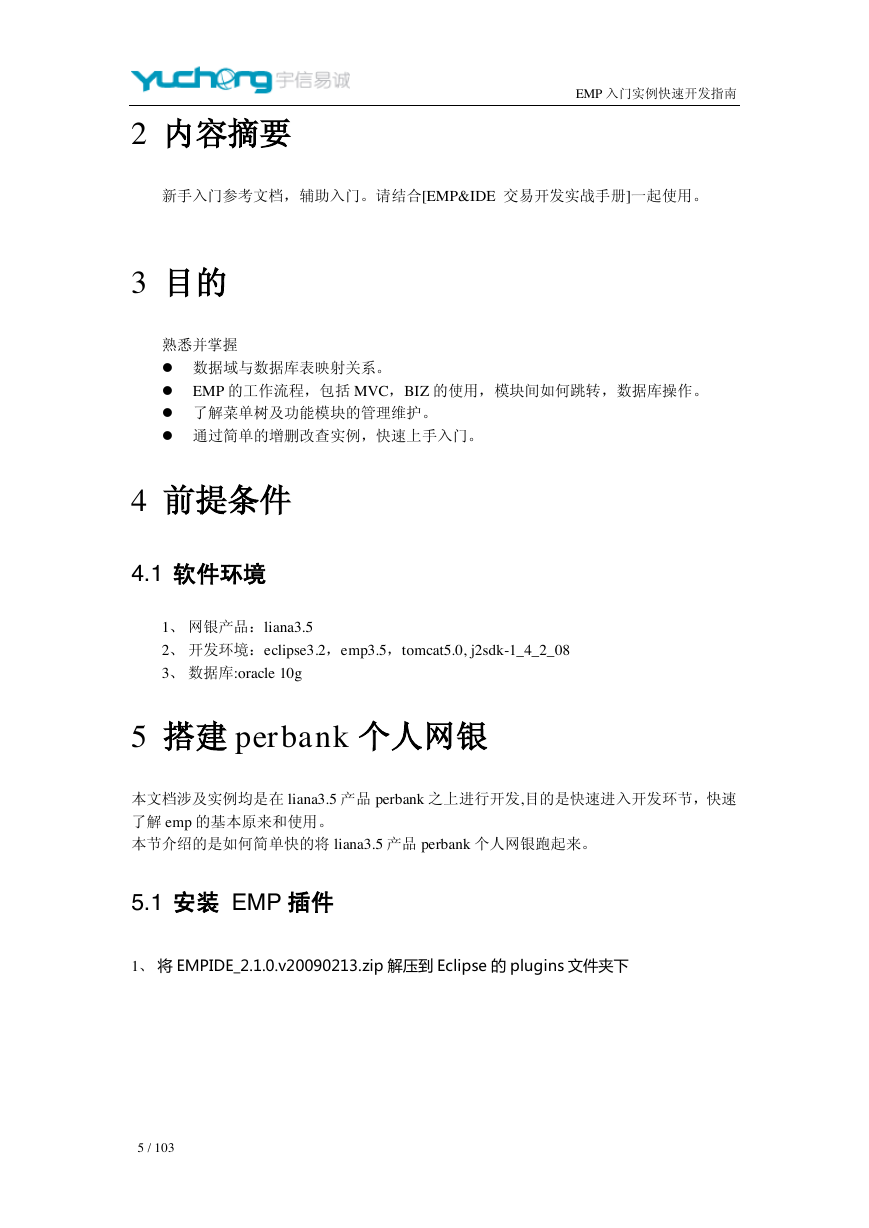

EMP 入门实例快速开发指南 2 内容摘要新手入门参考文档，辅助入门。请结合[EMP&IDE 交易开发实战手册]一起使用。 3 目的熟悉并掌握  数据域与数据库表映射关系。  EMP 的工作流程，包括 MVC，BIZ 的使用，模块间如何跳转，数据库操作。  了解菜单树及功能模块的管理维护。  通过简单的增删改查实例，快速上手入门。 4 前提条件 4.1 软件环境 1、网银产品：liana3.5 2、开发环境：eclipse3.2，emp3.5，tomcat5.0, j2sdk-1_4_2_08 3、数据库:oracle 10g 5 搭建 perbank 个人网银本文档涉及实例均是在 liana3.5 产品 perbank 之上进行开发,目的是快速进入开发环节，快速了解 emp 的基本原来和使用。本节介绍的是如何简单快的将 liana3.5 产品 perbank 个人网银跑起来。 5.1 安装 EMP 插件 1、将 EMPIDE_2.1.0.v20090213.zip 解压到 Eclipse 的 plugins 文件夹下 5 / 103

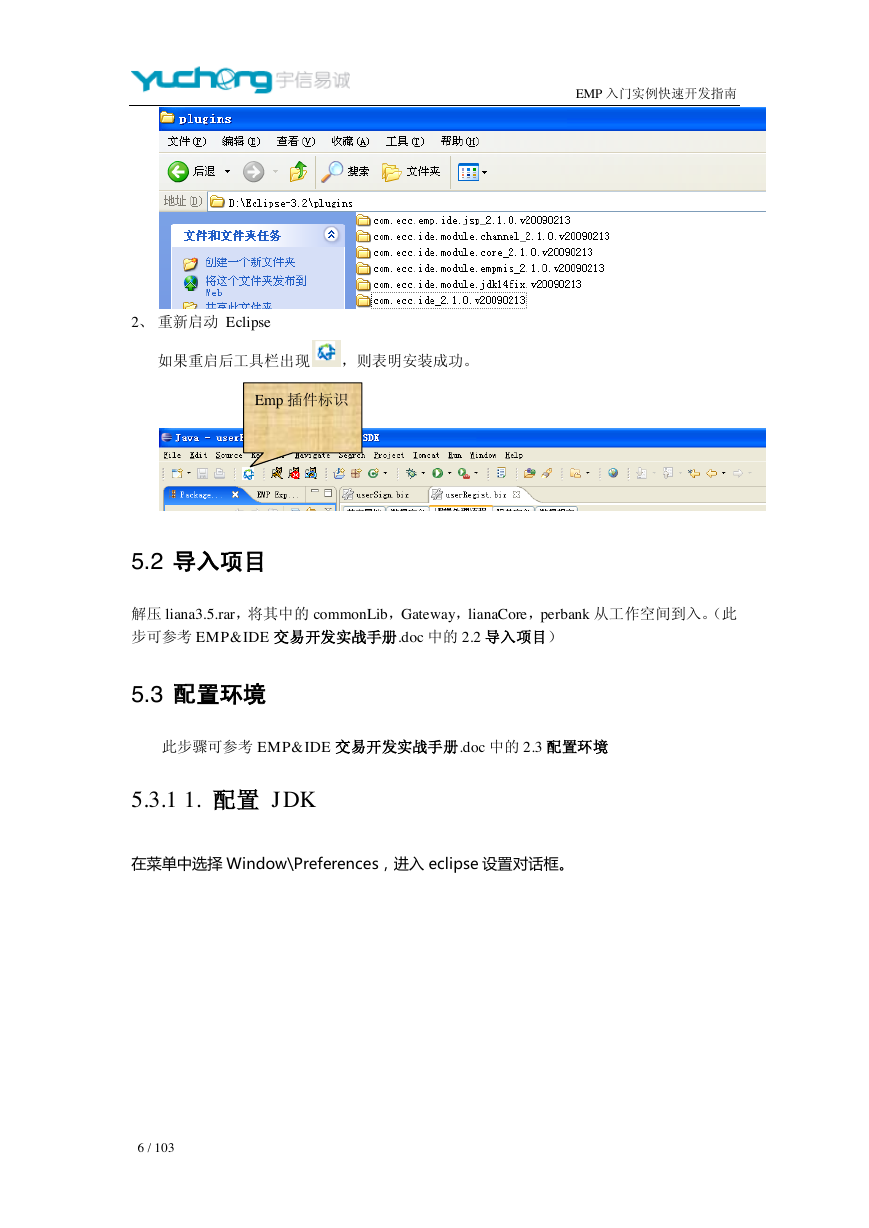

EMP 入门实例快速开发指南 2、重新启动 Eclipse 如果重启后工具栏出现，则表明安装成功。 Emp 插件标识 5.2 导入项目解压 liana3.5.rar，将其中的 commonLib，Gateway，lianaCore，perbank 从工作空间到入。（此步可参考 EMP&IDE 交易开发实战手册.doc 中的 2.2 导入项目） 5.3 配置环境此步骤可参考 EMP&IDE 交易开发实战手册.doc 中的 2.3 配置环境 5.3.1 1. 配置 JDK 在菜单中选择 Window\Preferences，进入 eclipse 设置对话框。 6 / 103

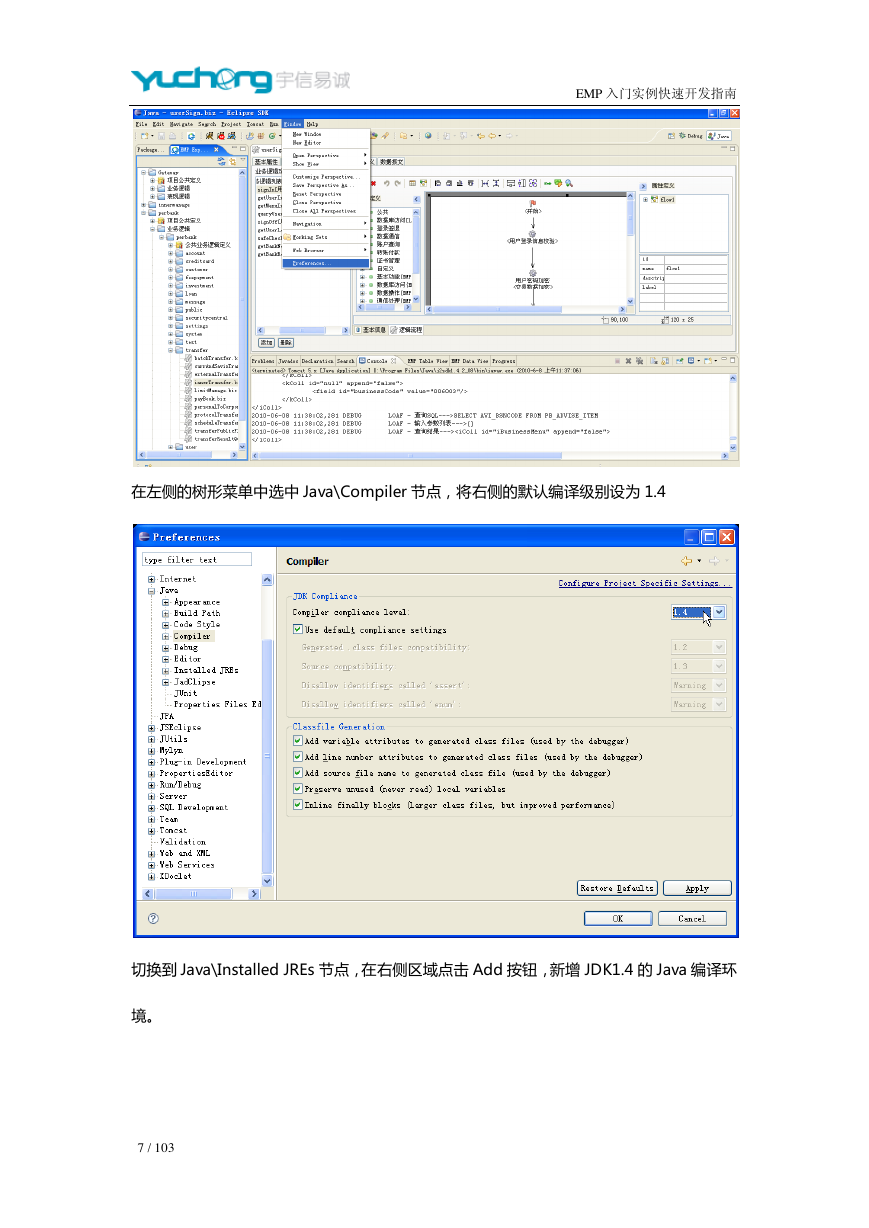

EMP 入门实例快速开发指南在左侧的树形菜单中选中 Java\Compiler 节点，将右侧的默认编译级别设为 1.4 切换到 Java\Installed JREs 节点，在右侧区域点击 Add 按钮，新增 JDK1.4 的 Java 编译环境。 7 / 103

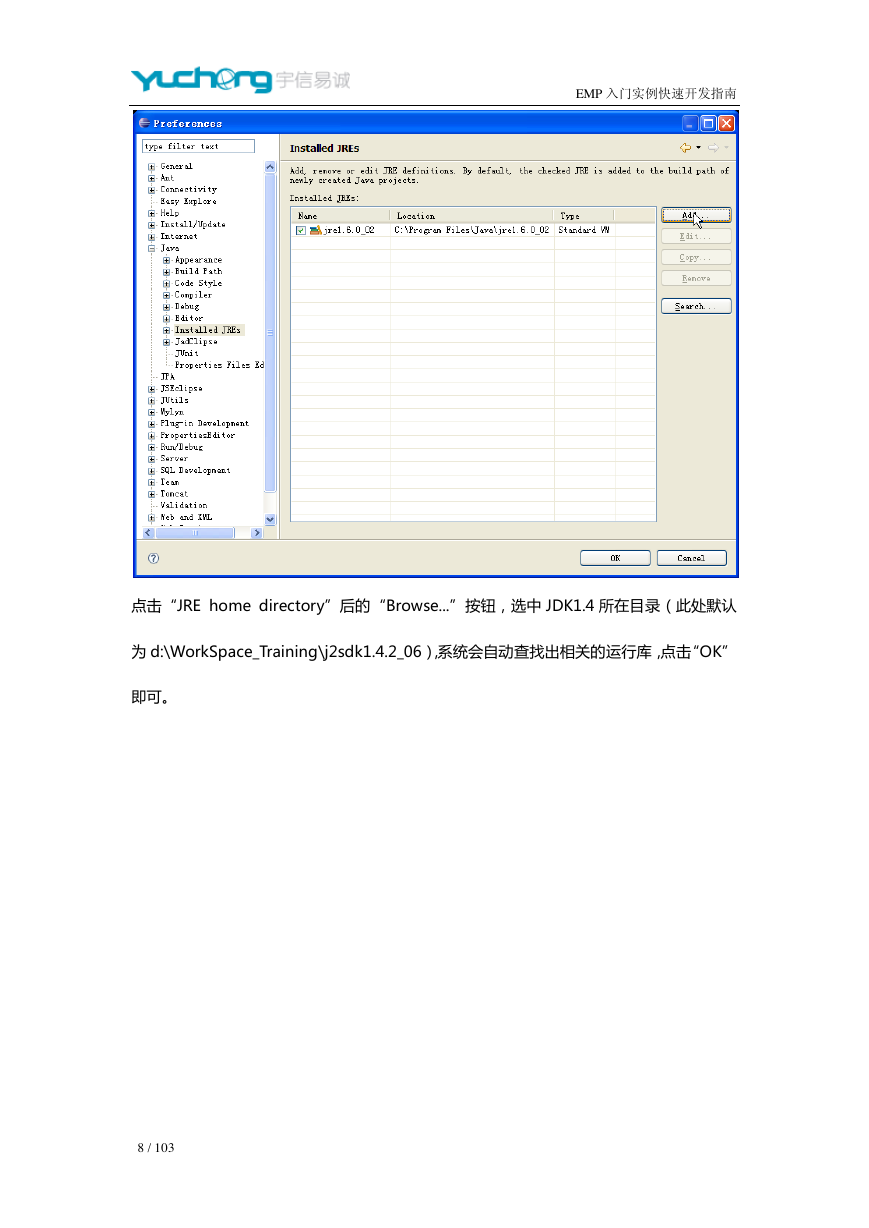

EMP 入门实例快速开发指南点击“JRE home directory”后的“Browse...”按钮，选中 JDK1.4 所在目录（此处默认为 d:\WorkSpace_Training\j2sdk1.4.2_06），系统会自劢查找出相关的运行库，点击“OK” 即可。 8 / 103
