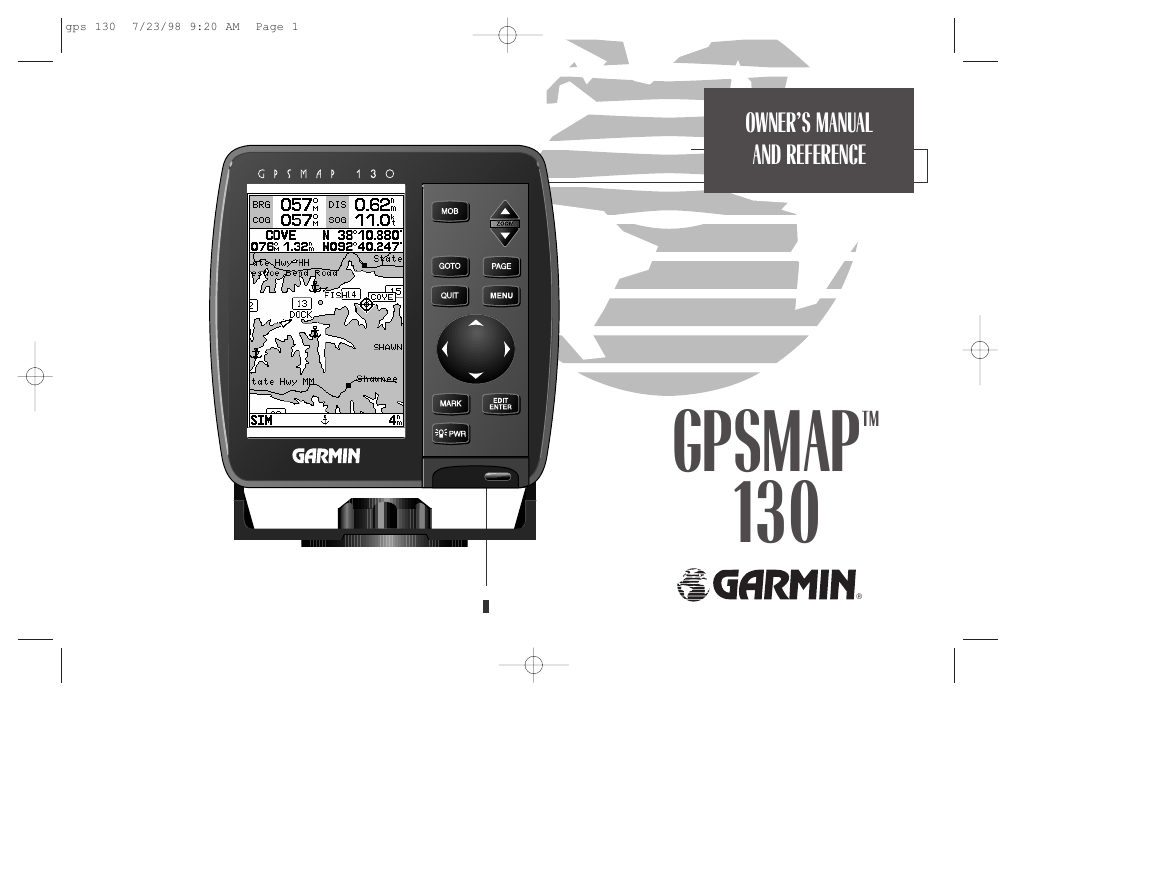

gps 130 7/23/98 9:20 AM Page 1 OWNERS MANUAL AND REFERENCE GPSMAPTM 130 ®

gps 130 7/23/98 9:20 AM Page 2

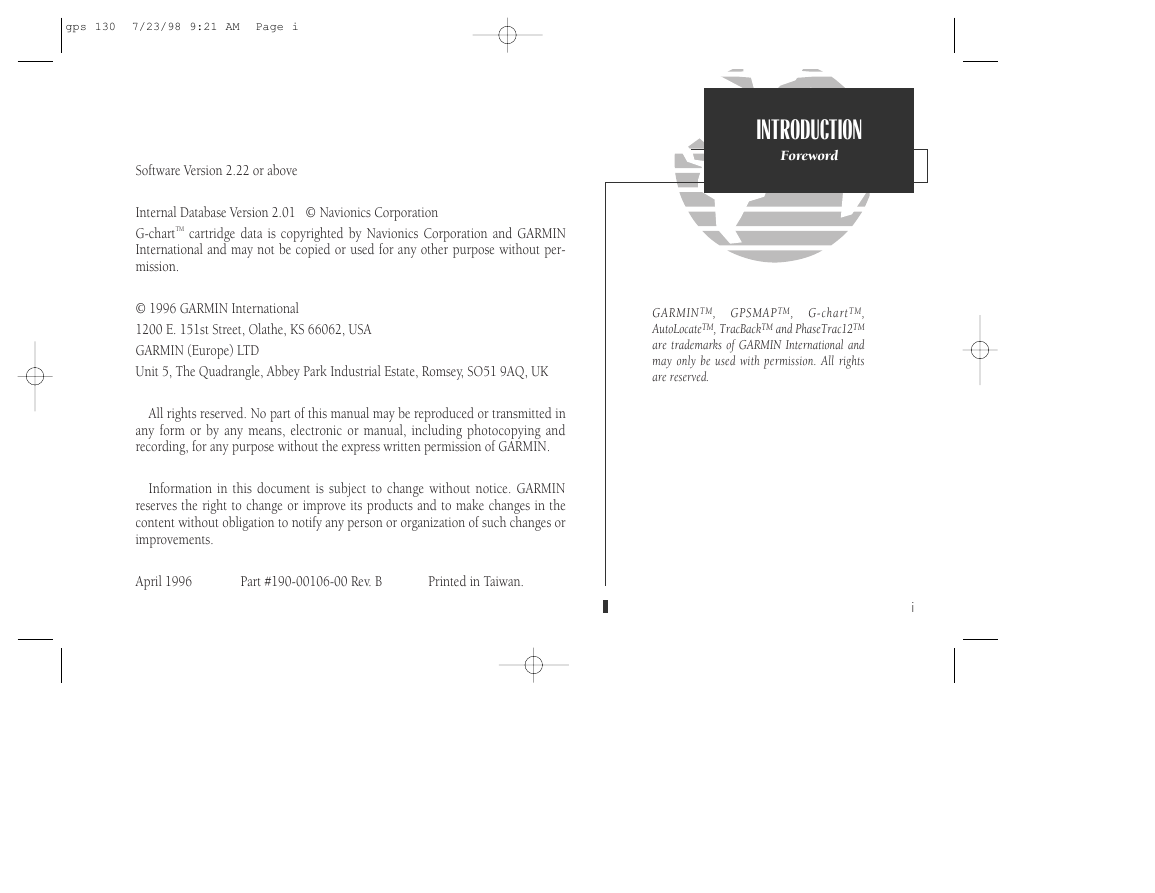

gps 130 7/23/98 9:21 AM Page i Software Version 2.22 or above Internal Database Version 2.01 © Navionics Corporation G-chartTM cartridge data is copyrighted by Navionics Corporation and GARMIN International and may not be copied or used for any other purpose without per- mission. INTRODUCTION Foreword © 1996 GARMIN International 1200 E. 151st Street, Olathe, KS 66062, USA GARMIN (Europe) LTD Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9AQ, UK GARMINTM, GPSMAPTM, G-chartTM, AutoLocateTM, TracBackTM and PhaseTrac12TM are trademarks of GARMIN International and may only be used with permission. All rights are reserved. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or manual, including photocopying and recording, for any purpose without the express written permission of GARMIN. Information in this document is subject to change without notice. GARMIN reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. April 1996 Part #190-00106-00 Rev. B Printed in Taiwan. i

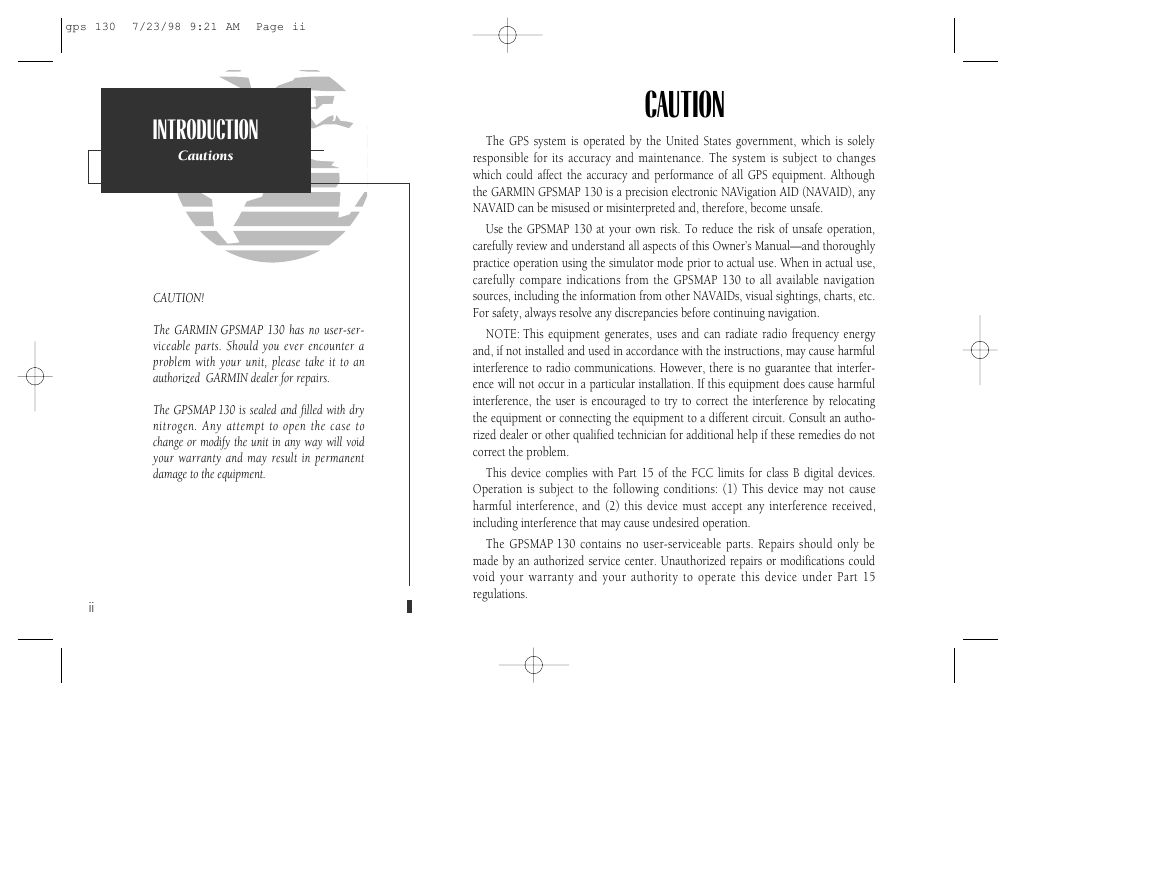

gps 130 7/23/98 9:21 AM Page ii INTRODUCTION Cautions CAUTION! The GARMIN GPSMAP 130 has no user-ser- viceable parts. Should you ever encounter a problem with your unit, please take it to an authorized GARMIN dealer for repairs. The GPSMAP 130 is sealed and filled with dry nitrogen. Any attempt to open the case to change or modify the unit in any way will void your warranty and may result in permanent damage to the equipment. ii CAUTION The GPS system is operated by the United States government, which is solely responsible for its accuracy and maintenance. The system is subject to changes which could affect the accuracy and performance of all GPS equipment. Although the GARMIN GPSMAP 130 is a precision electronic NAVigation AID (NAVAID), any NAVAID can be misused or misinterpreted and, therefore, become unsafe. Use the GPSMAP 130 at your own risk. To reduce the risk of unsafe operation, carefully review and understand all aspects of this Owner’s Manual—and thoroughly practice operation using the simulator mode prior to actual use. When in actual use, carefully compare indications from the GPSMAP 130 to all available navigation sources, including the information from other NAVAIDs, visual sightings, charts, etc. For safety, always resolve any discrepancies before continuing navigation. NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference, the user is encouraged to try to correct the interference by relocating the equipment or connecting the equipment to a different circuit. Consult an autho- rized dealer or other qualified technician for additional help if these remedies do not correct the problem. This device complies with Part 15 of the FCC limits for class B digital devices. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The GPSMAP 130 contains no user-serviceable parts. Repairs should only be made by an authorized service center. Unauthorized repairs or modifications could void your warranty and your authority to operate this device under Part 15 regulations.

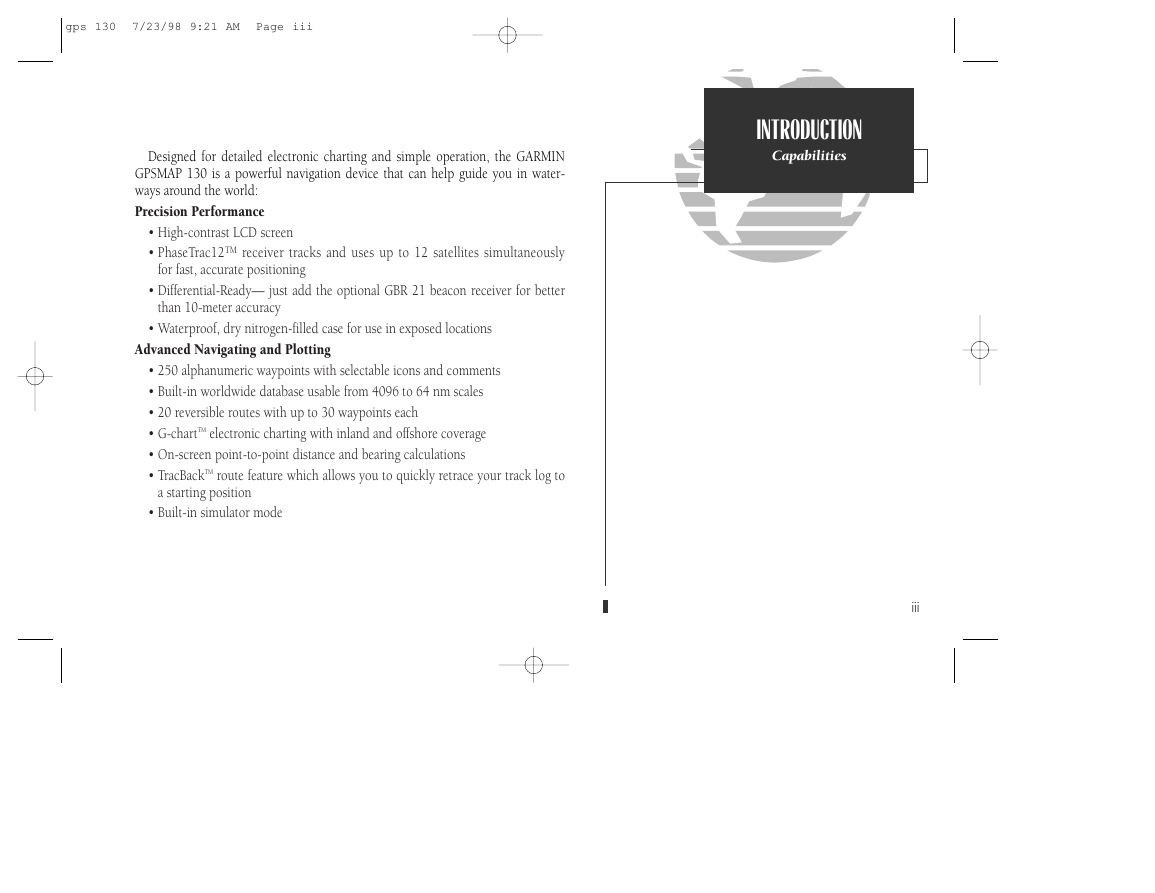

gps 130 7/23/98 9:21 AM Page iii Designed for detailed electronic charting and simple operation, the GARMIN GPSMAP 130 is a powerful navigation device that can help guide you in water- ways around the world: Precision Performance • High-contrast LCD screen • PhaseTrac12TM receiver tracks and uses up to 12 satellites simultaneously for fast, accurate positioning • Differential-Ready— just add the optional GBR 21 beacon receiver for better than 10-meter accuracy • Waterproof, dry nitrogen-filled case for use in exposed locations Advanced Navigating and Plotting • 250 alphanumeric waypoints with selectable icons and comments • Built-in worldwide database usable from 4096 to 64 nm scales • 20 reversible routes with up to 30 waypoints each • G-chartTM electronic charting with inland and offshore coverage • On-screen point-to-point distance and bearing calculations • TracBackTM route feature which allows you to quickly retrace your track log to a starting position • Built-in simulator mode INTRODUCTION Capabilities iii

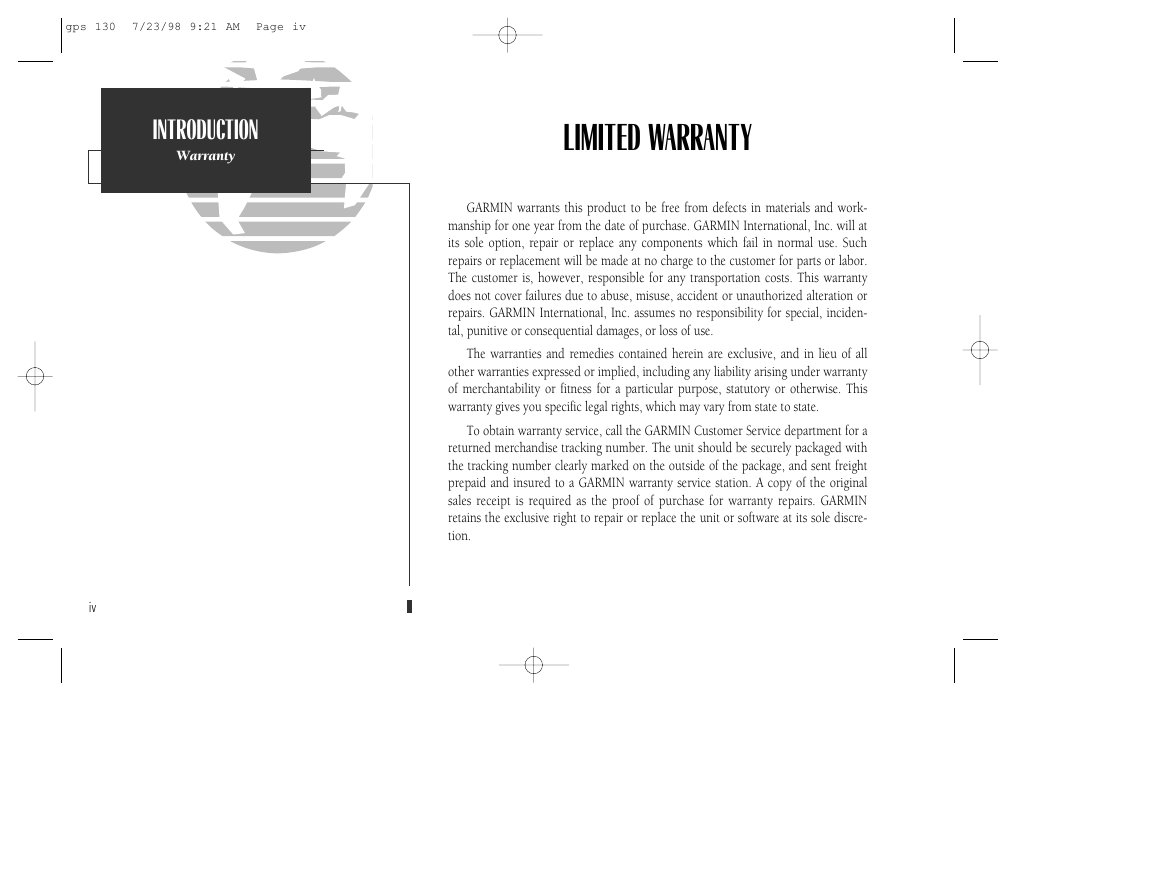

gps 130 7/23/98 9:21 AM Page iv INTRODUCTION Warranty LIMITED WARRANTY GARMIN warrants this product to be free from defects in materials and work- manship for one year from the date of purchase. GARMIN International, Inc. will at its sole option, repair or replace any components which fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor. The customer is, however, responsible for any transportation costs. This warranty does not cover failures due to abuse, misuse, accident or unauthorized alteration or repairs. GARMIN International, Inc. assumes no responsibility for special, inciden- tal, punitive or consequential damages, or loss of use. The warranties and remedies contained herein are exclusive, and in lieu of all other warranties expressed or implied, including any liability arising under warranty of merchantability or fitness for a particular purpose, statutory or otherwise. This warranty gives you specific legal rights, which may vary from state to state. To obtain warranty service, call the GARMIN Customer Service department for a returned merchandise tracking number. The unit should be securely packaged with the tracking number clearly marked on the outside of the package, and sent freight prepaid and insured to a GARMIN warranty service station. A copy of the original sales receipt is required as the proof of purchase for warranty repairs. GARMIN retains the exclusive right to repair or replace the unit or software at its sole discre- tion. iv

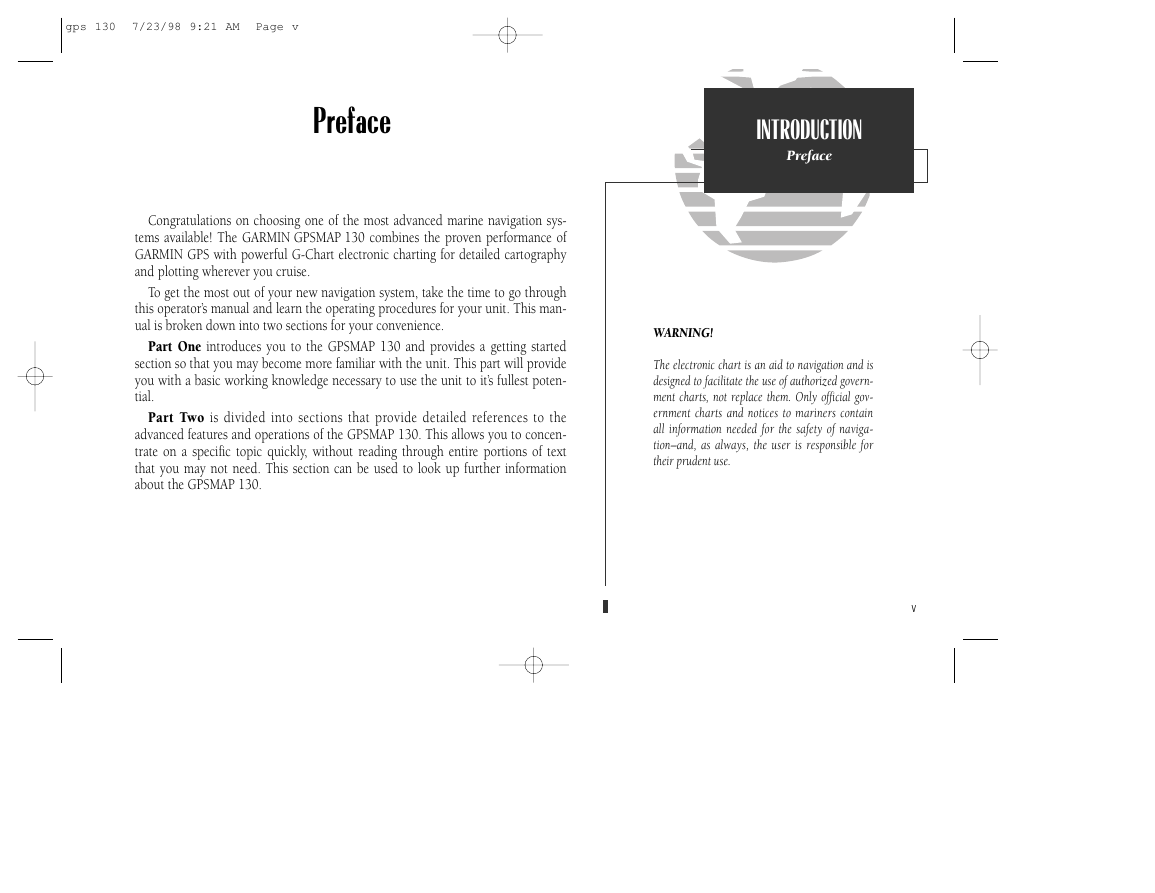

gps 130 7/23/98 9:21 AM Page v Preface INTRODUCTION Preface Congratulations on choosing one of the most advanced marine navigation sys- tems available! The GARMIN GPSMAP 130 combines the proven performance of GARMIN GPS with powerful G-Chart electronic charting for detailed cartography and plotting wherever you cruise. To get the most out of your new navigation system, take the time to go through this operator’s manual and learn the operating procedures for your unit. This man- ual is broken down into two sections for your convenience. Part One introduces you to the GPSMAP 130 and provides a getting started section so that you may become more familiar with the unit. This part will provide you with a basic working knowledge necessary to use the unit to it’s fullest poten- tial. Part Two is divided into sections that provide detailed references to the advanced features and operations of the GPSMAP 130. This allows you to concen- trate on a specific topic quickly, without reading through entire portions of text that you may not need. This section can be used to look up further information about the GPSMAP 130. WARNING! The electronic chart is an aid to navigation and is designed to facilitate the use of authorized govern- ment charts, not replace them. Only official gov- ernment charts and notices to mariners contain all information needed for the safety of naviga- tion–and, as always, the user is responsible for their prudent use. v

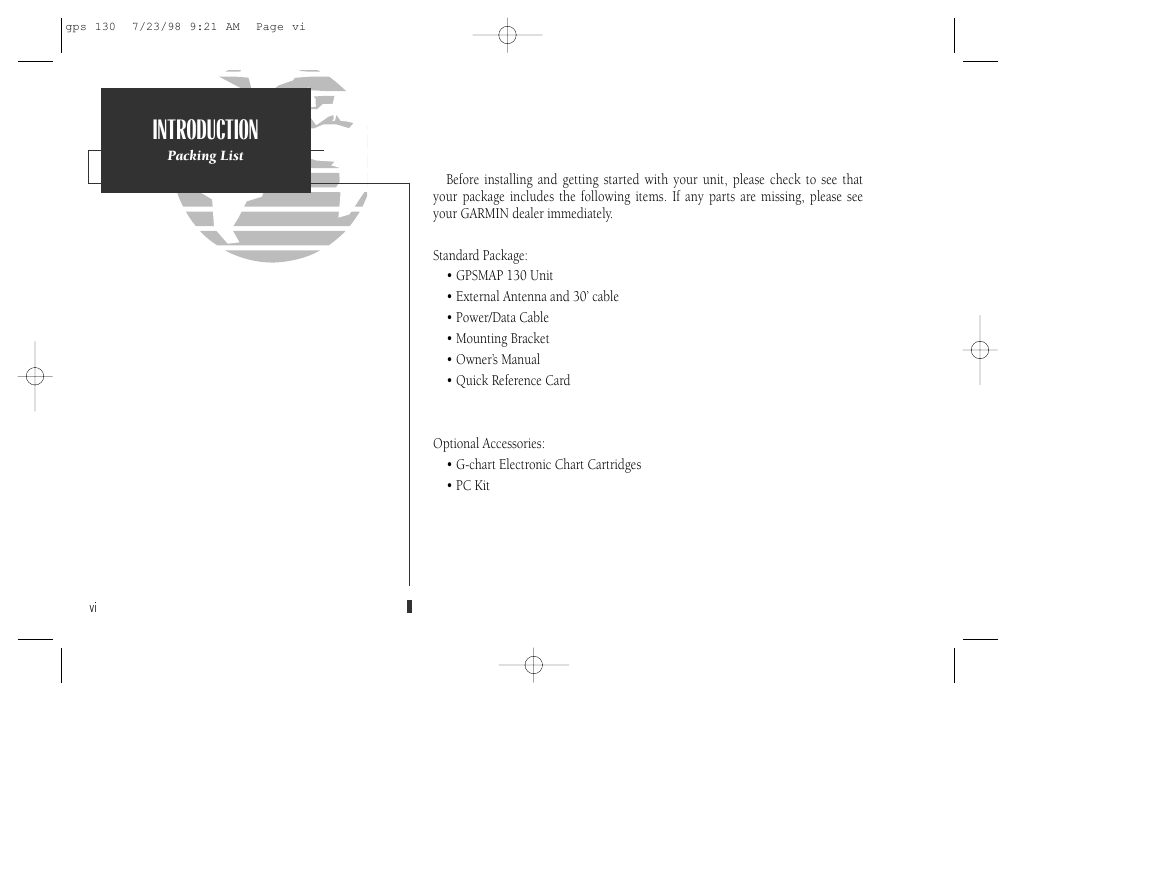

gps 130 7/23/98 9:21 AM Page vi INTRODUCTION Packing List vi Before installing and getting started with your unit, please check to see that your package includes the following items. If any parts are missing, please see your GARMIN dealer immediately. Standard Package: • GPSMAP 130 Unit • External Antenna and 30’ cable • Power/Data Cable • Mounting Bracket • Owner’s Manual • Quick Reference Card Optional Accessories: • G-chart Electronic Chart Cartridges • PC Kit
