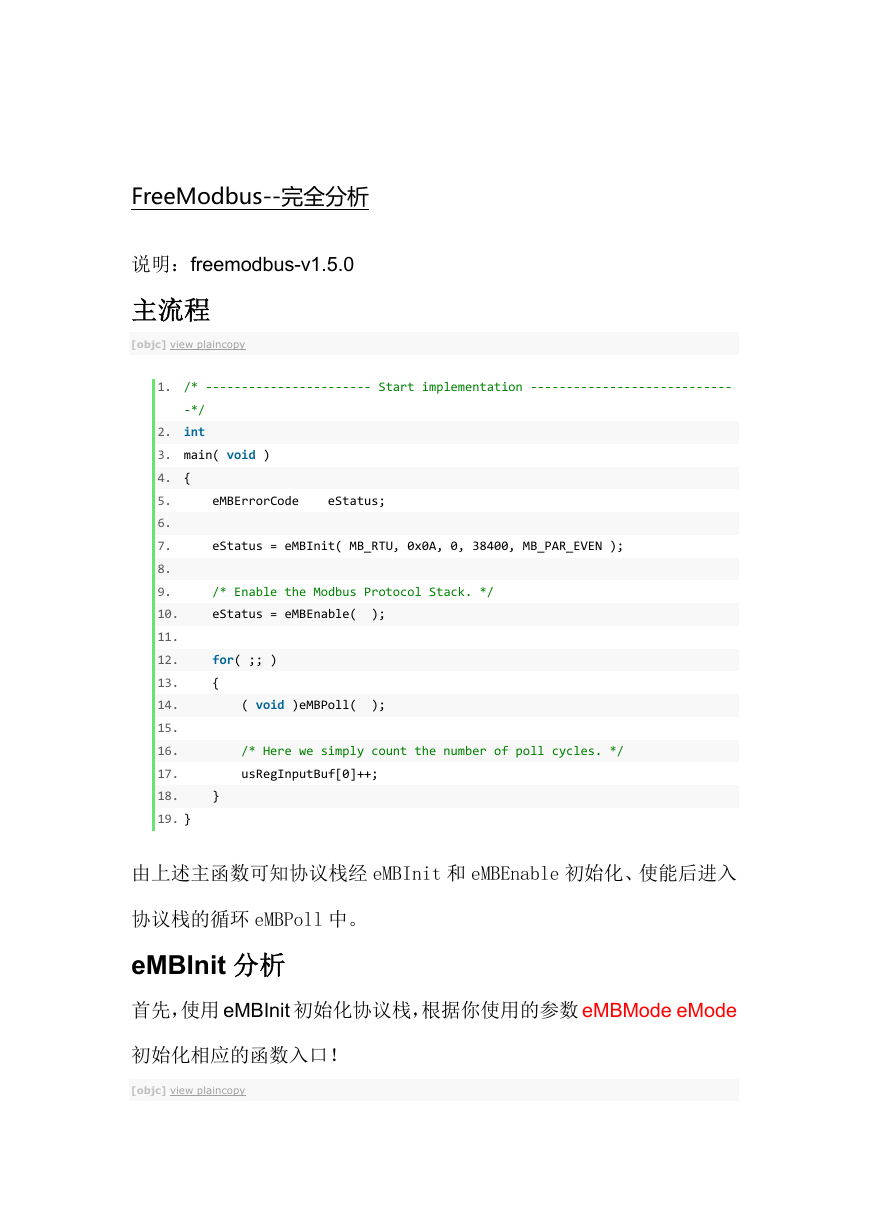

FreeModbus--完全分析说明：freemodbus-v1.5.0 主流程 [objc] view plaincopy 1. /* ----------------------- Start implementation ---------------------------- -*/ 2. int 3. main( void ) 4. { 5. eMBErrorCode eStatus; 6. 7. eStatus = eMBInit( MB_RTU, 0x0A, 0, 38400, MB_PAR_EVEN ); 8. 9. /* Enable the Modbus Protocol Stack. */ 10. eStatus = eMBEnable( ); 11. 12. for( ;; ) 13. { 14. ( void )eMBPoll( ); 15. 16. /* Here we simply count the number of poll cycles. */ 17. usRegInputBuf[0]++; 18. } 19. } 由上述主函数可知协议栈经 eMBInit 和 eMBEnable 初始化、使能后进入协议栈的循环 eMBPoll 中。 eMBInit 分析首先，使用 eMBInit 初始化协议栈，根据你使用的参数 eMBMode eMode 初始化相应的函数入口！ [objc] view plaincopy

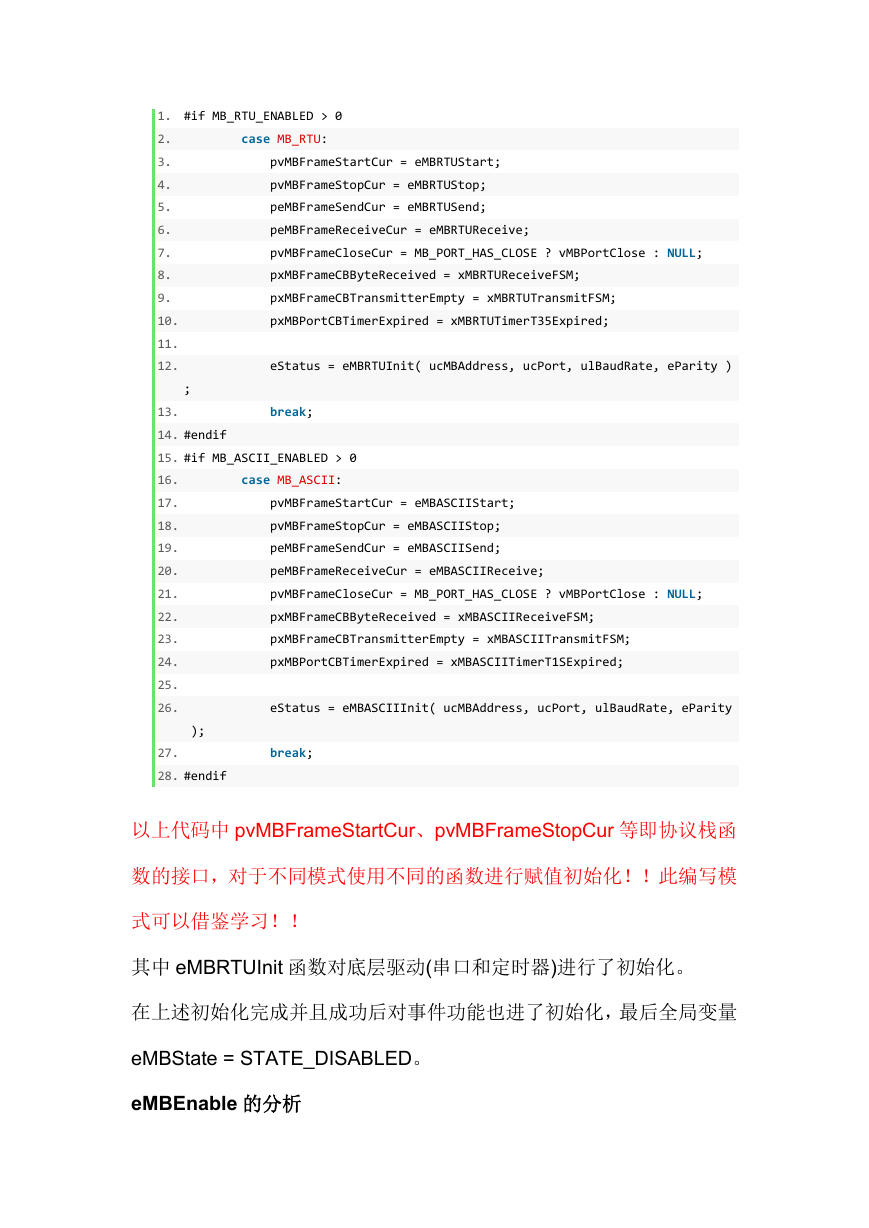

1. #if MB_RTU_ENABLED > 0 2. case MB_RTU: 3. pvMBFrameStartCur = eMBRTUStart; 4. pvMBFrameStopCur = eMBRTUStop; 5. peMBFrameSendCur = eMBRTUSend; 6. peMBFrameReceiveCur = eMBRTUReceive; 7. pvMBFrameCloseCur = MB_PORT_HAS_CLOSE ? vMBPortClose : NULL; 8. pxMBFrameCBByteReceived = xMBRTUReceiveFSM; 9. pxMBFrameCBTransmitterEmpty = xMBRTUTransmitFSM; 10. pxMBPortCBTimerExpired = xMBRTUTimerT35Expired; 11. 12. eStatus = eMBRTUInit( ucMBAddress, ucPort, ulBaudRate, eParity ) ; 13. break; 14. #endif 15. #if MB_ASCII_ENABLED > 0 16. case MB_ASCII: 17. pvMBFrameStartCur = eMBASCIIStart; 18. pvMBFrameStopCur = eMBASCIIStop; 19. peMBFrameSendCur = eMBASCIISend; 20. peMBFrameReceiveCur = eMBASCIIReceive; 21. pvMBFrameCloseCur = MB_PORT_HAS_CLOSE ? vMBPortClose : NULL; 22. pxMBFrameCBByteReceived = xMBASCIIReceiveFSM; 23. pxMBFrameCBTransmitterEmpty = xMBASCIITransmitFSM; 24. pxMBPortCBTimerExpired = xMBASCIITimerT1SExpired; 25. 26. eStatus = eMBASCIIInit( ucMBAddress, ucPort, ulBaudRate, eParity ); 27. break; 28. #endif 以上代码中 pvMBFrameStartCur、pvMBFrameStopCur 等即协议栈函数的接口，对于不同模式使用不同的函数进行赋值初始化！！此编写模式可以借鉴学习！！其中 eMBRTUInit 函数对底层驱动(串口和定时器)进行了初始化。在上述初始化完成并且成功后对事件功能也进了初始化，最后全局变量 eMBState = STATE_DISABLED。 eMBEnable 的分析

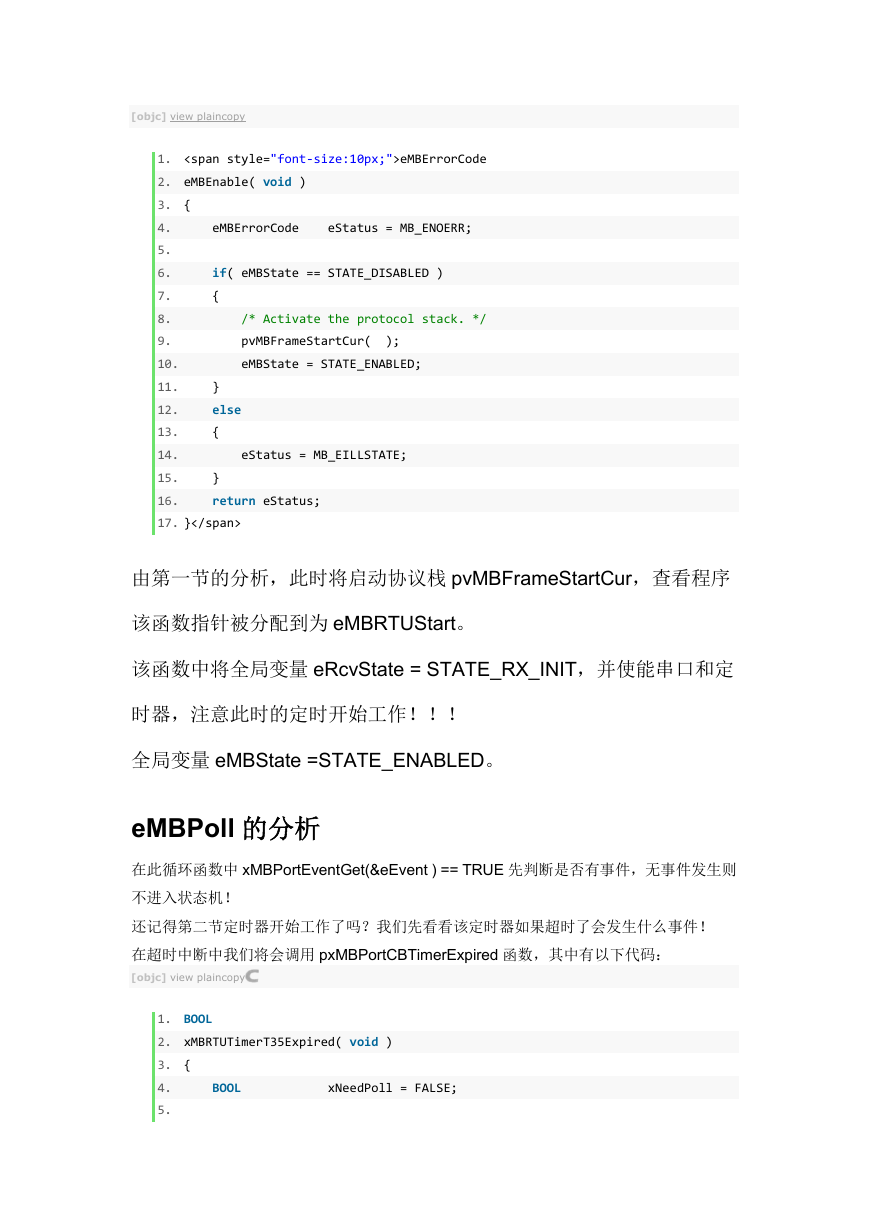

[objc] view plaincopy 1. eMBErrorCode 2. eMBEnable( void ) 3. { 4. eMBErrorCode eStatus = MB_ENOERR; 5. 6. if( eMBState == STATE_DISABLED ) 7. { 8. /* Activate the protocol stack. */ 9. pvMBFrameStartCur( ); 10. eMBState = STATE_ENABLED; 11. } 12. else 13. { 14. eStatus = MB_EILLSTATE; 15. } 16. return eStatus; 17. } 由第一节的分析，此时将启动协议栈 pvMBFrameStartCur，查看程序该函数指针被分配到为 eMBRTUStart。该函数中将全局变量 eRcvState = STATE_RX_INIT，并使能串口和定时器，注意此时的定时开始工作！！！全局变量 eMBState =STATE_ENABLED。 eMBPoll 的分析在此循环函数中 xMBPortEventGet(&eEvent ) == TRUE 先判断是否有事件，无事件发生则不进入状态机！还记得第二节定时器开始工作了吗？我们先看看该定时器如果超时了会发生什么事件！在超时中断中我们将会调用 pxMBPortCBTimerExpired 函数，其中有以下代码： [objc] view plaincopy 1. BOOL 2. xMBRTUTimerT35Expired( void ) 3. { 4. BOOL xNeedPoll = FALSE; 5.

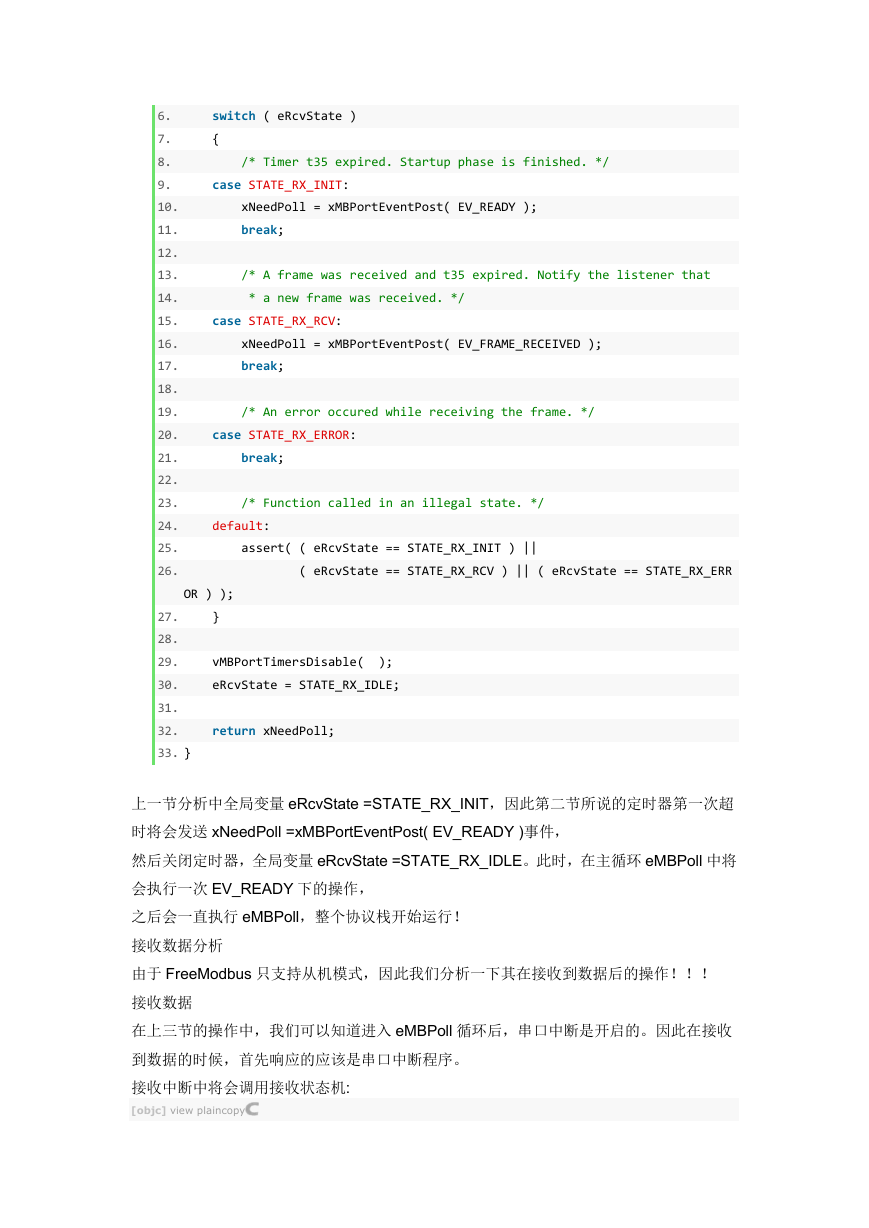

6. switch ( eRcvState ) 7. { 8. /* Timer t35 expired. Startup phase is finished. */ 9. case STATE_RX_INIT: 10. xNeedPoll = xMBPortEventPost( EV_READY ); 11. break; 12. 13. /* A frame was received and t35 expired. Notify the listener that 14. * a new frame was received. */ 15. case STATE_RX_RCV: 16. xNeedPoll = xMBPortEventPost( EV_FRAME_RECEIVED ); 17. break; 18. 19. /* An error occured while receiving the frame. */ 20. case STATE_RX_ERROR: 21. break; 22. 23. /* Function called in an illegal state. */ 24. default: 25. assert( ( eRcvState == STATE_RX_INIT ) || 26. ( eRcvState == STATE_RX_RCV ) || ( eRcvState == STATE_RX_ERR OR ) ); 27. } 28. 29. vMBPortTimersDisable( ); 30. eRcvState = STATE_RX_IDLE; 31. 32. return xNeedPoll; 33. } 上一节分析中全局变量 eRcvState =STATE_RX_INIT，因此第二节所说的定时器第一次超时将会发送 xNeedPoll =xMBPortEventPost( EV_READY )事件，然后关闭定时器，全局变量 eRcvState =STATE_RX_IDLE。此时，在主循环 eMBPoll 中将会执行一次 EV_READY 下的操作，之后会一直执行 eMBPoll，整个协议栈开始运行！接收数据分析由于 FreeModbus 只支持从机模式，因此我们分析一下其在接收到数据后的操作！！！接收数据在上三节的操作中，我们可以知道进入 eMBPoll 循环后，串口中断是开启的。因此在接收到数据的时候，首先响应的应该是串口中断程序。接收中断中将会调用接收状态机: [objc] view plaincopy

1. BOOL 2. xMBRTUReceiveFSM( void ) 3. { 4. BOOL xTaskNeedSwitch = FALSE; 5. UCHAR ucByte; 6. 7. assert( eSndState == STATE_TX_IDLE ); 8. 9. /* Always read the character. */ 10. ( void )xMBPortSerialGetByte( ( CHARCHAR * ) & ucByte ); 11. 12. switch ( eRcvState ) 13. { 14. /* If we have received a character in the init state we have to 15. * wait until the frame is finished. 16. */ 17. case STATE_RX_INIT: 18. vMBPortTimersEnable( ); 19. break; 20. 21. /* In the error state we wait until all characters in the 22. * damaged frame are transmitted. 23. */ 24. case STATE_RX_ERROR: 25. vMBPortTimersEnable( ); 26. break; 27. 28. /* In the idle state we wait for a new character. If a character 29. * is received the t1.5 and t3.5 timers are started and the 30. * receiver is in the state STATE_RX_RECEIVCE. 31. */ 32. case STATE_RX_IDLE: 33. usRcvBufferPos = 0; 34. ucRTUBuf[usRcvBufferPos++] = ucByte; 35. eRcvState = STATE_RX_RCV; 36. 37. /* Enable t3.5 timers. */ 38. vMBPortTimersEnable( ); 39. break; 40. 41. /* We are currently receiving a frame. Reset the timer after 42. * every character received. If more than the maximum possible 43. * number of bytes in a modbus frame is received the frame is 44. * ignored.

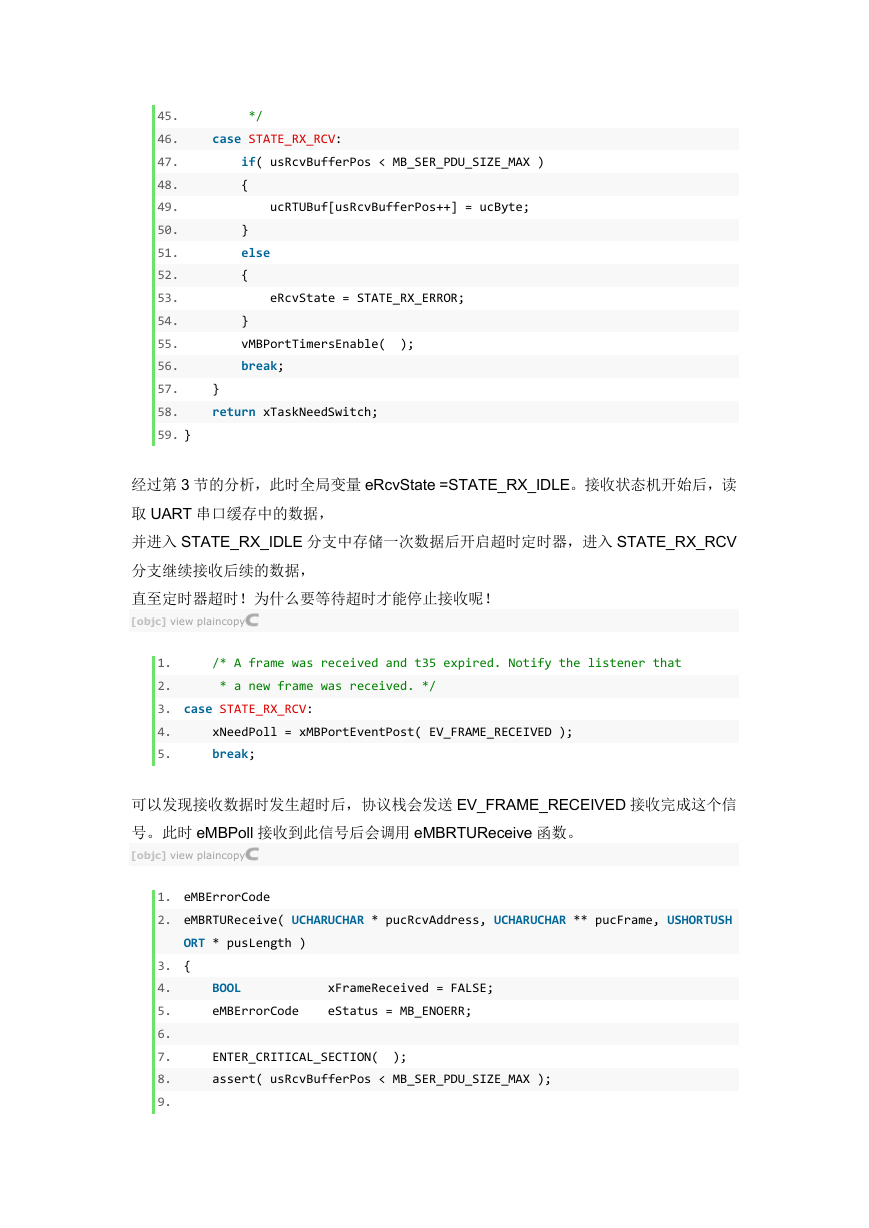

45. */ 46. case STATE_RX_RCV: 47. if( usRcvBufferPos < MB_SER_PDU_SIZE_MAX ) 48. { 49. ucRTUBuf[usRcvBufferPos++] = ucByte; 50. } 51. else 52. { 53. eRcvState = STATE_RX_ERROR; 54. } 55. vMBPortTimersEnable( ); 56. break; 57. } 58. return xTaskNeedSwitch; 59. } 经过第 3 节的分析，此时全局变量 eRcvState =STATE_RX_IDLE。接收状态机开始后，读取 UART 串口缓存中的数据，并进入 STATE_RX_IDLE 分支中存储一次数据后开启超时定时器，进入 STATE_RX_RCV 分支继续接收后续的数据，直至定时器超时！为什么要等待超时才能停止接收呢！ [objc] view plaincopy 1. /* A frame was received and t35 expired. Notify the listener that 2. * a new frame was received. */ 3. case STATE_RX_RCV: 4. xNeedPoll = xMBPortEventPost( EV_FRAME_RECEIVED ); 5. break; 可以发现接收数据时发生超时后，协议栈会发送 EV_FRAME_RECEIVED 接收完成这个信号。此时 eMBPoll 接收到此信号后会调用 eMBRTUReceive 函数。 [objc] view plaincopy 1. eMBErrorCode 2. eMBRTUReceive( UCHARUCHAR * pucRcvAddress, UCHARUCHAR ** pucFrame, USHORTUSH ORT * pusLength ) 3. { 4. BOOL xFrameReceived = FALSE; 5. eMBErrorCode eStatus = MB_ENOERR; 6. 7. ENTER_CRITICAL_SECTION( ); 8. assert( usRcvBufferPos < MB_SER_PDU_SIZE_MAX ); 9.

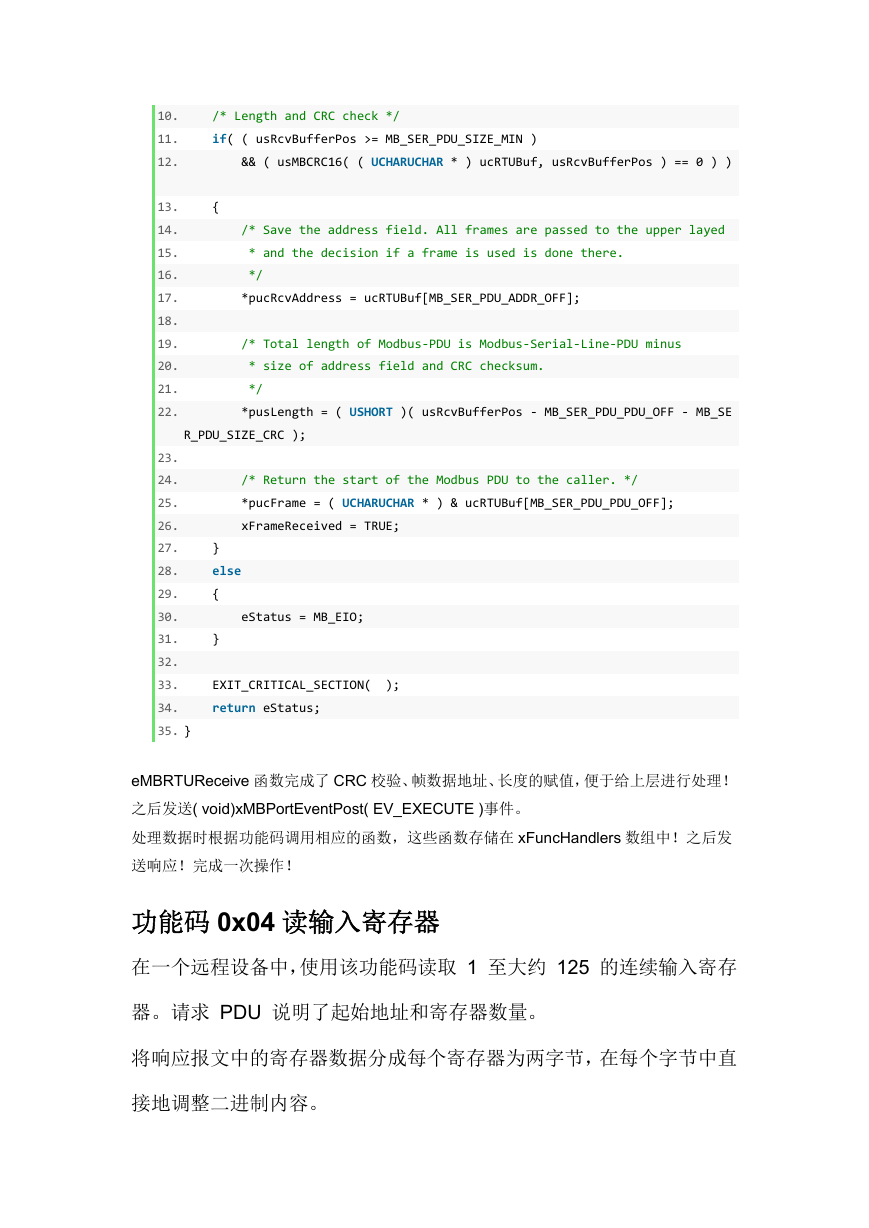

10. /* Length and CRC check */ 11. if( ( usRcvBufferPos >= MB_SER_PDU_SIZE_MIN ) 12. && ( usMBCRC16( ( UCHARUCHAR * ) ucRTUBuf, usRcvBufferPos ) == 0 ) ) 13. { 14. /* Save the address field. All frames are passed to the upper layed 15. * and the decision if a frame is used is done there. 16. */ 17. *pucRcvAddress = ucRTUBuf[MB_SER_PDU_ADDR_OFF]; 18. 19. /* Total length of Modbus-PDU is Modbus-Serial-Line-PDU minus 20. * size of address field and CRC checksum. 21. */ 22. *pusLength = ( USHORT )( usRcvBufferPos - MB_SER_PDU_PDU_OFF - MB_SE R_PDU_SIZE_CRC ); 23. 24. /* Return the start of the Modbus PDU to the caller. */ 25. *pucFrame = ( UCHARUCHAR * ) & ucRTUBuf[MB_SER_PDU_PDU_OFF]; 26. xFrameReceived = TRUE; 27. } 28. else 29. { 30. eStatus = MB_EIO; 31. } 32. 33. EXIT_CRITICAL_SECTION( ); 34. return eStatus; 35. } eMBRTUReceive 函数完成了 CRC 校验、帧数据地址、长度的赋值，便于给上层进行处理！之后发送( void)xMBPortEventPost( EV_EXECUTE )事件。处理数据时根据功能码调用相应的函数，这些函数存储在 xFuncHandlers 数组中！之后发送响应！完成一次操作！功能码 0x04 读输入寄存器在一个远程设备中，使用该功能码读取 1 至大约 125 的连续输入寄存器。请求 PDU 说明了起始地址和寄存器数量。将响应报文中的寄存器数据分成每个寄存器为两字节，在每个字节中直接地调整二进制内容。

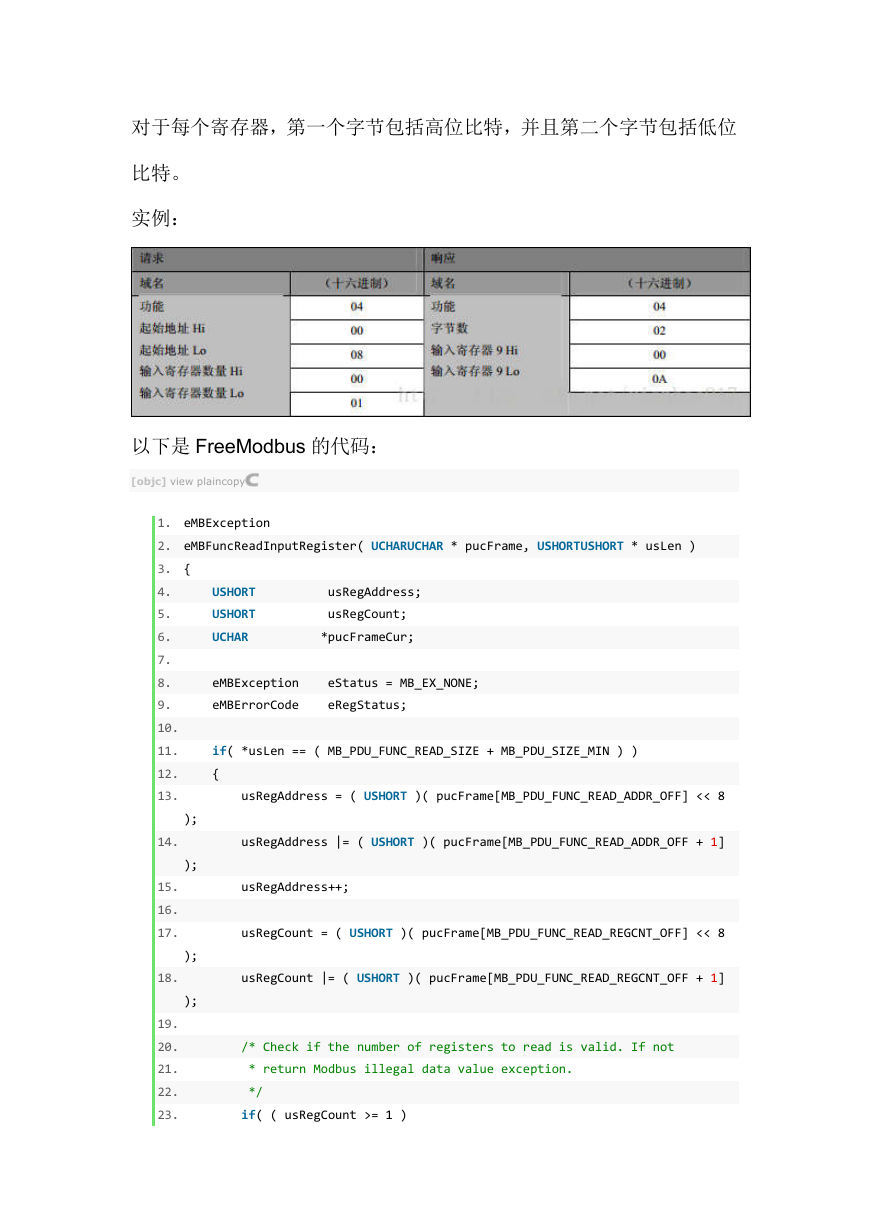

对于每个寄存器，第一个字节包括高位比特，并且第二个字节包括低位比特。实例：以下是 FreeModbus 的代码： [objc] view plaincopy 1. eMBException 2. eMBFuncReadInputRegister( UCHARUCHAR * pucFrame, USHORTUSHORT * usLen ) 3. { 4. USHORT usRegAddress; 5. USHORT usRegCount; 6. UCHAR *pucFrameCur; 7. 8. eMBException eStatus = MB_EX_NONE; 9. eMBErrorCode eRegStatus; 10. 11. if( *usLen == ( MB_PDU_FUNC_READ_SIZE + MB_PDU_SIZE_MIN ) ) 12. { 13. usRegAddress = ( USHORT )( pucFrame[MB_PDU_FUNC_READ_ADDR_OFF] << 8 ); 14. usRegAddress |= ( USHORT )( pucFrame[MB_PDU_FUNC_READ_ADDR_OFF + 1] ); 15. usRegAddress++; 16. 17. usRegCount = ( USHORT )( pucFrame[MB_PDU_FUNC_READ_REGCNT_OFF] << 8 ); 18. usRegCount |= ( USHORT )( pucFrame[MB_PDU_FUNC_READ_REGCNT_OFF + 1] ); 19. 20. /* Check if the number of registers to read is valid. If not 21. * return Modbus illegal data value exception. 22. */ 23. if( ( usRegCount >= 1 )
