INSTRUCTION MANUAL
Digital disk camera
IDC-1000ZEX
IDC-1000ZE
IDC-1000ZU
This manual explains how to safely operate the IDC-1000ZEX, IDC-1000ZE, and IDC-1000ZU.
Any information regarding only one of these products will be labeled as such.
Please read these instructions carefully before using the digital disk camera. Make sure to read and understand the section USING YOUR
DIGITAL DISK CAMERA SAFELY AND CORRECTLY from page 5 to 17. Keep this manual in a safe place for later reference.
Caution for laser
Do not open covers and do not repair yourself. Refer servicing to qualified
personnel. This product utilizes a laser.
The use, adjustment, or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Laser
Type
Output power
: Semiconductor laser AlGanP
: 3.5 mW (read-average),
5.85 mW (write-average)
Beam divergence : 45.5 degrees (objective lens emission)
Wavelength
: 655 to 666 nm (at 20 to 25°C)
1 English
Warning
TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE
FOR AMERICAN USERS
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This device generates, uses, and can
radiate radio frequency energy; and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this device does cause harmful
interference to radio or television reception, which can be determined by turning the device off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the device and receiver.
– Connect the device to an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/television technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the device.
Tested To Comply With FCC Standards
FOR HOME OR OFFICE USE
Declaration of Conformity
: IDC-1000ZU
: SANYO
: SANYO FISHER COMPANY
: 21605 Plummer Street, Chatsworth, California 91311
: (818) 998-7322
Model Number
Trade Name
Responsible party
Address
Telephone No.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1)
(2)
this device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause
undesired operation.
FOR CANADIAN USERS
œ This Class B digital apparatus complies with Canadian ICES-003.
English 2

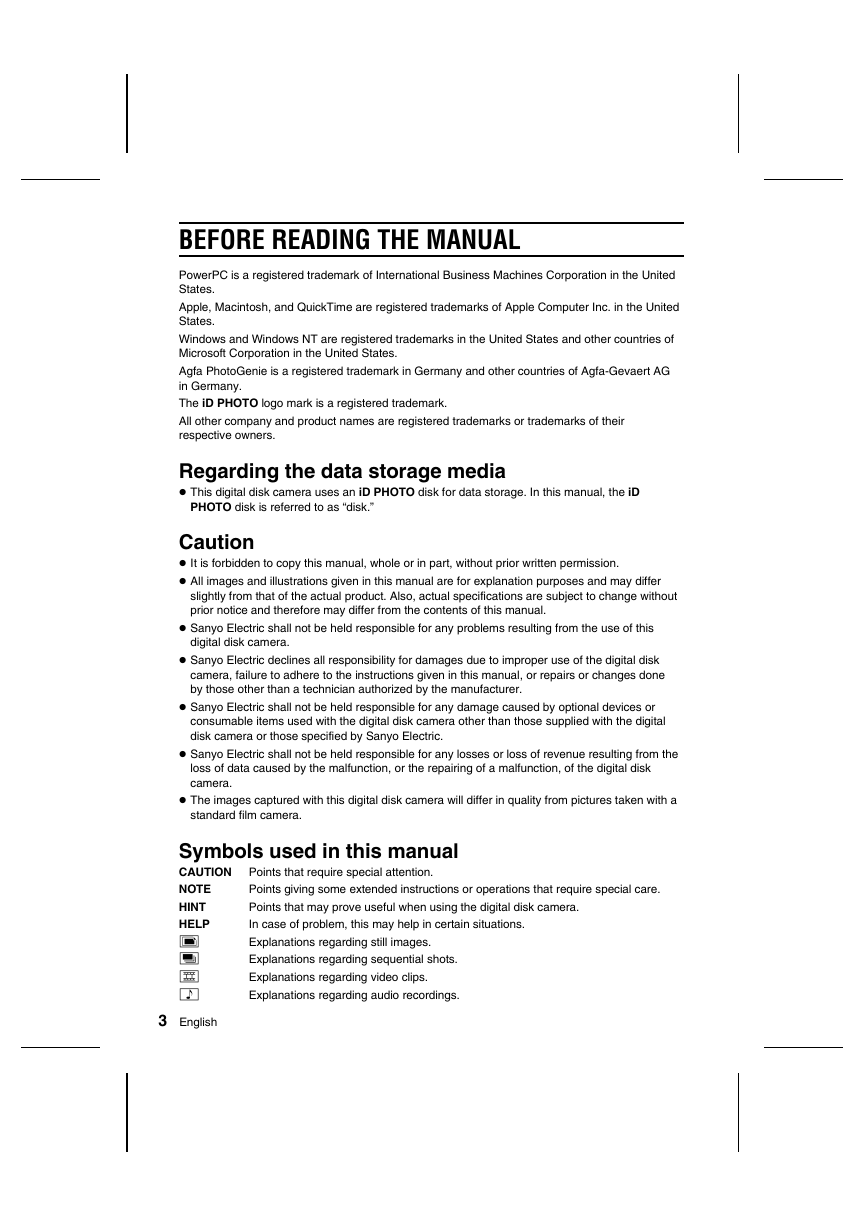

BEFORE READING THE MANUAL
PowerPC is a registered trademark of International Business Machines Corporation in the United
States.
Apple, Macintosh, and QuickTime are registered trademarks of Apple Computer Inc. in the United
States.
Windows and Windows NT are registered trademarks in the United States and other countries of
Microsoft Corporation in the United States.
Agfa PhotoGenie is a registered trademark in Germany and other countries of Agfa-Gevaert AG
in Germany.
The iD PHOTO logo mark is a registered trademark.
All other company and product names are registered trademarks or trademarks of their
respective owners.
Regarding the data storage media
œ This digital disk camera uses an iD PHOTO disk for data storage. In this manual, the iD
PHOTO disk is referred to as “disk.”
Caution
œ It is forbidden to copy this manual, whole or in part, without prior written permission.
œ All images and illustrations given in this manual are for explanation purposes and may differ
slightly from that of the actual product. Also, actual specifications are subject to change without
prior notice and therefore may differ from the contents of this manual.
œ Sanyo Electric shall not be held responsible for any problems resulting from the use of this
digital disk camera.
œ Sanyo Electric declines all responsibility for damages due to improper use of the digital disk
camera, failure to adhere to the instructions given in this manual, or repairs or changes done
by those other than a technician authorized by the manufacturer.
œ Sanyo Electric shall not be held responsible for any damage caused by optional devices or
consumable items used with the digital disk camera other than those supplied with the digital
disk camera or those specified by Sanyo Electric.
œ Sanyo Electric shall not be held responsible for any losses or loss of revenue resulting from the
loss of data caused by the malfunction, or the repairing of a malfunction, of the digital disk
camera.
œ The images captured with this digital disk camera will differ in quality from pictures taken with a
standard film camera.
Symbols used in this manual
CAUTION
NOTE
HINT
HELP
9
h
g
k
Points that require special attention.
Points giving some extended instructions or operations that require special care.
Points that may prove useful when using the digital disk camera.
In case of problem, this may help in certain situations.
Explanations regarding still images.
Explanations regarding sequential shots.
Explanations regarding video clips.
Explanations regarding audio recordings.
3 English

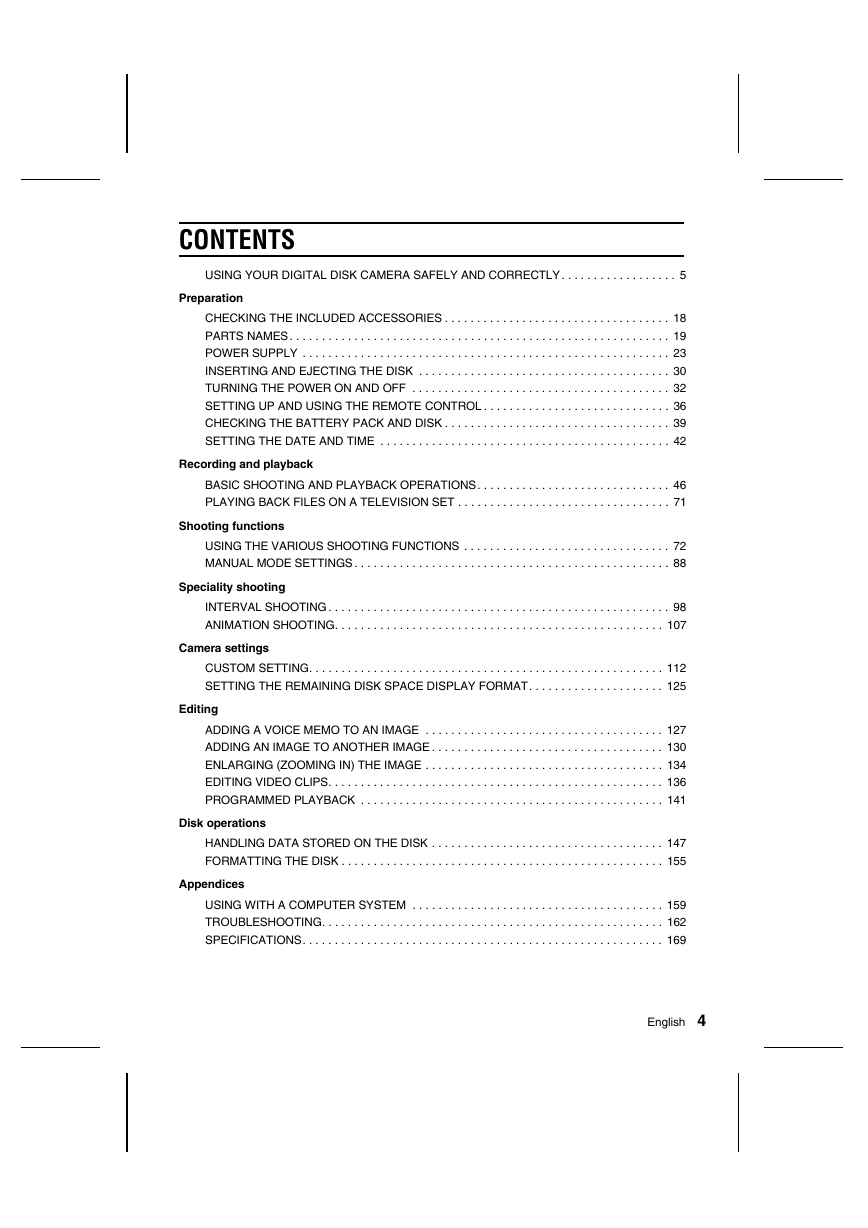

CONTENTS
USING YOUR DIGITAL DISK CAMERA SAFELY AND CORRECTLY. . . . . . . . . . . . . . . . . . 5
Preparation
CHECKING THE INCLUDED ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
PARTS NAMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
POWER SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
INSERTING AND EJECTING THE DISK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
TURNING THE POWER ON AND OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
SETTING UP AND USING THE REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
CHECKING THE BATTERY PACK AND DISK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
SETTING THE DATE AND TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Recording and playback
BASIC SHOOTING AND PLAYBACK OPERATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
PLAYING BACK FILES ON A TELEVISION SET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Shooting functions
USING THE VARIOUS SHOOTING FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
MANUAL MODE SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Speciality shooting
INTERVAL SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
ANIMATION SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Camera settings
CUSTOM SETTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
SETTING THE REMAINING DISK SPACE DISPLAY FORMAT. . . . . . . . . . . . . . . . . . . . . 125
Editing
ADDING A VOICE MEMO TO AN IMAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
ADDING AN IMAGE TO ANOTHER IMAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
ENLARGING (ZOOMING IN) THE IMAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
EDITING VIDEO CLIPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
PROGRAMMED PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Disk operations
HANDLING DATA STORED ON THE DISK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
FORMATTING THE DISK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Appendices
USING WITH A COMPUTER SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
English 4

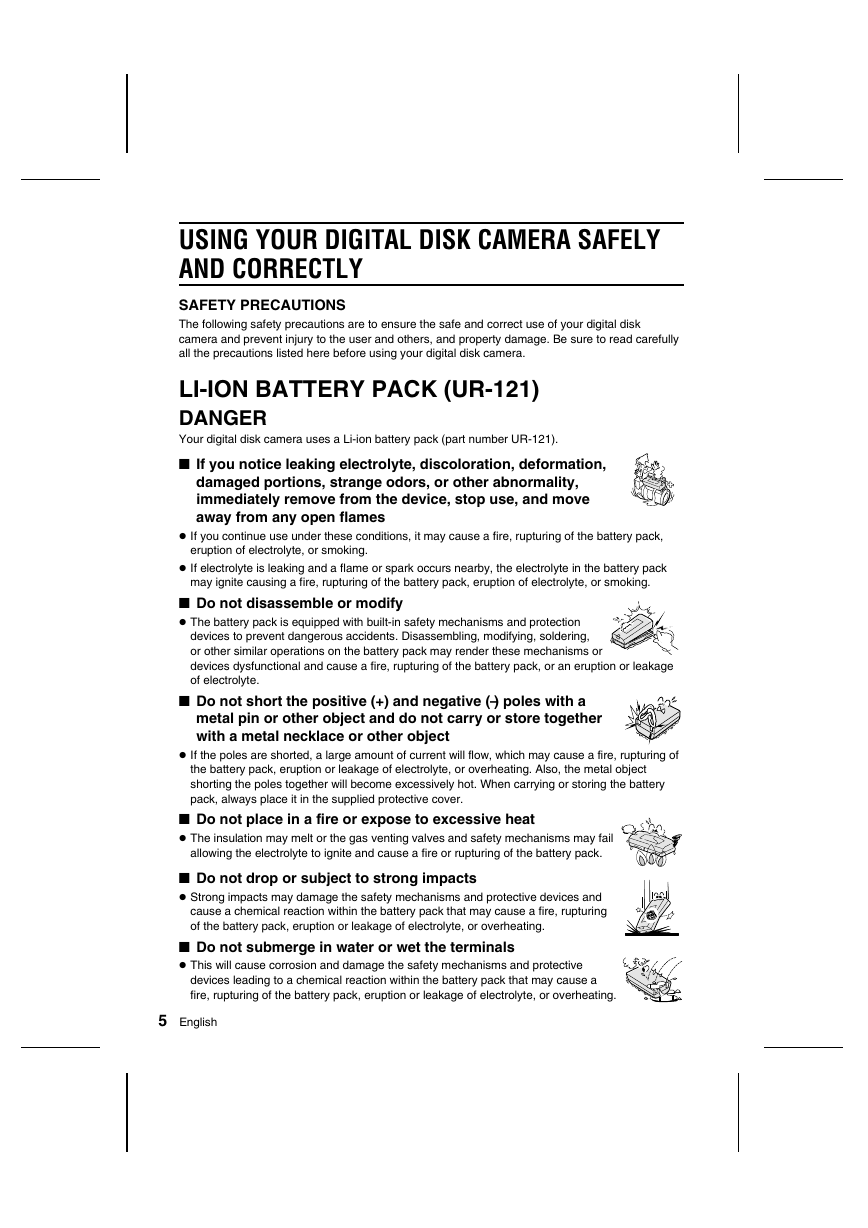

USING YOUR DIGITAL DISK CAMERA SAFELY
AND CORRECTLY
SAFETY PRECAUTIONS
The following safety precautions are to ensure the safe and correct use of your digital disk
camera and prevent injury to the user and others, and property damage. Be sure to read carefully
all the precautions listed here before using your digital disk camera.
LI-ION BATTERY PACK (UR-121)
DANGER
Your digital disk camera uses a Li-ion battery pack (part number UR-121).
I If you notice leaking electrolyte, discoloration, deformation,
damaged portions, strange odors, or other abnormality,
immediately remove from the device, stop use, and move
away from any open flames
œ If you continue use under these conditions, it may cause a fire, rupturing of the battery pack,
eruption of electrolyte, or smoking.
œ If electrolyte is leaking and a flame or spark occurs nearby, the electrolyte in the battery pack
may ignite causing a fire, rupturing of the battery pack, eruption of electrolyte, or smoking.
I Do not disassemble or modify
œ The battery pack is equipped with built-in safety mechanisms and protection
devices to prevent dangerous accidents. Disassembling, modifying, soldering,
or other similar operations on the battery pack may render these mechanisms or
devices dysfunctional and cause a fire, rupturing of the battery pack, or an eruption or leakage
of electrolyte.
I Do not short the positive (+) and negative (–) poles with a
metal pin or other object and do not carry or store together
with a metal necklace or other object
œ If the poles are shorted, a large amount of current will flow, which may cause a fire, rupturing of
the battery pack, eruption or leakage of electrolyte, or overheating. Also, the metal object
shorting the poles together will become excessively hot. When carrying or storing the battery
pack, always place it in the supplied protective cover.
I Do not place in a fire or expose to excessive heat
œ The insulation may melt or the gas venting valves and safety mechanisms may fail
allowing the electrolyte to ignite and cause a fire or rupturing of the battery pack.
I Do not drop or subject to strong impacts
œ Strong impacts may damage the safety mechanisms and protective devices and
cause a chemical reaction within the battery pack that may cause a fire, rupturing
of the battery pack, eruption or leakage of electrolyte, or overheating.
I Do not submerge in water or wet the terminals
œ This will cause corrosion and damage the safety mechanisms and protective
devices leading to a chemical reaction within the battery pack that may cause a
fire, rupturing of the battery pack, eruption or leakage of electrolyte, or overheating.
5 English

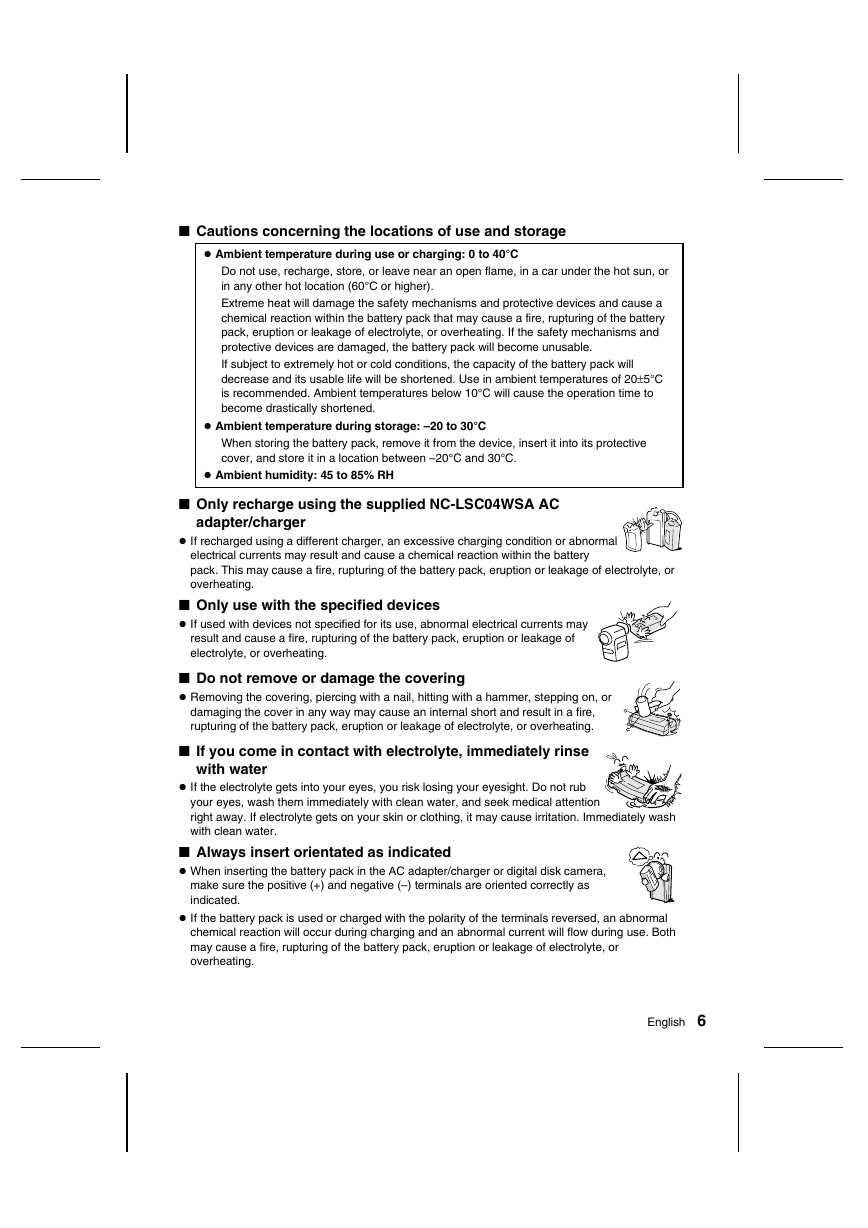

I Cautions concerning the locations of use and storage
œ Ambient temperature during use or charging: 0 to 40°C
Do not use, recharge, store, or leave near an open flame, in a car under the hot sun, or
in any other hot location (60°C or higher).
Extreme heat will damage the safety mechanisms and protective devices and cause a
chemical reaction within the battery pack that may cause a fire, rupturing of the battery
pack, eruption or leakage of electrolyte, or overheating. If the safety mechanisms and
protective devices are damaged, the battery pack will become unusable.
If subject to extremely hot or cold conditions, the capacity of the battery pack will
decrease and its usable life will be shortened. Use in ambient temperatures of 20±5°C
is recommended. Ambient temperatures below 10°C will cause the operation time to
become drastically shortened.
œ Ambient temperature during storage: –20 to 30°C
When storing the battery pack, remove it from the device, insert it into its protective
cover, and store it in a location between –20°C and 30°C.
œ Ambient humidity: 45 to 85% RH
I Only recharge using the supplied NC-LSC04WSA AC
adapter/charger
œ If recharged using a different charger, an excessive charging condition or abnormal
electrical currents may result and cause a chemical reaction within the battery
pack. This may cause a fire, rupturing of the battery pack, eruption or leakage of electrolyte, or
overheating.
I Only use with the specified devices
œ If used with devices not specified for its use, abnormal electrical currents may
result and cause a fire, rupturing of the battery pack, eruption or leakage of
electrolyte, or overheating.
I Do not remove or damage the covering
œ Removing the covering, piercing with a nail, hitting with a hammer, stepping on, or
damaging the cover in any way may cause an internal short and result in a fire,
rupturing of the battery pack, eruption or leakage of electrolyte, or overheating.
I If you come in contact with electrolyte, immediately rinse
with water
œ If the electrolyte gets into your eyes, you risk losing your eyesight. Do not rub
your eyes, wash them immediately with clean water, and seek medical attention
right away. If electrolyte gets on your skin or clothing, it may cause irritation. Immediately wash
with clean water.
I Always insert orientated as indicated
œ When inserting the battery pack in the AC adapter/charger or digital disk camera,
make sure the positive (+) and negative (–) terminals are oriented correctly as
indicated.
œ If the battery pack is used or charged with the polarity of the terminals reversed, an abnormal
chemical reaction will occur during charging and an abnormal current will flow during use. Both
may cause a fire, rupturing of the battery pack, eruption or leakage of electrolyte, or
overheating.
English 6
WARNING
I If charging is not completed even after the specified time
elapses, stop the charging immediately
œ If charging is continued, it may cause a fire, rupturing of the battery pack, eruption
or leakage of electrolyte, or overheating.
I Keep out of the reach of children
œ The battery pack is not a toy and an unforeseeable accident may occur if
handled by children.
CAUTION
I Recharge before use
œ Always first recharge the battery pack before using it for the first time, or before
using it after a long period of non-use. During recharging, the battery pack will
be warm. This is normal and does not indicate a malfunction.
I Take care when handling immediately after use
œ The battery pack may be extremely hot immediately after use. After turning
off the digital disk camera, allow time for the battery pack to cool before
removing it.
I Cautions concerning recycling
œ To help preserve the environment and promote the effective use of resources,
when the battery pack has ended its usable life, completely discharge it, place
tape on its positive (+) and negative (–) terminals to prevent shorting, and hand
it in for recycling.
œ If you must dispose of the battery pack yourself, always dispose of it as
nonflammable refuse and follow the regulations for your area.
7 English
