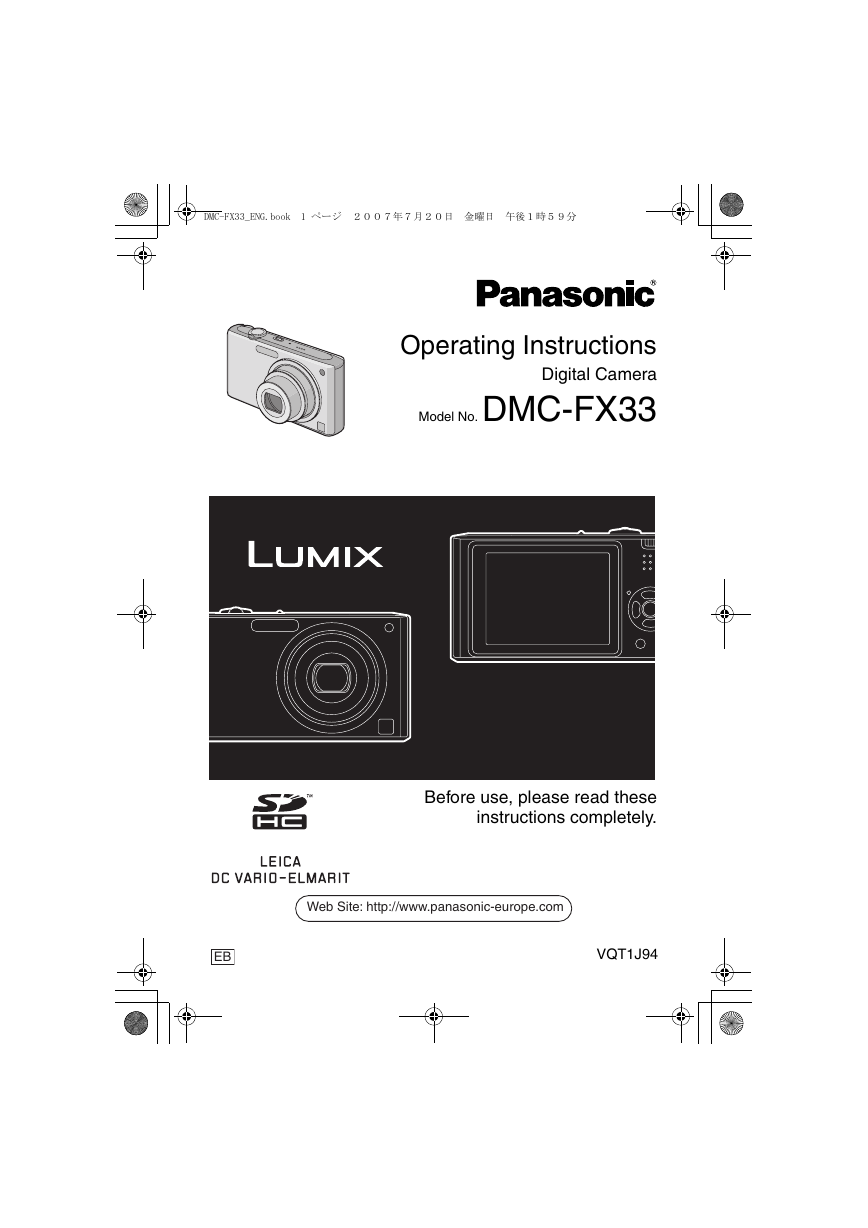

DMC-FX33_ENG.book 1 ページ２００７年７月２０日　金曜日　午後１時５９分 Operating Instructions Digital Camera Model No. DMC-FX33 Before use, please read these instructions completely. Web Site: http://www.panasonic-europe.com EB VQT1J94

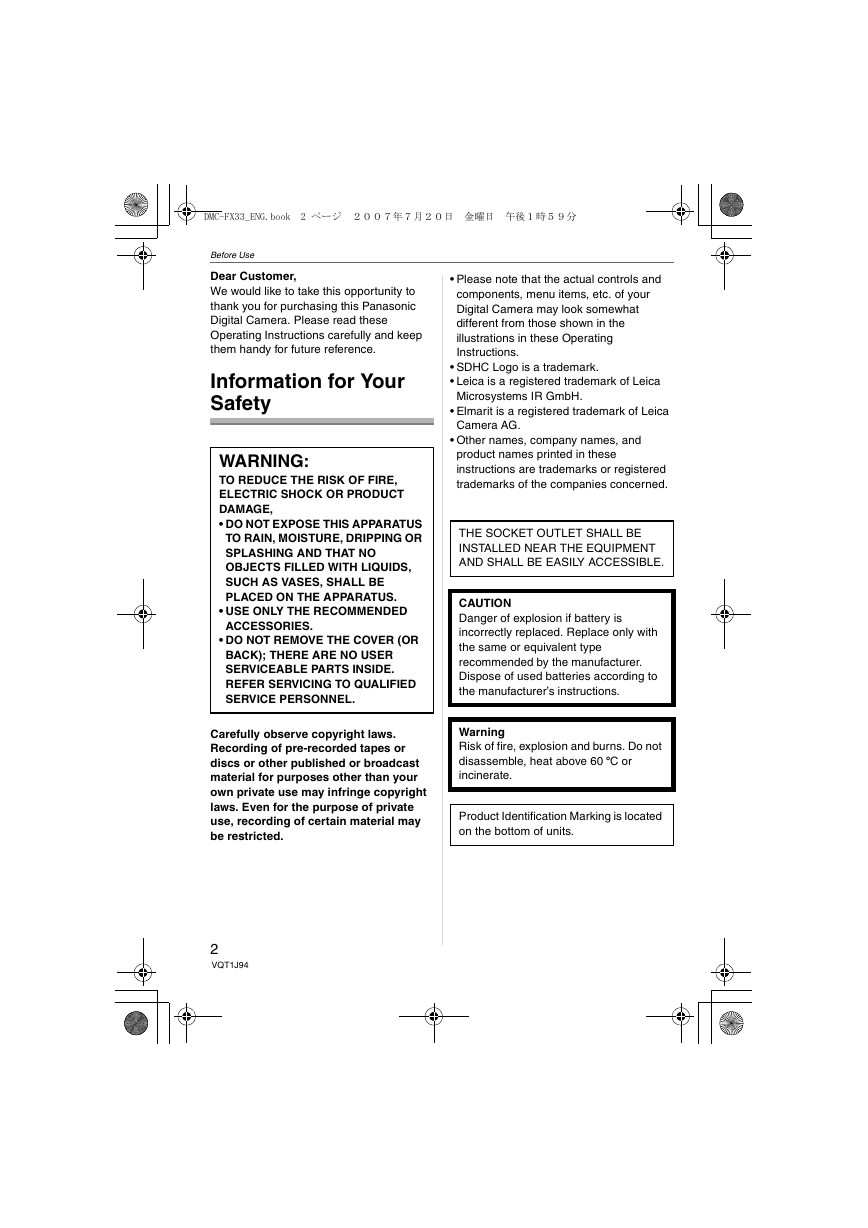

DMC-FX33_ENG.book 2 ページ２００７年７月２０日　金曜日　午後１時５９分 Before Use Before UseDear Customer, We would like to take this opportunity to thank you for purchasing this Panasonic Digital Camera. Please read these Operating Instructions carefully and keep them handy for future reference. Information for Your Safety WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, • DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. USE ONLY THE RECOMMENDED ACCESSORIES. DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in these Operating Instructions. SDHC Logo is a trademark. Leica is a registered trademark of Leica Microsystems IR GmbH. Elmarit is a registered trademark of Leica Camera AG. Other names, company names, and product names printed in these instructions are trademarks or registered trademarks of the companies concerned. THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Carefully observe copyright laws. Recording of pre-recorded tapes or discs or other published or broadcast material for purposes other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted. Warning Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC or incinerate. Product Identification Marking is located on the bottom of units. 2 VQT1J94

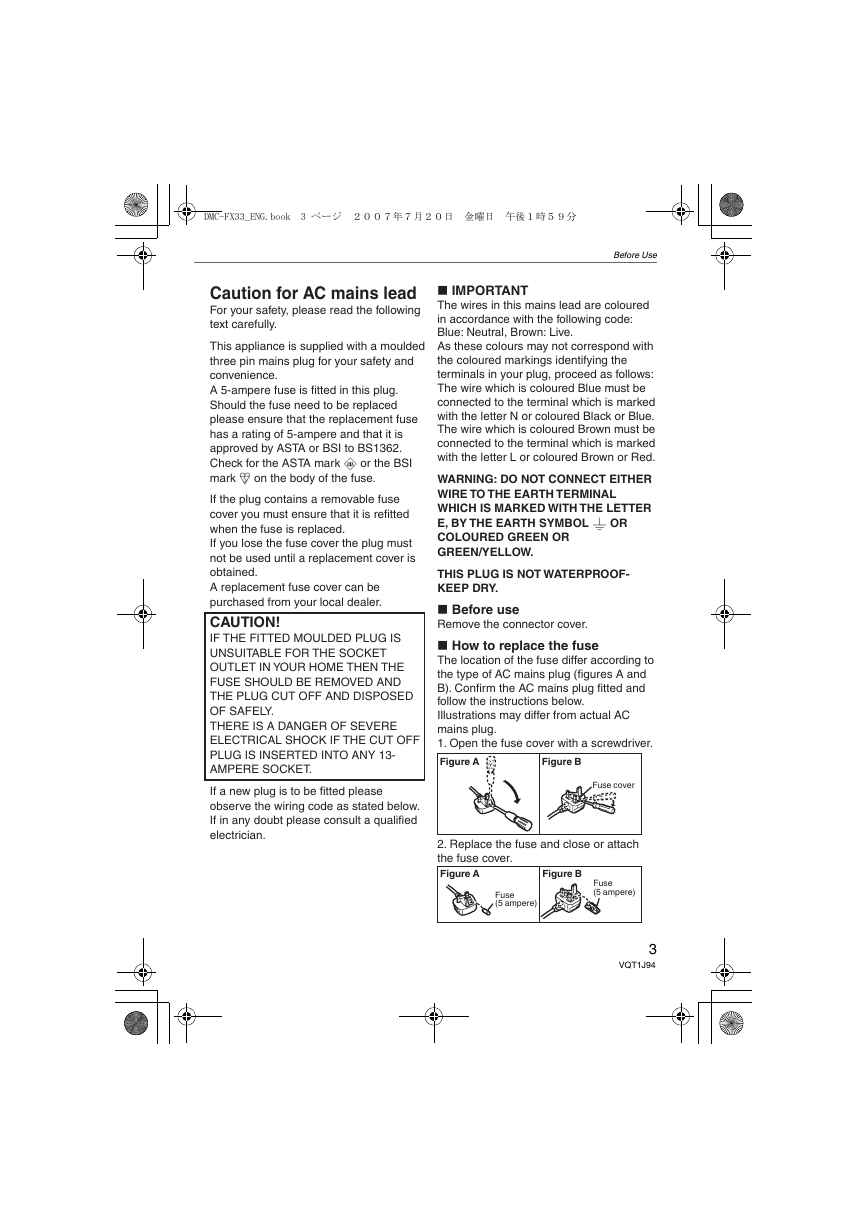

DMC-FX33_ENG.book 3 ページ２００７年７月２０日　金曜日　午後１時５９分 Caution for AC mains lead For your safety, please read the following text carefully. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark Ï or the BSI mark Ì on the body of the fuse. If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer. CAUTION! IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13- AMPERE SOCKET. If a new plug is to be fitted please observe the wiring code as stated below. If in any doubt please consult a qualified electrician. Before Use ∫ IMPORTANT The wires in this mains lead are coloured in accordance with the following code: Blue: Neutral, Brown: Live. As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red. WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL Ó OR COLOURED GREEN OR GREEN/YELLOW. THIS PLUG IS NOT WATERPROOF- KEEP DRY. ∫ Before use Remove the connector cover. ∫ How to replace the fuse The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug. 1. Open the fuse cover with a screwdriver. Figure A Figure B Fuse cover 2. Replace the fuse and close or attach the fuse cover. Figure A Figure B Fuse (5 ampere) Fuse (5 ampere) 3 VQT1J94

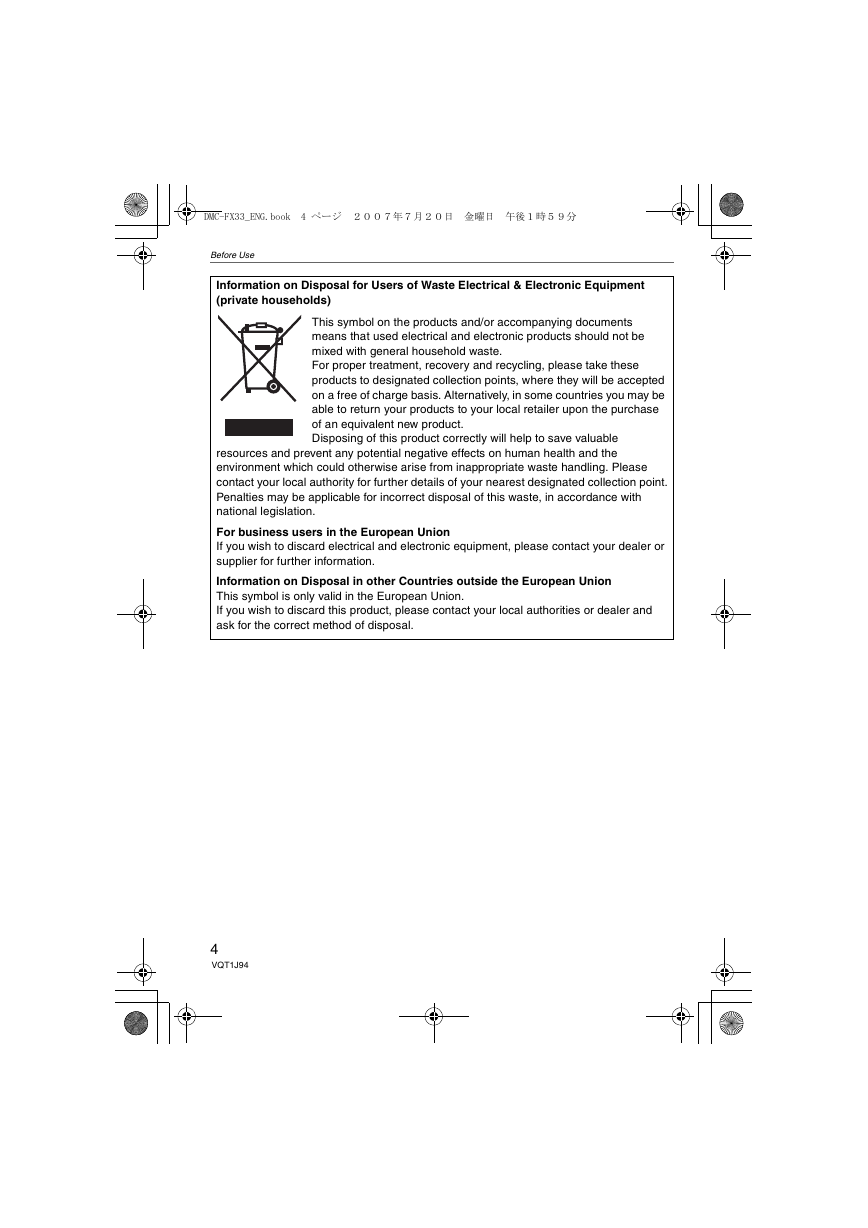

DMC-FX33_ENG.book 4 ページ２００７年７月２０日　金曜日　午後１時５９分 Before Use Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. 4 VQT1J94

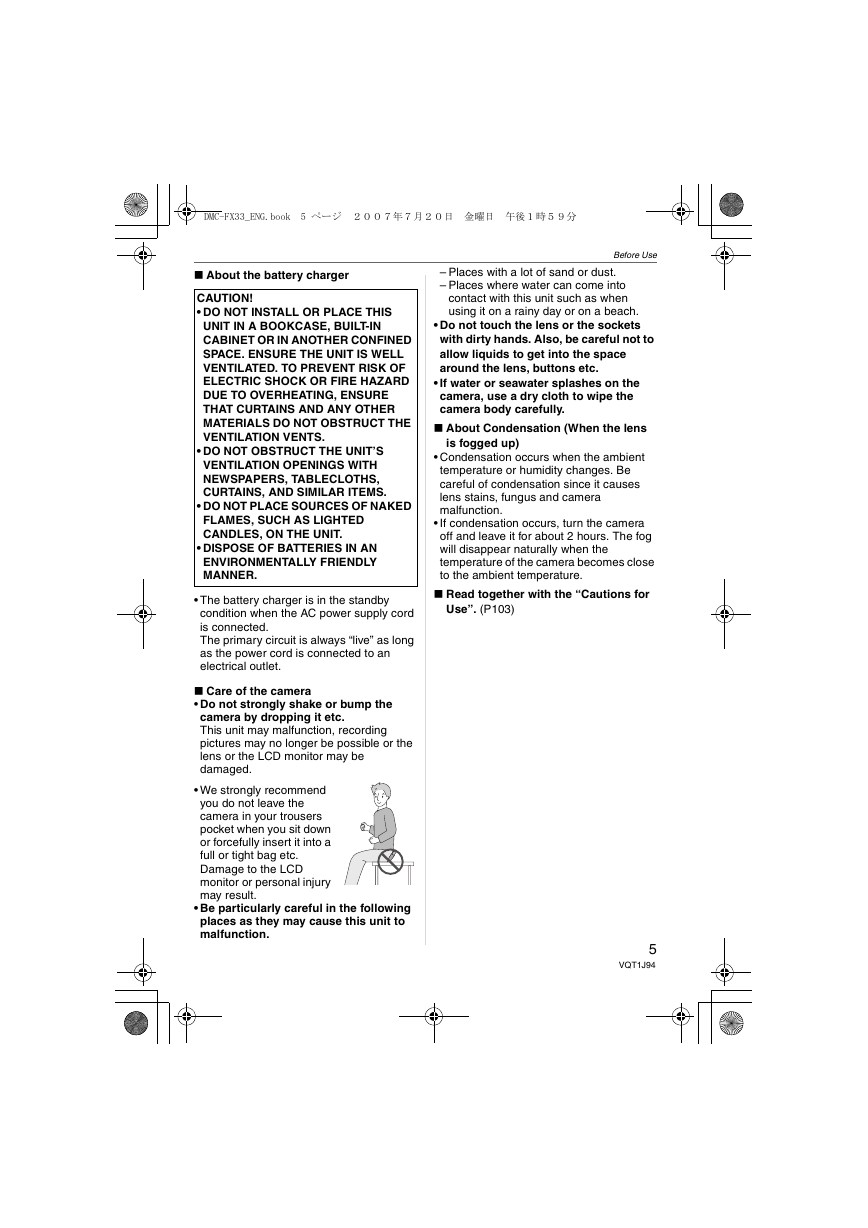

DMC-FX33_ENG.book 5 ページ２００７年７月２０日　金曜日　午後１時５９分 ∫ About the battery charger CAUTION! DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS. DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT. DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER. The battery charger is in the standby condition when the AC power supply cord is connected. The primary circuit is always “live” as long as the power cord is connected to an electrical outlet. ∫ Care of the camera Do not strongly shake or bump the camera by dropping it etc. This unit may malfunction, recording pictures may no longer be possible or the lens or the LCD monitor may be damaged. We strongly recommend you do not leave the camera in your trousers pocket when you sit down or forcefully insert it into a full or tight bag etc. Damage to the LCD monitor or personal injury may result. Be particularly careful in the following places as they may cause this unit to malfunction. Before Use – Places with a lot of sand or dust. – Places where water can come into contact with this unit such as when using it on a rainy day or on a beach. Do not touch the lens or the sockets with dirty hands. Also, be careful not to allow liquids to get into the space around the lens, buttons etc. If water or seawater splashes on the camera, use a dry cloth to wipe the camera body carefully. ∫ About Condensation (When the lens is fogged up) Condensation occurs when the ambient temperature or humidity changes. Be careful of condensation since it causes lens stains, fungus and camera malfunction. If condensation occurs, turn the camera off and leave it for about 2 hours. The fog will disappear naturally when the temperature of the camera becomes close to the ambient temperature. ∫ Read together with the “Cautions for Use”. (P103) 5 VQT1J94

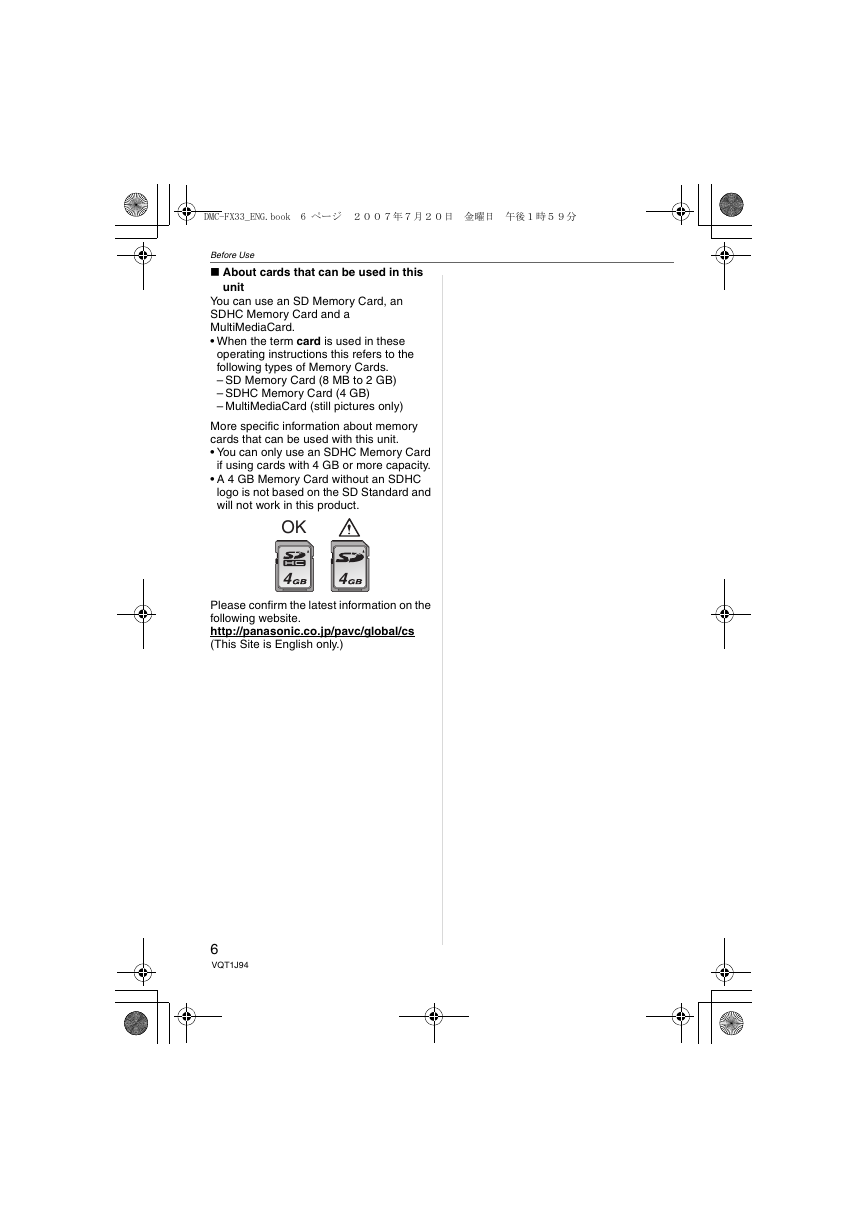

DMC-FX33_ENG.book 6 ページ２００７年７月２０日　金曜日　午後１時５９分 Before Use ∫ About cards that can be used in this unit You can use an SD Memory Card, an SDHC Memory Card and a MultiMediaCard. When the term card is used in these operating instructions this refers to the following types of Memory Cards. – SD Memory Card (8 MB to 2 GB) – SDHC Memory Card (4 GB) – MultiMediaCard (still pictures only) More specific information about memory cards that can be used with this unit. You can only use an SDHC Memory Card if using cards with 4 GB or more capacity. A 4 GB Memory Card without an SDHC logo is not based on the SD Standard and will not work in this product. OK 4 4 Please confirm the latest information on the following website. http://panasonic.co.jp/pavc/global/cs (This Site is English only.) 6 VQT1J94

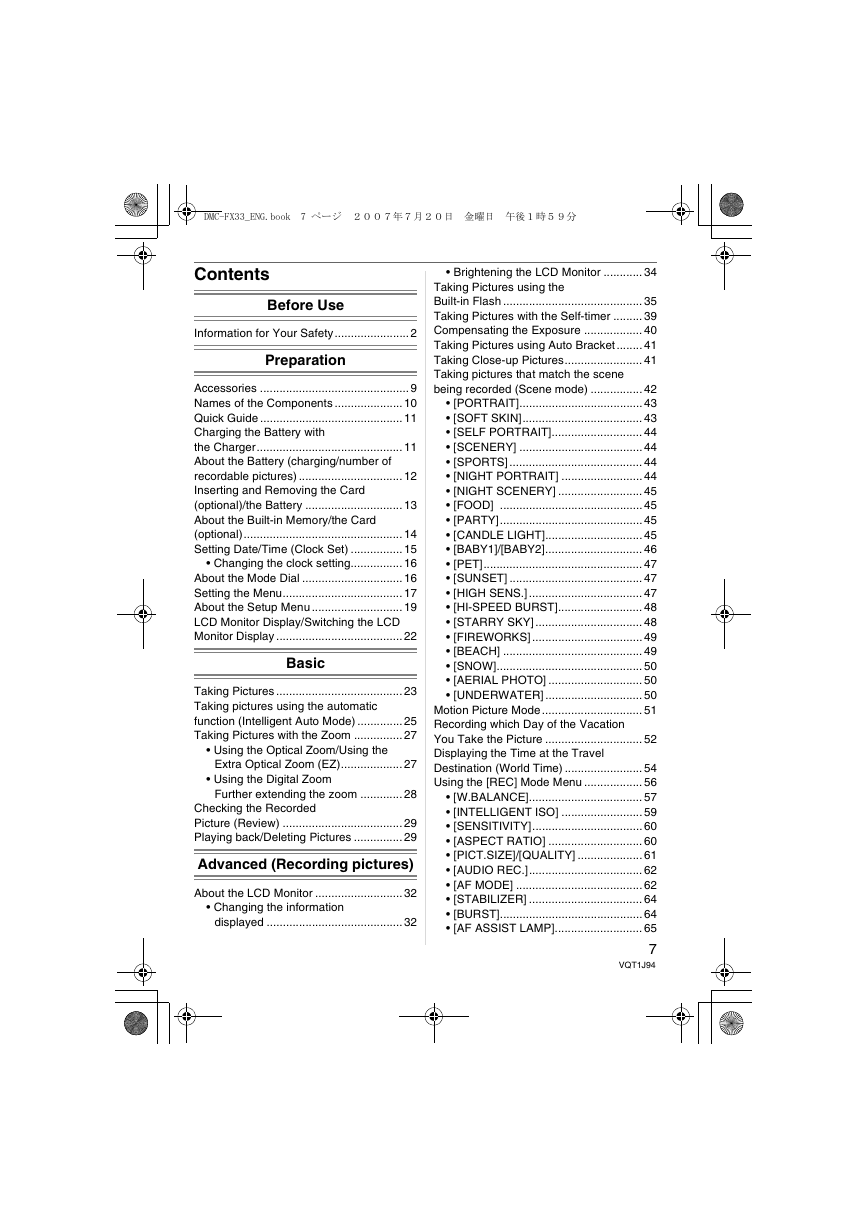

DMC-FX33_ENG.book 7 ページ２００７年７月２０日　金曜日　午後１時５９分 Contents Before Use Information for Your Safety....................... 2 Preparation Accessories .............................................. 9 Names of the Components ..................... 10 Quick Guide ............................................ 11 Charging the Battery with the Charger............................................. 11 About the Battery (charging/number of recordable pictures) ................................ 12 Inserting and Removing the Card (optional)/the Battery .............................. 13 About the Built-in Memory/the Card (optional)................................................. 14 Setting Date/Time (Clock Set) ................ 15 Changing the clock setting................ 16 About the Mode Dial ............................... 16 Setting the Menu..................................... 17 About the Setup Menu ............................ 19 LCD Monitor Display/Switching the LCD Monitor Display ....................................... 22 Basic Taking Pictures ....................................... 23 Taking pictures using the automatic function (Intelligent Auto Mode) .............. 25 Taking Pictures with the Zoom ............... 27 Using the Optical Zoom/Using the Extra Optical Zoom (EZ)................... 27 Using the Digital Zoom Further extending the zoom ............. 28 Checking the Recorded Picture (Review) ..................................... 29 Playing back/Deleting Pictures ............... 29 Advanced (Recording pictures) About the LCD Monitor ........................... 32 Changing the information displayed .......................................... 32 Brightening the LCD Monitor ............ 34 Taking Pictures using the Built-in Flash ........................................... 35 Taking Pictures with the Self-timer ......... 39 Compensating the Exposure .................. 40 Taking Pictures using Auto Bracket ........ 41 Taking Close-up Pictures........................ 41 Taking pictures that match the scene being recorded (Scene mode) ................ 42 [PORTRAIT]...................................... 43 [SOFT SKIN]..................................... 43 [SELF PORTRAIT]............................ 44 [SCENERY] ...................................... 44 [SPORTS] ......................................... 44 [NIGHT PORTRAIT] ......................... 44 [NIGHT SCENERY] .......................... 45 [FOOD] ............................................ 45 [PARTY]............................................ 45 [CANDLE LIGHT].............................. 45 [BABY1]/[BABY2].............................. 46 [PET]................................................. 47 [SUNSET] ......................................... 47 [HIGH SENS.] ................................... 47 [HI-SPEED BURST].......................... 48 [STARRY SKY] ................................. 48 [FIREWORKS] .................................. 49 [BEACH] ........................................... 49 [SNOW]............................................. 50 [AERIAL PHOTO] ............................. 50 [UNDERWATER] .............................. 50 Motion Picture Mode............................... 51 Recording which Day of the Vacation You Take the Picture .............................. 52 Displaying the Time at the Travel Destination (World Time) ........................ 54 Using the [REC] Mode Menu .................. 56 [W.BALANCE]................................... 57 [INTELLIGENT ISO] ......................... 59 [SENSITIVITY].................................. 60 [ASPECT RATIO] ............................. 60 [PICT.SIZE]/[QUALITY] .................... 61 [AUDIO REC.]................................... 62 [AF MODE] ....................................... 62 [STABILIZER] ................................... 64 [BURST]............................................ 64 [AF ASSIST LAMP]........................... 65 7 VQT1J94

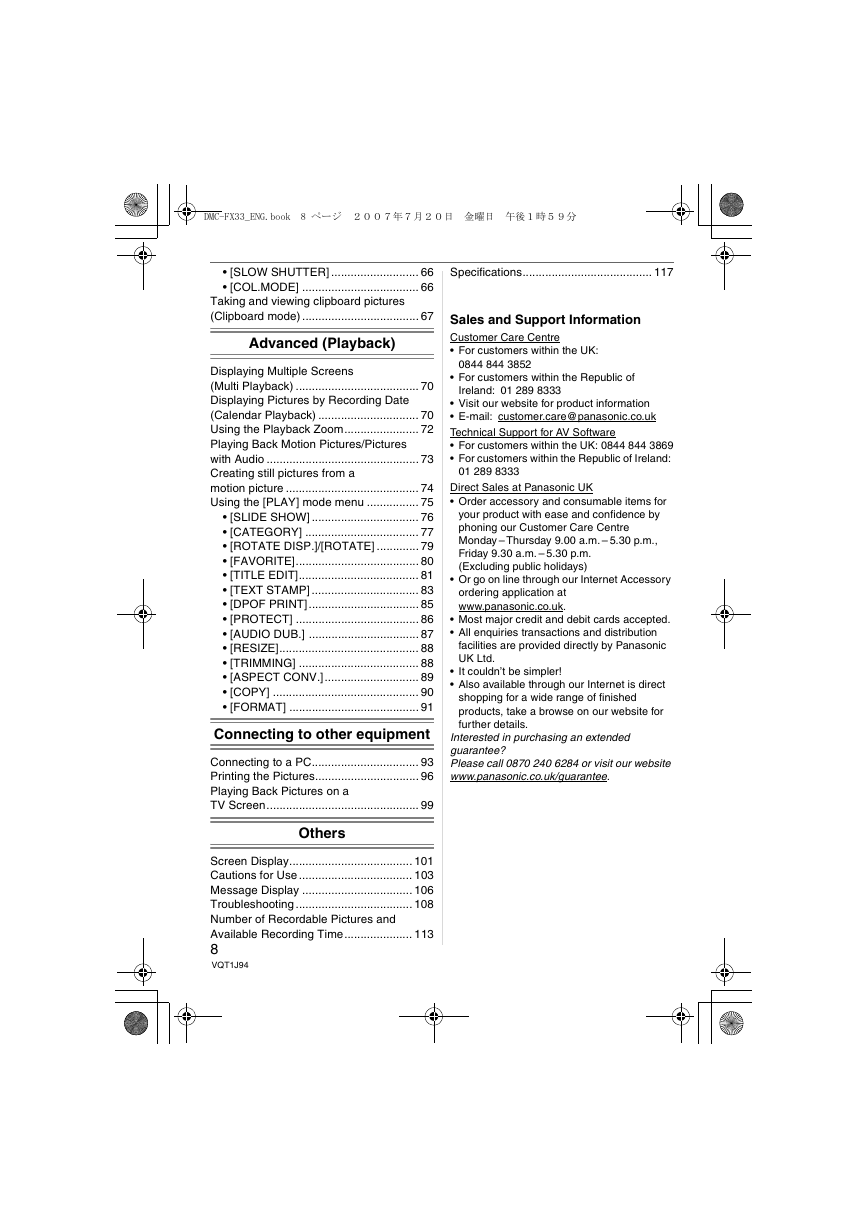

DMC-FX33_ENG.book 8 ページ２００７年７月２０日　金曜日　午後１時５９分 Specifications........................................ 117 Sales and Support Information Customer Care Centre For customers within the UK: 0844 844 3852 For customers within the Republic of Ireland: 01 289 8333 Visit our website for product information E-mail: customer.care@panasonic.co.uk Technical Support for AV Software For customers within the UK: 0844 844 3869 For customers within the Republic of Ireland: 01 289 8333 Direct Sales at Panasonic UK Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre Monday – Thursday 9.00 a.m. – 5.30 p.m., Friday 9.30 a.m. – 5.30 p.m. (Excluding public holidays) Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk. Most major credit and debit cards accepted. All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd. It couldn’t be simpler! Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website for further details. Interested in purchasing an extended guarantee? Please call 0870 240 6284 or visit our website www.panasonic.co.uk/guarantee. [SLOW SHUTTER] ........................... 66 [COL.MODE] .................................... 66 Taking and viewing clipboard pictures (Clipboard mode) .................................... 67 Advanced (Playback) Displaying Multiple Screens (Multi Playback) ...................................... 70 Displaying Pictures by Recording Date (Calendar Playback) ............................... 70 Using the Playback Zoom....................... 72 Playing Back Motion Pictures/Pictures with Audio ............................................... 73 Creating still pictures from a motion picture ......................................... 74 Using the [PLAY] mode menu ................ 75 [SLIDE SHOW] ................................. 76 [CATEGORY] ................................... 77 [ROTATE DISP.]/[ROTATE] ............. 79 [FAVORITE]...................................... 80 [TITLE EDIT]..................................... 81 [TEXT STAMP] ................................. 83 [DPOF PRINT] .................................. 85 [PROTECT] ...................................... 86 [AUDIO DUB.] .................................. 87 [RESIZE]........................................... 88 [TRIMMING] ..................................... 88 [ASPECT CONV.] ............................. 89 [COPY] ............................................. 90 [FORMAT] ........................................ 91 Connecting to other equipment Connecting to a PC................................. 93 Printing the Pictures................................ 96 Playing Back Pictures on a TV Screen............................................... 99 Others Screen Display...................................... 101 Cautions for Use ................................... 103 Message Display .................................. 106 Troubleshooting .................................... 108 Number of Recordable Pictures and Available Recording Time..................... 113 8 VQT1J94
