日立投影机-CP-X935W说明书.pdf

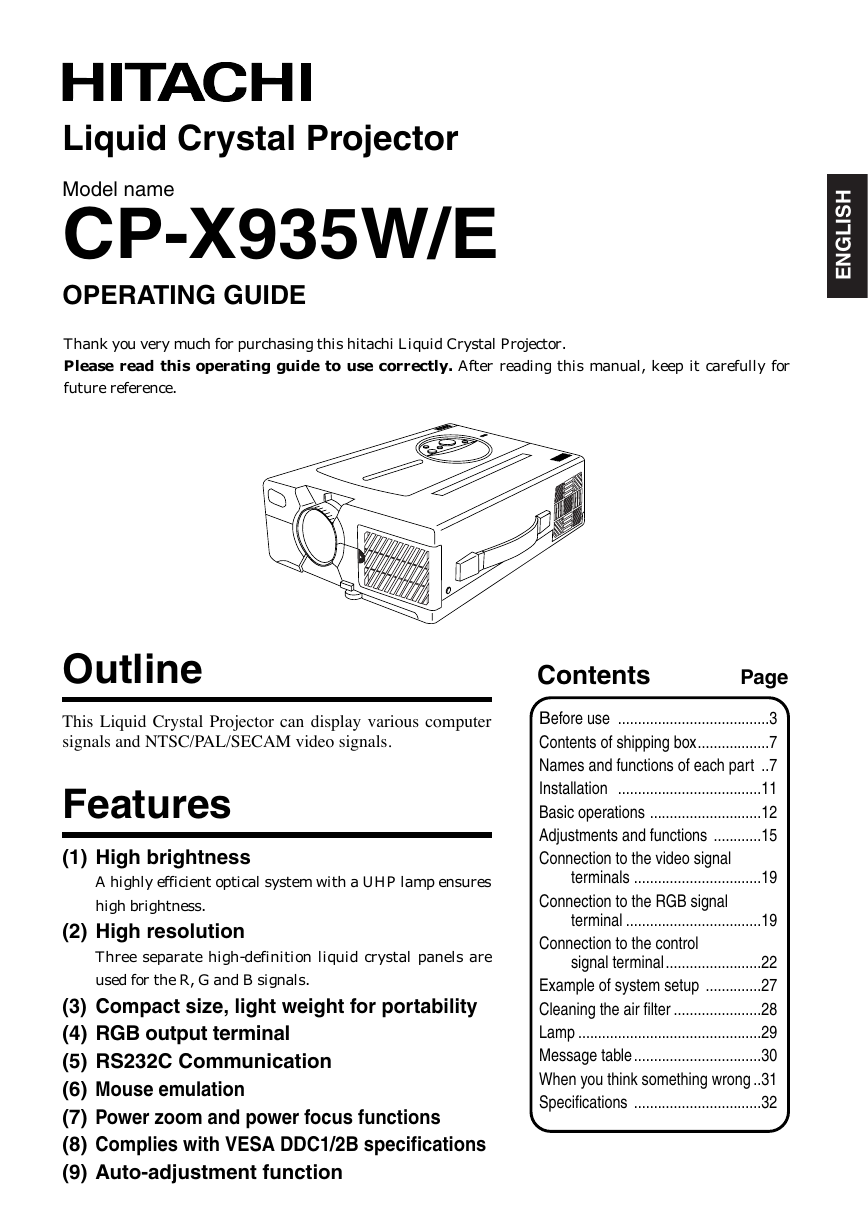

Liquid Crystal Projector
Model name
CP-X935W/E
OPERATING GUIDE
I
H
S
L
G
N
E
Thank you very much for purchasing this hitachi Liquid Crystal Projector.
Please read this operating guide to use correctly. After reading this manual, keep it carefully for
future reference.
Outline
This Liquid Crystal Projector can display various computer
signals and NTSC/PAL/SECAM video signals.
Features
(1) High brightness
A highly efficient optical system with a UHP lamp ensures
high brightness.
(2) High resolution
Three separate high-definition liquid crystal panels are
used for the R, G and B signals.
(3) Compact size, light weight for portability
(4) RGB output terminal
(5) RS232C Communication
(6) Mouse emulation
(7) Power zoom and power focus functions
(8) Complies with VESA DDC1/2B specifications
(9) Auto-adjustment function
Contents
Page
Before use ......................................3
Contents of shipping box..................7
Names and functions of each part ..7
Installation ....................................11
Basic operations ............................12
Adjustments and functions ............15
Connection to the video signal
terminals ................................19
Connection to the RGB signal
terminal ..................................19
Connection to the control
signal terminal........................22
Example of system setup ..............27
Cleaning the air filter ......................28
Lamp ..............................................29
Message table................................30
When you think something wrong ..31
Specifications ................................32

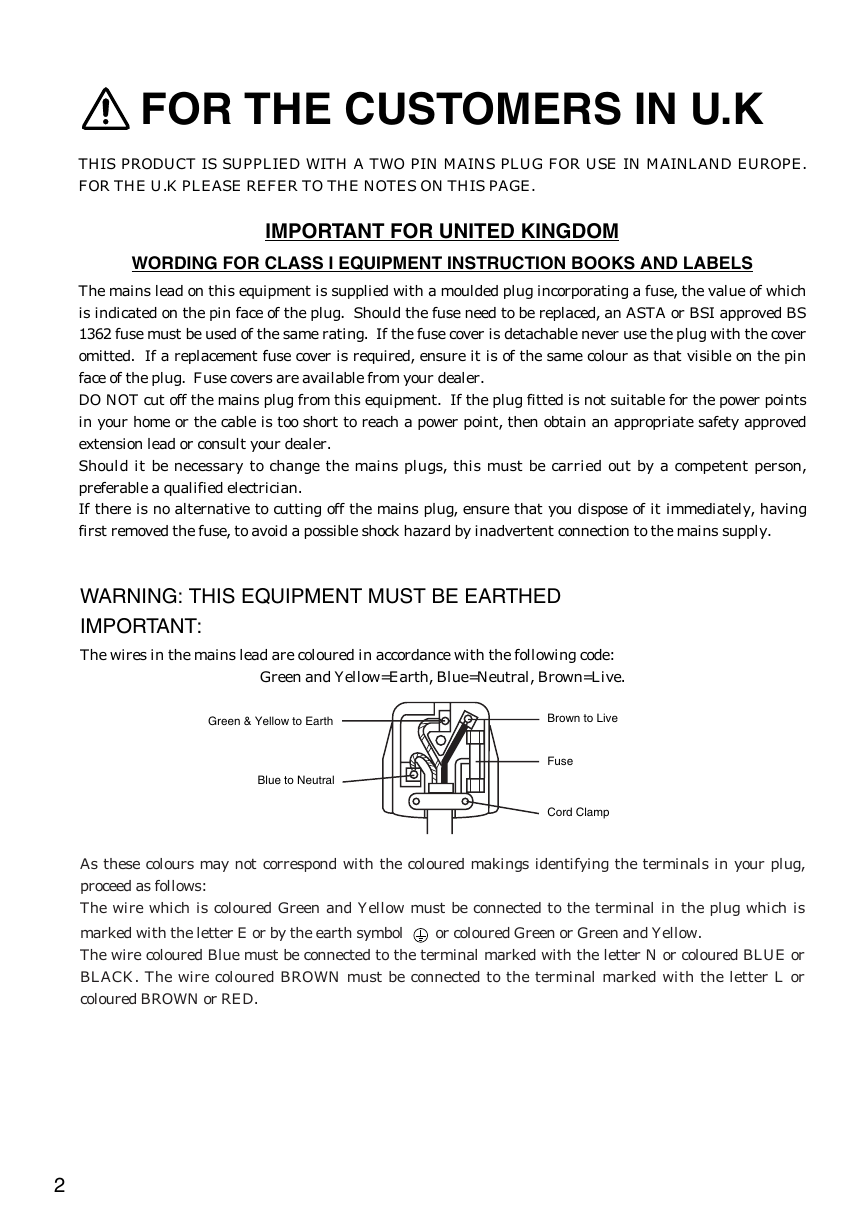

FOR THE CUSTOMERS IN U.K
THIS PRODUCT IS SUPPLIED WITH A TWO PIN MAINS PLUG FOR USE IN MAINLAND EUROPE.
FOR THE U.K PLEASE REFER TO THE NOTES ON THIS PAGE.
IMPORTANT FOR UNITED KINGDOM
WORDING FOR CLASS I EQUIPMENT INSTRUCTION BOOKS AND LABELS
The mains lead on this equipment is supplied with a moulded plug incorporating a fuse, the value of which
is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA or BSI approved BS
1362 fuse must be used of the same rating. If the fuse cover is detachable never use the plug with the cover
omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin
face of the plug. Fuse covers are available from your dealer.
DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points
in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved
extension lead or consult your dealer.
Should it be necessary to change the mains plugs, this must be carried out by a competent person,
preferable a qualified electrician.
If there is no alternative to cutting off the mains plug, ensure that you dispose of it immediately, having
first removed the fuse, to avoid a possible shock hazard by inadvertent connection to the mains supply.
WARNING: THIS EQUIPMENT MUST BE EARTHED
IMPORTANT:
The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow=Earth, Blue=Neutral, Brown=Live.
Green & Yellow to Earth
Blue to Neutral
Brown to Live
Fuse
Cord Clamp
As these colours may not correspond with the coloured makings identifying the terminals in your plug,
proceed as follows:
The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol
The wire coloured Blue must be connected to the terminal marked with the letter N or coloured BLUE or
BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or
coloured BROWN or RED.
or coloured Green or Green and Yellow.
2

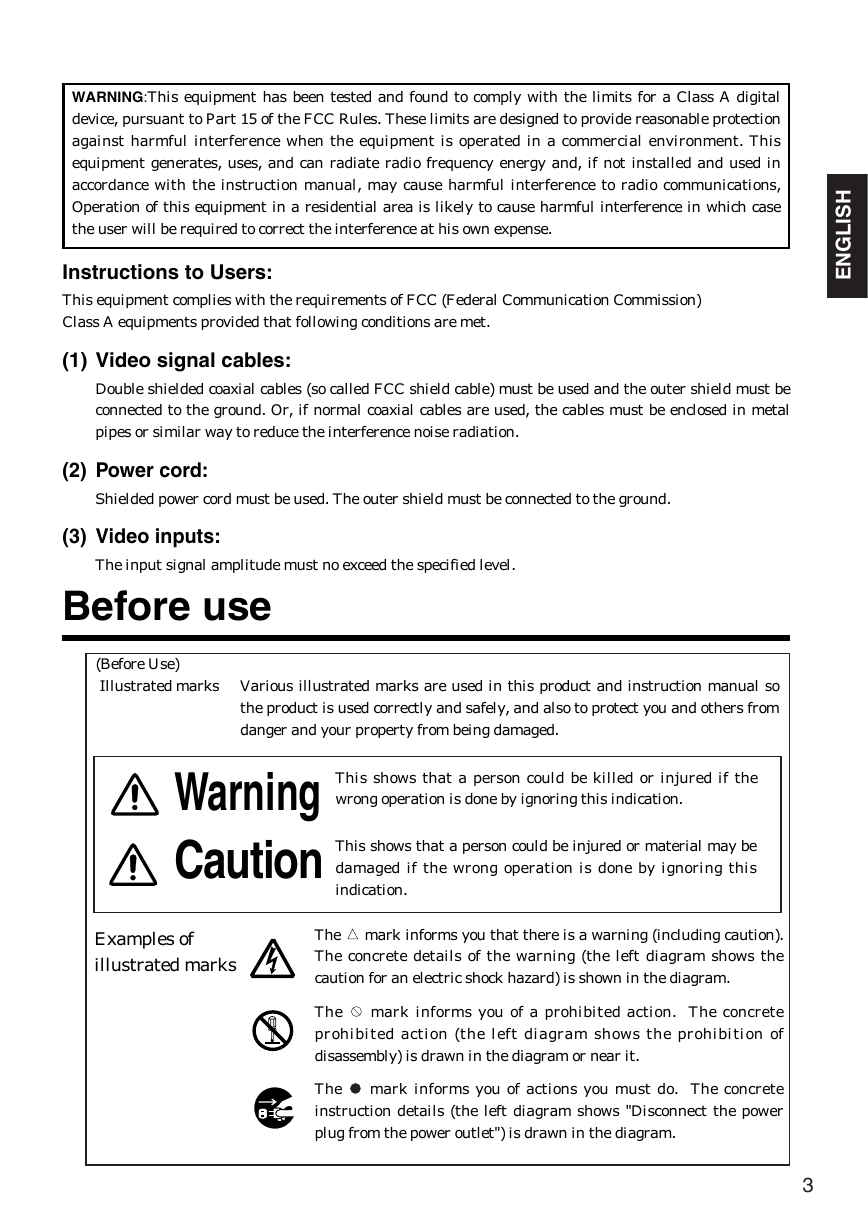

WARNING:This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications,
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Instructions to Users:
This equipment complies with the requirements of FCC (Federal Communication Commission)
Class A equipments provided that following conditions are met.
(1) Video signal cables:
Double shielded coaxial cables (so called FCC shield cable) must be used and the outer shield must be
connected to the ground. Or, if normal coaxial cables are used, the cables must be enclosed in metal
pipes or similar way to reduce the interference noise radiation.
(2) Power cord:
Shielded power cord must be used. The outer shield must be connected to the ground.
I
H
S
L
G
N
E
(3) Video inputs:
The input signal amplitude must no exceed the specified level.
Before use
(Before Use)
Illustrated marks
Various illustrated marks are used in this product and instruction manual so
the product is used correctly and safely, and also to protect you and others from
danger and your property from being damaged.
Warning
Caution
This shows that a person could be killed or injured if the
wrong operation is done by ignoring this indication.
This shows that a person could be injured or material may be
damaged if the wrong operation is done by ignoring this
indication.
Examples of
illustrated marks
The mark informs you that there is a warning (including caution).
The concrete details of the warning (the left diagram shows the
caution for an electric shock hazard) is shown in the diagram.
The mark informs you of a prohibited action. The concrete
prohibited action (the left diagram shows the prohibition of
disassembly) is drawn in the diagram or near it.
The mark informs you of actions you must do. The concrete
instruction details (the left diagram shows "Disconnect the power
plug from the power outlet") is drawn in the diagram.
3

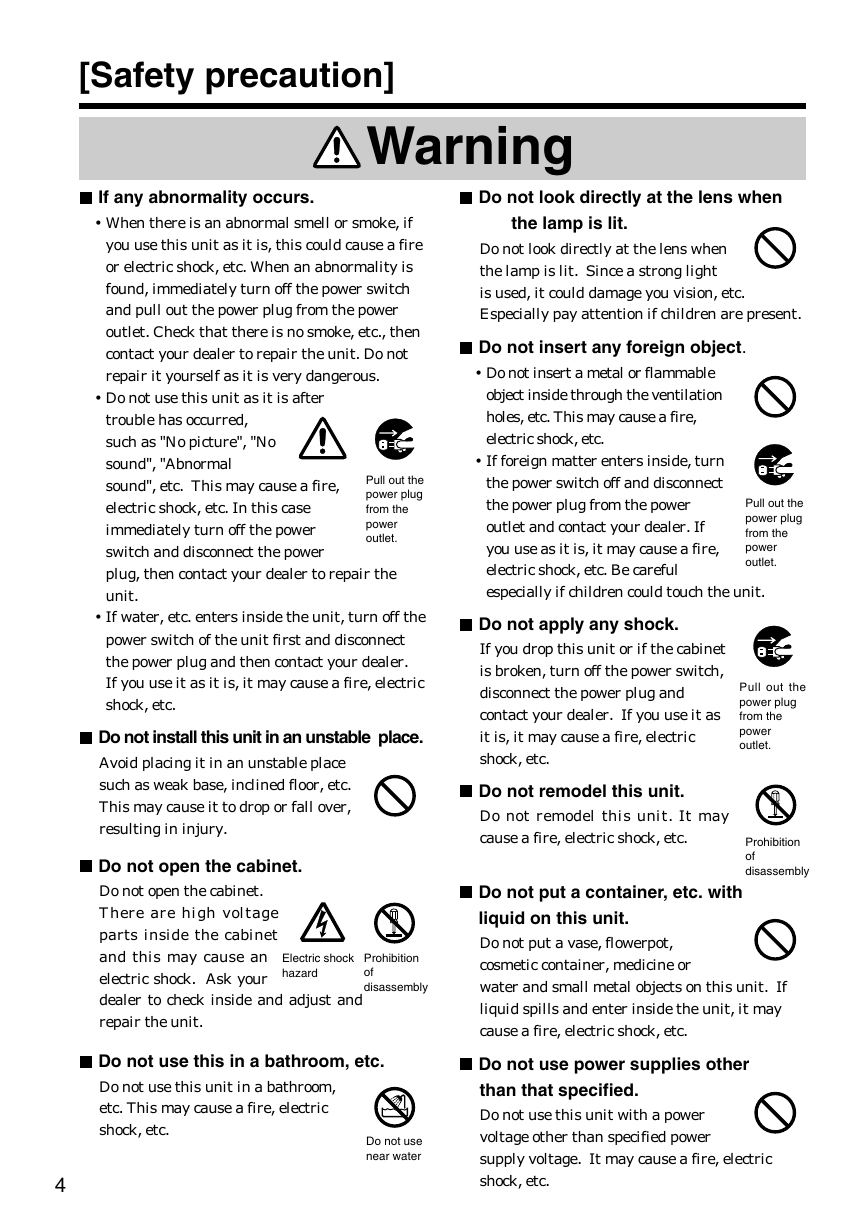

[Safety precaution]
Warning
If any abnormality occurs.
• When there is an abnormal smell or smoke, if
you use this unit as it is, this could cause a fire
or electric shock, etc. When an abnormality is
found, immediately turn off the power switch
and pull out the power plug from the power
outlet. Check that there is no smoke, etc., then
contact your dealer to repair the unit. Do not
repair it yourself as it is very dangerous.
• Do not use this unit as it is after
trouble has occurred,
such as "No picture", "No
sound", "Abnormal
sound", etc. This may cause a fire,
• electric shock, etc. In this case
immediately turn off the power
switch and disconnect the power
plug, then contact your dealer to repair the
unit.
Pull out the
power plug
from the
power
outlet.
• If water, etc. enters inside the unit, turn off the
power switch of the unit first and disconnect
the power plug and then contact your dealer.
If you use it as it is, it may cause a fire, electric
shock, etc.
Do not install this unit in an unstable place.
Avoid placing it in an unstable place
such as weak base, inclined floor, etc.
This may cause it to drop or fall over,
resulting in injury.
Do not open the cabinet.
Do not open the cabinet.
There are high voltage
parts inside the cabinet
and this may cause an
electric shock. Ask your
dealer to check inside and adjust and
repair the unit.
Electric shock
hazard
Prohibition
of
disassembly
Do not use this in a bathroom, etc.
Do not use this unit in a bathroom,
etc. This may cause a fire, electric
shock, etc.
Do not use
near water
4
Do not look directly at the lens when
the lamp is lit.
Do not look directly at the lens when
the lamp is lit. Since a strong light
is used, it could damage you vision, etc.
Especially pay attention if children are present.
Do not insert any foreign object.
• Do not insert a metal or flammable
object inside through the ventilation
holes, etc. This may cause a fire,
electric shock, etc.
• If foreign matter enters inside, turn
the power switch off and disconnect
the power plug from the power
outlet and contact your dealer. If
you use as it is, it may cause a fire,
electric shock, etc. Be careful
especially if children could touch the unit.
Pull out the
power plug
from the
power
outlet.
Do not apply any shock.
If you drop this unit or if the cabinet
is broken, turn off the power switch,
disconnect the power plug and
contact your dealer. If you use it as
it is, it may cause a fire, electric
shock, etc.
Do not remodel this unit.
Do not remodel this unit. It may
cause a fire, electric shock, etc.
Pull out the
power plug
from the
power
outlet.
Prohibition
of
disassembly
Do not put a container, etc. with
liquid on this unit.
Do not put a vase, flowerpot,
cosmetic container, medicine or
water and small metal objects on this unit. If
liquid spills and enter inside the unit, it may
cause a fire, electric shock, etc.
Do not use power supplies other
than that specified.
Do not use this unit with a power
voltage other than specified power
supply voltage. It may cause a fire, electric
shock, etc.

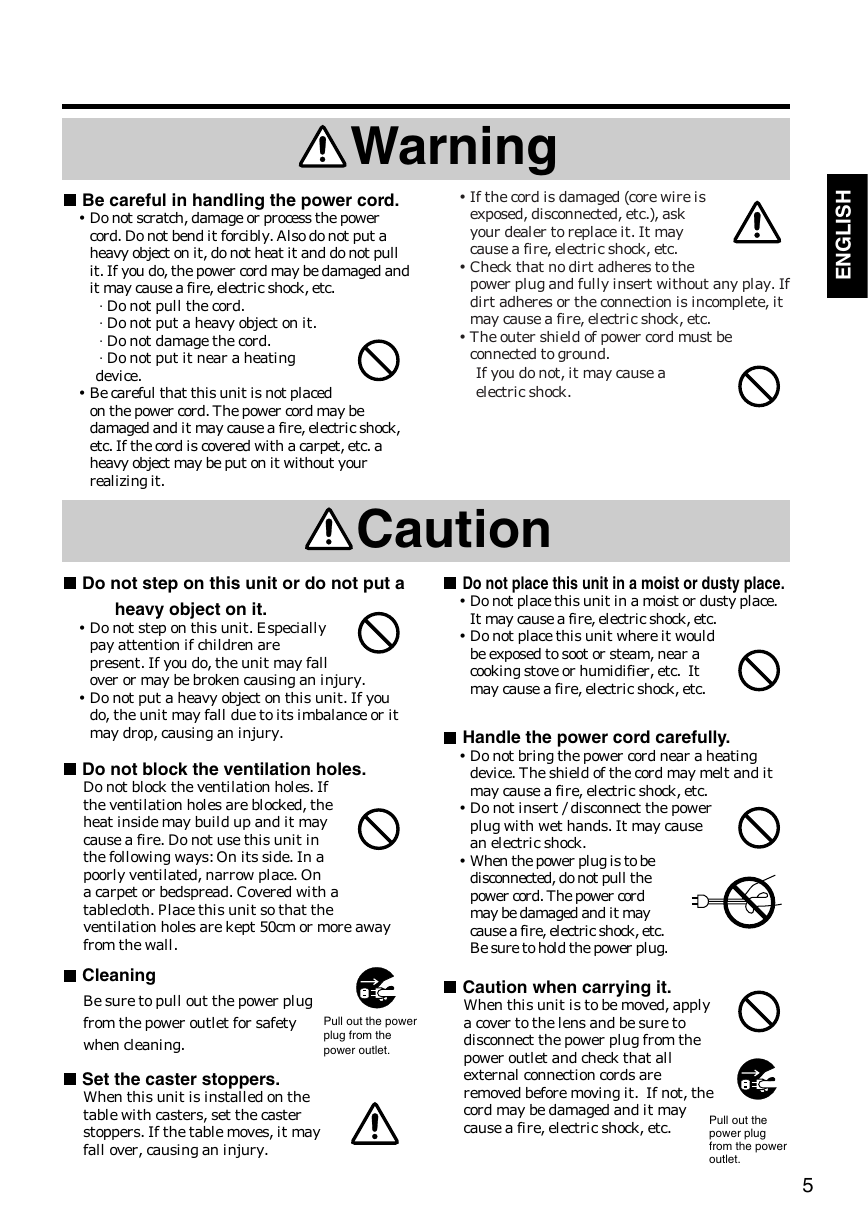

Warning
Be careful in handling the power cord.
• Do not scratch, damage or process the power
cord. Do not bend it forcibly. Also do not put a
heavy object on it, do not heat it and do not pull
it. If you do, the power cord may be damaged and
it may cause a fire, electric shock, etc.
Do not pull the cord.
Do not put a heavy object on it.
Do not damage the cord.
Do not put it near a heating
device.
• Be careful that this unit is not placed
on the power cord. The power cord may be
damaged and it may cause a fire, electric shock,
etc. If the cord is covered with a carpet, etc. a
heavy object may be put on it without your
realizing it.
• If the cord is damaged (core wire is
exposed, disconnected, etc.), ask
your dealer to replace it. It may
cause a fire, electric shock, etc.
• Check that no dirt adheres to the
power plug and fully insert without any play. If
dirt adheres or the connection is incomplete, it
may cause a fire, electric shock, etc.
• The outer shield of power cord must be
connected to ground.
If you do not, it may cause a
electric shock.
I
H
S
L
G
N
E
Caution
Do not step on this unit or do not put a
heavy object on it.
• Do not step on this unit. Especially
pay attention if children are
present. If you do, the unit may fall
over or may be broken causing an injury.
• Do not put a heavy object on this unit. If you
do, the unit may fall due to its imbalance or it
may drop, causing an injury.
Do not block the ventilation holes.
Do not block the ventilation holes. If
the ventilation holes are blocked, the
heat inside may build up and it may
cause a fire. Do not use this unit in
the following ways: On its side. In a
poorly ventilated, narrow place. On
a carpet or bedspread. Covered with a
tablecloth. Place this unit so that the
ventilation holes are kept 50cm or more away
from the wall.
Cleaning
Be sure to pull out the power plug
from the power outlet for safety
when cleaning.
Set the caster stoppers.
When this unit is installed on the
table with casters, set the caster
stoppers. If the table moves, it may
fall over, causing an injury.
Pull out the power
plug from the
power outlet.
Do not place this unit in a moist or dusty place.
• Do not place this unit in a moist or dusty place.
It may cause a fire, electric shock, etc.
• Do not place this unit where it would
be exposed to soot or steam, near a
cooking stove or humidifier, etc. It
may cause a fire, electric shock, etc.
Handle the power cord carefully.
• Do not bring the power cord near a heating
device. The shield of the cord may melt and it
may cause a fire, electric shock, etc.
• Do not insert / disconnect the power
plug with wet hands. It may cause
an electric shock.
• When the power plug is to be
disconnected, do not pull the
power cord. The power cord
may be damaged and it may
cause a fire, electric shock, etc.
Be sure to hold the power plug.
Caution when carrying it.
When this unit is to be moved, apply
a cover to the lens and be sure to
disconnect the power plug from the
power outlet and check that all
external connection cords are
removed before moving it. If not, the
cord may be damaged and it may
cause a fire, electric shock, etc.
Pull out the
power plug
from the power
outlet.
5
Caution
Use of batteries.
• Do not use batteries not specified
for this unit. Do not use new
batteries mixed together with old
ones. This may cause a fire, injury
due to burst of battery, liquid
leakage.
• When inserting batteries in this unit, pay
attention to the direction of the
and
polarity indications and
insert the batteries correctly. If the
polarities are confused, it may cause
injury or damage near the unit due
to burst batteries, liquid leakage, etc.
When you are not going to use
for a long time.
When you are not going use this unit
for a long time because you are going
on a trip, etc., be sure to pull out the
power plug from the power outlet for
safety. And also apply cover to the
lens so that the lens is not damaged.
Clean inside the unit at least once two years.
Ask your dealer to clean inside the unit at least
once two years. If the unit is left
with too much dust inside as it is for
a long this without cleaning, it may
cause a fire. Especially it is effective
to clean before the rainy season
starts. Consult your dealer for the cost of the
cleaning the inside the unit.
Pull out the
power plug
from the
power
outlet.
[General cautions]
Do not place this unit where it gets hot.
Be careful since if you place the unit
outdoors, in a place exposed to direct
sunlight or near a heating device,
the cabinet and parts could be
affected.
Volume.
Use at the proper volume level so that it does
not bother persons in the neighborhood.
Especially, since the sound is likely to carry
well at the night even at a low volume, consider
the neighborhood to a good living environment.
Cleaning the lens.
To clean the lens, use a generally-
available lens cleaning tissue (used
for cleaning lens of camera, glasses,
etc.). Be careful not to scratch the
lens with a hard object.
6
Caution when replacing the lamp.
• When replacing the lamp, turn off the power of
the projector and disconnect the power plug
from the power outlet. Then wait for
45 minutes to allow the lamp cool:
Failure to do so could result in a
burn.
• For disposal of used lamp, treat
according to the instruction of
community authorities.
• Since the lamp is made of glass, do
not apply shock to it and do not
scratch it.
Pull out the
power plug
from the
power
outlet.
• Also, do not use old lamp. This could also cause
explosion of the lamp.
• If it is probable that the lamp has exploded
(explosive sound is heard), disconnect the power
plug from the power outlet and ask your dealer
to replace lamp. The lamp is covered by front
glass and air-tight structure, but, in rare cases,
the reflector and the inside of the projector may
be damaged by scattered broken pieces of glass,
and broken pieces could cause injury when
being handled.
• When the lamp has been replaced, reset the
accumulated operation time of the lamp.
• Do not reset if the lamp has not been replaced.
Reflector
Front glass
Lamp
Cleaning the cabinet.
• Since many plastic materials are used on the
surface of the cabinet, if the surface is cleaned
using benzene, thinner, etc., it may change in
quality or the coating may be peeled off. Avoid
using chemicals.
• When a chemically-teated cloth is used, follow
the cautions that come with the cloth.
• Do not spray a volatile agent such as
insecticide on the unit. Do not leave a rubber
or vinyl object touching the cabinet for a long
time. It may cause the cabinet to change in
quality or the coating to peel off.
• Clean the dirt from the cabinet and operation
panel by dusting lightly with a soft cloth. If
the dirt is conspicuous, wipe off with a cloth
moistened with detergent diluted with water,
then wipe off with a dry soft cloth.
Rest your eyes occasionally when
viewing for a long time.
Contents of shipping box
Check that the carton contains the following items.
STANDBY/ON
MUTE
FREEZE
OFF
MAGNIFY
VOLUME
POSITION ON
LASER
RESET
RIGHT
MENU ON
MOUSE ON
BLANK
TIMER
RGB
VIDEO
INPUT
Liquid Crystal Projector
Remote Control Transmitter
(batteries included)
CP-X935W/E
Liquid Crystal Projector
OPERATING GUIDE
Flüssigkristall-Projektor
BEDIENUNGSANLEITUNG
Vidéoprojecteur à cristaux liquidis
NOTICE D'UTILISATION
Proiettore A Cristalli Liquidi
LIBRETTO D'ISTRUZIONI
Proyector con paneles de cristal líquido
MANUAL DE INSTRUCCIONES
Vloeibare-kristallen Projektor
GEBRUIKSAANWIJZING
Flytende krystall prosjektør
BRUKERHÅNDBOK
I
H
S
L
G
N
E
H
C
S
T
U
E
D
I
S
A
Ç
N
A
R
F
O
N
A
L
A
T
I
I
L
O
Ñ
A
P
S
E
S
D
N
A
L
R
E
D
E
N
K
S
R
O
N
Operating Guide
I
H
S
L
G
N
E
Power Cord
110V - US
220 - UK, Europe
3-Conductor
Video/Audio Cable
RGB Cable
(15-15 pin M/M)
Mac adapter
with dip switch
Mouse cable 3
ON
1 2 3 4 5 6
OFF
Names and functions of each part
Main unit
STANDBY / ON button
Power ON/OFF button.
OFF sets the unit in standby mode.
(see page 12~13)
STANDBY/ON
INPUT
MUTE
MUTE button
Silences the sound. (Cancels the mute
when the unit is set in mute mode.)
RESET button
Resets unit to factory settings.
(See page 15)
LAMP indicator
This lights or blinks when the lamp does
not light. (See page 31)
MENU
RESET
LAMP
TEMP
ZOOM knob
Adjusts picture size.
(See page 12)
Remote control
sensor
Lens
Lens cap
• Use the remote control transmitter within the range
of about 16 feet from the remote control sensor and
within 30 to both the left and right.
FOCUS ring
Adjusts focus. (See page 12)
ON indicator
This blinks in the standby mode and lights
in the operation mode.(See page 31)
INPUT button
To select the input source.
Each time this button is pressed, the input
source is changed in sequence as shown
below.(See page 12)
RGB2
VIDEO
RGB1
MENU button
Picture adjustments.
Refer to page 15~18 for details.
TEMP indicator
This lights or blinks when temperature
inside the projector is too high or when fan
is abnormal.(See page 31)
Speaker
Speaker
Cooling fan
(exhaust)
Handle
7
Names and functions of each part (continued)
Remote control sensor
MAIN POWER switch
Main power ON/OFF switch.
: OFF
: ON
AC IN socket
Connect the provided power cord.
VIDEO input terminal
(on video-equipped models only)
S-VIDEO input terminal
Mini DIN 4pin connector
VIDEO input terminal
RCA Jack
AUDIO L/R input terminal
RCA Jack
RGB input terminal
D-sub 15pin shrink terminal (1/2)
1
RGB IN
2
CONTROL
RGB OUT
AUDIO IN
1
2
AUDIO
OUT
S-VIDEO IN
VIDEO IN
AUDIO IN
L
MONO
R
CONTROL terminal
D-sub 15pin shrink terminal
AUDIO output terminal
(RGB/VIDEO)
Stereo mini jack
AUDIO input terminal
Stereo mini jack (1/2)
RGB output terminal
D-sub 15pin shrink terminal
RGB output can be displayed
even in the standby mode.
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
