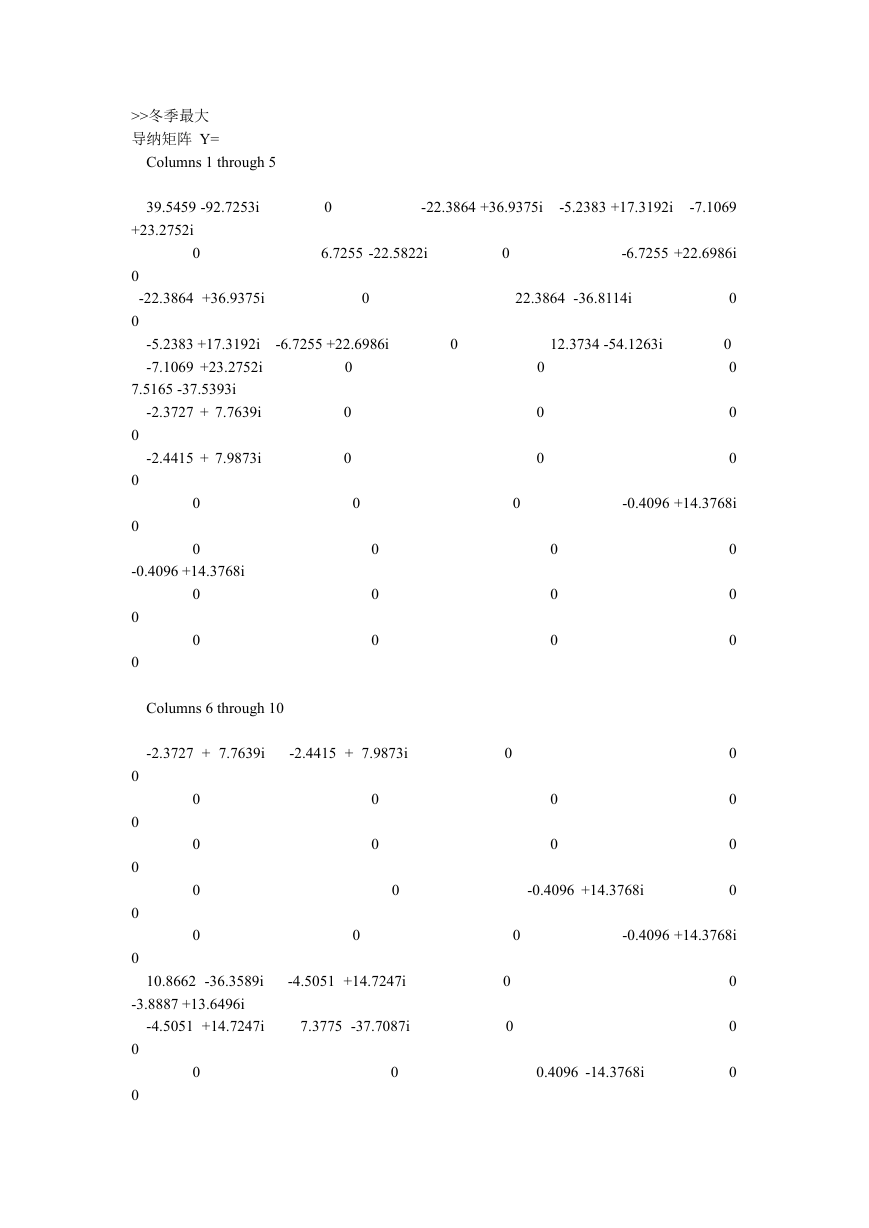

>>冬季最大导纳矩阵 Y= Columns 1 through 5 39.5459 -92.7253i 0 -22.3864 +36.9375i -5.2383 +17.3192i -7.1069 +23.2752i 0 6.7255 -22.5822i 0 -6.7255 +22.6986i 0 0 -22.3864 +36.9375i 0 22.3864 -36.8114i -6.7255 +22.6986i 0 12.3734 -54.1263i -5.2383 +17.3192i -7.1069 +23.2752i 7.5165 -37.5393i -2.3727 + 7.7639i 0 0 0 -2.4415 + 7.9873i 0 0 -0.4096 +14.3768i 0 0 0 0 0 0 0 0 0 0 0 0 0 -0.4096 +14.3768i 0 0 0 0 0 -0.4096 +14.3768i 0 0 0 0 0 0 0 -0.4096 +14.3768i 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Columns 6 through 10 -2.3727 + 7.7639i -2.4415 + 7.9873i 0 0 0 0 0 0 0 0 0 10.8662 -36.3589i -4.5051 +14.7247i -3.8887 +13.6496i -4.5051 +14.7247i 7.3775 -37.7087i 0 0 0 0 0.4096 -14.3768i

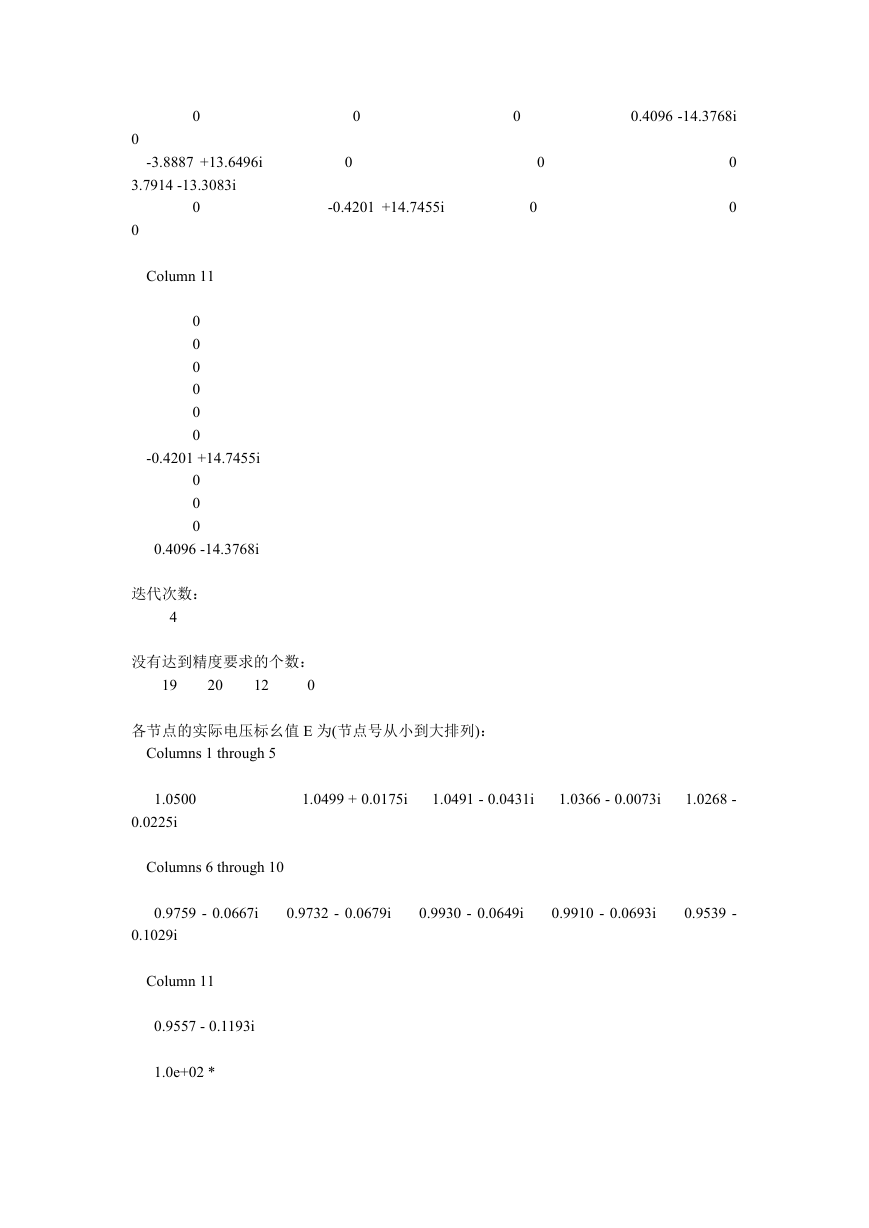

0 0 -3.8887 +13.6496i 3.7914 -13.3083i 0 0 0 -0.4201 +14.7455i 0 0.4096 -14.3768i 0 0 0 0 0 Column 11 0 0 0 0 0 0 -0.4201 +14.7455i 0 0 0 0.4096 -14.3768i 迭代次数： 4 没有达到精度要求的个数： 0 19 20 12 各节点的实际电压标幺值 E 为(节点号从小到大排列)： Columns 1 through 5 1.0499 + 0.0175i 1.0491 - 0.0431i 1.0366 - 0.0073i 1.0268 - 1.0500 0.0225i Columns 6 through 10 0.9759 - 0.0667i 0.9732 - 0.0679i 0.9930 - 0.0649i 0.9910 - 0.0693i 0.9539 - 0.1029i Column 11 0.9557 - 0.1193i 1.0e+02 *

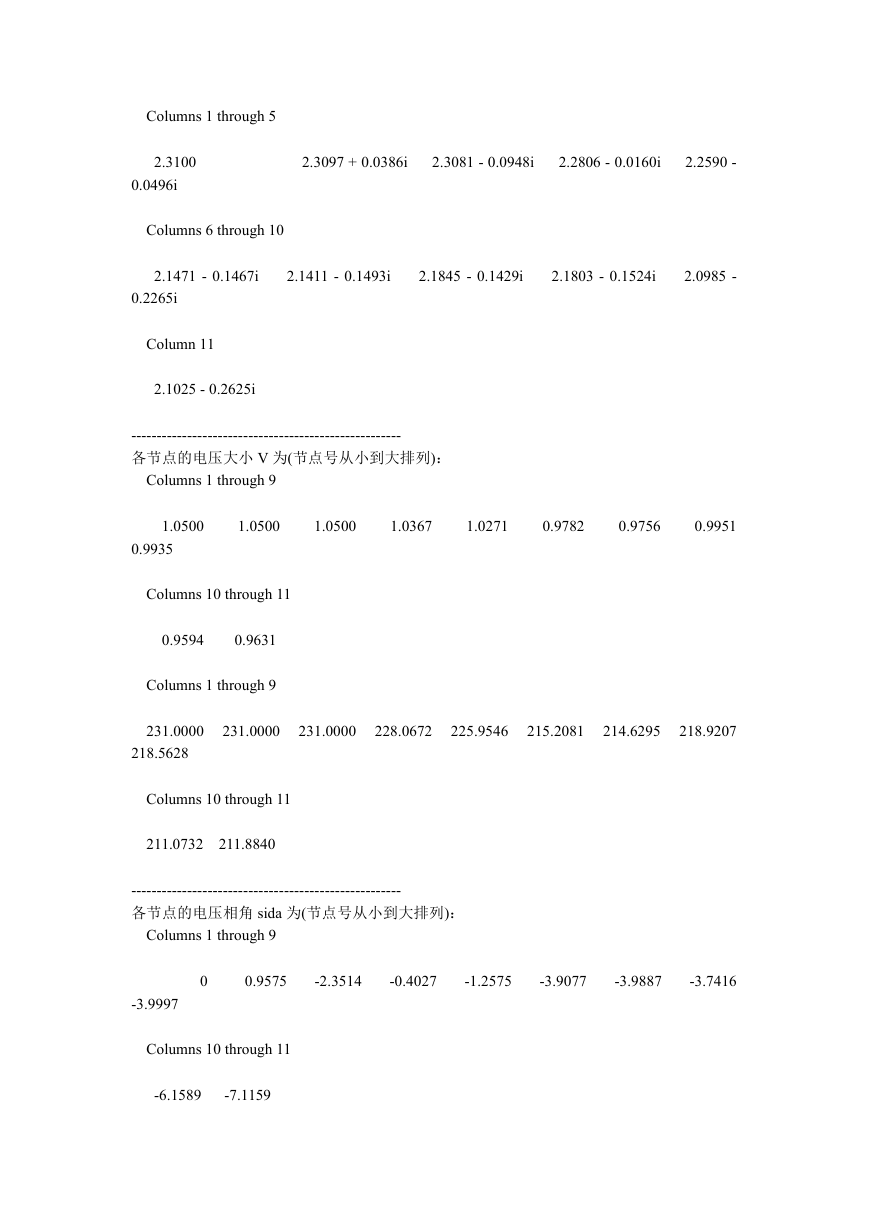

Columns 1 through 5 2.3100 0.0496i Columns 6 through 10 2.3097 + 0.0386i 2.3081 - 0.0948i 2.2806 - 0.0160i 2.2590 - 2.1471 - 0.1467i 2.1411 - 0.1493i 2.1845 - 0.1429i 2.1803 - 0.1524i 2.0985 - 0.2265i Column 11 2.1025 - 0.2625i ----------------------------------------------------- 各节点的电压大小 V 为(节点号从小到大排列)： Columns 1 through 9 1.0500 1.0500 1.0500 1.0367 1.0271 0.9782 0.9756 0.9951 0.9935 Columns 10 through 11 0.9594 0.9631 Columns 1 through 9 231.0000 231.0000 231.0000 228.0672 225.9546 215.2081 214.6295 218.9207 218.5628 Columns 10 through 11 211.0732 211.8840 ----------------------------------------------------- 各节点的电压相角 sida 为(节点号从小到大排列)： Columns 1 through 9 0 0.9575 -2.3514 -0.4027 -1.2575 -3.9077 -3.9887 -3.7416 -3.9997 Columns 10 through 11 -6.1589 -7.1159

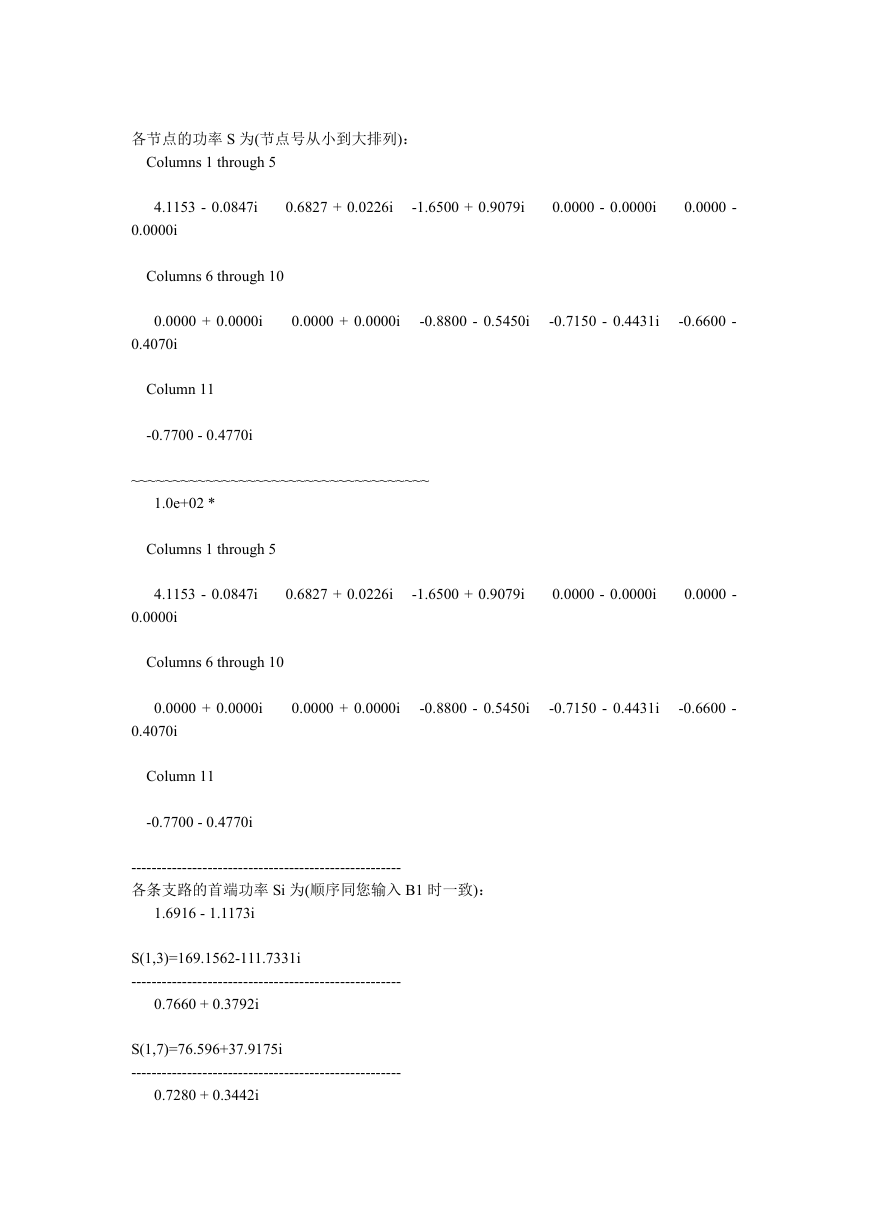

各节点的功率 S 为(节点号从小到大排列)： Columns 1 through 5 4.1153 - 0.0847i 0.6827 + 0.0226i -1.6500 + 0.9079i 0.0000 - 0.0000i 0.0000 - 0.0000i Columns 6 through 10 0.0000 + 0.0000i 0.0000 + 0.0000i -0.8800 - 0.5450i -0.7150 - 0.4431i -0.6600 - 0.4070i Column 11 -0.7700 - 0.4770i ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 1.0e+02 * Columns 1 through 5 4.1153 - 0.0847i 0.6827 + 0.0226i -1.6500 + 0.9079i 0.0000 - 0.0000i 0.0000 - 0.0000i Columns 6 through 10 0.0000 + 0.0000i 0.0000 + 0.0000i -0.8800 - 0.5450i -0.7150 - 0.4431i -0.6600 - 0.4070i Column 11 -0.7700 - 0.4770i ----------------------------------------------------- 各条支路的首端功率 Si 为(顺序同您输入 B1 时一致)： 1.6916 - 1.1173i S(1,3)=169.1562-111.7331i ----------------------------------------------------- 0.7660 + 0.3792i S(1,7)=76.596+37.9175i ----------------------------------------------------- 0.7280 + 0.3442i

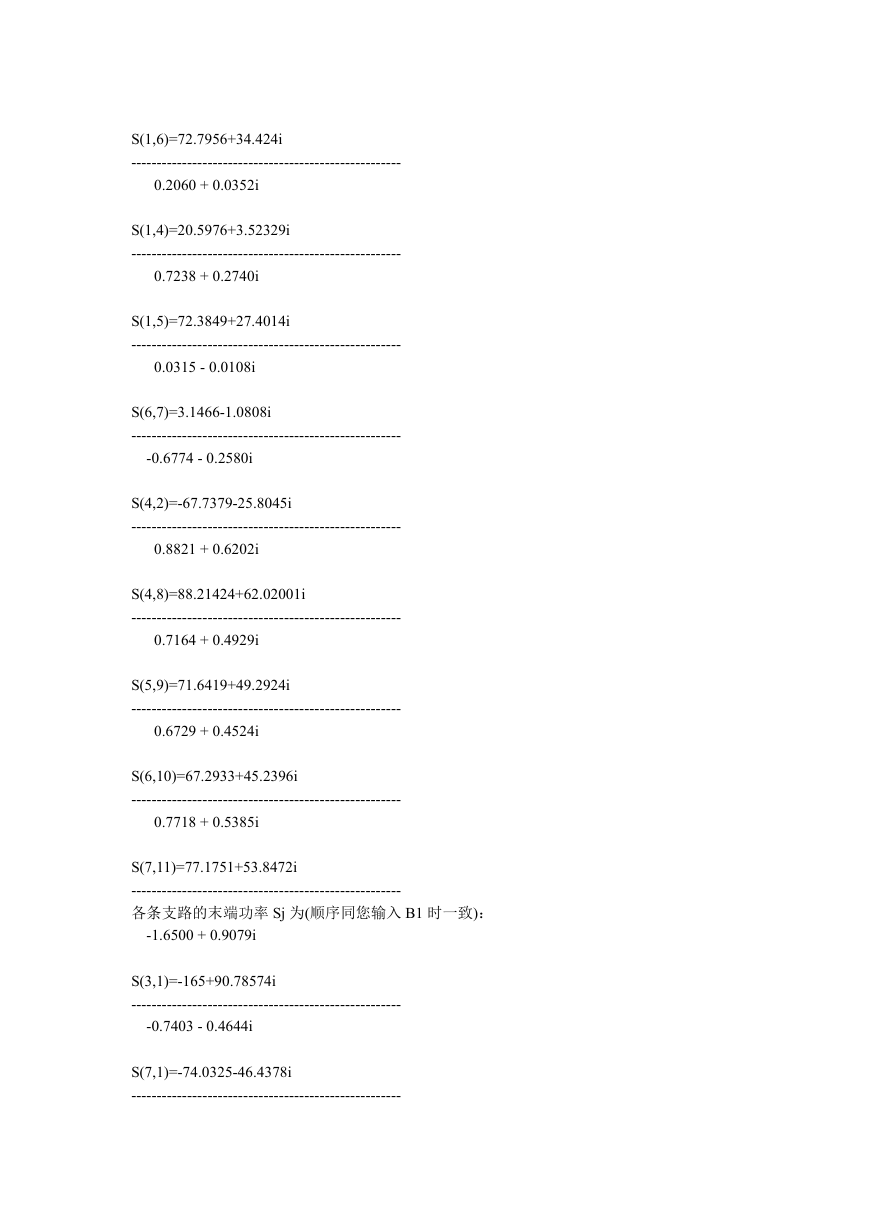

S(1,6)=72.7956+34.424i ----------------------------------------------------- 0.2060 + 0.0352i S(1,4)=20.5976+3.52329i ----------------------------------------------------- 0.7238 + 0.2740i S(1,5)=72.3849+27.4014i ----------------------------------------------------- 0.0315 - 0.0108i S(6,7)=3.1466-1.0808i ----------------------------------------------------- -0.6774 - 0.2580i S(4,2)=-67.7379-25.8045i ----------------------------------------------------- 0.8821 + 0.6202i S(4,8)=88.21424+62.02001i ----------------------------------------------------- 0.7164 + 0.4929i S(5,9)=71.6419+49.2924i ----------------------------------------------------- 0.6729 + 0.4524i S(6,10)=67.2933+45.2396i ----------------------------------------------------- 0.7718 + 0.5385i S(7,11)=77.1751+53.8472i ----------------------------------------------------- 各条支路的末端功率 Sj 为(顺序同您输入 B1 时一致)： -1.6500 + 0.9079i S(3,1)=-165+90.78574i ----------------------------------------------------- -0.7403 - 0.4644i S(7,1)=-74.0325-46.4378i -----------------------------------------------------

-0.7044 - 0.4416i S(6,1)=-70.4399-44.1588i ----------------------------------------------------- -0.2048 - 0.3622i S(4,1)=-20.4763-36.2155i ----------------------------------------------------- -0.7164 - 0.4929i S(5,1)=-71.6419-49.2924i ----------------------------------------------------- -0.0314 - 0.0741i S(7,6)=-3.1426-7.4094i ----------------------------------------------------- 0.6827 + 0.0226i S(2,4)=68.27+2.25786i ----------------------------------------------------- -0.8800 - 0.5450i S(8,4)=-88-54.5i ----------------------------------------------------- -0.7150 - 0.4431i S(9,5)=-71.5-44.31i ----------------------------------------------------- -0.6600 - 0.4070i S(10,6)=-66-40.7i ----------------------------------------------------- -0.7700 - 0.4770i S(11,7)=-77-47.7i ----------------------------------------------------- 各条支路的功率损耗 DS 为(顺序同您输入 B1 时一致)： 0.0416 - 0.2095i DS(1,3)=4.15615-20.9474i ----------------------------------------------------- 0.0256 - 0.0852i DS(1,7)=2.5635-8.5203i

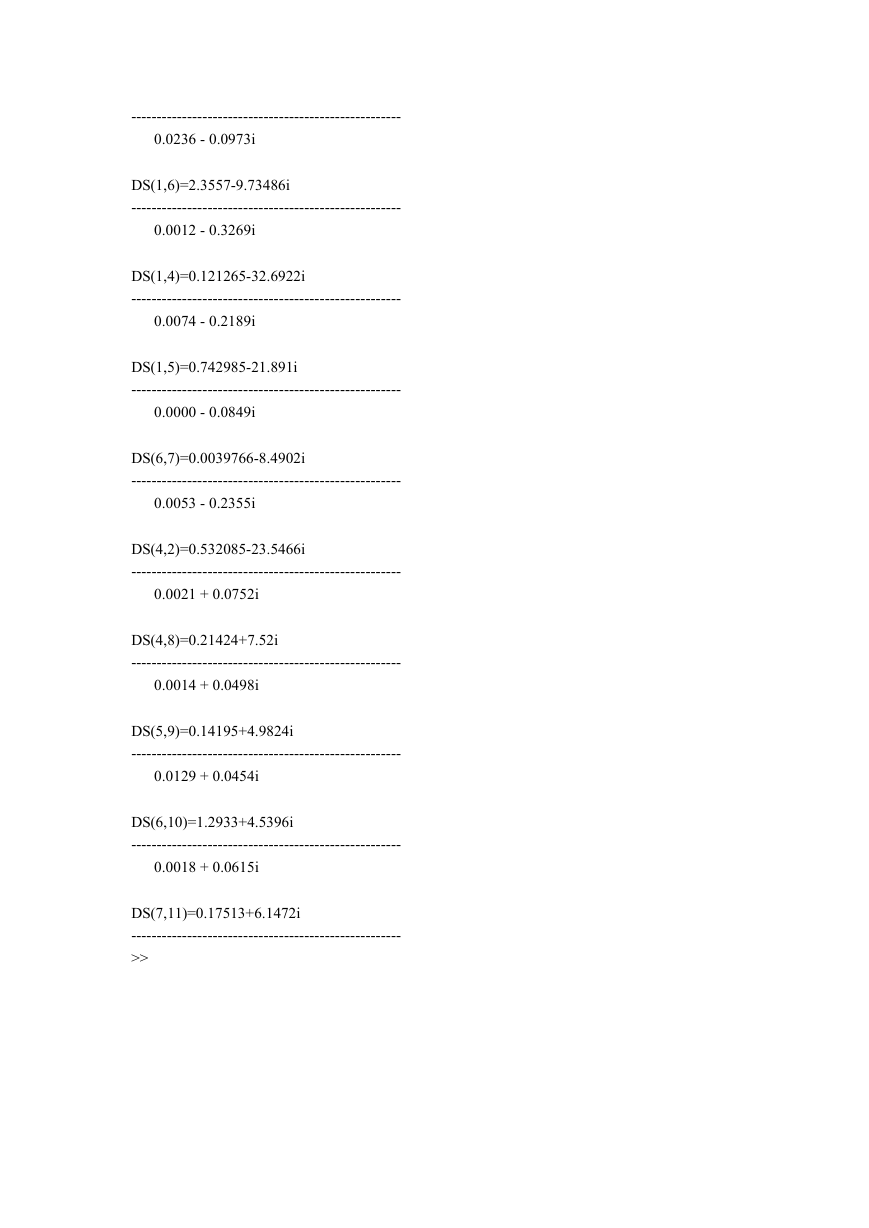

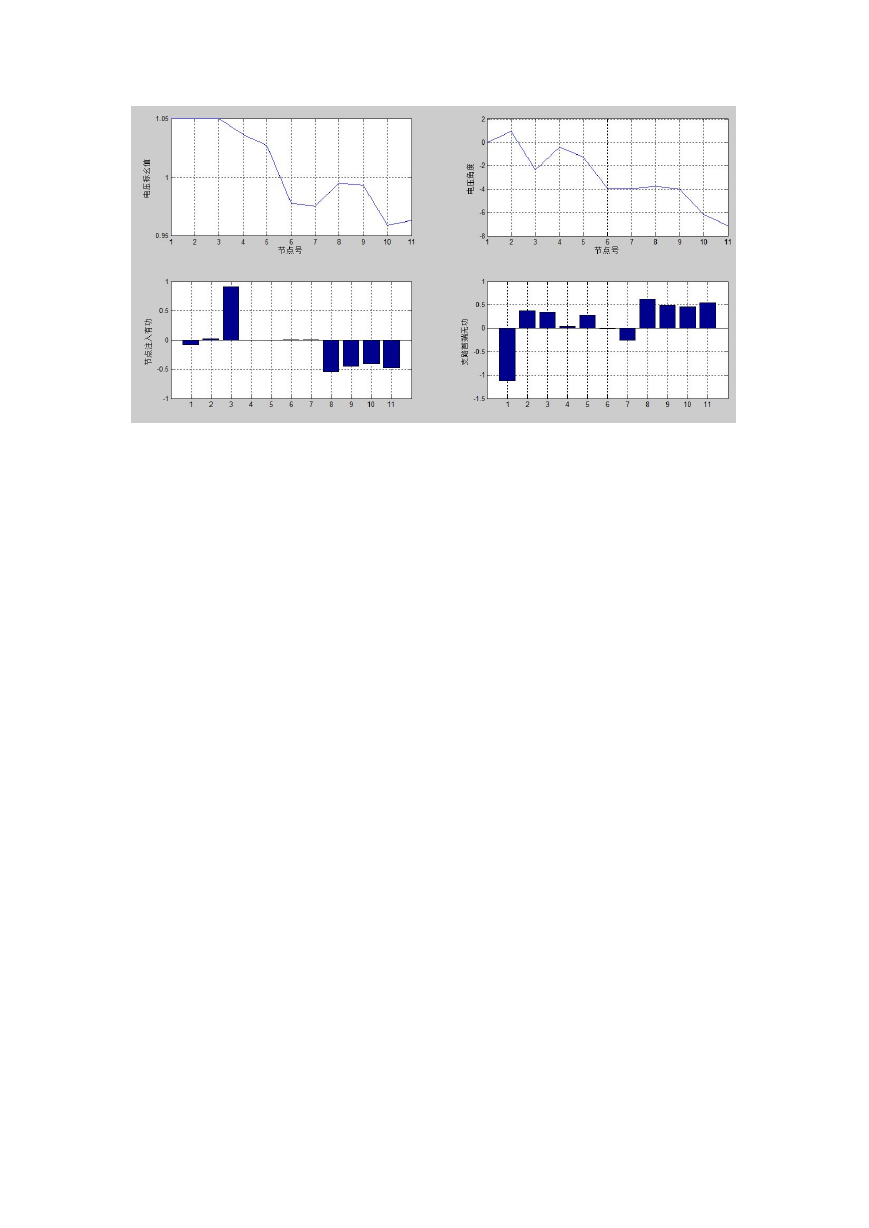

----------------------------------------------------- 0.0236 - 0.0973i DS(1,6)=2.3557-9.73486i ----------------------------------------------------- 0.0012 - 0.3269i DS(1,4)=0.121265-32.6922i ----------------------------------------------------- 0.0074 - 0.2189i DS(1,5)=0.742985-21.891i ----------------------------------------------------- 0.0000 - 0.0849i DS(6,7)=0.0039766-8.4902i ----------------------------------------------------- 0.0053 - 0.2355i DS(4,2)=0.532085-23.5466i ----------------------------------------------------- 0.0021 + 0.0752i DS(4,8)=0.21424+7.52i ----------------------------------------------------- 0.0014 + 0.0498i DS(5,9)=0.14195+4.9824i ----------------------------------------------------- 0.0129 + 0.0454i DS(6,10)=1.2933+4.5396i ----------------------------------------------------- 0.0018 + 0.0615i DS(7,11)=0.17513+6.1472i ----------------------------------------------------- >>
