Copyright This publication, including all photographs, illustrations and software, is protected under international copy- right laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2012 Disclaimer The information in this document is subject to change without notice. The manufacturer makes no repre- sentations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark Recognition Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pend- ing applications in other countries throughout the world. All other product names used in this manual are the properties of their respective owners and are ac- knowledged. — i —

DDDLLLPPP PPPrrrooojjjeeeccctttooorrr———DDD666555111555 /// DDD666000111555WWW UUUssseeerrr’’’sss MMMaaannnuuuaaalll Important Safety Information Congratulations on purchasing the Vivitek DLP® projector! Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. Symbols Used Warning symbols are used on the unit and in this manual to alert you of hazardous situations. The following styles are used in this manual to alert you to important information. Note: Provides additional information on the topic at hand. Important: Provides additional information that should not be overlooked. Caution: Alerts you to situations that may damage the unit. Warning: Alerts you to situations that may damage the unit, create a hazardous environment, or cause per- sonal injury. Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this example: “Push the Menu button on the remote control to open the Main menu.” Remote Control Some remote controls have a laser for pointing out items on a screen. DANGER: Do not point the laser in the eyes. Doing so can damage the eyes permanently. General Safety Information  Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in the unit. For servicing, contact qualified service personnel.  Follow all warnings and cautions in this manual and on the unit case.  The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the lens when the lamp is on.  Do not place the unit on an unstable surface, cart, or stand.  Avoid using the system near water, in direct sunlight, or near a heating device.  Do not place heavy objects such as books or bags on the unit. — ii —

PPPrrreeefffaaaccceee Power Safety  Only use the supplied power cord.  Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic.  Remove the batteries from the remote control when storing or not in use for a prolonged period. Replacing the Lamp Replacing the lamp can be hazardous if done incorrectly. See Replacing the Lamps on page 60 for clear and safe instructions for this procedure. Before replacing the lamp:  Unplug the power cord.  Allow the lamp to cool for about one hour. Important Recycle Instructions: Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific disposal information check WWW.LAMPRECYCLE.ORG. Cleaning the Projector  Unplug the power cord before cleaning. See Cleaning the projector on page 56.  Allow the lamp to cool for about one hour. Regulatory Warnings Before installing and using the projector, read the regulatory notices in the Regulatory Compliance section on page 82. Symbol Explanations DISPOSAL: Do not use household or municipal waste collection services for disposal of electrical and electronic equipment. EU countries require the use of separate recycling collection services. About this manual This manual is intended for end users and describes how to install and operate the DLP projector. Wher- ever possible, relevant information—such as an illustration and its description—has been kept on one page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting the environment. It is suggested that you only print sections that are relevant to your needs. – iii –

DDDLLLPPP PPPrrrooojjjeeeccctttooorrr———DDD666555111555 /// DDD666000111555WWW UUUssseeerrr’’’sss MMMaaannnuuuaaalll Table of Contents INTRODUCTION................................................................................................................................................................. 1 PACKING CHECKLIST........................................................................................................................................................... 1 VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2 Front-right View ............................................................................................................................................................. 2 Bottom view..................................................................................................................................................................... 3 TOP FEATURES..................................................................................................................................................................... 4 OSD Controls and Status LEDs...................................................................................................................................... 4 TERMINAL PANEL FEATURES............................................................................................................................................... 5 REMOTE CONTROL PARTS ................................................................................................................................................... 7 REMOTE CONTROL OPERATING RANGE............................................................................................................................... 8 PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................... 8 SETUP AND OPERATION................................................................................................................................................. 9 INSERTING THE REMOTE CONTROL BATTERIES ................................................................................................................... 9 INSTALLING OR REMOVING THE OPTIONAL LENS .............................................................................................................. 10 Removing the Existing Lens From the Projector .......................................................................................................... 10 Installing the New Lens................................................................................................................................................. 11 THROW DISTANCE AND SCREEN SIZE ................................................................................................................................ 12 INSTALLING THE OPTIONAL COLOR WHEEL ...................................................................................................................... 14 MAKING CONNECTIONS..................................................................................................................................................... 16 Connecting Your PC or Macintosh Computer .............................................................................................................. 16 Connecting an External Monitor .................................................................................................................................. 17 Connecting Your DVD Player with Component Output ............................................................................................... 18 Connecting Your VCR or Laser Disc Player ................................................................................................................ 19 PROJECTING AN IMAGE (BASIC OPERATION)...................................................................................................... 20 TURNING ON THE PROJECTOR ............................................................................................................................................ 20 SELECTING AN INPUT SOURCE........................................................................................................................................... 21 ADJUSTING THE PICTURE POSITION AND PICTURE SIZE ..................................................................................................... 22 Adjusting Picture Position Manually............................................................................................................................ 22 Lens Shift Adjustable Range ......................................................................................................................................... 23 Adjusting the Projector Level ....................................................................................................................................... 24 OPTIMIZING AN RGB IMAGE AUTOMATICALLY................................................................................................................. 25 Adjusting the Image Using Auto Sync........................................................................................................................... 25 ADJUSTING VOLUME UP AND DOWN................................................................................................................................. 25 TURNING OFF THE PROJECTOR........................................................................................................................................... 26 About Direct Power Off ................................................................................................................................................ 27 After Use ....................................................................................................................................................................... 27 CONVENIENT FEATURES ............................................................................................................................................. 28 TURNING OFF THE IMAGE AND SOUND .............................................................................................................................. 28 FREEZING A PICTURE......................................................................................................................................................... 28 ADJUSTING THE FOCUS/ZOOM MANUALLY ....................................................................................................................... 28 CHANGING LAMP MODE.................................................................................................................................................... 29 Changing Lamp Mode by Using the Projector's OSD Control Panel........................................................................... 29 GETTING INFORMATION..................................................................................................................................................... 29 Correcting Keystone by Using the Remote Control ...................................................................................................... 30 PREVENTING THE UNAUTHORIZED USE OF THE PROJECTOR .............................................................................................. 31 Locking the Projector ................................................................................................................................................... 31 Unlocking the Projector To unlock the projector, refer to the following guide............................................................ 32 USING THE PHYSICAL LOCK .............................................................................................................................................. 32 Using the Kensington Lock ........................................................................................................................................... 32 USING ON-SCREEN DISPLAY....................................................................................................................................... 33 USING THE MENUS ............................................................................................................................................................ 33 Navigating the OSD ...................................................................................................................................................... 33 MENU TREE....................................................................................................................................................................... 34 INPUT MENU DESCRIPTIONS AND FUNCTIONS ................................................................................................................... 38 — iv —

PPPrrreeefffaaaccceee ADJUST MENU DESCRIPTIONS AND FUNCTIONS................................................................................................................. 39 Picture........................................................................................................................................................................... 39 Signal Adjustment ................................................................................................................................................... 42 Video Setting ................................................................................................................................................................ 43 Setup ........................................................................................................................................................................... 44 Installation.................................................................................................................................................................... 51 MAINTENANCE................................................................................................................................................................ 56 CLEANING THE PROJECTOR................................................................................................................................................ 56 Cleaning the Cabinet .................................................................................................................................................... 56 Cleaning the Lens ......................................................................................................................................................... 56 Cleaning the Filters ...................................................................................................................................................... 58 Replacing the Lamps..................................................................................................................................................... 60 APPENDIX.......................................................................................................................................................................... 62 TROUBLESHOOTING........................................................................................................................................................... 62 Indicator Messages ....................................................................................................................................................... 62 Common Problems and Solutions ................................................................................................................................. 63 Tips for Troubleshooting............................................................................................................................................... 63 IMAGE PROBLEMS.............................................................................................................................................................. 64 Lamp Problems ............................................................................................................................................................. 64 Remote Control Problems............................................................................................................................................. 65 Audio Problems............................................................................................................................................................. 65 HAVING THE PROJECTOR SERVICED .................................................................................................................................. 65 SPECIFICATIONS............................................................................................................................................................. 66 PROJECTOR SPECIFICATIONS.............................................................................................................................................. 66 Lens options .................................................................................................................................................................. 67 CABINET DIMENSIONS ....................................................................................................................................................... 67 PIN ASSIGNMENTS OF MINI D-SUB 15 PIN INPUT CONNECTOR.......................................................................................... 68 COMPATIBLE INPUT SIGNAL LIST ...................................................................................................................................... 69 RS232 CONTROL COMMANDS AND CABLE CONNECTIONS ................................................................................................ 71 Control Command......................................................................................................................................................... 72 SCREEN TRIGGER............................................................................................................................................................... 76 OPERATION USING HTTP BROWSER ................................................................................................................................. 77 Overview ....................................................................................................................................................................... 77 Preparation Before Use ................................................................................................................................................ 77 Handling of the Address for Operation by Using a Browser ........................................................................................ 77 Configuring Network Settings....................................................................................................................................... 78 Structure of the HTTP Server........................................................................................................................................ 80 REGULATORY COMPLIANCE ..................................................................................................................................... 82 FCC WARNING.................................................................................................................................................................. 82 CANADA ............................................................................................................................................................................ 82 SAFETY CERTIFICATIONS................................................................................................................................................... 82 EN 55022 WARNING ......................................................................................................................................................... 82 – v –

DDDLLLPPP PPPrrrooojjjeeeccctttooorrr ––– UUUssseeerrr’’’sss MMMaaannnuuuaaalll INTRODUCTION Packing Checklist Carefully unpack the projector and check that the following items are included: DLP PROJECTOR REMOTE CONTROL (WITH TWO AA BATTERIES) POWER CORD (FOR US MODEL) POWER CORD (FOR CHINA MODEL) POWER CORD (FOR EU MODEL) 6 SEGMENT COLOR WHEEL VGA CABLE CD-ROM (THIS USER’S MANUAL) LENS HOLE CAP (INSTALLED) Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. Caution: Avoid using the projector in dusty environments. – 1 –

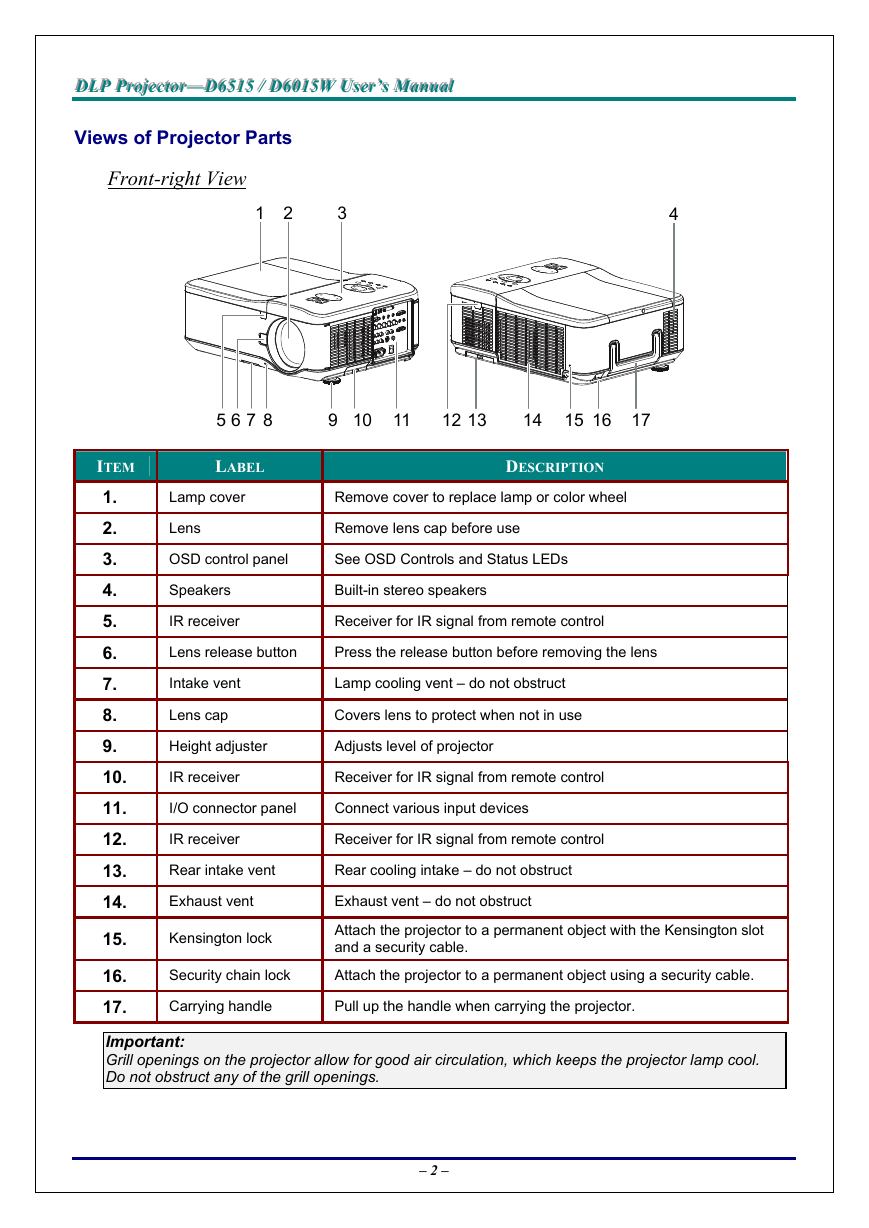

DDDLLLPPP PPPrrrooojjjeeeccctttooorrr———DDD666555111555 /// DDD666000111555WWW UUUssseeerrr’’’sss MMMaaannnuuuaaalll Views of Projector Parts Front-right View 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 LABEL DESCRIPTION Lamp cover Remove cover to replace lamp or color wheel Lens Remove lens cap before use OSD control panel See OSD Controls and Status LEDs Speakers IR receiver Built-in stereo speakers Receiver for IR signal from remote control Lens release button Press the release button before removing the lens Intake vent Lens cap Lamp cooling vent – do not obstruct Covers lens to protect when not in use Height adjuster Adjusts level of projector IR receiver Receiver for IR signal from remote control I/O connector panel Connect various input devices IR receiver Receiver for IR signal from remote control Rear intake vent Rear cooling intake – do not obstruct ITEM 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Exhaust vent Kensington lock Security chain lock Carrying handle Exhaust vent – do not obstruct Attach the projector to a permanent object with the Kensington slot and a security cable. Attach the projector to a permanent object using a security cable. 16. 17. Important: Grill openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the grill openings. Pull up the handle when carrying the projector. – 2 –
