    SAPUI5 Overview October 2012 TIP CORE UI5
    Agenda • SAPUI5 Overview • Runtime Resources • Programming Applications • SAPUI5 Developer Studio • Creating a SAPUI5 Project • Resource Handling / Localization • MVC • Databinding • Styling & Theming • Extending SAPUI5 • Notepad Controls • CVOM Charts • Optimizing SAPUI5 • Security © 2011 SAP AG. All rights reserved. 2
    SAPUI5 Overview

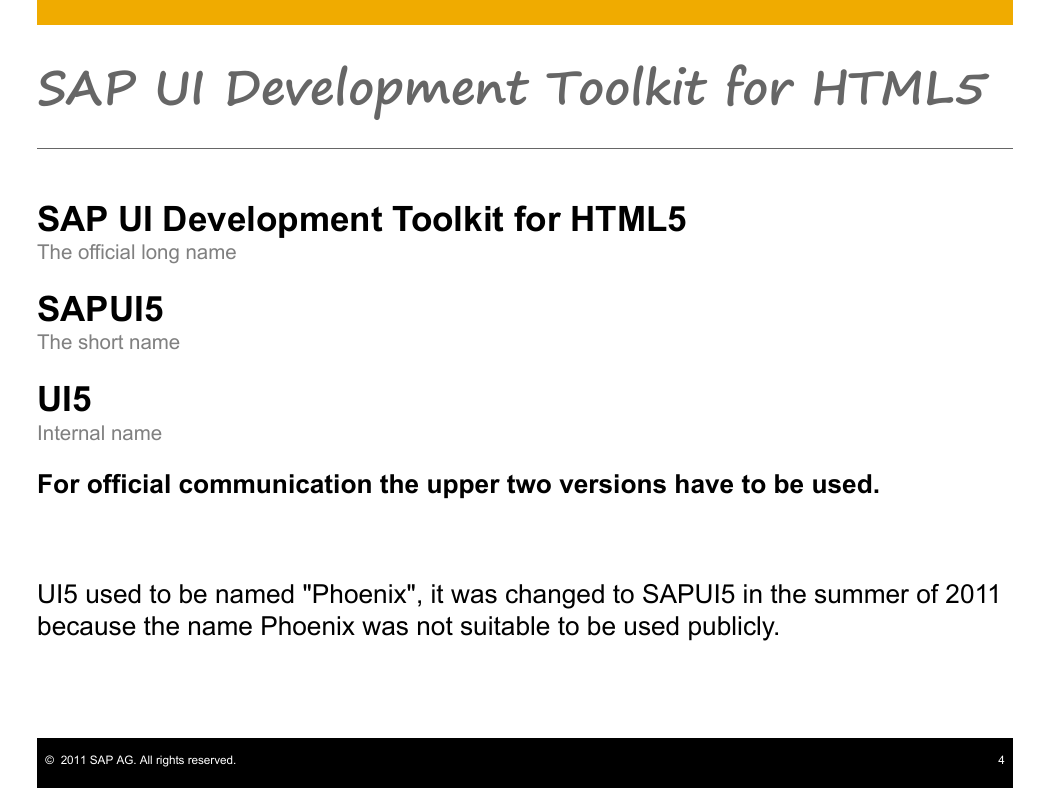

    SAP UI Development Toolkit for HTML5 SAP UI Development Toolkit for HTML5 The official long name SAPUI5 The short name UI5 Internal name For official communication the upper two versions have to be used. UI5 used to be named "Phoenix", it was changed to SAPUI5 in the summer of 2011 because the name Phoenix was not suitable to be used publicly. © 2011 SAP AG. All rights reserved. 4
    Main UI5 Characteristics SAPUI5 is an extensible JavaScript-based HTML5 browser rendering library for Business Applications.  Supports RIA like client-side features based on JavaScript  Supports an extensibility concept regarding custom controls  Allows change of themes for customer branding in an effective manner  Allows usage of own JavaScript and HTML  Uses the jQuery library as a foundation  Fully supports SAP Product standards  Open AJAX compliant and can be used together with/uses other standard JS libs  Can be used from various platforms (Java, ABAP, etc)  Produced in a release independent code line to enable short shipment cycles © 2011 SAP AG. All rights reserved. 5
    UI5 Browser Support Internet Explorer Version 9 Version 8 Firefox Version 3.6 and latest version Chrome Latest version Safari Latest version Internet Explorer 8 is supported with graceful degradation for CSS3 features like rounded corners, text-shadows, etc. © 2011 SAP AG. All rights reserved. 6
    UI5 Release Plan and Strategy Development track  Identified by a major and an odd minor version number, e.g. 1.5.1  The versions of this track are released internally and are not meant to be used in products shipped to customers. Release track  Identified by a major and an even minor version number, e.g. 1.4.1  The versions of this track are released externally. Only these versions are allowed to be used in production. © 2011 SAP AG. All rights reserved. 7
    UI5 Architecture Overview UI5 Core • UI5 Core includes base, core and model modules • Dependency / Class-Loader to load control libraries • Render manager creates HTML strings for the instantiated controls • The UI5 Core includes other JavaScript libraries • • • data.js jQuery jQuery UI © 2011 SAP AG. All rights reserved. 8
