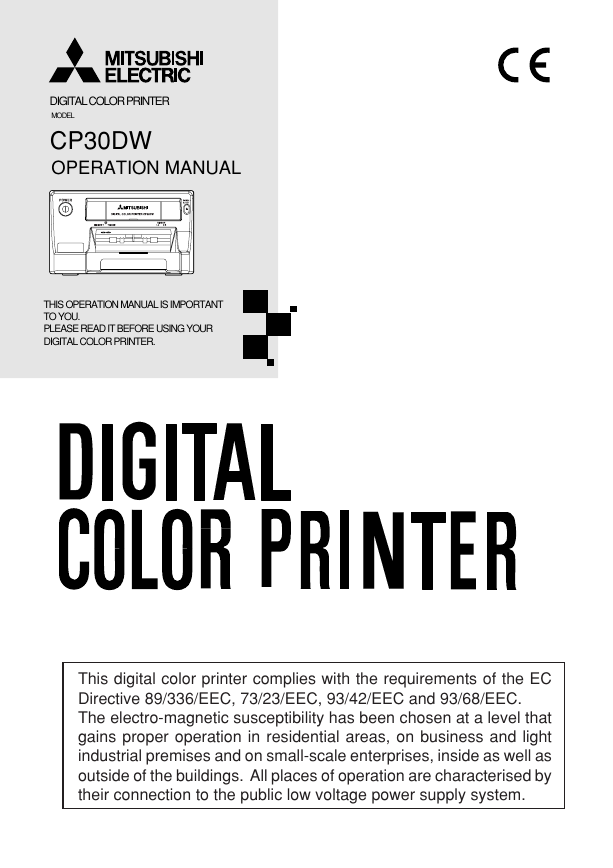

三菱打印机-CP30DW说明书.pdf
DIGITAL COLOR PRINTER
MODEL
CP30DW
OPERATION MANUAL
THIS OPERATION MANUAL IS IMPORTANT
TO YOU.
PLEASE READ IT BEFORE USING YOUR
DIGITAL COLOR PRINTER.
This digital color printer complies with the requirements of the EC
Directive 89/336/EEC, 73/23/EEC, 93/42/EEC and 93/68/EEC.
The electro-magnetic susceptibility has been chosen at a level that
gains proper operation in residential areas, on business and light
industrial premises and on small-scale enterprises, inside as well as
outside of the buildings. All places of operation are characterised by
their connection to the public low voltage power supply system.

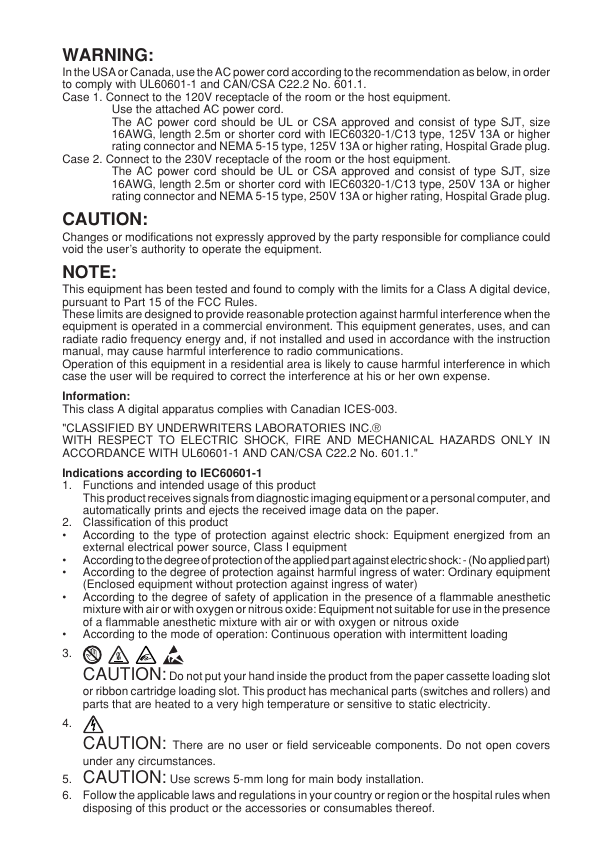

WARNING:
In the USA or Canada, use the AC power cord according to the recommendation as below, in order
to comply with UL60601-1 and CAN/CSA C22.2 No. 601.1.
Case 1. Connect to the 120V receptacle of the room or the host equipment.
Use the attached AC power cord.
The AC power cord should be UL or CSA approved and consist of type SJT, size
16AWG, length 2.5m or shorter cord with IEC60320-1/C13 type, 125V 13A or higher
rating connector and NEMA 5-15 type, 125V 13A or higher rating, Hospital Grade plug.
Case 2. Connect to the 230V receptacle of the room or the host equipment.
The AC power cord should be UL or CSA approved and consist of type SJT, size
16AWG, length 2.5m or shorter cord with IEC60320-1/C13 type, 250V 13A or higher
rating connector and NEMA 5-15 type, 250V 13A or higher rating, Hospital Grade plug.
CAUTION:
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his or her own expense.
Information:
This class A digital apparatus complies with Canadian ICES-003.
"CLASSIFIED BY UNDERWRITERS LABORATORIES INC.®
WITH RESPECT TO ELECTRIC SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN
ACCORDANCE WITH UL60601-1 AND CAN/CSA C22.2 No. 601.1."
Indications according to IEC60601-1
1. Functions and intended usage of this product
This product receives signals from diagnostic imaging equipment or a personal computer, and
automatically prints and ejects the received image data on the paper.
2. Classification of this product
•
According to the type of protection against electric shock: Equipment energized from an
external electrical power source, Class I equipment
According to the degree of protection of the applied part against electric shock: - (No applied part)
According to the degree of protection against harmful ingress of water: Ordinary equipment
(Enclosed equipment without protection against ingress of water)
According to the degree of safety of application in the presence of a flammable anesthetic
mixture with air or with oxygen or nitrous oxide: Equipment not suitable for use in the presence
of a flammable anesthetic mixture with air or with oxygen or nitrous oxide
According to the mode of operation: Continuous operation with intermittent loading
CAUTION: Do not put your hand inside the product from the paper cassette loading slot
or ribbon cartridge loading slot. This product has mechanical parts (switches and rollers) and
parts that are heated to a very high temperature or sensitive to static electricity.
•
•
•
•
3.
4.
CAUTION: There are no user or field serviceable components. Do not open covers
under any circumstances.
5. CAUTION: Use screws 5-mm long for main body installation.
6. Follow the applicable laws and regulations in your country or region or the hospital rules when
disposing of this product or the accessories or consumables thereof.

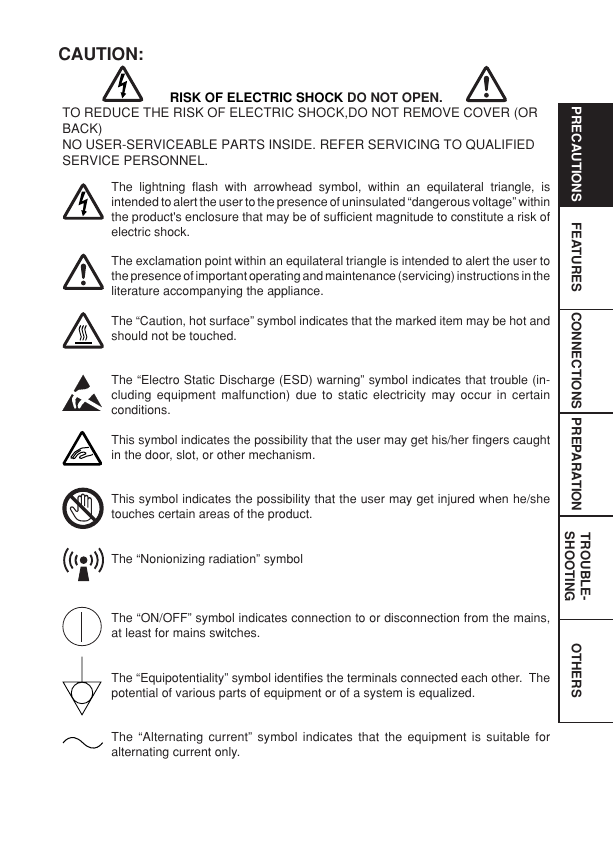

CAUTION:
RISK OF ELECTRIC SHOCK DO NOT OPEN.
TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR
BACK)
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage” within
the product's enclosure that may be of sufficient magnitude to constitute a risk of
electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
The “Caution, hot surface” symbol indicates that the marked item may be hot and
should not be touched.
The “Electro Static Discharge (ESD) warning” symbol indicates that trouble (in-
cluding equipment malfunction) due to static electricity may occur in certain
conditions.
This symbol indicates the possibility that the user may get his/her fingers caught
in the door, slot, or other mechanism.
This symbol indicates the possibility that the user may get injured when he/she
touches certain areas of the product.
The “Nonionizing radiation” symbol
The “ON/OFF” symbol indicates connection to or disconnection from the mains,
at least for mains switches.
The “Equipotentiality” symbol identifies the terminals connected each other. The
potential of various parts of equipment or of a system is equalized.
The “Alternating current” symbol indicates that the equipment is suitable for
alternating current only.
P
R
E
C
A
U
T
O
N
S
I
F
E
A
T
U
R
E
S
C
O
N
N
E
C
T
O
N
S
I
P
R
E
P
A
R
A
T
O
N
I
S
H
O
O
T
N
G
I
T
R
O
U
B
L
E
-
O
T
H
E
R
S

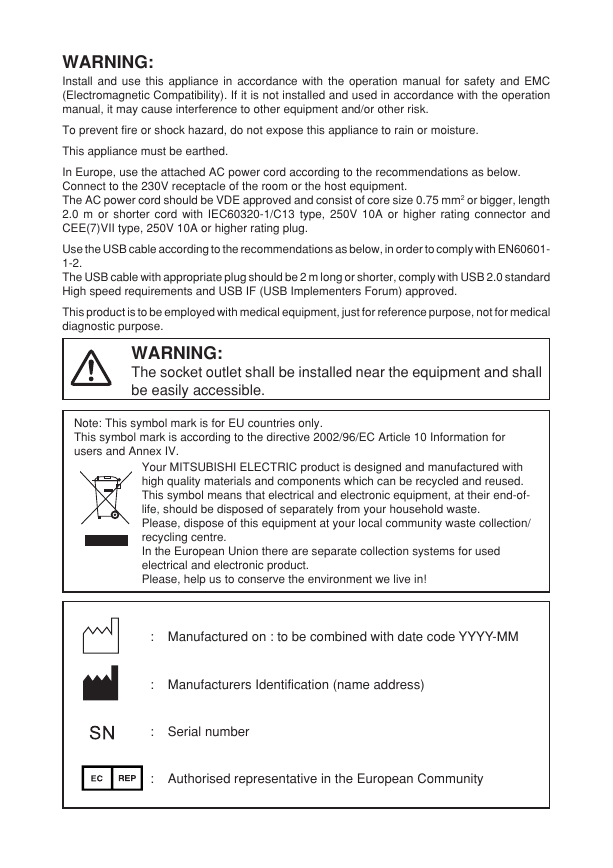

WARNING:
Install and use this appliance in accordance with the operation manual for safety and EMC
(Electromagnetic Compatibility). If it is not installed and used in accordance with the operation
manual, it may cause interference to other equipment and/or other risk.
To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
This appliance must be earthed.
In Europe, use the attached AC power cord according to the recommendations as below.
Connect to the 230V receptacle of the room or the host equipment.
The AC power cord should be VDE approved and consist of core size 0.75 mm2 or bigger, length
2.0 m or shorter cord with IEC60320-1/C13 type, 250V 10A or higher rating connector and
CEE(7)VII type, 250V 10A or higher rating plug.
Use the USB cable according to the recommendations as below, in order to comply with EN60601-
1-2.
The USB cable with appropriate plug should be 2 m long or shorter, comply with USB 2.0 standard
High speed requirements and USB IF (USB Implementers Forum) approved.
This product is to be employed with medical equipment, just for reference purpose, not for medical
diagnostic purpose.
WARNING:
The socket outlet shall be installed near the equipment and shall
be easily accessible.
Note: This symbol mark is for EU countries only.
This symbol mark is according to the directive 2002/96/EC Article 10 Information for
users and Annex IV.
Your MITSUBISHI ELECTRIC product is designed and manufactured with
high quality materials and components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-
life, should be disposed of separately from your household waste.
Please, dispose of this equipment at your local community waste collection/
recycling centre.
In the European Union there are separate collection systems for used
electrical and electronic product.
Please, help us to conserve the environment we live in!
: Manufactured on : to be combined with date code YYYY-MM
: Manufacturers Identification (name address)
: Serial number
: Authorised representative in the European Community

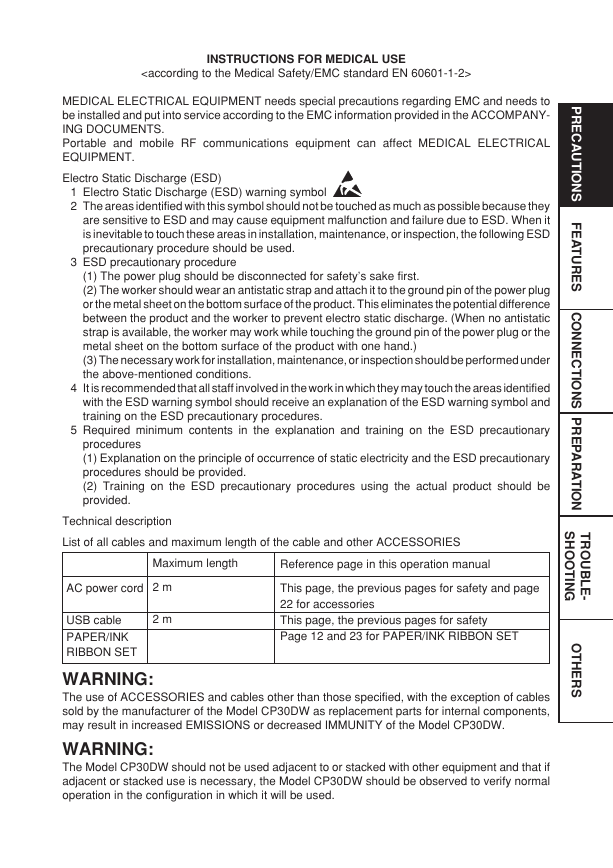

INSTRUCTIONS FOR MEDICAL USE
MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC and needs to
be installed and put into service according to the EMC information provided in the ACCOMPANY-
ING DOCUMENTS.
Portable and mobile RF communications equipment can affect MEDICAL ELECTRICAL
EQUIPMENT.
Electro Static Discharge (ESD)
1 Electro Static Discharge (ESD) warning symbol
2 The areas identified with this symbol should not be touched as much as possible because they
are sensitive to ESD and may cause equipment malfunction and failure due to ESD. When it
is inevitable to touch these areas in installation, maintenance, or inspection, the following ESD
precautionary procedure should be used.
3 ESD precautionary procedure
(1) The power plug should be disconnected for safety’s sake first.
(2) The worker should wear an antistatic strap and attach it to the ground pin of the power plug
or the metal sheet on the bottom surface of the product. This eliminates the potential difference
between the product and the worker to prevent electro static discharge. (When no antistatic
strap is available, the worker may work while touching the ground pin of the power plug or the
metal sheet on the bottom surface of the product with one hand.)
(3) The necessary work for installation, maintenance, or inspection should be performed under
the above-mentioned conditions.
4 It is recommended that all staff involved in the work in which they may touch the areas identified
with the ESD warning symbol should receive an explanation of the ESD warning symbol and
training on the ESD precautionary procedures.
5 Required minimum contents in the explanation and training on the ESD precautionary
procedures
(1) Explanation on the principle of occurrence of static electricity and the ESD precautionary
procedures should be provided.
(2) Training on the ESD precautionary procedures using the actual product should be
provided.
Technical description
List of all cables and maximum length of the cable and other ACCESSORIES
Maximum length
Reference page in this operation manual
AC power cord
2 m
2 m
This page, the previous pages for safety and page
22 for accessories
This page, the previous pages for safety
Page 12 and 23 for PAPER/INK RIBBON SET
USB cable
PAPER/INK
RIBBON SET
WARNING:
The use of ACCESSORIES and cables other than those specified, with the exception of cables
sold by the manufacturer of the Model CP30DW as replacement parts for internal components,
may result in increased EMISSIONS or decreased IMMUNITY of the Model CP30DW.
WARNING:
The Model CP30DW should not be used adjacent to or stacked with other equipment and that if
adjacent or stacked use is necessary, the Model CP30DW should be observed to verify normal
operation in the configuration in which it will be used.
P
R
E
C
A
U
T
O
N
S
I
F
E
A
T
U
R
E
S
C
O
N
N
E
C
T
O
N
S
I
P
R
E
P
A
R
A
T
O
N
I
S
H
O
O
T
N
G
I
T
R
O
U
B
L
E
-
O
T
H
E
R
S
Compliance with the following EMC guidance is assured only for the use in Europe (220 - 240 V).
Guidance and manufacturer's declaration - electromagnetic emissions
The Model CP30DW is intended for use in the electromagnetic environment specified below.
The customer or user of the Model CP30DW should assure that it is used in such an environment.
Emissions test
RF emissions
EN 55011
Compliance
Group 1
Electromagnetic environment - guidance
The Model CP30DW uses RF energy only for its
internal function. Therefore, its RF emissions are very
low and are not likely to cause interference in nearby
electronic equipment.
The Model CP30DW is suitable for use in all
establishments, including domestic establishments and
those directly connected to the public low-voltage
power supply network that supplies buildings used for
domestic purposes.
RF emissions
EN 55011
Harmonic emissions
EN 61000-3-2
Voltage fluctuations /
flicker emissions
EN 61000-3-3
Class B
Class A
Complies

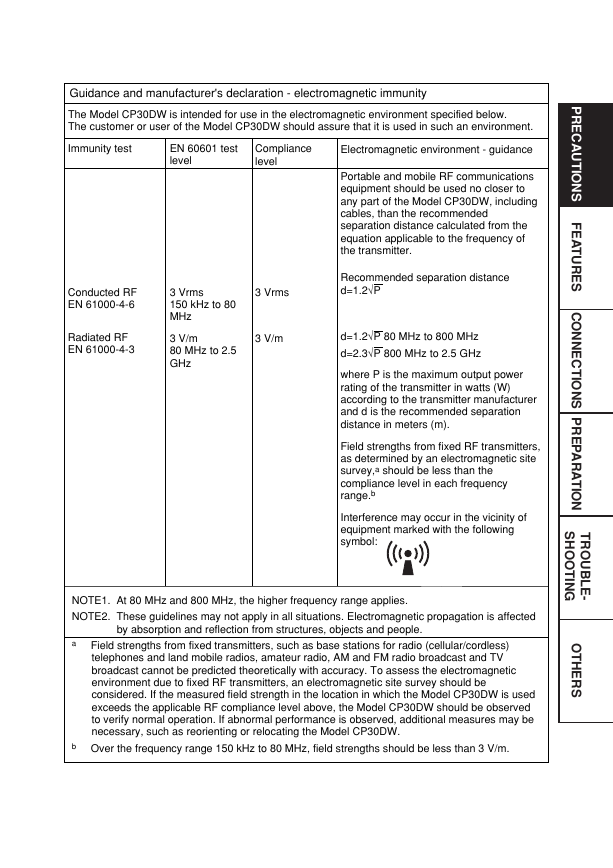

Guidance and manufacturer's declaration - electromagnetic immunity
The Model CP30DW is intended for use in the electromagnetic environment specified below.
The customer or user of the Model CP30DW should assure that it is used in such an environment.
EN 60601 test
level
±6 kV contact
±8 kV air
Compliance
level
±6 kV contact
±8 kV air
±2 kV for power
supply lines
±1 kV for input
/output lines
±1 kV line(s) to
line(s)
±2 kV line(s) to
earth
< 5% UT
(> 95% dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycles
70% UT
(30% dip in vT)
for 25 cycles
< 5% UT
(> 95% dip in UT)
for 5 sec.
3 A/m
±2 kV for power
supply lines
±1 kV for input
/output lines
±1 kV line(s) to
line(s)
±2 kV line(s) to
earth
< 5% UT
(> 95% dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycles
70% UT
(30% dip in UT)
for 25 cycles
< 5% UT
(> 95% dip in UT)
for 5 sec.
3 A/m
Immunity test
Electrostatic
discharge (ESD)
EN 61000-4-2
Electrical fast
transient/burst
EN 61000-4-4
Surge
EN 61000-4-5
Voltage dips, short
interruptions and
voltage variations
on power supply
input lines
EN 61000-4-11
Power frequency
(50/60 Hz) magnetic
field
EN 61000-4-8
Electromagnetic environment - guidance
Floors should be wood, concrete or
ceramic tile. If floors are covered with
synthetic material, the relative humidity
should be at least 30%.
Mains power quality should be that of a
typical commercial or hospital
environment.
Mains power quality should be that of a
typical commercial or hospital
environment.
Mains power quality should be that of a
typical commercial or hospital
environment. If the user of the Model
CP30DW requires continued operation
during power mains interruptions, it is
recommended that the Model CP30DW
be powered from an uninterruptible power
supply or a battery.
Power frequency magnetic fields should
be at levels characteristic of a typical
location in a typical commercial or
hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer's declaration - electromagnetic immunity
The Model CP30DW is intended for use in the electromagnetic environment specified below.
The customer or user of the Model CP30DW should assure that it is used in such an environment.
Immunity test
EN 60601 test
level
Compliance
level
Electromagnetic environment - guidance
Conducted RF
EN 61000-4-6
Radiated RF
EN 61000-4-3
3 Vrms
150 kHz to 80
MHz
3 V/m
80 MHz to 2.5
GHz
3 Vrms
3 V/m
Portable and mobile RF communications
equipment should be used no closer to
any part of the Model CP30DW, including
cables, than the recommended
separation distance calculated from the
equation applicable to the frequency of
the transmitter.
Recommended separation distance
d=1.2√P
d=1.2√P 80 MHz to 800 MHz
d=2.3√P 800 MHz to 2.5 GHz
where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter manufacturer
and d is the recommended separation
distance in meters (m).
Field strengths from fixed RF transmitters,
as determined by an electromagnetic site
survey,a should be less than the
compliance level in each frequency
range.b
Interference may occur in the vicinity of
equipment marked with the following
symbol:
NOTE1. At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2. These guidelines may not apply in all situations. Electromagnetic propagation is affected
by absorption and reflection from structures, objects and people.
a
Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless)
telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV
broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be
considered. If the measured field strength in the location in which the Model CP30DW is used
exceeds the applicable RF compliance level above, the Model CP30DW should be observed
to verify normal operation. If abnormal performance is observed, additional measures may be
necessary, such as reorienting or relocating the Model CP30DW.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
P
R
E
C
A
U
T
O
N
S
I
F
E
A
T
U
R
E
S
C
O
N
N
E
C
T
O
N
S
I
P
R
E
P
A
R
A
T
O
N
I
S
H
O
O
T
N
G
I
T
R
O
U
B
L
E
-
O
T
H
E
R
S
Recommended separation distances between
portable and mobile RF communications equipment and the Model CP30DW
The Model CP30DW is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of the Model CP30DW can help prevent
electromagnetic interference by maintaining a minimum distance between portable and mobile RF
communications equipment (transmitters) and the Model CP30DW as recommended below,
according to the maximum output power of the communications equipment.
Rated maximum output
power of transmitter
W
0.01
0.1
1
10
100
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
d=1.2√P
80 MHz to 800 MHz
d=1.2√P
800 MHz to 2.5 GHz
d=2.3√P
0.12
0.38
1.2
3.8
12
0.12
0.38
1.2
3.8
12
0.23
0.73
2.3
7.3
23
For transmitters rated at a maximum output power not listed above, the recommended separation
distance d in meters (m) can be estimated using the equation applicable to the frequency of the
transmitter, where P is the maximum output power rating of the transmitter in watts (W) according
to the transmitter manufacturer.
NOTE1. At 80 MHz and 800 MHz, the separation distance for higher frequency range applies.
NOTE2. These guidelines may not apply in all situations. Electromagnetic propagation is affected
by absorption and reflection from structures, objects and people.
Safety Notices for use in combination with other devices
1. All the equipments connected to this unit shall be certified acording to Standard IEC60601-1,
IEC60950-1, IEC60065 or other IEC/ISO Standards applicable to the equipments.
2. When this unit is used together with other equipment in the patient area*, the equipment shall
be either powered by an isolation transformer or connected via an additional protective earth
terminal to system ground unless it is certified according to Standard IEC60601-1.
* Patient Area
R1.5m
3. The leakage current could increase when connected to other equipment.
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
