EN
DATA PROJECTOR
MODEL
XD530U/XD530E
User Manual
I
H
S
L
G
N
E
This User Manual is important to you.
Please read it before using your projector.

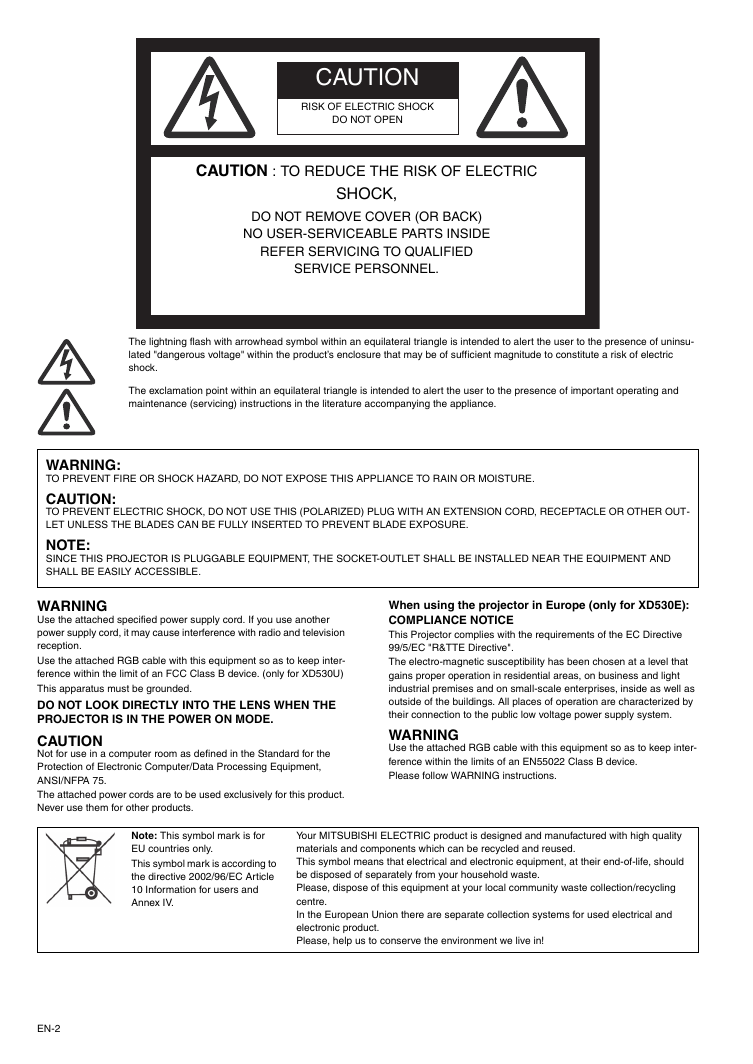

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsu-
lated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUT-
LET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
NOTE:
SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND
SHALL BE EASILY ACCESSIBLE.
WARNING
Use the attached specified power supply cord. If you use another
power supply cord, it may cause interference with radio and television
reception.
Use the attached RGB cable with this equipment so as to keep inter-
ference within the limit of an FCC Class B device. (only for XD530U)
This apparatus must be grounded.
DO NOT LOOK DIRECTLY INTO THE LENS WHEN THE
PROJECTOR IS IN THE POWER ON MODE.
CAUTION
Not for use in a computer room as defined in the Standard for the
Protection of Electronic Computer/Data Processing Equipment,
ANSI/NFPA 75.
The attached power cords are to be used exclusively for this product.
Never use them for other products.
When using the projector in Europe (only for XD530E):
COMPLIANCE NOTICE
This Projector complies with the requirements of the EC Directive
99/5/EC "R&TTE Directive".
The electro-magnetic susceptibility has been chosen at a level that
gains proper operation in residential areas, on business and light
industrial premises and on small-scale enterprises, inside as well as
outside of the buildings. All places of operation are characterized by
their connection to the public low voltage power supply system.
WARNING
Use the attached RGB cable with this equipment so as to keep inter-
ference within the limits of an EN55022 Class B device.
Please follow WARNING instructions.
Note: This symbol mark is for
EU countries only.
This symbol mark is according to
the directive 2002/96/EC Article
10 Information for users and
Annex IV.
Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality
materials and components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life, should
be disposed of separately from your household waste.
Please, dispose of this equipment at your local community waste collection/recycling
centre.
In the European Union there are separate collection systems for used electrical and
electronic product.
Please, help us to conserve the environment we live in!
EN-2

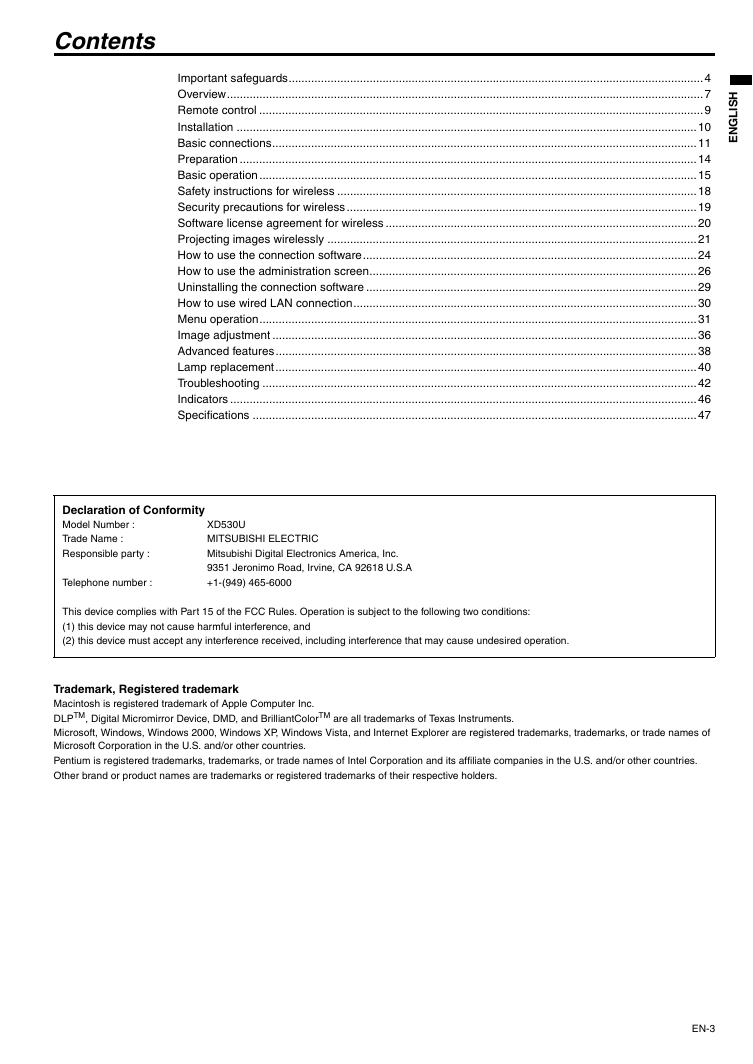

Contents
I
H
S
L
G
N
E
Important safeguards................................................................................................................................4
Overview...................................................................................................................................................7
Remote control .........................................................................................................................................9
Installation ..............................................................................................................................................10
Basic connections...................................................................................................................................11
Preparation .............................................................................................................................................14
Basic operation.......................................................................................................................................15
Safety instructions for wireless ...............................................................................................................18
Security precautions for wireless ............................................................................................................19
Software license agreement for wireless ................................................................................................20
Projecting images wirelessly ..................................................................................................................21
How to use the connection software.......................................................................................................24
How to use the administration screen.....................................................................................................26
Uninstalling the connection software ......................................................................................................29
How to use wired LAN connection..........................................................................................................30
Menu operation.......................................................................................................................................31
Image adjustment ...................................................................................................................................36
Advanced features..................................................................................................................................38
Lamp replacement..................................................................................................................................40
Troubleshooting ......................................................................................................................................42
Indicators ................................................................................................................................................46
Specifications .........................................................................................................................................47
Declaration of Conformity
Model Number :
Trade Name :
Responsible party :
Telephone number :
XD530U
MITSUBISHI ELECTRIC
Mitsubishi Digital Electronics America, Inc.
9351 Jeronimo Road, Irvine, CA 92618 U.S.A
+1-(949) 465-6000
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Trademark, Registered trademark
Macintosh is registered trademark of Apple Computer Inc.
DLPTM, Digital Micromirror Device, DMD, and BrilliantColorTM are all trademarks of Texas Instruments.
Microsoft, Windows, Windows 2000, Windows XP, Windows Vista, and Internet Explorer are registered trademarks, trademarks, or trade names of
Microsoft Corporation in the U.S. and/or other countries.
Pentium is registered trademarks, trademarks, or trade names of Intel Corporation and its affiliate companies in the U.S. and/or other countries.
Other brand or product names are trademarks or registered trademarks of their respective holders.
EN-3
12. Overloading
Do not overload wall outlets and extension cords as this can
result in a fire or electric shock.
13. Objects and liquids
Never push objects of any kind through openings of this projec-
tor as they may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock. Never spill liquid
of any kind on the projector.
14. Servicing
Do not attempt to service this projector yourself. Refer all servic-
ing to qualified service personnel.
15. Damage requiring service
Unplug this projector from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
(a)
(b)
If the power-supply cord or plug is damaged.
If liquid has been spilled, or objects have fallen into the pro-
jector.
If the projector does not operate normally after you follow
the operating instructions. Adjust only those controls that
are covered by the operating instructions. An improper
adjustment of other controls may result in damage and may
often require extensive work by a qualified technician to
restore the projector to its normal operation.
If the projector has been exposed to rain or water.
If the projector has been dropped or the cabinet has been
damaged.
If the projector exhibits a distinct change in performance -
this indicates a need for service.
(c)
(d)
(e)
(f)
16. Replacement parts
When replacement parts are required, be sure that the service
technician has used replacement parts specified by the manu-
facturer or parts having the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric shock
or other hazards.
17. Safety check
Upon completion of any service or repair to this projector, ask
the service technician to perform safety checks determining that
the projector is in a safe operating condition.
18. Do not use the wireless function in the vicinity of other wireless
appliances.
The following appliances may use the same radio wave band as
the projector. If the projector is used in the vicinity of the follow-
ing appliances, the projector may not be able to communicate or
the communication speed may drop due to radio wave interfer-
ence.
A microwave oven and other appliances
A wireless base station typically installed at factory's manu-
Industrial, scientific, or medical appliances
facturing lines for use in classification of moving objects
A low-power wireless base station
Important safeguards
Please read all these instructions regarding your projector and retain
them for future reference. Follow all warnings and instructions marked
on the projector.

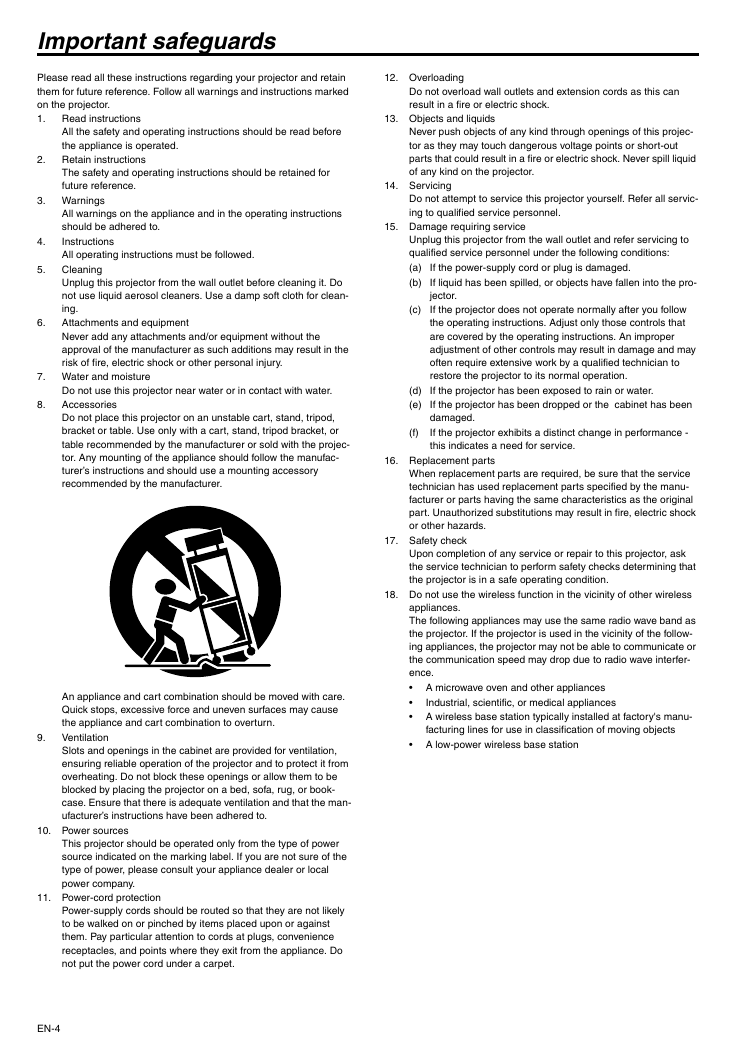

1.
Read instructions
All the safety and operating instructions should be read before
the appliance is operated.
Retain instructions
The safety and operating instructions should be retained for
future reference.
2.
3. Warnings
4.
5.
6.
All warnings on the appliance and in the operating instructions
should be adhered to.
Instructions
All operating instructions must be followed.
Cleaning
Unplug this projector from the wall outlet before cleaning it. Do
not use liquid aerosol cleaners. Use a damp soft cloth for clean-
ing.
Attachments and equipment
Never add any attachments and/or equipment without the
approval of the manufacturer as such additions may result in the
risk of fire, electric shock or other personal injury.
7. Water and moisture
8.
Do not use this projector near water or in contact with water.
Accessories
Do not place this projector on an unstable cart, stand, tripod,
bracket or table. Use only with a cart, stand, tripod bracket, or
table recommended by the manufacturer or sold with the projec-
tor. Any mounting of the appliance should follow the manufac-
turer’s instructions and should use a mounting accessory
recommended by the manufacturer.
9.
An appliance and cart combination should be moved with care.
Quick stops, excessive force and uneven surfaces may cause
the appliance and cart combination to overturn.
Ventilation
Slots and openings in the cabinet are provided for ventilation,
ensuring reliable operation of the projector and to protect it from
overheating. Do not block these openings or allow them to be
blocked by placing the projector on a bed, sofa, rug, or book-
case. Ensure that there is adequate ventilation and that the man-
ufacturer’s instructions have been adhered to.
10. Power sources
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of the
type of power, please consult your appliance dealer or local
power company.
11. Power-cord protection
Power-supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against
them. Pay particular attention to cords at plugs, convenience
receptacles, and points where they exit from the appliance. Do
not put the power cord under a carpet.
EN-4

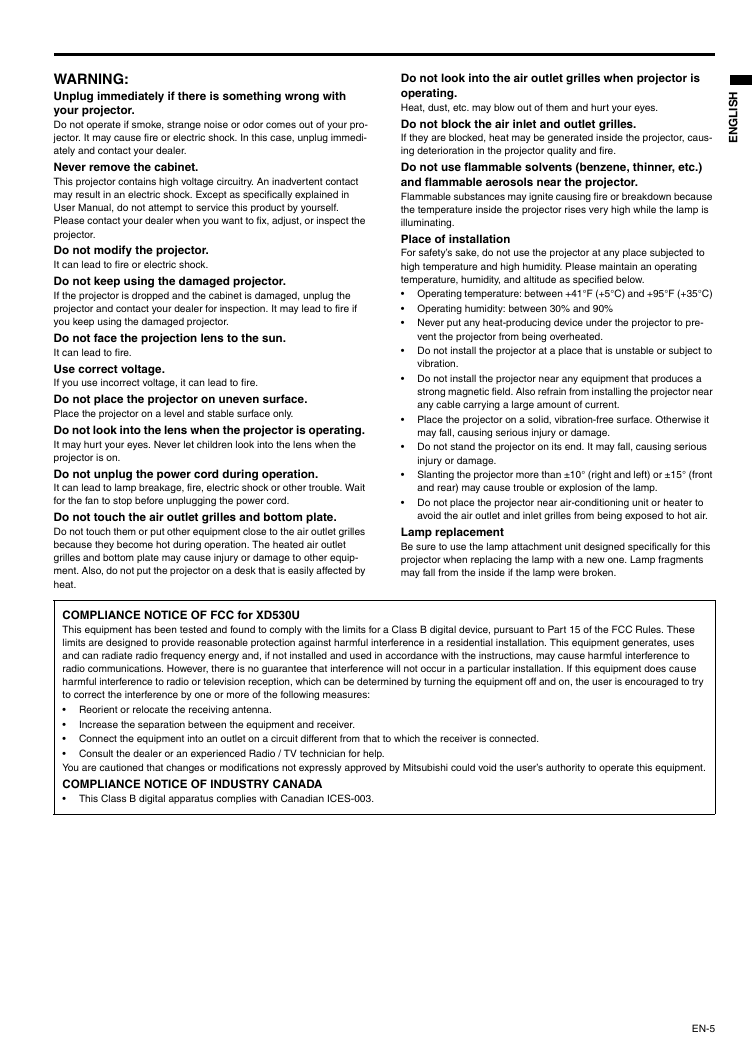

WARNING:
Unplug immediately if there is something wrong with
your projector.
Do not operate if smoke, strange noise or odor comes out of your pro-
jector. It may cause fire or electric shock. In this case, unplug immedi-
ately and contact your dealer.
Never remove the cabinet.
This projector contains high voltage circuitry. An inadvertent contact
may result in an electric shock. Except as specifically explained in
User Manual, do not attempt to service this product by yourself.
Please contact your dealer when you want to fix, adjust, or inspect the
projector.
Do not modify the projector.
It can lead to fire or electric shock.
Do not keep using the damaged projector.
If the projector is dropped and the cabinet is damaged, unplug the
projector and contact your dealer for inspection. It may lead to fire if
you keep using the damaged projector.
Do not face the projection lens to the sun.
It can lead to fire.
Use correct voltage.
If you use incorrect voltage, it can lead to fire.
Do not place the projector on uneven surface.
Place the projector on a level and stable surface only.
Do not look into the lens when the projector is operating.
It may hurt your eyes. Never let children look into the lens when the
projector is on.
Do not unplug the power cord during operation.
It can lead to lamp breakage, fire, electric shock or other trouble. Wait
for the fan to stop before unplugging the power cord.
Do not touch the air outlet grilles and bottom plate.
Do not touch them or put other equipment close to the air outlet grilles
because they become hot during operation. The heated air outlet
grilles and bottom plate may cause injury or damage to other equip-
ment. Also, do not put the projector on a desk that is easily affected by
heat.
I
H
S
L
G
N
E
Do not look into the air outlet grilles when projector is
operating.
Heat, dust, etc. may blow out of them and hurt your eyes.
Do not block the air inlet and outlet grilles.
If they are blocked, heat may be generated inside the projector, caus-
ing deterioration in the projector quality and fire.
Do not use flammable solvents (benzene, thinner, etc.)
and flammable aerosols near the projector.
Flammable substances may ignite causing fire or breakdown because
the temperature inside the projector rises very high while the lamp is
illuminating.
Place of installation
For safety’s sake, do not use the projector at any place subjected to
high temperature and high humidity. Please maintain an operating
temperature, humidity, and altitude as specified below.
Operating temperature: between +41°F (+5°C) and +95°F (+35°C)
Operating humidity: between 30% and 90%
Never put any heat-producing device under the projector to pre-
vent the projector from being overheated.
Do not install the projector at a place that is unstable or subject to
vibration.
Do not install the projector near any equipment that produces a
strong magnetic field. Also refrain from installing the projector near
any cable carrying a large amount of current.
Place the projector on a solid, vibration-free surface. Otherwise it
may fall, causing serious injury or damage.
Do not stand the projector on its end. It may fall, causing serious
injury or damage.
Slanting the projector more than ±10° (right and left) or ±15° (front
and rear) may cause trouble or explosion of the lamp.
Do not place the projector near air-conditioning unit or heater to
avoid the air outlet and inlet grilles from being exposed to hot air.
Lamp replacement
Be sure to use the lamp attachment unit designed specifically for this
projector when replacing the lamp with a new one. Lamp fragments
may fall from the inside if the lamp were broken.
COMPLIANCE NOTICE OF FCC for XD530U
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced Radio / TV technician for help.
You are cautioned that changes or modifications not expressly approved by Mitsubishi could void the user’s authority to operate this equipment.
COMPLIANCE NOTICE OF INDUSTRY CANADA
This Class B digital apparatus complies with Canadian ICES-003.
Increase the separation between the equipment and receiver.
EN-5

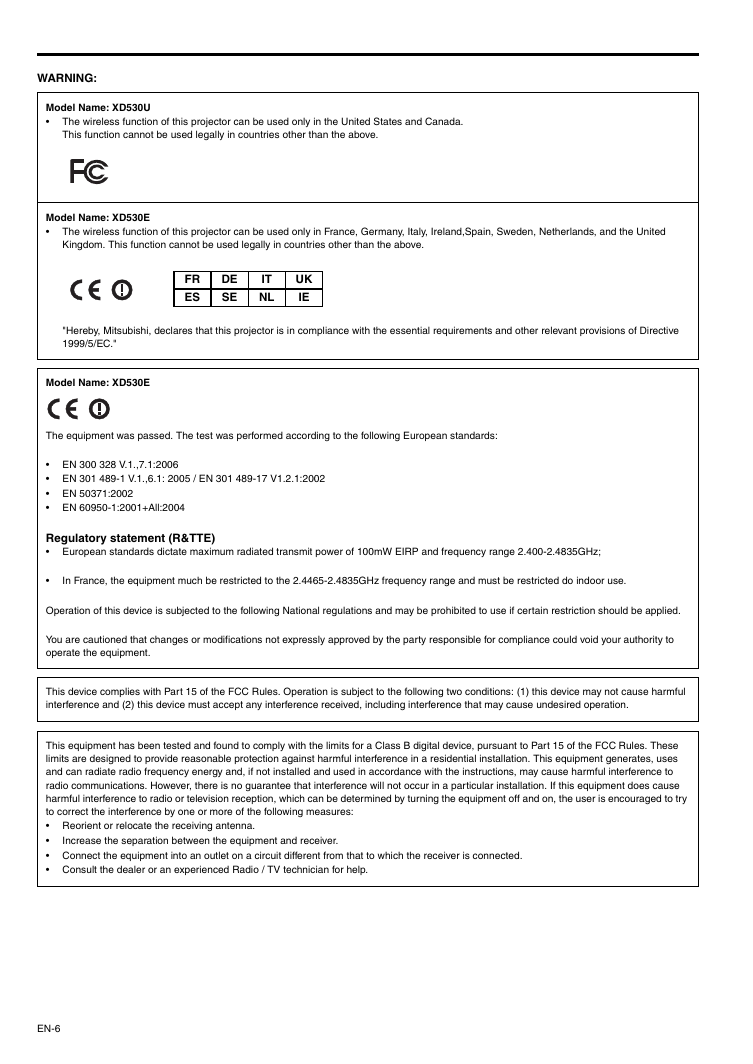

WARNING:
Model Name: XD530U
The wireless function of this projector can be used only in the United States and Canada.
This function cannot be used legally in countries other than the above.
Model Name: XD530E
The wireless function of this projector can be used only in France, Germany, Italy, Ireland,Spain, Sweden, Netherlands, and the United
Kingdom. This function cannot be used legally in countries other than the above.
FR
ES
DE
SE
IT
NL
UK
IE
"Hereby, Mitsubishi, declares that this projector is in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC."
Model Name: XD530E
The equipment was passed. The test was performed according to the following European standards:
EN 300 328 V.1.,7.1:2006
EN 301 489-1 V.1.,6.1: 2005 / EN 301 489-17 V1.2.1:2002
EN 50371:2002
EN 60950-1:2001+All:2004
Regulatory statement (R&TTE)
European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz;
In France, the equipment much be restricted to the 2.4465-2.4835GHz frequency range and must be restricted do indoor use.
Operation of this device is subjected to the following National regulations and may be prohibited to use if certain restriction should be applied.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced Radio / TV technician for help.
Increase the separation between the equipment and receiver.
EN-6

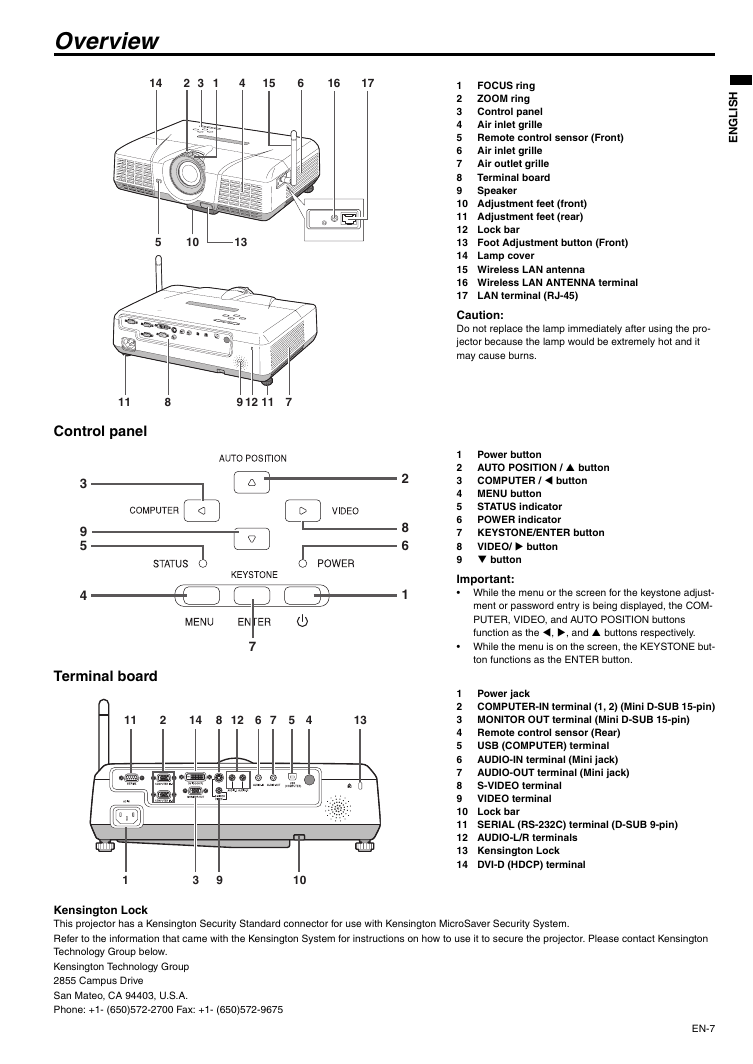

Overview
14
2
3
1
4
15
6
16
17
5
10
13
11
8
9 12 11 7
Control panel
3
9
5
4
2
8
6
1
I
H
S
L
G
N
E
FOCUS ring
ZOOM ring
Control panel
Air inlet grille
Remote control sensor (Front)
Air inlet grille
Air outlet grille
Terminal board
Speaker
1
2
3
4
5
6
7
8
9
10 Adjustment feet (front)
11 Adjustment feet (rear)
12 Lock bar
13 Foot Adjustment button (Front)
14 Lamp cover
15 Wireless LAN antenna
16 Wireless LAN ANTENNA terminal
17 LAN terminal (RJ-45)
Caution:
Do not replace the lamp immediately after using the pro-
jector because the lamp would be extremely hot and it
may cause burns.
Power button
AUTO POSITION / button
COMPUTER / button
STATUS indicator
POWER indicator
KEYSTONE/ENTER button
VIDEO/ button
1
2
3
4 MENU button
5
6
7
8
9 button
Important:
While the menu or the screen for the keystone adjust-
ment or password entry is being displayed, the COM-
PUTER, VIDEO, and AUTO POSITION buttons
function as the , , and buttons respectively.
7
While the menu is on the screen, the KEYSTONE but-
ton functions as the ENTER button.
Terminal board
11
2
14
8
12
6 7
5 4
13
Power jack
COMPUTER-IN terminal (1, 2) (Mini D-SUB 15-pin)
Remote control sensor (Rear)
USB (COMPUTER) terminal
AUDIO-IN terminal (Mini jack)
AUDIO-OUT terminal (Mini jack)
S-VIDEO terminal
VIDEO terminal
1
2
3 MONITOR OUT terminal (Mini D-SUB 15-pin)
4
5
6
7
8
9
10 Lock bar
11 SERIAL (RS-232C) terminal (D-SUB 9-pin)
12 AUDIO-L/R terminals
13 Kensington Lock
14 DVI-D (HDCP) terminal
1
3
9
10
Kensington Lock
This projector has a Kensington Security Standard connector for use with Kensington MicroSaver Security System.
Refer to the information that came with the Kensington System for instructions on how to use it to secure the projector. Please contact Kensington
Technology Group below.
Kensington Technology Group
2855 Campus Drive
San Mateo, CA 94403, U.S.A.
Phone: +1- (650)572-2700 Fax: +1- (650)572-9675
EN-7

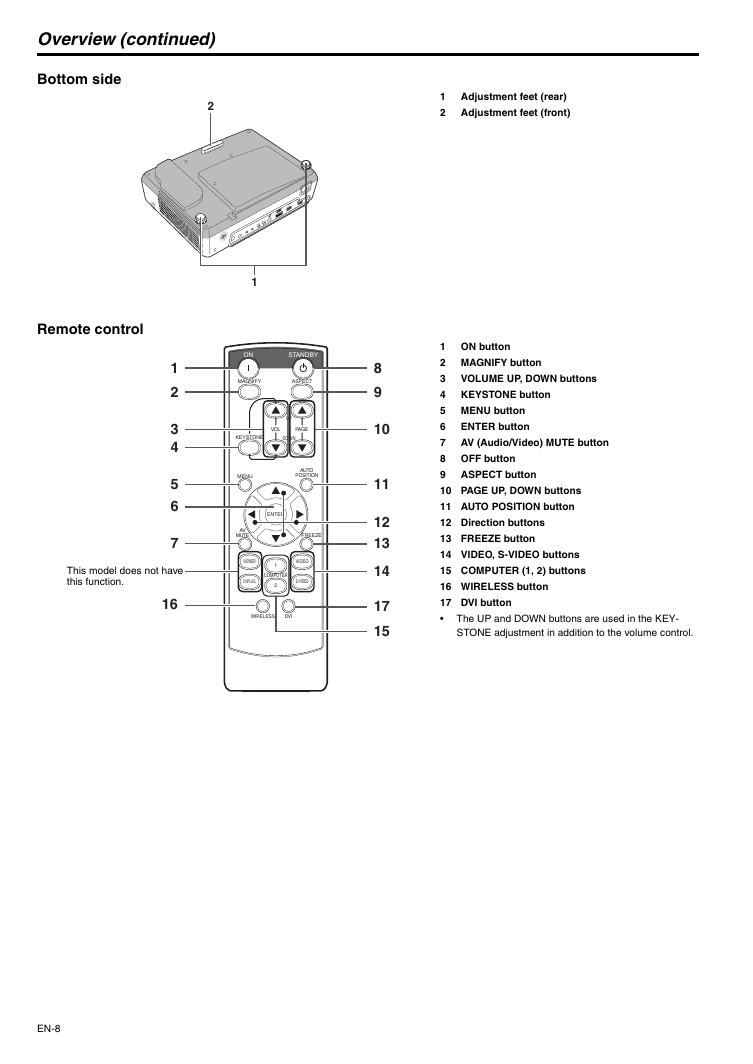

Overview (continued)
Bottom side
2
1
2
Adjustment feet (rear)
Adjustment feet (front)
VOLUME UP, DOWN buttons
KEYSTONE button
1 ON button
2 MAGNIFY button
3
4
5 MENU button
ENTER button
6
7
AV (Audio/Video) MUTE button
8 OFF button
9
10 PAGE UP, DOWN buttons
11 AUTO POSITION button
12 Direction buttons
13 FREEZE button
14 VIDEO, S-VIDEO buttons
15 COMPUTER (1, 2) buttons
16 WIRELESS button
17 DVI button
ASPECT button
The UP and DOWN buttons are used in the KEY-
STONE adjustment in addition to the volume control.
Remote control
1
2
3
4
5
6
7
This model does not have
this function.
16
1
ON
STANDBY
MAGNIFY
ASPECT
UP
VOL
PAGE
KEYSTONE
DOWN
MENU
AUTO
POSITION
ENTER
AV
MUTE
FREEZE
VIEWER
UNPLUG
1
COMPUTER
2
VIDEO
S-VIDEO
WIRELESS
DVI
8
9
10
11
12
13
14
17
15
EN-8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
