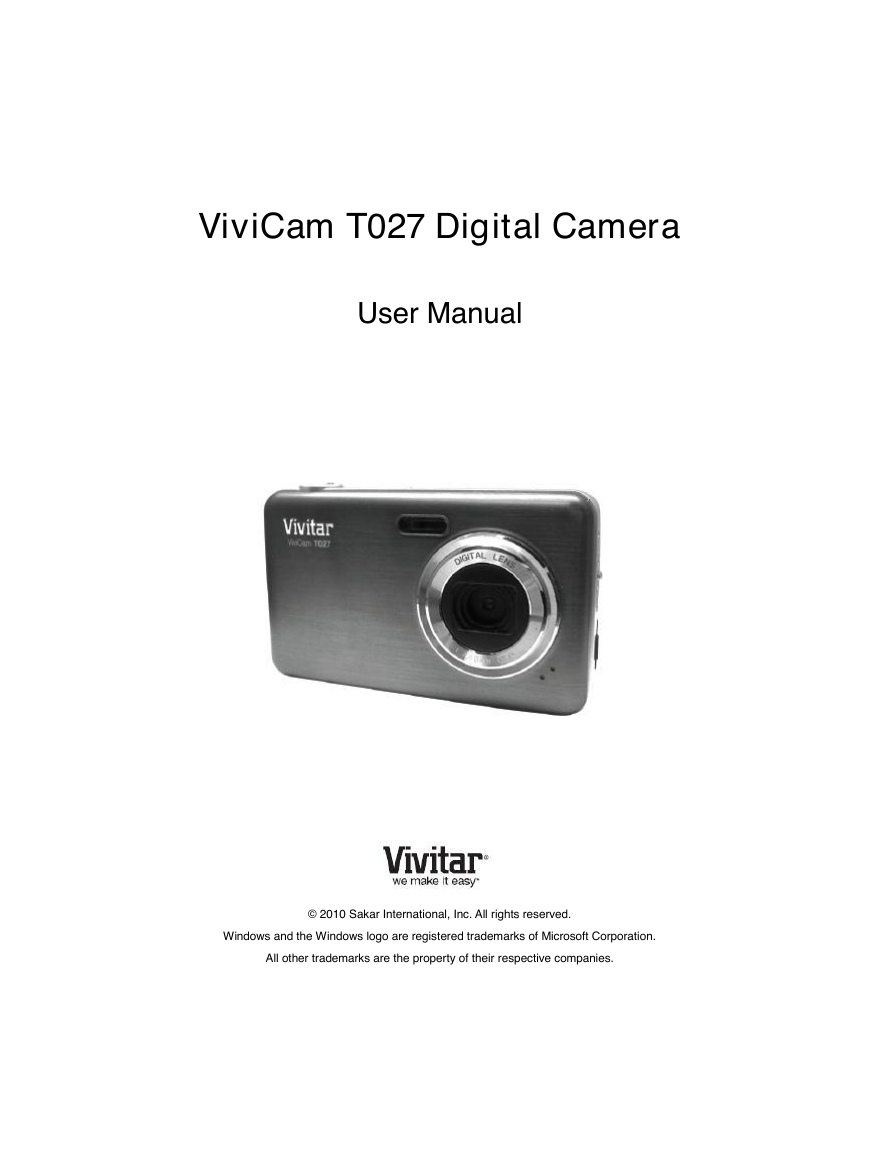

ViviCam T027 Digital Camera User Manual © 2010 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies.

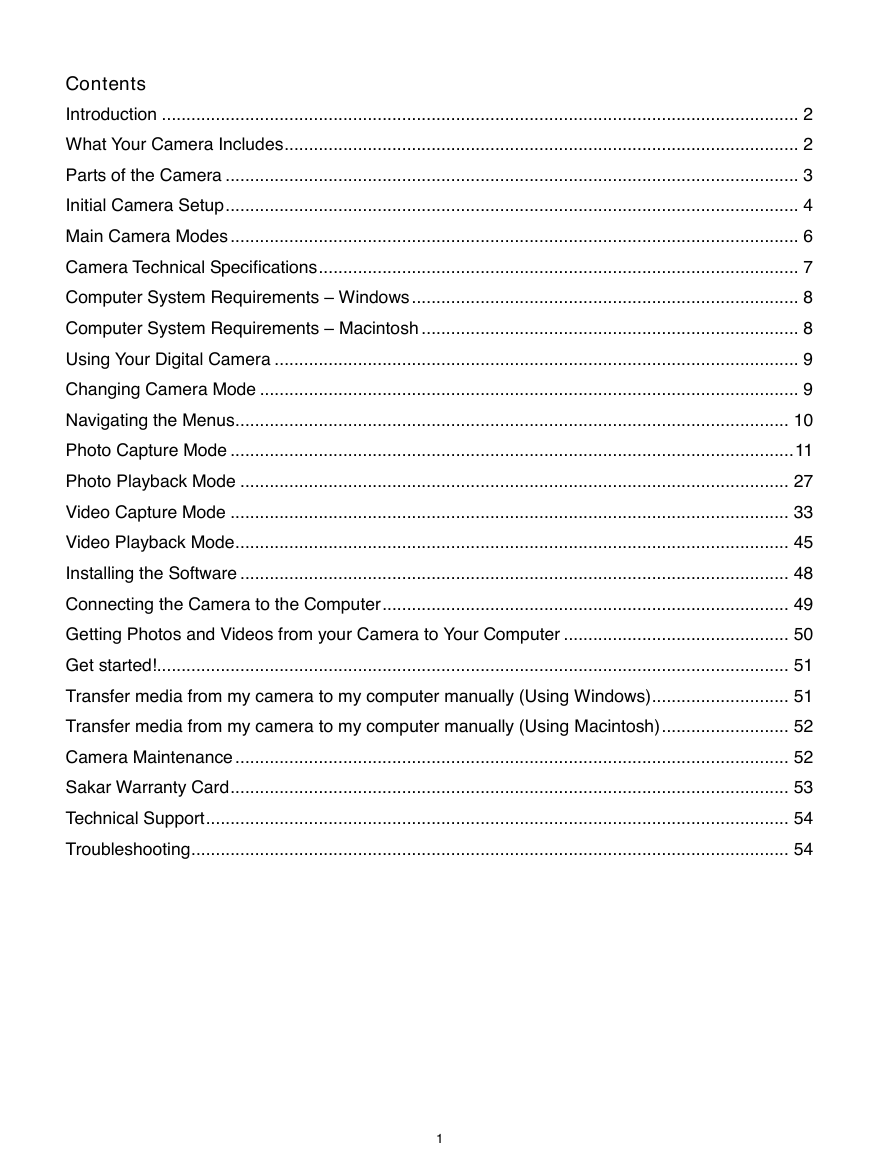

Contents Introduction .................................................................................................................................. 2 What Your Camera Includes ......................................................................................................... 2 Parts of the Camera ..................................................................................................................... 3 Initial Camera Setup ..................................................................................................................... 4 Main Camera Modes .................................................................................................................... 6 Camera Technical Specifications .................................................................................................. 7 Computer System Requirements – Windows ............................................................................... 8 Computer System Requirements – Macintosh ............................................................................. 8 Using Your Digital Camera ........................................................................................................... 9 Changing Camera Mode .............................................................................................................. 9 Navigating the Menus ................................................................................................................. 10 Photo Capture Mode ................................................................................................................... 11 Photo Playback Mode ................................................................................................................ 27 Video Capture Mode .................................................................................................................. 33 Video Playback Mode ................................................................................................................. 45 Installing the Software ................................................................................................................ 48 Connecting the Camera to the Computer ................................................................................... 49 Getting Photos and Videos from your Camera to Your Computer .............................................. 50 Get started!................................................................................................................................. 51 Transfer media from my camera to my computer manually (Using Windows) ............................ 51 Transfer media from my camera to my computer manually (Using Macintosh) .......................... 52 Camera Maintenance ................................................................................................................. 52 Sakar Warranty Card .................................................................................................................. 53 Technical Support ....................................................................................................................... 54 Troubleshooting .......................................................................................................................... 54 1

Introduction Thank you for purchasing this camera. Everything you need to take quality digital photos and videos is included with your camera. Vivitar makes capturing those special moments as easy as possible. Note: Your camera needs an SD Memory card (up to 32GB) for normal use. SD Memory cards are not included and need to be purchased separately. Please read this manual carefully first in order to get the most out of your digital camera. What Your Camera Includes 1. Digital Camera 2. USB cable 3. Vivitar Experience Image Manager software Installation CD 4. Wrist Strap Note: SD Memory Card not included 2

Parts of the Camera 1. Power button 2. Shutter button 3. LCD Screen 4. LED 5. Zoom Out 6. Zoom In 7. MODE button 8. SET button 9. Scene / Left Button 10. Flash / Up / Slideshow 11. Delete / Right Button 12. ViviLink / Down Button 13. Microphone 14. Flash Light 15. USB Slot 16. Tripod Socket 17. Digital Lens 18. Battery Compartment 19. Memory Card Slot 20. Macro button 21. Wrist Strap connectord 3

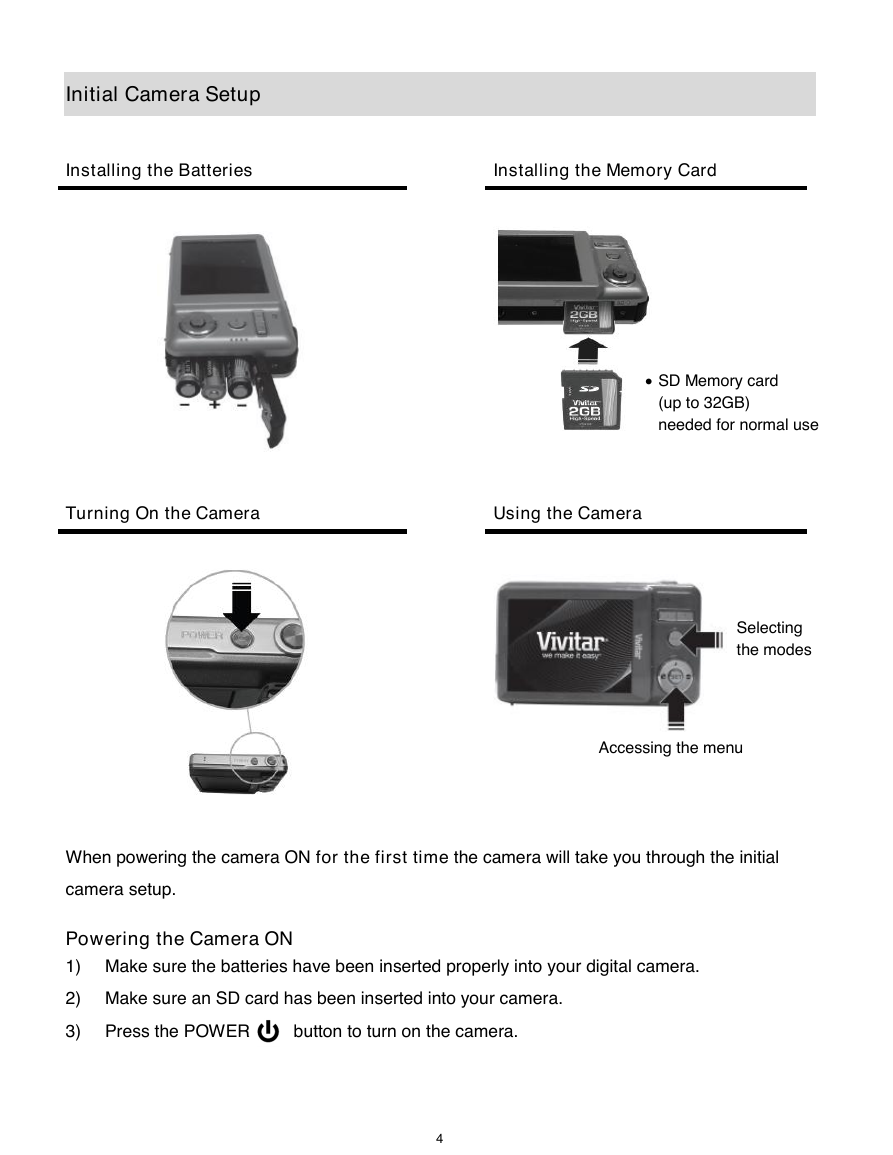

Initial Camera Setup Installing the Batteries Installing the Memory Card Turning On the Camera  SD Memory card (up to 32GB) needed for normal use Using the Camera Selecting the modes Accessing the menu When powering the camera ON for the first time the camera will take you through the initial camera setup. Powering the Camera ON 1) Make sure the batteries have been inserted properly into your digital camera. 2) Make sure an SD card has been inserted into your camera. 3) Press the POWER button to turn on the camera. 4

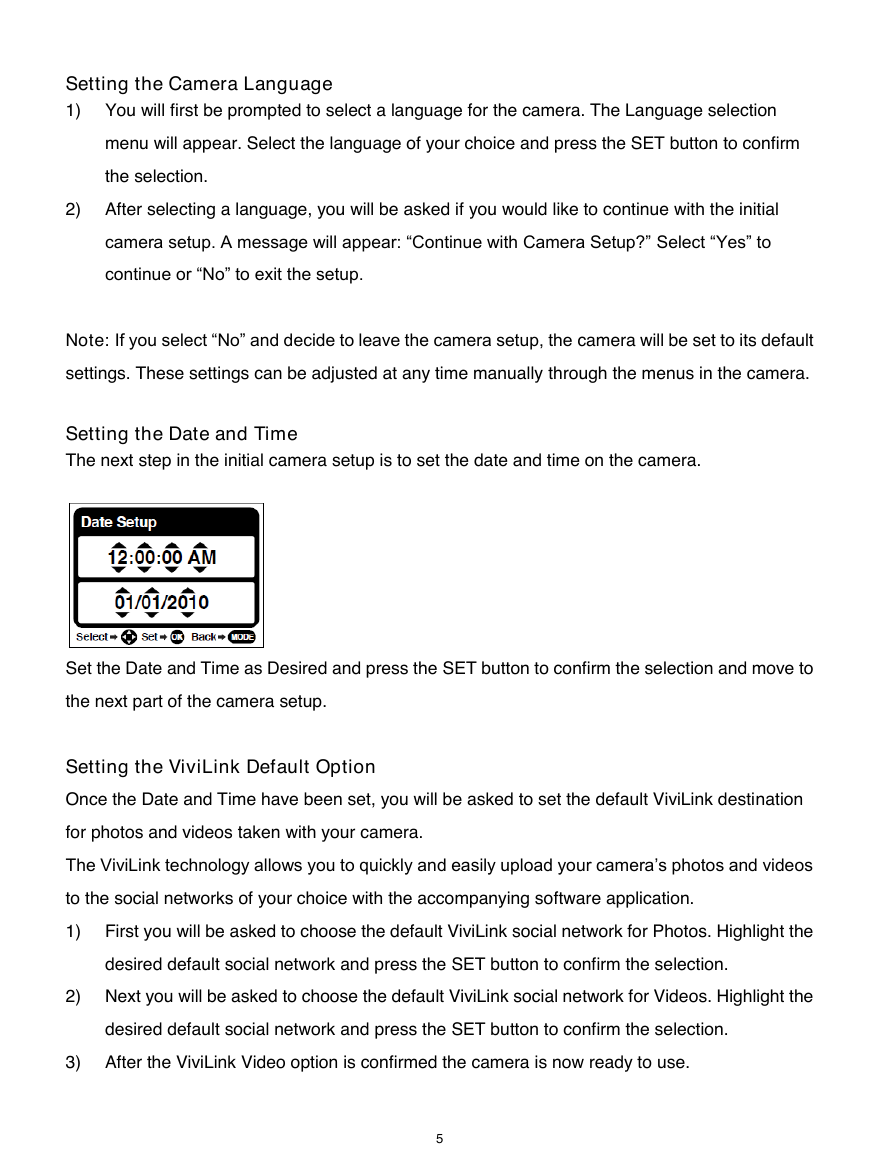

Setting the Camera Language 1) You will first be prompted to select a language for the camera. The Language selection menu will appear. Select the language of your choice and press the SET button to confirm the selection. 2) After selecting a language, you will be asked if you would like to continue with the initial camera setup. A message will appear: “Continue with Camera Setup?” Select “Yes” to continue or “No” to exit the setup. Note: If you select “No” and decide to leave the camera setup, the camera will be set to its default settings. These settings can be adjusted at any time manually through the menus in the camera. Setting the Date and Time The next step in the initial camera setup is to set the date and time on the camera. Set the Date and Time as Desired and press the SET button to confirm the selection and move to the next part of the camera setup. Setting the ViviLink Default Option Once the Date and Time have been set, you will be asked to set the default ViviLink destination for photos and videos taken with your camera. The ViviLink technology allows you to quickly and easily upload your camera‟s photos and videos to the social networks of your choice with the accompanying software application. 1) First you will be asked to choose the default ViviLink social network for Photos. Highlight the desired default social network and press the SET button to confirm the selection. 2) Next you will be asked to choose the default ViviLink social network for Videos. Highlight the desired default social network and press the SET button to confirm the selection. 3) After the ViviLink Video option is confirmed the camera is now ready to use. 5

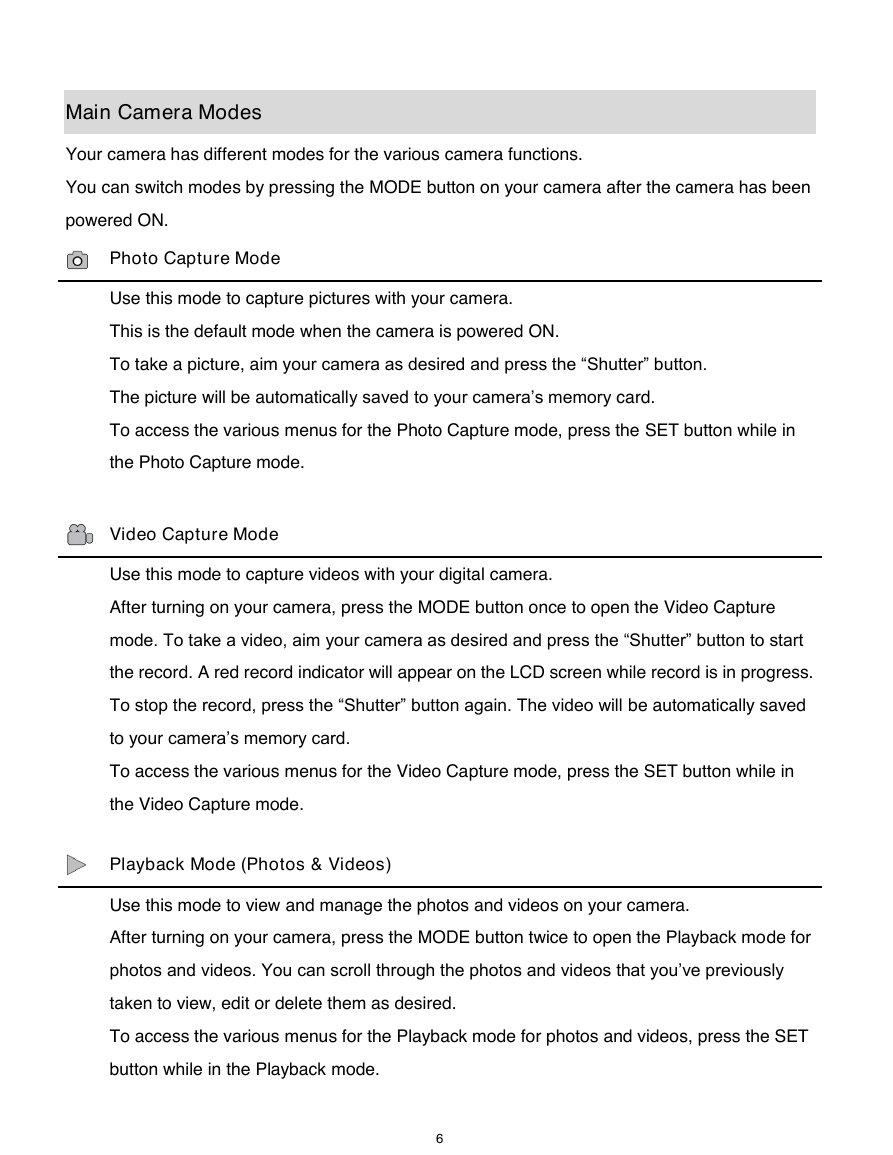

Main Camera Modes Your camera has different modes for the various camera functions. You can switch modes by pressing the MODE button on your camera after the camera has been powered ON. Photo Capture Mode Use this mode to capture pictures with your camera. This is the default mode when the camera is powered ON. To take a picture, aim your camera as desired and press the “Shutter” button. The picture will be automatically saved to your camera‟s memory card. To access the various menus for the Photo Capture mode, press the SET button while in the Photo Capture mode. Video Capture Mode Use this mode to capture videos with your digital camera. After turning on your camera, press the MODE button once to open the Video Capture mode. To take a video, aim your camera as desired and press the “Shutter” button to start the record. A red record indicator will appear on the LCD screen while record is in progress. To stop the record, press the “Shutter” button again. The video will be automatically saved to your camera‟s memory card. To access the various menus for the Video Capture mode, press the SET button while in the Video Capture mode. Playback Mode (Photos & Videos) Use this mode to view and manage the photos and videos on your camera. After turning on your camera, press the MODE button twice to open the Playback mode for photos and videos. You can scroll through the photos and videos that you‟ve previously taken to view, edit or delete them as desired. To access the various menus for the Playback mode for photos and videos, press the SET button while in the Playback mode. 6

Camera Technical Specifications Image Sensor Image Resolution Video Resolution File Format Internal Memory External Memory LCD Display Lens Zoom Exposure White Balance ISO Scene Flash Self-Timer Anti-Shake Print Photos Face Detect Smile Capture Interface System Requirements CMOS Sensor 12M (4000x3000), 10M (3648x2736), 8M (3264x2448), 7M HD (3648x2048), 5M (2592x1944), 3M (2048x1536), 2M HD (1920x1080), VGA ( 640x480 ) 640X480 pixels (30 fps), 320X240 pixels (30 fps) JPEG/AVI 1 Test Photo Use Only SD Card (up to 32GB) 2.7 Inch TFT f=7.45mm F3.0 4X Digital Zoom -3.0EV ~ +3.0EV Auto, Daylight, Cloudy, Incandescent , Fluorescent Auto / 100 / 200 / 400 Auto / Scenery / Portrait / Night Scenery / Night Portrait / High Sensitivity / Sport / Beach / Party Auto/Force/Red Eye/Off 2, 5 or 10 second delay Yes Yes Yes Yes USB 2.0 Windows XP and above / Mac OSX 10.5 and above Battery 3 * AAA (1.5V) batteries Working Temperature 0~40 ℃ 7
