This manual will show you how to use your FUJIFILM DIGITAL CAMERA FinePix4700 ZOOM correctly. Please follow the instructions carefully. BB10959-200(1)

Warning To prevent fire or shock hazard, do not expose the unit to rain or moisture. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. For customers in the U.S.A. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The graphical symbols are located on the bottom of the case. 2 CAUTION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your warranty. For customers in Canada CAUTION This Class B digital apparatus complies with Canadian ICES-003. Please read the Safety Notes (➡ P.120) and make sure you understand them before using the camera. 3

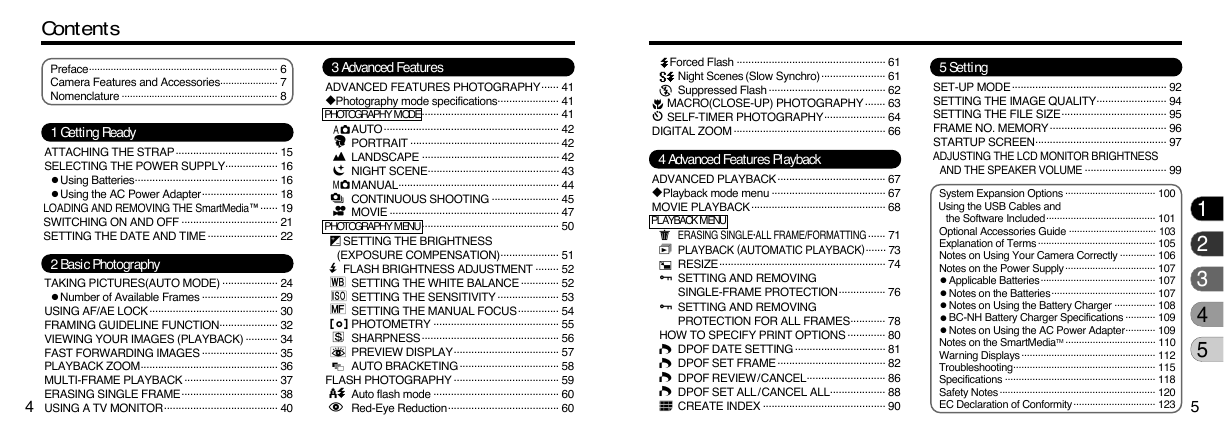

Contents Preface..................................................................... 6 Camera Features and Accessories..................... 7 Nomenclature ......................................................... 8 1 Getting Ready ATTACHING THE STRAP................................... 15 SELECTING THE POWER SUPPLY.................. 16 G Using Batteries................................................. 16 G Using the AC Power Adapter.......................... 18 LOADING AND REMOVING THE SmartMedia™...... 19 SWITCHING ON AND OFF ................................. 21 SETTING THE DATE AND TIME ........................ 22 2 Basic Photography TAKING PICTURES(AUTO MODE) ................... 24 G Number of Available Frames .......................... 29 USING AF/AE LOCK............................................ 30 FRAMING GUIDELINE FUNCTION.................... 32 VIEWING YOUR IMAGES (PLAYBACK) ........... 34 FAST FORWARDING IMAGES .......................... 35 PLAYBACK ZOOM............................................... 36 MULTI-FRAME PLAYBACK ................................ 37 ERASING SINGLE FRAME................................. 38 USING A TV MONITOR....................................... 40 4 3 Advanced Features ADVANCED FEATURES PHOTOGRAPHY...... 41 NPhotography mode specifications..................... 41 PHOTOGRAPHY MODE ............................................... 41 3AUTO............................................................ 42 7 PORTRAIT ................................................... 42 6 LANDSCAPE ............................................... 42 8 NIGHT SCENE............................................. 43 4MANUAL....................................................... 44 5 CONTINUOUS SHOOTING ....................... 45 9 MOVIE .......................................................... 47 PHOTOGRAPHY MENU ............................................... 50 G SETTING THE BRIGHTNESS (EXPOSURE COMPENSATION).................... 51 M FLASH BRIGHTNESS ADJUSTMENT ........ 52 A SETTING THE WHITE BALANCE ............. 52 B SETTING THE SENSITIVITY ..................... 53 C SETTING THE MANUAL FOCUS.............. 54 h PHOTOMETRY ........................................... 55 ` SHARPNESS............................................... 56 W PREVIEW DISPLAY.................................... 57 AUTO BRACKETING.................................. 58 FLASH PHOTOGRAPHY .................................... 59 x Auto flash mode ........................................... 60 Z Red-Eye Reduction...................................... 60 vForced Flash ................................................... 61 w Night Scenes (Slow Synchro)...................... 61 a Suppressed Flash ........................................ 62 Y MACRO(CLOSE-UP) PHOTOGRAPHY....... 63 b SELF-TIMER PHOTOGRAPHY..................... 64 DIGITAL ZOOM .................................................... 66 4 Advanced Features Playback ADVANCED PLAYBACK..................................... 67 NPlayback mode menu ....................................... 67 MOVIE PLAYBACK.............................................. 68 PLAYBACK MENU L ERASING SINGLE•ALL FRAME/FORMATTING...... 71 N PLAYBACK (AUTOMATIC PLAYBACK)....... 73 E RESIZE......................................................... 74 P SETTING AND REMOVING SINGLE-FRAME PROTECTION................ 76 P SETTING AND REMOVING PROTECTION FOR ALL FRAMES............ 78 HOW TO SPECIFY PRINT OPTIONS ............. 80 [ DPOF DATE SETTING ............................... 81 [ DPOF SET FRAME..................................... 82 [ DPOF REVIEW/CANCEL........................... 86 [ DPOF SET ALL/CANCEL ALL................... 88 U CREATE INDEX .......................................... 90 5 Setting SET-UP MODE..................................................... 92 SETTING THE IMAGE QUALITY........................ 94 SETTING THE FILE SIZE.................................... 95 FRAME NO. MEMORY........................................ 96 STARTUP SCREEN............................................. 97 ADJUSTING THE LCD MONITOR BRIGHTNESS AND THE SPEAKER VOLUME ............................ 99 System Expansion Options ................................. 100 Using the USB Cables and the Software Included........................................ 101 Optional Accessories Guide ................................ 103 Explanation of Terms........................................... 105 Notes on Using Your Camera Correctly ............. 106 Notes on the Power Supply................................. 107 G Applicable Batteries.......................................... 107 G Notes on the Batteries...................................... 107 G Notes on Using the Battery Charger ............... 108 G BC-NH Battery Charger Specifications ........... 109 G Notes on Using the AC Power Adapter........... 109 Notes on the SmartMediaTM ................................. 110 Warning Displays................................................. 112 Troubleshooting.................................................... 115 Specifications ....................................................... 118 Safety Notes......................................................... 120 EC Declaration of Conformity.............................. 123 1 2 3 4 5 5

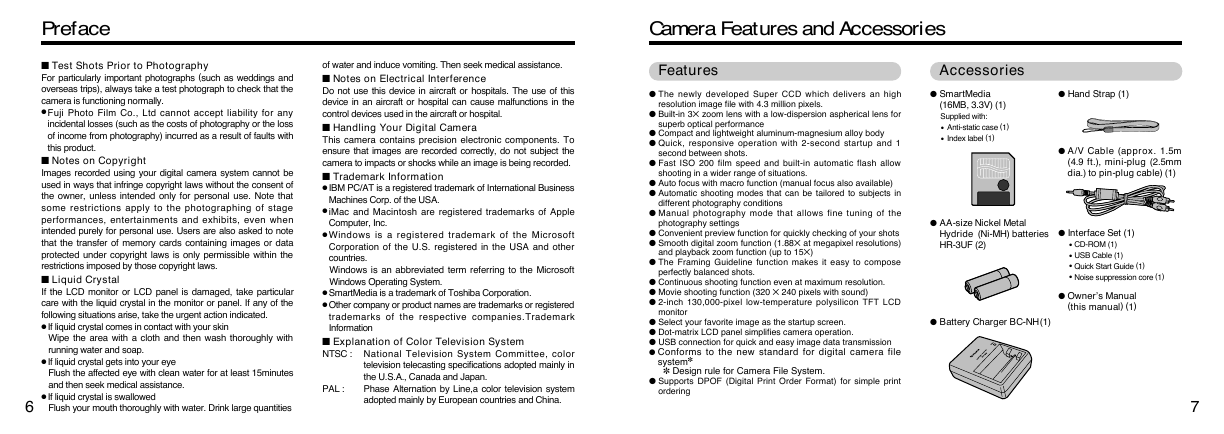

Preface I Test Shots Prior to Photography For particularly important photographs (such as weddings and overseas trips), always take a test photograph to check that the camera is functioning normally. G Fuji Photo Film Co., Ltd cannot accept liability for any incidental losses (such as the costs of photography or the loss of income from photography) incurred as a result of faults with this product. I Notes on Copyright Images recorded using your digital camera system cannot be used in ways that infringe copyright laws without the consent of the owner, unless intended only for personal use. Note that some restrictions apply to the photographing of stage performances, entertainments and exhibits, even when intended purely for personal use. Users are also asked to note that the transfer of memory cards containing images or data protected under copyright laws is only permissible within the restrictions imposed by those copyright laws. I Liquid Crystal If the LCD monitor or LCD panel is damaged, take particular care with the liquid crystal in the monitor or panel. If any of the following situations arise, take the urgent action indicated. G If liquid crystal comes in contact with your skin Wipe the area with a cloth and then wash thoroughly with running water and soap. G If liquid crystal gets into your eye Flush the affected eye with clean water for at least 15minutes and then seek medical assistance. G If liquid crystal is swallowed Flush your mouth thoroughly with water. Drink large quantities 6 of water and induce vomiting. Then seek medical assistance. I Notes on Electrical Interference Do not use this device in aircraft or hospitals. The use of this device in an aircraft or hospital can cause malfunctions in the control devices used in the aircraft or hospital. I Handling Your Digital Camera This camera contains precision electronic components. To ensure that images are recorded correctly, do not subject the camera to impacts or shocks while an image is being recorded. I Trademark Information G IBM PC/AT is a registered trademark of International Business Machines Corp. of the USA. G iMac and Macintosh are registered trademarks of Apple Computer, Inc. G Windows is a registered trademark of the Microsoft Corporation of the U.S. registered in the USA and other countries. Windows is an abbreviated term referring to the Microsoft Windows Operating System. G SmartMedia is a trademark of Toshiba Corporation. G Other company or product names are trademarks or registered trademarks of the respective companies.Trademark Information I Explanation of Color Television System NTSC : National Television System Committee, color television telecasting specifications adopted mainly in the U.S.A., Canada and Japan. Phase Alternation by Line,a color television system adopted mainly by European countries and China. PAL : Camera Features and Accessories Features G The newly developed Super CCD which delivers an high resolution image file with 4.3 million pixels. G Built-in 3✕ zoom lens with a low-dispersion aspherical lens for superb optical performance G Compact and lightweight aluminum-magnesium alloy body G Quick, responsive operation with 2-second startup and 1 second between shots. G Fast ISO 200 film speed and built-in automatic flash allow shooting in a wider range of situations. G Auto focus with macro function (manual focus also available) G Automatic shooting modes that can be tailored to subjects in different photography conditions G Manual photography mode that allows fine tuning of the photography settings G Convenient preview function for quickly checking of your shots G Smooth digital zoom function (1.88✕ at megapixel resolutions) and playback zoom function (up to 15✕ ) G The Framing Guideline function makes it easy to compose perfectly balanced shots. G Continuous shooting function even at maximum resolution. G Movie shooting function (320 ✕ 240 pixels with sound) G 2-inch 130,000-pixel low-temperature polysilicon TFT LCD monitor G Select your favorite image as the startup screen. G Dot-matrix LCD panel simplifies camera operation. G USB connection for quick and easy image data transmission G Conforms to the new standard for digital camera file system✽ ✽ Design rule for Camera File System. G Supports DPOF (Digital Print Order Format) for simple print ordering Accessories G SmartMedia (16MB, 3.3V) (1) Supplied with: • Anti-static case (1) • Index label (1) G AA-size Nickel Metal Hydride (Ni-MH) batteries HR-3UF (2) G Battery Charger BC-NH(1) G Hand Strap (1) G A/V Cable (approx. 1.5m (4.9 ft.), mini-plug (2.5mm dia.) to pin-plug cable) (1) G Interface Set (1) • CD-ROM (1) • USB Cable (1) • Quick Start Guide (1) • Noise suppression core (1) G Owner’s Manual (this manual) (1) 7

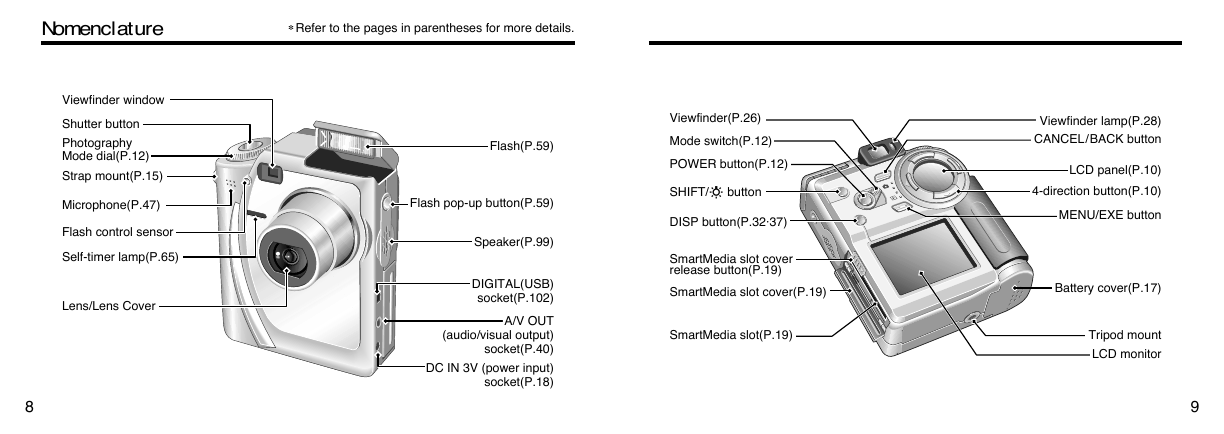

Nomenclature ✽ Refer to the pages in parentheses for more details. Viewfinder window Shutter button Photography Mode dial(P.12) Strap mount(P.15) Microphone(P.47) Flash control sensor Self-timer lamp(P.65) Lens/Lens Cover 8 Flash(P.59) Flash pop-up button(P.59) Speaker(P.99) DIGITAL(USB) socket(P.102) A/V OUT (audio/visual output) socket(P.40) DC IN 3V (power input) socket(P.18) Viewfinder(P.26) Mode switch(P.12) POWER button(P.12) SHIFT/r button DISP button(P.32·37) SmartMedia slot cover release button(P.19) SmartMedia slot cover(P.19) SmartMedia slot(P.19) Viewfinder lamp(P.28) CANCEL/BACK button LCD panel(P.10) 4-direction button(P.10) MENU/EXE button Battery cover(P.17) Tripod mount LCD monitor 9

Nomenclature LCD panel Icons are displayed on the LCD panel to help with different camera operations. Use these icons as a guide to using the 4-direction button. Mode display 4-direction button setting display (d) No. of remaining shots /Remaining time 4-direction button setting display (a) 4-direction button setting display (c) 4-direction button setting display (b) ✽ This panel allows you to check and modify camera settings such as the photography or playback mode, the number of remaining shots or remaining time, the quality setting, resolution, flash setting, macro setting and self-timer setting. ✽ When the Mode switch, Power button or “SHIFT/r”button is used, the LCD panel will light up orange for 5 seconds in Photography mode and in green for 5 seconds in Playback mode. 10 LCD Display Details 0 P h o t o g r a p h y 4-direction button Mode Zoom Setup • Movie • Continuous Shooting • Manual • Auto • Portrait • Landscape • Night Scene Up • Down • Left • Right Telephoto • Wide angle Framing Guide Flash x Auto • Red-eye Reduction • Forced Flash Night Scenes(Slow Synchro) • Suppressed flash Macro Self-Timer Manual Focus Image Quality File Size Mode Frame Advance Playback Zoom Movie Playback l 1 P a y b a c k ON • ON • OFF OFF Moves the focus closer • Moves the focus further away FINE • NORMAL • BASIC 2400✕ 1800 • 1280✕ 960 • 640✕ 480 Still image • Movie • Zoom/Trimming • Playback • Reverse playback• Paused Previous image • Next image Zoom Up • Zoom Down Play/Pause • Reverse playback • Fast forward • Rewind • Stop • Page Advance Previous page • Next page Movie frame advance 11

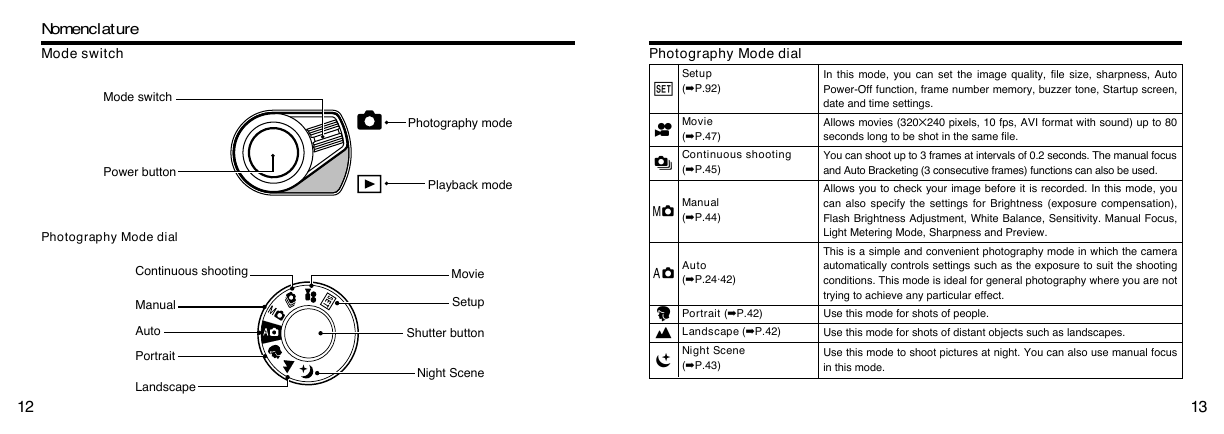

Nomenclature Mode switch Mode switch Power button Photography Mode dial Continuous shooting Manual Auto Portrait Landscape 12 Photography mode Playback mode Movie Setup Shutter button Night Scene Photography Mode dial 2 9 5 Setup (➡ P.92) Movie (➡ P.47) Continuous shooting (➡ P.45) 4 Manual (➡ P.44) 3 Auto (➡ P.24·42) 7 6 8 Portrait (➡ P.42) Landscape (➡ P.42) Night Scene (➡ P.43) In this mode, you can set the image quality, file size, sharpness, Auto Power-Off function, frame number memory, buzzer tone, Startup screen, date and time settings. Allows movies (320✕ 240 pixels, 10 fps, AVI format with sound) up to 80 seconds long to be shot in the same file. You can shoot up to 3 frames at intervals of 0.2 seconds. The manual focus and Auto Bracketing (3 consecutive frames) functions can also be used. Allows you to check your image before it is recorded. In this mode, you can also specify the settings for Brightness (exposure compensation), Flash Brightness Adjustment, White Balance, Sensitivity. Manual Focus, Light Metering Mode, Sharpness and Preview. This is a simple and convenient photography mode in which the camera automatically controls settings such as the exposure to suit the shooting conditions. This mode is ideal for general photography where you are not trying to achieve any particular effect. Use this mode for shots of people. Use this mode for shots of distant objects such as landscapes. Use this mode to shoot pictures at night. You can also use manual focus in this mode. 13

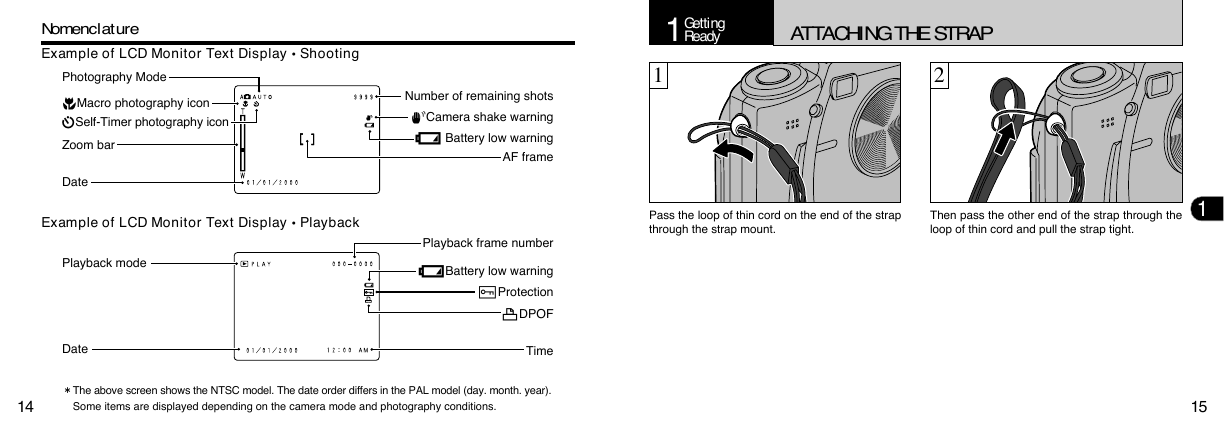

Nomenclature Example of LCD Monitor Text Display • Shooting Photography Mode YMacro photography icon bSelf-Timer photography icon Zoom bar Date Example of LCD Monitor Text Display • Playback Playback mode Date Number of remaining shots oCamera shake warning p Battery low warning AF frame Playback frame number p Battery low warning F Protection K DPOF Time 14 ＊The above screen shows the NTSC model. The date order differs in the PAL model (day. month. year). Some items are displayed depending on the camera mode and photography conditions. 1 Getting Ready 1 ATTACHING THE STRAP 2 Pass the loop of thin cord on the end of the strap through the strap mount. Then pass the other end of the strap through the loop of thin cord and pull the strap tight. 1 15
