    Using the Quartus® II Software: Chip Planner Online Training © 2011 Altera Corporation—Confidential
    Objectives  Perform design analysis  Work with Assignments  Perform Engineering Change Orders (ECOs) © 2011 Altera Corporation—Confidential 2
    Agenda  Chip Planner Overview  Design Analysis  Working with LogicLock Regions  Performing ECO Changes © 2011 Altera Corporation—Confidential 3
    Using the Quartus II Software: Chip Planner Overview © 2011 Altera Corporation—Confidential

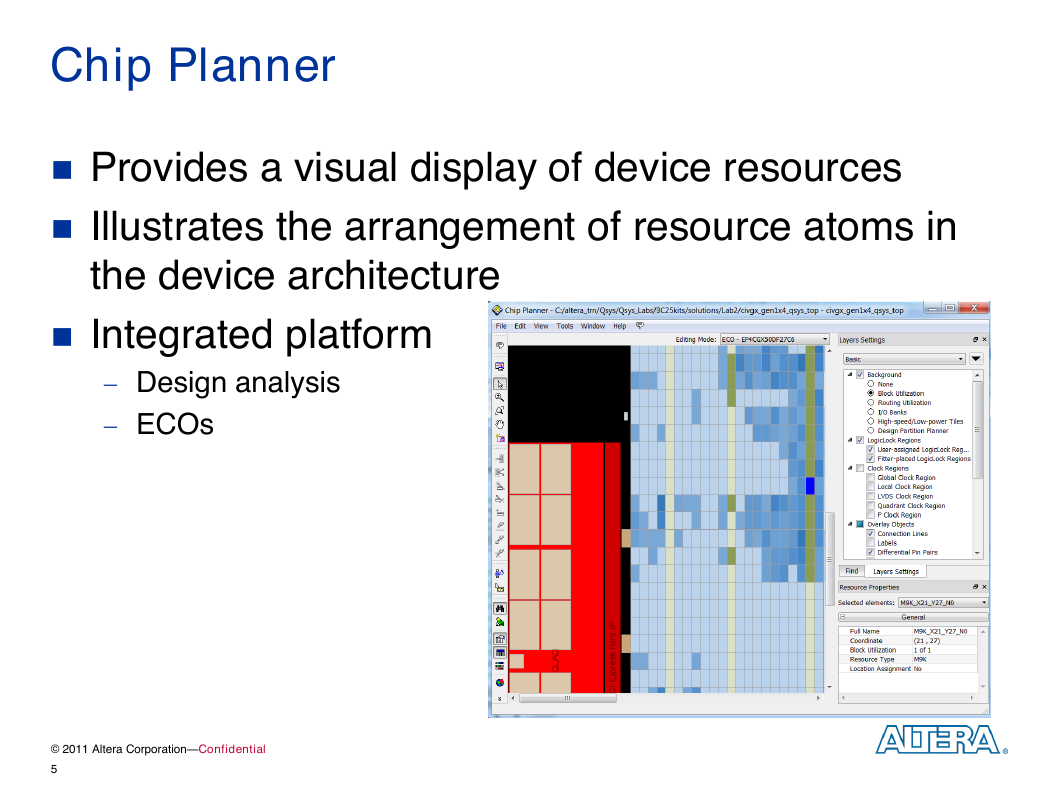

    Chip Planner  Provides a visual display of device resources  Illustrates the arrangement of resource atoms in the device architecture  Integrated platform  Design analysis  ECOs © 2011 Altera Corporation—Confidential 5

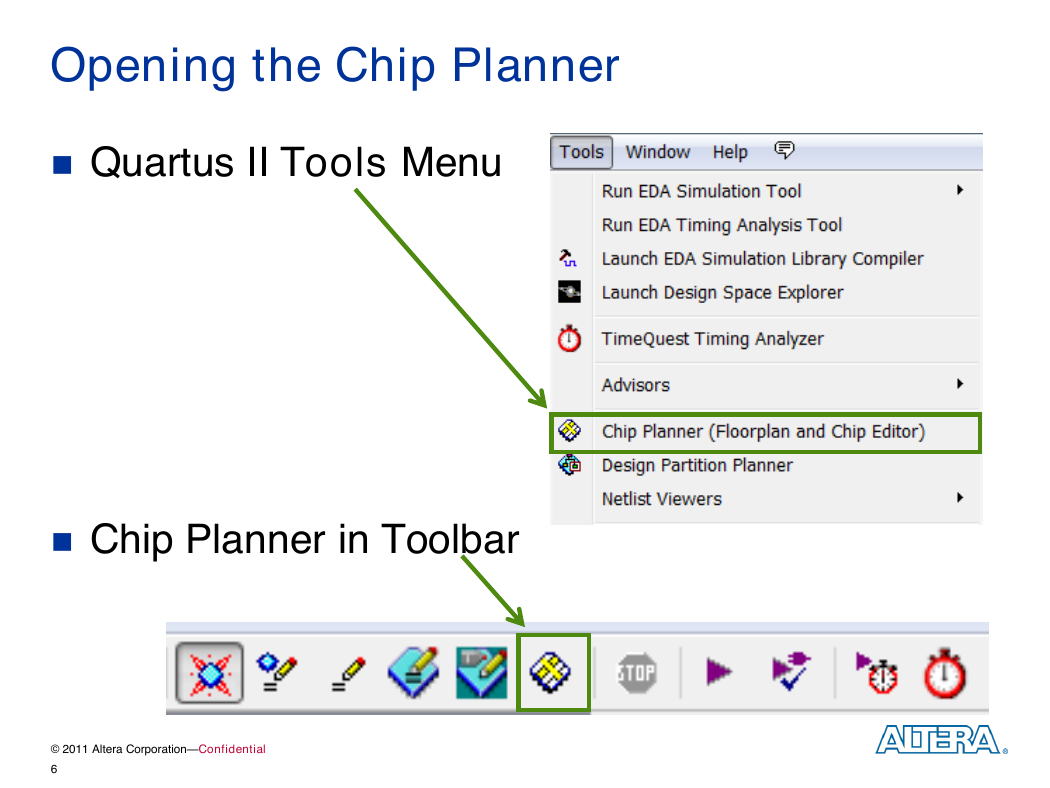

    Opening the Chip Planner  Quartus II Tools Menu  Chip Planner in Toolbar © 2011 Altera Corporation—Confidential 6

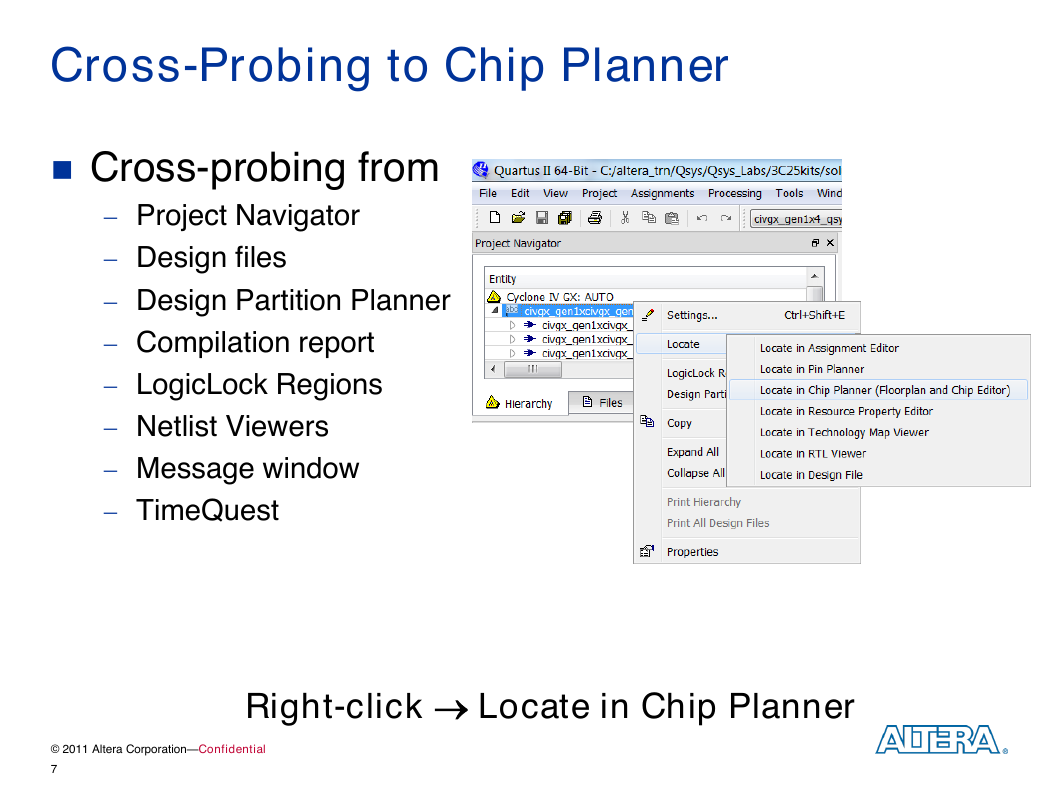

    Cross-Probing to Chip Planner  Cross-probing from  Project Navigator  Design files  Design Partition Planner  Compilation report  LogicLock Regions  Netlist Viewers  Message window  TimeQuest Right-click  Locate in Chip Planner © 2011 Altera Corporation—Confidential 7

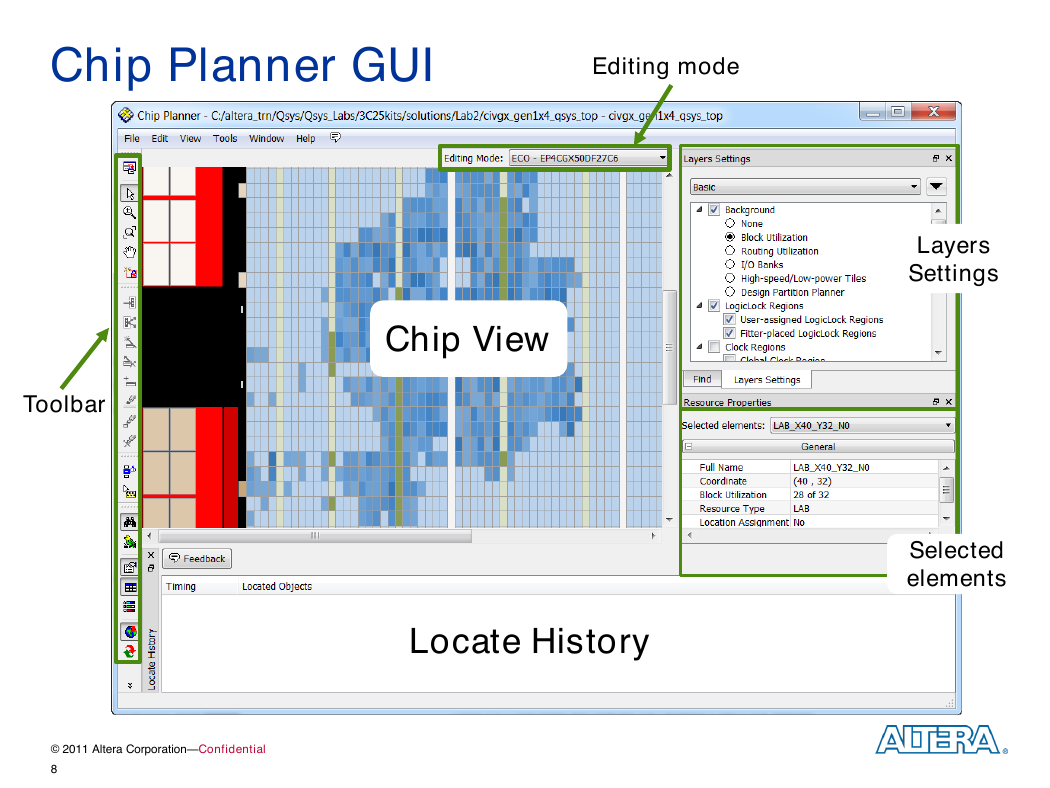

    Chip Planner GUI Editing mode Chip View Toolbar Locate History © 2011 Altera Corporation—Confidential 8 Layers Settings Selected elements
