佳能投影机-LV-5200说明书.pdf
Multimedia Projector
LV-5200
Owner’s Manual
E
English
TO THE OWNER
Before operating this projector, read this manual thoroughly to operate the projector properly.
This projector provides many convenient features and functions. Operating the projector properly enables you to
manage those features and maintain it in better condition for a considerable time.
Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try
the solutions in the “TROUBLESHOOTING” section in the end at this manual. If the problem still persists, contact the
sales dealer where you purchased the projector or the service center.
SAFETY PRECAUTIONS
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
G This projector produces an intensive light from the projection lens. Do not look directly into the lens; it may
damage your eyes. Be especially careful that children do not look directly into the beam.
G This projector should be set in the way indicated. If not, it may result in fire hazard.
G Provide appropriate space on the top, sides and rear of the
projector cabinet for allowing air circulation and cooling the
projector. Minimum clearance must be maintained. If the
projector is to be built into a compartment or similarly enclosed,
the minimum distances must be maintained. Do not cover the
ventilation slot on the projector. Heat build-up can reduce the
service life of your projector, and can also be dangerous.
20cm
SIDE and TOP
REAR
50cm
50cm
50cm
G Do not put any flammable objects or spray cans near the projector, hot air is exhausted from the ventilation
holes.
G The Remote Control Unit, supplied with this projector, emits a laser beam as the laser pointer function from the
Laser Light Window while pressing the LASER button (for 1 minute / LASER POINTER INDICATOR lights red
to indicate laser emission). To reduce the risk of injury, do not look into the Laser Light Window nor shine the
laser beam on yourself or other people.
G If the projector is not to be used for an extended period of time, unplug the projector from the AC outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
OWNER'S MANUAL WITH THIS UNIT.
2

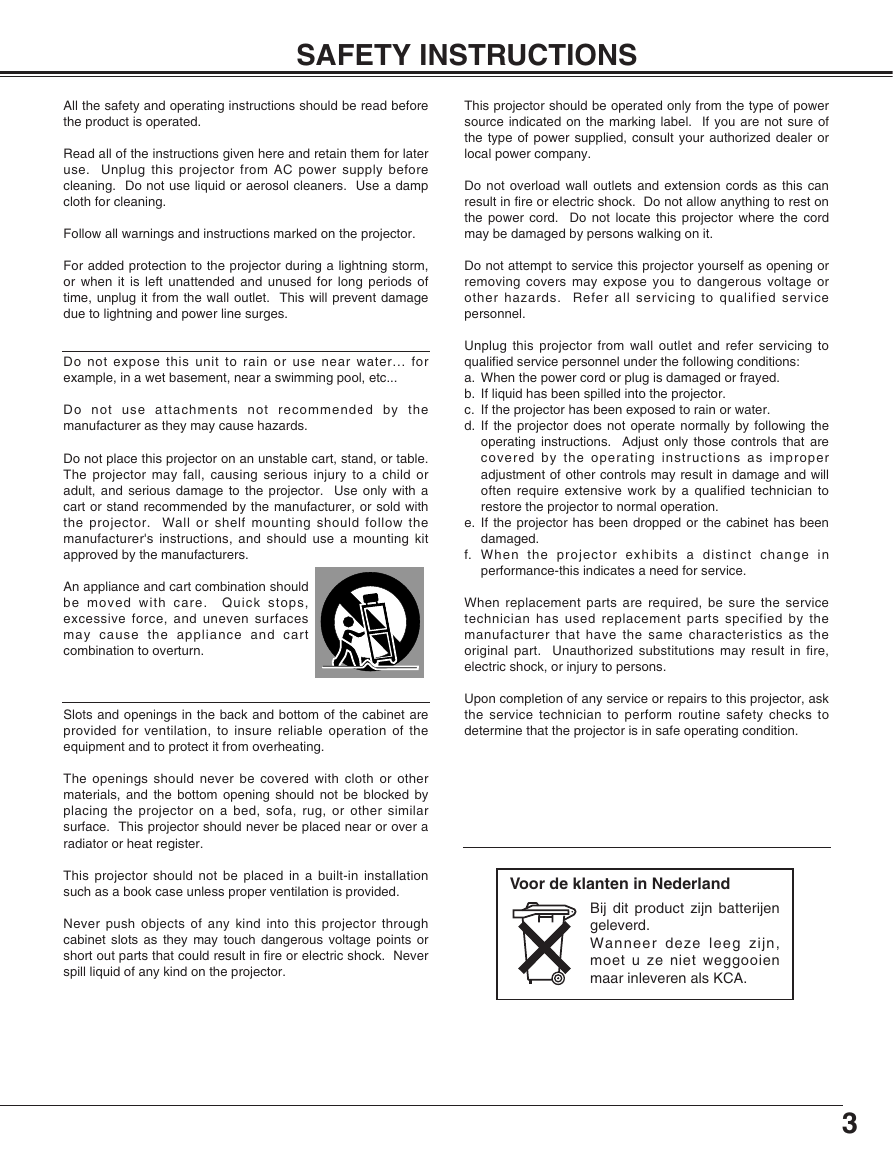

SAFETY INSTRUCTIONS
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector, ask
the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Voor de klanten in Nederland
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in fire or electric shock. Never
spill liquid of any kind on the projector.
Bij dit product zijn batterijen
geleverd.
Wanneer deze leeg zijn,
moet u ze niet weggooien
maar inleveren als KCA.
3
COMPLIANCES
Federal Communication Commission Notice
Multimedia Projector, Model : LV-5200U, LV-5200E
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures :
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be required to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516)328-5600
For use in Germany
This product is intended for use in residential, commercial and light industry environment.
Canadian Radio Interference Regulations
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
AC POWER CORD REQUIREMENT
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that
the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you
be unable to insert the plug into the outlet, contact your electrician.
GROUND
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
4

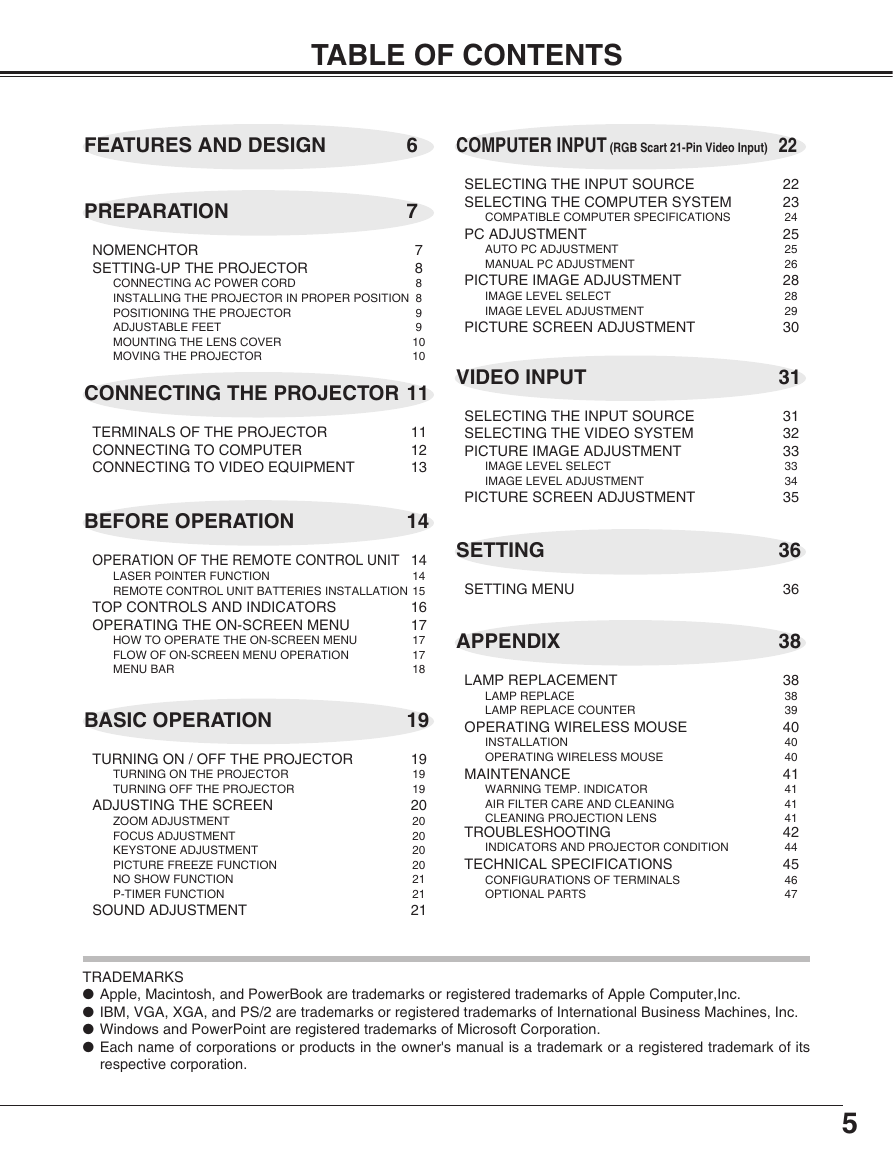

TABLE OF CONTENTS
FEATURES AND DESIGN
PREPARATION
6
7

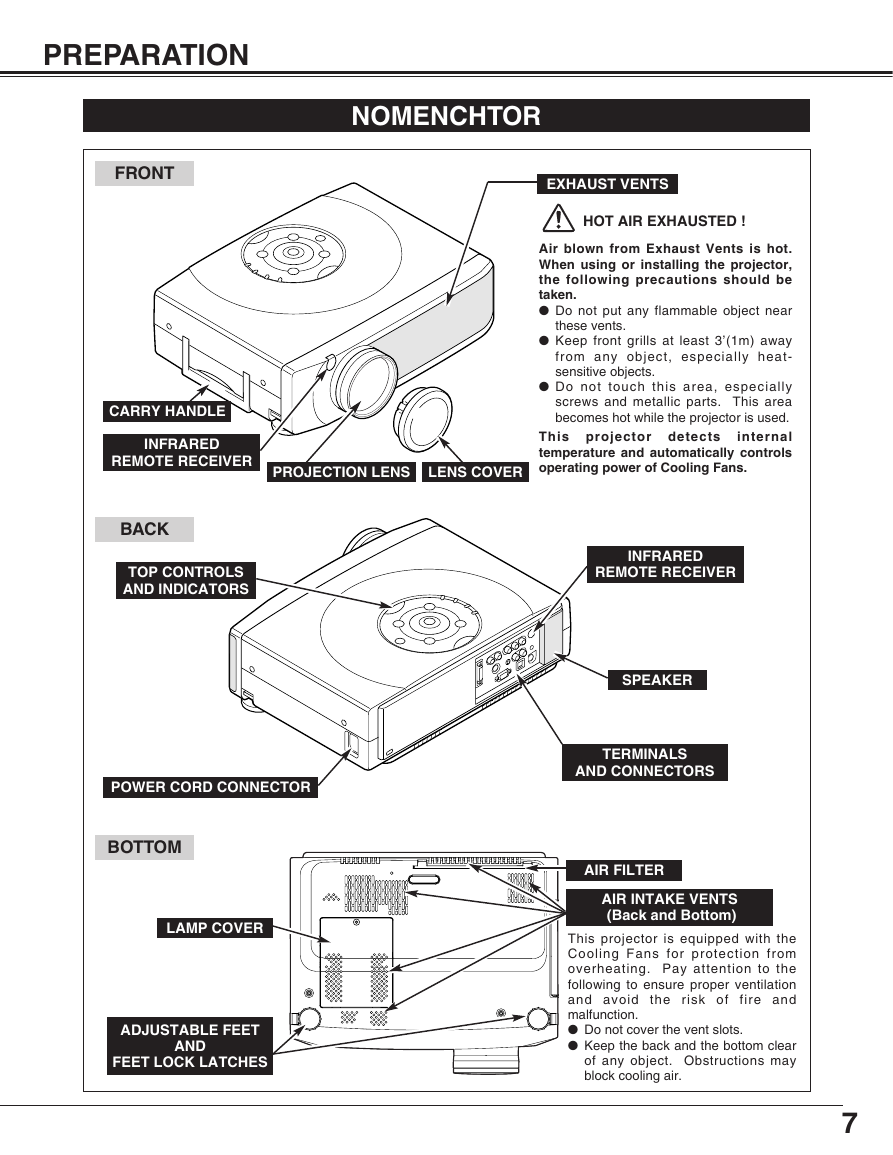

NOMENCHTOR

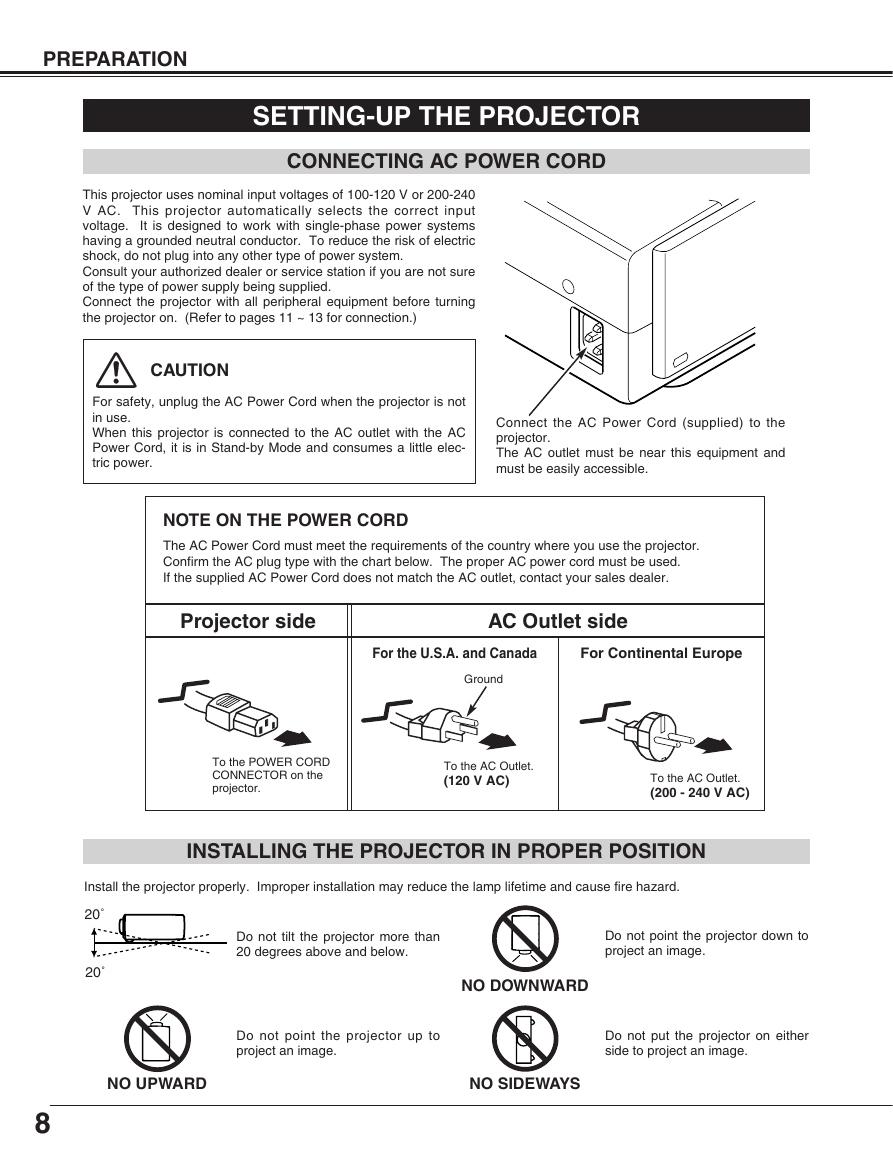

SETTING-UP THE PROJECTOR
7
8
CONNECTING AC POWER CORD
8
INSTALLING THE PROJECTOR IN PROPER POSITION 8
9
POSITIONING THE PROJECTOR
9
ADJUSTABLE FEET
MOUNTING THE LENS COVER
10
10
MOVING THE PROJECTOR
CONNECTING THE PROJECTOR 11
TERMINALS OF THE PROJECTOR
CONNECTING TO COMPUTER
CONNECTING TO VIDEO EQUIPMENT
BEFORE OPERATION
11
12
13
14
OPERATION OF THE REMOTE CONTROL UNIT 14
LASER POINTER FUNCTION
14
REMOTE CONTROL UNIT BATTERIES INSTALLATION 15
16
17
17
17
18
TOP CONTROLS AND INDICATORS
OPERATING THE ON-SCREEN MENU
HOW TO OPERATE THE ON-SCREEN MENU
FLOW OF ON-SCREEN MENU OPERATION
MENU BAR
BASIC OPERATION
TURNING ON / OFF THE PROJECTOR
TURNING ON THE PROJECTOR
TURNING OFF THE PROJECTOR
ADJUSTING THE SCREEN
ZOOM ADJUSTMENT
FOCUS ADJUSTMENT
KEYSTONE ADJUSTMENT
PICTURE FREEZE FUNCTION
NO SHOW FUNCTION
P-TIMER FUNCTION
SOUND ADJUSTMENT
19
19
19
19
20
20
20
20
20
21
21
21
COMPUTER INPUT (RGB Scart 21-Pin Video Input) 22
SELECTING THE INPUT SOURCE
SELECTING THE COMPUTER SYSTEM
COMPATIBLE COMPUTER SPECIFICATIONS
PC ADJUSTMENT
AUTO PC ADJUSTMENT
MANUAL PC ADJUSTMENT
PICTURE IMAGE ADJUSTMENT
IMAGE LEVEL SELECT
IMAGE LEVEL ADJUSTMENT
PICTURE SCREEN ADJUSTMENT
VIDEO INPUT
SELECTING THE INPUT SOURCE
SELECTING THE VIDEO SYSTEM
PICTURE IMAGE ADJUSTMENT
IMAGE LEVEL SELECT
IMAGE LEVEL ADJUSTMENT
PICTURE SCREEN ADJUSTMENT
SETTING
SETTING MENU
APPENDIX
LAMP REPLACEMENT
LAMP REPLACE
LAMP REPLACE COUNTER
OPERATING WIRELESS MOUSE
INSTALLATION
OPERATING WIRELESS MOUSE
MAINTENANCE
WARNING TEMP. INDICATOR
AIR FILTER CARE AND CLEANING
CLEANING PROJECTION LENS
TROUBLESHOOTING
INDICATORS AND PROJECTOR CONDITION
TECHNICAL SPECIFICATIONS
CONFIGURATIONS OF TERMINALS
OPTIONAL PARTS
22
23
24
25
25
26
28
28
29
30
31
31
32
33
33
34
35
36
36
38
38
38
39
40
40
40
41
41
41
41
42
44
45
46
47
TRADEMARKS
G Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.
G IBM, VGA, XGA, and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.
G Windows and PowerPoint are registered trademarks of Microsoft Corporation.
G Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its
respective corporation.
5
FEATURES AND DESIGN
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. It
utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.
N Wide Zoom Lens
This projector is equipped with a Wide Zoom Lens with a
1.5 times optical zoom, and provides a 100” screen size
at a range of 10.4’ (3.2m) to 15.6’ (4.8m).
N Compact Design
This projector is extremely compact in size and weight.
It is designed to be carried and work anywhere.
N Lamp Mode
The Lamp Mode function can be switched into the silent
mode and reduce the brightness and set into the lower
power consumption.
N Compatibility
This projector accepts a wide range of video and
computer input signals including;
G Computers
IBM-compatible or Macintosh computer up to 1024
x 768 resolution.
G 6 Color TV Systems
NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL-
N color system can be connected.
G Component Video
Component video signal, such as a DVD player
output high definition TV signals including 480i,
480p, 575i, 575p, 720p, 1035i or 1080i, can be
connected.
G S-Video
S-Video signal, such as a S-VHS VCR or
camcorder, can be connected.
N High Resolution Image
This projector provides 800 x 600 dots resolution for
computer input and 500 horizontal TV lines. Resolution
from a computer between SVGA (800 x 600) and XGA
(1024 x 768) is compressed into 800 x 600 dots. This
projector cannot display image of over 1024 x 768 dots.
When the resolution of your computer is higher than
1024 x 768, reset it to a lower resolution.
N Multi-Scan System
This projector has the Multi-Scan System to conform to
almost all computer output signals quickly. Making
manual adjustment of frequency and other settings is
unnecessary.
N One-Touch Auto PC Adjustment
Incoming computer video signals are recognized and the
best adjustment is automatically set by Auto PC
Adjustment.
N Digital Zoom (for Computer)
The Digital Zoom function expands (to approx. 16 times
of screen size in SVGA) or compresses the image size,
allowing you to focus on crucial information at a
presentation.
N Keystone Correction
Positioning height of the projector may result in distorted
image being displayed in a trapezoid shape. Keystone
Correction solves this problem by digitally altering
projection to produce undistorted images.
N Power Management
The Power Management function reduces the power
consumption while the projector is not in use.
This Power Management function operates to turn the
Projection Lamp off when a signal has not been received
or a button is not pressed over 5 minutes. The
Projection Lamp is automatically turned on again when
the projector detects a signal or a button is pressed.
This projector is shipped with this function ON.
N Digital Visual Interface
This projector is equipped with DVI 29-pin terminal for
connecting DVI output from a computer.
N Switchable Interface Terminal
This projector provides a switchable Interface terminal.
You can use the terminal as computer input or monitor
output conveniently. (Refer to page 36.)
N Laser Pointer Function
The Remote Control Unit supplied with this projector
includes the Laser Pointer function. This function helps
you to make a smart presentation on a projected screen.
N Wireless Mouse
The Remote Control Unit supplied with this projector has
the Wireless Mouse function for a connected computer.
This function enables you to operate both the projector
and the computer with the Remote Control Unit only.
N Multilanguage Menu Display
Operation menu is displayed in; English, German,
French, Italian, Spanish, Portuguese, Dutch, Swedish,
Russian, Chinese, Korean or Japanese.
6
PREPARATION
FRONT
NOMENCHTOR
EXHAUST VENTS
HOT AIR EXHAUSTED !
Air blown from Exhaust Vents is hot.
When using or installing the projector,
the following precautions should be
taken.
G Do not put any flammable object near
PROJECTION LENS LENS COVER
CARRY HANDLE
INFRARED
REMOTE RECEIVER
BACK
TOP CONTROLS
AND INDICATORS
POWER CORD CONNECTOR
BOTTOM
LAMP COVER
ADJUSTABLE FEET
AND
FEET LOCK LATCHES
these vents.
G Keep front grills at least 3’(1m) away
from any object, especially heat-
sensitive objects.
G Do not touch this area, especially
screws and metallic parts. This area
becomes hot while the projector is used.
This projector detects
internal
temperature and automatically controls
operating power of Cooling Fans.
INFRARED
REMOTE RECEIVER
SPEAKER
TERMINALS
AND CONNECTORS
AIR FILTER
AIR INTAKE VENTS
(Back and Bottom)
This projector is equipped with the
Cooling Fans for protection from
overheating. Pay attention to the
following to ensure proper ventilation
and avoid the risk of fire and
malfunction.
G Do not cover the vent slots.
G Keep the back and the bottom clear
of any object. Obstructions may
block cooling air.
7
PREPARATION
SETTING-UP THE PROJECTOR
CONNECTING AC POWER CORD
This projector uses nominal input voltages of 100-120 V or 200-240
V AC. This projector automatically selects the correct input
voltage. It is designed to work with single-phase power systems
having a grounded neutral conductor. To reduce the risk of electric
shock, do not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure
of the type of power supply being supplied.
Connect the projector with all peripheral equipment before turning
the projector on. (Refer to pages 11 ~ 13 for connection.)
CAUTION
For safety, unplug the AC Power Cord when the projector is not
in use.
When this projector is connected to the AC outlet with the AC
Power Cord, it is in Stand-by Mode and consumes a little elec-
tric power.
Connect the AC Power Cord (supplied) to the
projector.
The AC outlet must be near this equipment and
must be easily accessible.
NOTE ON THE POWER CORD
The AC Power Cord must meet the requirements of the country where you use the projector.
Confirm the AC plug type with the chart below. The proper AC power cord must be used.
If the supplied AC Power Cord does not match the AC outlet, contact your sales dealer.
Projector side
AC Outlet side
For the U.S.A. and Canada
For Continental Europe
Ground
To the POWER CORD
CONNECTOR on the
projector.
To the AC Outlet.
(120 V AC)
To the AC Outlet.
(200 - 240 V AC)
INSTALLING THE PROJECTOR IN PROPER POSITION
Install the projector properly. Improper installation may reduce the lamp lifetime and cause fire hazard.
Do not tilt the projector more than
20 degrees above and below.
Do not point the projector down to
project an image.
NO DOWNWARD
Do not point the projector up to
project an image.
Do not put the projector on either
side to project an image.
NO UPWARD
NO SIDEWAYS
20˚
20˚
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
