Introduction

Accessories

Contents

IMPORTANT SAFEGUARDS

Part Names and Functions

Top View

Front View

Rear View (Terminals)

Inserting the Batteries

Usable Range

Easy Start

Setup and Projection

Setup

Setting Up the Projector

Video Setup

Setting Up the Projector

Standard Setup (Front Projection)

Screen Size and Projection Distance

Projection (PRJ) Mode

Ceiling-Mount Setup

Connections

Connecting the Projector to Other Equipment

Connecting the Power Cord

Controlling the Projector by a Computer

Basic Operation

Turning the Projector On/Off

Turning the Projector On

Turning the Power Off (Putting the Projector into Standby Mode)

Image Projection

About the Setup Guide

Adjusting the Projected Image

Correcting Trapezoidal Distortion

Switching the Input Mode

Adjusting the Volume

Displaying the Black Screen and Turning Off the Sound Temporarily

Resize Mode

Useful Features

Operating with the Remote Control

Displaying and Setting the Break Timer

Displaying the Pointer

Using the Spot Function

Switching the Eco+Quiet Mode

Auto Sync (Auto Sync Adjustment)

Freezing a Moving Image

Selecting the Picture Mode

Displaying an Enlarged Portion of an Image

Menu Items

Using the Menu Screen

Menu Selections (Quick Start Menu)

Quick Start Menu

Menu Selections (Complete Menu)

Picture Adjustment (“Picture” Menu)

Selecting the Picture Mode

Adjusting the Image

Adjusting the Color Temperature

Adjusting the Colors

Selecting the Film Mode

Reducing Image Noise (DNR)

Eco+Quiet

Signal Adjustment (“SIG-ADJ” Menu)

Adjusting the Computer Image

Resolution Setting

Signal Type Setting

Selecting the Dynamic Range

Setting the Video System

Setting the Video Setup

Checking the Input Signal

Adjusting the Projected Image (“SCR-ADJ” Menu)

Setting the Resize Mode

Adjusting the Image Position

Keystone Correction

Setting the Overscan

Setting the On-screen Display

Closed Caption

Selecting the Background Image

Selecting the Setup Guide

Reversing/Inverting Projected Images

Selecting the Wall Color

Selecting the On-screen Display Language

Adjusting the Projector Function (“PRJ-ADJ1/2” Menu)

Auto Sync (Auto Sync Adjustment)

Auto Power Off Function

Auto Restart Function

Speaker Setting

Fan Mode Setting

System Lock Function

Keylock Function

Selecting the Quick Start Menu

Setting the FUNCTION Button Operation

STANDBY Mode

DLP® LinkTM

DLP® LinkTM Invert

Returning to the Default Settings

Checking the Lamp Life Status

Viewing Stereoscopic 3D Images

Precautions on Viewing Stereoscopic 3D Images

Information on the 3D Projection Function

Appendix

Using 3D Viewing Mode

Appendix

Maintenance

Maintenance Indicators

Regarding the Lamp

Lamp

Caution Concerning the Lamp

Replacing the Lamp

Removing and Installing the Lamp Unit

Resetting the Lamp Timer

RS-232C Specifications and Commands

Compatibility Chart

Troubleshooting

For SHARP Assistance

Specifications

Dimensions

Index

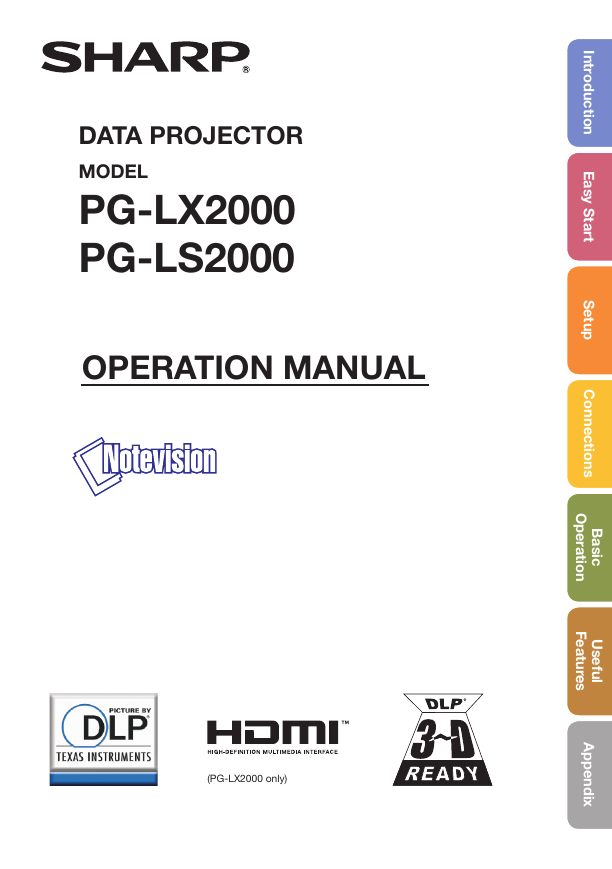

DATA PROJECTOR MODEL PG-LX2000 PG-LS2000 OPERATION MANUAL I n t r o d u c t i o n E a s y S t a r t S e t u p C o n n e c t i o n s O p e r a t i o n B a s c i F e a t u r e s U s e f u l (PG-LX2000 only) A p p e n d x i

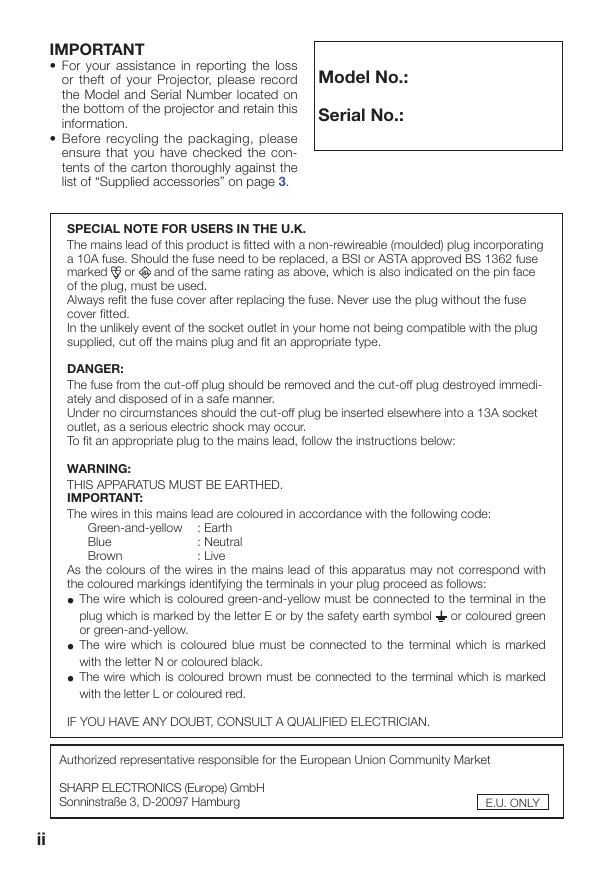

IMPORTANT • For your assistance in reporting the loss or theft of your Projector, please record the Model and Serial Number located on the bottom of the projector and retain this information. • Before recycling the packag ing, please ensure that you have checked the con- tents of the carton thoroughly against the list of “Supplied accessories” on page 3. Model No.: Serial No.: SPECIAL NOTE FOR USERS IN THE U.K. The mains lead of this product is ﬁ tted with a non-rewireable (moulded) plug incorporating a 10A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or and of the same rating as above, which is also indicated on the pin face of the plug, must be used. Always reﬁ t the fuse cover after replacing the fuse. Never use the plug without the fuse cover ﬁ tted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and ﬁ t an appropriate type. DANGER: The fuse from the cut-off plug should be removed and the cut-off plug destroyed immedi- ately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a serious electric shock may occur. To ﬁ t an appropriate plug to the mains lead, follow the instructions below: WARNING: THIS APPARATUS MUST BE EARTHED. IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: Green-and-yellow Blue Brown : Earth : Neutral : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the or coloured green plug which is marked by the letter E or by the safety earth symbol or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked The wire which is coloured brown must be connected to the terminal which is marked with the letter N or coloured black. with the letter L or coloured red. IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN. Authorized representative responsible for the European Union Community Market SHARP ELECTRONICS (Europe) GmbH Sonninstraße 3, D-20097 Hamburg E.U. ONLY ii

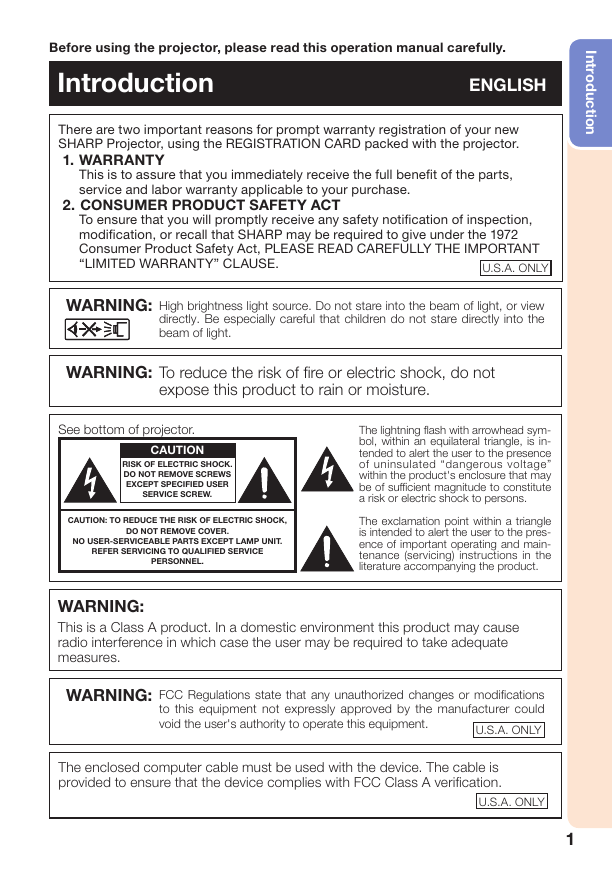

Before using the projector, please read this operation manual carefully. Introduction ENGLISH There are two important reasons for prompt warranty registration of your new SHARP Projec tor, using the REGISTRATION CARD packed with the projector. 1. WARRANTY This is to assure that you immediately receive the full beneﬁ t of the parts, service and labor warranty applicable to your purchase. 2. CONSUMER PRODUCT SAFETY ACT To ensure that you will promptly receive any safety notiﬁ cation of inspection, modiﬁ cation, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE. U.S.A. ONLY I n t r o d u c t i o n WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light. WARNING: To reduce the risk of ﬁ re or electric shock, do not expose this product to rain or mois ture. See bottom of projector. CAUTION RISK OF ELECTRIC SHOCK. DO NOT REMOVE SCREWS EXCEPT SPECIFIED USER SERVICE SCREW. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning ﬂ ash with arrowhead sym- bol, within an equilateral triangle, is in- tended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufﬁ cient magnitude to constitute a risk or electric shock to persons. The exclamation point within a triangle is intended to alert the user to the pres- ence of important operating and main- tenance (servicing) instructions in the literature accompanying the product. WARNING: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. WARNING: FCC Regulations state that any unauthorized changes or modiﬁ cations to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equip ment. U.S.A. ONLY The enclosed computer cable must be used with the device. The cable is provided to ensure that the device complies with FCC Class A veriﬁ cation. U.S.A. ONLY 1

INFORMATION This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. U.S.A. ONLY PRODUCT DISPOSAL This product utilizes lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities, the Electronics Industries Alliance: www.eiae.org, the lamp recycling organization www.lamprecycle.org, or Sharp at 1-800-BE-SHARP. U.S.A. ONLY Caution Concerning Lamp Replacement ■ This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking. When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally. Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or Service Center to assure safe operation. Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible. ■ ■ ■ Caution • • • • • Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burns or injury. Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool before removing the lamp unit. Do not touch the glass surface of the lamp unit or the inside of the projector. Do not loosen other screws except for the lamp unit cover and lamp unit. Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode. ■ Carefully change the lamp by following the instructions described on pages 56 to 58. * If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center. * If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair. 2

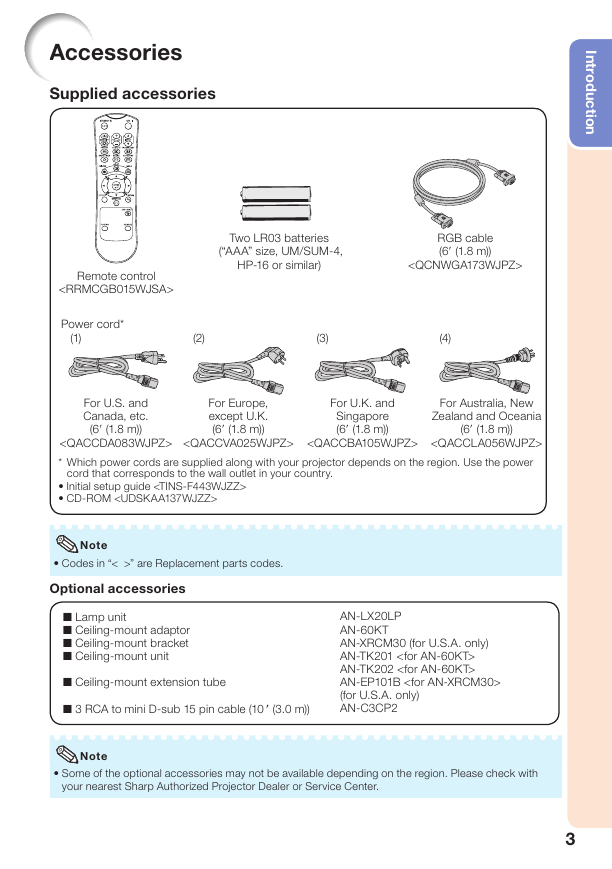

Accessories Supplied accessories Remote control Power cord* (1) Two LR03 batteries (“AAA” size, UM/SUM-4, HP-16 or similar) RGB cable (6' (1.8 m)) (2) (3) (4) For U.S. and Canada, etc. (6' (1.8 m)) For Europe, except U.K. (6' (1.8 m)) For U.K. and Singapore (6' (1.8 m)) For Australia, New Zealand and Oceania (6' (1.8 m)) * Which power cords are supplied along with your projector depends on the region. Use the power cord that corresponds to the wall outlet in your country. Initial setup guide CD-ROM • • Note • Codes in “< >” are Replacement parts codes. Optional accessories ■ Lamp unit ■ Ceiling-mount adaptor ■ Ceiling-mount bracket ■ Ceiling-mount unit ■ Ceiling-mount extension tube ■ 3 RCA to mini D-sub 15 pin cable (10 n (3.0 m)) AN-LX20LP AN-60KT AN-XRCM30 (for U.S.A. only) AN-TK201 AN-TK202 AN-EP101B (for U.S.A. only) AN-C3CP2 Note • Some of the optional accessories may not be available depending on the region. Please check with your nearest Sharp Authorized Projector Dealer or Service Center. I n t r o d u c t i o n 3

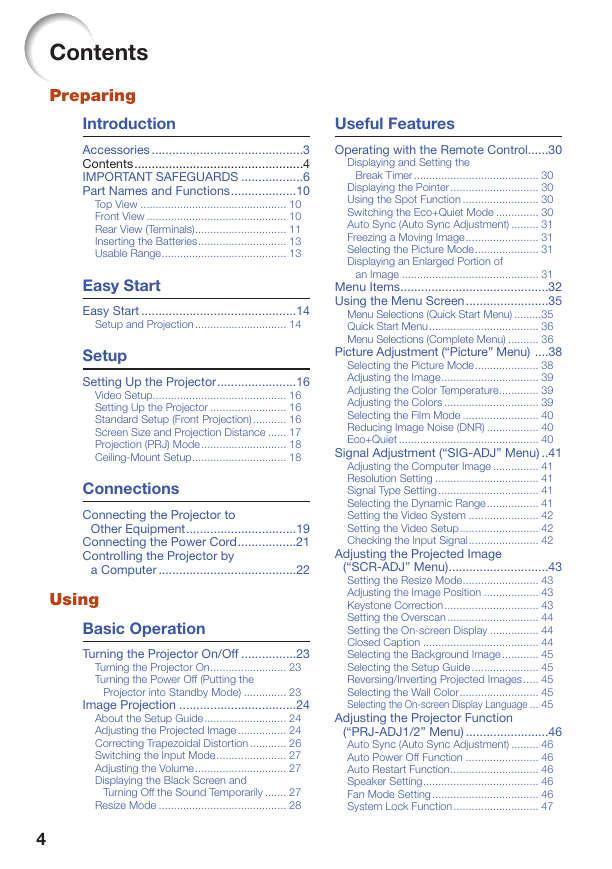

Contents Preparing Introduction Accessories ............................................3 Contents .................................................4 IMPORTANT SAFEGUARDS ..................6 Part Names and Functions ...................10 Top View ................................................ 10 Front View .............................................. 10 Rear View (Terminals) .............................. 11 Inserting the Batteries ............................. 13 Usable Range ......................................... 13 Easy Start Easy Start .............................................14 Setup and Projection .............................. 14 Setup Setting Up the Projector .......................16 Video Setup............................................ 16 Setting Up the Projector ......................... 16 Standard Setup (Front Projection) ........... 16 Screen Size and Projection Distance ...... 17 Projection (PRJ) Mode ............................ 18 Ceiling-Mount Setup ............................... 18 Connections Connecting the Projector to Other Equipment ................................19 Connecting the Power Cord .................21 Controlling the Projector by a Computer ........................................22 Using Basic Operation Turning the Projector On/Off ................23 Turning the Projector On ......................... 23 Turning the Power Off (Putting the Projector into Standby Mode) .............. 23 Image Projection ..................................24 About the Setup Guide ........................... 24 Adjusting the Projected Image ................ 24 Correcting Trapezoidal Distortion ............ 26 Switching the Input Mode ....................... 27 Adjusting the Volume .............................. 27 Displaying the Black Screen and Turning Off the Sound Temporarily ....... 27 Resize Mode .......................................... 28 4 Useful Features Operating with the Remote Control......30 Displaying and Setting the Break Timer ......................................... 30 Displaying the Pointer ............................. 30 Using the Spot Function ......................... 30 Switching the Eco+Quiet Mode .............. 30 Auto Sync (Auto Sync Adjustment) ......... 31 Freezing a Moving Image ........................ 31 Selecting the Picture Mode ..................... 31 Displaying an Enlarged Portion of an Image ............................................. 31 Menu Items ...........................................32 Using the Menu Screen ........................35 Menu Selections (Quick Start Menu) .........35 Quick Start Menu .................................... 36 Menu Selections (Complete Menu) .......... 36 Picture Adjustment (“Picture” Menu) ....38 Selecting the Picture Mode ..................... 38 Adjusting the Image ................................ 39 Adjusting the Color Temperature ............. 39 Adjusting the Colors ............................... 39 Selecting the Film Mode ......................... 40 Reducing Image Noise (DNR) ................. 40 Eco+Quiet .............................................. 40 Signal Adjustment (“SIG-ADJ” Menu) ..41 Adjusting the Computer Image ............... 41 Resolution Setting .................................. 41 Signal Type Setting ................................. 41 Selecting the Dynamic Range ................. 41 Setting the Video System ....................... 42 Setting the Video Setup .......................... 42 Checking the Input Signal ....................... 42 Adjusting the Projected Image (“SCR-ADJ” Menu) .............................43 Setting the Resize Mode ......................... 43 Adjusting the Image Position .................. 43 Keystone Correction ............................... 43 Setting the Overscan .............................. 44 Setting the On-screen Display ................ 44 Closed Caption ...................................... 44 Selecting the Background Image ............ 45 Selecting the Setup Guide ...................... 45 Reversing/Inverting Projected Images ..... 45 Selecting the Wall Color .......................... 45 Selecting the On-screen Display Language ... 45 Adjusting the Projector Function (“PRJ-ADJ1/2” Menu) ........................46 Auto Sync (Auto Sync Adjustment) ......... 46 Auto Power Off Function ........................ 46 Auto Restart Function ............................. 46 Speaker Setting ...................................... 46 Fan Mode Setting ................................... 46 System Lock Function ............................ 47

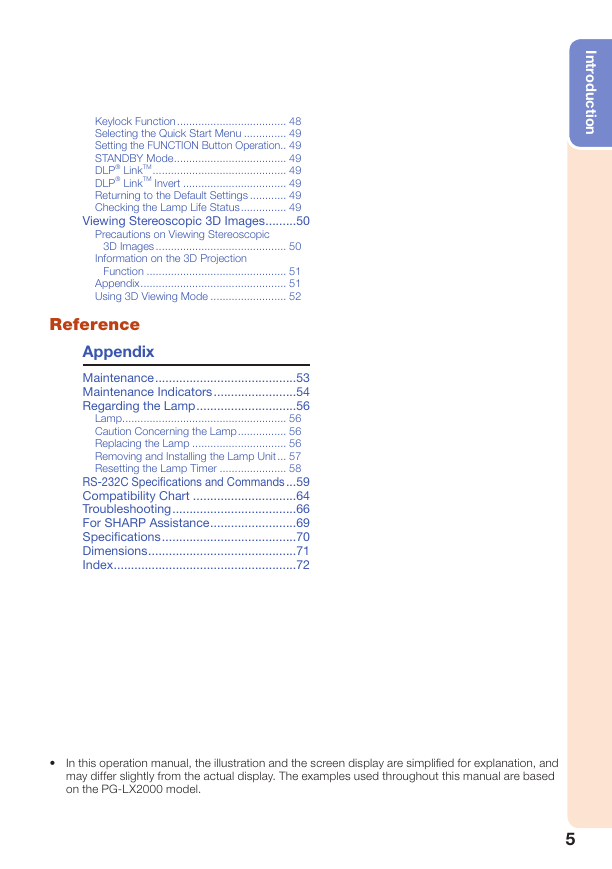

Keylock Function .................................... 48 Selecting the Quick Start Menu .............. 49 Setting the FUNCTION Button Operation.. 49 STANDBY Mode ..................................... 49 DLP® LinkTM ............................................ 49 DLP® LinkTM Invert .................................. 49 Returning to the Default Settings ............ 49 Checking the Lamp Life Status ............... 49 Viewing Stereoscopic 3D Images .........50 Precautions on Viewing Stereoscopic 3D Images ........................................... 50 Information on the 3D Projection Function .............................................. 51 Appendix ................................................ 51 Using 3D Viewing Mode ......................... 52 Reference Appendix Maintenance .........................................53 Maintenance Indicators ........................54 Regarding the Lamp .............................56 Lamp...................................................... 56 Caution Concerning the Lamp ................ 56 Replacing the Lamp ............................... 56 Removing and Installing the Lamp Unit ... 57 Resetting the Lamp Timer ...................... 58 RS-232C Speciﬁ cations and Commands ...59 Compatibility Chart ..............................64 Troubleshooting ....................................66 For SHARP Assistance .........................69 Speciﬁ cations .......................................70 Dimensions ...........................................71 Index .....................................................72 • In this operation manual, the illustration and the screen display are simpliﬁ ed for explanation, and may differ slightly from the actual display. The examples used throughout this manual are based on the PG-LX2000 model. I n t r o d u c t i o n 5

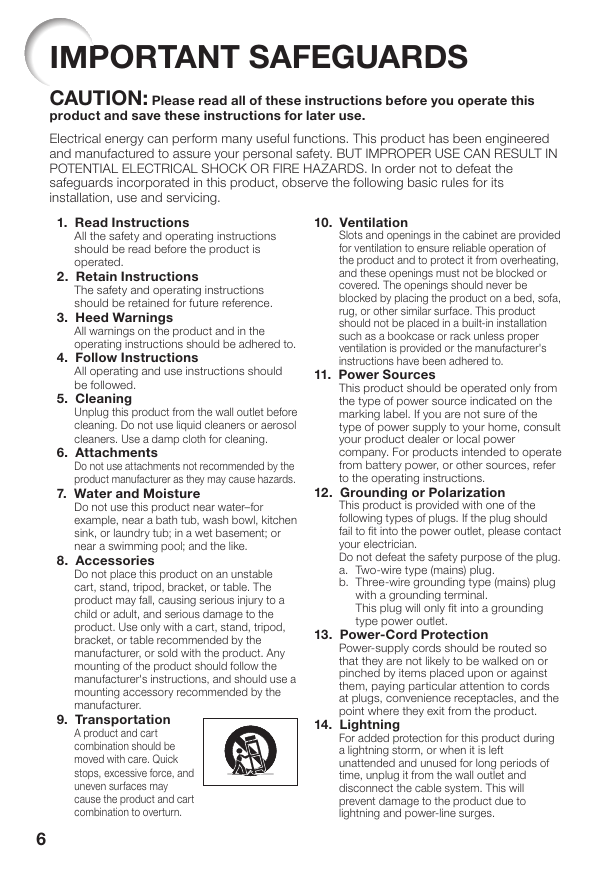

IMPORTANT SAFEGUARDS CAUTION: Please read all of these instructions before you operate this product and save these instructions for later use. Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing. 1. Read Instructions All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions The safety and operating instructions should be retained for future reference. 3. Heed Warnings All warnings on the product and in the operating instructions should be adhered to. 4. Follow Instructions All operating and use instructions should be followed. 5. Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6. Attachments Do not use attachments not recommended by the product manufacturer as they may cause hazards. 7. Water and Moisture Do not use this product near water–for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. 8. Accessories Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recom mended by the manufacturer. 9. Transportation A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 6 10. Ventilation Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The open ings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This prod uct should not be placed in a built-in installation such as a book case or rack unless proper ventilation is provided or the manufacturer's instruc tions have been adhered to. 11. Power Sources 12. Grounding or Polarization This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. This product is provided with one of the following types of plugs. If the plug should fail to ﬁ t into the power outlet, please contact your electrician. Do not defeat the safety purpose of the plug. a. Two-wire type (mains) plug. b. Three-wire grounding type (mains) plug with a grounding terminal. This plug will only ﬁ t into a grounding type power outlet. 13. Power-Cord Protection Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. 14. Lightning For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will pre vent damage to the product due to lightning and power-line surges.
