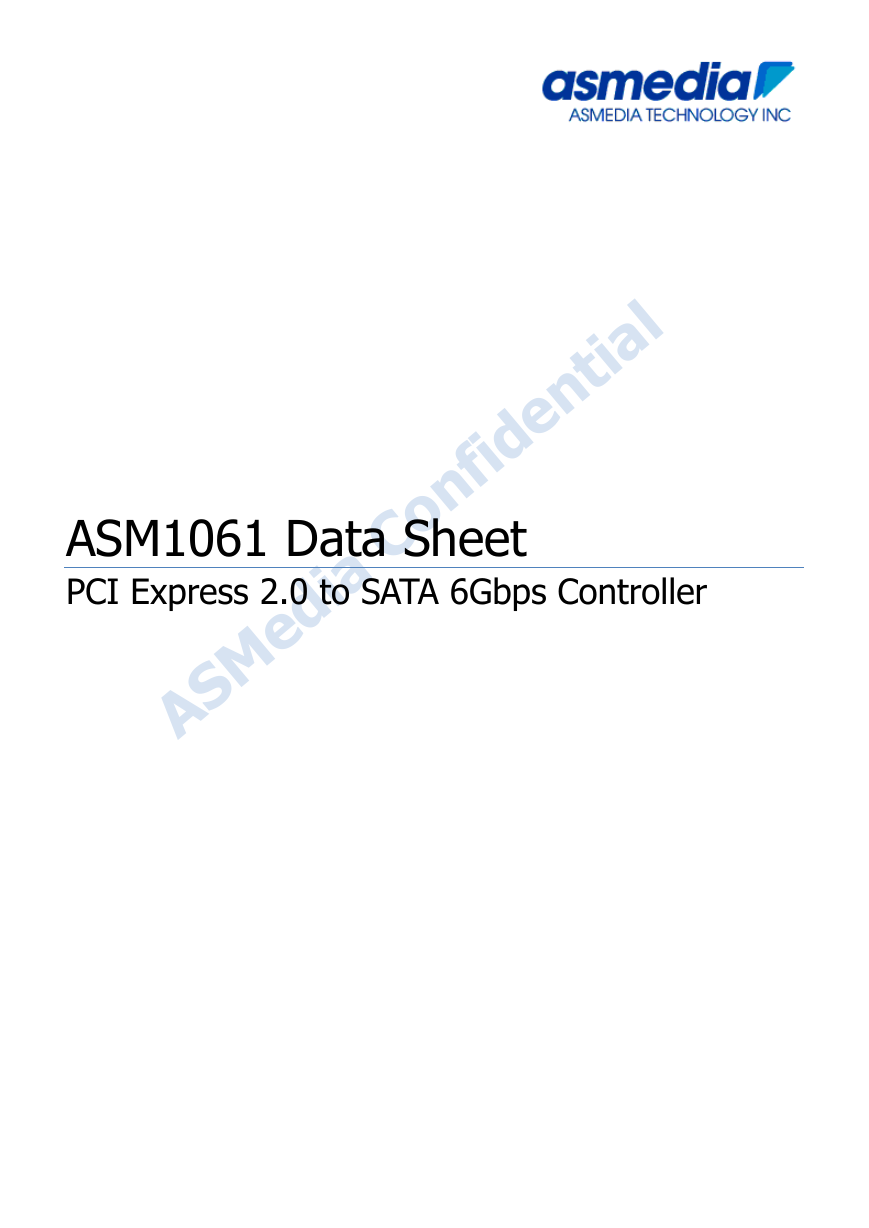

A S M edia C o nfidential ASM1061 Data Sheet PCI Express 2.0 to SATA 6Gbps Controller

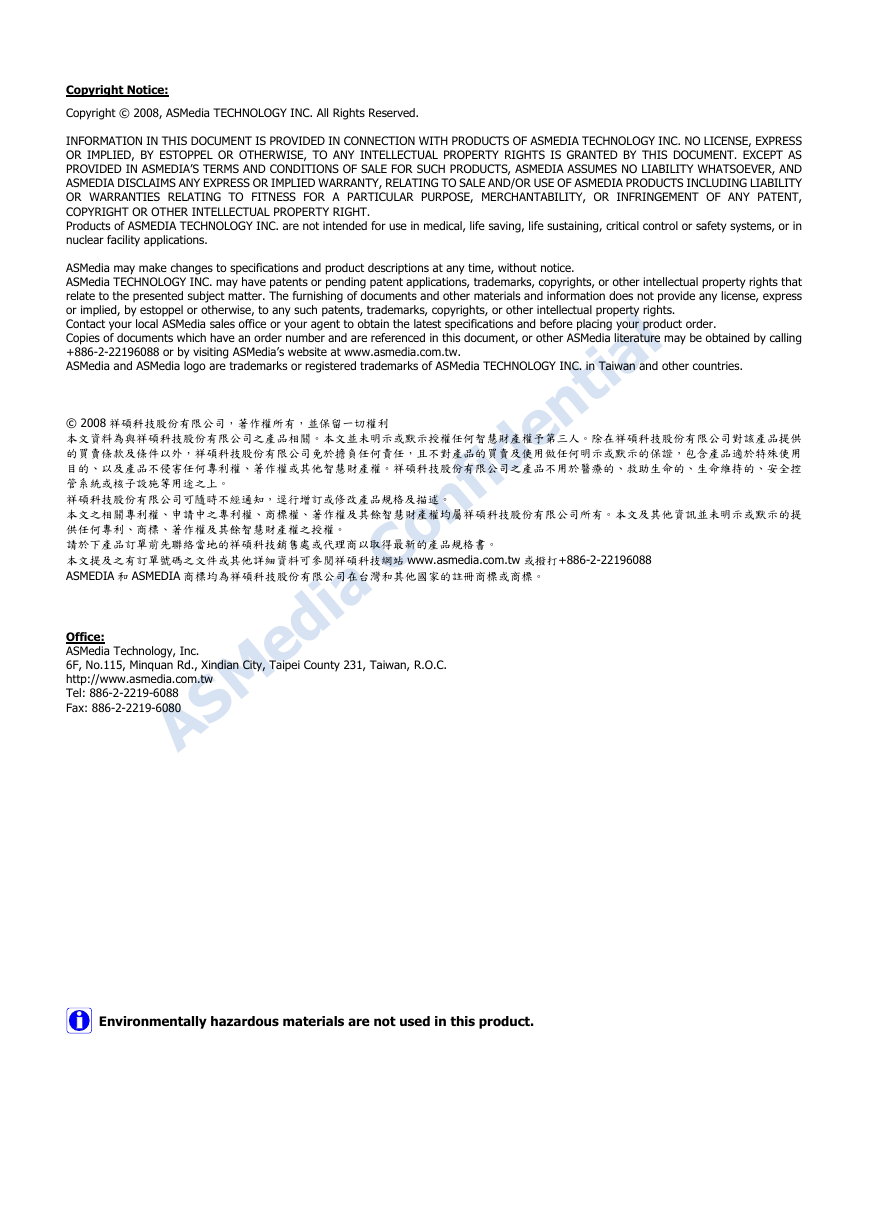

Copyright Notice: A S M edia C o nfidential Copyright © 2008, ASMedia TECHNOLOGY INC. All Rights Reserved. INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH PRODUCTS OF ASMEDIA TECHNOLOGY INC. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN ASMEDIA’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, ASMEDIA ASSUMES NO LIABILITY WHATSOEVER, AND ASMEDIA DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF ASMEDIA PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Products of ASMEDIA TECHNOLOGY INC. are not intended for use in medical, life saving, life sustaining, critical control or safety systems, or in nuclear facility applications. ASMedia may make changes to specifications and product descriptions at any time, without notice. ASMedia TECHNOLOGY INC. may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by estoppel or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights. Contact your local ASMedia sales office or your agent to obtain the latest specifications and before placing your product order. Copies of documents which have an order number and are referenced in this document, or other ASMedia literature may be obtained by calling +886-2-22196088 or by visiting ASMedia’s website at www.asmedia.com.tw. ASMedia and ASMedia logo are trademarks or registered trademarks of ASMedia TECHNOLOGY INC. in Taiwan and other countries. © 2008 祥碩科技股份有限公司，著作權所有，並保留一切權利本文資料為與祥碩科技股份有限公司之產品相關。本文並未明示或默示授權任何智慧財產權予第三人。除在祥碩科技股份有限公司對該產品提供的買賣條款及條件以外，祥碩科技股份有限公司免於擔負任何責任，且不對產品的買賣及使用做任何明示或默示的保證，包含產品適於特殊使用目的、以及產品不侵害任何專利權、著作權或其他智慧財產權。祥碩科技股份有限公司之產品不用於醫療的、救助生命的、生命維持的、安全控管系統或核子設施等用途之上。祥碩科技股份有限公司可隨時不經通知，逕行增訂或修改產品規格及描述。本文之相關專利權、申請中之專利權、商標權、著作權及其餘智慧財產權均屬祥碩科技股份有限公司所有。本文及其他資訊並未明示或默示的提供任何專利、商標、著作權及其餘智慧財產權之授權。請於下產品訂單前先聯絡當地的祥碩科技銷售處或代理商以取得最新的產品規格書。本文提及之有訂單號碼之文件或其他詳細資料可參閱祥碩科技網站 www.asmedia.com.tw 或撥打+886-2-22196088 ASMEDIA 和 ASMEDIA 商標均為祥碩科技股份有限公司在台灣和其他國家的註冊商標或商標。 Office: ASMedia Technology, Inc. 6F, No.115, Minquan Rd., Xindian City, Taipei County 231, Taiwan, R.O.C. http://www.asmedia.com.tw Tel: 886-2-2219-6088 Fax: 886-2-2219-6080 Environmentally hazardous materials are not used in this product.

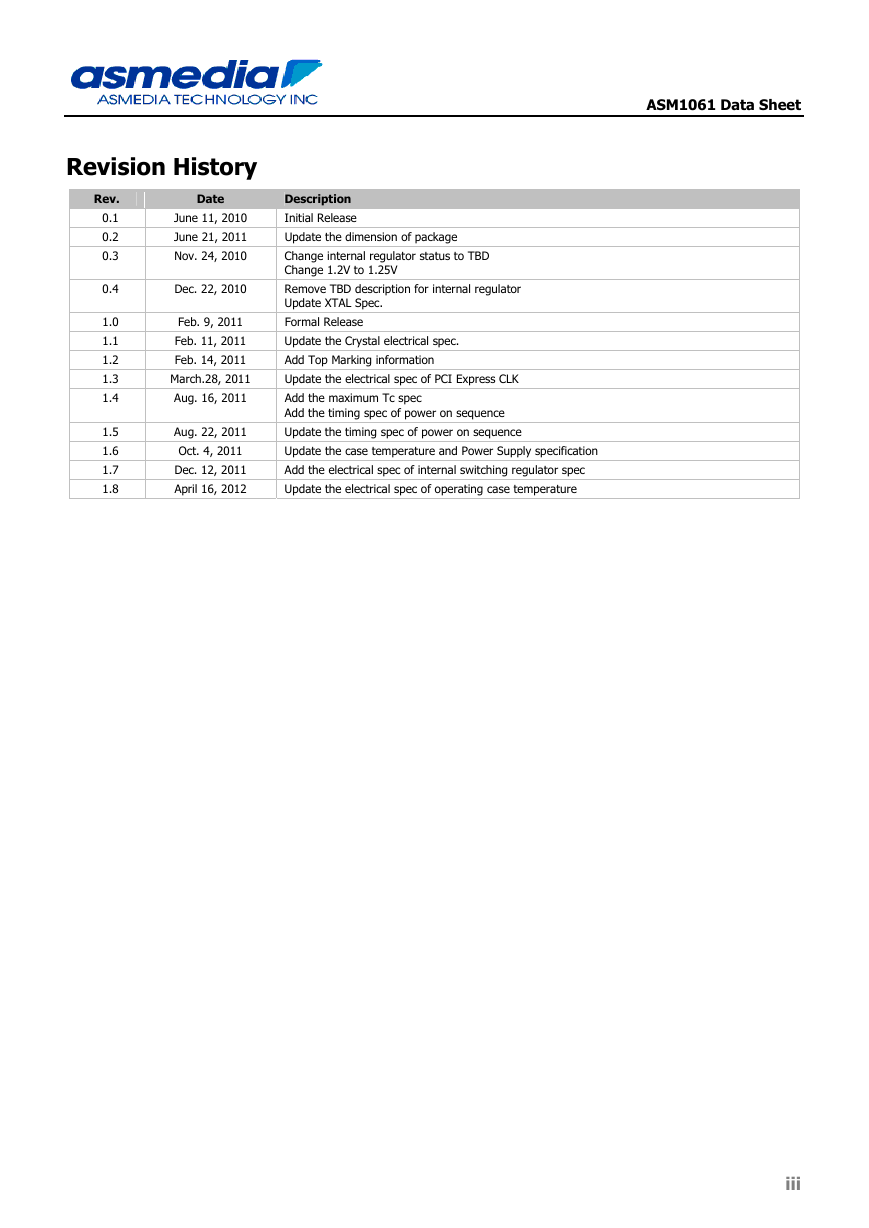

ASM1061 Data Sheet Revision History Rev. 0.1 0.2 0.3 0.4 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 Date June 11, 2010 June 21, 2011 Nov. 24, 2010 Dec. 22, 2010 Feb. 9, 2011 Feb. 11, 2011 Feb. 14, 2011 March.28, 2011 Aug. 16, 2011 Aug. 22, 2011 Oct. 4, 2011 Dec. 12, 2011 April 16, 2012 Description Initial Release Update the dimension of package Change internal regulator status to TBD Change 1.2V to 1.25V Remove TBD description for internal regulator Update XTAL Spec. Formal Release Update the Crystal electrical spec. Add Top Marking information Update the electrical spec of PCI Express CLK Add the maximum Tc spec Add the timing spec of power on sequence Update the timing spec of power on sequence Update the case temperature and Power Supply specification Add the electrical spec of internal switching regulator spec Update the electrical spec of operating case temperature iii

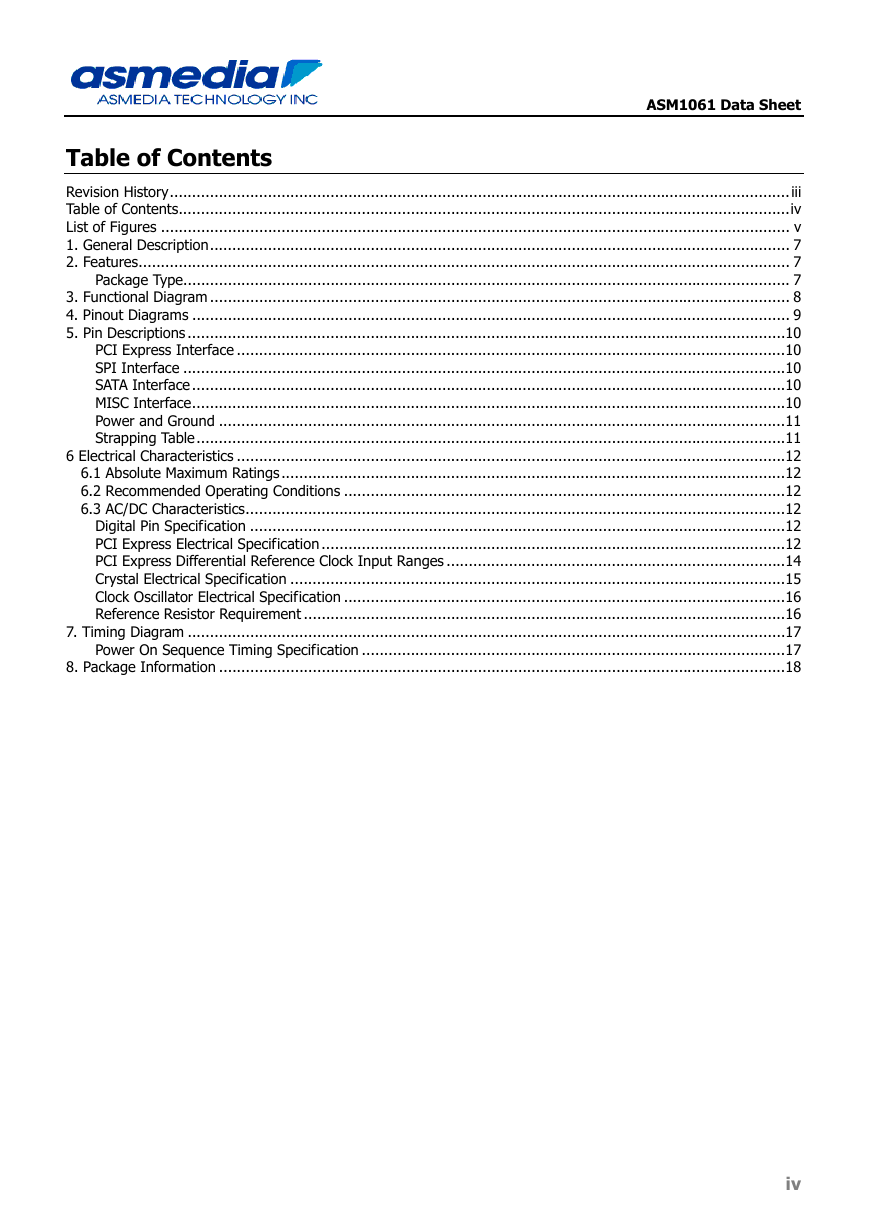

ASM1061 Data Sheet Table of Contents Revision History...........................................................................................................................................iii Table of Contents.........................................................................................................................................iv List of Figures ............................................................................................................................................. v 1. General Description.................................................................................................................................. 7 2. Features.................................................................................................................................................. 7 Package Type........................................................................................................................................ 7 3. Functional Diagram .................................................................................................................................. 8 4. Pinout Diagrams ...................................................................................................................................... 9 5. Pin Descriptions ......................................................................................................................................10 PCI Express Interface ...........................................................................................................................10 SPI Interface .......................................................................................................................................10 SATA Interface .....................................................................................................................................10 MISC Interface.....................................................................................................................................10 Power and Ground ...............................................................................................................................11 Strapping Table....................................................................................................................................11 6 Electrical Characteristics ...........................................................................................................................12 6.1 Absolute Maximum Ratings.................................................................................................................12 6.2 Recommended Operating Conditions ...................................................................................................12 6.3 AC/DC Characteristics.........................................................................................................................12 Digital Pin Specification ........................................................................................................................12 PCI Express Electrical Specification ........................................................................................................12 PCI Express Differential Reference Clock Input Ranges ............................................................................14 Crystal Electrical Specification ...............................................................................................................15 Clock Oscillator Electrical Specification ...................................................................................................16 Reference Resistor Requirement ............................................................................................................16 7. Timing Diagram ......................................................................................................................................17 Power On Sequence Timing Specification ...............................................................................................17 8. Package Information ...............................................................................................................................18 iv

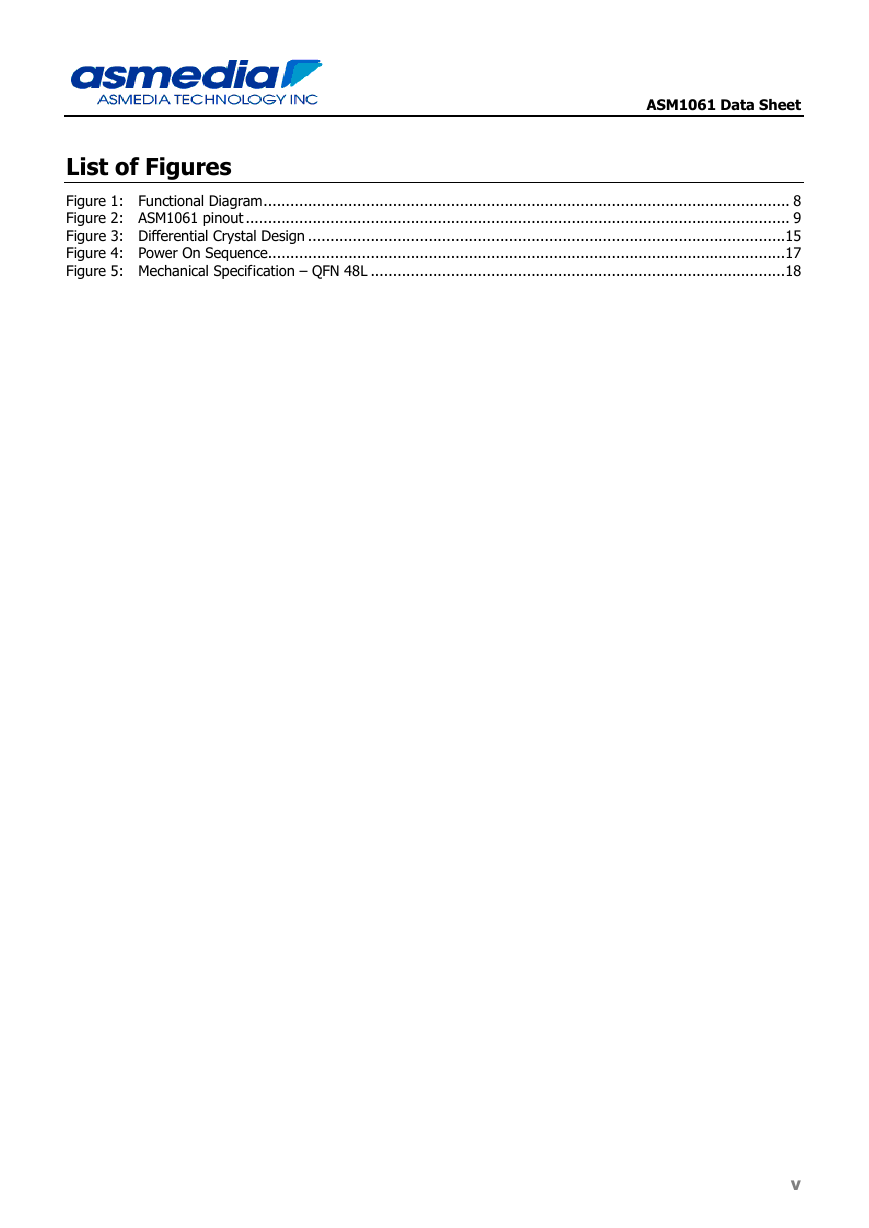

ASM1061 Data Sheet List of Figures Figure 1: Functional Diagram...................................................................................................................... 8 Figure 2: ASM1061 pinout .......................................................................................................................... 9 Figure 3: Differential Crystal Design ...........................................................................................................15 Figure 4: Power On Sequence....................................................................................................................17 Figure 5: Mechanical Specification – QFN 48L .............................................................................................18 v

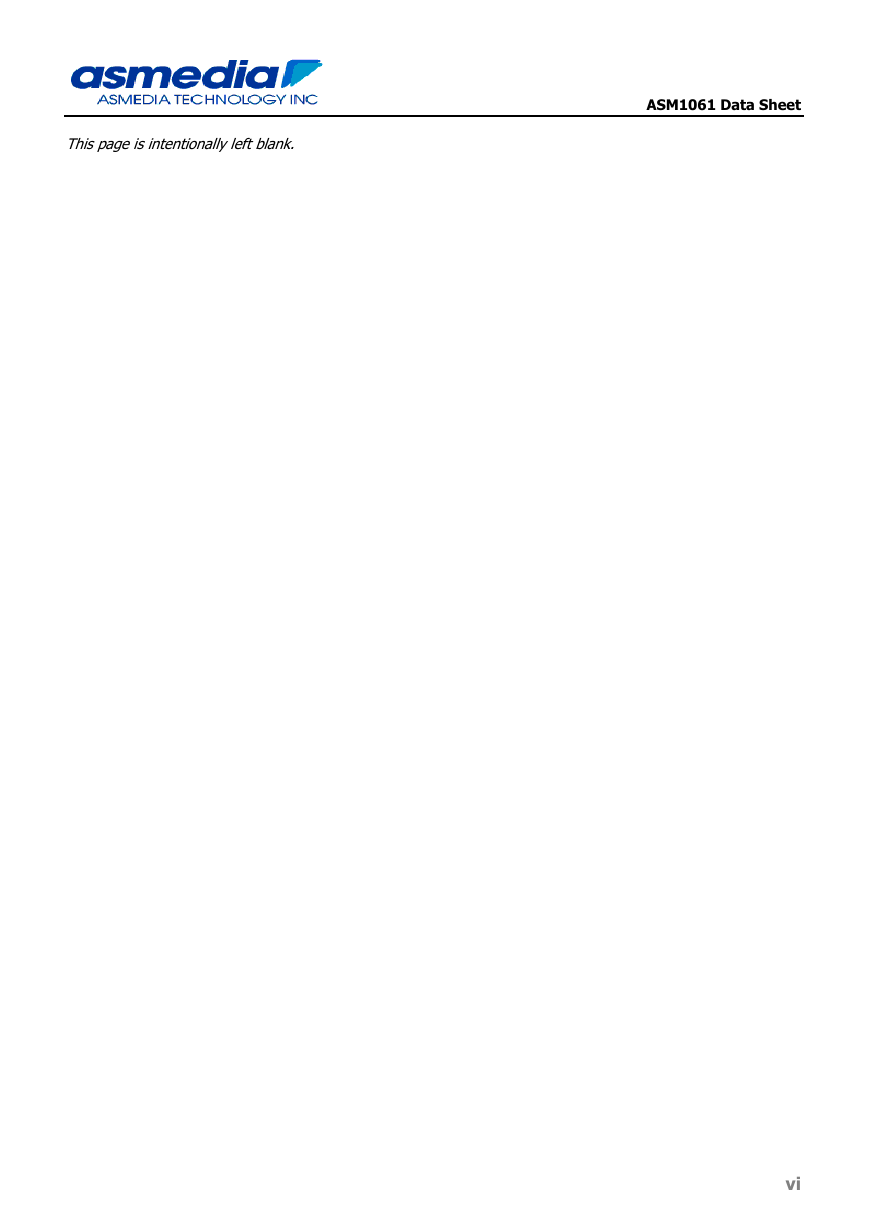

This page is intentionally left blank. ASM1061 Data Sheet vi

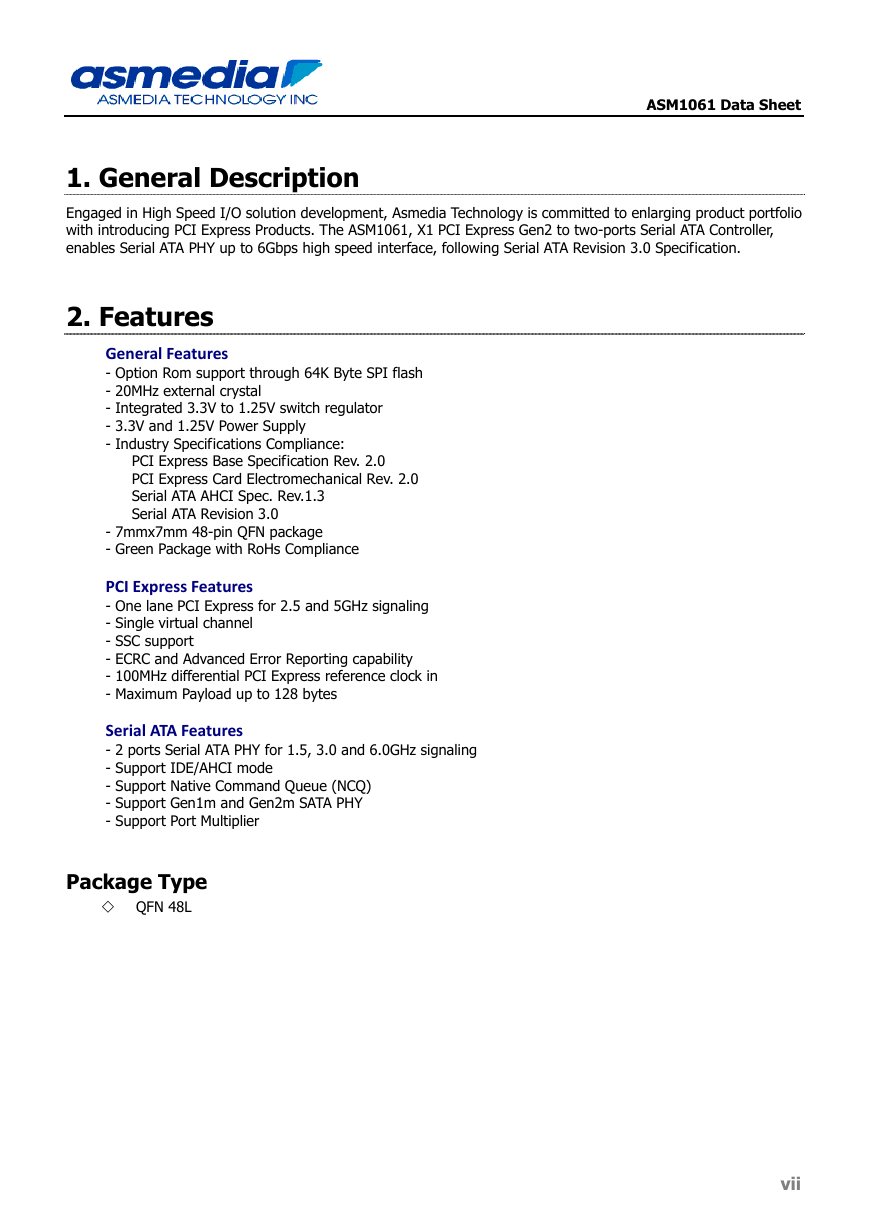

ASM1061 Data Sheet 1. General Description Engaged in High Speed I/O solution development, Asmedia Technology is committed to enlarging product portfolio with introducing PCI Express Products. The ASM1061, X1 PCI Express Gen2 to two-ports Serial ATA Controller, enables Serial ATA PHY up to 6Gbps high speed interface, following Serial ATA Revision 3.0 Specification. 2. Features General Features - Option Rom support through 64K Byte SPI flash - 20MHz external crystal - Integrated 3.3V to 1.25V switch regulator - 3.3V and 1.25V Power Supply - Industry Specifications Compliance: PCI Express Base Specification Rev. 2.0 PCI Express Card Electromechanical Rev. 2.0 Serial ATA AHCI Spec. Rev.1.3 Serial ATA Revision 3.0 - 7mmx7mm 48-pin QFN package - Green Package with RoHs Compliance PCI Express Features - One lane PCI Express for 2.5 and 5GHz signaling - Single virtual channel - SSC support - ECRC and Advanced Error Reporting capability - 100MHz differential PCI Express reference clock in - Maximum Payload up to 128 bytes Serial ATA Features - 2 ports Serial ATA PHY for 1.5, 3.0 and 6.0GHz signaling - Support IDE/AHCI mode - Support Native Command Queue (NCQ) - Support Gen1m and Gen2m SATA PHY - Support Port Multiplier Package Type QFN 48L vii

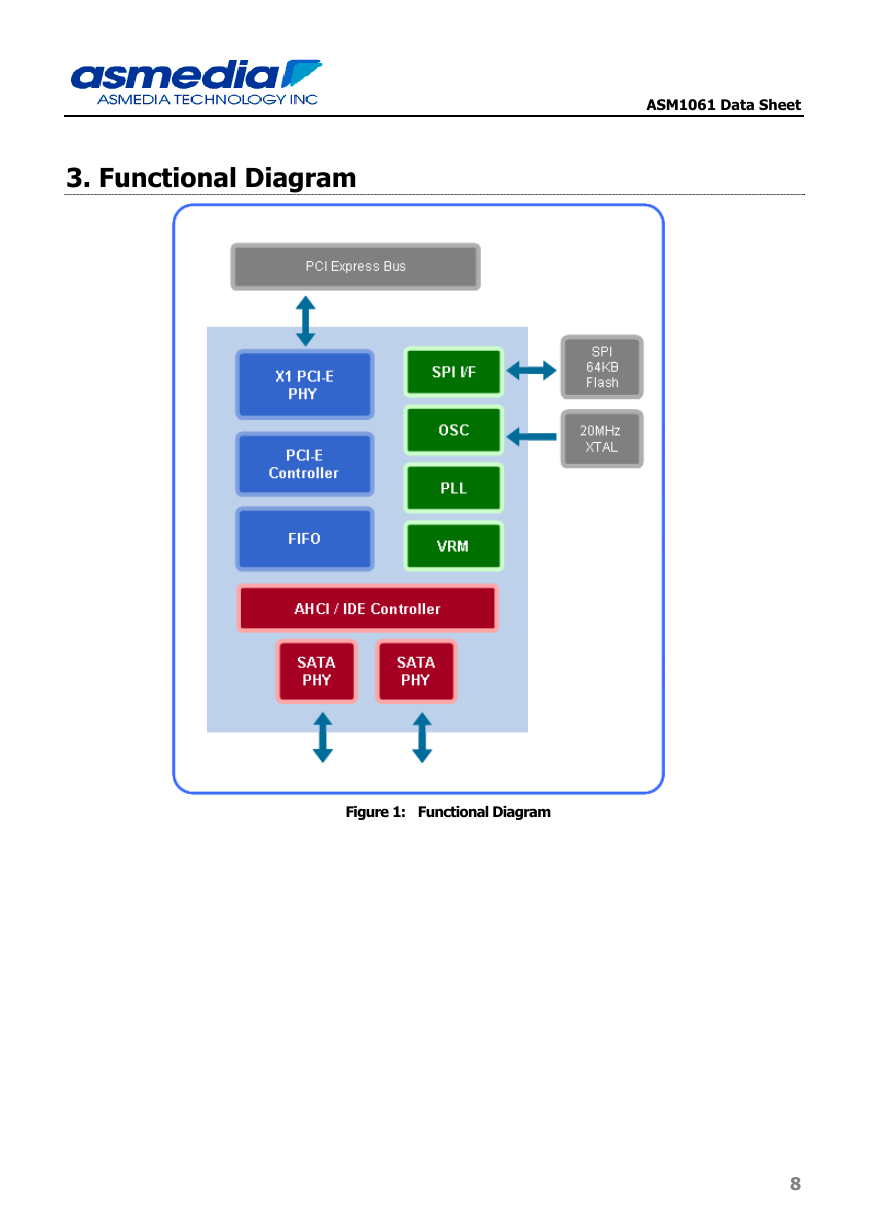

ASM1061 Data Sheet 3. Functional Diagram Figure 1: Functional Diagram 8
