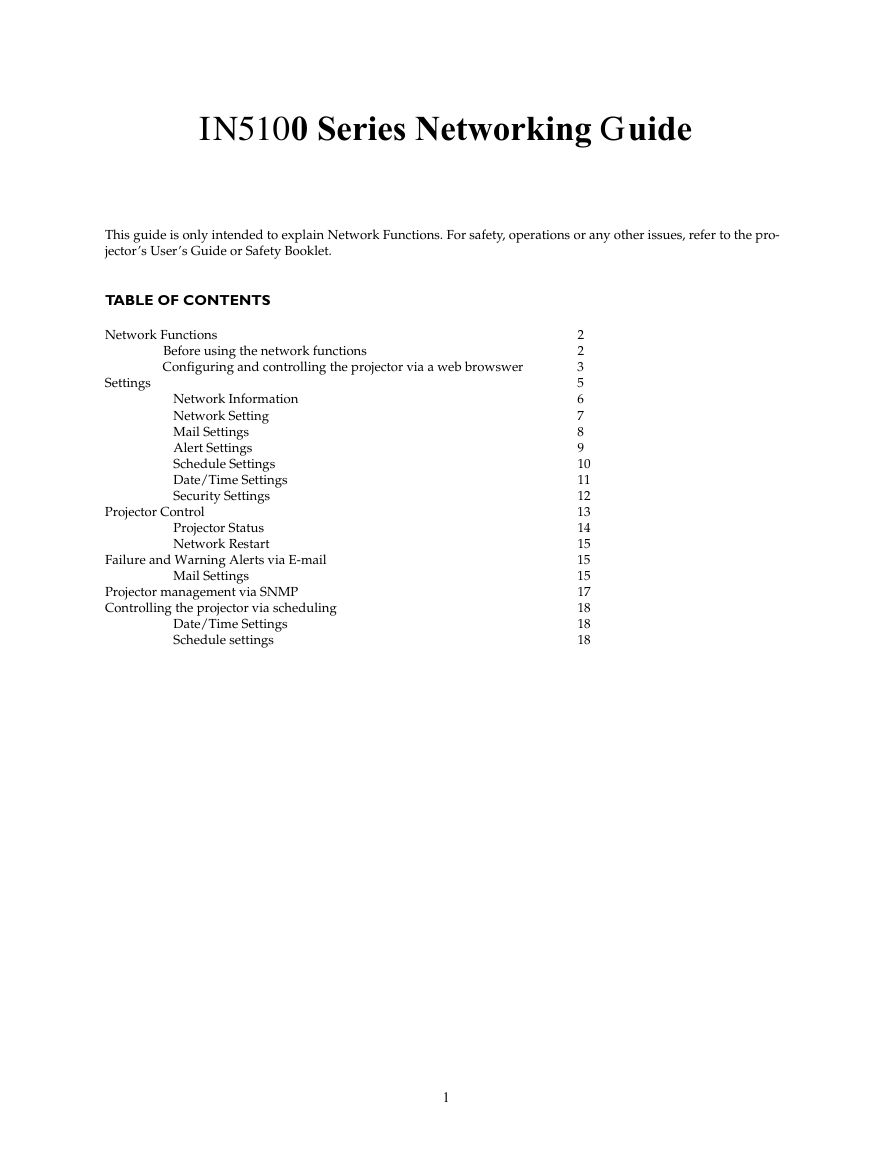

IN5100 Series Networking Guide This guide is only intended to explain Network Functions. For safety, operations or any other issues, refer to the pro- jector’s User’s Guide or Safety Booklet. TABLE OF CONTENTS Network Functions Before using the network functions Configuring and controlling the projector via a web browswer Settings Network Information Network Setting Mail Settings Alert Settings Schedule Settings Date/Time Settings Security Settings Projector Control Projector Status Network Restart Failure and Warning Alerts via E-mail Mail Settings Projector management via SNMP Controlling the projector via scheduling Date/Time Settings Schedule settings 2 2 3 5 6 7 8 9 10 11 12 13 14 15 15 15 17 18 18 18 1

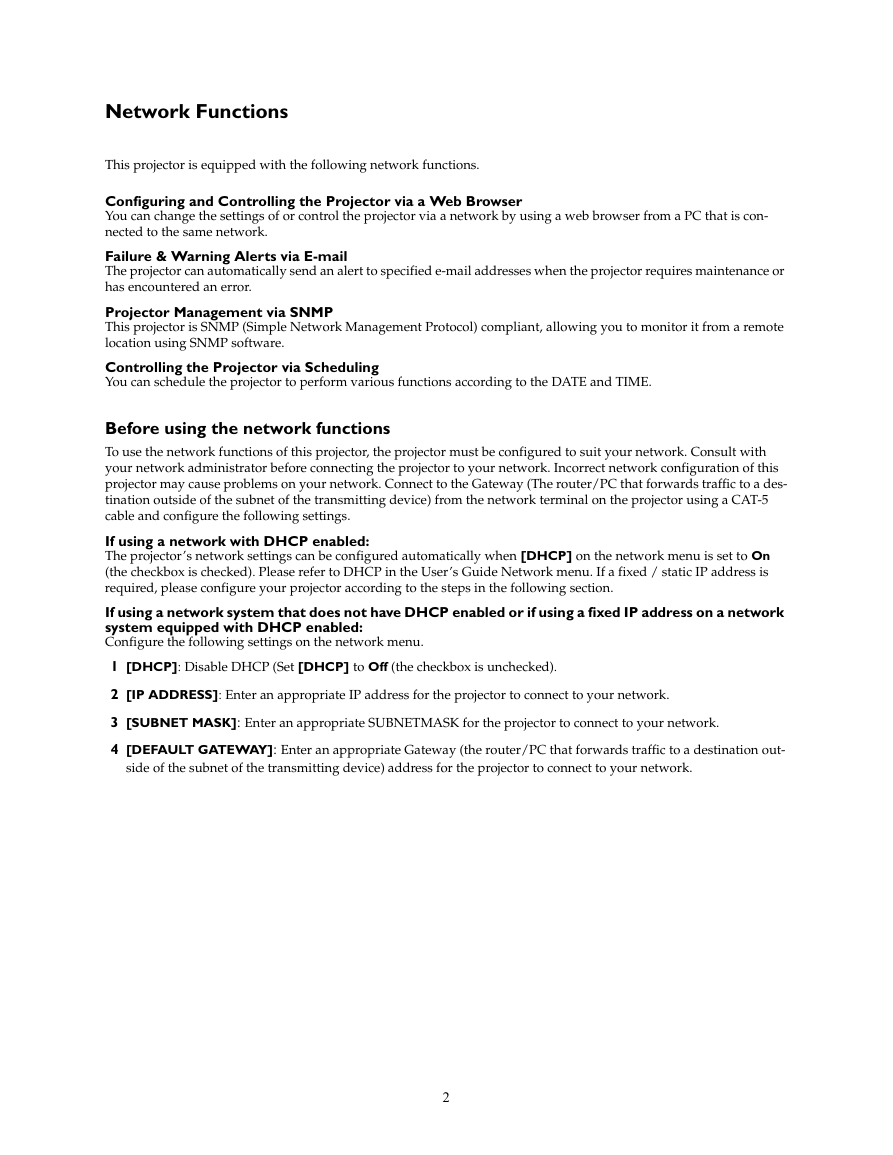

Network Functions This projector is equipped with the following network functions. Configuring and Controlling the Projector via a Web Browser You can change the settings of or control the projector via a network by using a web browser from a PC that is con- nected to the same network. Failure & Warning Alerts via E-mail The projector can automatically send an alert to specified e-mail addresses when the projector requires maintenance or has encountered an error. Projector Management via SNMP This projector is SNMP (Simple Network Management Protocol) compliant, allowing you to monitor it from a remote location using SNMP software. Controlling the Projector via Scheduling You can schedule the projector to perform various functions according to the DATE and TIME. Before using the network functions To use the network functions of this projector, the projector must be configured to suit your network. Consult with your network administrator before connecting the projector to your network. Incorrect network configuration of this projector may cause problems on your network. Connect to the Gateway (The router/PC that forwards traffic to a des- tination outside of the subnet of the transmitting device) from the network terminal on the projector using a CAT-5 cable and configure the following settings. If using a network with DHCP enabled: The projector’s network settings can be configured automatically when [DHCP] on the network menu is set to On (the checkbox is checked). Please refer to DHCP in the User’s Guide Network menu. If a fixed / static IP address is required, please configure your projector according to the steps in the following section. If using a network system that does not have DHCP enabled or if using a fixed IP address on a network system equipped with DHCP enabled: Configure the following settings on the network menu. 1 [DHCP]: Disable DHCP (Set [DHCP] to Off (the checkbox is unchecked). 2 [IP ADDRESS]: Enter an appropriate IP address for the projector to connect to your network. 3 [SUBNET MASK]: Enter an appropriate SUBNETMASK for the projector to connect to your network. 4 [DEFAULT GATEWAY]: Enter an appropriate Gateway (the router/PC that forwards traffic to a destination out- side of the subnet of the transmitting device) address for the projector to connect to your network. 2

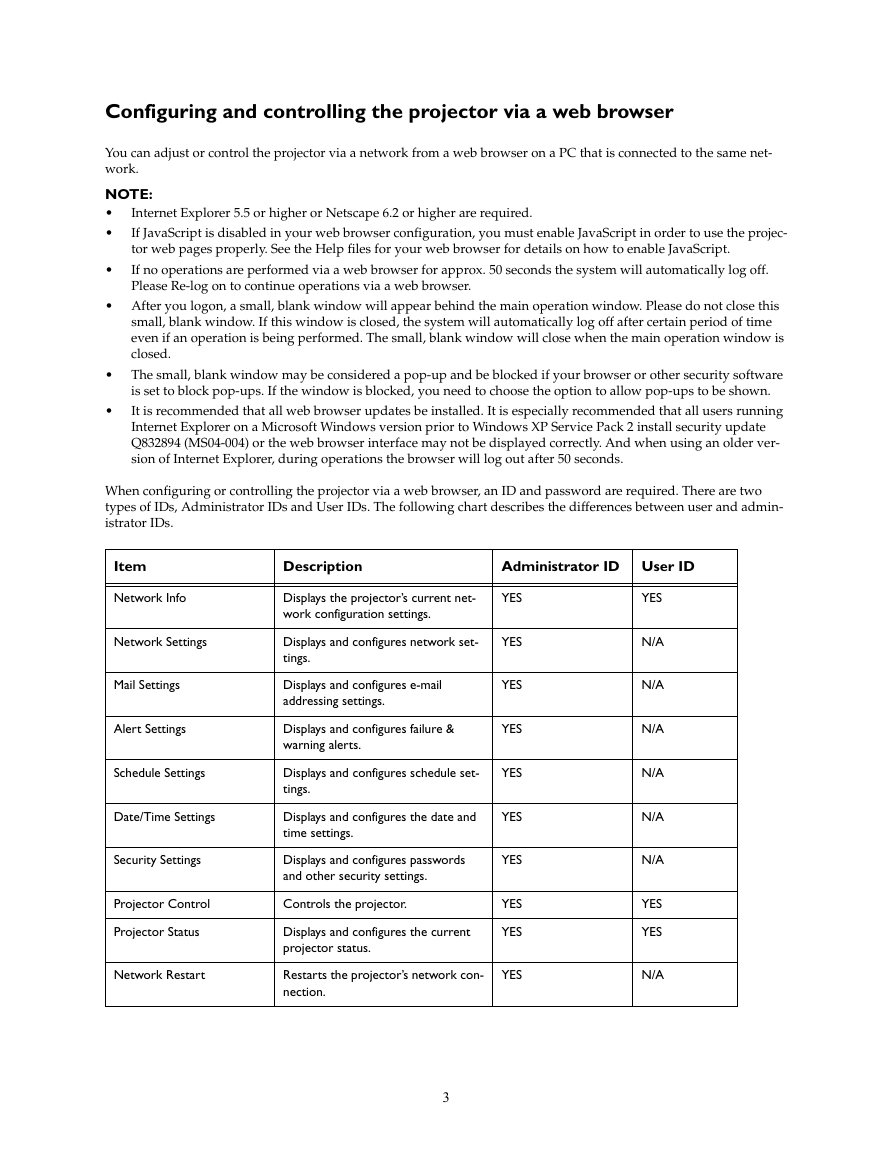

Configuring and controlling the projector via a web browser You can adjust or control the projector via a network from a web browser on a PC that is connected to the same net- work. NOTE: Internet Explorer 5.5 or higher or Netscape 6.2 or higher are required. If JavaScript is disabled in your web browser configuration, you must enable JavaScript in order to use the projec- tor web pages properly. See the Help files for your web browser for details on how to enable JavaScript. If no operations are performed via a web browser for approx. 50 seconds the system will automatically log off. Please Re-log on to continue operations via a web browser. After you logon, a small, blank window will appear behind the main operation window. Please do not close this small, blank window. If this window is closed, the system will automatically log off after certain period of time even if an operation is being performed. The small, blank window will close when the main operation window is closed. The small, blank window may be considered a pop-up and be blocked if your browser or other security software is set to block pop-ups. If the window is blocked, you need to choose the option to allow pop-ups to be shown. It is recommended that all web browser updates be installed. It is especially recommended that all users running Internet Explorer on a Microsoft Windows version prior to Windows XP Service Pack 2 install security update Q832894 (MS04-004) or the web browser interface may not be displayed correctly. And when using an older ver- sion of Internet Explorer, during operations the browser will log out after 50 seconds. When configuring or controlling the projector via a web browser, an ID and password are required. There are two types of IDs, Administrator IDs and User IDs. The following chart describes the differences between user and admin- istrator IDs. Description Administrator ID User ID Projector Control Controls the projector. Projector Status Network Restart Displays and configures the current projector status. Restarts the projector’s network con- nection. 3 Item Network Info Network Settings Mail Settings Alert Settings Schedule Settings Date/Time Settings Security Settings Displays the projector’s current net- work configuration settings. Displays and configures network set- tings. Displays and configures e-mail addressing settings. Displays and configures failure & warning alerts. Displays and configures schedule set- tings. Displays and configures the date and time settings. Displays and configures passwords and other security settings. YES YES YES YES YES YES YES YES YES YES YES N/A N/A N/A N/A N/A N/A YES YES N/A

Below are the factory default settings for administrator IDs, user IDs and passwords. Item ID Password Administrator ID Administrator User ID User 4

Settings Refer to the following for configuring or controlling the projector via a web browser. Example: If the IP address of the projector is set to 192.168.1.10: 1 Enter [http://192.168.1.10] into the address bar of the web browser and the screen below will be displayed. 2 Enter your ID and password and click [Logon]. If the logon is successful this screen will be displayed (if logged on as an Admin). 3 Click the desired operation or configuration item on the main menu located on the left-hand side of the screen. 5

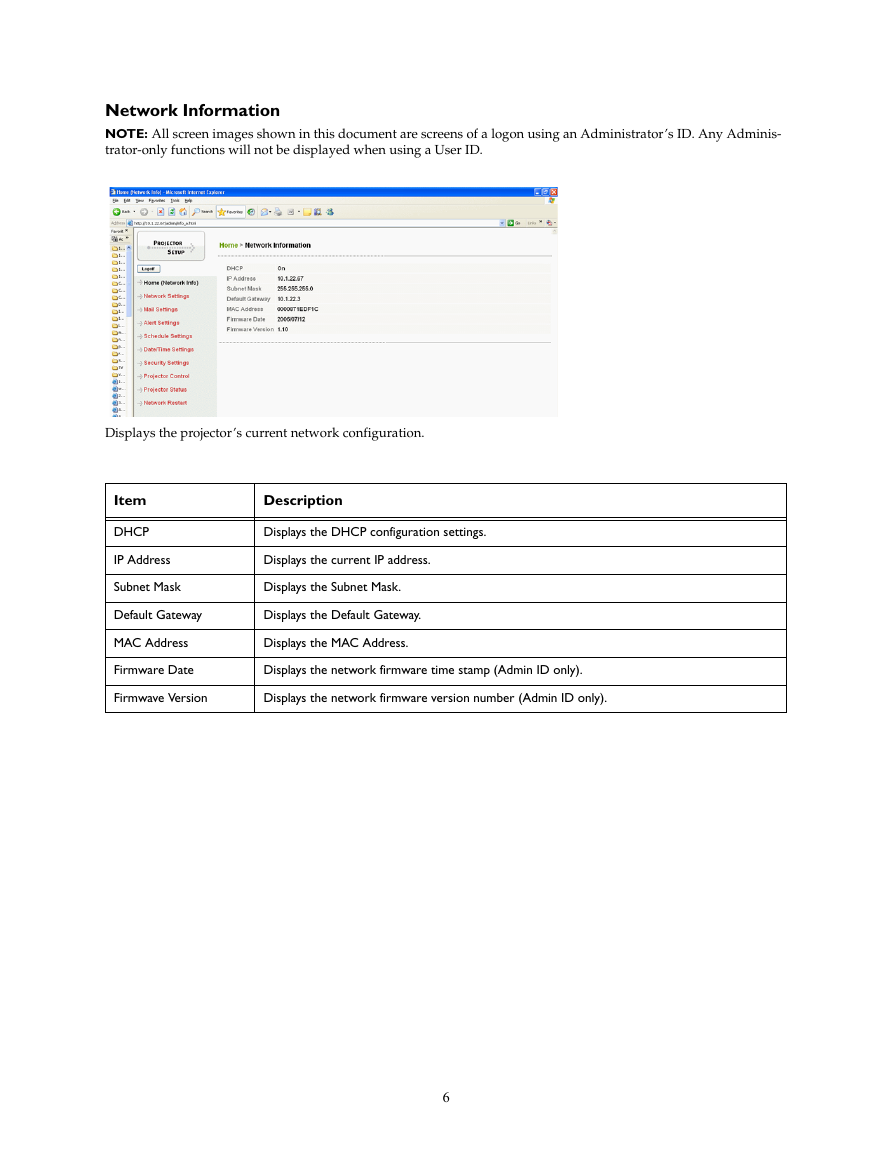

Network Information NOTE: All screen images shown in this document are screens of a logon using an Administrator’s ID. Any Adminis- trator-only functions will not be displayed when using a User ID. Displays the projector’s current network configuration. Item DHCP IP Address Subnet Mask Description Displays the DHCP configuration settings. Displays the current IP address. Displays the Subnet Mask. Default Gateway Displays the Default Gateway. MAC Address Displays the MAC Address. Firmware Date Displays the network firmware time stamp (Admin ID only). Firmwave Version Displays the network firmware version number (Admin ID only). 6

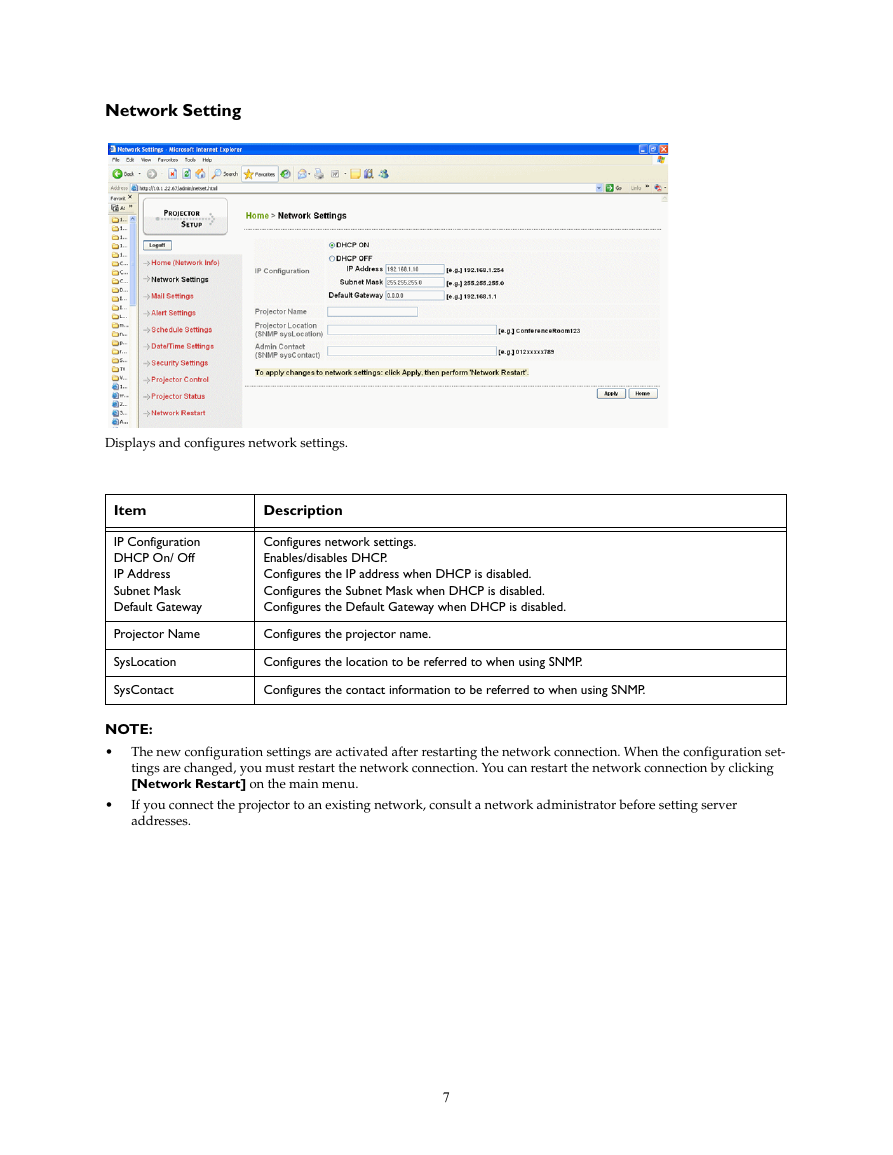

Network Setting Displays and configures network settings. Item Description IP Configuration DHCP On/ Off IP Address Subnet Mask Default Gateway Configures network settings. Enables/disables DHCP. Configures the IP address when DHCP is disabled. Configures the Subnet Mask when DHCP is disabled. Configures the Default Gateway when DHCP is disabled. Projector Name Configures the projector name. SysLocation SysContact Configures the location to be referred to when using SNMP. Configures the contact information to be referred to when using SNMP. NOTE: The new configuration settings are activated after restarting the network connection. When the configuration set- tings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu. If you connect the projector to an existing network, consult a network administrator before setting server addresses. 7

Mail Settings Item Send Mail Description Click the [Enable] check box to use the e-mail function. Configure the conditions for sending email under [Alert Settings]. SMTP Server IP Address Configures the address of the mail server in IP format. Sender E-mail address Configures the sender e-mail address. The length of the sender e-mail address can be up to 255 alphanumeric characters. Recipient E-mail address Configures the e-mail address of up to five recipients. You can also specify [TO] or [CC] for each address. The length of the recipient e-mail address can be up to 255 alphanumeric charac- ters. Click the [Apply] button to save the settings. NOTE: You can confirm whether the mail settings work correctly using the [Send Test Mail] button. If you connect the projector to an existing network, consult a network administrator before setting server addresses. 8
