MongoDB 地理空间数据存储及检索
https://blog.csdn.net/weixin_33691817/article/details/86019676
Mongodb 插件使用说明(官方):
http://docs.geotools.org/latest/userguide/library/data/mongodb.html
发布步骤:

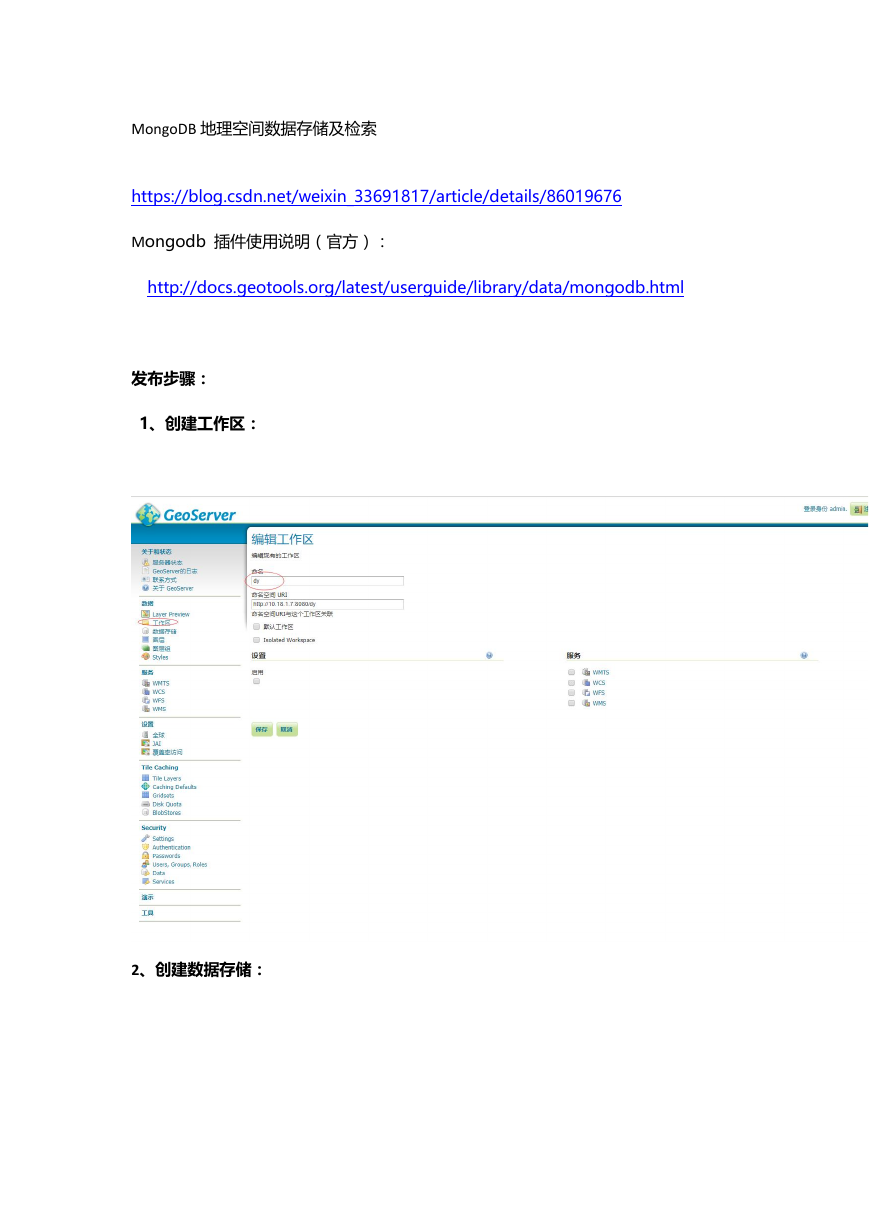

1、创建工作区:
2、创建数据存储:
说明:
1、
data_store:指定要连接的 MongoDB 实例和数据库,使用 mogodb 的 uri 方式加载
2、schema_store:schema 存储路径,有 file、mongodb 等方式。
mongodb 存储方式:这里需要指定 mongodb 数据库的 uri(同 data_store),包
括:数据、及 schema,如果不指定默认使用 geotools,collection 为 schemas
3、上面 2 项中的 uri 定义,具体可以参考:MongoClientURI 的实例化
1.
指定用户、密码:
mongodb://username:password@example.com:27017/database
2、 指定集群方式:mongodb://host1:27017,host2:27017
3、发布地图服务:

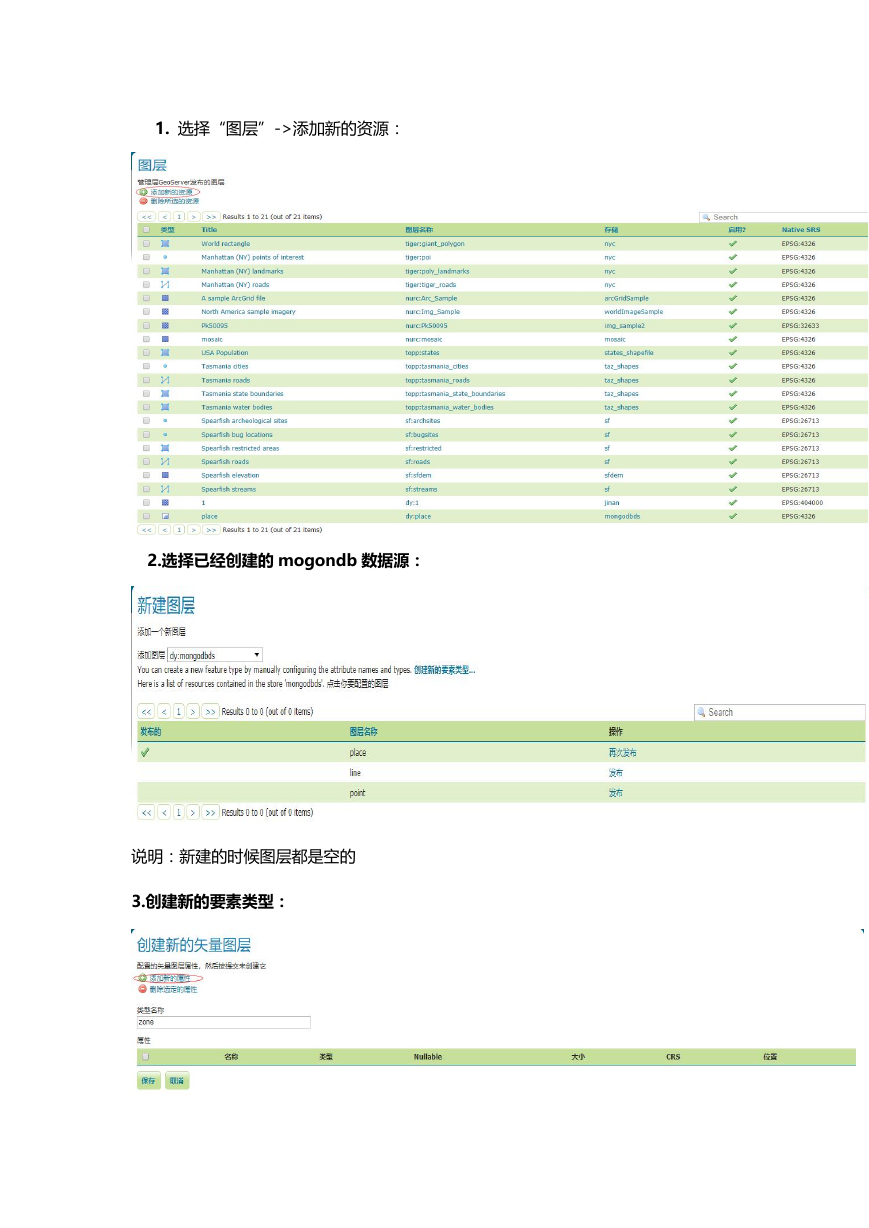

1. 选择“图层”->添加新的资源:
2.选择已经创建的 mogondb 数据源:
说明:新建的时候图层都是空的
3.创建新的要素类型:

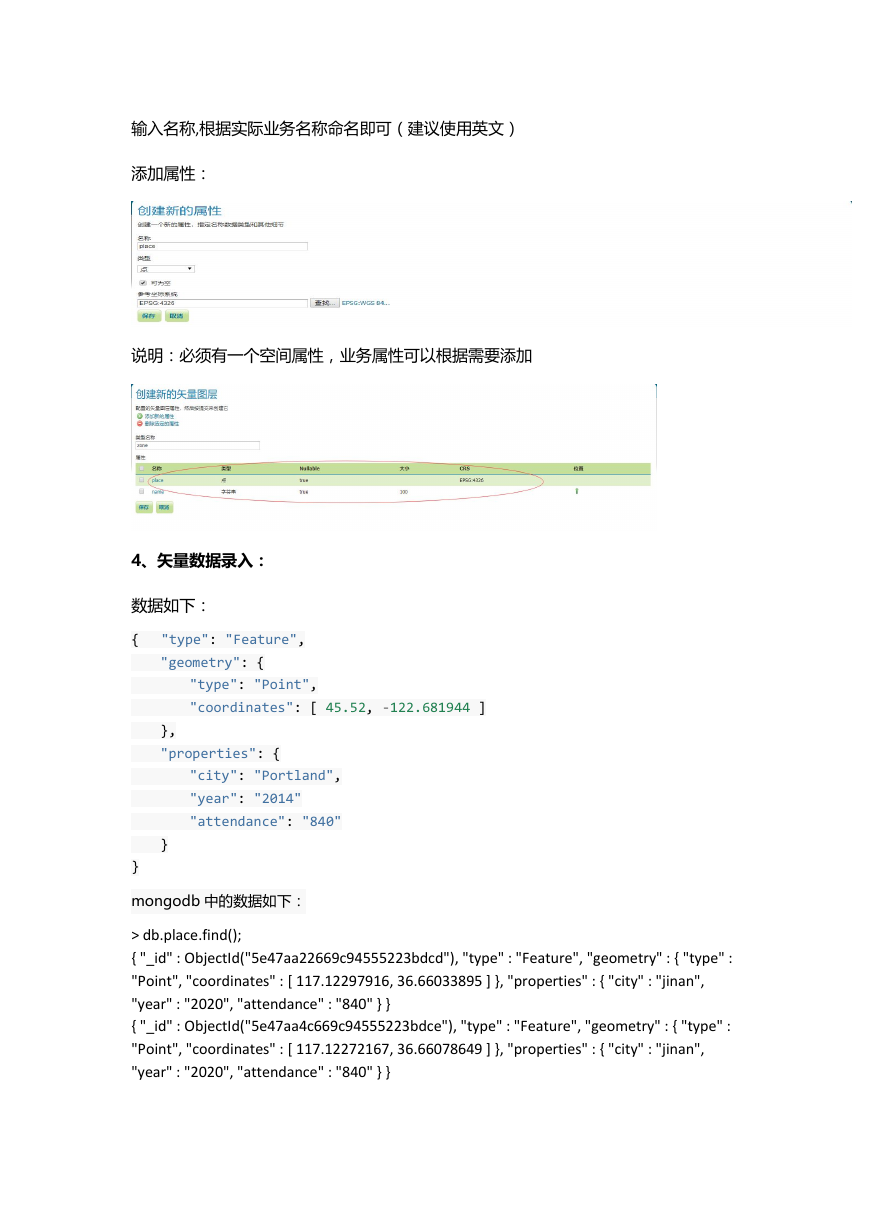

输入名称,根据实际业务名称命名即可(建议使用英文)
添加属性:
说明:必须有一个空间属性,业务属性可以根据需要添加
4、矢量数据录入:
数据如下:
{
"type": "Feature",
"geometry": {
"type": "Point",
"coordinates": [ 45.52, -122.681944 ]
},
"properties": {
"city": "Portland",
"year": "2014"
"attendance": "840"
}
}
mongodb 中的数据如下:
> db.place.find();
{ "_id" : ObjectId("5e47aa22669c94555223bdcd"), "type" : "Feature", "geometry" : { "type" :
"Point", "coordinates" : [ 117.12297916, 36.66033895 ] }, "properties" : { "city" : "jinan",
"year" : "2020", "attendance" : "840" } }
{ "_id" : ObjectId("5e47aa4c669c94555223bdce"), "type" : "Feature", "geometry" : { "type" :
"Point", "coordinates" : [ 117.12272167, 36.66078649 ] }, "properties" : { "city" : "jinan",
"year" : "2020", "attendance" : "840" } }
{ "_id" : ObjectId("5e47aa6f669c94555223bdcf"), "type" : "Feature", "geometry" : { "type" :
"Point", "coordinates" : [ 117.11954594, 36.65610441 ] }, "properties" : { "city" : "jinan",
"year" : "2020", "attendance" : "840" } }
{ "_id" : ObjectId("5e47aa8e669c94555223bdd0"), "type" : "Feature", "geometry" : { "type" :
"Point", "coordinates" : [ 117.13551044, 36.65703396 ] }, "properties" : { "city" : "jinan",
"year" : "2020", "attendance" : "840" } }

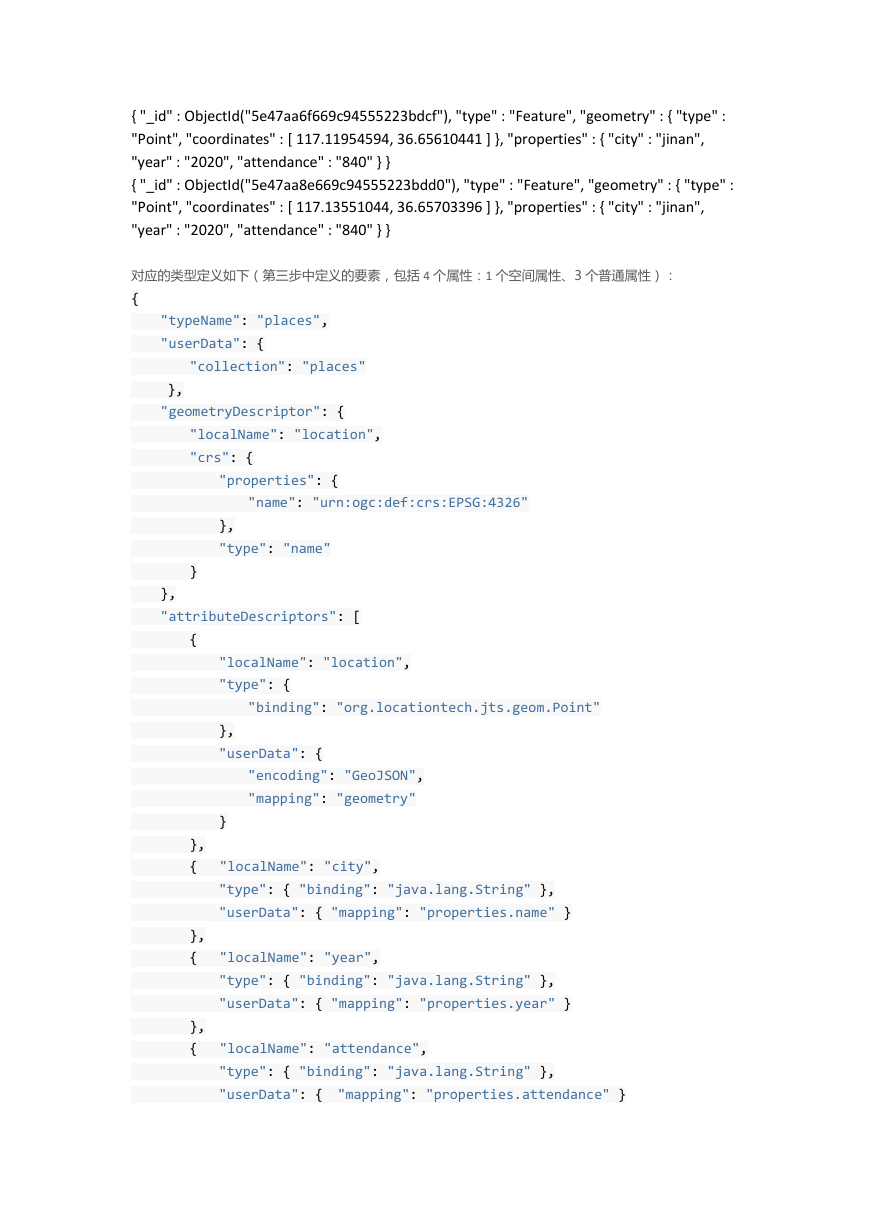

对应的类型定义如下(第三步中定义的要素,包括 4 个属性:1 个空间属性、3 个普通属性):
{
"typeName": "places",
"userData": {
"collection": "places"
},
"geometryDescriptor": {
"localName": "location",
"crs": {
"properties": {
"name": "urn:ogc:def:crs:EPSG:4326"
},
"type": "name"
}
},
"attributeDescriptors": [
{
},
{
},
{
},
{
"localName": "location",
"type": {
"binding": "org.locationtech.jts.geom.Point"
},
"userData": {
"encoding": "GeoJSON",
"mapping": "geometry"
}
"localName": "city",
"type": { "binding": "java.lang.String" },
"userData": { "mapping": "properties.name" }
"localName": "year",
"type": { "binding": "java.lang.String" },
"userData": { "mapping": "properties.year" }
"localName": "attendance",
"type": { "binding": "java.lang.String" },
"userData": { "mapping": "properties.attendance" }
}
]
}

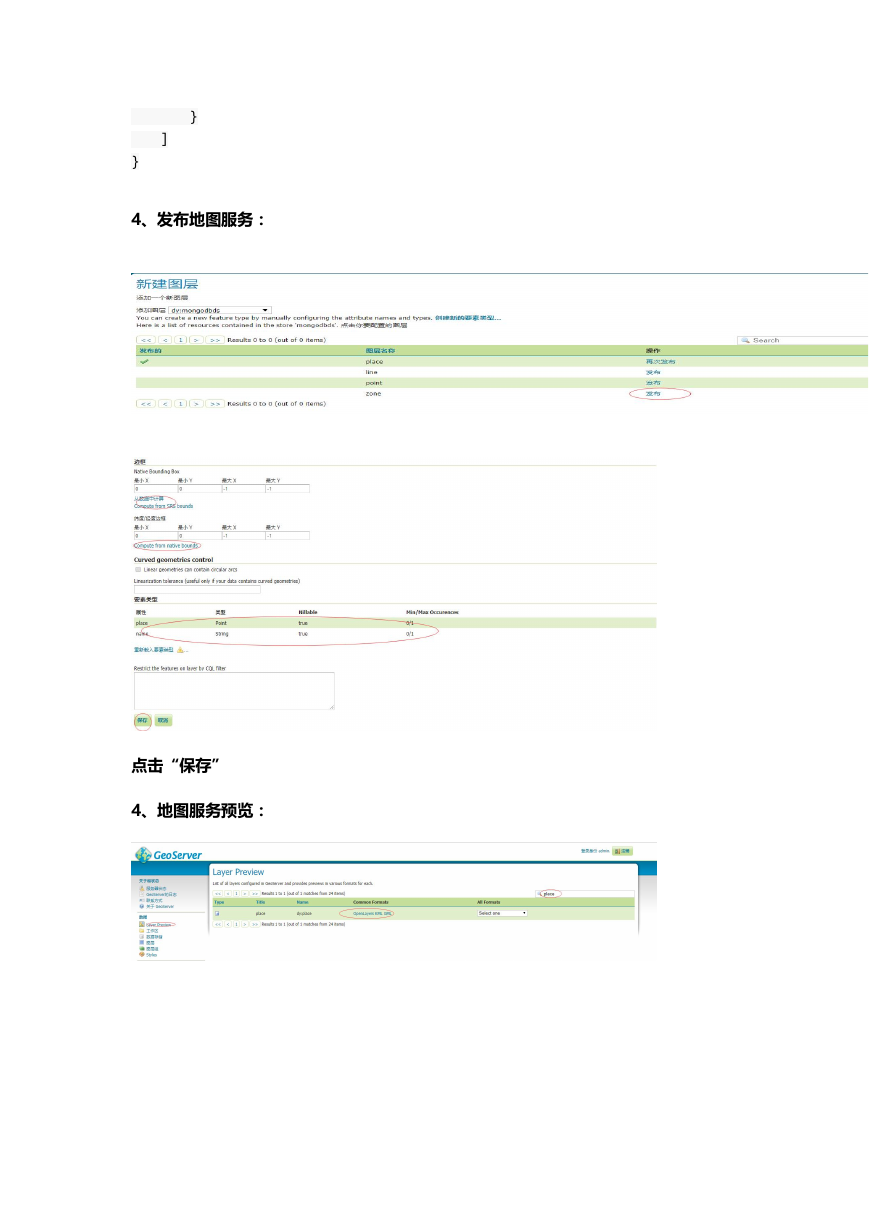

4、发布地图服务:
点击“保存”

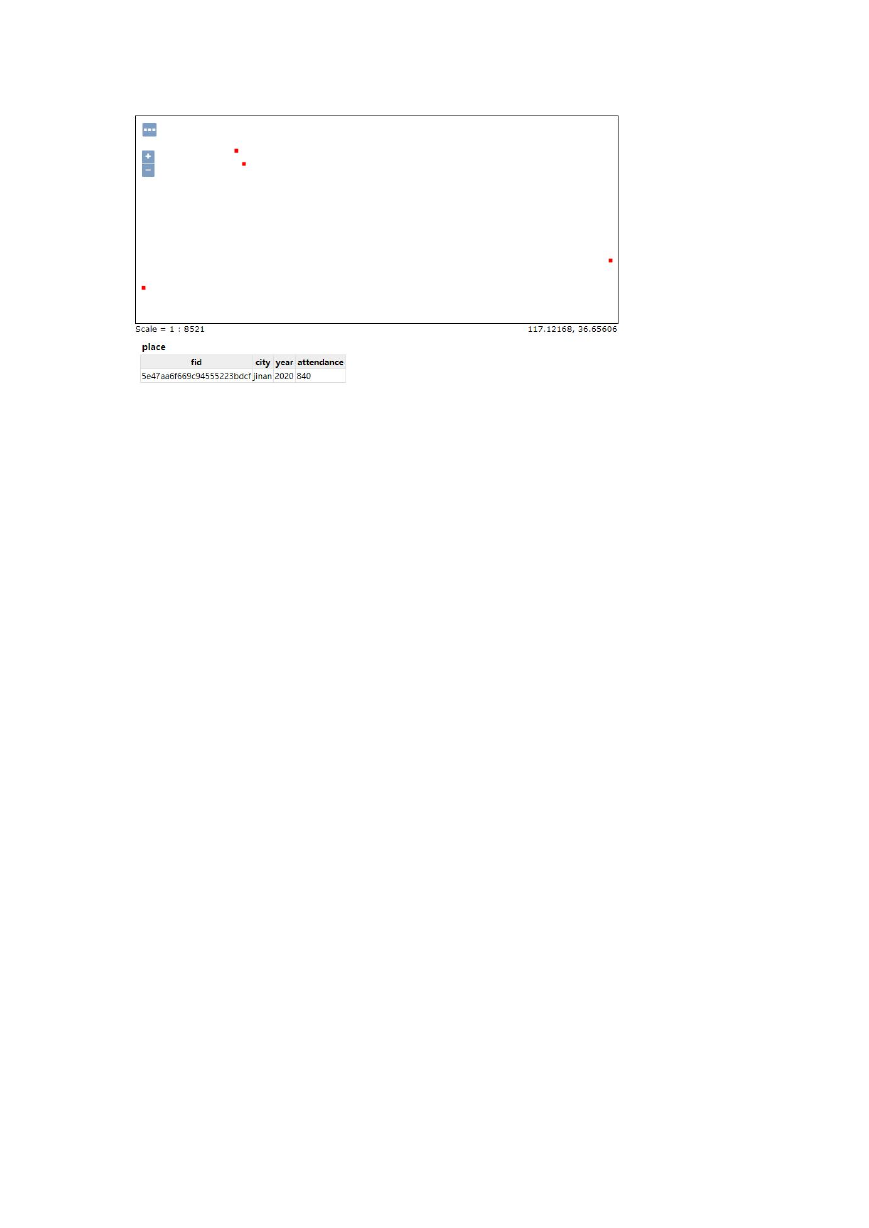

4、地图服务预览:
