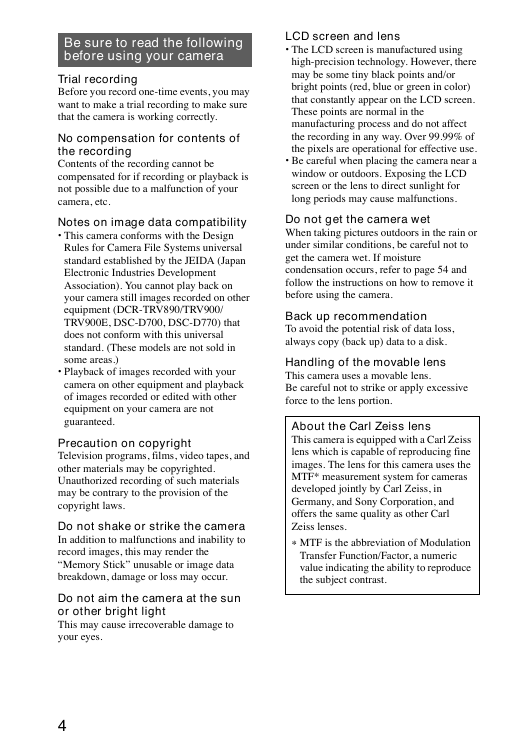

Be sure to read the following before using your camera
Getting started

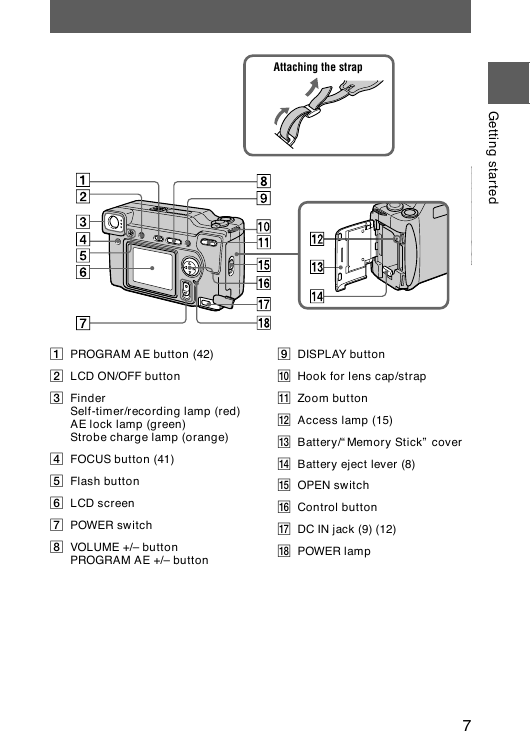

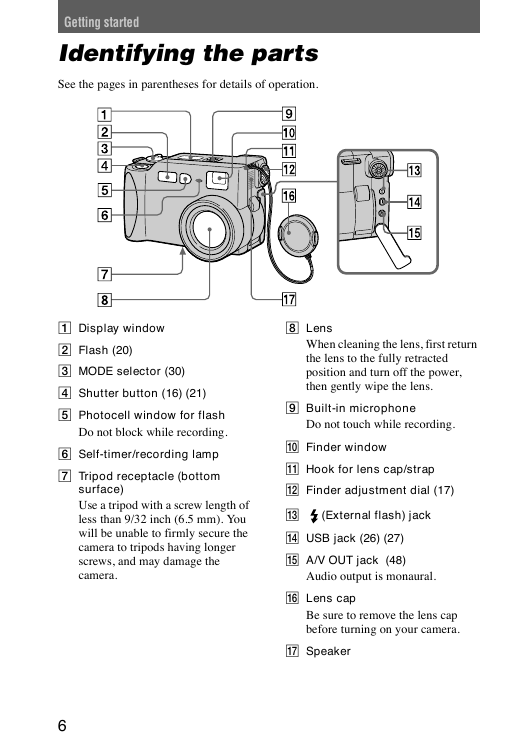

Identifying the parts

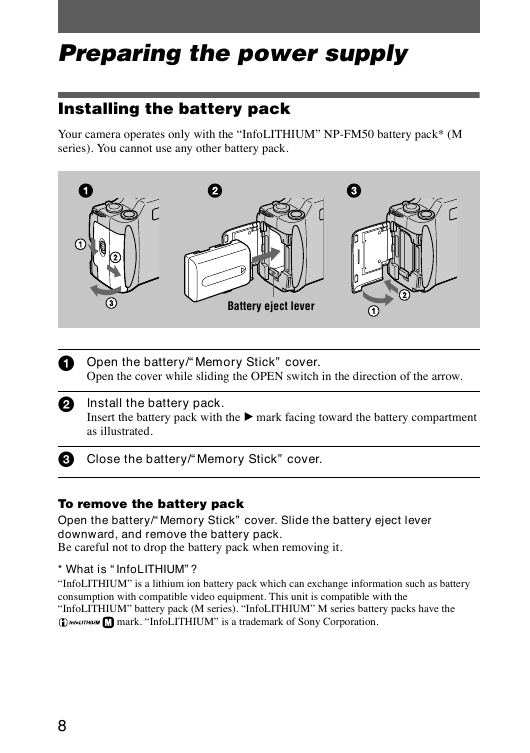

Preparing the power supply
Installing the battery pack
Charging the battery pack
Charging time
Battery life and number of images that can be recorded/played back
STILL mode recording*
MOVIE mode recording
Using the AC power adaptor
Setting the date and time
Inserting the “Memory Stick”
Removing the “Memory Stick”
Basic operations
Recording still images
Recording images with the finder
To turn off the LCD screen
Checking the last recorded image (Quick Review)
Using the zoom feature
Using digital zoom
LCD screen indicators during recording
Using the self-timer
Recording images with the flash
Recording moving images
Zooming or using the self-timer, etc.
LCD screen indicators during recording
Playing back still images
LCD screen indicators during still image playback
Playing back moving images
Adjusting the volume
LCD screen indicators during moving image playback
Viewing images using a personal computer
Recommended computer environment
Installing the USB driver
Viewing images
For Windows98 users
Notes on using your personal computer
Image file storage destinations and image files
For Windows98 users (The drive recognizing the camera is “D.”)
Advanced operations
How to use the MODE selector
How to use the control button
Turning on/off the operation buttons (menu bar) on the LCD screen
Selecting items and images on the LCD screen
How to change the menu settings
To clear the menu
Menu settings
(SELF TIMER)
EFFECT
FILE
CAMERA
TOOL
SETUP
INDEX*
DELETE
3 (RETURN)**
Setting the image size (IMAGE SIZE)
When [2048 (3:2)] is selected
Recording still images for e-mail (E- MAIL)
To return to normal recording mode
Adding audio files to still images (VOICE)
To return to normal recording mode
Recording text documents (TEXT)
To return to normal recording mode
Recording uncompressed images (TIFF)
To return to normal recording mode
Recording images in macro
To return to normal recording mode
Setting the distance to the subject
To reactivate auto focusing
Using the PROGRAM AE function
To cancel PROGRAM AE
Adjusting the exposure (EXPOSURE)
Adjusting the white balance (WHITE BALANCE)
To reactivate auto adjustment
Recording the date and time on the still image (DATE/TIME)
Enjoying picture effects (P.EFFECT)
To cancel picture effect
Playing back six images at once (INDEX)
To display the next (previous) index screen
To return to normal playback (single image)
Enlarging a part of the still image (Zoom and trimming)
To return to the normal size
To record an enlarged image (trimming)
Rotating a still image (ROTATE)
Playing back the images in order (SLIDE SHOW)
To cancel the slide show
To skip to the next/previous image during slide show playback
Viewing images on a TV screen
Preventing accidental erasure (PROTECT)
In single mode
To release protection
In INDEX mode
To release protection
Deleting images (DELETE)
In single mode
In INDEX mode
To cancel deleting
Changing the recorded still image size (RESIZE)
To return to the original size
Copying images (COPY)
In single mode
To copy the image to another “Memory Stick”
In INDEX mode
To copy the image to another “Memory Stick”
To cancel copying part-way
Selecting still images to print (PRINT MARK)
In single mode
To unmark the print mark
In INDEX mode
To unmark selected print marks
To unmark all the print marks
Additional information
Precautions
On cleaning
Note on operating temperature
On moisture condensation
On AC power adaptor
On battery pack
On internal rechargeable button battery
On “Memory Sticks”
Using your camera abroad
Troubleshooting
Warning and notice messages
Self-diagnosis display
When a self-diagnosis display appears
Specifications
Display window indicators
LCD screen indicators
The indicators during recording
When playing back still images
When playing back moving images
Index

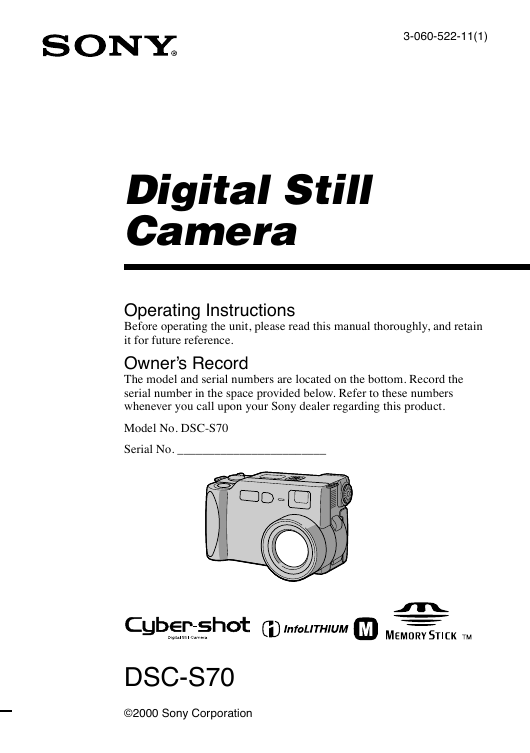

3-060-522-11(1)
Digital Still
Camera
Operating Instructions
Before operating the unit, please read this manual thoroughly, and retain
it for future reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record the
serial number in the space provided below. Refer to these numbers
whenever you call upon your Sony dealer regarding this product.
Model No. DSC-S70
Serial No. ________________________
DSC-S70
©2000 Sony Corporation

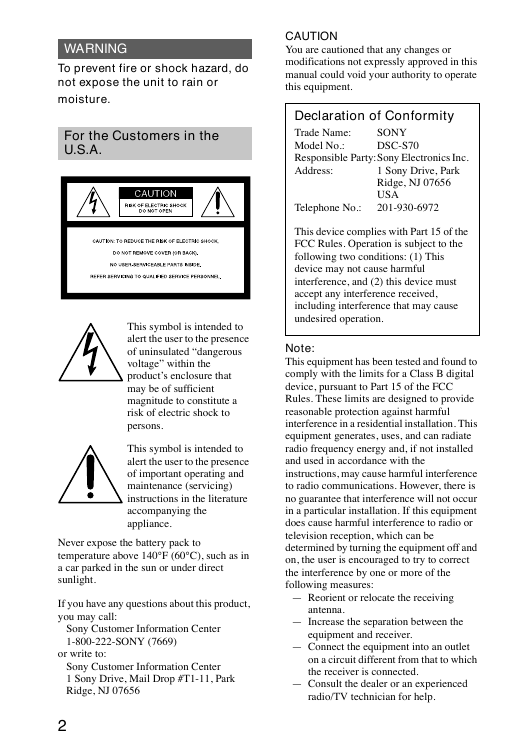

WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
For the Customers in the
U.S.A.
This symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the
product’s enclosure that
may be of sufficient
magnitude to constitute a
risk of electric shock to
persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the
appliance.
Never expose the battery pack to
temperature above 140°F (60°C), such as in
a car parked in the sun or under direct
sunlight.
If you have any questions about this product,
you may call:
Sony Customer Information Center
1-800-222-SONY (7669)
or write to:
Sony Customer Information Center
1 Sony Drive, Mail Drop #T1-11, Park
Ridge, NJ 07656
2
CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Declaration of Conformity
Trade Name:
Model No.:
Responsible Party:Sony Electronics Inc.
Address:
SONY
DSC-S70
1 Sony Drive, Park
Ridge, NJ 07656
USA
201-930-6972
Telephone No.:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This
device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Note:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one or more of the
following measures:
— Reorient or relocate the receiving
antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help.
The shielded interface cable recommended
in this manual must be used with this
equipment in order to comply with the limits
for a digital device pursuant to Subpart B of
Part 15 of FCC Rules.

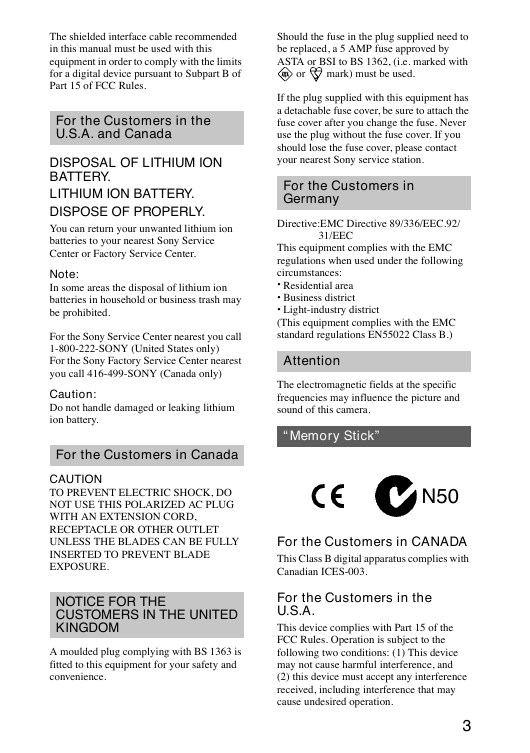

For the Customers in the
U.S.A. and Canada
DISPOSAL OF LITHIUM ION
BATTERY.
LITHIUM ION BATTERY.
DISPOSE OF PROPERLY.
You can return your unwanted lithium ion
batteries to your nearest Sony Service
Center or Factory Service Center.
Note:
In some areas the disposal of lithium ion
batteries in household or business trash may
be prohibited.
For the Sony Service Center nearest you call
1-800-222-SONY (United States only)
For the Sony Factory Service Center nearest
you call 416-499-SONY (Canada only)
Caution:
Do not handle damaged or leaking lithium
ion battery.
Should the fuse in the plug supplied need to
be replaced, a 5 AMP fuse approved by
ASTA or BSI to BS 1362, (i.e. marked with
or
mark) must be used.
If the plug supplied with this equipment has
a detachable fuse cover, be sure to attach the
fuse cover after you change the fuse. Never
use the plug without the fuse cover. If you
should lose the fuse cover, please contact
your nearest Sony service station.
For the Customers in
Germany
Directive:EMC Directive 89/336/EEC.92/
31/EEC
This equipment complies with the EMC
regulations when used under the following
circumstances:
• Residential area
Business district
Light-industry district
(This equipment complies with the EMC
standard regulations EN55022 Class B.)
Attention
The electromagnetic fields at the specific
frequencies may influence the picture and
sound of this camera.
“Memory Stick”
For the Customers in Canada
CAUTION
TO PREVENT ELECTRIC SHOCK, DO
NOT USE THIS POLARIZED AC PLUG
WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE
EXPOSURE.
NOTICE FOR THE
CUSTOMERS IN THE UNITED
KINGDOM
A moulded plug complying with BS 1363 is
fitted to this equipment for your safety and
convenience.
N50
For the Customers in CANADA
This Class B digital apparatus complies with
Canadian ICES-003.
For the Customers in the
U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
3
LCD screen and lens
The LCD screen is manufactured using
high-precision technology. However, there
may be some tiny black points and/or
bright points (red, blue or green in color)
that constantly appear on the LCD screen.
These points are normal in the
manufacturing process and do not affect
the recording in any way. Over 99.99% of
the pixels are operational for effective use.
Be careful when placing the camera near a
window or outdoors. Exposing the LCD
screen or the lens to direct sunlight for
long periods may cause malfunctions.
Do not get the camera wet
When taking pictures outdoors in the rain or
under similar conditions, be careful not to
get the camera wet. If moisture
condensation occurs, refer to page 54 and
follow the instructions on how to remove it
before using the camera.
Back up recommendation
To avoid the potential risk of data loss,
always copy (back up) data to a disk.
Handling of the movable lens
This camera uses a movable lens.
Be careful not to strike or apply excessive
force to the lens portion.
About the Carl Zeiss lens
This camera is equipped with a Carl Zeiss
lens which is capable of reproducing fine
images. The lens for this camera uses the
MTF* measurement system for cameras
developed jointly by Carl Zeiss, in
Germany, and Sony Corporation, and
offers the same quality as other Carl
Zeiss lenses.
∗ MTF is the abbreviation of Modulation
Transfer Function/Factor, a numeric
value indicating the ability to reproduce
the subject contrast.
Be sure to read the following
before using your camera
Trial recording
Before you record one-time events, you may
want to make a trial recording to make sure
that the camera is working correctly.
No compensation for contents of
the recording
Contents of the recording cannot be
compensated for if recording or playback is
not possible due to a malfunction of your
camera, etc.
Notes on image data compatibility
This camera conforms with the Design
Rules for Camera File Systems universal
standard established by the JEIDA (Japan
Electronic Industries Development
Association). You cannot play back on
your camera still images recorded on other
equipment (DCR-TRV890/TRV900/
TRV900E, DSC-D700, DSC-D770) that
does not conform with this universal
standard. (These models are not sold in
some areas.)
Playback of images recorded with your
camera on other equipment and playback
of images recorded or edited with other
equipment on your camera are not
guaranteed.
Precaution on copyright
Television programs, films, video tapes, and
other materials may be copyrighted.
Unauthorized recording of such materials
may be contrary to the provision of the
copyright laws.
Do not shake or strike the camera
In addition to malfunctions and inability to
record images, this may render the
“Memory Stick” unusable or image data
breakdown, damage or loss may occur.
Do not aim the camera at the sun
or other bright light
This may cause irrecoverable damage to
your eyes.
4

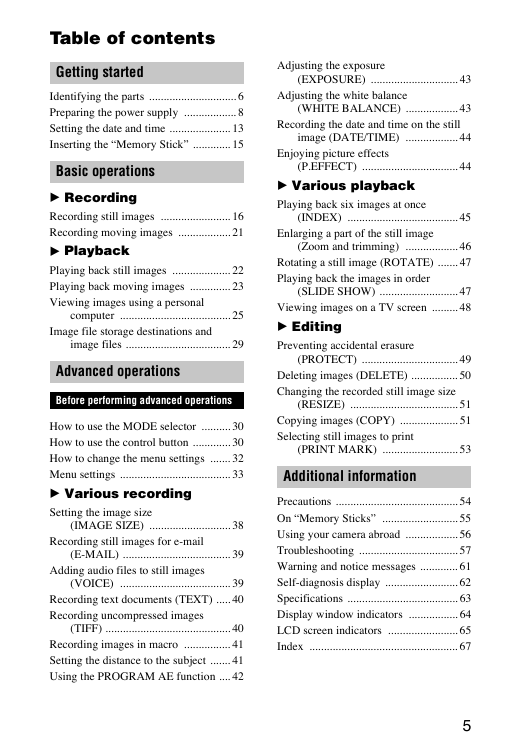

Table of contents
Getting started
Identifying the parts .............................. 6
Preparing the power supply .................. 8
Setting the date and time ..................... 13
Inserting the “Memory Stick” ............. 15
Basic operations
B Recording
Recording still images ........................ 16
Recording moving images .................. 21
B Playback
Playing back still images .................... 22
Playing back moving images .............. 23
Viewing images using a personal
computer ...................................... 25
Image file storage destinations and
image files .................................... 29
Advanced operations
Before performing advanced operations
How to use the MODE selector .......... 30
How to use the control button ............. 30
How to change the menu settings ....... 32
Menu settings ...................................... 33
B Various recording
Setting the image size
(IMAGE SIZE) ............................ 38
Recording still images for e-mail
(E-MAIL) ..................................... 39
Adding audio files to still images
(VOICE) ...................................... 39
Recording text documents (TEXT) ..... 40
Recording uncompressed images
(TIFF) ........................................... 40
Recording images in macro ................ 41
Setting the distance to the subject ....... 41
Using the PROGRAM AE function .... 42
Adjusting the exposure
(EXPOSURE) .............................. 43
Adjusting the white balance
(WHITE BALANCE) .................. 43
Recording the date and time on the still
image (DATE/TIME) .................. 44
Enjoying picture effects
(P.EFFECT) ................................. 44
B Various playback
Playing back six images at once
(INDEX) ...................................... 45
Enlarging a part of the still image
(Zoom and trimming) .................. 46
Rotating a still image (ROTATE) ....... 47
Playing back the images in order
(SLIDE SHOW) ........................... 47
Viewing images on a TV screen ......... 48
B Editing
Preventing accidental erasure
(PROTECT) ................................. 49
Deleting images (DELETE) ................ 50
Changing the recorded still image size
(RESIZE) ..................................... 51
Copying images (COPY) .................... 51
Selecting still images to print
(PRINT MARK) .......................... 53
Additional information
Precautions .......................................... 54
On “Memory Sticks” .......................... 55
Using your camera abroad .................. 56
Troubleshooting .................................. 57
Warning and notice messages ............. 61
Self-diagnosis display ......................... 62
Specifications ...................................... 63
Display window indicators ................. 64
LCD screen indicators ........................ 65
Index ................................................... 67
5
Getting started
Identifying the parts
See the pages in parentheses for details of operation.
A Display window
B Flash (20)
C MODE selector (30)
D Shutter button (16) (21)
E Photocell window for flash
Do not block while recording.
F Self-timer/recording lamp
G Tripod receptacle (bottom
surface)
Use a tripod with a screw length of
less than 9/32 inch (6.5 mm). You
will be unable to firmly secure the
camera to tripods having longer
screws, and may damage the
camera.
H Lens
When cleaning the lens, first return
the lens to the fully retracted
position and turn off the power,
then gently wipe the lens.
I Built-in microphone
Do not touch while recording.
J Finder window
K Hook for lens cap/strap
L Finder adjustment dial (17)
M (External flash) jack
N USB jack (26) (27)
O A/V OUT jack (48)
Audio output is monaural.
P Lens cap
Be sure to remove the lens cap
before turning on your camera.
Q Speaker
6
Attaching the strap
G
e
t
t
i
n
g
s
t
a
r
t
e
d
A PROGRAM AE button (42)
B LCD ON/OFF button
C Finder
Self-timer/recording lamp (red)
AE lock lamp (green)
Strobe charge lamp (orange)
D FOCUS button (41)
E Flash button
F LCD screen
G POWER switch
H VOLUME +/– button
PROGRAM AE +/– button
I DISPLAY button
J Hook for lens cap/strap
K Zoom button
L Access lamp (15)
M Battery/“Memory Stick” cover
N Battery eject lever (8)
O OPEN switch
P Control button
Q DC IN jack (9) (12)
R POWER lamp
7
Preparing the power supply
Installing the battery pack
Your camera operates only with the “InfoLITHIUM” NP-FM50 battery pack* (M
series). You cannot use any other battery pack.
Battery eject lever
1 Open the battery/“Memory Stick” cover.
Open the cover while sliding the OPEN switch in the direction of the arrow.
2 Install the battery pack.
Insert the battery pack with the B mark facing toward the battery compartment
as illustrated.
3 Close the battery/“Memory Stick” cover.
To remove the battery pack
Open the battery/“Memory Stick” cover. Slide the battery eject lever
downward, and remove the battery pack.
Be careful not to drop the battery pack when removing it.
* What is “InfoLITHIUM”?
“InfoLITHIUM” is a lithium ion battery pack which can exchange information such as battery
consumption with compatible video equipment. This unit is compatible with the
“InfoLITHIUM” battery pack (M series). “InfoLITHIUM” M series battery packs have the
mark. “InfoLITHIUM” is a trademark of Sony Corporation.
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
