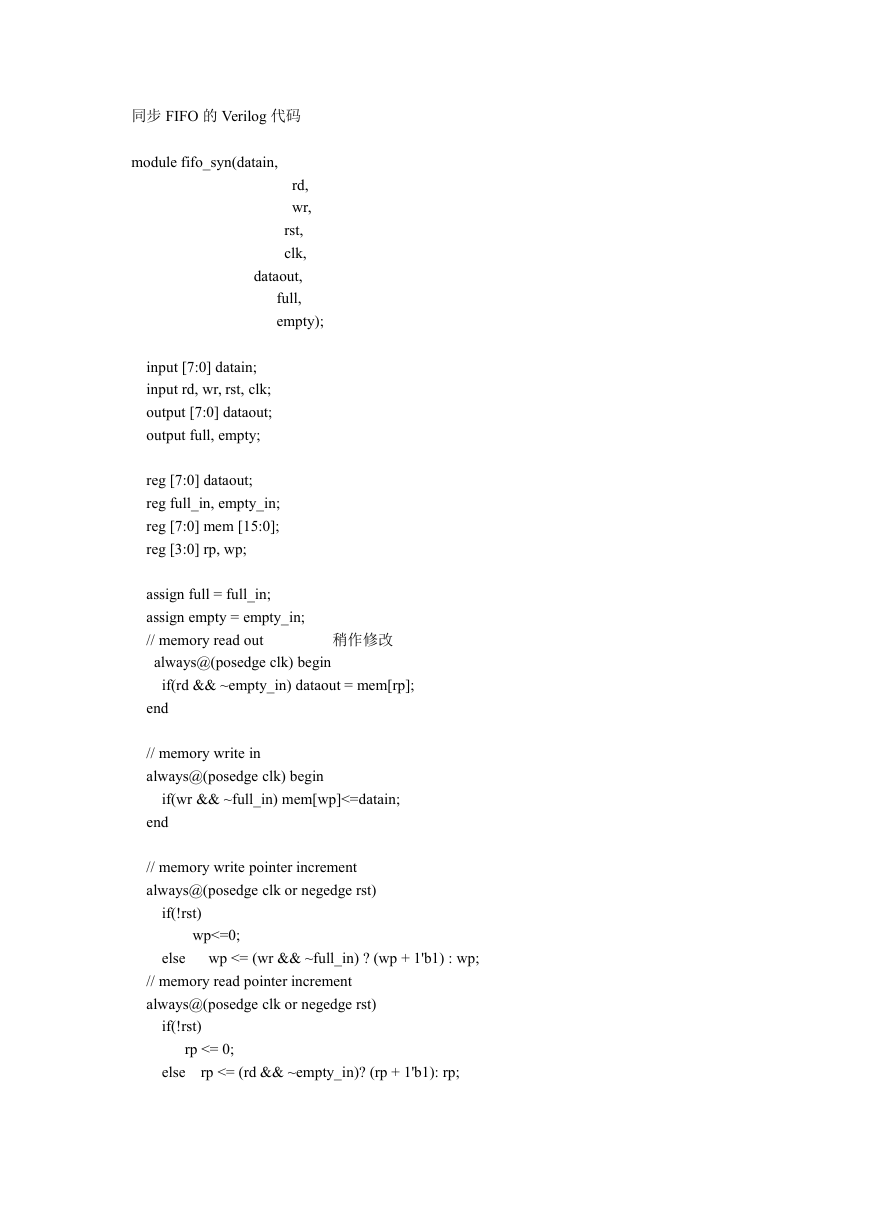

同步 FIFO 的 Verilog 代码 module fifo_syn(datain, rd, wr, rst, clk, dataout, full, empty); input [7:0] datain; input rd, wr, rst, clk; output [7:0] dataout; output full, empty; reg [7:0] dataout; reg full_in, empty_in; reg [7:0] mem [15:0]; reg [3:0] rp, wp; assign full = full_in; assign empty = empty_in; // memory read out always@(posedge clk) begin if(rd && ~empty_in) dataout = mem[rp]; 稍作修改 end // memory write in always@(posedge clk) begin if(wr && ~full_in) mem[wp]<=datain; end // memory write pointer increment always@(posedge clk or negedge rst) if(!rst) wp<=0; else wp <= (wr && ~full_in) ? (wp + 1'b1) : wp; // memory read pointer increment always@(posedge clk or negedge rst) if(!rst) rp <= 0; else rp <= (rd && ~empty_in)? (rp + 1'b1): rp; 

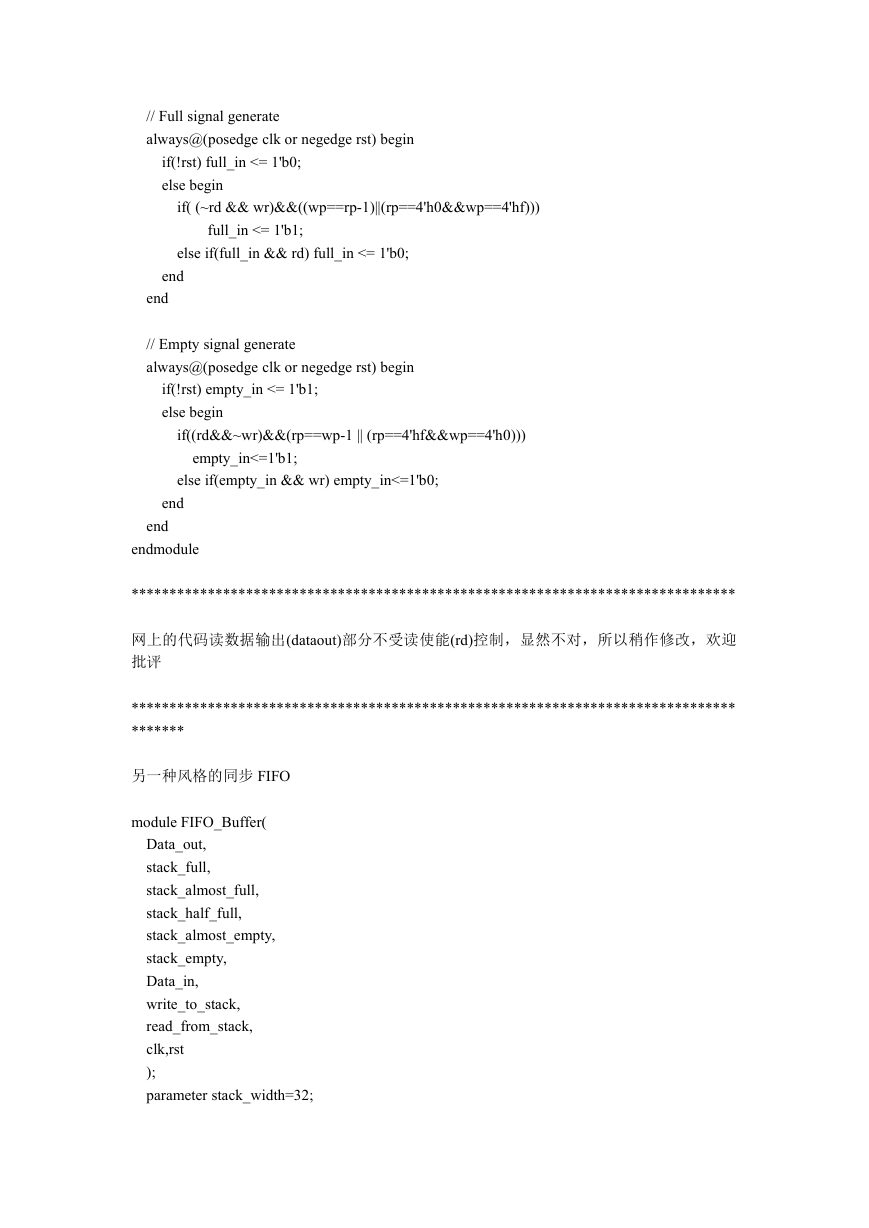

// Full signal generate always@(posedge clk or negedge rst) begin if(!rst) full_in <= 1'b0; else begin if( (~rd && wr)&&((wp==rp-1)||(rp==4'h0&&wp==4'hf))) full_in <= 1'b1; else if(full_in && rd) full_in <= 1'b0; end end // Empty signal generate always@(posedge clk or negedge rst) begin if(!rst) empty_in <= 1'b1; else begin if((rd&&~wr)&&(rp==wp-1 || (rp==4'hf&&wp==4'h0))) empty_in<=1'b1; else if(empty_in && wr) empty_in<=1'b0; end end endmodule ******************************************************************************* 网上的代码读数据输出(dataout)部分不受读使能(rd)控制，显然不对，所以稍作修改，欢迎 批评 ******************************************************************************* ******* 另一种风格的同步 FIFO module FIFO_Buffer( Data_out, stack_full, stack_almost_full, stack_half_full, stack_almost_empty, stack_empty, Data_in, write_to_stack, read_from_stack, clk,rst ); parameter stack_width=32; 

parameter stack_height=8; parameter stack_ptr_width=3; parameter AE_level=2; parameter AF_level=6; parameter HF_level=4; output [stack_width-1:0] Data_out; output output input[stack_width-1:0] Data_in; input input stack_full,stack_almost_full,stack_half_full; stack_almost_empty,stack_empty; write_to_stack,read_from_stack; clk,rst; reg[stack_ptr_width-1:0] read_ptr,write_ptr; reg[stack_ptr_width:0] reg[stack_width-1:0] reg[stack_width-1:0] ptr_gap; Data_out; stack[stack_height-1:0]; assign stack_full=(ptr_gap==stack_height); assign stack_almost_full=(ptr_gap==AF_level); assign stack_half_full=(ptr_gap==HF_level); assign stack_almost_empty=(ptr_gap==AE_level); assign stack_empty=(ptr_gap==0); always @(posedge clk or posedge rst) if(rst)begin Data_out<=0; read_ptr<=0; write_ptr<=0; ptr_gap<=0; end else if(write_to_stack &&(!stack_full)&&(!read_from_stack))begin stack[write_ptr]<=Data_in; write_ptr<=write_ptr+1; ptr_gap<=ptr_gap+1; end else if((!write_to_stack)&&(!stack_empty)&&read_from_stack)begin Data_out<=stack[read_ptr]; read_ptr<=read_ptr+1; ptr_gap<=ptr_gap-1; end else if(write_to_stack &&read_from_stack&&stack_empty)begin stack[write_ptr]<=Data_in; 

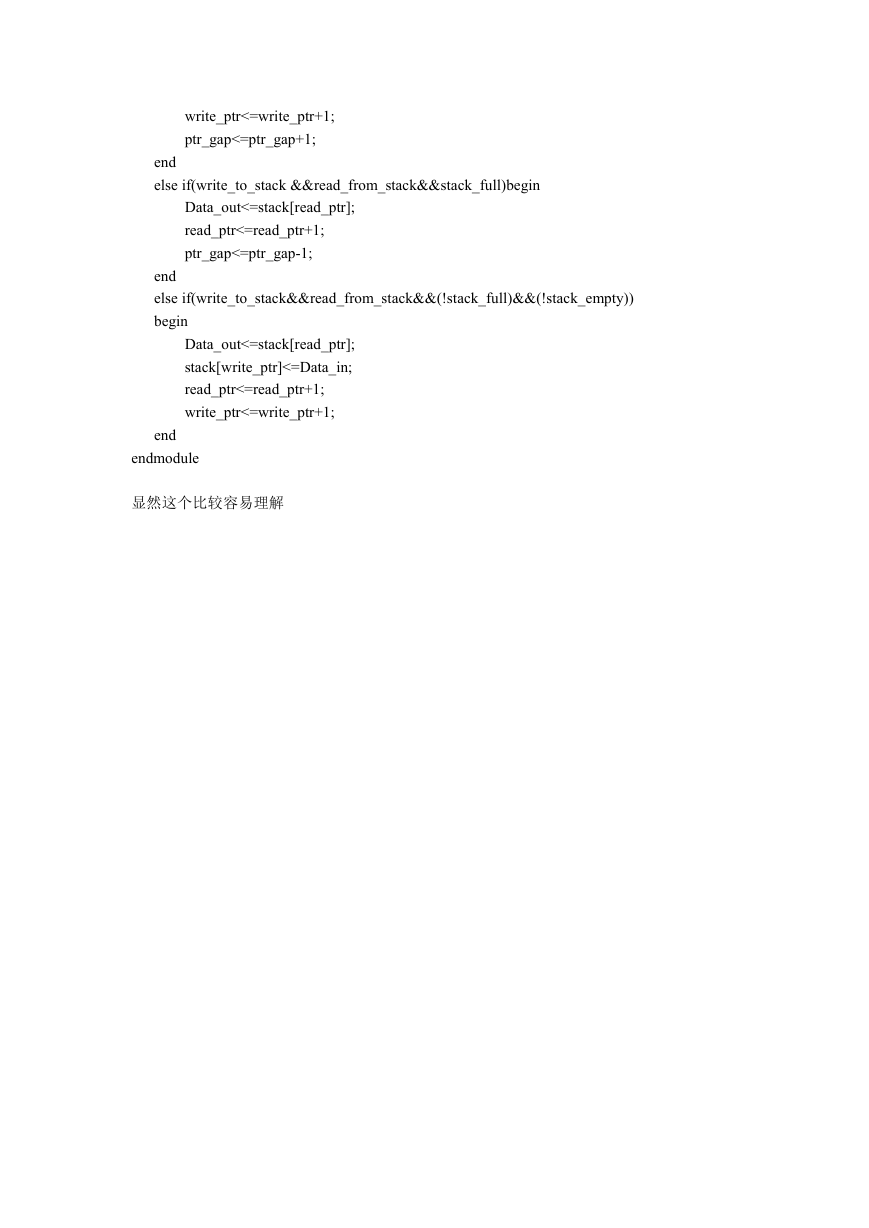

write_ptr<=write_ptr+1; ptr_gap<=ptr_gap+1; end else if(write_to_stack &&read_from_stack&&stack_full)begin Data_out<=stack[read_ptr]; read_ptr<=read_ptr+1; ptr_gap<=ptr_gap-1; end else if(write_to_stack&&read_from_stack&&(!stack_full)&&(!stack_empty)) begin Data_out<=stack[read_ptr]; stack[write_ptr]<=Data_in; read_ptr<=read_ptr+1; write_ptr<=write_ptr+1; end endmodule 显然这个比较容易理解
