操作：文档是属于实操性的文档，不会有很多图，但都是验证过的，绝对通过。安装 git :apt_get install git 下载 u-boot 源码：https://github.com/Xilinx/u-boot-xlnx.git（在 release 中下载对应的版本）下载 linux kernel 源码: https://github.com/Xilinx/linux-xlnx.git（在 release 中下载对应的版本）下载 arm_ramdisk.image.gz 根文件系统：https://xilinx- wiki.atlassian.net/wiki/spaces/A/pages/18842473/Build+and+Modify+a+Rootfs 管理员权限下： source /opt/Xilinx/Vivado/2017.04/settings64.sh 制作 u-boot.elf:（CROSS_COMPILE=arm-linux-gnueabihf-参数在不同的版本下是不同的）( zynq_zybo_defconfig 这个参数是公板信息，从./configs 文件夹中寻找，找到于自己手中开发板一样或者相近的型号) cd u-boot 源码 make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- zynq_zybo_defconfig make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- （生成 uboot）制作 uImage： cd kernel 源码

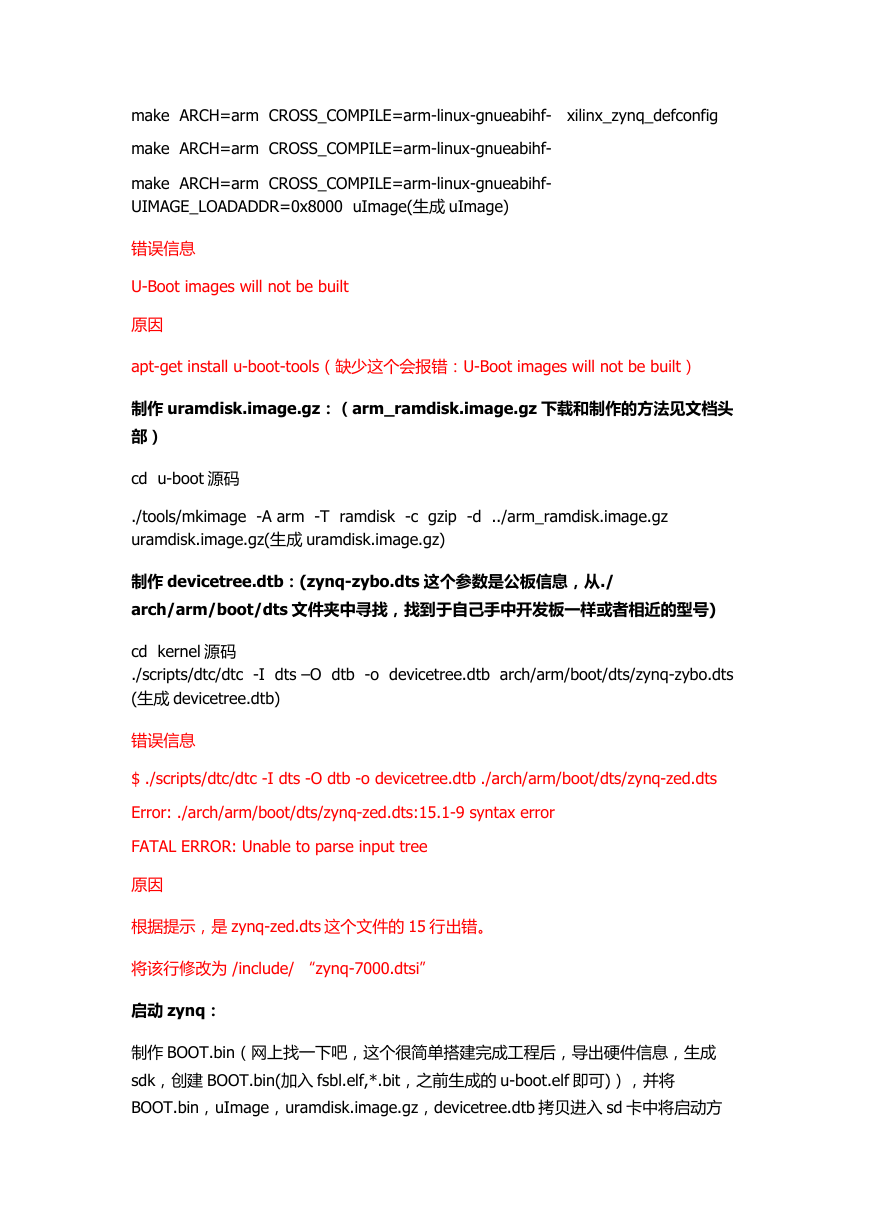

make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- xilinx_zynq_defconfig make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- make ARCH=arm CROSS_COMPILE=arm-linux-gnueabihf- UIMAGE_LOADADDR=0x8000 uImage(生成 uImage) 错误信息 U-Boot images will not be built 原因 apt-get install u-boot-tools（缺少这个会报错：U-Boot images will not be built）制作 uramdisk.image.gz：（arm_ramdisk.image.gz 下载和制作的方法见文档头部） cd u-boot 源码 ./tools/mkimage -A arm -T ramdisk -c gzip -d ../arm_ramdisk.image.gz uramdisk.image.gz(生成 uramdisk.image.gz) 制作 devicetree.dtb：(zynq-zybo.dts 这个参数是公板信息，从./ arch/arm/boot/dts 文件夹中寻找，找到于自己手中开发板一样或者相近的型号) cd kernel 源码 ./scripts/dtc/dtc -I dts –O dtb -o devicetree.dtb arch/arm/boot/dts/zynq-zybo.dts (生成 devicetree.dtb) 错误信息 $ ./scripts/dtc/dtc -I dts -O dtb -o devicetree.dtb ./arch/arm/boot/dts/zynq-zed.dts Error: ./arch/arm/boot/dts/zynq-zed.dts:15.1-9 syntax error FATAL ERROR: Unable to parse input tree 原因根据提示，是 zynq-zed.dts 这个文件的 15 行出错。将该行修改为 /include/ “zynq-7000.dtsi” 启动 zynq：制作 BOOT.bin（网上找一下吧，这个很简单搭建完成工程后，导出硬件信息，生成 sdk，创建 BOOT.bin(加入 fsbl.elf,*.bit，之前生成的 u-boot.elf 即可)），并将 BOOT.bin，uImage，uramdisk.image.gz，devicetree.dtb 拷贝进入 sd 卡中将启动方

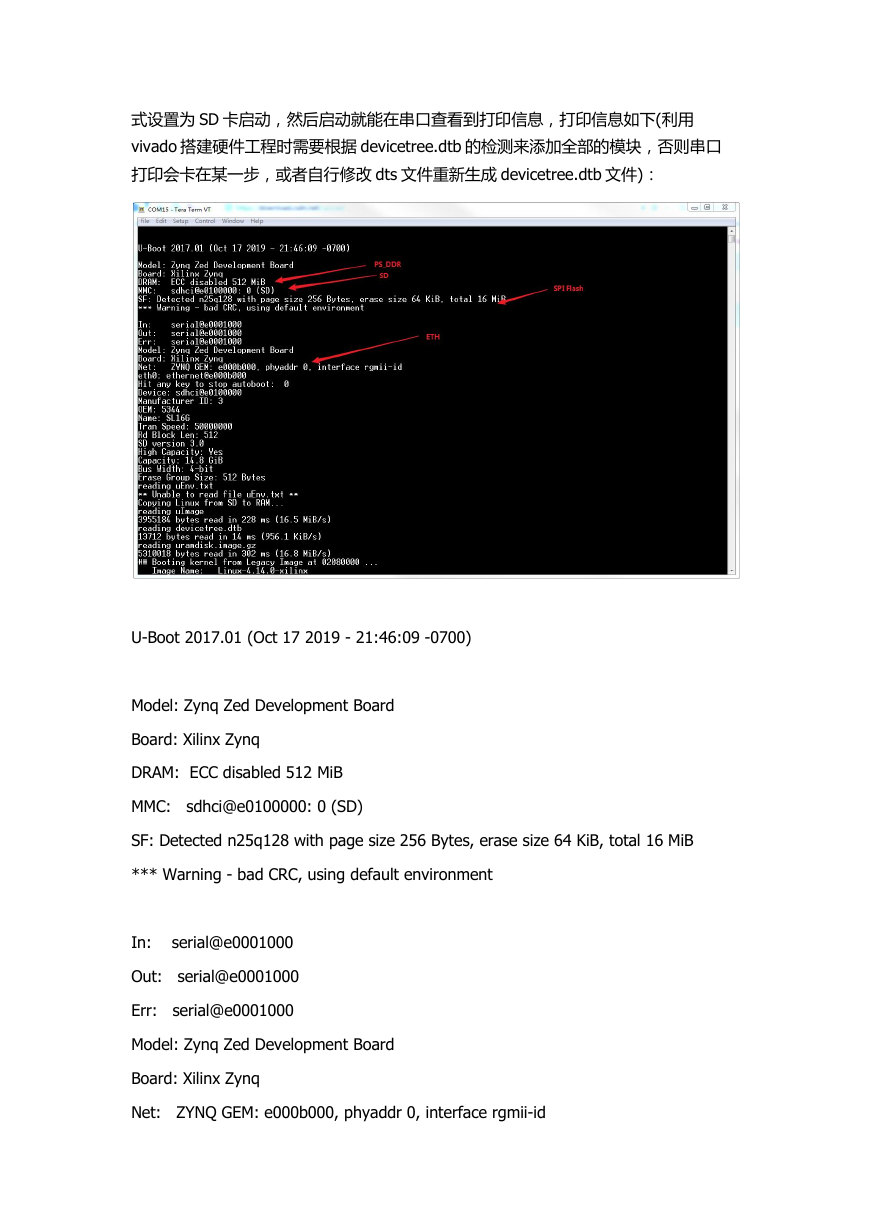

式设置为 SD 卡启动，然后启动就能在串口查看到打印信息，打印信息如下(利用 vivado 搭建硬件工程时需要根据 devicetree.dtb 的检测来添加全部的模块，否则串口打印会卡在某一步，或者自行修改 dts 文件重新生成 devicetree.dtb 文件)： U-Boot 2017.01 (Oct 17 2019 - 21:46:09 -0700) Model: Zynq Zed Development Board Board: Xilinx Zynq DRAM: ECC disabled 512 MiB MMC: SF: Detected n25q128 with page size 256 Bytes, erase size 64 KiB, total 16 MiB *** Warning - bad CRC, using default environment sdhci@e0100000: 0 (SD) serial@e0001000 serial@e0001000 serial@e0001000 In: Out: Err: Model: Zynq Zed Development Board Board: Xilinx Zynq Net: ZYNQ GEM: e000b000, phyaddr 0, interface rgmii-id

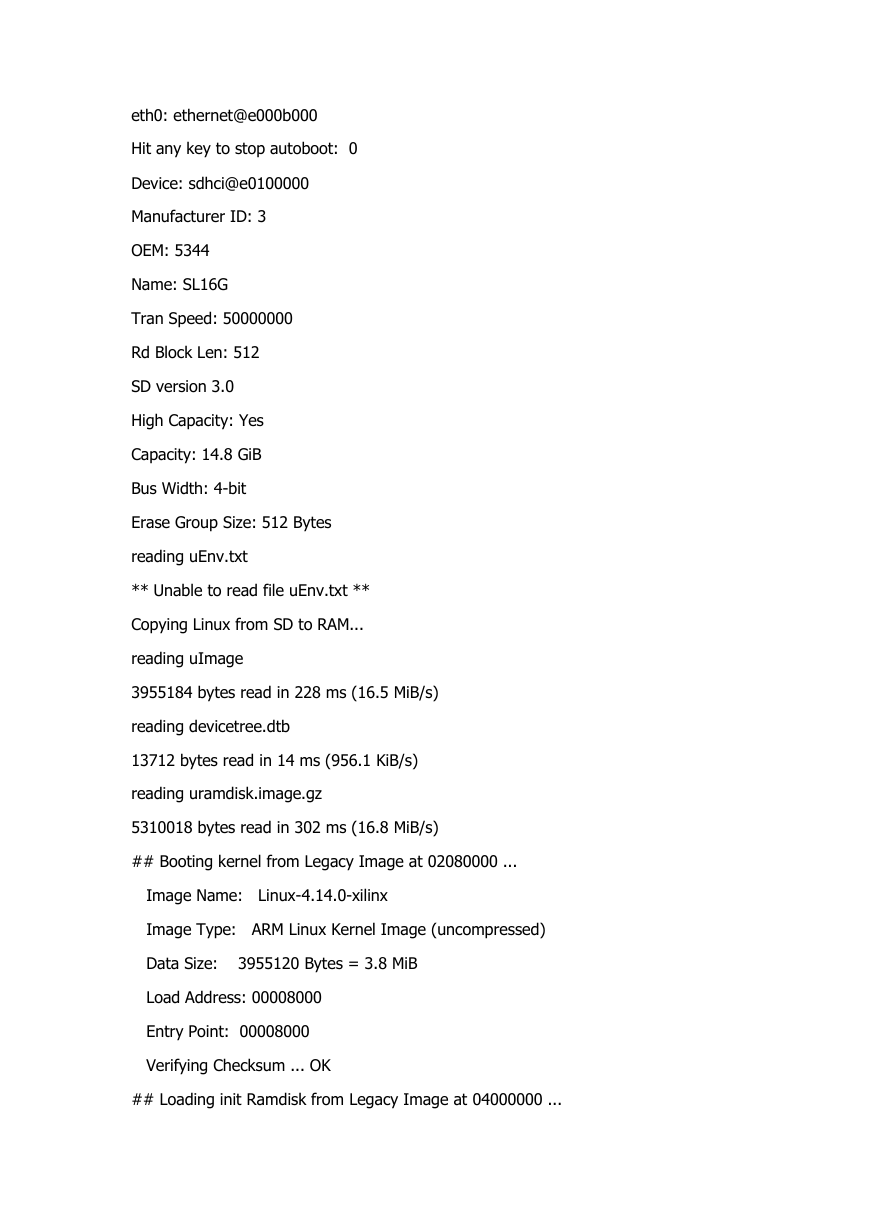

eth0: ethernet@e000b000 Hit any key to stop autoboot: 0 Device: sdhci@e0100000 Manufacturer ID: 3 OEM: 5344 Name: SL16G Tran Speed: 50000000 Rd Block Len: 512 SD version 3.0 High Capacity: Yes Capacity: 14.8 GiB Bus Width: 4-bit Erase Group Size: 512 Bytes reading uEnv.txt ** Unable to read file uEnv.txt ** Copying Linux from SD to RAM... reading uImage 3955184 bytes read in 228 ms (16.5 MiB/s) reading devicetree.dtb 13712 bytes read in 14 ms (956.1 KiB/s) reading uramdisk.image.gz 5310018 bytes read in 302 ms (16.8 MiB/s) ## Booting kernel from Legacy Image at 02080000 ... 3955120 Bytes = 3.8 MiB Image Name: Linux-4.14.0-xilinx Image Type: ARM Linux Kernel Image (uncompressed) Data Size: Load Address: 00008000 Entry Point: 00008000 Verifying Checksum ... OK ## Loading init Ramdisk from Legacy Image at 04000000 ...

5309954 Bytes = 5.1 MiB Image Name: Image Type: ARM Linux RAMDisk Image (gzip compressed) Data Size: Load Address: 00000000 Entry Point: 00000000 Verifying Checksum ... OK ## Flattened Device Tree blob at 02000000 Booting using the fdt blob at 0x2000000 Loading Kernel Image ... OK Loading Ramdisk to 1e614000, end 1eb24602 ... OK Loading Device Tree to 1e60d000, end 1e61358f ... OK Starting kernel ... Booting Linux on physical CPU 0x0 Linux version 4.14.0-xilinx (root@ubuntu) (gcc version 6.2.1 20161114 (Linaro GCC Snapshot 6.2-2016.11)) #1 SMP PREEMPT Wed Oct 16 20:05:41 PDT 2019 CPU: ARMv7 Processor [413fc090] revision 0 (ARMv7), cr=18c5387d CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache OF: fdt: Machine model: Zynq ZC706 Development Board Memory policy: Data cache writealloc cma: Reserved 16 MiB at 0x1f000000 percpu: Embedded 16 pages/cpu @debc3000 s34764 r8192 d22580 u65536 Built 1 zonelists, mobility grouping on. Total pages: 130048 Kernel command line: PID hash table entries: 2048 (order: 1, 8192 bytes) Dentry cache hash table entries: 65536 (order: 6, 262144 bytes) Inode-cache hash table entries: 32768 (order: 5, 131072 bytes) Memory: 487852K/524288K available (6144K kernel code, 238K rwdata, 1560K rodata, 1024K init, 153K bss, 20052K reserved, 16384K cma-reserved, 0K highmem) Virtual kernel memory layout:

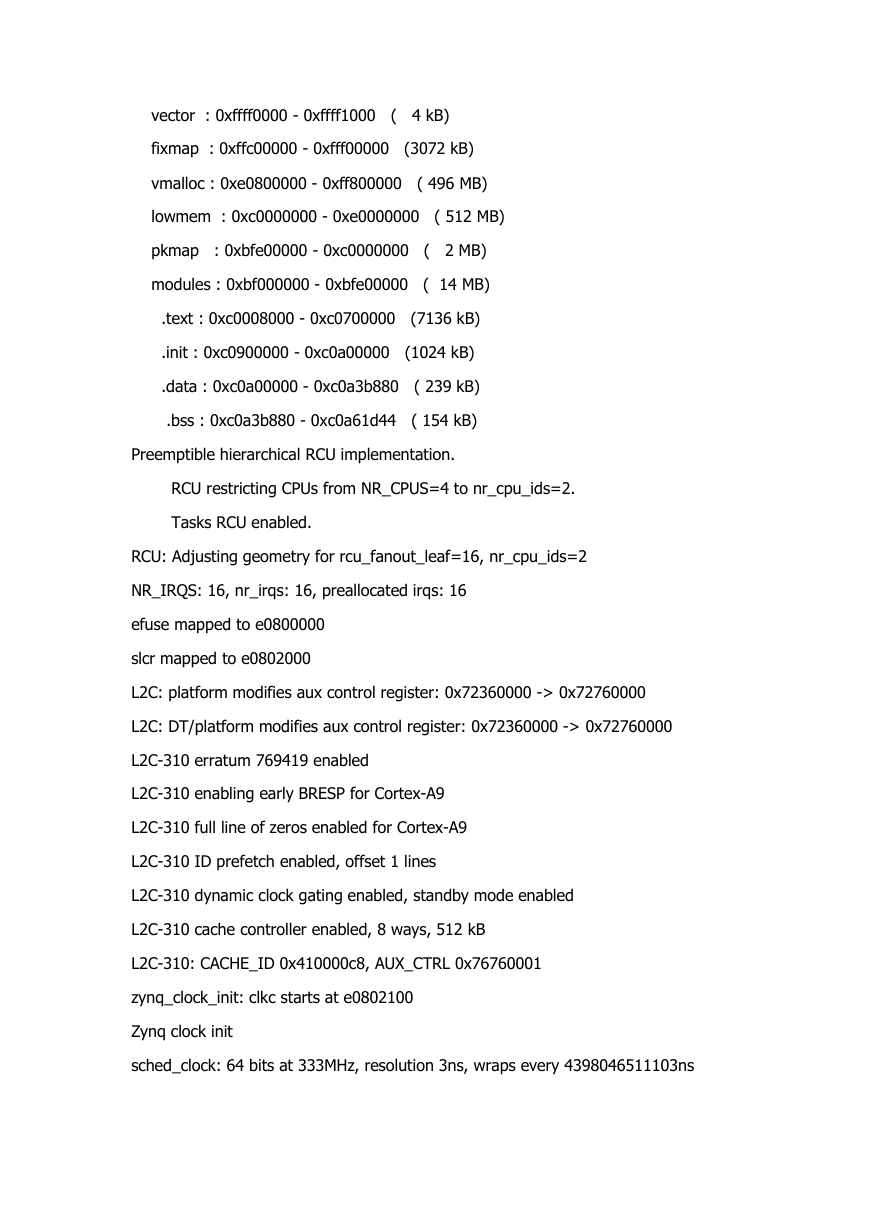

vector : 0xffff0000 - 0xffff1000 ( 4 kB) fixmap : 0xffc00000 - 0xfff00000 (3072 kB) vmalloc : 0xe0800000 - 0xff800000 ( 496 MB) lowmem : 0xc0000000 - 0xe0000000 ( 512 MB) pkmap : 0xbfe00000 - 0xc0000000 ( 2 MB) modules : 0xbf000000 - 0xbfe00000 ( 14 MB) .text : 0xc0008000 - 0xc0700000 (7136 kB) .init : 0xc0900000 - 0xc0a00000 (1024 kB) .data : 0xc0a00000 - 0xc0a3b880 ( 239 kB) .bss : 0xc0a3b880 - 0xc0a61d44 ( 154 kB) Preemptible hierarchical RCU implementation. RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2. Tasks RCU enabled. RCU: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=2 NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16 efuse mapped to e0800000 slcr mapped to e0802000 L2C: platform modifies aux control register: 0x72360000 -> 0x72760000 L2C: DT/platform modifies aux control register: 0x72360000 -> 0x72760000 L2C-310 erratum 769419 enabled L2C-310 enabling early BRESP for Cortex-A9 L2C-310 full line of zeros enabled for Cortex-A9 L2C-310 ID prefetch enabled, offset 1 lines L2C-310 dynamic clock gating enabled, standby mode enabled L2C-310 cache controller enabled, 8 ways, 512 kB L2C-310: CACHE_ID 0x410000c8, AUX_CTRL 0x76760001 zynq_clock_init: clkc starts at e0802100 Zynq clock init sched_clock: 64 bits at 333MHz, resolution 3ns, wraps every 4398046511103ns

clocksource: arm_global_timer: mask: 0xffffffffffffffff max_cycles: 0x4ce07af025, max_idle_ns: 440795209040 ns Switching to timer-based delay loop, resolution 3ns clocksource: ttc_clocksource: mask: 0xffff max_cycles: 0xffff, max_idle_ns: 537538477 ns timer #0 at e080a000, irq=17 Console: colour dummy device 80x30 console [tty0] enabled Calibrating delay loop (skipped), value calculated using timer frequency.. 666.66 BogoMIPS (lpj=3333333) pid_max: default: 32768 minimum: 301 Mount-cache hash table entries: 1024 (order: 0, 4096 bytes) Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes) CPU: Testing write buffer coherency: ok CPU0: thread -1, cpu 0, socket 0, mpidr 80000000 Setting up static identity map for 0x100000 - 0x100060 Hierarchical SRCU implementation. smp: Bringing up secondary CPUs ... CPU1: thread -1, cpu 1, socket 0, mpidr 80000001 smp: Brought up 1 node, 2 CPUs SMP: Total of 2 processors activated (1333.33 BogoMIPS). CPU: All CPU(s) started in SVC mode. devtmpfs: initialized random: get_random_u32 called from bucket_table_alloc+0x1e0/0x220 with crng_init=0 VFP support v0.3: implementor 41 architecture 3 part 30 variant 9 rev 4 clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns futex hash table entries: 512 (order: 3, 32768 bytes) pinctrl core: initialized pinctrl subsystem NET: Registered protocol family 16 random: fast init done

DMA: preallocated 256 KiB pool for atomic coherent allocations cpuidle: using governor menu hw-breakpoint: found 5 (+1 reserved) breakpoint and 1 watchpoint registers. hw-breakpoint: maximum watchpoint size is 4 bytes. zynq-ocm f800c000.ocmc: ZYNQ OCM pool: 256 KiB @ 0xe0840000 zynq-pinctrl 700.pinctrl: zynq pinctrl initialized e0001000.serial: ttyPS0 at MMIO 0xe0001000 (irq = 26, base_baud = 6249999) is a xuartps console [ttyPS0] enabled vgaarb: loaded SCSI subsystem initialized usbcore: registered new interface driver usbfs usbcore: registered new interface driver hub usbcore: registered new device driver usb media: Linux media interface: v0.10 Linux video capture interface: v2.00 pps_core: LinuxPPS API ver. 1 registered pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti PTP clock support registered EDAC MC: Ver: 3.0.0 FPGA manager framework fpga-region fpga-full: FPGA Region probed Advanced Linux Sound Architecture Driver Initialized. clocksource: Switched to clocksource arm_global_timer NET: Registered protocol family 2 TCP established hash table entries: 4096 (order: 2, 16384 bytes) TCP bind hash table entries: 4096 (order: 3, 32768 bytes) TCP: Hash tables configured (established 4096 bind 4096) UDP hash table entries: 256 (order: 1, 8192 bytes) UDP-Lite hash table entries: 256 (order: 1, 8192 bytes)
