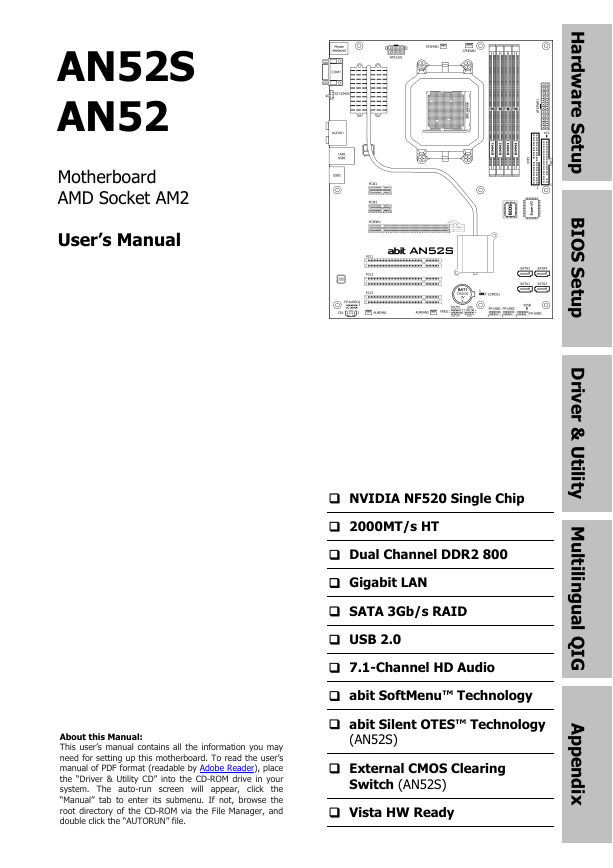

AN52S AN52 Motherboard AMD Socket AM2 User’s Manual NVIDIA NF520 Single Chip 2000MT/s HT Dual Channel DDR2 800 Gigabit LAN SATA 3Gb/s RAID USB 2.0 7.1-Channel HD Audio abit SoftMenu™ Technology abit Silent OTES™ Technology (AN52S) External CMOS Clearing Switch (AN52S) Vista HW Ready About this Manual: This user’s manual contains all the information you may need for setting up this motherboard. To read the user’s manual of PDF format (readable by Adobe Reader), place the “Driver & Utility CD” into the CD-ROM drive in your system. The auto-run screen will appear, click the “Manual” tab to enter its submenu. If not, browse the root directory of the CD-ROM via the File Manager, and double click the “AUTORUN” file. H a r d w a r e S e t u p B I O S S e t u p D r i v e r & U t i l i t y M u l t i l i n g u a l Q I G A p p e n d i x

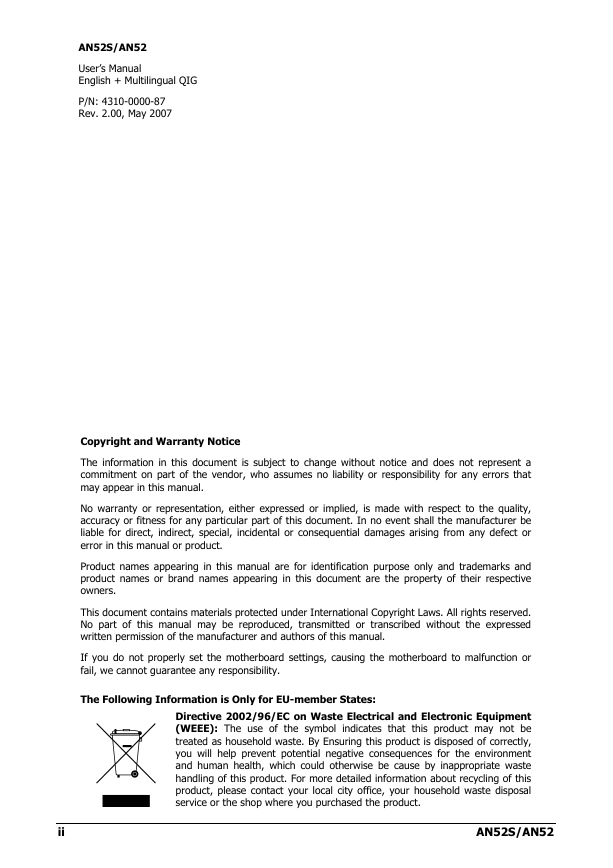

AN52S/AN52 User’s Manual English + Multilingual QIG P/N: 4310-0000-87 Rev. 2.00, May 2007 Copyright and Warranty Notice The information in this document is subject to change without notice and does not represent a commitment on part of the vendor, who assumes no liability or responsibility for any errors that may appear in this manual. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular part of this document. In no event shall the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising from any defect or error in this manual or product. Product names appearing in this manual are for identification purpose only and trademarks and product names or brand names appearing in this document are the property of their respective owners. This document contains materials protected under International Copyright Laws. All rights reserved. No part of this manual may be reproduced, transmitted or transcribed without the expressed written permission of the manufacturer and authors of this manual. If you do not properly set the motherboard settings, causing the motherboard to malfunction or fail, we cannot guarantee any responsibility. The Following Information is Only for EU-member States: Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE): The use of the symbol indicates that this product may not be treated as household waste. By Ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be cause by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. ii AN52S/AN52

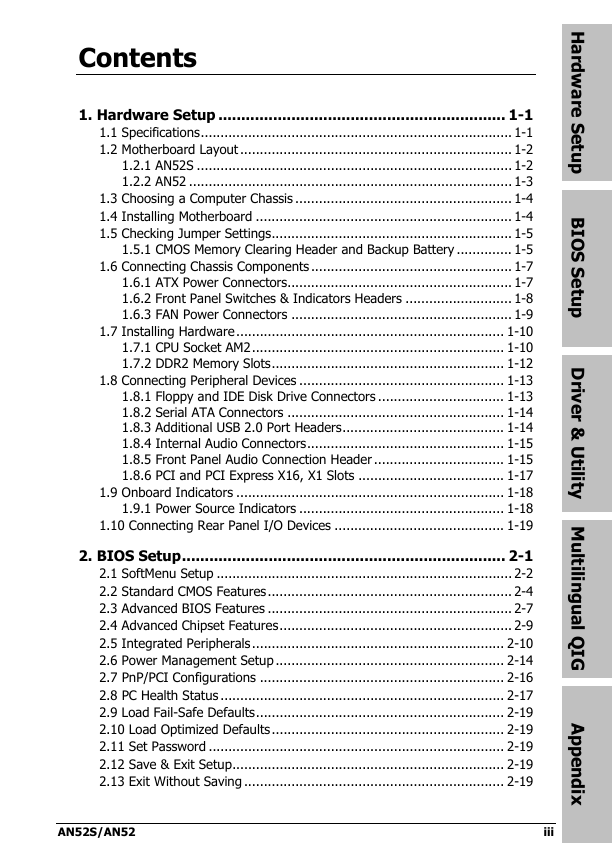

Contents 1. Hardware Setup ............................................................... 1-1 1.1 Specifications............................................................................... 1-1 1.2 Motherboard Layout ..................................................................... 1-2 1.2.1 AN52S ................................................................................ 1-2 1.2.2 AN52 .................................................................................. 1-3 1.3 Choosing a Computer Chassis ....................................................... 1-4 1.4 Installing Motherboard ................................................................. 1-4 1.5 Checking Jumper Settings............................................................. 1-5 1.5.1 CMOS Memory Clearing Header and Backup Battery .............. 1-5 1.6 Connecting Chassis Components ................................................... 1-7 1.6.1 ATX Power Connectors......................................................... 1-7 1.6.2 Front Panel Switches & Indicators Headers ........................... 1-8 1.6.3 FAN Power Connectors ........................................................ 1-9 1.7 Installing Hardware.................................................................... 1-10 1.7.1 CPU Socket AM2................................................................ 1-10 1.7.2 DDR2 Memory Slots........................................................... 1-12 1.8 Connecting Peripheral Devices .................................................... 1-13 1.8.1 Floppy and IDE Disk Drive Connectors ................................ 1-13 1.8.2 Serial ATA Connectors ....................................................... 1-14 1.8.3 Additional USB 2.0 Port Headers......................................... 1-14 1.8.4 Internal Audio Connectors.................................................. 1-15 1.8.5 Front Panel Audio Connection Header ................................. 1-15 1.8.6 PCI and PCI Express X16, X1 Slots ..................................... 1-17 1.9 Onboard Indicators .................................................................... 1-18 1.9.1 Power Source Indicators .................................................... 1-18 1.10 Connecting Rear Panel I/O Devices ........................................... 1-19 2. BIOS Setup....................................................................... 2-1 2.1 SoftMenu Setup ........................................................................... 2-2 2.2 Standard CMOS Features.............................................................. 2-4 2.3 Advanced BIOS Features .............................................................. 2-7 2.4 Advanced Chipset Features........................................................... 2-9 2.5 Integrated Peripherals................................................................ 2-10 2.6 Power Management Setup .......................................................... 2-14 2.7 PnP/PCI Configurations .............................................................. 2-16 2.8 PC Health Status ........................................................................ 2-17 2.9 Load Fail-Safe Defaults............................................................... 2-19 2.10 Load Optimized Defaults........................................................... 2-19 2.11 Set Password ........................................................................... 2-19 2.12 Save & Exit Setup..................................................................... 2-19 2.13 Exit Without Saving .................................................................. 2-19 AN52S/AN52 iii H a r d w a r e S e t u p B I O S S e t u p D r i v e r & U t i l i t y M u l t i l i n g u a l Q I G A p p e n d i x

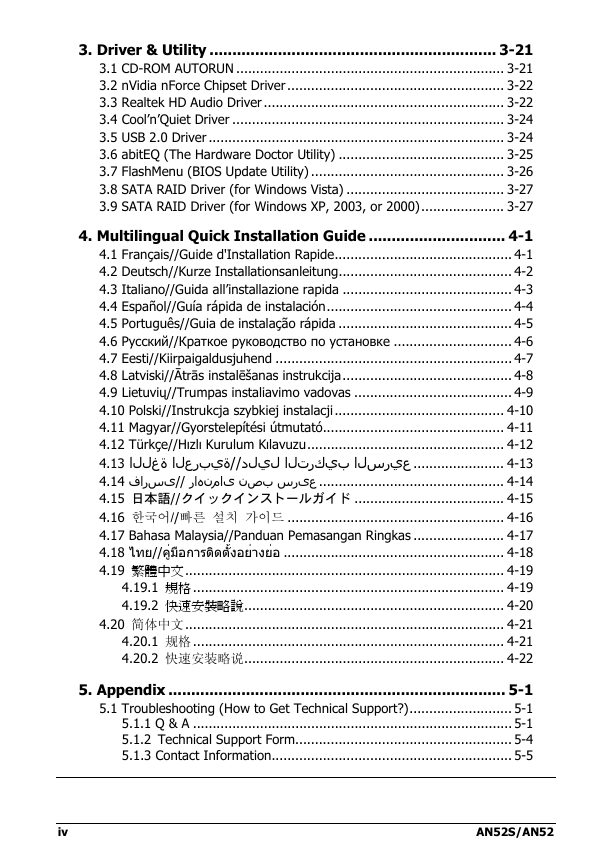

iv 3. Driver & Utility ............................................................... 3-21 3.1 CD-ROM AUTORUN .................................................................... 3-21 3.2 nVidia nForce Chipset Driver ....................................................... 3-22 3.3 Realtek HD Audio Driver ............................................................. 3-22 3.4 Cool’n’Quiet Driver ..................................................................... 3-24 3.5 USB 2.0 Driver ........................................................................... 3-24 3.6 abitEQ (The Hardware Doctor Utility) .......................................... 3-25 3.7 FlashMenu (BIOS Update Utility) ................................................. 3-26 3.8 SATA RAID Driver (for Windows Vista) ........................................ 3-27 3.9 SATA RAID Driver (for Windows XP, 2003, or 2000)..................... 3-27 4. Multilingual Quick Installation Guide .............................. 4-1 4.1 Français//Guide d'Installation Rapide............................................. 4-1 4.2 Deutsch//Kurze Installationsanleitung............................................ 4-2 4.3 Italiano//Guida all’installazione rapida ........................................... 4-3 4.4 Español//Guía rápida de instalación............................................... 4-4 4.5 Português//Guia de instalação rápida ............................................ 4-5 4.6 Русский//Краткое руководство по установке .............................. 4-6 4.7 Eesti//Kiirpaigaldusjuhend ............................................................ 4-7 4.8 Latviski//Ātrās instalēšanas instrukcija........................................... 4-8 4.9 Lietuvių//Trumpas instaliavimo vadovas ........................................ 4-9 4.10 Polski//Instrukcja szybkiej instalacji........................................... 4-10 4.11 Magyar//Gyorstelepítési útmutató.............................................. 4-11 4.12 Türkçe//Hızlı Kurulum Kılavuzu.................................................. 4-12 4.13 اللغة العربية//دليل التركيب السريع ....................... 4-13 4.14 فارسی// راﻩنمای نصب سریع............................................... 4-14 4.15 日本語//クイックインストールガイド ...................................... 4-15 4.16 한국어//빠른 설치 가이드 ....................................................... 4-16 4.17 Bahasa Malaysia//Panduan Pemasangan Ringkas ....................... 4-17 ้งอย่างย่อ ........................................................ 4-18 4.18 ไทย//คู 4.19 繁體中文................................................................................. 4-19 4.19.1 規格............................................................................... 4-19 4.19.2 快速安裝略說.................................................................. 4-20 4.20 简体中文................................................................................. 4-21 4.20.1 规格............................................................................... 4-21 4.20.2 快速安装略说.................................................................. 4-22 5. Appendix .......................................................................... 5-1 5.1 Troubleshooting (How to Get Technical Support?).......................... 5-1 5.1.1 Q & A ................................................................................. 5-1 5.1.2 Technical Support Form....................................................... 5-4 5.1.3 Contact Information............................................................. 5-5 ่มือการติดตั AN52S/AN52

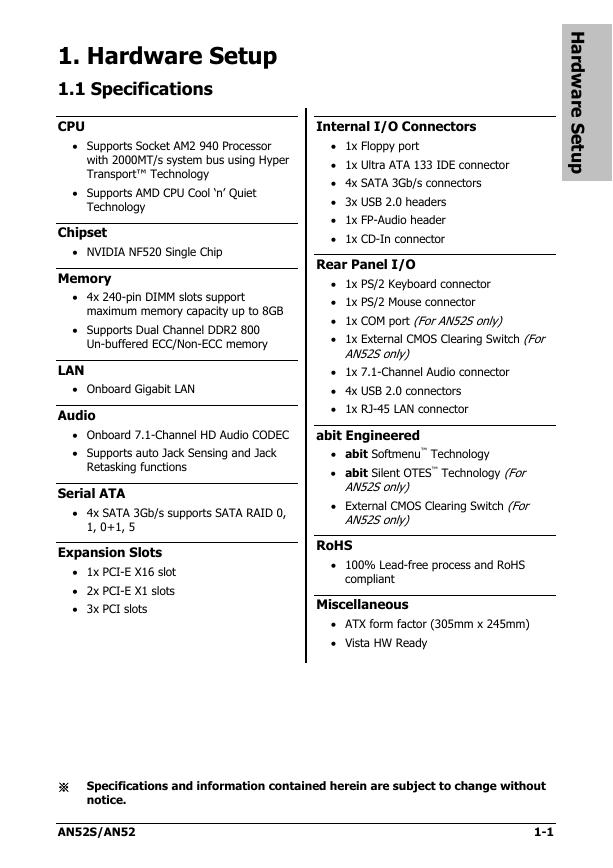

H a r d w a r e S e t u p 1. Hardware Setup 1.1 Specifications CPU • Supports Socket AM2 940 Processor with 2000MT/s system bus using Hyper Transport™ Technology • Supports AMD CPU Cool ‘n’ Quiet Technology Chipset • NVIDIA NF520 Single Chip Memory • 4x 240-pin DIMM slots support maximum memory capacity up to 8GB • Supports Dual Channel DDR2 800 Un-buffered ECC/Non-ECC memory LAN • Onboard Gigabit LAN Audio • Onboard 7.1-Channel HD Audio CODEC • Supports auto Jack Sensing and Jack Retasking functions Serial ATA • 4x SATA 3Gb/s supports SATA RAID 0, 1, 0+1, 5 Expansion Slots • 1x PCI-E X16 slot • 2x PCI-E X1 slots • 3x PCI slots Internal I/O Connectors • 1x Floppy port • 1x Ultra ATA 133 IDE connector • 4x SATA 3Gb/s connectors • 3x USB 2.0 headers • 1x FP-Audio header • 1x CD-In connector Rear Panel I/O • 1x PS/2 Keyboard connector • 1x PS/2 Mouse connector • 1x COM port (For AN52S only) • 1x External CMOS Clearing Switch (For AN52S only) • 1x 7.1-Channel Audio connector • 4x USB 2.0 connectors • 1x RJ-45 LAN connector abit Engineered • abit Softmenu™ Technology • abit Silent OTES™ Technology (For AN52S only) • External CMOS Clearing Switch (For AN52S only) RoHS • 100% Lead-free process and RoHS compliant Miscellaneous • ATX form factor (305mm x 245mm) • Vista HW Ready ※ Specifications and information contained herein are subject to change without notice. AN52S/AN52 1-1

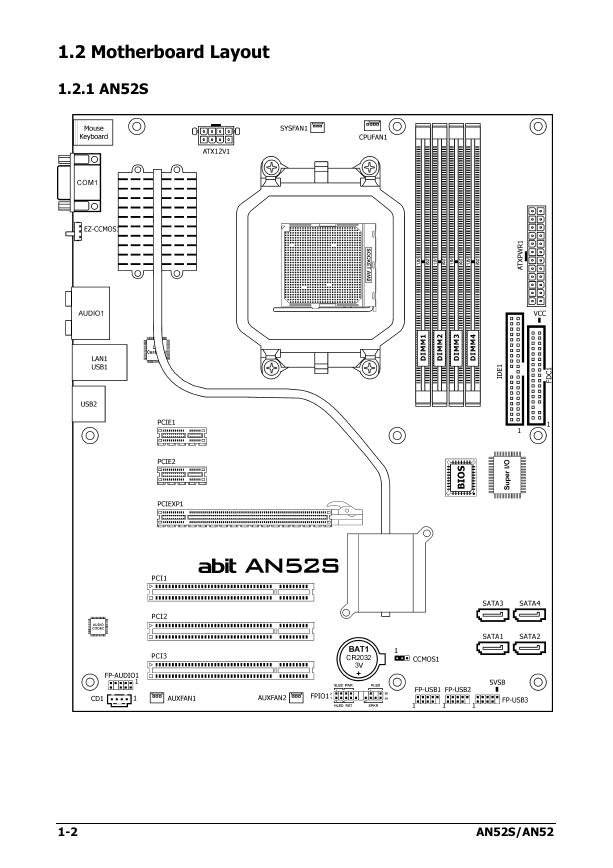

1.2 Motherboard Layout 1.2.1 AN52S 1-2 AN52S/AN52

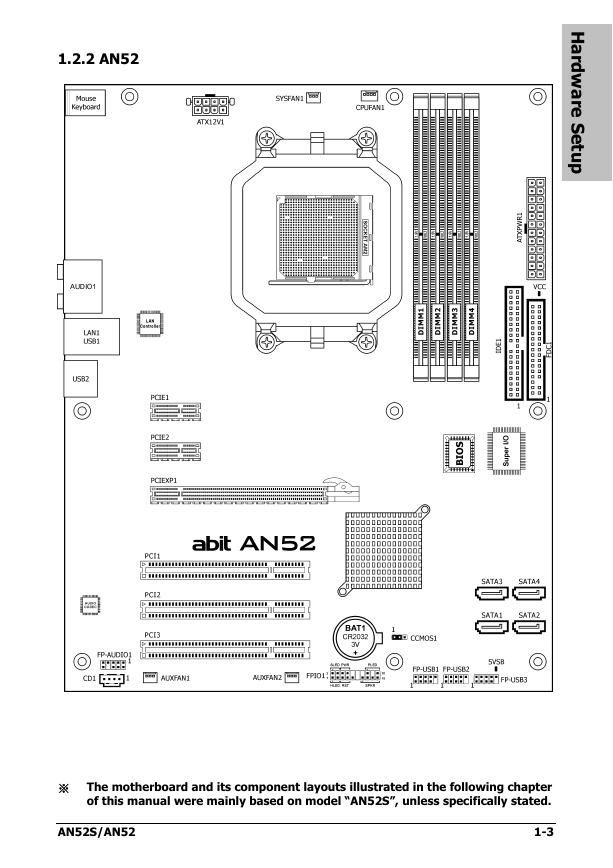

H a r d w a r e S e t u p 1.2.2 AN52 ※ The motherboard and its component layouts illustrated in the following chapter of this manual were mainly based on model “AN52S”, unless specifically stated. AN52S/AN52 1-3

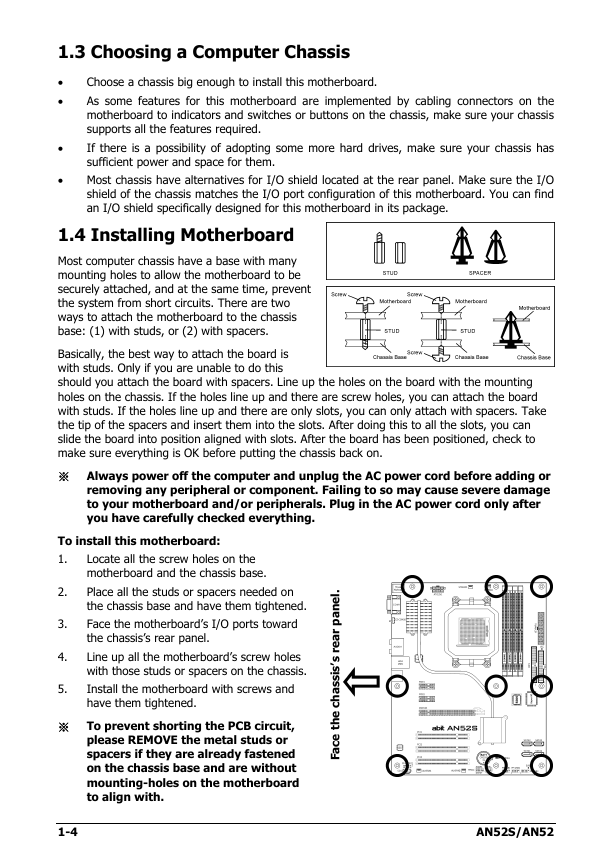

1.3 Choosing a Computer Chassis • • • • Choose a chassis big enough to install this motherboard. As some features for this motherboard are implemented by cabling connectors on the motherboard to indicators and switches or buttons on the chassis, make sure your chassis supports all the features required. If there is a possibility of adopting some more hard drives, make sure your chassis has sufficient power and space for them. Most chassis have alternatives for I/O shield located at the rear panel. Make sure the I/O shield of the chassis matches the I/O port configuration of this motherboard. You can find an I/O shield specifically designed for this motherboard in its package. 1.4 Installing Motherboard Most computer chassis have a base with many mounting holes to allow the motherboard to be securely attached, and at the same time, prevent the system from short circuits. There are two ways to attach the motherboard to the chassis base: (1) with studs, or (2) with spacers. Basically, the best way to attach the board is with studs. Only if you are unable to do this should you attach the board with spacers. Line up the holes on the board with the mounting holes on the chassis. If the holes line up and there are screw holes, you can attach the board with studs. If the holes line up and there are only slots, you can only attach with spacers. Take the tip of the spacers and insert them into the slots. After doing this to all the slots, you can slide the board into position aligned with slots. After the board has been positioned, check to make sure everything is OK before putting the chassis back on. ※ Always power off the computer and unplug the AC power cord before adding or removing any peripheral or component. Failing to so may cause severe damage to your motherboard and/or peripherals. Plug in the AC power cord only after you have carefully checked everything. To install this motherboard: 1. . l e n a p r a e r s ’ s i s s a h c e h t e c a F AN52S/AN52 Locate all the screw holes on the motherboard and the chassis base. Place all the studs or spacers needed on the chassis base and have them tightened. Face the motherboard’s I/O ports toward the chassis’s rear panel. Line up all the motherboard’s screw holes with those studs or spacers on the chassis. Install the motherboard with screws and have them tightened. To prevent shorting the PCB circuit, please REMOVE the metal studs or spacers if they are already fastened on the chassis base and are without mounting-holes on the motherboard to align with. 2. 3. 4. 5. ※ 1-4
