Red-Black Tree
Terminology
Properties
Analogy to B-trees of order 4
Applications and related data structures
Operations
Insertion
Removal
Proof of asymptotic bounds
Complexity

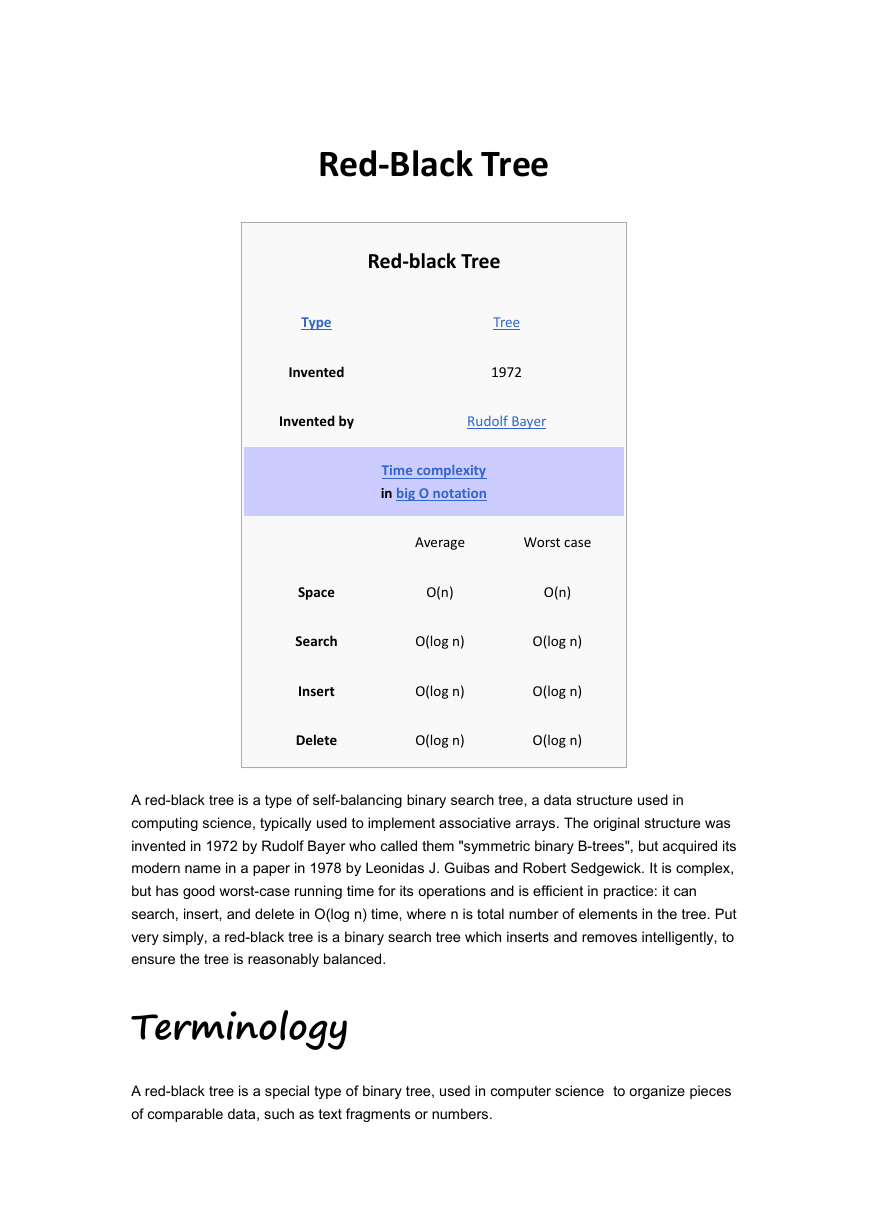

Red-Black Tree
Red-black Tree
Type
Invented
Tree
1972
Invented by
Rudolf Bayer
Time complexity
in big O notation
Average
Worst case
O(n)
O(n)
O(log n)
O(log n)
O(log n)
O(log n)
O(log n)
O(log n)
Space
Search
Insert
Delete
A red-black tree is a type of self-balancing binary search tree, a data structure used in
computing science, typically used to implement associative arrays. The original structure was
invented in 1972 by Rudolf Bayer who called them "symmetric binary B-trees", but acquired its
modern name in a paper in 1978 by Leonidas J. Guibas and Robert Sedgewick. It is complex,
but has good worst-case running time for its operations and is efficient in practice: it can
search, insert, and delete in O(log n) time, where n is total number of elements in the tree. Put
very simply, a red-black tree is a binary search tree which inserts and removes intelligently, to
ensure the tree is reasonably balanced.
Terminology
A red-black tree is a special type of binary tree, used in computer science to organize pieces
of comparable data, such as text fragments or numbers.

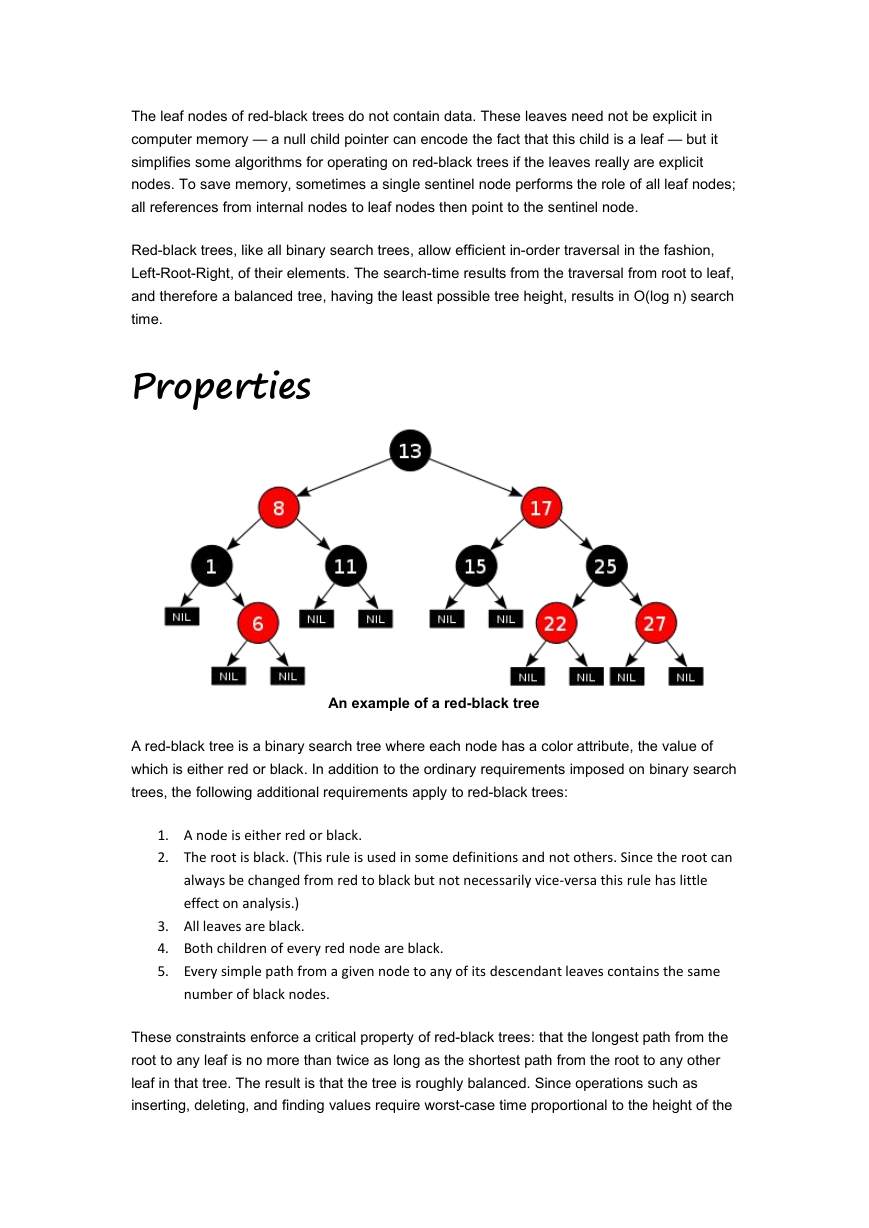

The leaf nodes of red-black trees do not contain data. These leaves need not be explicit in
computer memory — a null child pointer can encode the fact that this child is a leaf — but it
simplifies some algorithms for operating on red-black trees if the leaves really are explicit
nodes. To save memory, sometimes a single sentinel node performs the role of all leaf nodes;
all references from internal nodes to leaf nodes then point to the sentinel node.
Red-black trees, like all binary search trees, allow efficient in-order traversal in the fashion,
Left-Root-Right, of their elements. The search-time results from the traversal from root to leaf,
and therefore a balanced tree, having the least possible tree height, results in O(log n) search
time.
Properties
An example of a red-black tree
A red-black tree is a binary search tree where each node has a color attribute, the value of
which is either red or black. In addition to the ordinary requirements imposed on binary search
trees, the following additional requirements apply to red-black trees:
1. A node is either red or black.
2. The root is black. (This rule is used in some definitions and not others. Since the root can
always be changed from red to black but not necessarily vice-versa this rule has little
effect on analysis.)
3. All leaves are black.
4. Both children of every red node are black.
5. Every simple path from a given node to any of its descendant leaves contains the same
number of black nodes.
These constraints enforce a critical property of red-black trees: that the longest path from the
root to any leaf is no more than twice as long as the shortest path from the root to any other
leaf in that tree. The result is that the tree is roughly balanced. Since operations such as
inserting, deleting, and finding values require worst-case time proportional to the height of the
tree, this theoretical upper bound on the height allows red-black trees to be efficient in the
worst-case, unlike ordinary binary search trees.
To see why these properties guarantee this, it suffices to note that no path can have two red
nodes in a row, due to property 4. The shortest possible path has all black nodes, and the
longest possible path alternates between red and black nodes. Since all maximal paths have
the same number of black nodes, by property 5, this shows that no path is more than twice as
long as any other path.
In many of the presentations of tree data structures, it is possible for a node to have only one
child, and leaf nodes contain data. It is possible to present red-black trees in this paradigm, but
it changes several of the properties and complicates the algorithms. For this reason, this article
uses "null leaves", which contain no data and merely serve to indicate where the tree ends, as
shown above. These nodes are often omitted in drawings, resulting in a tree which seems to
contradict the above principles, but which in fact does not. A consequence of this is that all
internal (non-leaf) nodes have two children, although one or both of those children may be null
leaves.
Some explain a red-black tree as a binary search tree whose edges, instead of nodes, are
colored in red or black, but this does not make any difference. The color of a node in this
article's terminology corresponds to the color of the edge connecting the node to its parent,
except that the root node is always black (property 2) whereas the corresponding edge does
not exist.

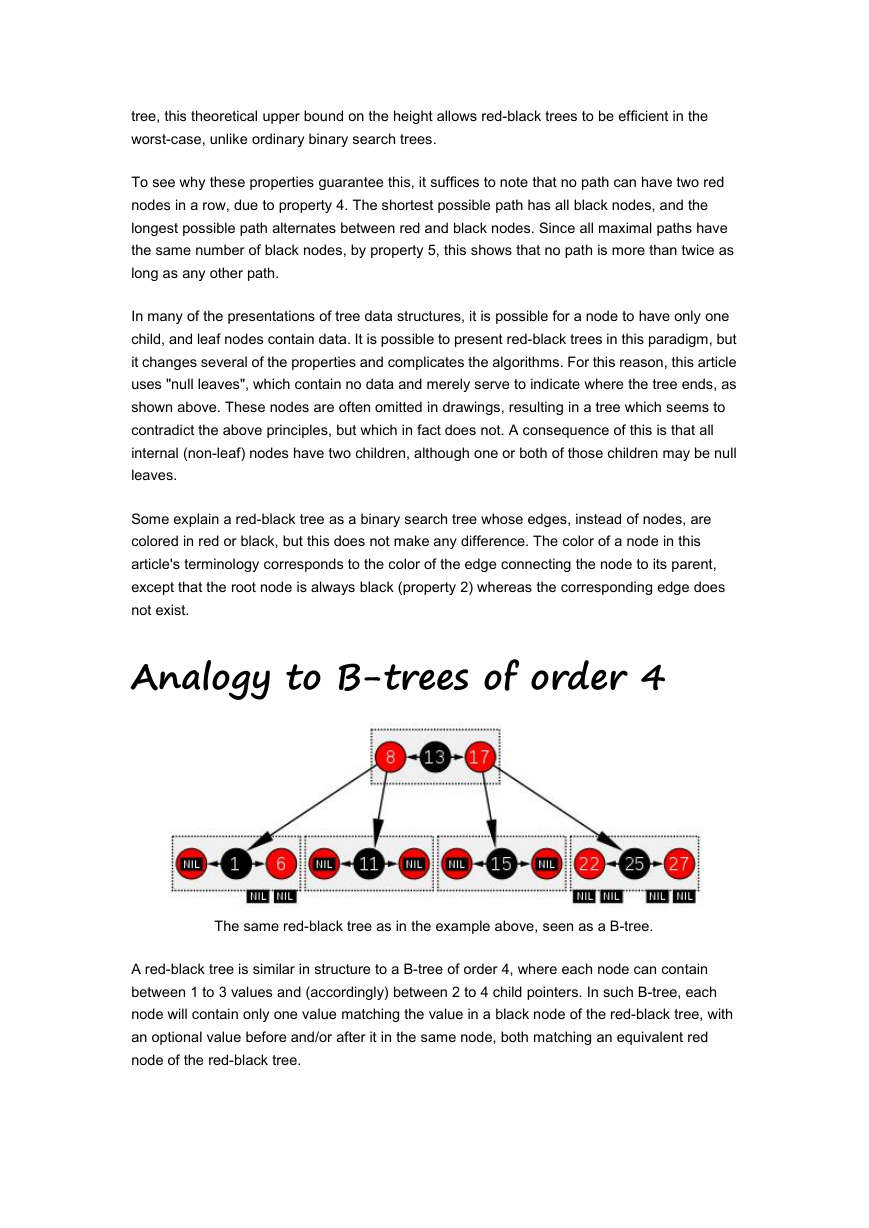

Analogy to B-trees of order 4
The same red-black tree as in the example above, seen as a B-tree.
A red-black tree is similar in structure to a B-tree of order 4, where each node can contain
between 1 to 3 values and (accordingly) between 2 to 4 child pointers. In such B-tree, each
node will contain only one value matching the value in a black node of the red-black tree, with
an optional value before and/or after it in the same node, both matching an equivalent red
node of the red-black tree.

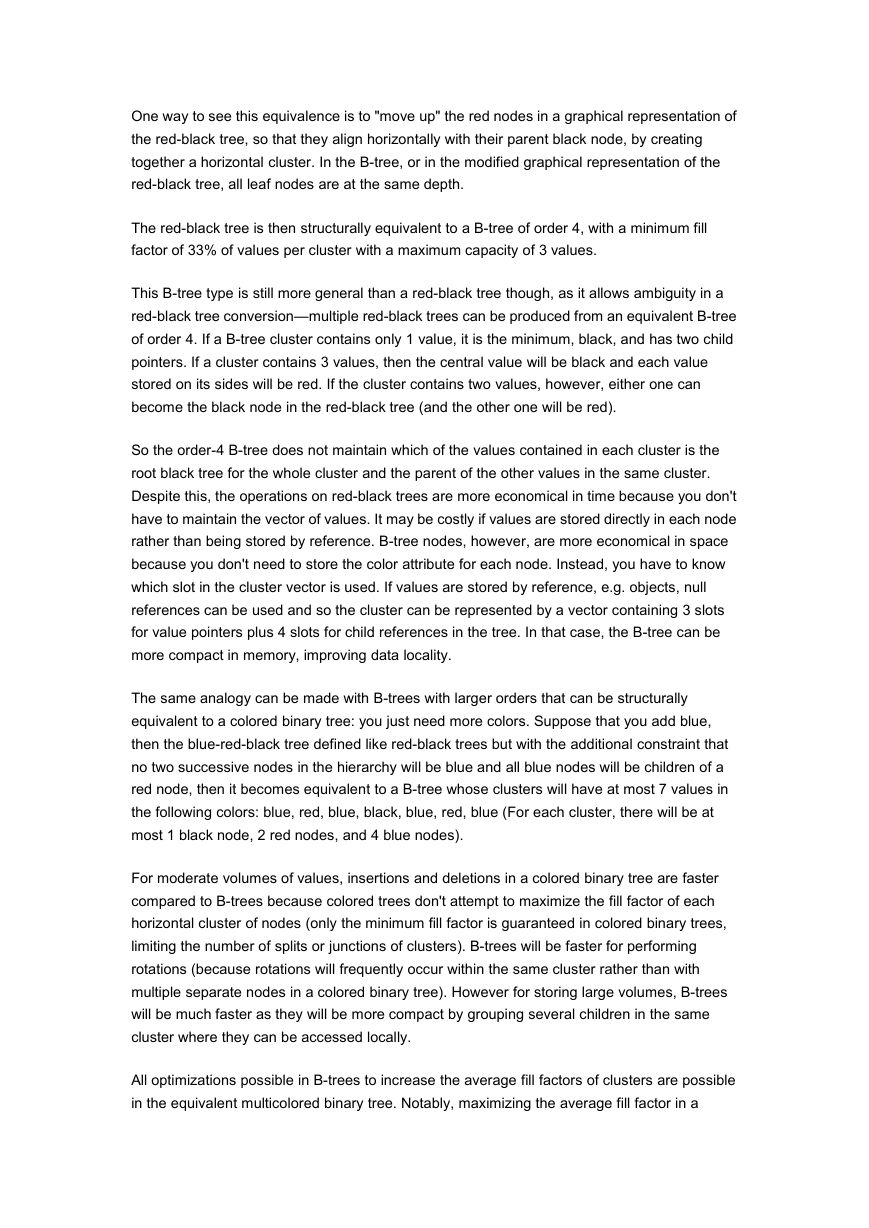

One way to see this equivalence is to "move up" the red nodes in a graphical representation of
the red-black tree, so that they align horizontally with their parent black node, by creating
together a horizontal cluster. In the B-tree, or in the modified graphical representation of the
red-black tree, all leaf nodes are at the same depth.
The red-black tree is then structurally equivalent to a B-tree of order 4, with a minimum fill
factor of 33% of values per cluster with a maximum capacity of 3 values.
This B-tree type is still more general than a red-black tree though, as it allows ambiguity in a
red-black tree conversion—multiple red-black trees can be produced from an equivalent B-tree
of order 4. If a B-tree cluster contains only 1 value, it is the minimum, black, and has two child
pointers. If a cluster contains 3 values, then the central value will be black and each value
stored on its sides will be red. If the cluster contains two values, however, either one can
become the black node in the red-black tree (and the other one will be red).
So the order-4 B-tree does not maintain which of the values contained in each cluster is the
root black tree for the whole cluster and the parent of the other values in the same cluster.
Despite this, the operations on red-black trees are more economical in time because you don't
have to maintain the vector of values. It may be costly if values are stored directly in each node
rather than being stored by reference. B-tree nodes, however, are more economical in space
because you don't need to store the color attribute for each node. Instead, you have to know
which slot in the cluster vector is used. If values are stored by reference, e.g. objects, null
references can be used and so the cluster can be represented by a vector containing 3 slots
for value pointers plus 4 slots for child references in the tree. In that case, the B-tree can be
more compact in memory, improving data locality.
The same analogy can be made with B-trees with larger orders that can be structurally
equivalent to a colored binary tree: you just need more colors. Suppose that you add blue,
then the blue-red-black tree defined like red-black trees but with the additional constraint that
no two successive nodes in the hierarchy will be blue and all blue nodes will be children of a
red node, then it becomes equivalent to a B-tree whose clusters will have at most 7 values in
the following colors: blue, red, blue, black, blue, red, blue (For each cluster, there will be at
most 1 black node, 2 red nodes, and 4 blue nodes).
For moderate volumes of values, insertions and deletions in a colored binary tree are faster
compared to B-trees because colored trees don't attempt to maximize the fill factor of each
horizontal cluster of nodes (only the minimum fill factor is guaranteed in colored binary trees,
limiting the number of splits or junctions of clusters). B-trees will be faster for performing
rotations (because rotations will frequently occur within the same cluster rather than with
multiple separate nodes in a colored binary tree). However for storing large volumes, B-trees
will be much faster as they will be more compact by grouping several children in the same
cluster where they can be accessed locally.
All optimizations possible in B-trees to increase the average fill factors of clusters are possible
in the equivalent multicolored binary tree. Notably, maximizing the average fill factor in a
structurally equivalent B-tree is the same as reducing the total height of the multicolored tree,

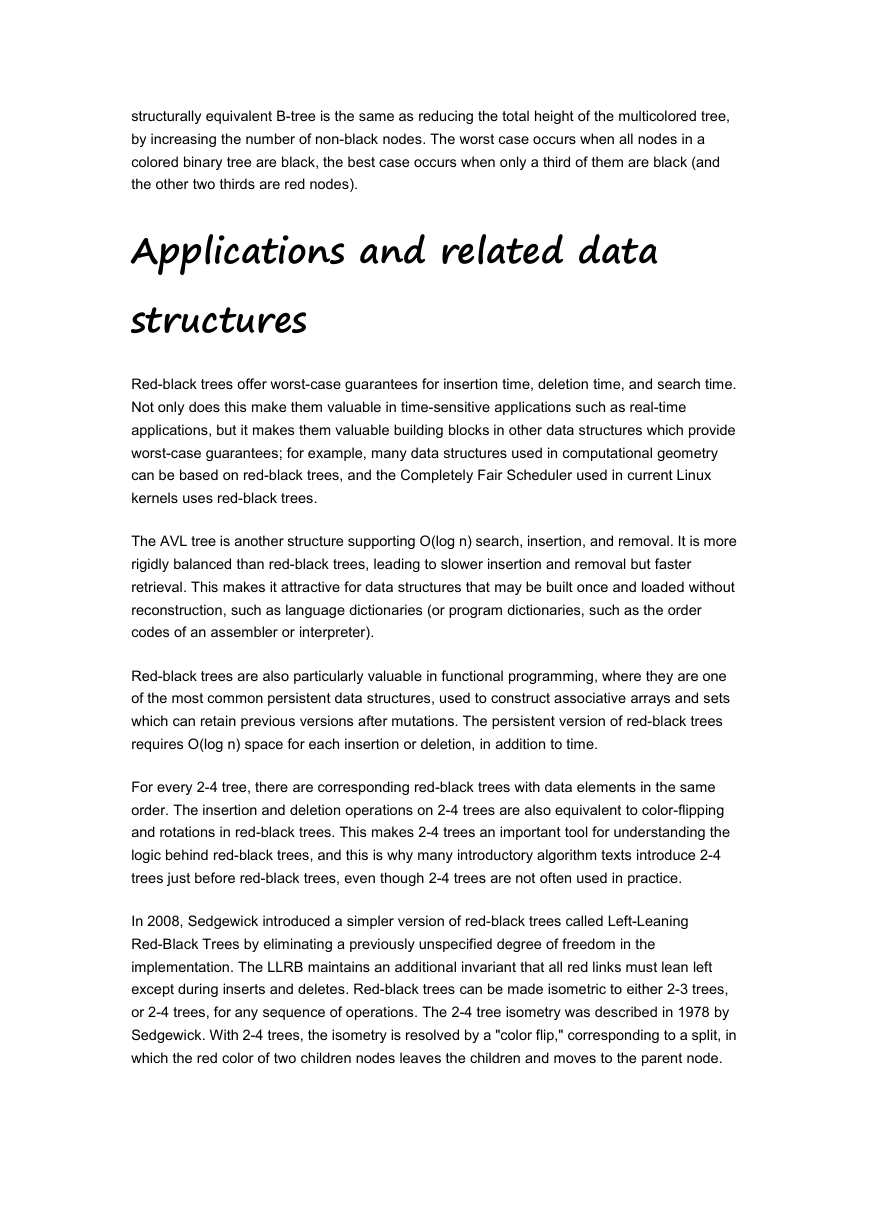

by increasing the number of non-black nodes. The worst case occurs when all nodes in a
colored binary tree are black, the best case occurs when only a third of them are black (and
the other two thirds are red nodes).
Applications and related data
structures
Red-black trees offer worst-case guarantees for insertion time, deletion time, and search time.
Not only does this make them valuable in time-sensitive applications such as real-time
applications, but it makes them valuable building blocks in other data structures which provide
worst-case guarantees; for example, many data structures used in computational geometry
can be based on red-black trees, and the Completely Fair Scheduler used in current Linux
kernels uses red-black trees.
The AVL tree is another structure supporting O(log n) search, insertion, and removal. It is more
rigidly balanced than red-black trees, leading to slower insertion and removal but faster
retrieval. This makes it attractive for data structures that may be built once and loaded without
reconstruction, such as language dictionaries (or program dictionaries, such as the order
codes of an assembler or interpreter).
Red-black trees are also particularly valuable in functional programming, where they are one
of the most common persistent data structures, used to construct associative arrays and sets
which can retain previous versions after mutations. The persistent version of red-black trees
requires O(log n) space for each insertion or deletion, in addition to time.
For every 2-4 tree, there are corresponding red-black trees with data elements in the same
order. The insertion and deletion operations on 2-4 trees are also equivalent to color-flipping
and rotations in red-black trees. This makes 2-4 trees an important tool for understanding the
logic behind red-black trees, and this is why many introductory algorithm texts introduce 2-4
trees just before red-black trees, even though 2-4 trees are not often used in practice.
In 2008, Sedgewick introduced a simpler version of red-black trees called Left-Leaning
Red-Black Trees by eliminating a previously unspecified degree of freedom in the
implementation. The LLRB maintains an additional invariant that all red links must lean left
except during inserts and deletes. Red-black trees can be made isometric to either 2-3 trees,
or 2-4 trees, for any sequence of operations. The 2-4 tree isometry was described in 1978 by
Sedgewick. With 2-4 trees, the isometry is resolved by a "color flip," corresponding to a split, in
which the red color of two children nodes leaves the children and moves to the parent node.

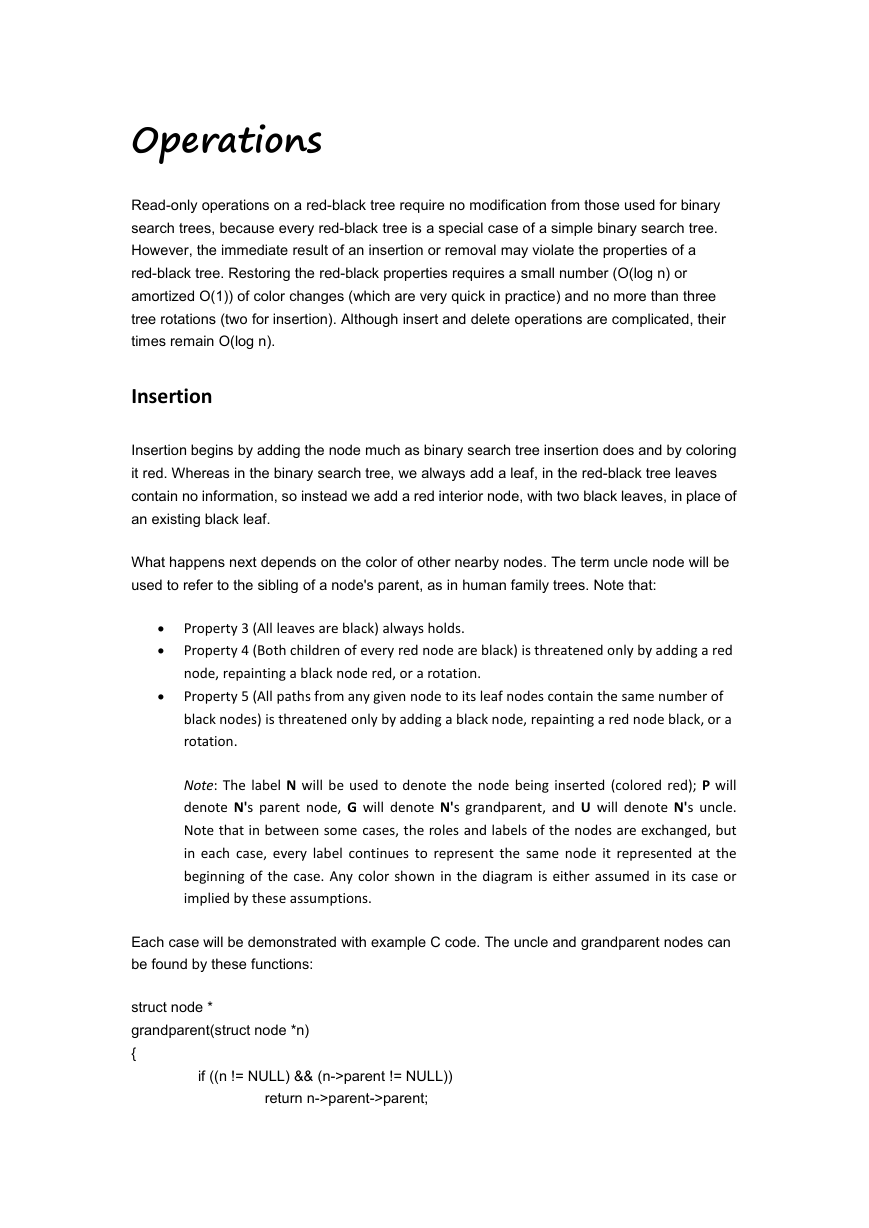

Operations
Read-only operations on a red-black tree require no modification from those used for binary
search trees, because every red-black tree is a special case of a simple binary search tree.
However, the immediate result of an insertion or removal may violate the properties of a
red-black tree. Restoring the red-black properties requires a small number (O(log n) or
amortized O(1)) of color changes (which are very quick in practice) and no more than three
tree rotations (two for insertion). Although insert and delete operations are complicated, their
times remain O(log n).
Insertion
Insertion begins by adding the node much as binary search tree insertion does and by coloring
it red. Whereas in the binary search tree, we always add a leaf, in the red-black tree leaves
contain no information, so instead we add a red interior node, with two black leaves, in place of
an existing black leaf.
What happens next depends on the color of other nearby nodes. The term uncle node will be
used to refer to the sibling of a node's parent, as in human family trees. Note that:
Property 3 (All leaves are black) always holds.
Property 4 (Both children of every red node are black) is threatened only by adding a red
node, repainting a black node red, or a rotation.
Property 5 (All paths from any given node to its leaf nodes contain the same number of
black nodes) is threatened only by adding a black node, repainting a red node black, or a
rotation.
Note: The label N will be used to denote the node being inserted (colored red); P will
denote N's parent node, G will denote N's grandparent, and U will denote N's uncle.
Note that in between some cases, the roles and labels of the nodes are exchanged, but
in each case, every label continues to represent the same node it represented at the
beginning of the case. Any color shown in the diagram is either assumed in its case or
implied by these assumptions.
Each case will be demonstrated with example C code. The uncle and grandparent nodes can
be found by these functions:
struct node *
grandparent(struct node *n)
{
if ((n != NULL) && (n->parent != NULL))
return n->parent->parent;

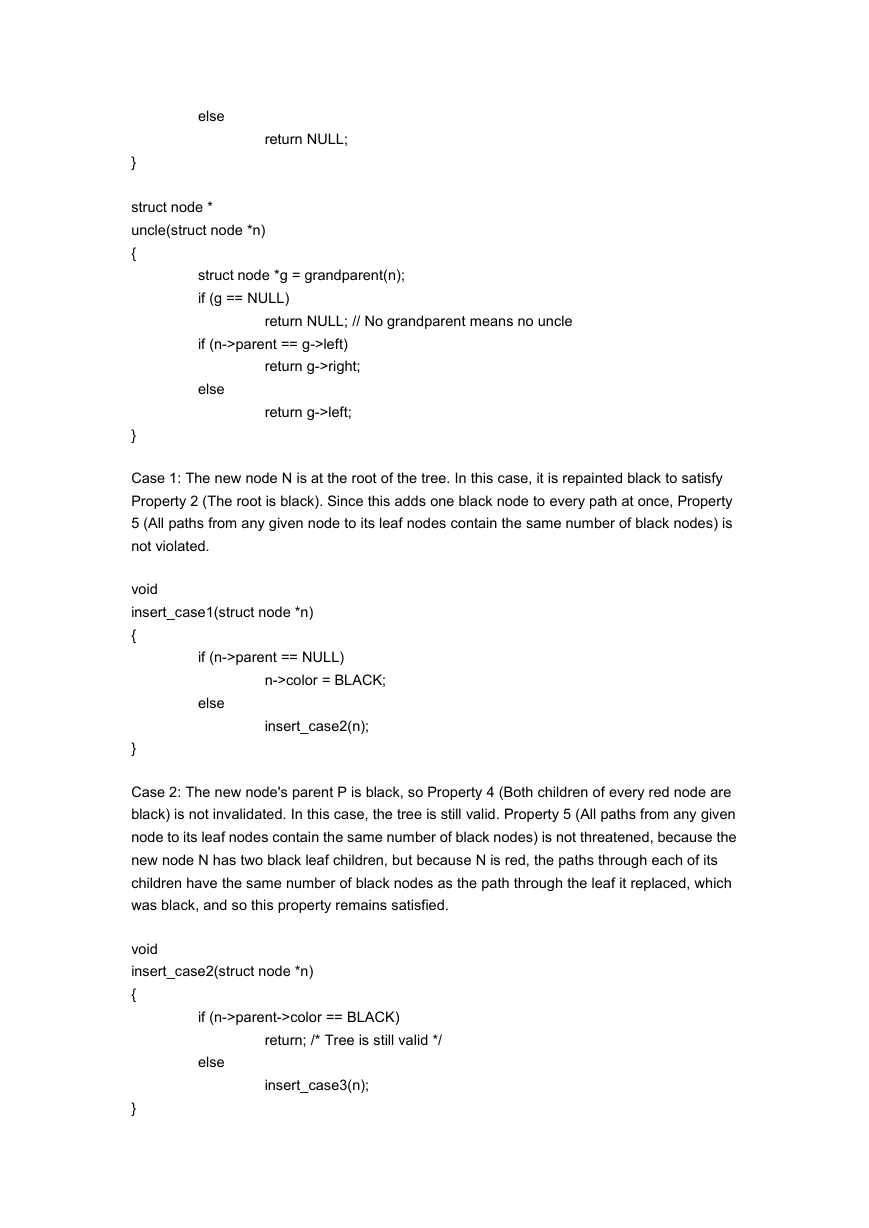

else
return NULL;
}
struct node *
uncle(struct node *n)
{
struct node *g = grandparent(n);
if (g == NULL)
return NULL; // No grandparent means no uncle
if (n->parent == g->left)
return g->right;
else
return g->left;
}
Case 1: The new node N is at the root of the tree. In this case, it is repainted black to satisfy
Property 2 (The root is black). Since this adds one black node to every path at once, Property
5 (All paths from any given node to its leaf nodes contain the same number of black nodes) is
not violated.
void
insert_case1(struct node *n)
{
if (n->parent == NULL)
n->color = BLACK;
else
insert_case2(n);
}
Case 2: The new node's parent P is black, so Property 4 (Both children of every red node are
black) is not invalidated. In this case, the tree is still valid. Property 5 (All paths from any given
node to its leaf nodes contain the same number of black nodes) is not threatened, because the
new node N has two black leaf children, but because N is red, the paths through each of its
children have the same number of black nodes as the path through the leaf it replaced, which
was black, and so this property remains satisfied.
void
insert_case2(struct node *n)
{
if (n->parent->color == BLACK)
return; /* Tree is still valid */
else
insert_case3(n);
}

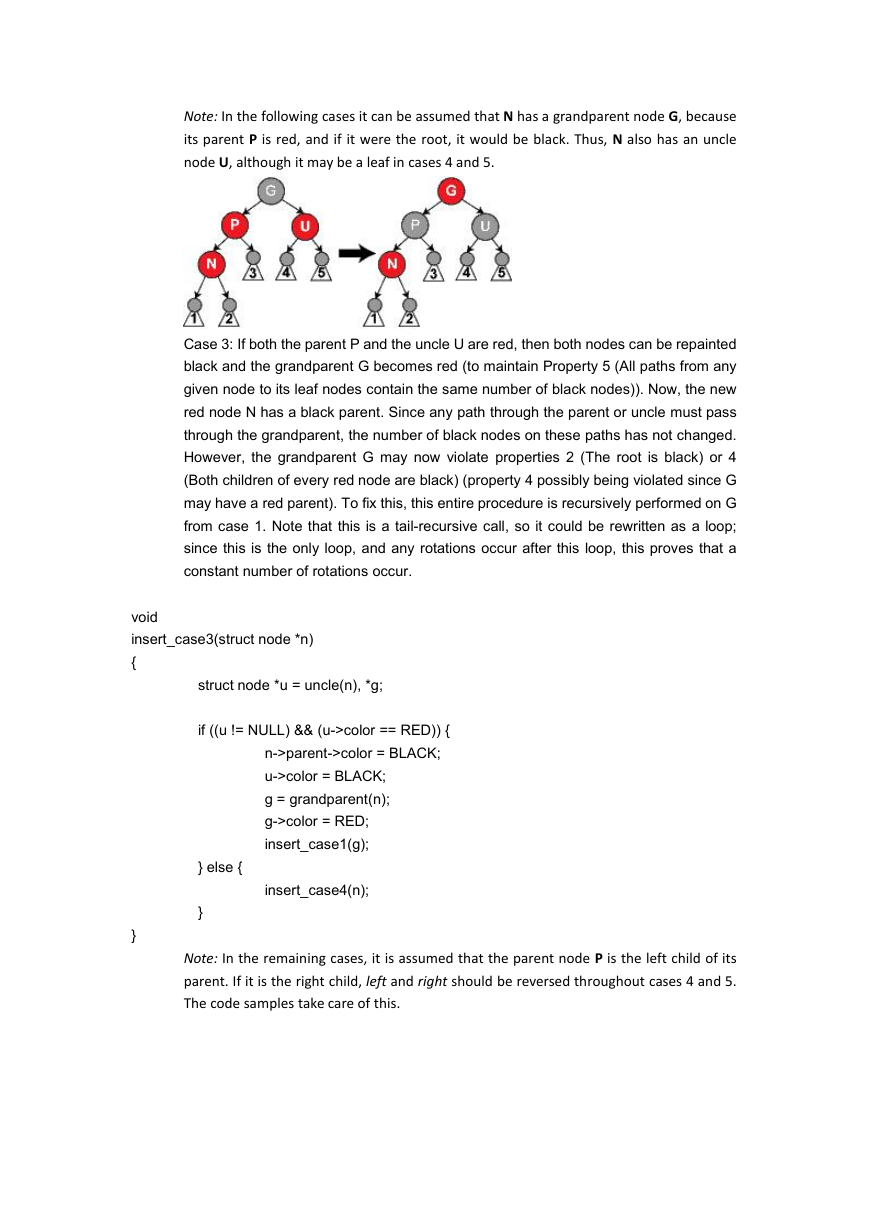

Note: In the following cases it can be assumed that N has a grandparent node G, because
its parent P is red, and if it were the root, it would be black. Thus, N also has an uncle
node U, although it may be a leaf in cases 4 and 5.
Case 3: If both the parent P and the uncle U are red, then both nodes can be repainted
black and the grandparent G becomes red (to maintain Property 5 (All paths from any
given node to its leaf nodes contain the same number of black nodes)). Now, the new
red node N has a black parent. Since any path through the parent or uncle must pass
through the grandparent, the number of black nodes on these paths has not changed.
However, the grandparent G may now violate properties 2 (The root is black) or 4
(Both children of every red node are black) (property 4 possibly being violated since G
may have a red parent). To fix this, this entire procedure is recursively performed on G
from case 1. Note that this is a tail-recursive call, so it could be rewritten as a loop;
since this is the only loop, and any rotations occur after this loop, this proves that a
constant number of rotations occur.
void
insert_case3(struct node *n)
{
struct node *u = uncle(n), *g;
if ((u != NULL) && (u->color == RED)) {
n->parent->color = BLACK;
u->color = BLACK;
g = grandparent(n);
g->color = RED;
insert_case1(g);
} else {
}
insert_case4(n);
}
Note: In the remaining cases, it is assumed that the parent node P is the left child of its
parent. If it is the right child, left and right should be reversed throughout cases 4 and 5.
The code samples take care of this.
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
