iii

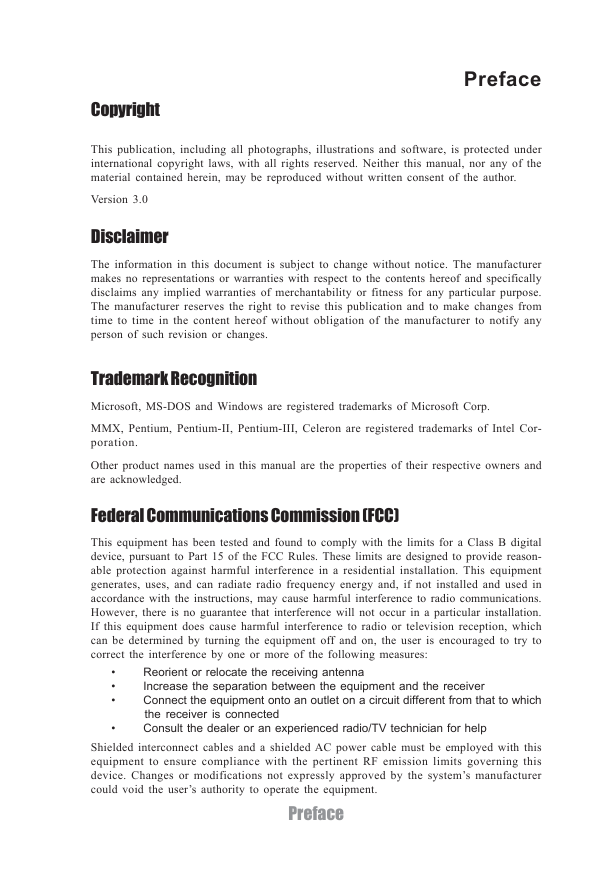

Preface Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 3.0 Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark Recognition Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Cor- poration. Other product names used in this manual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • • Reorient or relocate the receiving antenna Increase the separation between the equipment and the receiver Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment. Preface

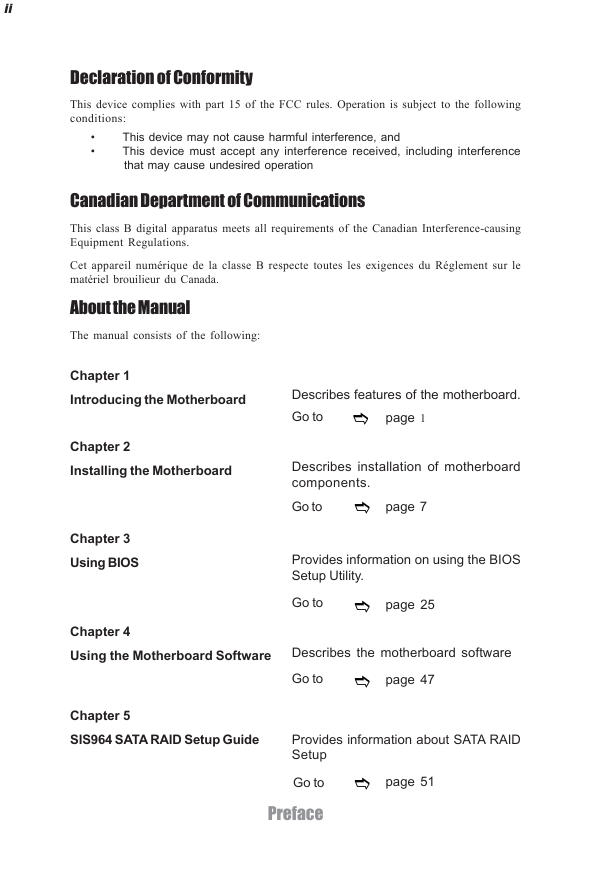

ii Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: • • This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada. About the Manual The manual consists of the following: Chapter 1 Introducing the Motherboard Chapter 2 Installing the Motherboard Chapter 3 Using BIOS Chapter 4 Using the Motherboard Software Describes features of the motherboard. Go to page 1 Describes installation of motherboard components. Go to page 7 Provides information on using the BIOS Setup Utility. Go to page 25 Describes the motherboard software Go to page 47 Chapter 5 SIS964 SATA RAID Setup Guide Provides information about SATA RAID Setup Go to page 51 Preface

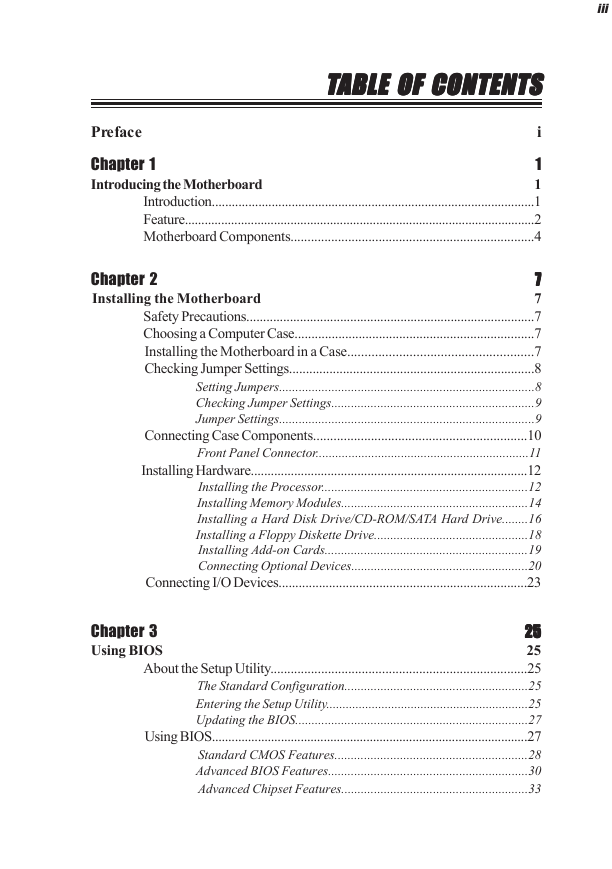

iii TTTTTABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS Preface i Chapter 1 Introducing the Motherboard 1 1 Introduction.................................................................................................1 Feature..........................................................................................................2 Motherboard Components........................................................................4 7 7 7 7 7 Chapter 2 Installing the Motherboard 7 Safety Precautions......................................................................................7 Choosing a Computer Case.......................................................................7 Installing the Motherboard in a Case......................................................7 Checking Jumper Settings.........................................................................8 Setting Jumpers..............................................................................8 Checking Jumper Settings..............................................................9 Jumper Settings..............................................................................9 Connecting Case Components...............................................................10 Front Panel Connector.................................................................11 Installing Hardware...................................................................................12 Installing the Processor...............................................................12 Installing Memory Modules.........................................................14 Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive........16 Installing a Floppy Diskette Drive...............................................18 Installing Add-on Cards..............................................................19 Connecting Optional Devices......................................................20 Connecting I/O Devices..........................................................................23 Chapter 3 Using BIOS 25 25 25 25 25 25 About the Setup Utility............................................................................25 The Standard Configuration........................................................25 Entering the Setup Utility..............................................................25 Updating the BIOS.......................................................................27 Using BIOS................................................................................................27 Standard CMOS Features...........................................................28 Advanced BIOS Features.............................................................30 Advanced Chipset Features.........................................................33

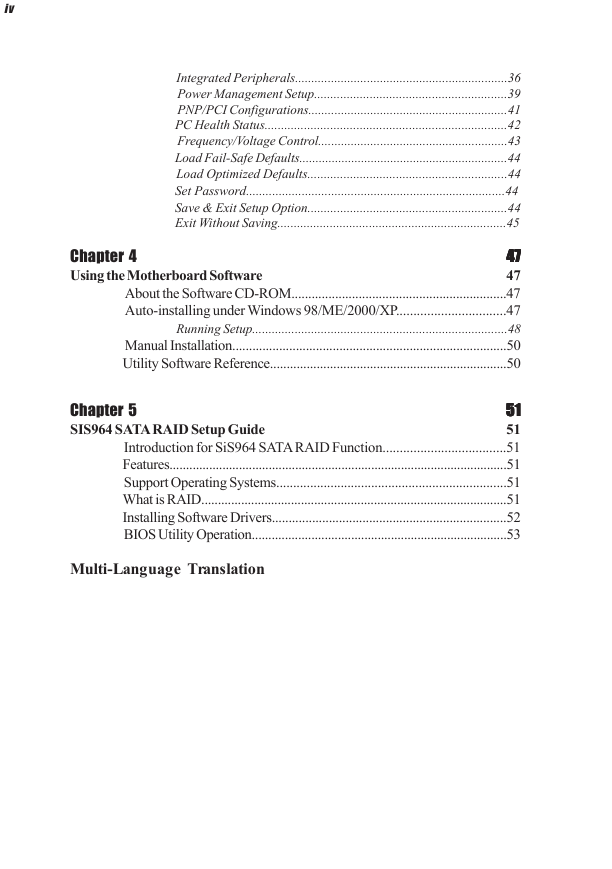

iv Integrated Peripherals.................................................................36 Power Management Setup...........................................................39 PNP/PCI Configurations.............................................................41 PC Health Status..........................................................................42 Frequency/Voltage Control..........................................................43 Load Fail-Safe Defaults................................................................44 Load Optimized Defaults.............................................................44 Set Password...............................................................................44 Save & Exit Setup Option.............................................................44 Exit Without Saving......................................................................45 Chapter 4 Using the Motherboard Software 47 47 47 47 47 47 About the Software CD-ROM................................................................47 Auto-installing under Windows 98/ME/2000/XP................................47 Running Setup..............................................................................48 Manual Installation..................................................................................50 Utility Software Reference.......................................................................50 Chapter 5 SIS964 SATA RAID Setup Guide 51 51 51 51 51 51 Introduction for SiS964 SATA RAID Function....................................51 Features......................................................................................................51 Support Operating Systems....................................................................51 What is RAID............................................................................................51 Installing Software Drivers......................................................................52 BIOS Utility Operation.............................................................................53 Multi-Language Translation

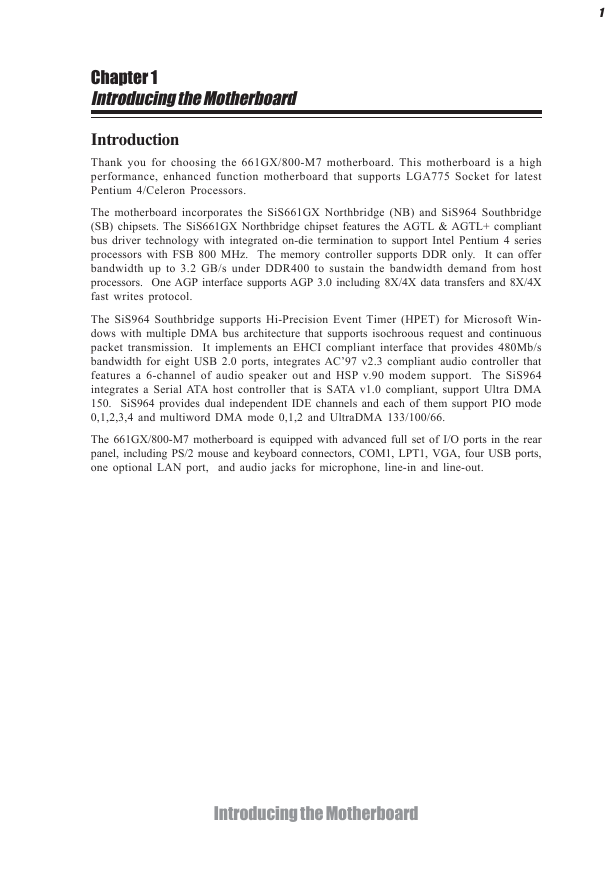

1 Chapter 1 Introducing the Motherboard Introduction Thank you for choosing the 661GX/800-M7 motherboard. This motherboard is a high performance, enhanced function motherboard that supports LGA775 Socket for latest Pentium 4/Celeron Processors. The motherboard incorporates the SiS661GX Northbridge (NB) and SiS964 Southbridge (SB) chipsets. The SiS661GX Northbridge chipset features the AGTL & AGTL+ compliant bus driver technology with integrated on-die termination to support Intel Pentium 4 series processors with FSB 800 MHz. The memory controller supports DDR only. It can offer bandwidth up to 3.2 GB/s under DDR400 to sustain the bandwidth demand from host processors. One AGP interface supports AGP 3.0 including 8X/4X data transfers and 8X/4X fast writes protocol. The SiS964 Southbridge supports Hi-Precision Event Timer (HPET) for Microsoft Win- dows with multiple DMA bus architecture that supports isochroous request and continuous packet transmission. It implements an EHCI compliant interface that provides 480Mb/s bandwidth for eight USB 2.0 ports, integrates AC’97 v2.3 compliant audio controller that features a 6-channel of audio speaker out and HSP v.90 modem support. The SiS964 integrates a Serial ATA host controller that is SATA v1.0 compliant, support Ultra DMA 150. SiS964 provides dual independent IDE channels and each of them support PIO mode 0,1,2,3,4 and multiword DMA mode 0,1,2 and UltraDMA 133/100/66. The 661GX/800-M7 motherboard is equipped with advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, COM1, LPT1, VGA, four USB ports, one optional LAN port, and audio jacks for microphone, line-in and line-out. Introducing the Motherboard

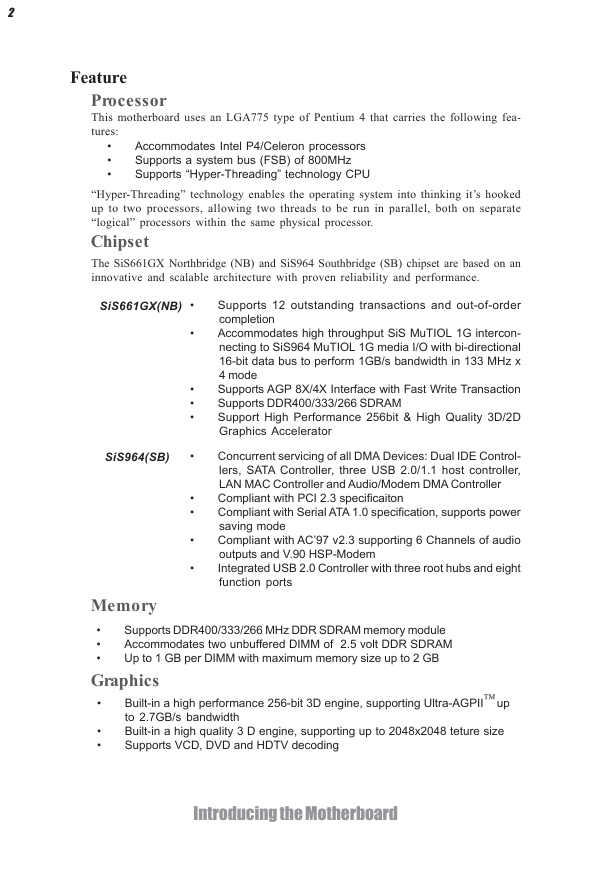

2 Feature Processor This motherboard uses an LGA775 type of Pentium 4 that carries the following fea- tures: • • • Accommodates Intel P4/Celeron processors Supports a system bus (FSB) of 800MHz Supports “Hyper-Threading” technology CPU “Hyper-Threading” technology enables the operating system into thinking it’s hooked up to two processors, allowing two threads to be run in parallel, both on separate “logical” processors within the same physical processor. Chipset The SiS661GX Northbridge (NB) and SiS964 Southbridge (SB) chipset are based on an innovative and scalable architecture with proven reliability and performance. SiS661GX(NB) • SiS964(SB) • • • • • • • • • Supports 12 outstanding transactions and out-of-order completion Accommodates high throughput SiS MuTIOL 1G intercon- necting to SiS964 MuTIOL 1G media I/O with bi-directional 16-bit data bus to perform 1GB/s bandwidth in 133 MHz x 4 mode Supports AGP 8X/4X Interface with Fast Write Transaction Supports DDR400/333/266 SDRAM Support High Performance 256bit & High Quality 3D/2D Graphics Accelerator Concurrent servicing of all DMA Devices: Dual IDE Control- lers, SATA Controller, three USB 2.0/1.1 host controller, LAN MAC Controller and Audio/Modem DMA Controller Compliant with PCI 2.3 specificaiton Compliant with Serial ATA 1.0 specification, supports power saving mode Compliant with AC’97 v2.3 supporting 6 Channels of audio outputs and V.90 HSP-Modem Integrated USB 2.0 Controller with three root hubs and eight function ports Memory • • • Graphics • Supports DDR400/333/266 MHz DDR SDRAM memory module Accommodates two unbuffered DIMM of 2.5 volt DDR SDRAM Up to 1 GB per DIMM with maximum memory size up to 2 GB ™ Built-in a high performance 256-bit 3D engine, supporting Ultra-AGPII up to 2.7GB/s bandwidth Built-in a high quality 3 D engine, supporting up to 2048x2048 teture size Supports VCD, DVD and HDTV decoding • • Introducing the Motherboard
