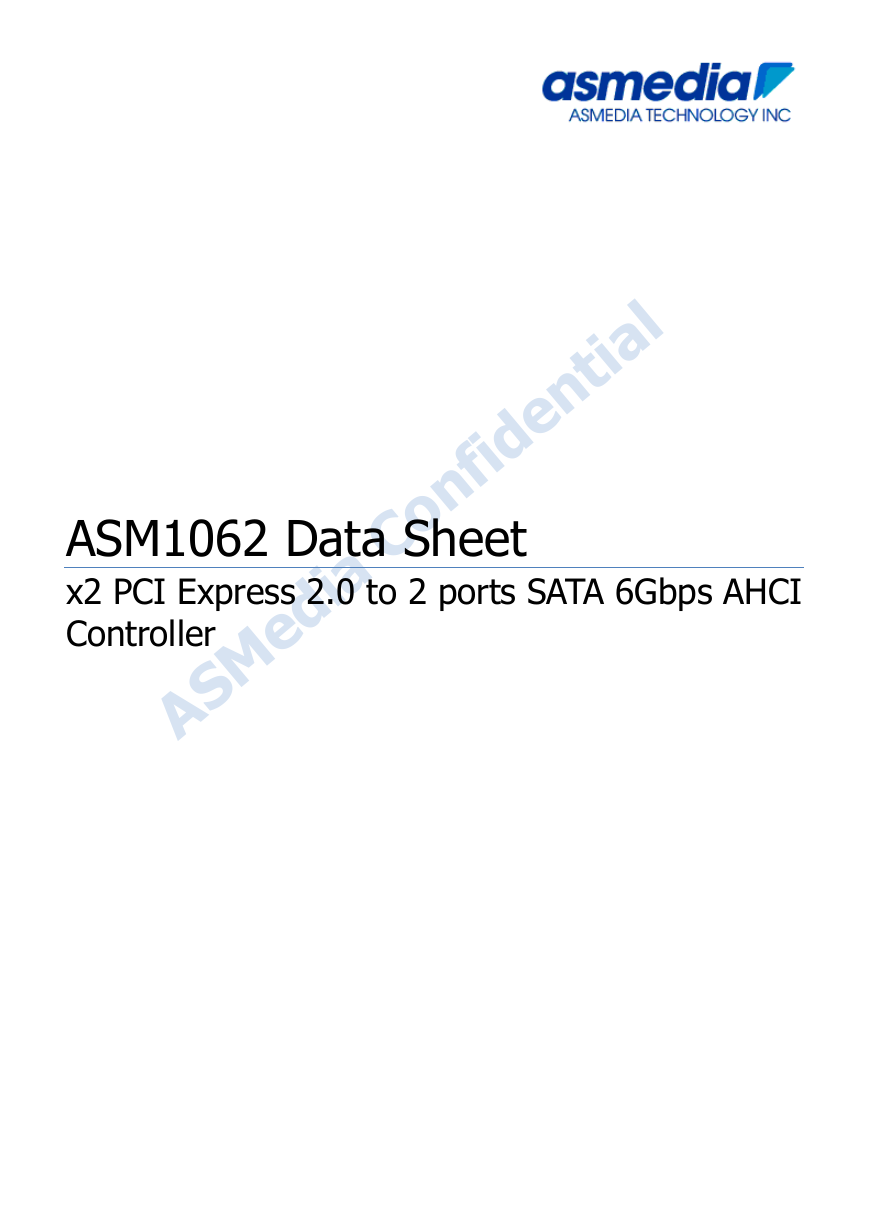

ASM1062 Data Sheet x2 PCI Express 2.0 to 2 ports SATA 6Gbps AHCI Controller A S M edia C o nfidential

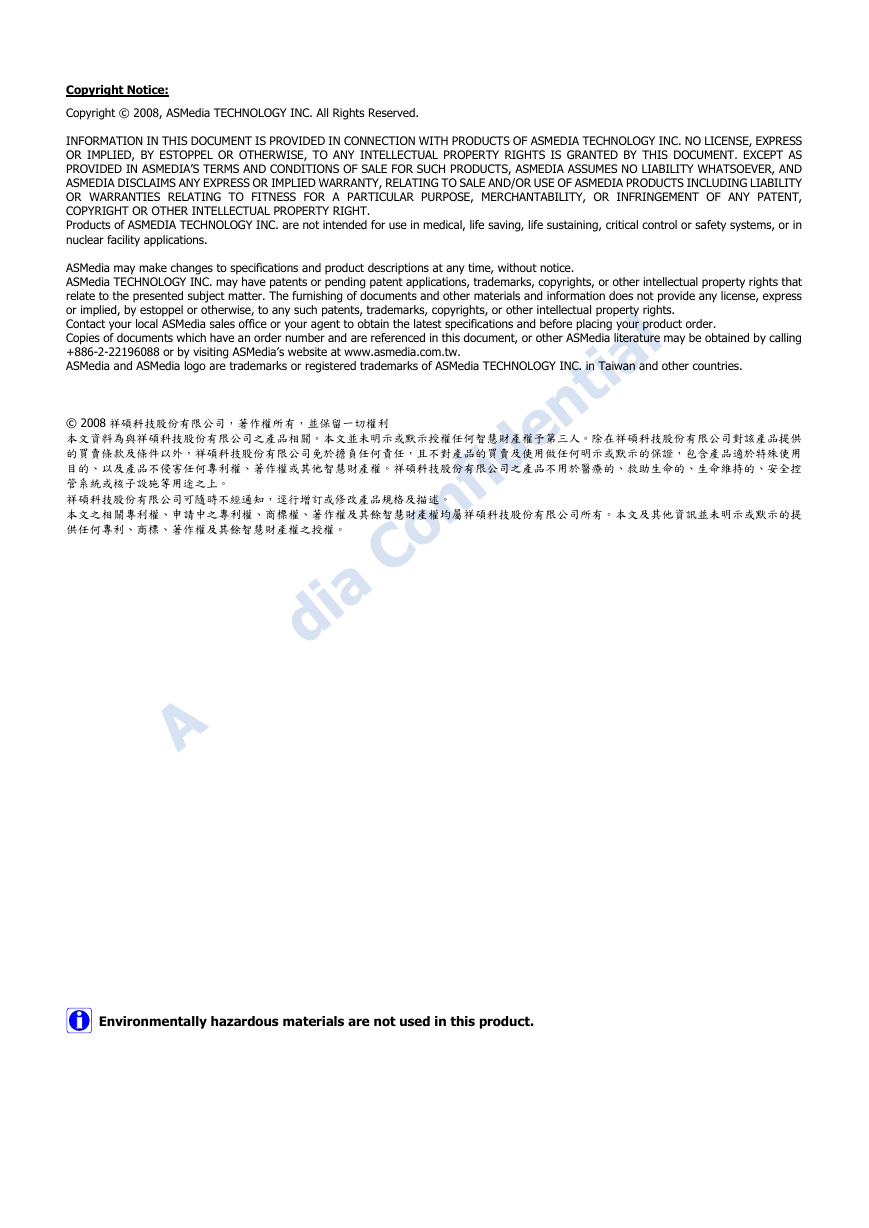

Copyright Notice: Copyright © 2008, ASMedia TECHNOLOGY INC. All Rights Reserved. INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH PRODUCTS OF ASMEDIA TECHNOLOGY INC. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN ASMEDIA’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, ASMEDIA ASSUMES NO LIABILITY WHATSOEVER, AND ASMEDIA DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF ASMEDIA PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Products of ASMEDIA TECHNOLOGY INC. are not intended for use in medical, life saving, life sustaining, critical control or safety systems, or in nuclear facility applications. ASMedia may make changes to specifications and product descriptions at any time, without notice. ASMedia TECHNOLOGY INC. may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by estoppel or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights. Contact your local ASMedia sales office or your agent to obtain the latest specifications and before placing your product order. Copies of documents which have an order number and are referenced in this document, or other ASMedia literature may be obtained by calling +886-2-22196088 or by visiting ASMedia’s website at www.asmedia.com.tw. ASMedia and ASMedia logo are trademarks or registered trademarks of ASMedia TECHNOLOGY INC. in Taiwan and other countries. © 2008 祥碩科技股份有限公司，著作權所有，並保留一切權利本文資料為與祥碩科技股份有限公司之產品相關。本文並未明示或默示授權任何智慧財產權予第三人。除在祥碩科技股份有限公司對該產品提供的買賣條款及條件以外，祥碩科技股份有限公司免於擔負任何責任，且不對產品的買賣及使用做任何明示或默示的保證，包含產品適於特殊使用目的、以及產品不侵害任何專利權、著作權或其他智慧財產權。祥碩科技股份有限公司之產品不用於醫療的、救助生命的、生命維持的、安全控管系統或核子設施等用途之上。祥碩科技股份有限公司可隨時不經通知，逕行增訂或修改產品規格及描述。本文之相關專利權、申請中之專利權、商標權、著作權及其餘智慧財產權均屬祥碩科技股份有限公司所有。本文及其他資訊並未明示或默示的提供任何專利、商標、著作權及其餘智慧財產權之授權。 dia C onfidential A Environmentally hazardous materials are not used in this product.

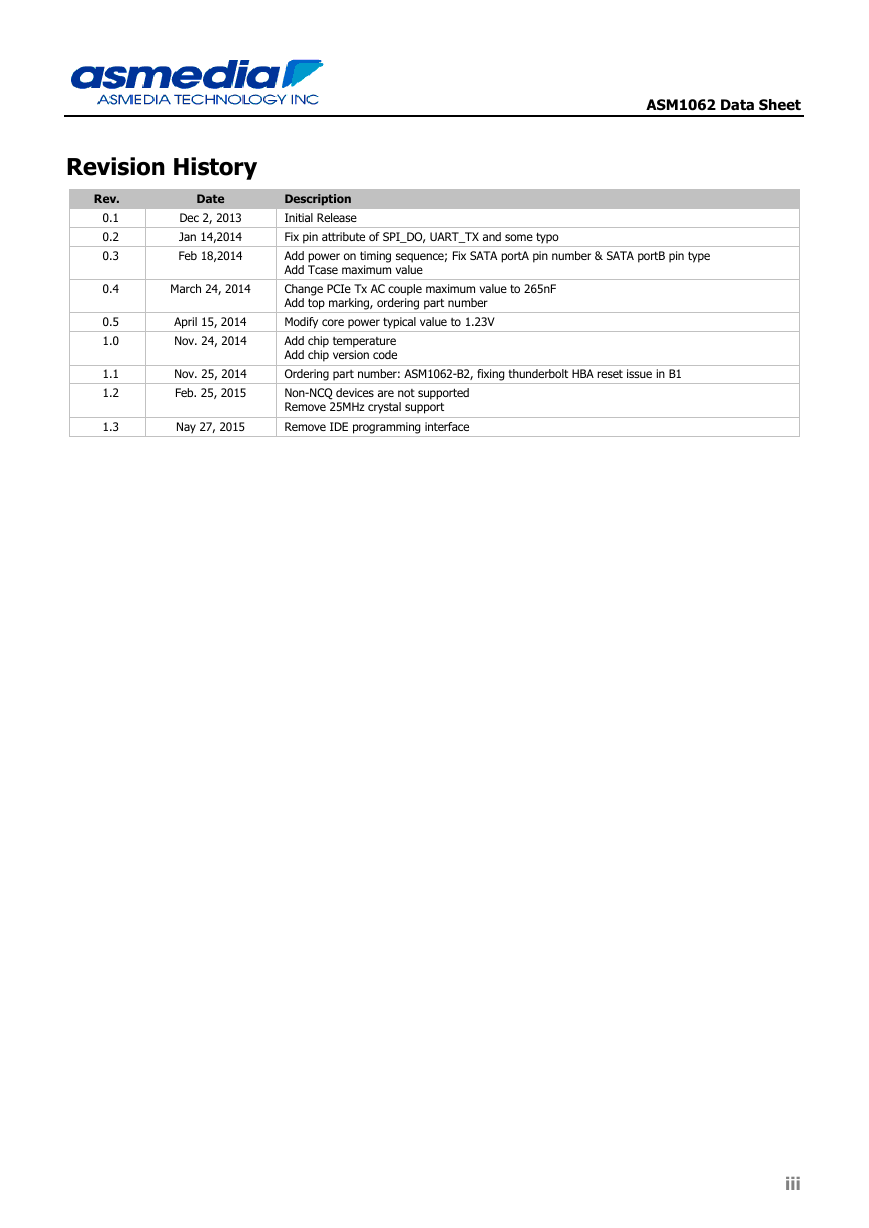

ASM1062 Data Sheet Revision History Rev. 0.1 0.2 0.3 0.4 0.5 1.0 1.1 1.2 1.3 Date Dec 2, 2013 Jan 14,2014 Feb 18,2014 March 24, 2014 April 15, 2014 Nov. 24, 2014 Nov. 25, 2014 Feb. 25, 2015 Nay 27, 2015 Description Initial Release Fix pin attribute of SPI_DO, UART_TX and some typo Add power on timing sequence; Fix SATA portA pin number & SATA portB pin type Add Tcase maximum value Change PCIe Tx AC couple maximum value to 265nF Add top marking, ordering part number Modify core power typical value to 1.23V Add chip temperature Add chip version code Ordering part number: ASM1062-B2, fixing thunderbolt HBA reset issue in B1 Non-NCQ devices are not supported Remove 25MHz crystal support Remove IDE programming interface iii

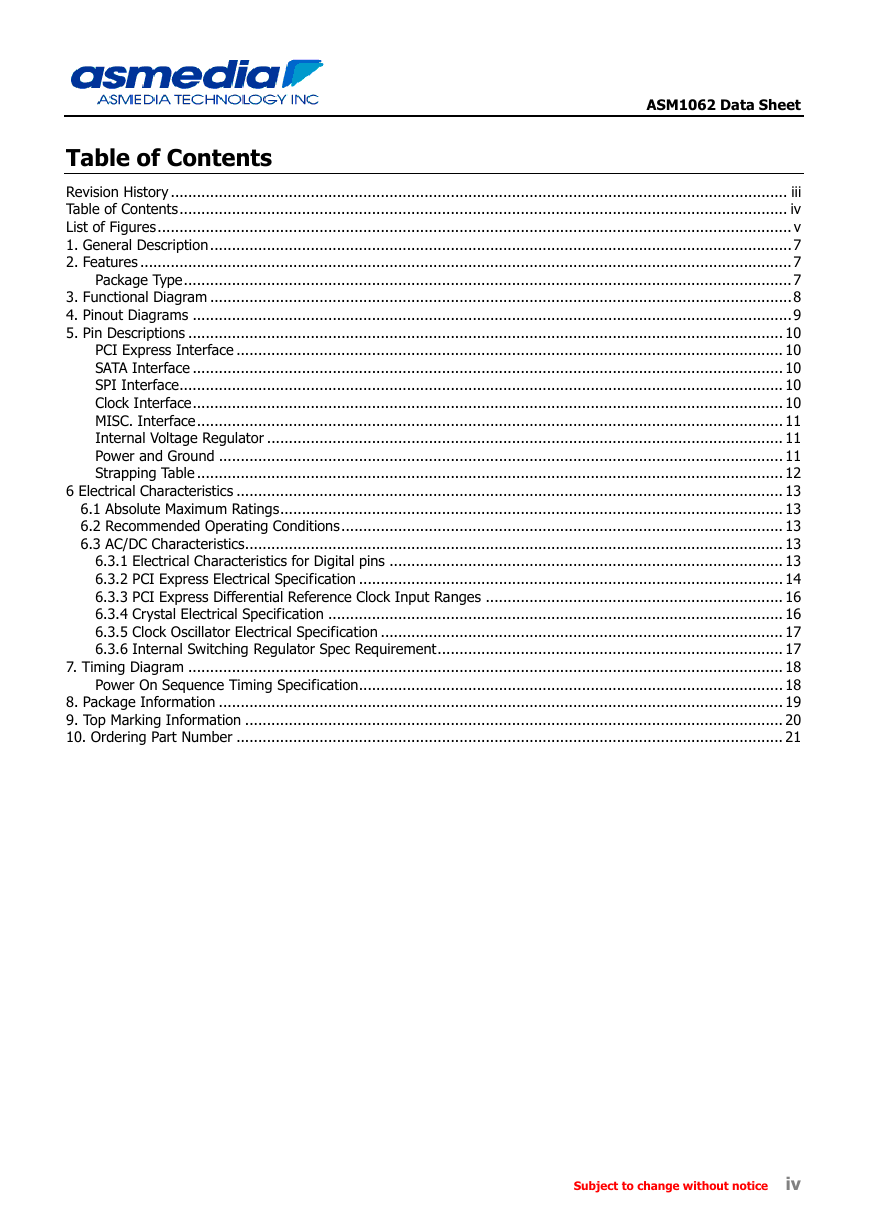

ASM1062 Data Sheet Table of Contents Revision History ............................................................................................................................................. iii Table of Contents ........................................................................................................................................... iv List of Figures ................................................................................................................................................. v 1. General Description ..................................................................................................................................... 7 2. Features ..................................................................................................................................................... 7 Package Type ........................................................................................................................................... 7 3. Functional Diagram ..................................................................................................................................... 8 4. Pinout Diagrams ......................................................................................................................................... 9 5. Pin Descriptions ........................................................................................................................................ 10 PCI Express Interface ............................................................................................................................. 10 SATA Interface ....................................................................................................................................... 10 SPI Interface.......................................................................................................................................... 10 Clock Interface ....................................................................................................................................... 10 MISC. Interface ...................................................................................................................................... 11 Internal Voltage Regulator ...................................................................................................................... 11 Power and Ground ................................................................................................................................. 11 Strapping Table ...................................................................................................................................... 12 6 Electrical Characteristics ............................................................................................................................. 13 6.1 Absolute Maximum Ratings ................................................................................................................... 13 6.2 Recommended Operating Conditions ..................................................................................................... 13 6.3 AC/DC Characteristics ........................................................................................................................... 13 6.3.1 Electrical Characteristics for Digital pins .......................................................................................... 13 6.3.2 PCI Express Electrical Specification ................................................................................................. 14 6.3.3 PCI Express Differential Reference Clock Input Ranges .................................................................... 16 6.3.4 Crystal Electrical Specification ........................................................................................................ 16 6.3.5 Clock Oscillator Electrical Specification ............................................................................................ 17 6.3.6 Internal Switching Regulator Spec Requirement ............................................................................... 17 7. Timing Diagram ........................................................................................................................................ 18 Power On Sequence Timing Specification................................................................................................. 18 8. Package Information ................................................................................................................................. 19 9. Top Marking Information ........................................................................................................................... 20 10. Ordering Part Number ............................................................................................................................. 21 Subject to change without notice iv

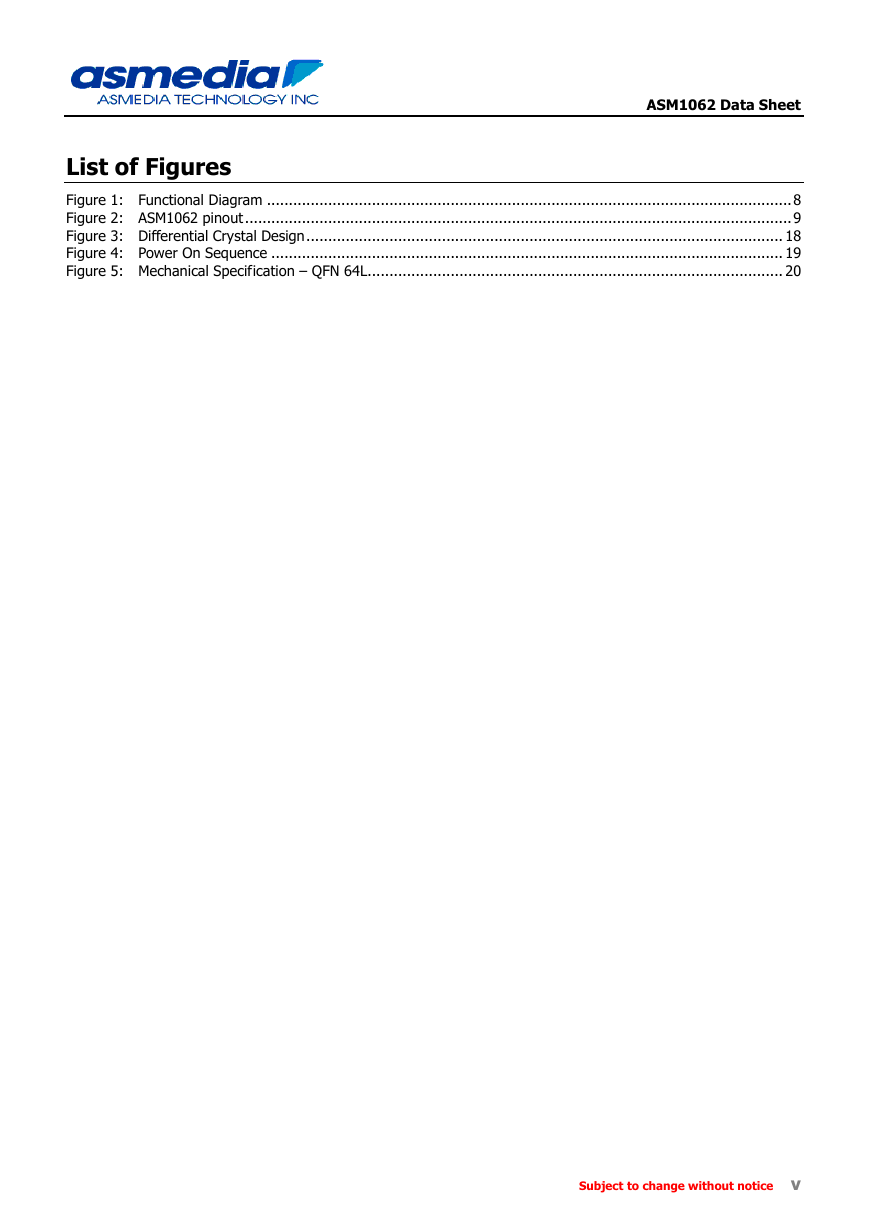

ASM1062 Data Sheet List of Figures Figure 1: Functional Diagram ........................................................................................................................ 8 Figure 2: ASM1062 pinout ............................................................................................................................. 9 Figure 3: Differential Crystal Design ............................................................................................................. 18 Figure 4: Power On Sequence ..................................................................................................................... 19 Figure 5: Mechanical Specification – QFN 64L............................................................................................... 20 Subject to change without notice v

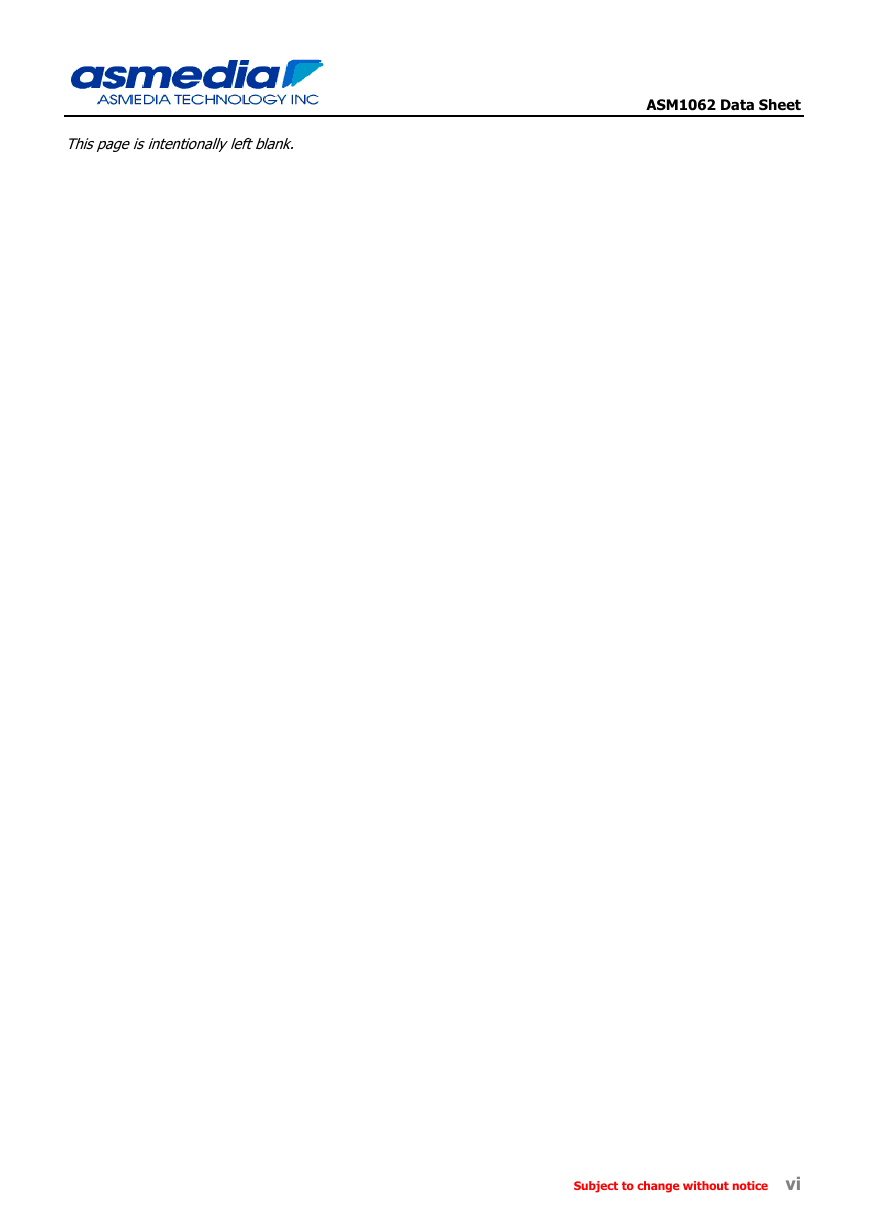

This page is intentionally left blank. ASM1062 Data Sheet Subject to change without notice vi

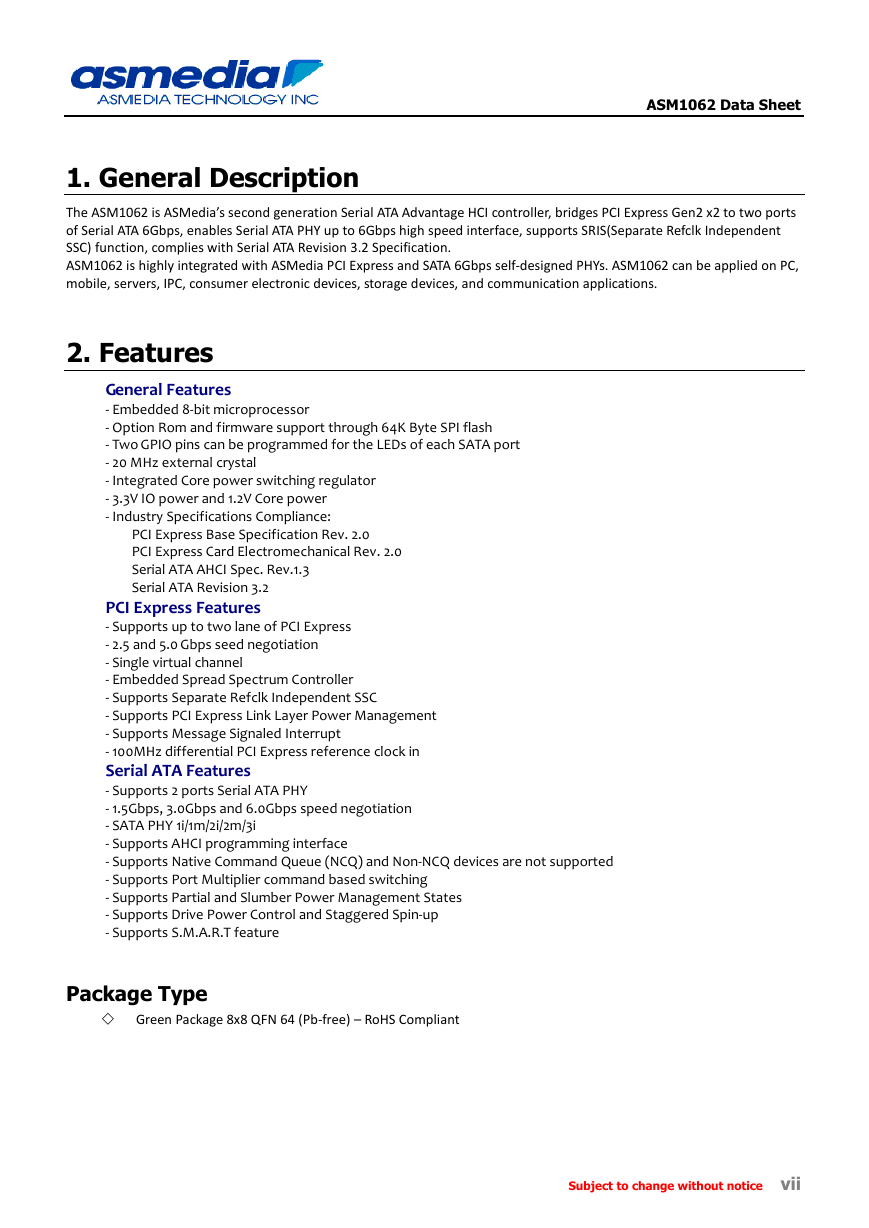

ASM1062 Data Sheet 1. General Description The ASM1062 is ASMedia’s second generation Serial ATA Advantage HCI controller, bridges PCI Express Gen2 x2 to two ports of Serial ATA 6Gbps, enables Serial ATA PHY up to 6Gbps high speed interface, supports SRIS(Separate Refclk Independent SSC) function, complies with Serial ATA Revision 3.2 Specification. ASM1062 is highly integrated with ASMedia PCI Express and SATA 6Gbps self-designed PHYs. ASM1062 can be applied on PC, mobile, servers, IPC, consumer electronic devices, storage devices, and communication applications. 2. Features General Features - Embedded 8-bit microprocessor - Option Rom and firmware support through 64K Byte SPI flash - Two GPIO pins can be programmed for the LEDs of each SATA port - 20 MHz external crystal - Integrated Core power switching regulator - 3.3V IO power and 1.2V Core power - Industry Specifications Compliance: PCI Express Base Specification Rev. 2.0 PCI Express Card Electromechanical Rev. 2.0 Serial ATA AHCI Spec. Rev.1.3 Serial ATA Revision 3.2 PCI Express Features - Supports up to two lane of PCI Express - 2.5 and 5.0 Gbps seed negotiation - Single virtual channel - Embedded Spread Spectrum Controller - Supports Separate Refclk Independent SSC - Supports PCI Express Link Layer Power Management - Supports Message Signaled Interrupt - 100MHz differential PCI Express reference clock in Serial ATA Features - Supports 2 ports Serial ATA PHY - 1.5Gbps, 3.0Gbps and 6.0Gbps speed negotiation - SATA PHY 1i/1m/2i/2m/3i - Supports AHCI programming interface - Supports Native Command Queue (NCQ) and Non-NCQ devices are not supported - Supports Port Multiplier command based switching - Supports Partial and Slumber Power Management States - Supports Drive Power Control and Staggered Spin-up - Supports S.M.A.R.T feature Package Type  Green Package 8x8 QFN 64 (Pb-free) – RoHS Compliant Subject to change without notice vii

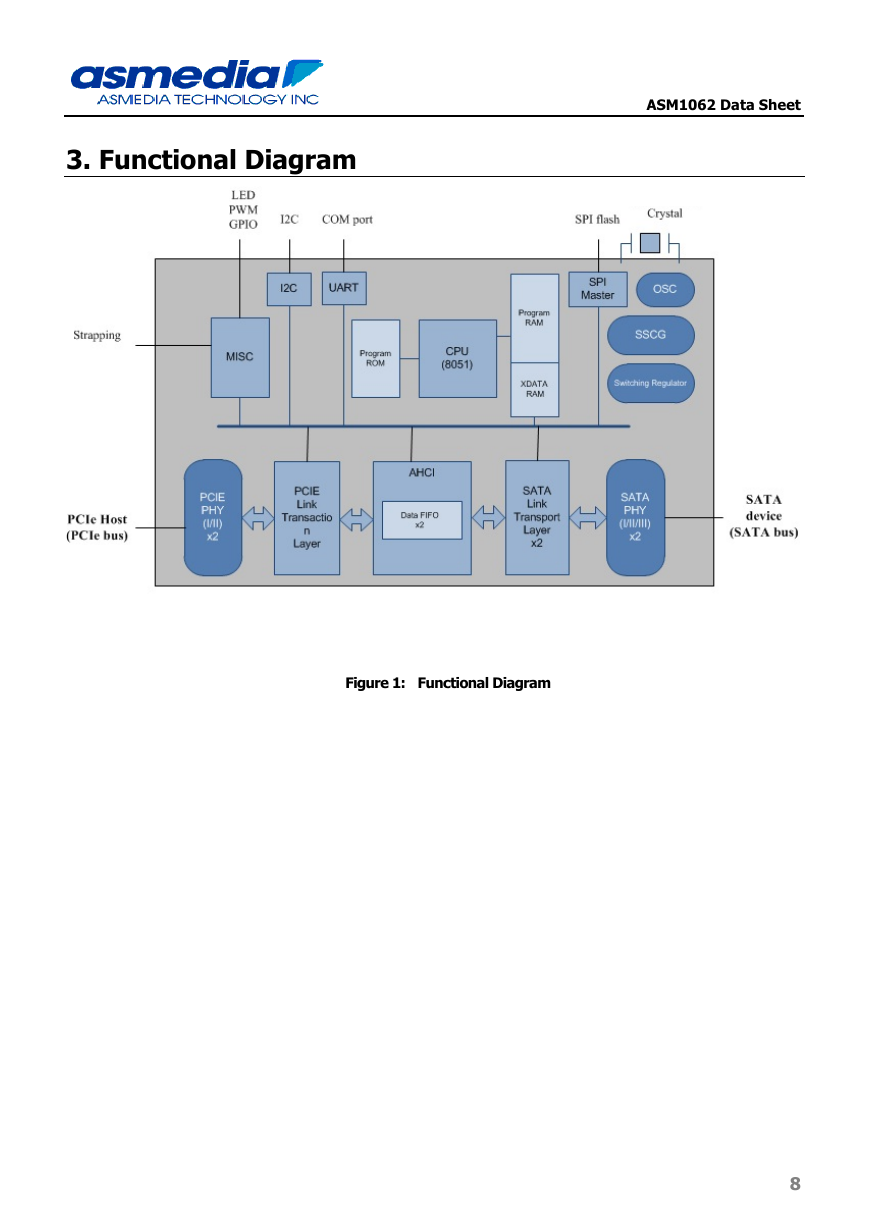

ASM1062 Data Sheet 3. Functional Diagram Figure 1: Functional Diagram 8
